2AXAX-ESOPLAYBluetooth Speaker

EOS play Bluetooth-Speaker USER MANUAL tianhootech.com 01. IMPORTANT SAFETY INSTRUCTIONS • Read these instructions – All the safety and operating instructions should be read before this product is operated. • Keep these instructions – The safety and operating instructions should be retained for future reference. • Heed all warnings – All warnings on the appliance and in the operating instructions should be adhered to. • Follow all instructions – All operating and use instructions should be followed. WARNING! • WARNING –To reduce the risk of fire or electric shock, do not expose this apparatus to rain or moisture. The apparatus shall not be exposed to dripping or splashing • WARNING –do not cover. • WARNING –only use attachments/accessories specified by the manufacturer (such as the exclusive supply adapter, battery etc). the plug is the main disconnect device and should be used as such. The disconnect device should remain readily accessible. • WARNING – do not listen too close to the active loudspeaker. • WARNING – do not listen for an extended period of time at a high sound pressure level. • WARNING – do not attempt to remove the active loudspeaker chassis, there are no user serviceable parts. • DANGER – of dropping the product. MOISTURE AND HUMIDITY • The active loudspeaker should be located in a place free from moisture and water. • Do not use this apparatus near water • Do not expose it to rain or dripping water. Do not splash water on it. 02. INSTALLATION • Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat. • Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions. CONNECTION • Connect the active loudspeaker according to the instructions in the manual. • Connect the active loudspeaker only to the correct mains voltage as shown on the equipment. • Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit the apparatus. • Use only power cables of the type specified in the operating instructions or as marked on the active loudspeaker. • Unplug this apparatus during fulmination storms or when unused for long periods of time. • Do not install in an area that impedes access to the power plug. Disconnecting the power plug is the only way to completely remove power to the product and the plug must be readily accessible at all times. CLEANING • Clean only with dry cloth. MAINTENANCE • Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped. • CAUTION: These servicing instructions are for use by qualified service personnel only. To reduce the risk of electric shock, do not perform any servicing unless you are qualified to do so. 03. COMPLIANCE MARKS Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This device and its antenna(s) must not be co-located or operating in conjunction with any other antenna or transmitter.NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the followingmeasures: -- Reorient or relocate the receiving antenna. -- Increase the separation between the equipment and receiver. -- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -- Consult the dealer or an experienced radio/TV technician for help. To maintain compliance with FCC’s RF Exposure guidelines, The 20cm is the minimum distance that has to be maintained between your body and the device. FCC ID :2AXAX-ESOPLAY 1. EOS play CONFERENCE SPEAKER 2. POWER ADAPTER 3. MICRO USB CABLE 4. USER MANUAL AND WARRANTY CARD 04. BOX CONTENS 1. 2. 3. 4. 05. GENERAL DESCRIPTION 1.UPPER COVER 2.KEY PAD 3.INDICATORS LIGHT 4.MICROPHONE 5.LOUDSPEAKER 6.MICRO USB PORT 1. Short Press : Play / Aanswer. 2. Short Press : Volume Down. Hold Down 3 Seconts : Previous Song. 3 Short Press : Microphone off. 4. Short Press : Volume Up. Hold Down 3 Seconts : Next Song. 5. Short Press : Hang Up. Double Press : Reject the call. Hold Down 3 Seconts : Disconnect and re-pair 06. KEYPAD OVERVIEW 12345 07. IMPORTANT: Before proceeding to point 1 below, check the included power cord and plug and your EOSplay Bluetooth speaker are compatible with your mains electricity supply and associated wall socket. 1. Insert the micro usb cable into the micro usb port on the back of the speaker. 2. Insert the micro usb cable into the usb port on the POWER ADAPTER 3. Connect the POWER ADAPTER to the wall socket. PLUGGING IN THE EOS play 12 3 08. BLUE LIGHT ON : Bluetooth connection Microphone on. BLUE - GREEN FLASHING : Bluetooth is connecting GREEN LIGHT FLASHING : In…

Text truncated - open the document above for the full version.

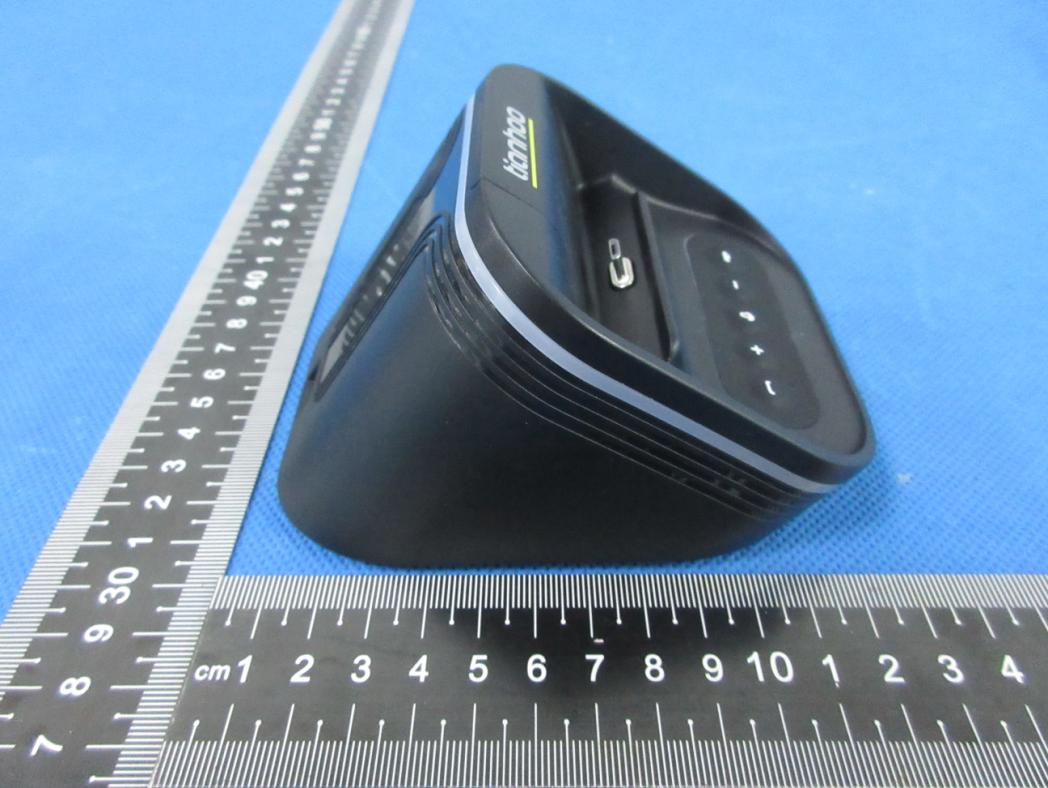

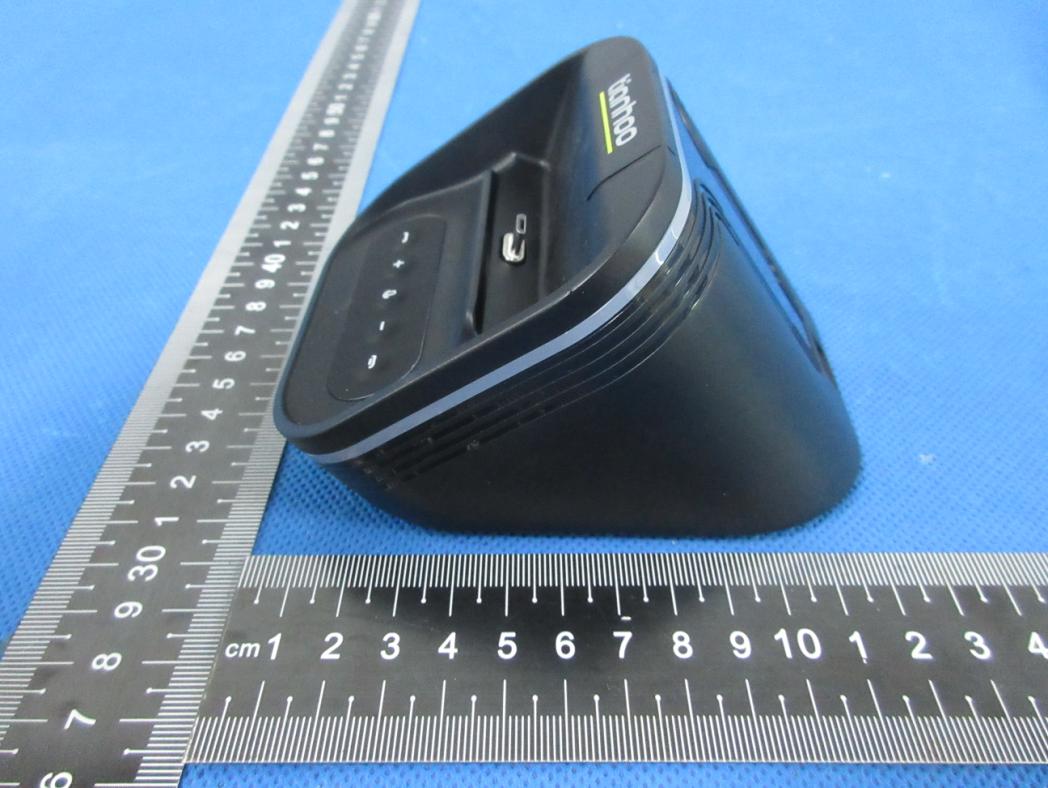

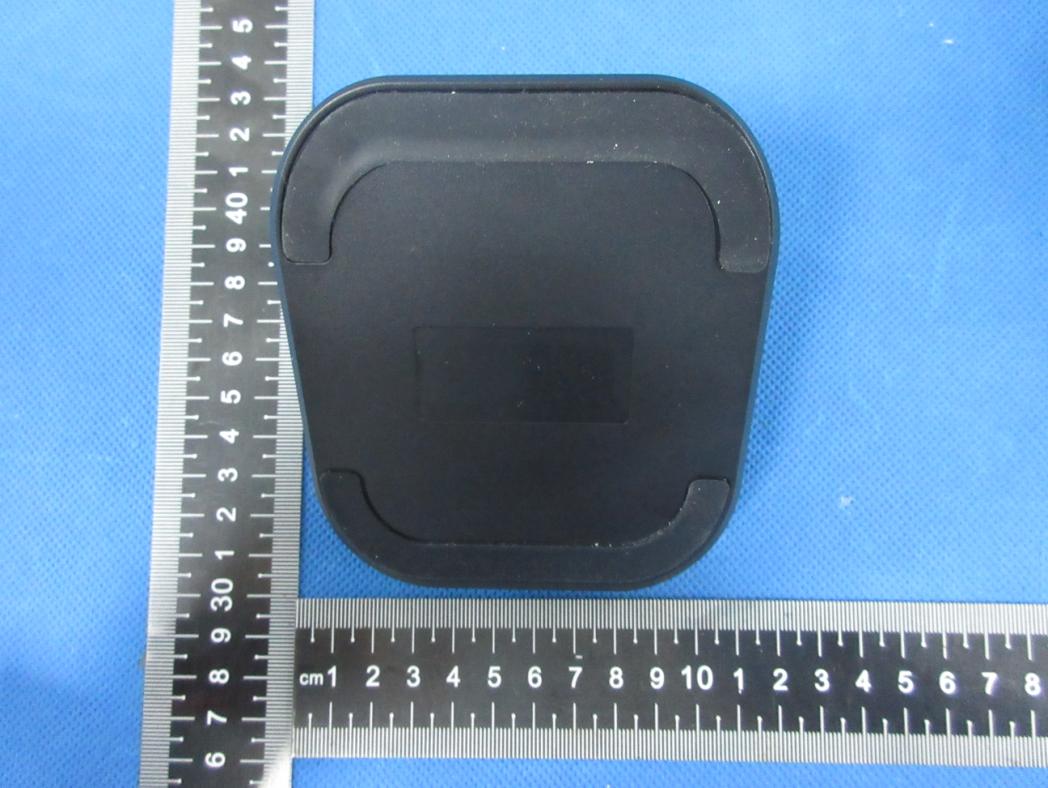

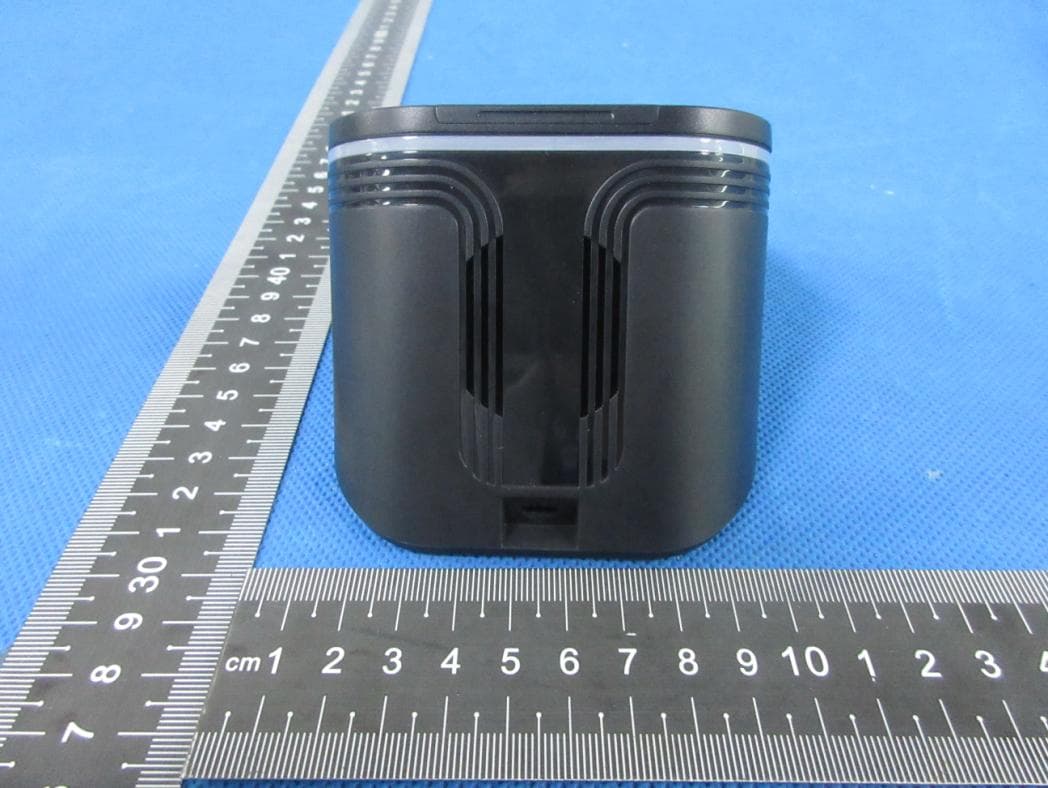

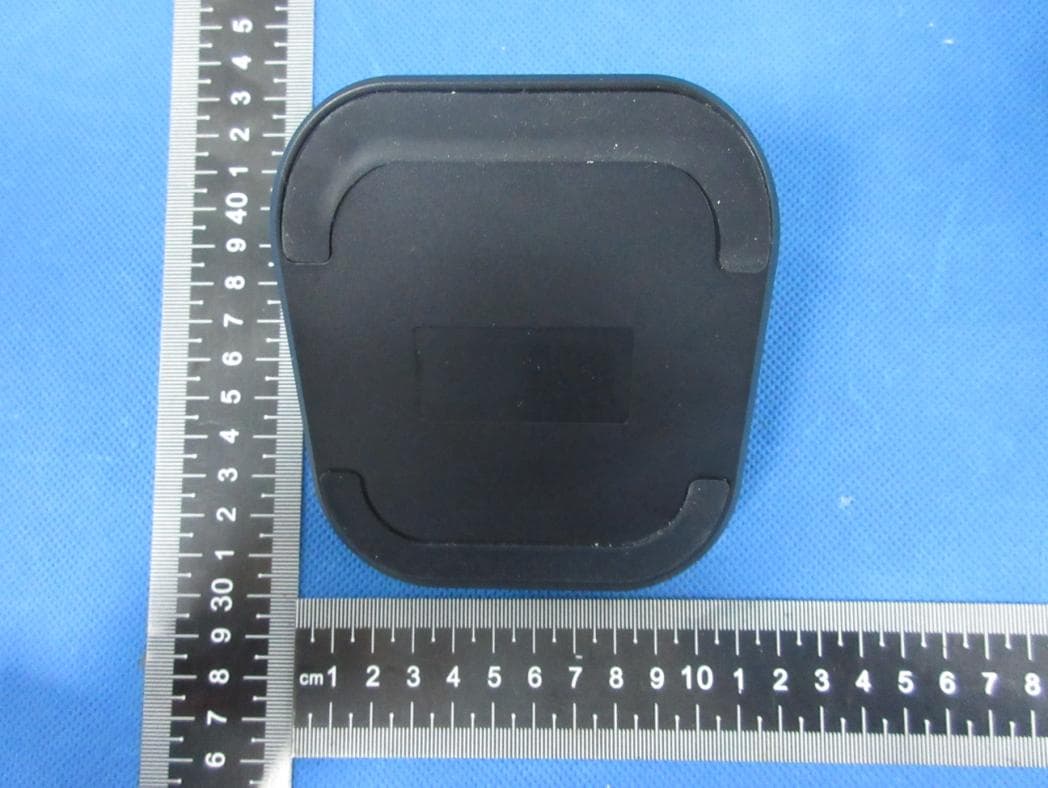

ATTACHMENT PHOTOGRAPHS OF EUT Photo 1 Photo 2 Photo 3 Photo 4 Photo 5 Photo 6

ATTACHMENT PHOTOGRAPHS OF EUT Photo 1 Photo 2 Photo 3 Photo 4 BT Ant Photo 5 Photo 6 Photo 7 Photo 8 Photo 9

FCC ID: 2AXAX-ESOPLAY RF EXPOSURE EVALUATION According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environment impact of human exposure to radio frequency(RF) Radiation as specified in §1.1307(b) Limits for Maximum Permissible Exposure (MPE) MPE Calculation Method E (V/m) ＝ d GP**30 Power Density: Pd (W/m²) ＝ 377 2 E E ＝ Electric field (V/m) P ＝ Average RF output power (W) G ＝ EUT Antenna numeric gain (numeric) d ＝ Separation distance between radiator and human body (m) The formula can be changed to Pd ＝ 2 *377 **30 D GP From the EUT RF output power, the minimum mobile separation distance, d=0.2m, as well as the gain of the used antenna, the RF power density can be obtained. Measurement Result Operation Frequency: BT: 2402-2480MHz Power density limited: 1mW/ cm 2 Antenna Type: PIFA Antenna Antenna gain: 0dBi, R=20cm Conclusion: For the max result : 0.0003≤ 1.0 for Max Power Density, compliance RF exposure.. Signature: Date: 2020-11-11 NAME AND TITLE (Please print or type): Alex li/Manager COMPANY (Please print or type): Shenzhen NTEK Testing Technology Co., Ltd./ 1/F, Building E, Fenda Science Park, Sanwei Community, Xixiang Street Bao’an District, Shenzhen P.R. China. conducted pow er Evaluation result Pow er density Limits (dBm)(mW)(dBi)Numeric 2402-0.514 -1±101.0000.001.000.00021 2440-1.298 -1±101.0000.001.000.00021 24800.08 -1±101.0000.001.000.00021 2402-0.523 -1±101.0000.001.000.00021 2441-1.172 -1±101.0000.001.000.00021 24800.033 -1±101.0000.001.000.00021 24020.9441±12 1.5850.001.000.00031 24410.214 1±121.5850.001.000.00031 24801.56 1±121.5850.001.000.00031 24021.232 1±121.5850.001.000.00031 24410.768 1±121.5850.001.000.00031 24801.904 1±121.5850.001.000.00031 (mW/cm2) Antenna Gain Max tune-up pow er π/4-DQPSK (mW/cm2 ) GFSK 8-DPSK Channel Freq. (MHz) modulation Tune-up pow er (dBm) (dBm) BLE-GFSK

Report No.: S20090403505001 Version.1.3 Page 1 of 83 RADIO TEST REPORT FCC ID: 2AXAX-ESOPLAY Product: Bluetooth Speaker Trade Mark: tianhoo Model No.: EOS PLAY Family Model: N/A Report No.: S20090403505001 Issue Date: 28 Sep. 2020 Prepared for LONGCONN ELECTRONICS (SHENZHEN) CO LTD Floor 3,B1 Block ,Xu Jing Chang Science and Technology Industrial Park,NO.39 HaoyeRoad,FuhaiStreet,Bao'anDistrict,Shenzhen,GuangdongProvince,P.R.China Prepared by Shenzhen NTEK Testing Technology Co., Ltd. 1/F, Building E, Fenda Science Park, Sanwei Community, Xixiang Street Bao’an District, Shenzhen 518126 P.R. China Tel:400-800-6106 , 0755-3699-5508 Website:http://www.ntek.org.cn Report No.: S20090403505001 Version.1.3 Page 2 of 83 TABLE OF CONTENTS 1 TEST RESULT CERTIFICATION ...................................................................................................................... 3 2 SUMMARY OF TEST RESULTS ......................................................................................................................... 4 3 FACILITIES AND ACCREDITATIONS ............................................................................................................. 5 3.1 FACILITIES..................................................................................................................................................... 5 3.2 LABORATORY ACCREDITATIONS AND LISTINGS ................................................................................. 5 3.3 MEASUREMENT UNCERTAINTY ............................................................................................................... 5 4 GENERAL DESCRIPTION OF EUT .................................................................................................................. 6 5 DESCRIPTION OF TEST MODES ..................................................................................................................... 8 6 SETUP OF EQUIPMENT UNDER TEST ........................................................................................................... 9 6.1 BLOCK DIAGRAM CONFIGURATION OF TEST SYSTEM ....................................................................... 9 6.2 SUPPORT EQUIPMENT ............................................................................................................................... 10 6.3 EQUIPMENTS LIST FOR ALL TEST ITEMS .............................................................................................. 11 7 TEST REQUIREMENTS .................................................................................................................................... 13 7.1 CONDUCTED EMISSIONS TEST ............................................................................................................... 13 7.2 RADIATED SPURIOUS EMISSION ............................................................................................................ 16 7.3 NUMBER OF HOPPING CHANNEL ........................................................................................................... 25 7.4 HOPPING CHANNEL SEPARATION MEASUREMENT ........................................................................... 26 7.5 AVERAGE TIME OF OCCUPANCY (DWELL TIME) ................................................................................ 27 7.6 20DB BANDWIDTH TEST .......................................................................................................................... 29 7.7 PEAK OUTPUT POWER .............................................................................................................................. 30 7.8 CONDUCTED BAND EDGE MEASUREMENT......................................................................................... 31 7.9 SPURIOUS RF CONDUCTED EMISSION .................................................................................................. 32 7.10 ANTENNA APPLICATION .......................................................................................................................... 33 7.11 FREQUENCY HOPPING SYSTEM (FHSS) EQUIPMENT REQUIREMENTS .............................................. 34 8 TEST RESULTS ................................................................................................................................................... 35 8.1 DWELL TIME ................................................................................................................................................... 35 8.2 MAXIMUM CONDUCTED OUTPUT POWER ....................................................................................................... 40 8.3 OCCUPIED CHANNEL BANDWIDTH .................................................................................................................. 45 8.4 CARRIER FREQUENCIES SEPARATION .............................................................................................................. 55 8.5 NUMBER OF HOPPING CHANNEL ..................................................................................................................... 60 8.6 BAND EDGE .................................................................................................................................................... 61 8.7 CONDUCTED RF SPURIOUS EMISSION ............................................................................................................. 74 Report No.: S20090403505001 Version.1.3 Page 3 of 83 1 TEST RESULT CERTIFICATION Applicant’s name ......................... : LONGCONN ELECTRONICS (SHENZHEN) CO LTD Address ....................................... : Floor 3,B1 Block ,Xu Jing Chang Science and Technology Industrial Park,NO.39 HaoyeRoad,FuhaiStreet,Bao'anDistrict, Shenzhen,GuangdongProvince,P.R.China Manufacturer's Name .................. : LONGCONN ELECTRONICS (SHENZHEN) CO LTD Address ....................................... : Floor 3,B1 Block ,Xu Jing Chang Science and Technology Industrial Park,NO.39 HaoyeRoad,FuhaiStreet,Bao'anDistrict, Shenzhen,GuangdongProvince…

Text truncated - open the document above for the full version.

Radiated Measurement Photos Conducted Measurement Photos
