2AXCA-TGK200The third mock examination mechanical keyboard

Zhuhai Hoksi Technology CO.,LTD

Click to zoom

Application Details

Equipment Class: DTS - Digital Transmission System
Date of Grant: Feb 13, 2023
Application Purpose: Original Equipment
Date of Application: Feb 13, 2023
Equipment Note: The third mock examination mechanical keyboard
Frequency Range: 2403.00000000 - 2480.00000000
Company: Zhuhai Hoksi Technology CO.,LTD
Country: China

Documents & Files

Select a file to view

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

Thethirdmockexaminationmechanicalkeyboard TGK200 1.Takingintoaccount:Wired,2.4G,Bluetooththreemodels; 2.Axlelampspecifications:4228-RGB; 3.Sidelampspecifications:1210-RGB; 4.Axle:KaiHualowshafthotplugseat; 5.Powersourceseatspecifications:ultra-thin3PIN,1.25MM,horizontalwelding; 6.Thetoggleswitchis2segments: 6.1.Dual-modestate(wired+Bluetooth)： Toggletheswitchandpushitdown:turnoffthebattery,pluginthedataline(wiredmode), andturnoffthebatterywhenthereisnodataline;Toggletheswitchtopushup:turnonthe batteryandautomaticallyswitchintoBluetoothmodeFN+Q(default);Bluetoothisdividedinto threegroups:FN+Q,FN+W,FN+E; 6.2.Dual-modestate(wired+2.4G)： Toggletheswitchandpushitdown:turnoffthebattery,pluginthedataline(wiredmode), andturnoffthebatterywhenthereisnodataline;Toggletheswitchtopushup:turnonthe batteryandautomaticallyswitchintothe2.4Gmode. 6.3.Three-modestate(wired+2.4G+Bluetooth)： Toggletheswitchandpushitdown:turnoffthebattery,pluginthedataline(wiredmode), andturnoffthebatterywhenthereisnodataline;Toggletheswitchtopushup:turnonthe batteryandautomaticallyswitchintoBluetoothmode(defaultFN+Q);Manuallyswitchto Bluetoothand2.4Gmodes:FN+Q(Bluetooth),FN+W(Bluetooth),FN+E(Bluetooth), FN+R(2.4G);AfterFN+T(wired)isswitched,thecorrespondingbuttonlightsshow:blue (Bluetooth),red(2.4G),andblinkslowlyfor3times;Bluetoothname:BT3.0BT5.0canbe modified 7.Theweaklightis:Pkey(whitelightflashesslowly) 8.Numberofkeys:68key:allkeysaresupportedwithoutconflict. 9.WinXP,Win7,Win8,Win10,OSXandLinuxaresupported. 10.Poweronagaintosavethelastlighteffect(power-offmemory). 11.CombinationKey： Fn+Esc=~ Fn+1=F1 Fn+2=F2 Fn+3=F3 Fn+4=F4 Fn+5=F5 Fn+6=F6 Fn+7=F7 Fn+8=F8 Fn+9=F9 Fn+0=F10 Fn+-=F11 Fn+==F12 Fn+Tab=Returntothekeyboardfactorymode(pressandholdfor3seconds) Fn+↑↓Adjustthebrightnessofkeypadlights. FN+←→Adjustthekeypadlightspeed.； Fn+Win=Winkeyislocked,andthekeylightshowsthatthewhitelightisalwayson.After unlocking,theoriginalkeypadlightmodewillberestored. ClicktheCAPSLOCKkeytoturnonthesizeswitchingfunction,andthekeylightwillalwaysbeon. Afteritisturnedoff,theoriginalkeypadlightmodewillberestored. FN+CAPS=MAC/WIN Fn+END=HOM; Fn+Del=Ins; Fn+PgUp=PrtSc; Fn+PgDn=PAUS; 12.Fn+[{：Keyarealightmodecycleswitching（Xlightmodes,thedefaultisX.） 13.Fn+]}：Keypadlightcolorswitching 14.Fn+\|:Keylighton/off 15.Fn+;”：Atthebottomofthelightcycleswitch,(RGBgallopsclockwise-seven-colorcycle breathing(red-yellow-green-cyan-pink-white)-redisalwayson-yellowisalwayson-greenis alwayson-cyanisalwayson-blueisalwayson-pinkisalwayson-whiteisalwayson-10light modes. 16.Fn+’”:Bottomlighton/off 17.Lightingpattern: Constantlightmode,breathingmode,dreamyrainbow,hairtrigger,walkingintherain,rainbow roulettewheel,ripplespreading,stars,notracethroughthesnow,Flowing,driftingwiththetide, followingtheshadows,sinusoidallightwaves,scanningleftandright,rotatingwindmills,colorful waterfalls,bloomingflowers,rotatingstorms,Backandforthcollision. 18.PressthekeycombinationFn+BackSpace,thebacklightgoesout,andthenumberkeys1to 0lightuptoshowtheproportionofelectricity,forexample: 1,indicating10%electricity,1and2,indicating20%electricity.(lessthan30%red,lessthan50% yellowandmorethan50%green). 19.Lowelectricalparameters:Inwirelessmode,whenthebatteryisdetectedtobelowerthan orequalto3.1V,itwillbeturnedoff,anditwillbeabletoresumenormaluseafterbeingplugged inforcharging.Orwhenthebatteryisgreaterthanorequalto3.3V,itcanbeusednormally. FCCStatement ThisequipmenthasbeentestedandfoundtocomplywiththelimitsforaClassBdigitaldevice, pursuanttopart15oftheFCCRules.Theselimitsaredesignedtoprovidereasonableprotection againstharmfulinterferenceinaresidentialinstallation.Thisequipmentgenerates,usesandcan radiateradiofrequencyenergyand,ifnotinstalledandusedinaccordancewiththeinstructions, maycauseharmfulinterferencetoradiocommunications.However,thereisnoguaranteethat interferencewillnotoccurinaparticularinstallation.Ifthisequipmentdoescauseharmful interferencetoradioortelevisionreception,whichcanbedeterminedbyturningtheequipment offandon,theuserisencouragedtotrytocorrecttheinterferencebyoneormoreofthe followingmeasures: Reorientorrelocatethereceivingantenna. Increasetheseparationbetweentheequipmentandreceiver. Connecttheequipmentintoanoutletonacircuitdifferentfromthattowhichthereceiveris connected. Consultthedealeroranexperiencedradio/TVtechnicianforhelp. Caution:Anychangesormodificationstothisdevicenotexplicitlyapprovedbymanufacturer couldvoidyourauthoritytooperatethisequipment. Thisdevicecomplieswithpart15oftheFCCRules.Operationissubjecttothefollowingtwo conditions:(1)Thisdevicemaynotcauseharmfulinterference,and(2)thisdevicemustaccept anyinterferencereceived,includinginterferencethatmaycauseundesiredoperation. RFExposureInformation ThedevicehasbeenevaluatedtomeetgeneralRFexposurerequirement.Thedevicecanbeused inportableexposureconditionwithoutrestriction.

Attestation Statements

Zhuhai Hoksi Technology CO.,LTD Room803,No.3 BLDG,No.6, Pingbei 1 Rd., Nanping Technology&Industry Park,Xiangzhou St., ZhuHai China The information provided in this letter is based on the referenced rule parts of Title 47 of the CFR as well as KDB 986446 D01. Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 2023-2-8 To whom it may concern: We, Zhuhai Hoksi Technology CO.,LTD , hereby certify that the equipment for which authorization is sought (FCC ID: 2AXCA-TGK200) is not “covered” equipment prohibited from receiving an equipment authorization pursuant to § 2.903 of the FCC rules. We also certify that, as of the date of the filing of the application, we are not identified on the Covered List (https://www.fcc.gov/supplychain/coveredlist) as an entity producing “covered” equipment. By signing this form, we confirm the above and that we are aware of the application requirements listed under § 2.911(b) and (d)(5) and (6). Sincerely, Signature Gavin Jiang CEO Zhuhai Hoksi Technology CO.,LTD 62_[model] CoveredEqu_2.911(d)(5)(i) and (ii) - U, V02

Attestation Statements

ZhuhaiHoksiTechnologyCO.,LTD Room803,No.3building,No.6,Pingbei1Road,NanpingTechnology&IndustryPark, XiangzhouDistrict,ZhuhaiCity,China TheinformationprovidedinthisletterisbasedonthereferencedrulepartsofTitle47oftheCFRaswellasKDB986446D01. Anexpirationdateforthisletterdoesnotexist.IncasetheU.S.agentchanges,thegranteeisobligatedtonotifytheFCC. FederalCommunicationsCommission AuthorizationandEvaluationDivision EquipmentAuthorizationBranch 7435OaklandMillsRoad Columbia,MD21046 2023/02/09 U.S.AgentDesignation ZhuhaiHoksiTechnologyCO.,LTDacknowledgestheirconsentforthefollowingcontactlocatedin theUnitedStatestoactastheiragentforserviceofprocessfortheequipmentforwhichauthorization issought(FCCID:2AXCA-TGK200): NameandcompanyofU.S.agent:TianHengConsulting,LLC PhysicalU.S.addressofagent:392AndoverStreet,Wilmington,MA01887,UnitedStates FRNofU.S.agent:0033401258 EmailaddressofU.S.agent:[email protected] TianHengConsulting,LLCacknowledgestheirobligationtoacceptserviceofprocessonbehalfof ZhuhaiHoksiTechnologyCO.,LTD. ZhuhaiHoksiTechnologyCO.,LTDacceptsitsobligationtomaintainanagentforserviceof processintheUnitedStatesfornolessthanoneyearaftereitherthegranteehaspermanently terminatedallmarketingandimportationoftheapplicableequipmentwithintheU.S.,ortheconclusion ofanyCommission-relatedadministrativeorjudicialproceedinginvolvingtheequipment,whicheveris later. Bysigningthisform,weconfirmtheaboveandthatweareawareoftheapplicationrequirements listedunder§2.911(d)(7). Sincerely, Signature GavinJiang CEO ZhuhaiHoksiTechnologyCO.,LTD Signature HualingDong President TianHengConsulting,LLC 4 8 _ [ m o d e l ] U S _ A g e n t _ 2 . 9 1 1 ( d ) ( 7 ) - U , V 0 3

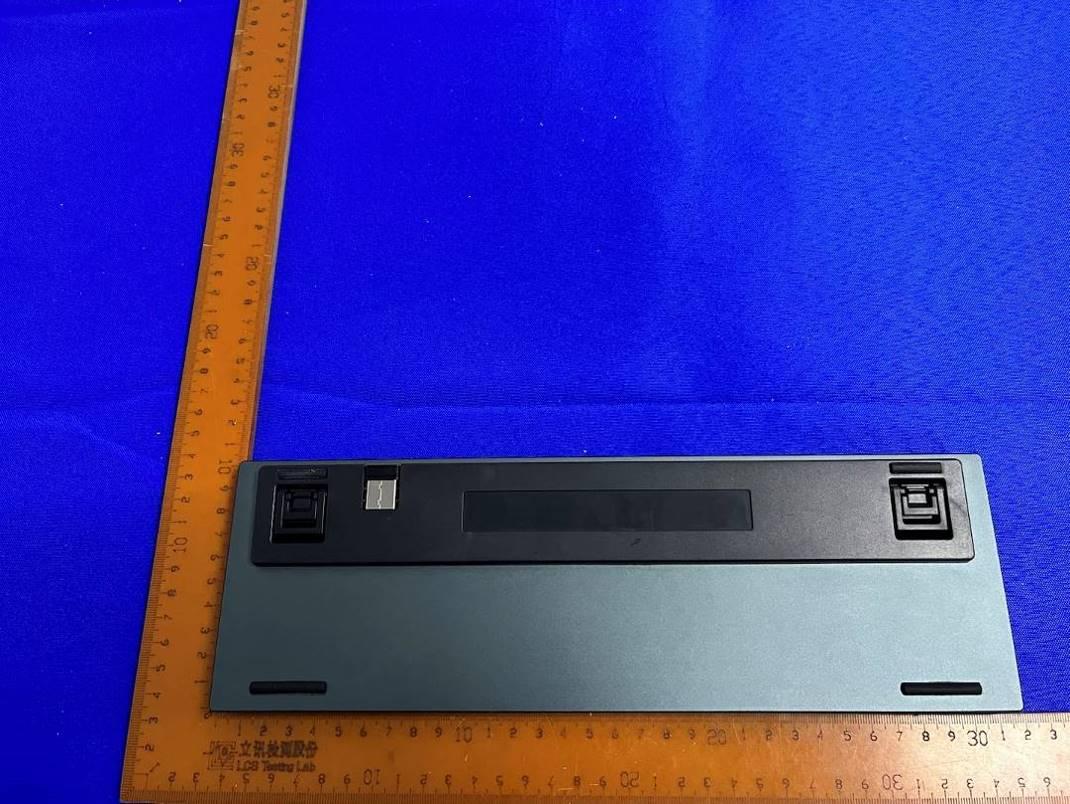

External Photos
