2AXCI-XPAW008AMibro Watch GS

Mibro Watch GS Product overview Buttons and touch Product description Please read this manual carefully before using the product and keep it properly Packing list: Mibro Watch GS (including strap) X 1, Quick GuideX1, User manual X 1, Magnetic charging X 1. Charging port (Negative) Charging port （Positive） Heart rate sensor Swipe up: Information interface Swipe down: Call out the control center Home button Shortcut key Full touch display Home button Shortcut key Turning On: Holding the button for 2 seconds until the screen lights up Turning Off: Long press the button for 2 seconds until the screen turn off Return: Click Swipe left: Change Watch Face Swipe right: Change Watch Face Tips： 1. For better use experience, please update the App to the latest version according to the prompt. 2. The system requires Android 5.0 or iOS 10.0 or above. Please scan the QR code to download the “Mibro Fit”App 1. For the first use, Please press and hold the home button of the watch for 2 seconds to turn it on. 2. Scan the QR code on the right side with your phone, download the “Mibro Fit”App, or search for the "Mibro Fit" App in the Android App Store/iOS App Store, download and install. Turn on and Install App Tips: 1. Do not pair directly through Bluetooth in the phone settings. 2. After the iOS system device connects the App for the first time, it will receive the prompt of Bluetooth pairing request. You need to click "Pairing" to connect, so that the watch can receive the notification and reminder of calls and SMS pushed from the iOS system. 3. After the Android device connects the App for the first time, it will receive a prompt to open the application permission. Please open the permission according to the prompt, otherwise the connection will be unstable with a small probability. Connect the watch Please use "mibro fit" scanning QR code to pairing Swipe down the main page to swift to the control center, click the QR code, and use the QR code scan function in the App to scan the QR code to connect to the watch to complete the pairing. Or use the connection management function in the App to search for the device, and select "XPAW008" and click to complete the pairing. Android Device Open Permissions Enable self-starting permission Backstage power consumption protection Clean up backstage protection Turn on message notification Operating Instructions 1. Key definition Home Button: 1). Press and hold for 2 seconds to turn on and off. 2). On the dial page, short press to enter the menu and return to the dial. 3). When the screen is off, press briefly to light up the screen. 4). Other pages short press to return to dial page. Shortcut key: Short press to enter the customized shortcut function. 2. Dial page touch gesture 1). Change the Watch Face: Slide left / right on the main page to change the default watch face, and the system presets 5 default watch faces. 2). Watch face editing: Press the screen at the main page length to edit the default watch face. Select one watch face to slide up to delete, and select the "+" sign to add others as the default watch face. One of them is "album dial", which can customize multiple album photos in the "Mibro Fit" App. After selection, you can switch the album content on the single point screen of the main watch face. 3). Shortcut menu: slide down on the main page to return. 4). Message notification: slide on the main page, slide or right slide back. 5). When a message is sent to the watch, the information details will pop up. Right slide or press the home button to return to the main page. Features Detect heart rate anytime and anywhere, make scientific chart analysis, and record the latest 7 heart rate data. Heart rate Blood oxygen was detected anytime and anywhere, and scientific chart analysis was made to record the blood oxygen data of the last 7 times. Blood oxygen Data Record the daily exercise data, including the number of steps, distance, calories, activity time, activity times. Intelligent monitoring of your sleep quality, scientific analysis of sleep time, record 7 days of sleep data. Sleep Sports Monitor the change of your stress value in a day and form an analysis icon. Pressure Running*5: Outdoor running,Treadmill,Walking,Hiking,Trailrunning. Cycling*2: Indoor cycling,Outdoor running. Swimming*2: Swimming,Open water swimming. Outdoor*8: Trekking,Triathlon,Roller skating,Rock climbing,Skateboard,Parkour,Fly- ing kites,Frisbee. Indoor*12:Rope skipping,Strength training,Elliptical machine,Sit-ups,Push ups,Free training,Stepping machine,Walking machine,Aerobics,Yoga,Pilates,Rowing machine. Dancing*7:Dance,Square dance,Hip hop,Belly Dance,Jazz,Latin dance,Ballet. Ball*22: Basketball,Football,Badminton,Pingpong,Tennis,Rugby,Bil- liards,Bowling,Volleyball,Shuttlecock,Handball,Baseball,Softball,Cricket,Beach Soccer,Beach Volleyball,Gateball,Hockey,Squash,Water Polo,Sepaktakraw,Dodgeball. Aquatics*5: Sailboat,Dragon Boat,Canoeing,Rowing,Motorboat. Fight*7:Taekwondo,Boxing,Free fight,Taiji boxing,Karate,Fencing,Kendo. Different frequency and time can be set for respiratory adjustment training. Breath training After connecting the mobile phone, you can synchronize the weather in the App. Weather Watch quick timer. Timer Start the stopwatch function. Stopwatch Watch alarm clock setting function. Alarm The watch is connected to the mobile phone, you can control the music playing of the mobile phone. Music Screen display setting, system menu switching, vibration mode, do not disturb mode, connecting mobile phone, language setting, power saving mode, factory recovery, restart, shutdown and other settings. Setting Compass Calendar Search your phone After connecting the phone, you can find the phone through the watch. Note: Only the domestic version of China supports Alipay. Alipay Calculator Watch mini calculator. Watch compass function. Watch calendar function. Please align the metal port surface of the magnetic charging cable and be close to the charging contacts of th…

Text truncated - open the document above for the full version.

Sincerely, Name/Title： Wei Liu/Senior Engineer of Supplier Quality Control Company: ZhenShi Information Technology (Shanghai) Co.,Ltd Address: Room 4015, Building 2, No. 588, Zixing Road, Minhang District, Shanghai, China Phone: 021-61890896 Fax: 021-61890896 E-Mail: [email protected]

Page 1 of 1 FCC ID: 2AXCI-XPAW008A Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity LABEL AND LOCATION (Size: L: 3.5cm x W: 3.5cm) Label Location FCC ID: 2AXCI-XPAW008A

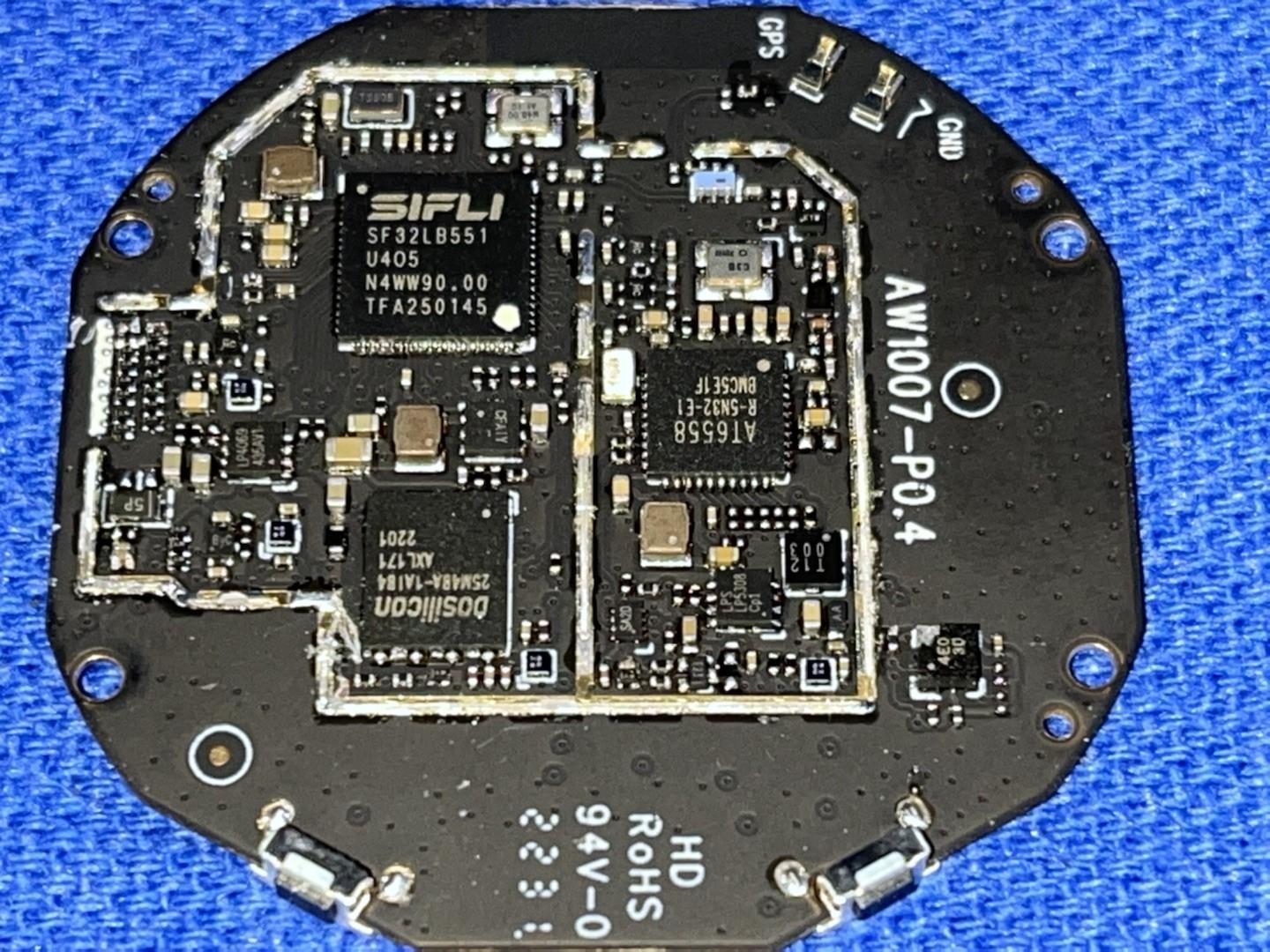

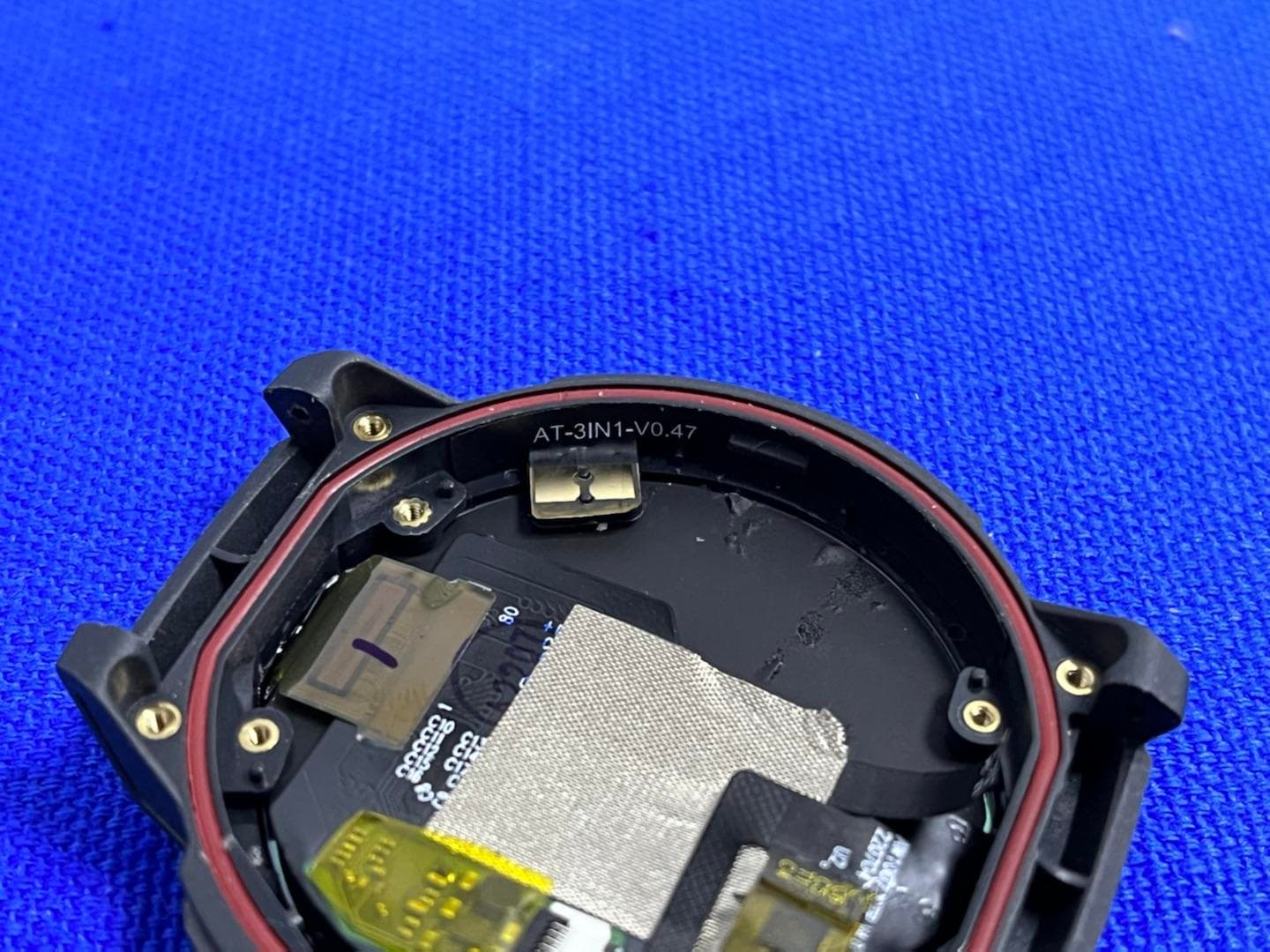

Page 1 of 7 FCC ID: 2AXCI-XPAW008A Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity Internal Photos of the EUT Fig. 1 Fig. 2 Page 2 of 7 FCC ID: 2AXCI-XPAW008A Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity Fig. 3 Fig. 4 Page 3 of 7 FCC ID: 2AXCI-XPAW008A Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity Fig. 5 Fig. 6 Antenna Page 4 of 7 FCC ID: 2AXCI-XPAW008A Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity Fig. 7 Fig. 8 Page 5 of 7 FCC ID: 2AXCI-XPAW008A Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity Fig. 9 Fig. 10 Page 6 of 7 FCC ID: 2AXCI-XPAW008A Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity Fig. 11 Fig. 12 Page 7 of 7 FCC ID: 2AXCI-XPAW008A Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity Fig. 13

Page 1 of 4 FCC ID: 2AXCI-XPAW008A Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity FCC RF Exposure Evaluation 1. Product Information FCC ID : 2AXCI-XPAW008A Product name : Mibro Watch GS Test Model : XPAW008 Power Supply : Input: DC 5V, 1A DC 3.8V by Rechargeable Li-ion Battery, 460mAh Hardware Version : / Software Version : / Frequency Range : 2402MHz ~ 2480MHz Channel Number : 40 channels for Bluetooth V5.0 (DTS) Channel Spacing : 2MHz for Bluetooth V5.0(DTS) Modulation Type : GFSK for Bluetooth V5.0 (DTS) Bluetooth Version : V5.0 Antenna Type : FPC Antenna Antenna Gain : -3.07dBi(Max.) Exposure category : General population/uncontrolled environment EUT Type : Production Unit Device Type : Portable Device Page 2 of 4 FCC ID: 2AXCI-XPAW008A Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity 2. Evaluation method and Limit According to KDB447498 D01 General RF Exposure Guidance v06 Section 4.3.1 Standalone SAR test exclusion considerations: “Unless specifically required by the published RF exposure KDB procedures, standalone 1-g head or body and 10-g extremity SAR evaluation for general population exposure conditions, by measurement or numerical simulation, is not required when the corresponding SAR Test Exclusion Threshold condition, listed below, is satisfied. These test exclusion conditions are based on source-based time-averaged maximum conducted output power of the RF channel requiring evaluation, adjusted for tune-up tolerance, and the minimum test separation distance required for the exposure conditions.22 The minimum test separation distance is determined by the smallest distance from the antenna and radiating structures or outer surface of the device, according to the host form factor, exposure conditions and platform requirements, to any part of the body or extremity of a user or bystander (see 5) of section 4.1). To qualify for SAR test exclusion, the test separation distances applied must be fully explained and justified by the operating configurations and exposure conditions of the transmitter and applicable host platform requirements, typically in the SAR measurement or SAR analysis report, according to the required published RF exposure KDB procedures. When no other RF exposure testing or reporting is required, a statement of justification and compliance must be included in the equipment approval, in lieu of the SAR report, to qualify for the SAR test exclusion. When required, the device specific conditions described in the other published RF exposure KDB procedures must be satisfied before applying these SAR test exclusion provisions; for example, handheld PTT two-way radios, handsets, laptops & tablets etc.“ [(max. power of channel, including tune-up tolerance, mW)/ (min. test separation distance, mm)] · [√f (GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR, where: • f (GHz) is the RF channel transmit frequency in GHz • Power and distance are rounded to the nearest mW and mm before calculation • The result is rounded to one decimal place for comparison • 3.0 and 7.5 are referred to as the numeric thresholds in the step 2 below The test exclusions are applicable only when the minimum test separation distance is ≤ 50 mm and for transmission frequencies between 100 MHz and 6 GHz. When the minimum test separation distance is < 5 mm, a distance of 5 mm according to f) in section 4.1 is applied to determine SAR test exclusion. When one of the following test exclusion conditions is satisfied for all combinations of simultaneous transmission configurations, further equipment approval is not required to incorporate transmitter modules in host devices that operate in the mixed mobile and portable host platform exposure conditions. The grantee is responsible for documenting this according to Class I permissive change requirements. Antennas that qualify for standalone SAR test exclusion must apply the estimated standalone SAR to determine simultaneous transmission test exclusion. a) The [∑ of (the highest measured or estimated SAR for each standalone antenna configuration, adjusted for maximum tune-up tolerance) / 1.6 W/kg] + [∑ of MPE ratios] is ≤ 1.0. b)The SAR to peak location separation ratios of all simultaneously transmitting antenna pairs operating in portable device exposure conditions are all ≤ 0.04, and the [∑ of MPE ratios] is ≤ 1.0. 3. Refer Evaluation Method ANSI C95.1–1999: IEEE Standard for Safety Levels with Respect to Human Exposure to Radio Frequency Electromagnetic Fields, 3 kHz to 300 GHz. FCC KDB publication 447498 D01 General RF Exposure Guidance v06: Mobile and Portable Devices RF Exposure Procedures and Equipment Authorization Policies. FCC CFR 47 part1 1.1310: Radiofrequency radiation exposure limits. FCC CFR 47 part2 2.1093: Radiofrequency radiation exposure evaluation: portable devices Page 3 of 4 FCC ID: 2AXCI-XPAW008A Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity 4. Conducted Power Results <BT LE> Mode Channel Frequency (MHz) Peak Conducted Output Power (dBm) GFSK 0 2402 -0.65 19 2440 0.49 39 2480 0.19 <BT 2LE> Mode Channel Frequency (MHz) Peak Conducted Output Power (dBm) GFSK 0 2402 -0.54 19 2440 0.15 39 2480 -0.28 5. Manufacturing Tolerance <BT LE> GFSK (Peak) Channel Channel 0 Channel 19 Channel 39 Target (dBm) 0 0 0 Tolerance ±(dB)…

Text truncated - open the document above for the full version.

ANTCommunicationTechnology（Shenzhen）Co.,LTD. AntennaDatasheet Customername：XiaoXun Projectname：AW1007 Datasheetversion：RA Materialspecifications：FPC SpecificationsMaterialnumber ANT312202-Three-in-oneantenna-FPC ANT312202IB50-01 ANTCounter-signaturebar R&D ME：LizhienAudit：Xiongminghua approve：Date： RF：WuboAudit：Liufeng ANTCommunicationTechnology（Shenzhen）Co.,LTD.Datasheet 第 2 页 - 一、Antennapicture 二、Gian&Efficiency&Directionaldiagram（Weararms） BLE(2.4G) Freq/MHzEffi/dbFreq/%Gain/dBi 2400-12.146.11-3.69 2410-12.275.93-3.47 2420-12.335.85-3.64 2430-12.355.82-3.54 2440-12.235.98-3.74 2450-12.056.24-3.36 2460-11.896.47-3.07 2470-11.836.56-3.84 2480-12.056.24-3.2 2490-11.936.41-3.6 2500-12.16.17-3.81 ANTCommunicationTechnology（Shenzhen）Co.,LTD.Datasheet 第 3 页 - 2D/3DDirectionaldiagram 三、Antennaparameters Technicalparameters Frequencyrange2400-2500MHZ EnterTheimpedance50Ω VSWR≤2.5 Maxgain -3.07dBi Antennaform PIFA Environmentparameters Operatingtemperature-45°C--+85°C Storagetemperature-45°C--+85°C ANTCommunicationTechnology（Shenzhen）Co.,LTD.Datasheet 第 4 页 - 四、TestEquipment

Page 1 of 34 FCC ID: 2AXCI-XPAW008A Report No.: LCSA120622009EA Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity Appendix A RF Test Data for BT LE (Conducted Measurement) Product Name: Mibro Watch GS Test Model: XPAW008 Environmental Conditions Temperature: 23.8°C Relative Humidity: 52.1% ATM Pressure: 100.0 kPa Test Engineer: Nick Peng Supervised by: Li Huan Page 2 of 34 FCC ID: 2AXCI-XPAW008A Report No.: LCSA120622009EA Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity A.1 -6dB Bandwidth Condition Mode Frequency (MHz) Antenna -6 dB Bandwidth (MHz) Limit -6 dB Bandwidth (MHz) Verdict NVNT BLE 1M 2402 Ant1 0.658 >=0.5 Pass NVNT BLE 1M 2440 Ant1 0.681 >=0.5 Pass NVNT BLE 1M 2480 Ant1 0.675 >=0.5 Pass NVNT BLE 2M 2402 Ant1 1.135 >=0.5 Pass NVNT BLE 2M 2440 Ant1 1.12 >=0.5 Pass NVNT BLE 2M 2480 Ant1 1.154 >=0.5 Pass Page 3 of 34 FCC ID: 2AXCI-XPAW008A Report No.: LCSA120622009EA Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity Test Graphs -6dB Bandwidth NVNT BLE 1M 2402MHz Ant1 -6dB Bandwidth NVNT BLE 1M 2440MHz Ant1 Page 4 of 34 FCC ID: 2AXCI-XPAW008A Report No.: LCSA120622009EA Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity -6dB Bandwidth NVNT BLE 1M 2480MHz Ant1 -6dB Bandwidth NVNT BLE 2M 2402MHz Ant1 Page 5 of 34 FCC ID: 2AXCI-XPAW008A Report No.: LCSA120622009EA Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity -6dB Bandwidth NVNT BLE 2M 2440MHz Ant1 -6dB Bandwidth NVNT BLE 2M 2480MHz Ant1 Page 6 of 34 FCC ID: 2AXCI-XPAW008A Report No.: LCSA120622009EA Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity A.2 Maximum Conducted Output Power Condition Mode Frequency (MHz) Antenna Total Power (dBm) Limit (dBm) Verdict NVNT BLE 1M 2402 Ant1 -0.65 30 Pass NVNT BLE 1M 2440 Ant1 0.49 30 Pass NVNT BLE 1M 2480 Ant1 0.19 30 Pass NVNT BLE 2M 2402 Ant1 -0.54 30 Pass NVNT BLE 2M 2440 Ant1 0.15 30 Pass NVNT BLE 2M 2480 Ant1 -0.28 30 Pass Page 7 of 34 FCC ID: 2AXCI-XPAW008A Report No.: LCSA120622009EA Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity Test Graphs Power NVNT BLE 1M 2402MHz Ant1 Power NVNT BLE 1M 2440MHz Ant1 Page 8 of 34 FCC ID: 2AXCI-XPAW008A Report No.: LCSA120622009EA Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity Power NVNT BLE 1M 2480MHz Ant1 Power NVNT BLE 2M 2402MHz Ant1 Page 9 of 34 FCC ID: 2AXCI-XPAW008A Report No.: LCSA120622009EA Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity Power NVNT BLE 2M 2440MHz Ant1 Power NVNT BLE 2M 2480MHz Ant1 Page 10 of 34 FCC ID: 2AXCI-XPAW008A Report No.: LCSA120622009EA Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity A.3 Maximum Power Spectral Density Level Condition Mode Frequency (MHz) Antenna Total PSD (dBm/3kHz) Limit (dBm/3kHz) Verdict NVNT BLE 1M 2402 Ant1 -15.9 8 Pass NVNT BLE 1M 2440 Ant1 -14.69 8 Pass NVNT BLE 1M 2480 Ant1 -14.62 8 Pass NVNT BLE 2M 2402 Ant1 -18.43 8 Pass NVNT BLE 2M 2440 Ant1 -17.33 8 Pass NVNT BLE 2M 2480 Ant1 -17.72 8 Pass Page 11 of 34 FCC ID: 2AXCI-XPAW008A Report No.: LCSA120622009EA Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity Test Graphs PSD NVNT BLE 1M 2402MHz Ant1 PSD NVNT BLE 1M 2440MHz Ant1 Page 12 of 34 FCC ID: 2AXCI-XPAW008A Report No.: LCSA120622009EA Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.c…

Text truncated - open the document above for the full version.

Page 1 of 34 FCC ID: 2AXCI-XPAW008A Report No.: LCSA120622009EA Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity FCC TEST REPORT For Zhenshi Information Technology (Shanghai) Co., Ltd. Mibro Watch GS Test Model: XPAW008 Prepared for : Zhenshi Information Technology (Shanghai) Co., Ltd. Address : Room 4015, Building 2, No. 588, Zixing Road, Minhang District, Shanghai, China Prepared by : Shenzhen LCS Compliance Testing Laboratory Ltd. Address : 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel : (+86)755-82591330 Fax : (+86)755-82591332 Web : www.LCS-cert.com Mail : [email protected] Date of receipt of test sample : December 06, 2022 Number of tested samples : 2 Sample No. : A120622009-1, A120622009-2 Serial number : Prototype Date of Test : December 06, 2022 ~ December 08, 2022 Date of Report : December 08, 2022 Page 2 of 34 FCC ID: 2AXCI-XPAW008A Report No.: LCSA120622009EA Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity FCC TEST REPORT FCC CFR 47 PART 15 C(15.247) Report Reference No. ................. : LCSA120622009EA Date of Issue .................................. : December 08, 2022 Testing Laboratory Name ............ : Shenzhen LCS Compliance Testing Laboratory Ltd. Address .......................................... : 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Testing Location/ Procedure .......... : Full application of Harmonised standards ■ Partial application of Harmonised standards □ Other standard testing method □ Applicant’s Name ......................... : Zhenshi Information Technology (Shanghai) Co., Ltd. Address .......................................... : Room 4015, Building 2, No. 588, Zixing Road, Minhang District, Shanghai, China Test Specification Standard ......................................... : FCC CFR 47 PART 15 C(15.247) Test Report Form No.................... : LCSEMC-1.0 TRF Originator ................................ : Shenzhen LCS Compliance Testing Laboratory Ltd. Master TRF ..................................... : Dated 2011-03 Shenzhen LCS Compliance Testing Laboratory Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen LCS Compliance Testing Laboratory Ltd. is acknowledged as copyright owner and source of the material. Shenzhen LCS Compliance Testing Laboratory Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. EUT Description. .......................... : Mibro Watch GS Trade Mark ..................................... : Test Model ...................................... : XPAW008 Ratings ........................................... : Input: DC 5V, 1A DC 3.8V by Rechargeable Li-ion Battery, 460mAh Result ............................................ : Positive Compiled by: Supervised by: Approved by: Vera Deng/ Administrator Cary Luo/ Technique principal Gavin Liang/ Manager Page 3 of 34 FCC ID: 2AXCI-XPAW008A Report No.: LCSA120622009EA Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity FCC -- TEST REPORT Test Model............................... : XPAW008 EUT......................................... : Mibro Watch GS Applicant............................... : Zhenshi Information Technology (Shanghai) Co., Ltd. Address.................................. : Room 4015, Building 2, No. 588, Zixing Road, Minhang District, Shanghai, China Telephone............................... : / Fax.......................................... : / Manufacturer........................ : Zhenshi Information Technology (Shanghai) Co., Ltd. Address................................... : Room 4015, Building 2, No. 588, Zixing Road, Minhang District, Shanghai, China Telephone............................... : / Fax.......................................... : / Factory................................... : / Address................................... : / Telephone............................... : / Fax.......................................... : / Test Result Positive The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Test Report No. : LCSA120622009EA December 08, 2022 Date of issue Page 4 of 34 FCC ID: 2AXCI-XPAW008A Report No.: LCSA120622009EA Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity Revision History Report Version Issue Date Revision Content Revised By 000 December 08, 2022 Initial Issue --- Page 5 of 34 FCC ID: 2AXCI-XPAW008A Report No.: LCSA120622009EA Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity TABLE OF CONTE…

Text truncated - open the document above for the full version.

Page 1 of 2 FCC ID: 2AXCI-XPAW008A Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity Test Setup Photos of the EUT Test Setup Photo(s) of Radiated Emissions Measurement Fig. 1 Fig. 2 Page 2 of 2 FCC ID: 2AXCI-XPAW008A Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity Test Setup Photo of Line Conducted Emissions Measurement
