2AXCT-XY-30Bluetooth wireless stereo headset

TWS XY-30 功能操作说明 产品示意图 充电触点 1 指示灯 2 充电触点 3 耳帽 4 充电仓指示灯 5 Type-C充电口 6 2 1 3 4 6 5 产品参数 ·型 号：XY-30 ·蓝牙版本：V5.1 ·提示语言：英文 ·耳机电池容量：30mAh ·充电仓电池容量：300mAh ·电源输入：5V · 工作时间：3小时 ·工作电压：3.0V-4.2V ·充电时长：70分钟 ·喇叭阻抗：32Ω ·频率响应：20-20KHZ ·传输距离：≥10米 产品包装明细 ·蓝牙耳机本体（2PCS） ·耳机储电仓 ·Type-C充电线 ·使用说明书 ·精美包装盒 ·耳帽（3对） 使用方法 1.开机 自动开机（第一次使用） 步骤一: 打开充电仓上盖。 步骤二:取出两个耳机,此时耳机自动开机匹配，两个耳机蓝灯慢闪， 等待连接手机。 耳机自动关机 步骤一:使用后,将耳机从耳朵上拿下来。 步骤二:将左右耳机放入充电仓,会自动关机并充电。 手动开机 如果耳机不在充电仓里，长按左右耳5秒开机。 手动关机 步骤一:如果耳机处于开机并且相互连接状态,任意长按左/右耳5秒 关机。 步骤二:将左右耳机放入充电仓充电。 2.关机 3.蓝牙配对 步骤一:将耳机从充电仓拿出。 步骤二:将手机蓝牙打开。 步骤三:找到耳机蓝牙名"【XY-30】"。 步骤四:点击连接。 接听/挂断： ·短按耳机一次接听/挂断电话。 ·长按耳机为拒绝接听电话。 暂停/播放： ·音乐播放过程中短按耳机即可暂停/播放音乐。 4.耳机常见操作 上一曲/下一曲 ·音乐播放过程中双击左边耳机即可完成上一曲操作。 ·音乐播放过程中双击右边耳机即可完成下一曲操作。 唤醒语音助手 ·长按耳机3秒可激活手机语音助手。 音量加减 ·点击三下左边耳机可提高音量。 ·点击三下右边耳机可减弱音量。 指示灯工作状态 耳机工作状态耳机指示灯状态 开机蓝灯慢闪 充电亮红灯 充满灭灯 连上手机灭灯 充电仓工作状态充电仓指示灯状态 USB-5V充电红灯闪烁充满后常亮 充电仓给耳机充电绿灯常亮 充电仓低电状态绿灯闪烁 使用注意事项 1、耳机需存放在干燥通风的环境下，避免与油、水汽、蒸馏水接触， 以免影响产品性能。 2、避免使用刺激的，有机溶剂或含有这些成份的物品清洁。 3、耳机需按要求正确规范的使用，注意使用环境对耳机的影响，为 保证连接顺畅，建议手机和耳机之间的距离在10米范围内。 4、如耳机有连接不上或通讯不畅等其他问题，请勿私自拆卸耳机本 体及其配件，否则不予保修。 5、给耳机充电，请选用标配的车载充电器或本公司指定的符合要求 的充电器。 6、为保证您正常使用耳机，请确保耳机的电量充足。 FCC警告 此设备符合FCC规则第15部分的规定。操作受以下两个条件约束： （1） 此设备可能不会造成有害干扰，并且 （2）此设备必须接受接收到的任何干扰，包括可能导致不期望的操 作的干扰。 注1：根据《联邦通信委员会规则》第15部分的规定，该设备经过测 试，符合B类数字设备的限值。这些限制旨在提供合理的保护，防止 住宅安装中的有害干扰。该设备产生、使用并可辐射射频能量，如果 不按照说明安装和使用，可能会对无线电通信造成有害干扰。但是， 不能保证在特定的安装中不会发生干扰。如果该设备确实对无线电 或电视接收造成有害干扰，可以通过关闭和打开设备来确定，则鼓 励用户尝试通过以下一种或多种措施来纠正干扰： -重新定向或重新定位接收天线。 -增加设备和接收器之间的间距。 -将设备连接到与接收器连接的电路不同的电路上的插座。 -请咨询经销商或有经验的收音机/电视技术人员以获得帮助。 注2：未经合规负责方明确批准的对本装置的任何更改或修改都可 能使用户失去操作设备的权限。 已对该装置进行评估，以满足一般射频暴露要求。该设备可以在便 携式暴露条件下使用，不受限制。 TWS XY-30 Function Instructions Diagrammatic sketch Charging port 1 Indicator light 2 Charging port 3 Ear cover cap 4 Charging case indicator 5 Type-C port 6 2 1 3 4 6 5 Specifications ·Model: XY-30 ·Bluetooth version: V5.1 ·Prompt language: English ·Earbud battery:30mAh ·Charging case battery:300mAh ·Power input:5V ·Working time: 3 hours ·Working voltage: 3.0V-4.2V ·Charging time: 70 minutes ·Speaker impedance: 32Ω ·Frequency response: 20-20KHZ ·Distance:≥10M Package List ·Bluetooth headset ·Earphone Charging box ·Type-C charging cable ·user's manual ·Gift package ·Earphone caps (3 pairs) How To Use 1.Power On Automatic Power On For First Time User Step 1: Open the Charging case cover Step 2:The earbuds are automatically turned on and paired when taking out; Then earbuds Indicator light flashes slowly with blue color to connect the phone Automaticlly Turn Off The Earbuds Step 1 : After use, remove both left and right earbuds from your ear. Step 2 : Put them back into the charging case, they will automatically turn off and charge them selves. Manual Power On When Earbuds Are Out From Charging Case If the earbuds are not in the charging case, long press the earbuds individually for 5 seconds to power on. Manually Turn Off The Earbuds Step 1 : If both earbuds are on & connected with each other, long press either left or right earbuds for 5 seconds to manually power off. Step 2 : Place them back into the charging case to charge the earbuds. 2.Turn Off 3.Connection Mode - Earbuds conntect with smart phone Step 1 : Take the earbuds out of the charging case. Step 2 : Make sure your smart phone’s bluetooth function is turned on. Step 3 : find out earbuds device name”【XY-30】” on your smart phone. Step 4 : Click it to connect. Incoming call / Reject Call： ·Touch the earbud once to answer/hang up the call. ·Long touch the earbud to reject the call. Play/Pause ·When playing music, touch the earbud once to play or pause the music. 4.Normal Functions Operation Previous/Next song ·Touch the left earbud twice to skip to previous song. ·Touch the right earbud twice to jump to next song. Voice Assistant ·Long touch on either left or right earbud for 3 seconds to wake up Assistant. Volume +/- ·Touch the left earbud 3 times to increase the volume. ·2.Touch the right earbud 3 times to decrease the volume. Indicator working status Earbuds working statusEarbuds indicator light status Boot upBlue light flashes slowly RechargeRed light full chargeLights off Connect to mobile phoneLights off charging case working status Charging case indicator light status USB-5V charging The red light flashes and lights on after full charging Earbuds are charging by charging case Steady green light Low battery status in charging case Flashing green light Precautions for use 1、The earphones should be stored in a dry and ventilated environment, to avoid oil, water; moisture and dust affecting product performance. 2、Avoid using stimulus, organic solvents or items containing these ingredients to clean the earphones. 3、The use of earphones should be correctly as per the specification, pay attention to use the influence of environment on the earphones. In order to ensure the smooth connection, it's recommended that the distance between the earphones and phones with in 10 meters. 4、If the earphones failed to connect or with poor connection, pls do not take apart the earphones or the accessories on your own. Otherwise, no warranty. 5、Regarding charging earphones. Pls use the standard usb cable or pointed charging cable from our company to charge the earphones. 6、In order to ensure normal use, please ensure sufficient power of the earphones. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: FCC Warning This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. NOTE 1: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if n…

Text truncated - open the document above for the full version.

Shenzhen Xiang Xiang Yu Technology Co.,Ltd Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 USA Date: January 6, 2024 FCC ID: 2AXCT-XY-30 Ref. #1: Attestation Statements Part 2.911(d)(5)(i) Filing Shenzhen Xiang Xiang Yu Technology Co.,Ltd certifies that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. Ref. #2: Attestation Statements Part 2.911(d)(5)(ii) Filing Shenzhen Xiang Xiang Yu Technology Co.,Ltd certifies that, as of the date of the filing of the application, the applicant is not identified on the Covered List as an entity producing “covered” equipment. Applicant: Shenzhen Xiang Xiang Yu Technology Co.,Ltd Address: Workshop 301, No. 6, Qinhui Road, Gushu Community,Xixiang Subdistrict,Baoan, Shenzhen, 518126 China Contact Person: HongSheng He Tel.: 13686883790 Email: [email protected] Sincerely, Signature:

Shenzhen Xiang Xiang Yu Technology Co.,Ltd U.S. Agent Letter of Attestation To: Federal Communications Commission 7435 Oakland Mills Road, Columbia, MD 21046, USA Date: January 5, 2024 Ref: Attestation Statement – Part 2.911(d)(7) filing FCC ID: 2AXCT-XY-30 Shenzhen Xiang Xiang Yu Technology Co.,Ltd(“the applicant”) certifies that, as of the date of the filing of the application, CLF Import and Export Limited (“the agent”) is our designated U.S. agent for service of process for the above reference FCC ID. The applicant accepts to maintain an agent for service of process in the United States for no less than one year after either the grantee has permanently terminated all marketing and importation of the applicable equipment within the U.S., or the conclusion of any Commission-related administrative or judicial proceeding involving the equipment, whichever is later. The applicant further acknowledges it is our responsibility to inform the FCC whenever the agent information changes. CLF Import and Export Limited ("the agent) understand it is the agent's obligation to accept service of process in the United States for matters related to the applicable equipment, and at the physical U.S. address and email address. Designated U.S. Agent Company Name: CLF Import and Export Limited FRN: 0033489683 Address: 1312 17th Street #692, Denver, CO 80202, United States Signature: Contact Person: David Chen Tel: +1 949 254 2565 Email: [email protected] Applicant Company Name: Shenzhen Xiang Xiang Yu Technology Co.,Ltd FRN: 0029904216 Address: Workshop 301, No. 6, Qinhui Road, Gushu Community, Xixiang Subdistrict, Baoan, Shenzhen, 518126 China Signature: Contact Person: HongSheng He Tel: 13686883790 Email: [email protected]

SymbolsLWTA Dimensions 1.60±0.200.80±0.200.80±0.200.30±0.10 NumberTerminalName ① INPUT ② NC Dimensions(Unit: mm) w ①② ( Side View) ( Bottom View) ( Top View) A T L Shenzhen HanyangAntenna Design Co. Ltd. 1.Bluetooth 2.Dual-band WLAN 3.ISM and UWB 1.Surfacemountedelementwithasmalldimensionof1.6×0.8×0.8mmmeetfutureminiaturizationtrend. 2.EmbeddedandLTCC(lowtemperatureco-firedceramic)technologyisabletointegratewithsystemdesign aswellasbeatifyingthehousingoffinalproduct. 3.Miniaturization,wideband,highstability,lowESR,andlowtolerance. 4.Dual-bandresonancesinthedominantandharmonicmodesenablesmultibandoperations. 5.Novelground-radiationtechniqueenablesradiationfromboththeantennaandthegroundplane. Shenzhen BaoanDistrict Qianjin2 Road BaoYunda logistics information building 12A10 tel：0755-23069700 Features: Applications: RF chip ANT chipANT pattern PCB ground Mode-2 Mode-1 P/N: HY160808 SRF09 ShenzhenHanyangAntennaDesignCo.Ltd.haspossessionofproprietaryinformationprovidedinthis reportandthisproprietaryinformationshallbekeptinstrictconfidenceandnotdisclosedtoanyperson orfirmwithoutthepriorwrittenconsentofShenzhenHanyangAntennaDesignCo.Ltd. Page1 Antenna Type: SMD Layout-1 (3.5mm×6.5mm) ShenzhenHanyangAntennaDesignCo.Ltd.haspossessionofproprietaryinformationprovidedinthis reportandthisproprietaryinformationshallbekeptinstrictconfidenceandnotdisclosedtoanyperson orfirmwithoutthepriorwrittenconsentofShenzhenHanyangAntennaDesignCo.Ltd. Page2 1.5 1 3.5 2.5 0201 footprint (E1) 0201 footprint (E2) 0603 footprint (ANT) RF Input/Output 6.5 0.5 0.5 0.5 1.5 3.5 2.5 0201 footprint (E3) 6.5 Top layer: Bottom layer: 0.5 0.5 RF chip E1 E3 E2 ANT Equivalentcircuit: P/N: HY160808 SRF09 Shenzhen HanyangAntenna Design Co. Ltd. Shenzhen BaoanDistrict Qianjin2 Road BaoYunda logistics information building 12A10 tel：0755-23069700 2.5 0201 footprint 0603 footprint 10 0.5 1.5 0201 footprint 1.5 3 2.5 10 1.5 2 0.5 0201 footprint Layout-2 (1.5mm×10mm) Top layer: Bottom layer: P/N: HY160808 SRF09 Shenzhen HanyangAntenna Design Co. Ltd. Shenzhen BaoanDistrict Qianjin2 Road BaoYunda logistics information building 12A10 tel：0755-23069700 ShenzhenHanyangAntennaDesignCo.Ltd.haspossessionofproprietaryinformationprovidedinthis reportandthisproprietaryinformationshallbekeptinstrictconfidenceandnotdisclosedtoanyperson orfirmwithoutthepriorwrittenconsentofShenzhenHanyangAntennaDesignCo.Ltd. Page3 RF Input/Output 5 2 0201 footprint (E1) 0201 footprint (E2) 0603 footprint (ANT) 7 0.8 5 0201 footprint (E2) 10 0.8 0603 footprint (ANT) 0201 footprint (E1) Layout-3 (5mm×7mm) Layout-4 (5mm×10mm) 1 3 P/N: HY160808 SRF09 Shenzhen HanyangAntenna Design Co. Ltd. Shenzhen BaoanDistrict Qianjin2 Road BaoYunda logistics information building 12A10 tel：0755-23069700 ShenzhenHanyangAntennaDesignCo.Ltd.haspossessionofproprietaryinformationprovidedinthis reportandthisproprietaryinformationshallbekeptinstrictconfidenceandnotdisclosedtoanyperson orfirmwithoutthepriorwrittenconsentofShenzhenHanyangAntennaDesignCo.Ltd. Page4 RF Input/Output RF Input/Output ElectricalCharacteristics: CharacteristicCurves: FeatureSpecification 1 Centralfrequency2.45GHz 2 Bandwidth>150MHz 3 Peak gain2.78 dBi 4 VSWR<2 5 PolarizationLinear 6 AzimuthbeamwidthOmnidirectional 7 Impedance50Ω P/N: HY160808 SRF09 Shenzhen HanyangAntenna Design Co. Ltd. Shenzhen BaoanDistrict Qianjin2 Road BaoYunda logistics information building 12A10 tel：0755-23069700 ShenzhenHanyangAntennaDesignCo.Ltd.haspossessionofproprietaryinformationprovidedinthis reportandthisproprietaryinformationshallbekeptinstrictconfidenceandnotdisclosedtoanyperson orfirmwithoutthepriorwrittenconsentofShenzhenHanyangAntennaDesignCo.Ltd. Page5 RadiationPattern: Y-ZPlane X-ZPlane coordinates： Frequency 2400MHz2450MHz2500MHz Avg.gain-1.92-1.35-1.56 Peakgain1.792.782.66 Efficiency74.5580.2576.98 RadiationPerformance: P/N: HY160808 SRF09 Shenzhen HanyangAntenna Design Co. Ltd. Shenzhen BaoanDistrict Qianjin2 Road BaoYunda logistics information building 12A10 tel：0755-23069700 ShenzhenHanyangAntennaDesignCo.Ltd.haspossessionofproprietaryinformationprovidedinthis reportandthisproprietaryinformationshallbekeptinstrictconfidenceandnotdisclosedtoanyperson orfirmwithoutthepriorwrittenconsentofShenzhenHanyangAntennaDesignCo.Ltd. Page6 Temperature：40±2°C Humidity：90~95%RH Duration：500h Recovery conditions：Room temperature Recovery Time：24h (Class1) or 48h (Class2) Test Temperature Operating Temperature Temperature RelativeHumidity 25°C±5°C -25°C~+125°C 5~40°C 20~70% Notenoughsolder Weak holding forcemay cause bad connection between the chipandPCB. RecommendedSolderingAmounts The optimal solder fillet amounts forre-flowsoldering 天线厚度 以下 The optimal solder fillet amounts for wavesoldering DependabilityTest Too much solder Cracks tend to occur due to large stress. MoistureProof OptimumSolderAmount forReflowSoldering Solderability At least 95% of the terminal electrode is covered by newsolder. Preheating conditions:80 to 120°C;10~30s. Solder Tem p e r at u r e :2 3 5 ±5°CDuration:2 ±0.5s , Solder Tempe r ature:24 5±5°CDu rat ion:2±0.5s P/N: HY160808 SRF09 Shenzhen HanyangAntenna Design Co. Ltd. Shenzhen BaoanDistrict Qianjin2 Road BaoYunda logistics information building 12A10 tel：0755-23069700 ShenzhenHanyangAntennaDesignCo.Ltd.haspossessionofproprietaryinformationprovidedinthis reportandthisproprietaryinformationshallbekeptinstrictconfidenceandnotdisclosedtoanyperson orfirmwithoutthepriorwrittenconsentofShenzhenHanyangAntennaDesignCo.Ltd. Page7 10±1S AppliedForce:5NDuration:10±1S Preheating conditions: up-category temperature, 1h Recovery time:24±1h InitialMeasurement Cycling Times: 5 times, 1 cycle, 4steps: Preheating80to120°C;10~30s.SolderTemperature:235±5°C;Duration:2±0.5s;SolderTemperature:245±5°C Duration:2±0.5s;Preheating100to200°C;10±2min. SolderTemperature:265±5°C;Duration:10±1s Cleanthecapacitorwithsolventandexamineitwitha10X(min.)microscope. RecoveryTime:24±2h Recoverycondition:Roomtemperature Test Board: …

Text truncated - open the document above for the full version.

Shenzhen Xiang Xiang Yu Technology Co.,Ltd Date: January 6, 2024 Product Model Number: XY-30, XY-60 FCC ID: 2AXCT-XY-30 To whom it may concern, Re: Product Certification Representative Authorization Letter We authorize QAI Laboratories Ltd. 3980 North Fraser Way, Burnaby B.C. Canada V5J 5K5 to act on our behalf on all matters concerning the above named equipment. This shall include the following: • Testing • Approval applications and procedures We declare that ORGANIZATION. is allowed to forward all information related to the approval project to the applied certification body and to the notification entities and to discuss any issues concerning the approval application. Any and all acts carried out by ORGANIZATION. on our behalf shall have the same effect as acts of our own. By: HongSheng He Contact Listed on FCC Wesbite Title: Manager Email: [email protected] Telephone: 13686883790 On behalf of: Shenzhen Xiang Xiang Yu Technology Co.,Ltd

Shenzhen Xiang Xiang Yu Technology Co.,Ltd Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 USA Date: January 6, 2024 Subject; Request for Confidentiality FCC ID: 2AXCT-XY-30 To Whom It May Concern, Pursuant to the provisions of the Commission’s rules Title 47 Sections §0.457 and §0.459, we are requesting the Commission to withhold the following attachment(s) as confidential documents from public disclosure indefinitely. These documents contain detailed system and equipment descriptions and are considered as proprietary information in operation of the equipment. The public disclosure of these documents might be harmful to our company and would give competitors an unfair advantage in the market. Schematic Diagram Block Diagram Parts List Operational Description Tune-up Procedure Software Security Requirements for UNII devices In additional to above mentioned documents, in order to comply with the marketing regulations in Title 47 CFR §2.803 and the importation rules in Title 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices, we request Short Term Confidentiality of the following attachment(s); External Photos Test Setup Photos Internal Photos User Manual For 45 days, pursuant to Public Notice DA 04-1705. OR For 180 days pursuant to KDB 726920 D01. It is our understanding that all measurement test reports, FCC ID label format and correspondence during the certification review process cannot be granted as confidential documents and this information will be available for public review once the grant of equipment authorization is issued. Sincerely, Signature: Name: HongSheng He Title: Manager

Shenzhen Xiang Xiang Yu Technology Co., Ltd Model Difference Statement Dear Sir/Madam, Added models XY-60 basis of the original product XY-30. These model names, color of appearance and charging case are different, but the circuit and the electronic construction are the same from the main model, declared by the manufacturer. Sincerely, Name: HongSheng He Title: Manager Company name: Shenzhen Xiang Xiang Yu Technology Co., Ltd Address: Workshop 301, No. 6, Qinhui Road, Gushu Community, Xixiang Subdistrict, Baoan, Shenzhen, 518126 China

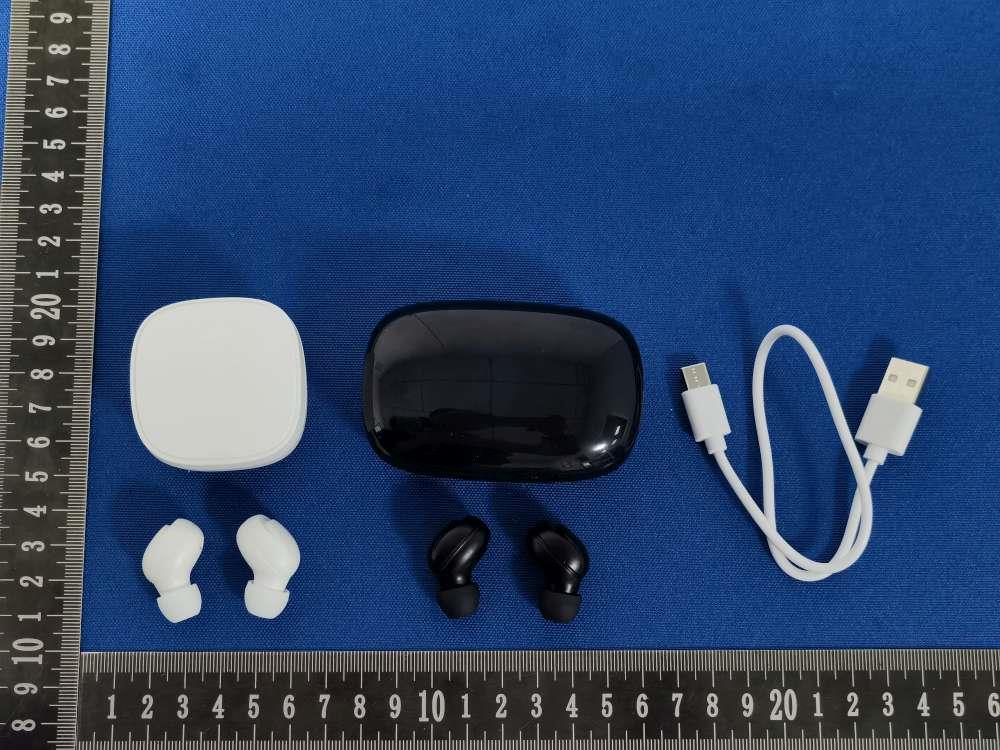

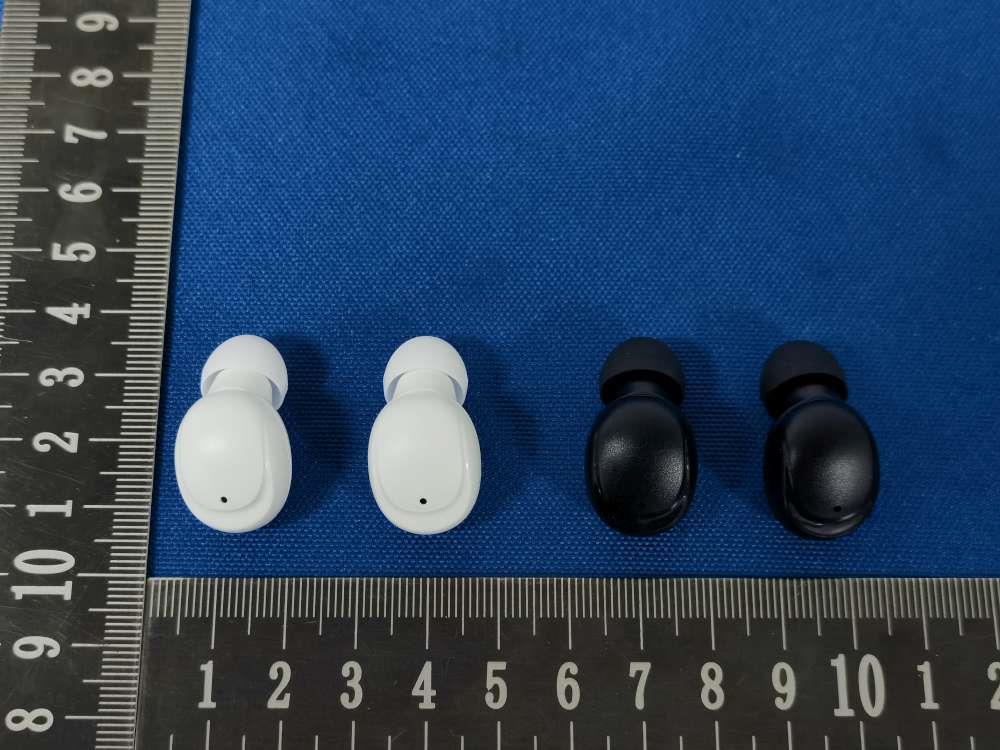

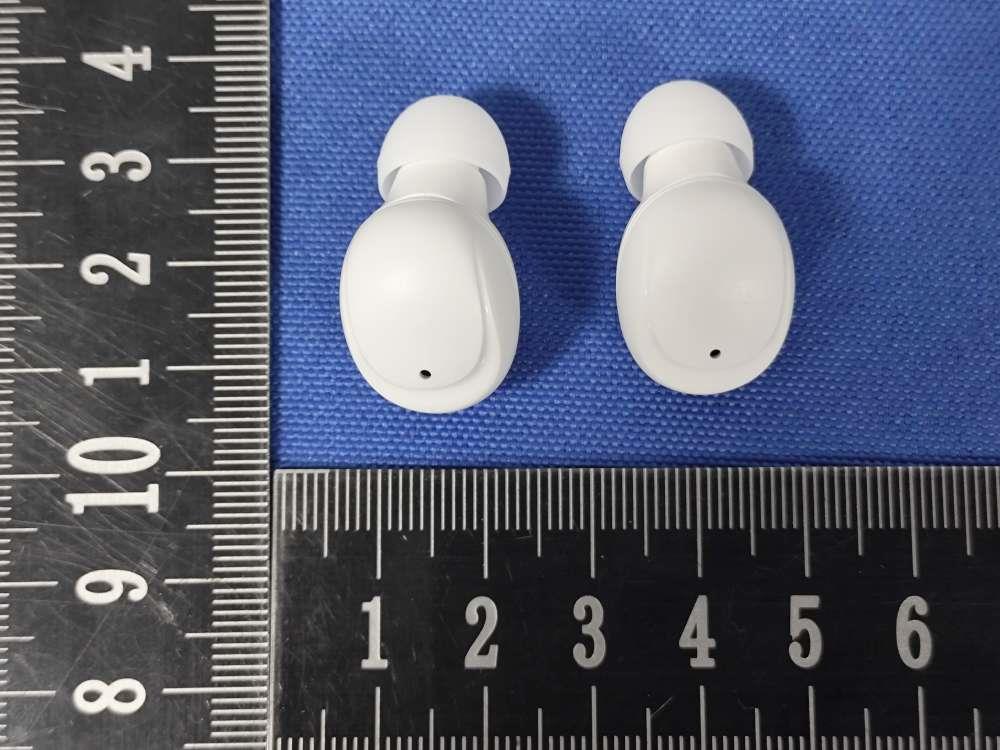

Report No: SSP23120128E FCC ID: 2AXCT-XY-30 Annex of Test Report Page 1 of 4 Annex A. EUT External Photos EUT View 1 EUT View 2 Report No: SSP23120128E FCC ID: 2AXCT-XY-30 Annex of Test Report Page 2 of 4 EUT View 3 EUT View 4 Report No: SSP23120128E FCC ID: 2AXCT-XY-30 Annex of Test Report Page 3 of 4 EUT View 5 EUT View 6 Report No: SSP23120128E FCC ID: 2AXCT-XY-30 Annex of Test Report Page 4 of 4 EUT View 7 EUT View 8

Report No: SSP23120128E FCC ID: 2AXCT-XY-30 Annex of Test Report Page 1 of 1 Annex D. Label and Information FCC Label Sample FCC Label Specifications Text is Black in color and is justified. Labels are printed in indelible ink on permanent adhesive backing or silk-screened onto the EUT or shall be affixed at a conspicuous location on the EUT. Where the EUT is constructed in two or more sections connected by wires and marketed together, the above statement is required to be affixed only to the main control unit. When the EUT is so small or for such use that it is not practicable to place the statement on it, the above information shall be placed in a prominent location in the instruction manual or pamphlet supplied to the user or, alternatively, shall be placed on the container in which the device is marketed. FCC Label Location

Report No: SSP23120128E FCC ID: 2AXCT-XY-30 Annex of Test Report Page 1 of 2 Annex B. EUT Internal Photos EUT Internal View 1 EUT Internal View 2 Report No: SSP23120128E FCC ID: 2AXCT-XY-30 Annex of Test Report Page 2 of 2 EUT Internal View 3 EUT Internal View 4 BT Antenna

FCC ID: 2AXCT-XY-30 RF Exposure Evaluation According to KDB 447498 D01 General RF Exposure Guidance v06 and part 2.1093，Unless specifically required by the published RF exposure KDB procedures, standalone 1-g head or body and 10-g extremity SAR evaluation for general population exposure conditions, by measurement or numerical simulation, is not required when the corresponding SAR Test Exclusion Threshold condition(s), listed below, is (are) satisfied. For 100 MHz to 6 GHz and test separation distances ≤ 50 mm, the 1-g and 10-g SAR test exclusion thresholds are determined by the following: [(max. power of channel, including tune-up tolerance, mW) / (min. test separation distance, mm)] · [√f(GHz)] ≤ 3.0 for 1-g SAR, and ≤ 7.5 for 10-g extremity SAR, where f(GHz) is the RF channel transmit frequency in GHz Power and distance are rounded to the nearest mW and mm before calculation The result is rounded to one decimal place for comparison Here, The device has been evaluated to meet general RF exposure requirement. The device can be used in portable exposure condition without restriction. For BR+EDR Max Conducted Power(dBm) Tune-up Power(dBm) Max Tune-up Power(dBm) Max Power(mW) Frequency(MHz) Min. distance(mm) Calc. thresholds limit 1.03 1(±1) 2 1.58 2480 5 0.497637 3.0 So a SAR test is not required

CCUT Testing & Certification Report No: SSP23120128E FCC Test Report Page 1 of 50 FCC TEST REPORT FCC ID: 2AXCT-XY-30 Report No. : SSP23120128E Prepared For : Shenzhen Xiang Xiang Yu Technology Co.,Ltd Product Name : Bluetooth wireless stereo headset Model Name : XY-30 FCC Rule : FCC Part 15.247 Date of Issue : 2024-01-04 Prepared By : Shenzhen CCUT Quality Technology Co., Ltd. Shenzhen CCUT Quality Technology Co., Ltd. 1F, Building 35, Changxing Technology Industrial Park, Yutang Street, Guangming District, Shenzhen, Guangdong, China; (Tel.:+86-755-23406590 website: www.ccuttest.com) This test report is limited to the above client company and the product model only. It may not be duplicated without prior permitted by Shenzhen CCUT Quality Technology Co., Ltd. CCUT Testing & Certification Report No: SSP23120128E FCC Test Report Page 2 of 50 Test Report Basic Information Applicant..................................: Shenzhen Xiang Xiang Yu Technology Co.,Ltd Address of Applicant...............: Workshop 301, No. 6, Qinhui Road, Gushu Community, Xixiang Subdistrict, Baoan, Shenzhen, 518126 China Manufacturer..........................: Shenzhen Xiang Xiang Yu Technology Co.,Ltd Address of Manufacturer........: Workshop 301, No. 6, Qinhui Road, Gushu Community, Xixiang Subdistrict, Baoan, Shenzhen, 518126 China Product Name.........................: Bluetooth wireless stereo headset Brand Name.............................: - Main Model..............................: XY-30 Series Models..........................: XY-60 Test Standard..........................: FCC Part 15 Subpart C ANSI C63.10-2013 Date of Test .............................: 2023-12-28 to 2024-01-04 Test Result...............................: PASSED Tested Engineer ....................: (Lorzix Luo) Project Manager......................: (Lieber Ouyang) Authorized Signatory............: (Lahm Peng) Note : This test report is limited to the above client company and the product model only. It may not be duplicated without prior permitted by Shenzhen CCUT Quality Technology Co., Ltd.. All test data presented in this test report is only applicable to presented test sample. CCUT Testing & Certification Report No: SSP23120128E FCC Test Report Page 3 of 50 CONTENTS 1. General Information ....................................................................................................................................................5 1.1 Product Information .............................................................................................................................................5 1.2 Test Setup Information..........................................................................................................................................6 1.3 Compliance Standards ...........................................................................................................................................7 1.4 Test Facilities ........................................................................................................................................................7 1.5 List of Measurement Instruments ..........................................................................................................................8 1.6 Measurement Uncertainty .....................................................................................................................................8 2. Summary of Test Results .............................................................................................................................................9 3. Antenna Requirement ............................................................................................................................................... 10 3.1 Standard and Limit.............................................................................................................................................. 10 3.2 Test Result .......................................................................................................................................................... 10 4. Conducted Emissions ................................................................................................................................................ 11 4.1 Standard and Limit.............................................................................................................................................. 11 4.2 Test Procedure.................................................................................................................................................... 11 4.3 Test Data and Results .......................................................................................................................................... 12 5. Radiated Emissions ................................................................................................................................................... 17 5.1 Standard and Limit.............................................................................................................................................. 17 5.2 Test Procedure.................................................................................................................................................... 17 5.3 Test Data and Results .......................................................................................................................................... 19 6. Band-edge Emissions(Radiated) ............................................................................................................................... 27 6.1 Standard and Limit.............................................................................................................................................. 27 6.2 Test Procedure.................................................................................................................................................... 27 6.3 Test Data and Results .......…
