2AXCY-T10DONGLEDongle

尺寸：��*���mm 材质及工艺： 封面/封底���g双铜+单黑印刷+防刮花哑膜 内页���g双铜+单黑印刷 骑马钉 �. CROCIRIS T�� Wireless Gaming Headset �. Detachable Microphone �. Windshield Foam Covers �. USB Adapter �. Quick Start Guide �. Warranty Card Contents English .............................................................................................. �-�� Português ...............................................................................................� Español...................................................................................................� 简体中文................................................................................................�� Русский ................................................................................................�� 日本語....................................................................................................�� 한국어.....................................................................................................13 العربية......................................................................................................�� ไทย........................................................................................................�� Tiếng Việt..............................................................................................�� Bahasa Indonesia...................................................................................�� हिंदी........................................................................................................�� Deutsch.................................................................................................�� Français.................................................................................................�� �. USB Adapter �. Type-C Adapter �. Sound Mode Button �. Type-C Port �. Power Indicator Light �. Power Button �. Mode Switch �. Detachable Microphone �. Microphone Status Indicator Light ��. Microphone Function Button ��. Volume Adjustment Wheel ��. Microphone Mute Button ��� Overview Connection Function Operation �� Reset Se ttings � Specifications Specifications are subject to change without notice. PlayStationPC｜MACHandheld Switch ｜ Android｜ iPhoneLaptop Install the Microphone �. Insert the detachable microphone into the headset microphone jack. �. Rotate the microphone to the right to lock it in place. �. Rotate the microphone so that the icon is aligned with your mouth. � � � � � DefaultDefaultDefault Gaming Mode � / Gaming Mode � / Music Mode，Movie Mode Green light stays on for � second Red light stays on for � second On (Red Light On) �.�GHz Mode / Dual-Device Mode / Bluetooth Mode / / / Music Mode Sound Mode Button Power On Power Off Mic Gain On/Off Microphone Noise Cancellation On/Off Microphone On/Off Volume Control Mode Switch ×1 2S 3S ×1 ×2 ×1 Wearing Wearing the Headset: �. Adjust the adjustable arm to the appropriate length. �. The headband should rest comfortably on the top of your head. �. The ear cushions should fully cover your ears. Microphone Placement: Ideal placement of the microphone is at the corner of your mouth. In this position, your voice can be heard clearly without the microphone picking up breath sounds. � � � FCC Warning �� This device complies with part �� of the FCC rules. Operation is subject to the following two conditions: (�) This device may not cause harmful interference. (�) This device must accept any interference received, including interference that may cause undesired operation. Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part �� of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: ·Reorient or relocate the receiving antenna. ·Increase the separation between the equipment and receiver. ·Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. ·Consult the dealer or an experienced radio/TV technician for help. Radiation Exposure Statement The device has been evaluated to meet general RF exposure requirements. The device can be used in portable exposure condition without restriction. Batteries A warning that batteries ( battery pack or batteries installed ) shall not be exposed to excessive heat such as sunshine, fire or the light. ( � ) Replacement of a battery with an incorrect type that can defeat a safeguard; ( � ) Disposal of a battery into fire or a hot oven, or mechanically crushing or cutting of a battery, that can result in an explosion； ( � ) Leaving a battery in an extremely high temperature surrounding environment that can result in an explosion or the leakage of flammable liquid or gas; ( � ) A battery subjected to extremely low air pressure that may result in an explosion or the leakage of flammable liquid or gas. Service｜Support CROCIRIS is the flagship premium brand of XIBERIA Copyright ©���� CROCIRIS. "CROCIRIS" and "XIBERIA" are trademarks or registered trademarks of its affiliated companies in China and other countries/regions. All other trademarks are the property of their respective owners. CROCIRIS assumes no responsibility for any errors or omissions in this manual. Actual products may vary from the images shown. Information contained herein is subject to change without notic…

Text truncated - open the document above for the full version.

Date:2026.05.10 Federal Communications Commission Authorization & Evaluation Division 7345 Oakland Mills Road Columbia, Maryland 21046 RE: LETTER OF AGENT AUTHORIZATION To Whom It May Concern: We, the undersigned, hereby authorize Compliance Testing, LLC to act on our behalf in all matters relating to application for equipment authorization, including the signing of all documents relating to these matters. We also hereby certify that no party to the application authorized hereunder is subject to the denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C.853(a). Sincerely, <Signature> Name: Jiabing Tang Title: Manager Company: Dongguan Desheng Industrial Co., Ltd

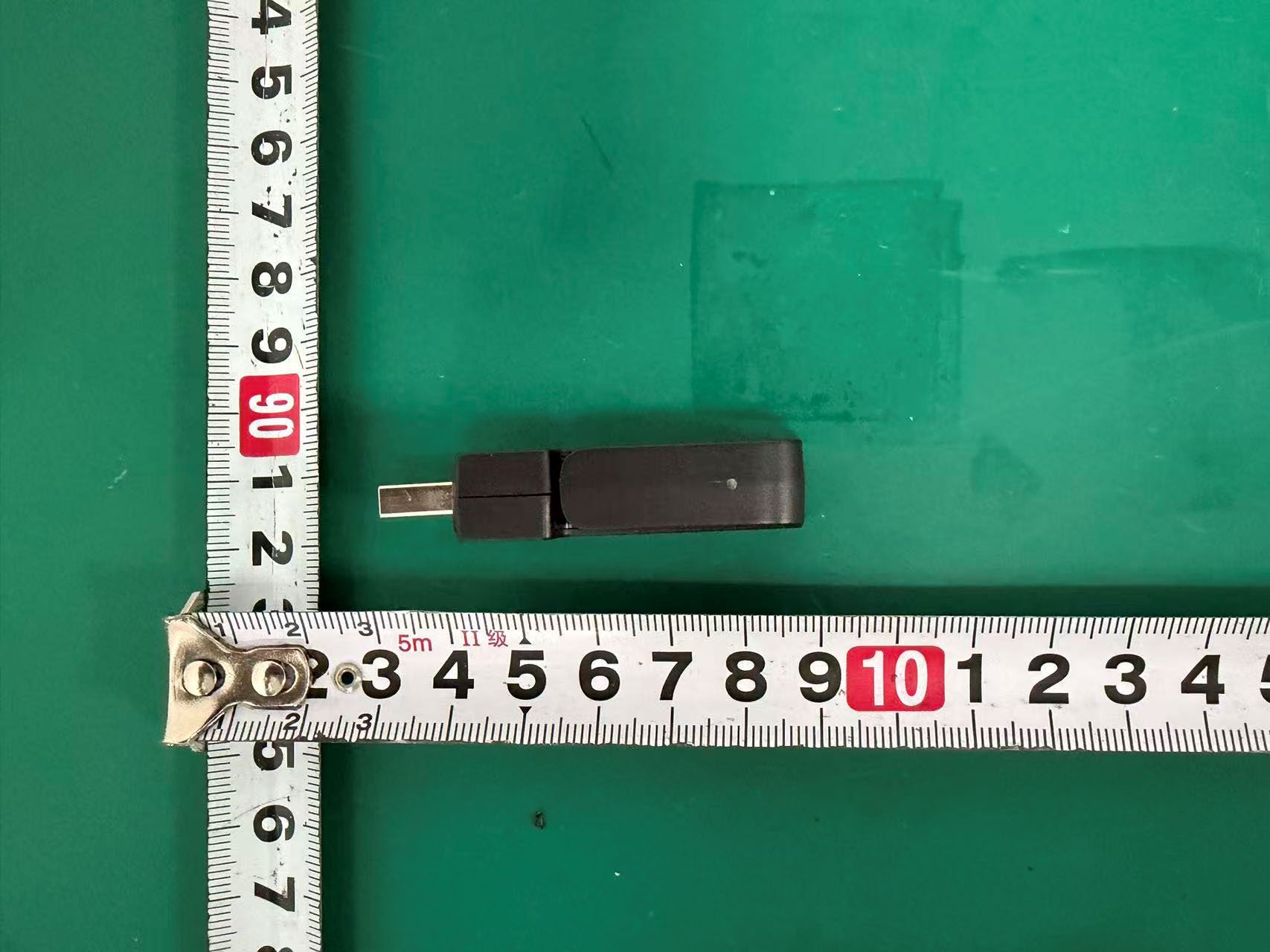

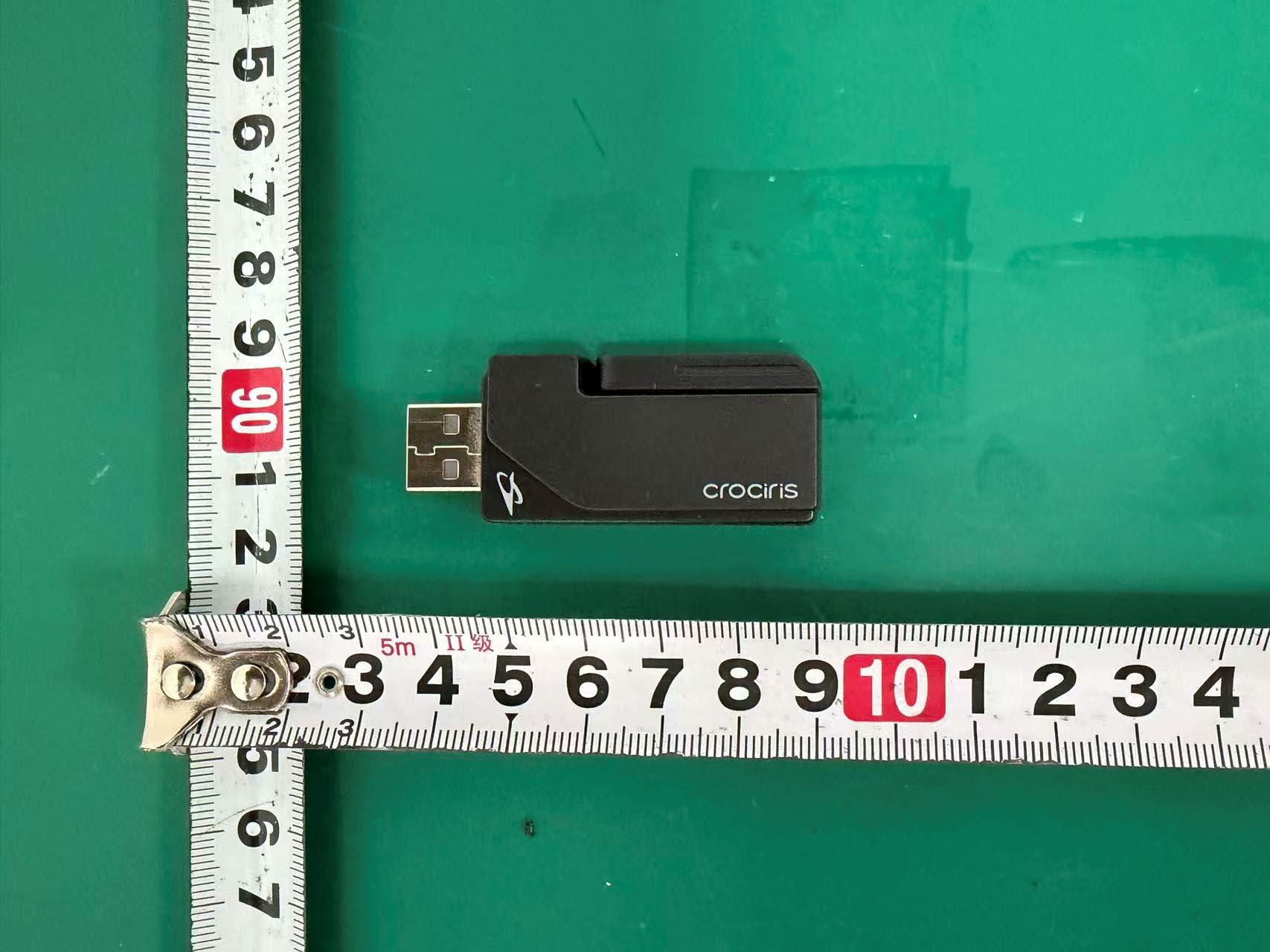

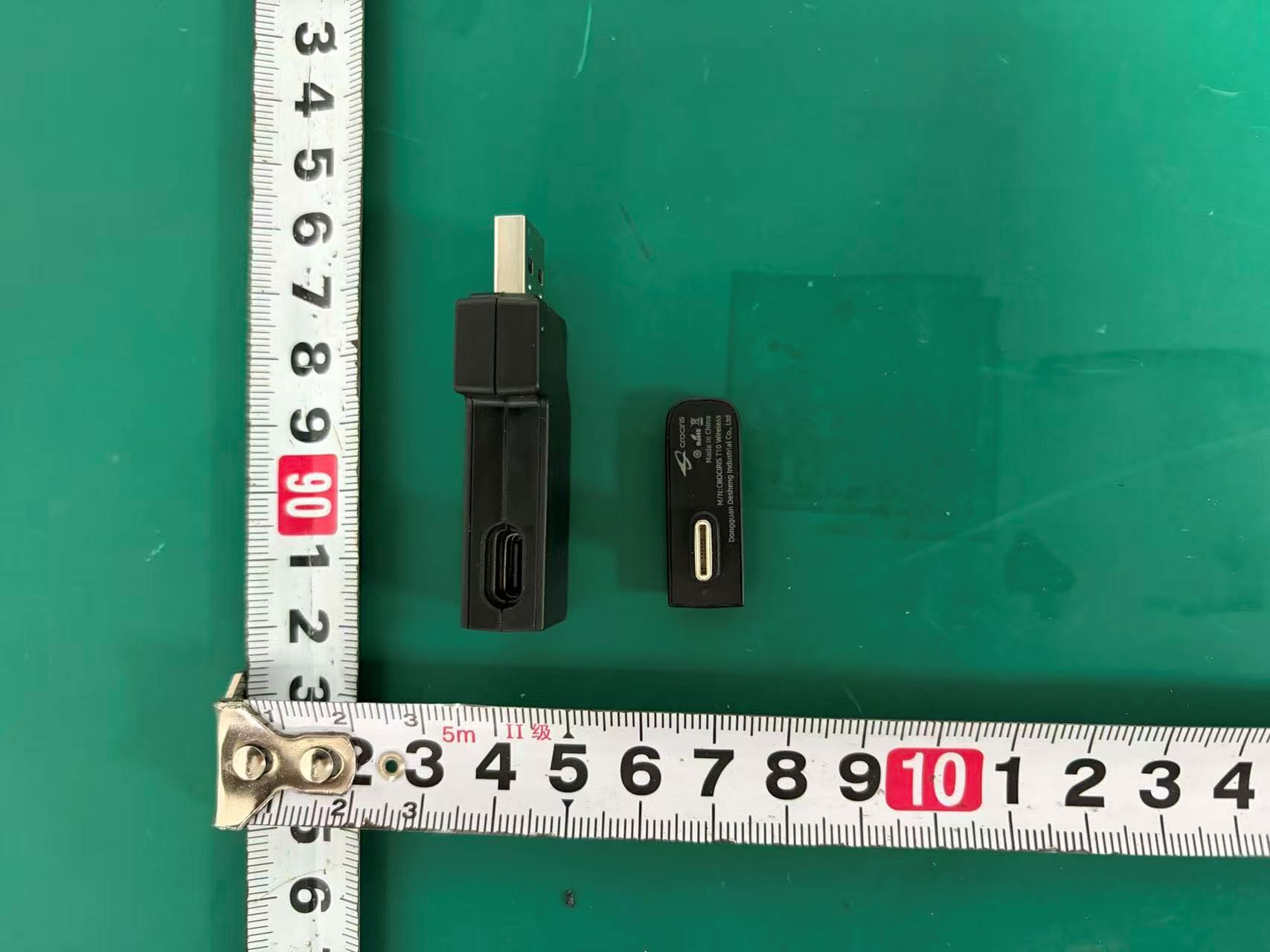

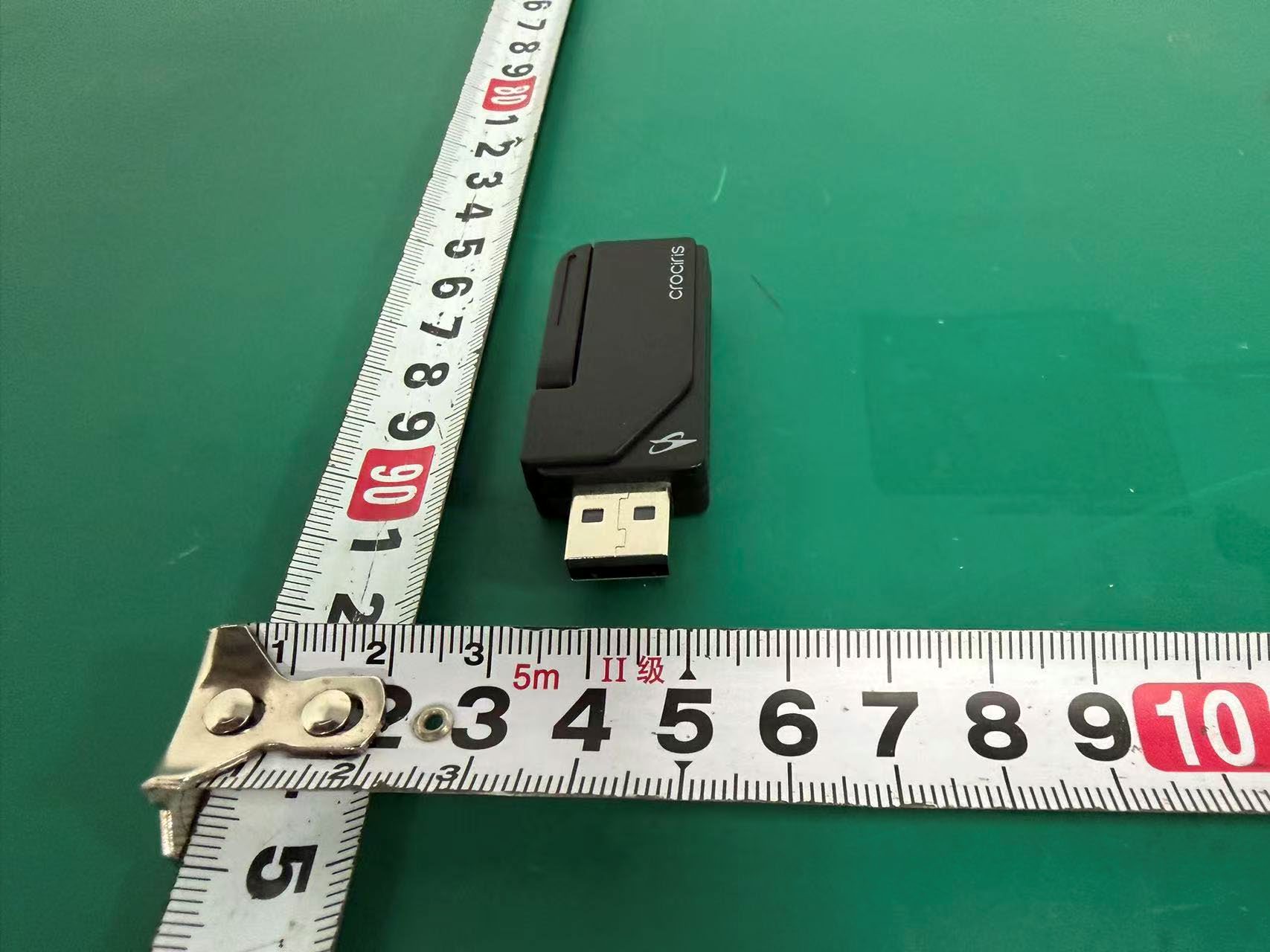

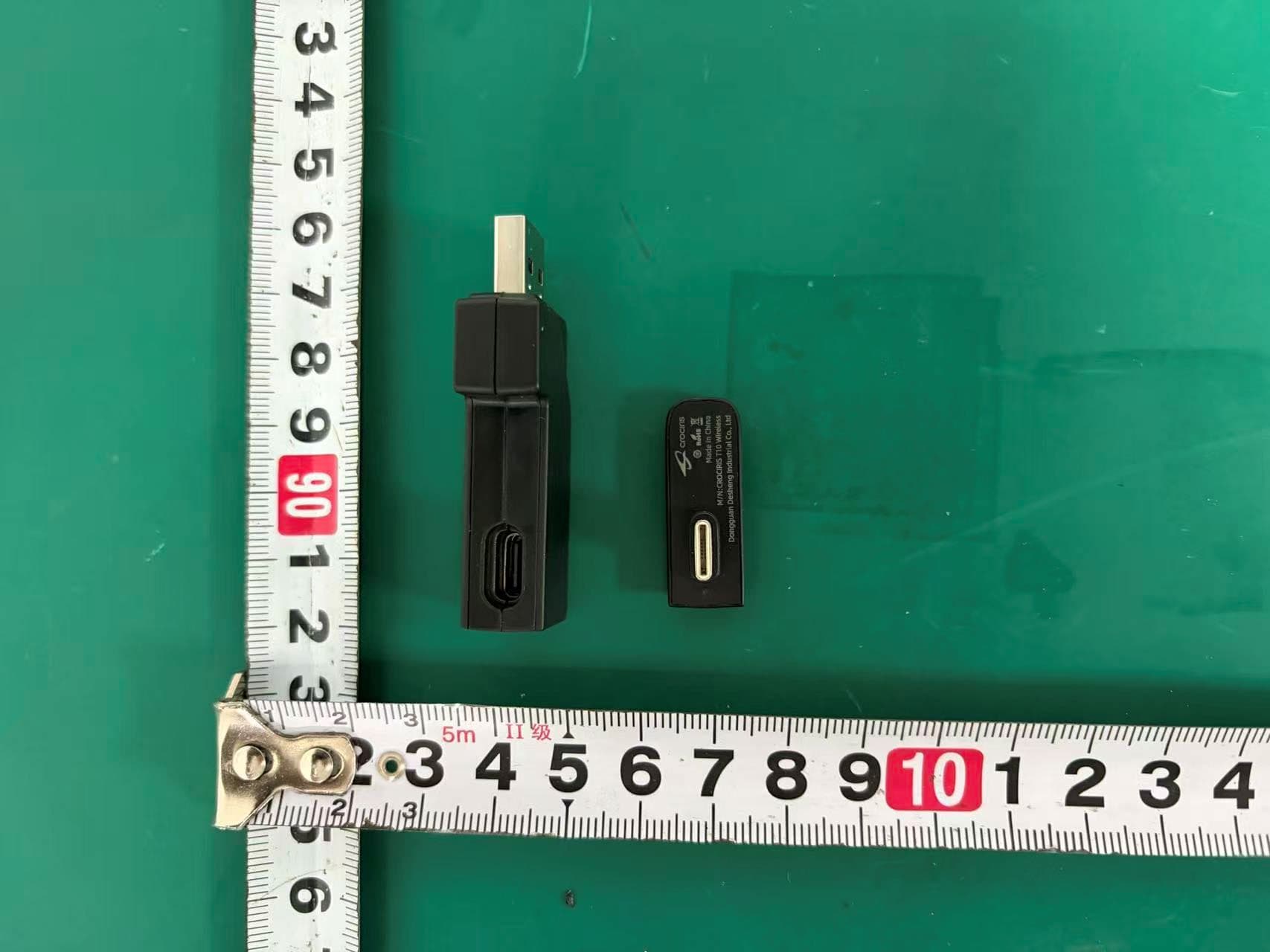

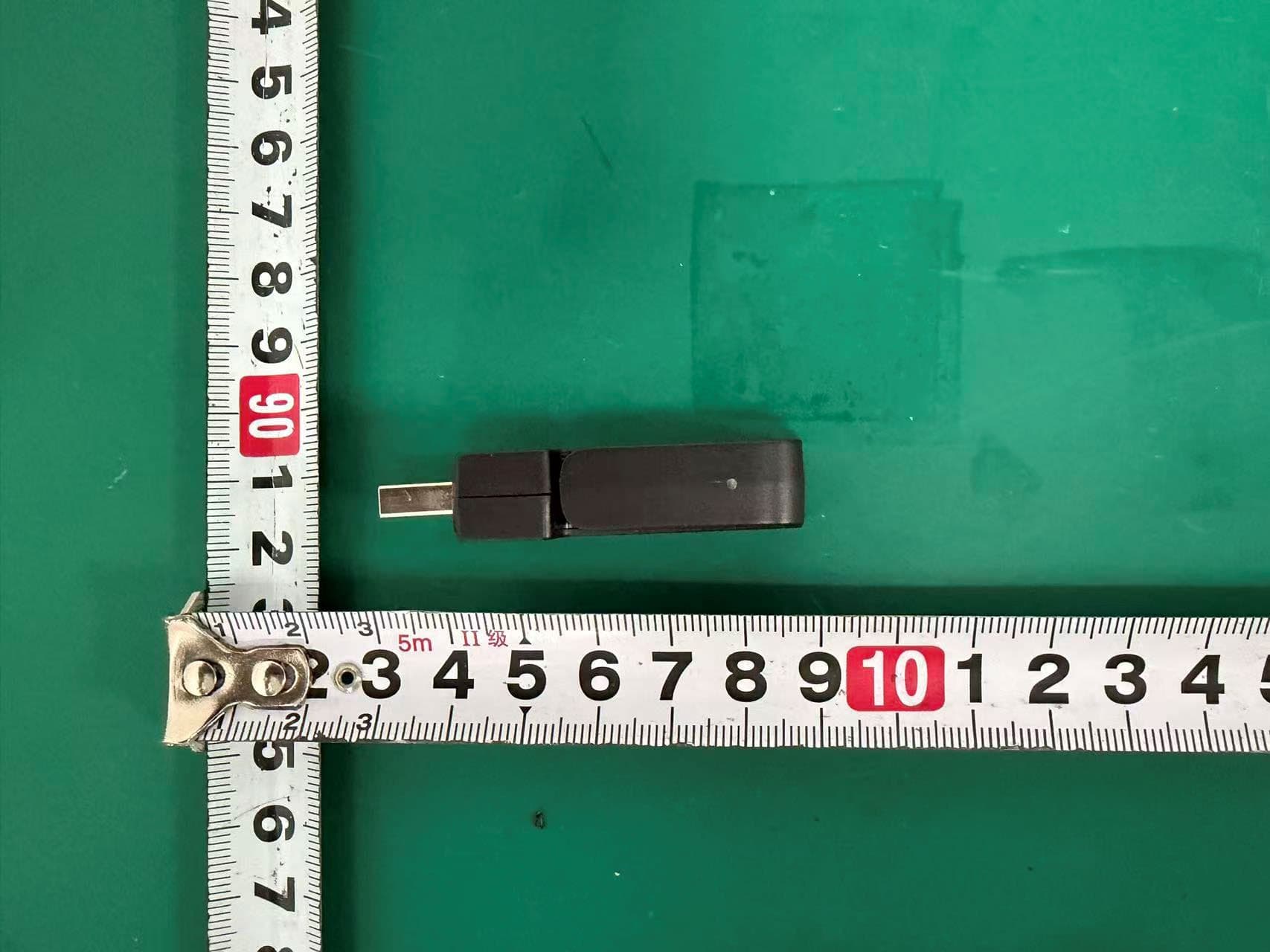

External Photos M/N: T10 dongle External Photos M/N: T10 dongle External Photos M/N: T10 dongle External Photos M/N: T10 dongle

Internal Photos M/N: T10 dongle Internal Photos M/N: T10 dongle Internal Photos M/N: T10 dongle Bluetooth Antenna

Page 1 of 3 Report No. ESTE-R2606310 FCC RF EXPOSURE REPORT Dongguan Desheng Industrial Co., Ltd Dongle Model Number: T10 dongle FCC ID: 2AXCY-T10DONGLE Applicant: Dongguan Desheng Industrial Co., Ltd Address: Area A5, Shichong Industrial Park, Shipai Town, Dongguan City, China Prepared By: EST Technology Co., Ltd. Chilingxiang, Qishantou, Santun, Houjie, Dongguan, Guangdong, China Tel: 86-769-83081888-808 Report Number: ESTE-R2606310 Date of Test: May 12, 2026 to Jun. 17, 2026 Date of Report: Jun. 24, 2026 Page 2 of 3 Report No. ESTE-R2606310 1. Applicable Standards FCC Part 2(Section 2.1093) FCC KDB 447498 D04 Interim General RF Exposure Guidance v01 2. Exposure Evaluation of Portable or Mobile Devices Human exposure to RF emissions from portable devices (47 CFR §2.1093), as defined by the FCC, must be evaluated with respect to the FCC-adopted limits for SAR. Evaluation of mobile devices, as defined by the FCC, may also be performed with respect to SAR limits, but in such cases it is usually simpler and more cost-effective to evaluate compliance with respect to field strength or power density limits. For certain devices that are designed to be used in both mobile and portable configurations similar to those described in 47 CFR §2.1091(d)(4), such as certain desktop phones and wireless modem modules, compliance for mobile configurations is also satisfied when the same device is evaluated for SAR compliance in portable configurations. The test exclusions are applicable only when the minimum test separation distance is ≤ 50 mm and for transmission frequencies between 300 MHz and 6 GHz. When the minimum test separation distance is < 5 mm, a distance of 5 mm is applied to determine SAR test exclusion. Page 3 of 3 Report No. ESTE-R2606310 3. Evaluation Results Mode CH Peak output Power （dBm） Antenna Gain (dBi) effective radiated power （dBm） Target power (dBm) Max. Target power (mW) SAR Test Exemption Limit (mW) BLE 1M 2402 -0.23 5.19 2.81 2±1 1.995 2.72 2440 -0.43 5.19 2.61 2±1 1.995 2.72 2480 -0.39 5.19 2.65 2±1 1.995 2.72 BLE 2M 2402 -0.25 5.19 2.79 2±1 1.995 2.72 2440 -0.41 5.19 2.63 2±1 1.995 2.72 2480 -0.41 5.19 2.63 2±1 1.995 2.72 Note: 1. Limited=3060*(0.5/20)^x, x=-log(60/(3060*√f)). 2. We choose f=2.48GHz (Highest frequency operate at bluetooth) to calculate MPE limit as higher frequency will have lower MPE limits. 3. SAR Test Exclusion Thresholds is 2.72mW for separation distance 5mm. Therefore, SAR test is not required. End of Test Report

Page 1 of 49 Report No.ESTE-R2606309 FCC PART 15C TEST REPORT FOR CERTIFICATION On Behalf of Dongguan Desheng Industrial Co., Ltd Dongle Model Number: T10 dongle FCC ID: 2AXCY-T10DONGLE Applicant: Dongguan Desheng Industrial Co., Ltd Address: Area A5, Shichong Industrial Park, Shipai Town, Dongguan City, China Prepared By: EST Technology Co., Ltd. Chilingxiang, Qishantou, Santun, Houjie, Dongguan, Guangdong, China Tel: 86-769-83081888-808 Report Number: ESTE-R2606309 Date of Test: May 12, 2026 to Jun. 17, 2026 Date of Report: Jun. 24, 2026 Page 2 of 49 Report No.ESTE-R2606309 TABLE OF CONTENTS Description Page TEST REPORT VERIFICATION .......................................................................................................... 3 1. GENERAL INFORMATION ................................................................................................................... 5 1.1. Description of Device (EUT) ............................................................................................................ 5 1.2. Antenna Information ......................................................................................................................... 5 1.3. Information of RF Cable ................................................................................................................... 5 2. SUMMARY OF TEST ........................................................................................................................... 6 2.1. Summary of test result ..................................................................................................................... 6 2.2. Test Facilities ..................................................................................................................................... 7 2.3. Measurement uncertainty ................................................................................................................ 8 2.4. Assistant equipment used for test .................................................................................................. 8 2.5. Block Diagram ................................................................................................................................... 8 2.6. Test Mode .......................................................................................................................................... 9 2.7. Power Setting of Test Software ...................................................................................................... 9 2.8. Duty Cycle .......................................................................................................................................... 9 2.9. Channel List ..................................................................................................................................... 10 2.10. Test Equipment List ...................................................................................................................... 11 3. 6DB BANDWIDTH ............................................................................................................................ 15 3.1. Limit ................................................................................................................................................... 15 3.2. Test Setup ........................................................................................................................................ 15 3.3. Spectrum Analyzer Setting ............................................................................................................ 15 3.4. Test Procedure ................................................................................................................................ 15 3.5. Test Result ....................................................................................................................................... 15 4. MAXIMUM PEAK OUTPUT POWER .................................................................................................. 16 4.1. Limit ................................................................................................................................................... 16 4.2. Test Setup ........................................................................................................................................ 16 4.3. Spectrum Analyzer Setting ............................................................................................................ 16 4.4. Test Procedure ................................................................................................................................ 16 4.5. Test Result ....................................................................................................................................... 16 5. POWER SPECTRAL DENSITY .......................................................................................................... 17 5.1. Limit ................................................................................................................................................... 17 5.2. Test Setup ........................................................................................................................................ 17 5.3. Spectrum Analyzer Setting ............................................................................................................ 17 5.4. Test Procedure ................................................................................................................................ 17 5.5. Test Result ....................................................................................................................................... 17 6. CONDUCTED BAND EDGE .............................................................................................................. 18 6.1. Limit ................................................................................................................................................... 18 6.2. …

Text truncated - open the document above for the full version.

嘉兴佳利电子有限公司 http://www.glead.com.cn 阿里巴巴 http://zydq.en.alibaba.com JIA XING GLEAD ELECTRONICS CO., LTD - 1 - 产 品 技 术 规 格 书 SPECIFICATION 中国浙江省嘉兴市经济开发区正原路66号 No.66 ZhengyuanRoad, Economic Development Zone,Jiaxing,Zhejiang,China TEL：0086-573-83651818 FAX：0086-573-83651858 拟制Prepared by： 审核Checked by ： 批准Approved by： 送样日期Formed On 产品版本Document Version ( V1.2 ) 产品型号 PART NO： LA31H2450-A35 客户料号CUSTOMER PART NO： 客户确认CUSTOMER APPROVED BY： 确认日期APPROVED DATE： 嘉兴佳利电子有限公司 http://www.glead.com.cn 阿里巴巴 http://zydq.en.alibaba.com JIA XING GLEAD ELECTRONICS CO., LTD - 2 - 目 录 Table of contents 规格书版本更改记录 Version rejigger track record ..............................3 1. 概述 Introduction..................................................................4 2. 型号 Part Number...............................................................4 3. 外型尺寸及测试板焊盘尺寸 D i m e n s i o n s.....................4～5 4. 测试电路和匹配电路 Evaluation Board and Matching Circuits............5 5. 电气性能 Electrical Characteristics..........................................6 6. 特性曲线 Characteristic curve...................................................6 7. 方向图 Radiation Pattern...................................................7～8 8. 可靠性试验后允许误差 Post Dependability Tolerance ...............9 9. 可靠性试验 Dependability Test..........................................9～10 10. 回流焊温度 Reflow Soldering Standard Condition.....................10 11. 包装尺寸 Packaging and Dimensions ....................................11 嘉兴佳利电子有限公司 http://www.glead.com.cn 阿里巴巴 http://zydq.en.alibaba.com JIA XING GLEAD ELECTRONICS CO., LTD - 3 - 产品规格书版本更改记录 Version rejigger track record 版本号 Version 更改记录 Rejigger 拟制 Prepared 批准 Approve 日期 Date V1.0 首次发行 蔡壮 陆德龙 2015.12.25 V1.1 更改产品尺寸公差值 罗昌桅 卢冠宇 2017.05.24 V1.2 修正可靠性试验说明内容8.1~8.4 潘枫 卢冠宇 2017.11.07 备注： 1、更改产品电性能指标时，版本号需更换（V1.0换为V2.0、V3.0......）； 2、更改产品测试方法（包括可靠性测试条件），或更改使用条件时，当前版本号加系列（V1.0 换为V1.1、V1.2......）。 嘉兴佳利电子有限公司 http://www.glead.com.cn 阿里巴巴 http://zydq.en.alibaba.com JIA XING GLEAD ELECTRONICS CO., LTD - 4 - 产品尺寸/Size：3.2×1.6×1.2 1. 概述 INTRODUCTION "佳利"微波多层陶瓷天线LA系列产品设计用于WLAN、WiFi、蓝牙、PHS，手机 多频天线, FM等小体积SMD片式设计。 "GLEAD" Microwave Multi-Layer Ceramic Antenna LA series are designed to be used in WLAN、WiFi、Bluetooth、PHS、 Multiple-band Mobile phone antenna, FM, etc and compact size SMD chip design. 2. 型号 Part Number LA 31 H 2450 - A35 3. 外型尺寸 Dimensions（Unit：mm） 天线频率/ Antenna Frequency: 2450 MHz 产品设计结构H型/Via Design Series 多层结构天线/Multi-layer Antenna 产品名称，编号A35/Product Name: A35 嘉兴佳利电子有限公司 http://www.glead.com.cn 阿里巴巴 http://zydq.en.alibaba.com JIA XING GLEAD ELECTRONICS CO., LTD - 5 - 4. 测试电路和匹配电路 Evaluation Board and Matching Circuits 5. 电气性能 Electrical Characteristics No. Item （项目） Specifications （特性） 5.1 Central Frequency 中心频率(No matching) 2875MHz (带匹配电路测试)After Matching 2450 MHz 5.2 Band Width 通带宽度 100MHz typ. 5.3 Peak Gain 峰值增益 5.19 dBi 5.4 V.S.W.R 驻波比 ≤2.0 5.5 Polarization 极化方式 Linear 线性 5.6 Azimuth Beam width 方位角 Omni-directional 全向 5.7 Impedance 阻抗 50 Ω 6.2n H 1.8n H 嘉兴佳利电子有限公司 http://www.glead.com.cn 阿里巴巴 http://zydq.en.alibaba.com JIA XING GLEAD ELECTRONICS CO., LTD - 6 - 6. 特性曲线 Characteristic curve 7. 方向图 Radiation Pattern coordinates： 嘉兴佳利电子有限公司 http://www.glead.com.cn 阿里巴巴 http://zydq.en.alibaba.com JIA XING GLEAD ELECTRONICS CO., LTD - 7 - X-Z Plane Y-Z Plane X-Y Plane 嘉兴佳利电子有限公司 http://www.glead.com.cn 阿里巴巴 http://zydq.en.alibaba.com JIA XING GLEAD ELECTRONICS CO., LTD - 8 - 3D Radiation Pattern Frequency (MHz) 2400 2450 2500 Avg. Gain (dBi) -0.23 -0.36 -0.51 Peck Gain (dBi) 4.98 5.19 4.55 Efficiency (%) 70 71.2 69 嘉兴佳利电子有限公司 http://www.glead.com.cn 阿里巴巴 http://zydq.en.alibaba.com JIA XING GLEAD ELECTRONICS CO., LTD - 9 - 8可靠性试验后允许误差 Post Dependability Tolerance 经可靠性试验后允许比起始读数偏差见下表 Post Dependability Tolerance ( Refer to the table ) 9 可靠性试验 Dependability Test 基准条件：温度范围 Temperature range 25±5°C 相对湿度范围 Relative Humidity range 55~75%RH 工作温度 Operating Temperature range -40°C~+85°C 9.1 耐振动 Vibration Resist 在振动频率为10~55Hz振幅为1.5mm 沿X.Y.Z方向各振动2小时后测试符合表8.1~8.4规定。 The device should satisfy the electrical characteristics specified in paragraph 8.1~8.4 after applied to the vibration of 10 to 55Hz with amplitude of 1.5mm for 2 hours each in X , Y and Z directions. 9.2 耐跌落冲击 Drop Shock 在100cm高度处按X，Y，Z三个面分别自由跌落在木制地板上共3次后测试符合表8.1~8.4规 定。 The device should satisfy the electrical characteristics specified in paragraph 8.1~8.4 after dropping onto the hard wooden board from the height of 100cm for 3 times each facet of the 3 dimensions of the device. 9.3 耐焊接热 Solder Heat Proof 能承受经120~150°C的温度预热120秒后，在255°C+10°C的焊锡浸5±0.5秒，或300°C-10°C的 电烙铁焊接3±0.5秒，焊接面无损伤。 The device should be satisfied after preheating at 120°C~150°C for 120 seconds and dipping in soldering Sn at 255°C+10°C for 5±0.5 seconds，or electric iron 300°C-10°C for 3±0.5 seconds， without damnify. 9.4 结合力试验 Tensile Strength of Terminal 在产品电极端子上或表面上应能承受1kg垂直拉力10±1秒。 The device should not be broken after tensile force of 1.0kg is slowly applied to pull a lead pin of the fixed device in the lead axis direction for 10±1 seconds. No. Item （项目） Post Dependability Tolerance (可靠性试验后允许附加误差) 8.1 Central Frequency 中心频率 ±5 MHz 8.2 Band Width 通带宽度 ±5 MHz 8.3 Gain 增益 ±0.1 dBi 8.4 V.S.W.R (in BW) 驻波比 ±0.1 嘉兴佳利电子有限公司 http://www.glead.com.cn 阿里巴巴 http://zydq.en.alibaba.com JIA XING GLEAD ELECTRONICS CO., LTD - 10 - 9.5 耐弯曲试验 Bending Resist Test 将产品按图焊在1.6±0.2mm的 PCB 板中间，由箭头方向施 力：1mm/S，弯曲距离：1.5mm，保持5±1S，产品金属层无脱落。 Weld the product to the center part of the PCB with the thickness 1.6±0.2mm as the illustration shows, and keep exerting force arrow-ward on it at speed of :1mm/S , and hold for 5±1S at the position of 1.5mm bending distance , so far , any peeling off of the product metal coating should not be detected . 9.6 耐湿热特性 Moisture Proof 在温度为60±2°C，相对湿度90~95%的恒温湿箱中放置96小时，在常温中恢复1~2小时后测 试，符合表8.1~8.4规定。 The device should satisfy the electrical characteristics specified in paragraph 8.1~8.4 after exposed to the temperature 60±2°Cand the relative humidity 90~95% RH for 96 hours and 1~2 hours recovery time unde…

Text truncated - open the document above for the full version.

Page 1 of 25 Report No.ESTE-R2606309 Appendix A: DTS Bandwidth Test Result TestMode Antenna Frequency[MHz] DTS BW [MHz] FL[MHz] FH[MHz] Limit[MHz] Verdict BLE_1M Ant1 2402 0.690 2401.676 2402.366 0.5 PASS BLE_1M Ant1 2440 0.702 2439.661 2440.363 0.5 PASS BLE_1M Ant1 2480 0.693 2479.679 2480.372 0.5 PASS BLE_2M Ant1 2402 1.386 2401.322 2402.708 0.5 PASS BLE_2M Ant1 2440 1.128 2439.430 2440.558 0.5 PASS BLE_2M Ant1 2480 1.134 2479.448 2480.582 0.5 PASS Page 2 of 25 Report No.ESTE-R2606309 Test Graphs BLE_1M-Ant1-2402-PASS BLE_1M-Ant1-2440-PASS BLE_1M-Ant1-2480-PASS Page 3 of 25 Report No.ESTE-R2606309 BLE_2M-Ant1-2402-PASS BLE_2M-Ant1-2440-PASS Page 4 of 25 Report No.ESTE-R2606309 BLE_2M-Ant1-2480-PASS Page 5 of 25 Report No.ESTE-R2606309 Appendix B: Maximum conducted output power Test Result Peak TestMode Antenna Frequency[MHz] Conducted Peak Powert[dBm] Conducted Limit[dBm] Verdict BLE_1M Ant1 2402 -0.23 ≤30 PASS BLE_1M Ant1 2440 -0.43 ≤30 PASS BLE_1M Ant1 2480 -0.39 ≤30 PASS BLE_2M Ant1 2402 -0.25 ≤30 PASS BLE_2M Ant1 2440 -0.41 ≤30 PASS BLE_2M Ant1 2480 -0.41 ≤30 PASS Test Graphs Peak BLE_1M-Ant1-2402-PASS BLE_1M-Ant1-2440-PASS Page 6 of 25 Report No.ESTE-R2606309 BLE_1M-Ant1-2480-PASS BLE_2M-Ant1-2402-PASS Page 7 of 25 Report No.ESTE-R2606309 BLE_2M-Ant1-2440-PASS BLE_2M-Ant1-2480-PASS Page 8 of 25 Report No.ESTE-R2606309 Page 9 of 25 Report No.ESTE-R2606309 Appendix C: Maximum power spectral density Test Result TestMode Antenna Frequency[MHz] Result[dBm/3kHz] Limit[dBm/3kHz] Verdict BLE_1M Ant1 2402 -15.41 ≤8.00 PASS BLE_1M Ant1 2440 -15.40 ≤8.00 PASS BLE_1M Ant1 2480 -15.63 ≤8.00 PASS BLE_2M Ant1 2402 -18.73 ≤8.00 PASS BLE_2M Ant1 2440 -18.95 ≤8.00 PASS BLE_2M Ant1 2480 -18.88 ≤8.00 PASS Page 10 of 25 Report No.ESTE-R2606309 Test Graphs BLE_1M-Ant1-2402-PASS BLE_1M-Ant1-2440-PASS BLE_1M-Ant1-2480-PASS Page 11 of 25 Report No.ESTE-R2606309 BLE_2M-Ant1-2402-PASS BLE_2M-Ant1-2440-PASS Page 12 of 25 Report No.ESTE-R2606309 BLE_2M-Ant1-2480-PASS Page 13 of 25 Report No.ESTE-R2606309 Appendix D: Reference level measurement Test Result TestMode Antenna Freq(MHz) Max.Point[MHz] Result[dBm] BLE_1M Ant1 2402 2401.75 -0.87 BLE_1M Ant1 2440 2440.25 -1.70 BLE_1M Ant1 2480 2479.76 -0.96 BLE_2M Ant1 2402 2401.52 -1.11 BLE_2M Ant1 2440 2439.52 -1.52 BLE_2M Ant1 2480 2479.49 -1.63 Page 14 of 25 Report No.ESTE-R2606309 Test Graphs BLE_1M-Ant1-2402-PASS BLE_1M-Ant1-2440-PASS BLE_1M-Ant1-2480-PASS Page 15 of 25 Report No.ESTE-R2606309 BLE_2M-Ant1-2402-PASS BLE_2M-Ant1-2440-PASS Page 16 of 25 Report No.ESTE-R2606309 BLE_2M-Ant1-2480-PASS Page 17 of 25 Report No.ESTE-R2606309 Appendix E: Band edge measurements Test Result TestMod e Antenn a ChNam e Frequency[MHz ] RefLevel[dBm ] Result[dBm ] Limit[dBm ] Verdic t BLE_1M Ant1 Low 2402 -0.87 -39.9 ≤-20.87 PASS BLE_1M Ant1 High 2480 -0.96 -39.55 ≤-20.96 PASS BLE_2M Ant1 Low 2402 -1.11 -35.82 ≤-21.11 PASS BLE_2M Ant1 High 2480 -1.63 -39.7 ≤-21.63 PASS Page 18 of 25 Report No.ESTE-R2606309 Test Graphs BLE_1M-Ant1-2402-PASS BLE_1M-Ant1-2480-PASS BLE_2M-Ant1-2402-PASS Page 19 of 25 Report No.ESTE-R2606309 BLE_2M-Ant1-2480-PASS Page 20 of 25 Report No.ESTE-R2606309 Appendix F: Conducted Spurious Emission Test Result TestMode Antenna Frequency[MHz] FreqRange [MHz] RefLevel [dBm] Result[dBm] Limit[dBm] Verdict BLE_1M Ant1 2402 30~26500 -0.87 -41.81 ≤-20.87 PASS BLE_1M Ant1 2440 30~26500 -1.70 -41.45 ≤-21.7 PASS BLE_1M Ant1 2480 30~26500 -0.96 -41.49 ≤-20.96 PASS BLE_2M Ant1 2402 30~26500 -1.11 -41.68 ≤-21.11 PASS BLE_2M Ant1 2440 30~26500 -1.52 -41.61 ≤-21.52 PASS BLE_2M Ant1 2480 30~26500 -1.63 -41.64 ≤-21.63 PASS Page 21 of 25 Report No.ESTE-R2606309 Test Graphs BLE_1M-Ant1-2402-30~26500-PASS BLE_1M-Ant1-2440-30~26500-PASS BLE_1M-Ant1-2480-30~26500-PASS Page 22 of 25 Report No.ESTE-R2606309 BLE_2M-Ant1-2402-30~26500-PASS BLE_2M-Ant1-2440-30~26500-PASS Page 23 of 25 Report No.ESTE-R2606309 BLE_2M-Ant1-2480-30~26500-PASS Page 24 of 25 Report No.ESTE-R2606309 Appendix G: Duty Cycle Test Result TestMode Antenna Frequency[MHz] ON Time [ms] Period [ms] Duty Cycle [%] Duty Cycle Factor[dB] BLE_1M Ant1 2440 2.14 2.50 85.60 0.68 BLE_2M Ant1 2440 1.08 1.25 86.40 0.63 Page 25 of 25 Report No.ESTE-R2606309 Test Graphs NTNV-BLE_1M-Ant1-2440 NTNV-BLE_2M-Ant1-2440
