2AXDDAK009BT SPEAKER MET MINI

Instruction for Use Model: AK009 Speaker Specifications : Support A2DP AVRCP Headset , Handsfree Working Distance : up to 10m Playing Time : 2-3 hours Dimension : Dia.68X53(H)mm Net Weight (unit)： 143g Speaker Driver : 40mm Output Power :3W Signal-to -Noise :≥ 95db Distortion:≤0.5% Battery Voltage:600mah Charging Voltage : 5v+0.5V Charging Time :2 hours Support phone/ Laptop/Tablet PC / TF card (mini micro card ) Expanded bxs (bass Xpansion system)drives a fuller, richer response This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -- Reorient or relocate the receiving antenna. -- Increase the separation between the equipment and receiver. -- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -- Consult the dealer or an experienced radio/TV technician for help. Warning: changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment The devices has been evaluated to meet general RF exposure requirement

PROFORA INTERNATIONAL CORPORATION August 18, 2020 Equipment Autorisation Division Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 FCC ID: 2AXDDAK009 Product Name: BT SPEAKER MET MINI Request for Confidentiality Pursuant to Sections 0.457 and 0.459 of the commission’s rules, we hereby request that the following documents be held confidential: (List here the documents for which you are seeking confidentiality – for example ...)  Schematics  Block diagram  Operation description These materials contain trade secrets and proprietary information and are not customarily released to the public. The public disclosure of this information might be harmful to the company and provide unjustified benefits to our competitors. <Signature> Name：Andy qian Title：Manager Company：Guanggdong songyang plastic toys co. ltd

PROFORA INTERNATIONAL CORPORATION August 18, 2020: Federal Communications Commission Authorization & Evaluation Division 7345 Oakland Mills Road Columbia, Maryland 21046 Authority to Act as Agent On our behalf, I appoint Flux Compliance Service Laboratory 105 Floor Bao hao Technology Building 1 NO.15 Gong ye West Road Hi-Tech Industrial, Song shan lake Dongguan China (Name of Agent company name and address) to act as our agent in the preparation of this application for equipment certification. I certify that submitted documents properly describe the device or system for which equipment certification is sought. I also certify that each unit manufactured, imported or marketed, as defined in the Federal Communications Commission’s regulations will have affixed to it a label identical to that submitted for approval with this application. For instances where our authorized agent signs the application for certification on our behalf, I acknowledge that all responsibility for complying with the terms and conditions for certification, still resides with Guanggdong songyang plastic toys co. ltd HuaiNan a section 324 National Highway Lianxia Town Chenhai Shantou, China (Applicant Name and address) <Signature> Name：Andy qian Title：Manager Company：Guanggdong songyang plastic toys co. ltd

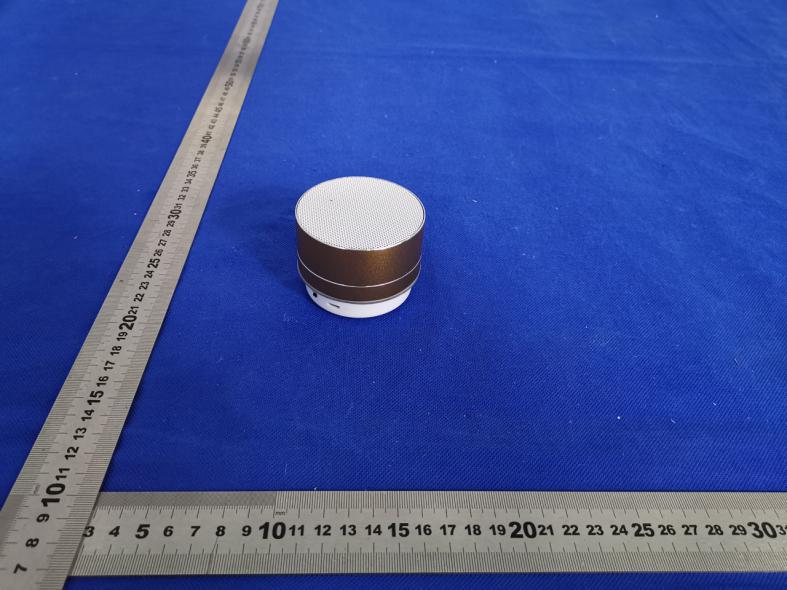

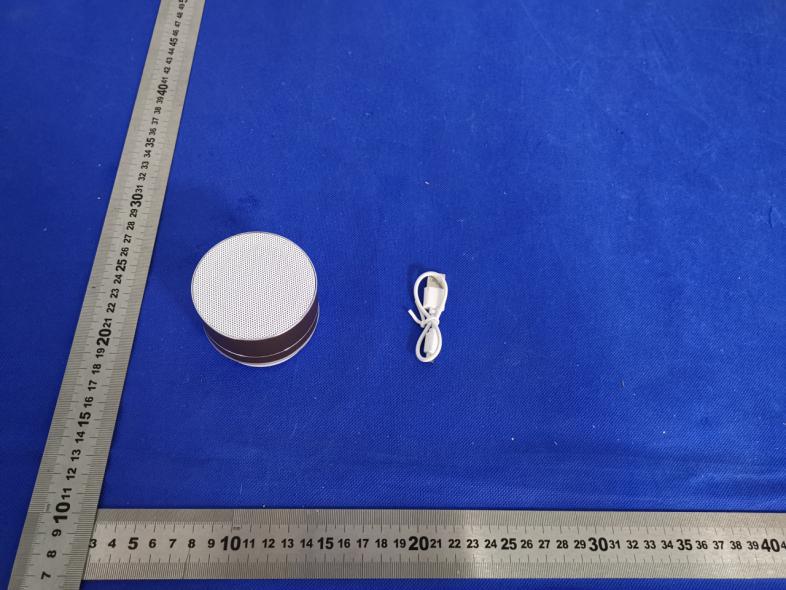

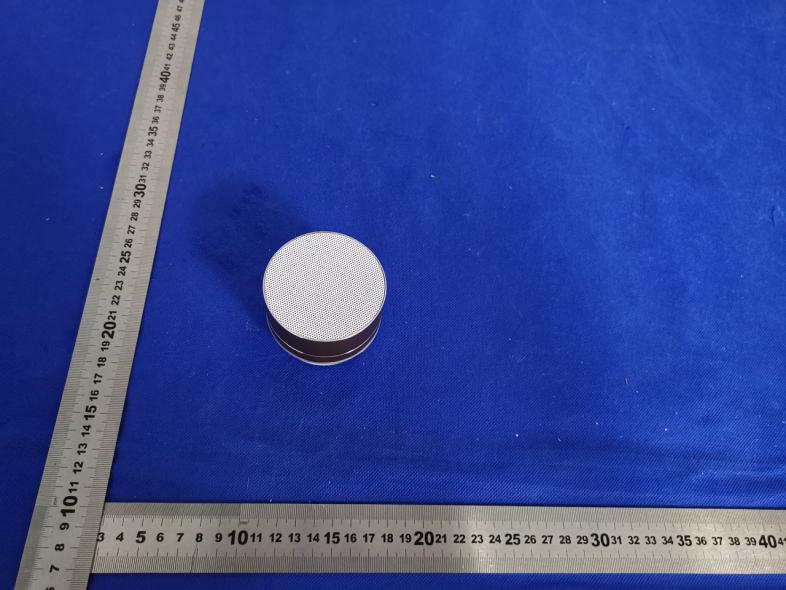

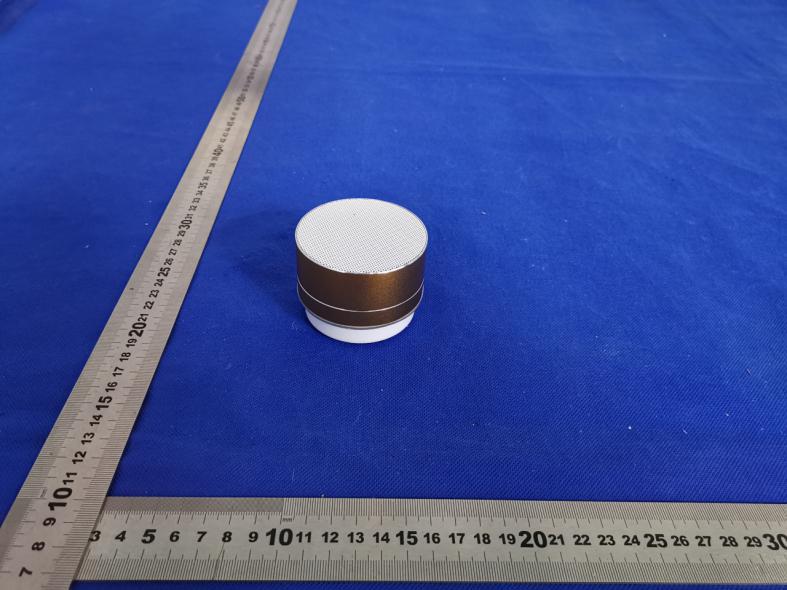

P a g e 1 of4 ReportNo.:FCS202006032W01 Externalphotos Photo1 Photo2 P a g e 2 of4 ReportNo.:FCS202006032W01 Photo3 Photo4 P a g e 3 of4 ReportNo.:FCS202006032W01 Photo5 Photo6 P a g e 4 of4 ReportNo.:FCS202006032W01 Photo7 Photo8

Label and Label Location FCC ID: 2AXDDAK009 L*W: 10mm*7mm white font on a Black label

page 1 of 4 Report No.:FCS202006032W01 Internal photos Photo1 Photo2 page 2 of 4 Report No.:FCS202006032W01 Photo3 Photo4 page 3 of 4 Report No.:FCS202006032W01 Photo5 Photo6 ANTENNA page 4 of 4 Report No.:FCS202006032W01 Photo7 Photo8

RF Exposure evaluation According to 447498 D01 General RF Exposure Guidance v05 The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] ·[√f(GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10- g extremity SAR, where f(GHz) is the RF channel transmit frequency in GHz  Power and distance are rounded to the nearest mW and mm before calculation The result is rounded to one decimal place for comparison eirp = pt x gt = (EXd) 2 /30 where: pt = transmitter output power in watts, gt = numeric gain of the transmitting antenna (unitless), E = electric field strength in V/m, --- 10 ((dBuV/m)/20) /10 6 d = measurement distance in meters (m)---3m Sopt = (EXd) 2 /30 x gt Ant gain= 1 dBi ; so Ant numeric gain= 1.26 Field strength =97.45dBμV/m @3m So Pt={ [10 (97.45 /20) /10 6 x3] 2 /30x1.26 }x1000 mW =1.32mW So (1.32mW/5mm)x √2.402 GHz =0.35 < 3 Then SAR evaluation is not required

FCC Test Report Report No: FCS202006032W01 Issued for Applicant: Guanggdong songyang plastic toys co. ltd Address: HuaiNan a section 324 National Highway Lianxia Town Chenhai Shantou, China Product Name: BT SPEAKER MET MINI Brand Name: NA Model Name: AK009 Series Model: NA FCC ID: 2AXDDAK009 Issued By: Flux Compliance Service Laboratory Add: Room 105 Floor Bao hao Technology Building 1 NO.15 Gong ye West Road Hi-Tech Industrial, Song shan lake Dongguan Tel: 769-27280901 Fax:769-27280901 http://www.fcs-lab.com Page 2 of 31 Report No.: FCS202006032W01 Flux Compliance Service Laboratory Room 105 Floor Bao hao Technology Building 1 NO.15 Gong ye West Road Hi-Tech Industrial, Song shan lake Dongguan Tel: 769-27280901 Fax:769-27280901 http://www.fcs-lab.com TEST RESULT CERTIFICATION Applicant’s Name ...................: Guanggdong songyang plastic toys co. ltd Address ..................................: HuaiNan a section 324 National Highway Lianxia Town Chenhai Shantou, China Manufacture's Name ..............: Guanggdong songyang plastic toys co. ltd Address ..................................: HuaiNan a section 324 National Highway Lianxia Town Chenhai Shantou, China Product Description Product Name ........................: BT SPEAKER MET MINI Brand Name .........................: NA Model Name ...........................: AK009 Series Model ..........................: NA Test Standards .......................: FCC Rules and Regulations Part 15 Subpart C, Section 249 Test Procedure .......................: ANSI C63.10:2013 This device described above has been tested FCS, the test results show that the equipment under test (EUT) is in compliance with the FCC requirements. And it is applicable only to the tested sample identified in the report. This report shall not be reproduced except in full, without the written approval of FCS, this document may be altered or revised by FCS, personal only, and shall be noted in the revision of the document.. Date of Test ............................. : Date (s) of performance of tests : 01 July, 2020 ~ 14 July, 2020 Date of Issue ............................ : 14 July, 2020 Test Result ................................ : Pass Tested by : (Chris Chen) Reviewed by : (Jack Chen) Approved by : ( Andy yue) Page 3 of 31 Report No.: FCS202006032W01 Flux Compliance Service Laboratory Room 105 Floor Bao hao Technology Building 1 NO.15 Gong ye West Road Hi-Tech Industrial, Song shan lake Dongguan Tel: 769-27280901 Fax:769-27280901 http://www.fcs-lab.com Table of Contents Page 1. SUMMARY OF TEST RESULTS 5 1.1 TEST FACTORY 6 1.2 MEASUREMENT UNCERTAINTY 6 2. GENERAL INFORMATION 7 2.1 GENERAL DESCRIPTION OF THE EUT 7 2.2 DESCRIPTION OF THE TEST MODES 9 2.3 DESCRIPTION OF NECESSARY ACCESSORIES AND SUPPORT UNITS 10 2.4 EQUIPMENTS LIST 11 3 CONDUCTED EMISSION MEASUREMENT 12 3.1 LIMIT 12 3.2 TEST PROCEDURE 12 3.3 TEST SETUP 13 3.4 TEST RESULTS 13 4. RADIATED EMISSION MEASUREMENT 16 4.1 LIMIT 16 4.2 TEST PROCEDURE 17 4.3 TEST SETUP 18 4.4 TEST RESULTS 19 5. BAND EDGE TEST 22 5.1 LIMIT 22 5.2 TEST PROCEDURE 22 5.3 TEST SETUP 23 5.4 TEST RESULTS 24 6. 20 DB BANDWIDTH TEST 28 6.1 LIMIT 28 6.2 TEST PROCEDURE 28 6.3 TEST SETUP 28 6.4 TEST RESULTS 29 7. ANTENNA REQUIREMENT 31 7.1 STANDARD REQUIREMENT 31 7.2 EUT ANTENNA 31 Page 4 of 31 Report No.: FCS202006032W01 Flux Compliance Service Laboratory Room 105 Floor Bao hao Technology Building 1 NO.15 Gong ye West Road Hi-Tech Industrial, Song shan lake Dongguan Tel: 769-27280901 Fax:769-27280901 http://www.fcs-lab.com Revision History Rev. Issue Date Effect Page Contents 00 14 July, 2020 All Initial Issue Page 5 of 31 Report No.: FCS202006032W01 Flux Compliance Service Laboratory Room 105 Floor Bao hao Technology Building 1 NO.15 Gong ye West Road Hi-Tech Industrial, Song shan lake Dongguan Tel: 769-27280901 Fax:769-27280901 http://www.fcs-lab.com 1. SUMMARY OF TEST RESULTS FCC Part 15.249,Subpart C Standard Section Test Item Judgment Remark 15.207 Conducted Emission PASS -- 15.205(a), 15.209(a), 15.249(a), 15.249(c) Radiated Spurious Emission PASS -- 15.209 Field strength of fundamental PASS 15.249(d) Band Edge Emission PASS -- 15.215(c) 20dB Bandwidth PASS -- 15.203 Antenna Requirement PASS -- NOTE: (1)” N/A” denotes test is not applicable in this Test Report (2) All tests are according to ANSI C63.10-2013 Page 6 of 31 Report No.: FCS202006032W01 Flux Compliance Service Laboratory Room 105 Floor Bao hao Technology Building 1 NO.15 Gong ye West Road Hi-Tech Industrial, Song shan lake Dongguan Tel: 769-27280901 Fax:769-27280901 http://www.fcs-lab.com 1.1 TEST FACTORY Company Name: Flux Compliance Service Laboratory Address: Room 105 Floor Bao hao Technology Building 1 NO.15 Gong ye West Road Hi-Tech Industrial, Song shan lake Dongguan Telephone: +86-769-27280901 Fax: +86-769-27280901 FCC Test Firm Registration Number: 514908 Designation number: CN0127 A2LA accreditation number：5545.01 1.2 MEASUREMENT UNCERTAINTY The reported uncertainty of measurement y ±U, where expended uncertainty U is based on a standard uncertainty multiplied by a coverage factor of k=2, providing a level of confidence of approximately 95 %. No. Item Uncertainty 1 RF output power, conducted ±0.71dB 2 Unwanted Emissions, conducted ±2.98 dB 3 Conducted Emission (9KHz-150KHz) ±4.13 dB 4 Conducted Emission (150KHz-30MHz) ±4.74 dB 5 All emissions,radiated(<1G) 30MHz-1000MHz ±3.2 dB 6 All emissions,radiated (1GHz -18GHz) ±3.66 dB 7 All emissions,radiated (18GHz -40GHz) ±4.31 dB Page 7 of 31 Report No.: FCS202006032W01 Flux Compliance Service Laboratory Room 105 Floor Bao hao Technology Building 1 NO.15 Gong ye West Road Hi-Tech Industrial, Song shan lake Dongguan Tel: 769-27280901 Fax:769-27280901 http://www.fcs-lab.com 2. GENERAL INFORMATION 2.1 GENERAL DESCRIPTION OF THE EUT Product Name BT SPEAKER MET MINI Trade Name NA Model Name AK009 Series Model NA Model Difference NA Channel List Please refer to the Note 2. BT Frequency:2402-2480MHz Modulation: GFSK Channel numb…

Text truncated - open the document above for the full version.

P a g e 1 of1 ReportNo.:FCS202006032W01 B l o w1 G H zf o rradiated emissiontest setup A b o v e1 G H zf o rradiated emissiontest setup conducted emission test s etup
