Smart Grip Ring Bluetooth Enabled Hand Grip Trainer User Manual Overview Smart Grip Ring Smart Sensor LCD display On/Off button Type C charging port Charging the smart sensor When the smart sensor's battery power is low, the LCD display shows“---”， indicating that you should charge the smart sensor. The LCD display will illuminate to indicate the percentage of smart sensor bat-tery life. When fully charged, the LCD display will show the digital number "100". Place the end of the smart sensor with the On/Off button into the left of the grip's slot, then press the other end tofix the smart sensor in place. Control on the Smart Grip Ring 1. Press the On/Off buttton for 2 seconds to turn the smart grip on, when the smart grip is turned on, the LCD display will illuminate. 2. Grip the smart grip, then press the top side down to start grip exercise.and the LCD display will show the real-time counting number. Control via the Fit Monster APP Turn on the bluetooth,network & GPS in your phone, search for “Fit Monster” in the Google Play Store or Apple APP Store to download and install the Fit Monster APP. To make the grip exercise more fun, you can search for “Smart Grip Arm Wrestle” in the Google Play Store or Apple APP Store to download and install the Smart Grip Arm Westle APP for game interaction. System requirement: mobile device runing on iOS 9 or higher,Android 5.0 or higher. Note: To be safely and permanently stored your fitness data, you need tap Sign Up to set up a new account. Press the ON/OFF button to turn on the smart hand grip, the bluetooth icon on the LCD display flashes. Launch the APP, and tap Search devices,it 1. 2. 3. 1. 2. 3. 4. 5. 6. 7. will automatically search for the nearby devices. If the device can not be found, press the ON/OFF four times to reset the smart hand grip to retry. Wait until the bluetooth icon on grip screen stops flashing,and the APP will tell you the device is connected. You can start exercise. 4. 5. Note: When there is no operation for 2 minutes on the device, the LCD display will be turned off, and the device will turn off in 15 minutes automatically. Specifications Model Number: SJ-200 Product name: Smart Grip Ring Operation: Button Control, APP Control Power Input: 5V Charging Time: 1 hour Working Time: Up to 5 hours Battery Type: Rechargeable Lithium-ion Bluetooth Version: V5.0 Dimension: 69*83*22mm Net Weight:60g Safety StatementFCC Statement Avoid dropping. Do not disassemble this device. Do not expose this device to rain or moisture or submerge it in water. Keep the device away from excessive heat,such as sunshine,fire or the like. Use original or certified cables. Do not use any corrosive cleaner/oil to clean. Keep out of reach of children. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1)This device may not cause harmful interference. (2)This device must accept any interference received, including interference that may cause undesired operation. Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. Note:This equipment has been tested and found to comply with the limits for a class B digital device,pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequence energy and,if not installed and used in accordance with the FCC Statement instructions,may cause harmful interference to radio communications.However,there is no guarantee that interference will not occur in a particular installation.if this equipmemt does cause harmful interference to radio or television reception,which can be determined by turning the equipment off and on,the user is encouraged to try to correct the interference by one or more of the following measures: The device has been evaluated to meet general RF exposure requirement. The device can be used in portable exposure condition without restriction. Reorient or relocate the receiving antenna. Increase the separation between the equipment and receiver. Connect the equipment into an autlet on a circuit different from that to which the receiver is connected. Consult the dealer or an experienced radio/TV technician for help.

Dongguan Chuan OptoElectronics Limited 2023-12-09 Eurofins Electrical and Electronic Testing NA, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 RE: Attestation Statements Part 2.911(d)(5)(i) request for (FCC ID: 2AXDL-SJ-200 ) [Dongguan Chuan OptoElectronics Limited ] (“the applicant”) certifies that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. Sincerely, Willy Liu GM Dongguan Chuan OptoElectronics Limited No.43, Songshui Road, Songmushan Village, Dalang Town, Dongguan, Guangdong, China. Dongguan Chuan OptoElectronics Limited 2023-12-09 Eurofins Electrical and Electronic Testing NA, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 RE: Attestation Statements Part 2.911(d)(5)(ii) request for(FCC ID: 2AXDL-SJ-200 ) [Dongguan Chuan OptoElectronics Limited ] (“the applicant”) certifies that, as of the date of the filing of the application, the applicant is not identified on the Covered List as an entity producing “covered” equipment. Sincerely, Willy Liu GM Dongguan Chuan OptoElectronics Limited No.43, Songshui Road, Songmushan Village, Dalang Town, Dongguan, Guangdong, China.

Attestation Statements (2023/12/14) TO: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046, USA RE: Attestation Statements Part 2.911(d)(7) request for (GC: 2AXDL) (Dongguan Chuan OptoElectronics Limited ), the undersigned, hereby authorize Wilson Tech Service LLC to act as our designated U.S. agent for service of process, (Dongguan Chuan OptoElectronics Limited ) accepts to maintain an agent for no less than one year after the grantee has terminated all marketing and importation or the conclusion of any Commission-related proceeding involving the equipment. Wilson Tech Service LLC accepts the responsibility to act as designated U.S. agent for service of process. Applicant Information： Company Name: Dongguan Chuan OptoElectronics Limited Contact Name: Willy Liu Address: No.43, Songshui Road, Songmushan Village, Dalang Town, Dongguan, Guangdong, China. FRN: 0029907508 Telephone No: 13925296134 Email: [email protected] Signature [Willy Liu] U.S. Agent Information: Company Name: Wilson Tech Service LLC Address: 1312 17th Street Suite 692, Denver, CO, 80202, US FRN: 0033402033 Contact Name: Wilson Cheung Telephone No: +1-716-965-5112 Email: [email protected] Signature [Wilson Cheung]

Dongguan Chuan OptoElectronics Limited 2023-12-09 Eurofins Electrical and Electronic Testing NA, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 RE: CONFIDENTIALITY REQUEST FOR (EUT Name: Smart Grip Ring /Model: SJ- 200 /FCC ID: 2AXDL-SJ-200) To Whom It May Concern: This letter serves as an official request for confidentiality under sections 0.457 and 0.459 of CFR 47. We have requested that the (Block Diagram ,Operational Description,Schematics ) required to be submitted with this application be permanently withheld from public review. The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. Please contact me if there is any information you may need. Sincerely, Willy Liu GM Dongguan Chuan OptoElectronics Limited No.43, Songshui Road, Songmushan Village, Dalang Town, Dongguan, Guangdong, China.

M/N:SJ-200 FCC ID:2AXDL-SJ-200

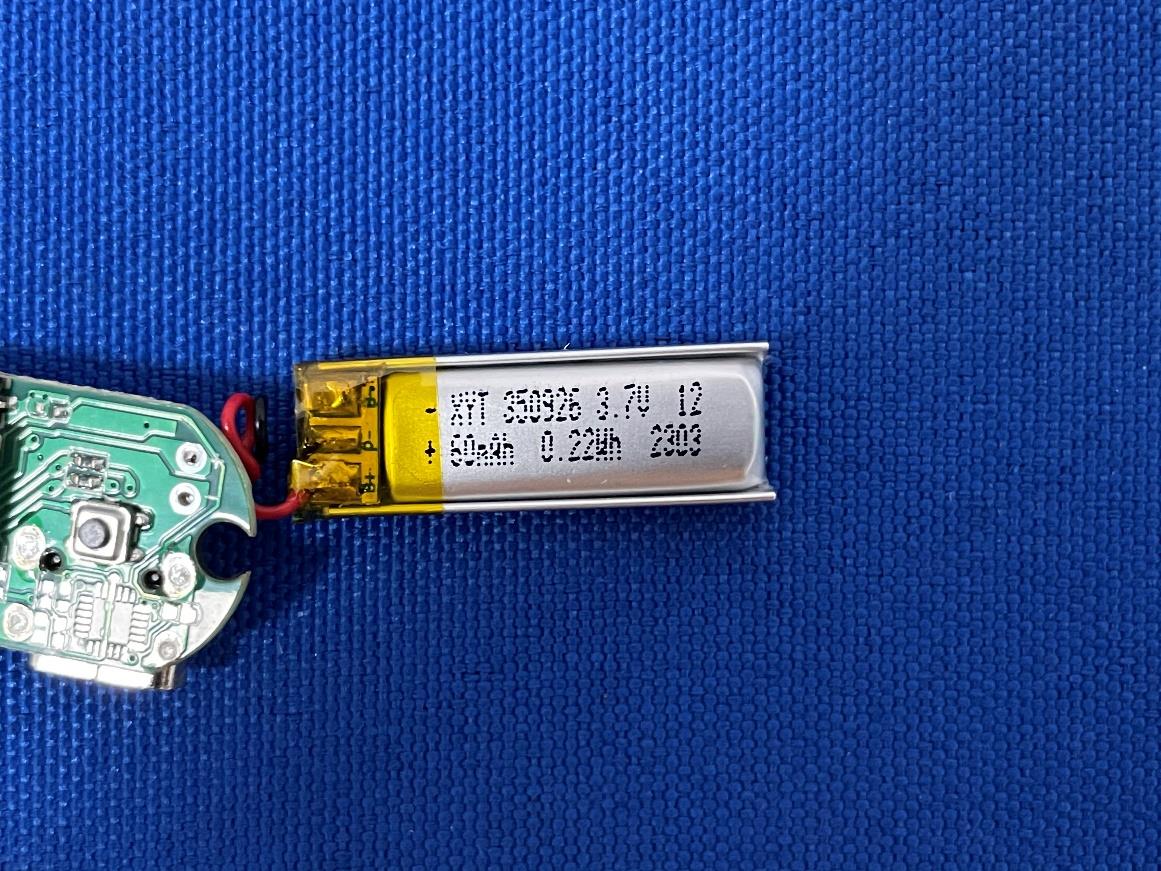

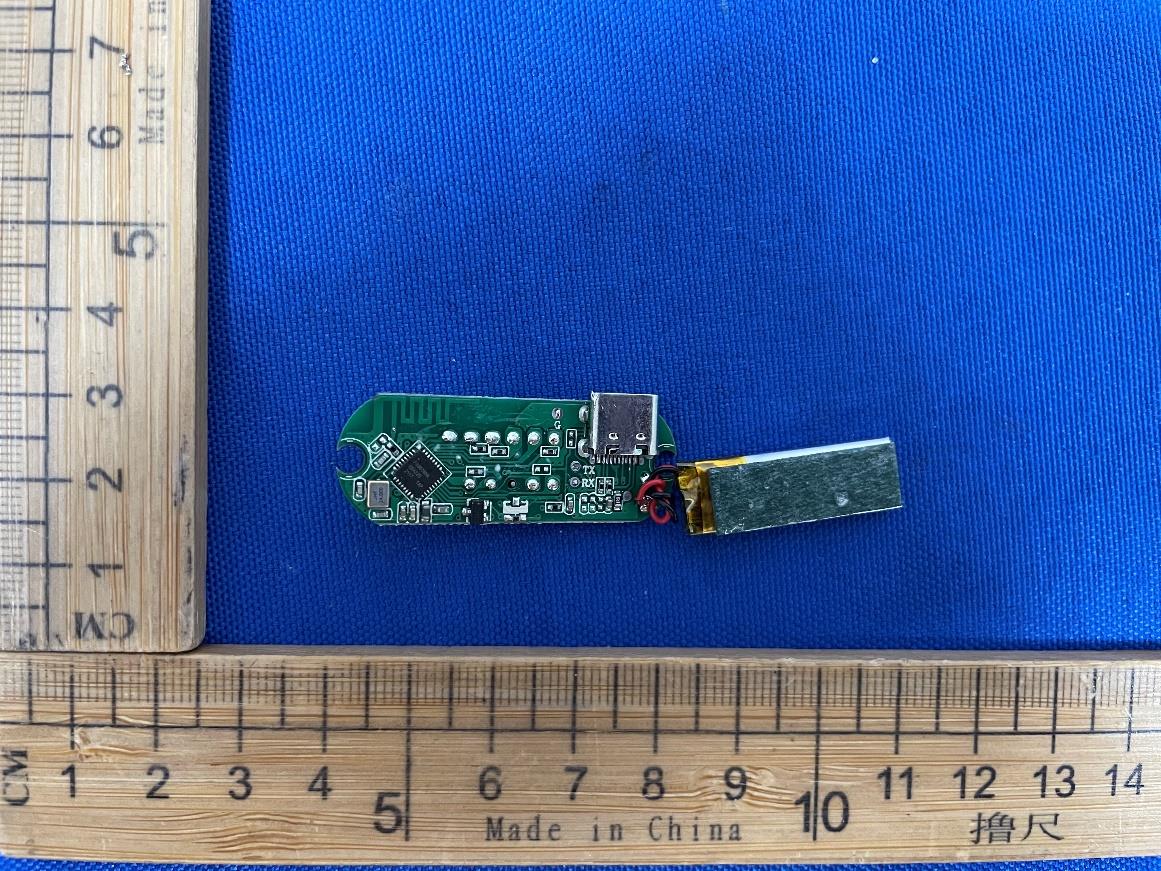

Internal-1 Internal-2 Internal-3 Internal-4 Internal-5 Internal-6 Internal-7 Antenna RF IC

RF EXPOSURE EVALUATION EUT Specification EUT Smart Grip Ring Model Number SJ-200 FCC ID 2AXDL-SJ-200 Antenna gain (Max) -0.59dBi Operation Frequency 2402-2480MHz Input Rating DC 3.7V/DC 5V Classification Per Stipulated Test Standard §15.247(i), §2.1093 Modulation GFSK Max. output power 3.5dBm(0.0022W) Test Requirement: According to ß15.247(i) and ß1.1307(b)(1), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. Routine SAR evaluation refers to that specifically required by ß2.1093, using measurements or computer simulation. When routine SAR evaluation is not required, portable transmitters with output power greater than the applicable low threshold require SAR evaluation to quality for TCB approval. One antenna is available for the EUT. The minimum separation distance is 5mm. According to KDB 447498, no stand-alone required for BT antenna, and no simultaneous SAR measurement is required. Signature: Shawn Wen Date: 2023-09-20 Transmit Frequency (MHz) Mode Measured Power (dBm) Tune up Power (dBm) Max tune up power(dBm) Calculation Result 1-g SAR 2402 GFSK 3.5 4±1 5 0.98 3

ANTENNA SPECIFICATION ITEM ANT SPEC. Model Name 2.4G ANT Center Frequency Horizontal(水平) Vertical（垂直） 2400MHz 2450MHz 2500MHz 2400MHz 2450MHz 2500MHz -1.26 -0.77 -0.59 -5.25 -2.47 -1.86 MAX. Gain -0.59 dBi Polarization Horizontal and Vertical Azimuth Beam Pattern Omni-directional Impedance 50 Ohm Antenna Length 12mm Manufacture Dongguan Chuan OptoElectronics Limited Antenna Photo & Length(mm)

TRF No.: 04-E001-1A TRF Originator: GTG TRF Date: 2023-08-25 Web: www.gtggroup.com E-mail: [email protected] Tel.: 86-400 755 8988 CFR 47 FCC PART 15 SUBPART C TEST REPORT For Smart Grip Ring MODEL NUMBER: SJ-200 REPORT NUMBER: E04A23080550F00201 ISSUE DATE: September 20, 2023 FCC ID:2AXDL-SJ-200 Prepared for Dongguan Chuan OptoElectronics Limited No.43, Songshui Road, Songmushan Village, Dalang Town, Dongguan, Guangdong, China. Prepared by Guangdong Global Testing Technology Co., Ltd. Room 101-105, 203-210, Building 1, No.2, Keji 8 Road, Songshan Lake Park, Dongguan city, Guangdong, People’s Republic of China, 523808 This report shall not be reproduced, except in full, without the written approval of Guangdong Global Testing Technology Co., Ltd. REPORT NO.: E04A23080550F00201 Page 2 of 67 TRF No.: 04-E001-1A Global Testing , Great Quality. Revision History Rev. Issue Date Revisions Revised By V0 September 20, 2023 Initial Issue Jok Yang REPORT NO.: E04A23080550F00201 Page 3 of 67 TRF No.: 04-E001-1A Global Testing , Great Quality. Summary of Test Results Test Item Clause Limit/Requirement Result Antenna Requirement N/A FCC Part 15.203/15.247 (c) Pass AC Power Line Conducted Emission ANSI C63.10-2013, Clause 6.2 FCC Part 15.207 Pass Conducted Output Power ANSI C63.10-2013, Clause 11.9.1.3 FCC Part 15.247 (b)(3) Pass 6dB Bandwidth and 99% Occupied Bandwidth ANSI C63.10-2013, Clause 11.8.1 FCC Part 15.247 (a)(2) Pass Power Spectral Density ANSI C63.10-2013, Clause 11.10.2 FCC Part 15.247 (e) Pass Conducted Band edge and spurious emission ANSI C63.10-2013, Clause 11.11 FCC Part 15.247(d) Pass Radiated Band edge and Spurious Emission ANSI C63.10-2013, Clause 11.11 & Clause 11.12 FCC Part 15.205/15.209 Pass Duty Cycle ANSI C63.10-2013, Clause 11.6 None; for reporting purposes only. Pass *This test report is only published to and used by the applicant, and it is not for evidence purpose in China. *The measurement result for the sample received is <Pass> according to <CFR 47 FCC PART 15 SUBPART C> when <Accuracy Method> decision rule is applied. REPORT NO.: E04A23080550F00201 Page 4 of 67 TRF No.: 04-E001-1A Global Testing , Great Quality. CONTENTS 1. ATTESTATION OF TEST RESULTS ..................................................................................... 5 2. TEST METHODOLOGY ......................................................................................................... 6 3. FACILITIES AND ACCREDITATION ..................................................................................... 6 4. CALIBRATION AND UNCERTAINTY ................................................................................... 7 4.1. MEASURING INSTRUMENT CALIBRATION ........................................................... 7 4.2. MEASUREMENT UNCERTAINTY ............................................................................ 7 5. EQUIPMENT UNDER TEST .................................................................................................. 8 5.1. DESCRIPTION OF EUT ........................................................................................... 8 5.2. CHANNEL LIST ........................................................................................................ 8 5.3. Maximum Peak Output Power ................................................................................... 9 5.4. TEST CHANNEL CONFIGURATION ........................................................................ 9 5.5. THE WORSE CASE POWER SETTING PARAMETER ............................................ 9 5.6. DESCRIPTION OF AVAILABLE ANTENNAS ........................................................... 9 5.7. SUPPORT UNITS FOR SYSTEM TEST ................................................................... 9 5.8. SETUP DIAGRAM .................................................................................................. 10 6. MEASURING EQUIPMENT AND SOFTWARE USED......................................................... 11 7. ANTENNA PORT TEST RESULTS ..................................................................................... 13 7.1. Conducted Output Power ........................................................................................ 13 7.2. 6dB Bandwidth and 99% Occupied Bandwidth ....................................................... 15 7.3. Power Spectral Density ........................................................................................... 17 7.4. Conducted Band edge and spurious emission ........................................................ 18 7.5. Duty Cycle .............................................................................................................. 20 8. RADIATED TEST RESULTS ............................................................................................... 21 8.1. Radiated Band edge and Spurious Emission .......................................................... 26 9. ANTENNA REQUIREMENT ................................................................................................ 38 10. AC POWER LINE CONDUCTED EMISSION ......................................................... 39 11. TEST DATA - Appendix A ..................................................................................... 42 APPENDIX: PHOTOGRAPHS OF TEST CONFIGURATION ..................................................... 64 APPENDIX: PHOTOGRAPHS OF THE EUT .............................................................................. 66 REPORT NO.: E04A23080550F00201 Page 5 of 67 TRF No.: 04-E001-1A Global Testing , Great Quality. 1. ATTESTATION OF TEST RESULTS Applicant Information Company Name: Dongguan Chuan OptoElectronics Limited Address: No.43, Songshui Road, Songmushan Village, Dalang Town, Dongguan, Guangdong, China. Manufacturer Information Company Name: Dongguan Chuan OptoElectronics Limited Address: No.43, Songshui Road, Songmushan Village, Dalang Town, Dongguan, Guangdong, China. Factory Information Company Name: Dongguan Chuan OptoElectronics …

Text truncated - open the document above for the full version.

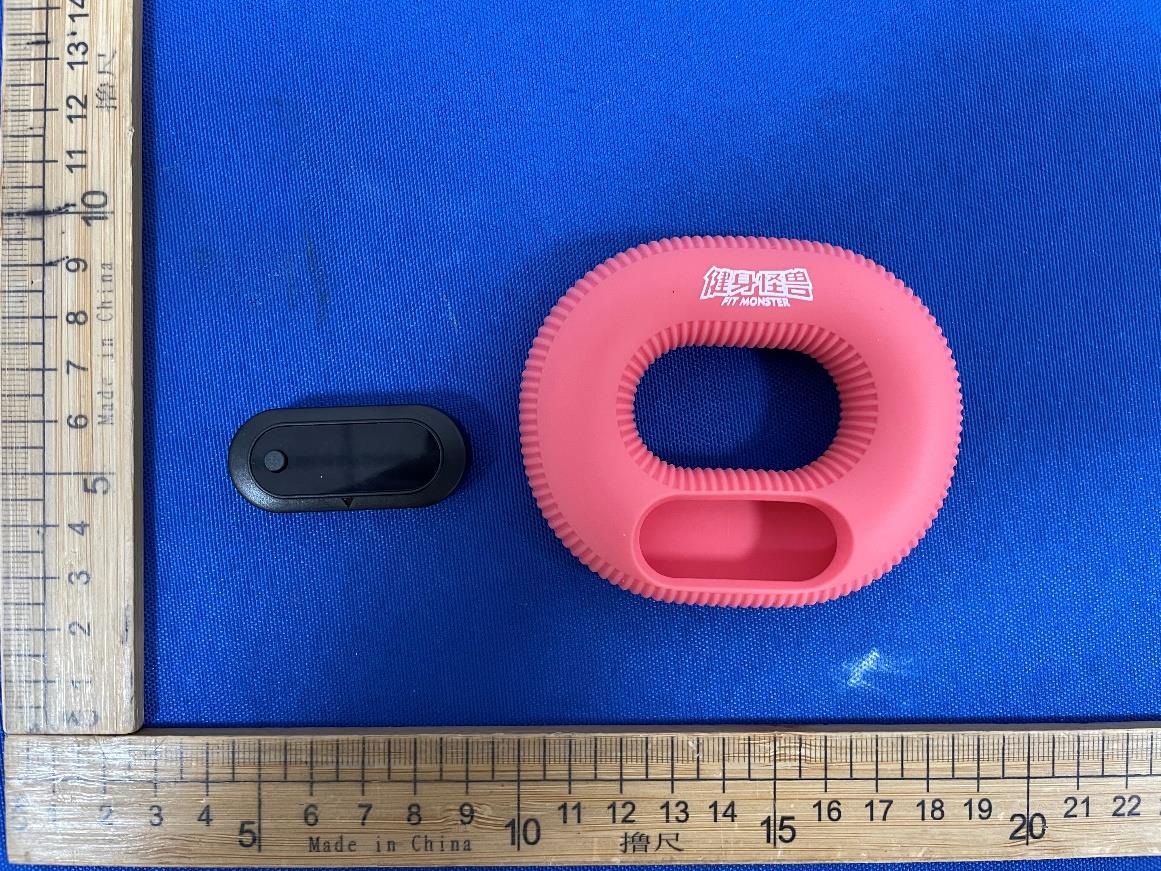

TRF No.: 04-E001-1A TRF Originator: GTG TRF Date: 2023-08-25 Web: www.gtggroup.com E-mail: [email protected] Tel.: 86-400 755 8988 CFR 47 FCC PART 15 SUBPART C TEST REPORT For Smart Grip Ring MODEL NUMBER: SJ-200 REPORT NUMBER: E04A23080550F00202 ISSUE DATE: September 20, 2023 FCC ID:2AXDL-SJ-200 Prepared for Dongguan Chuan OptoElectronics Limited No.43, Songshui Road, Songmushan Village, Dalang Town, Dongguan, Guangdong, China. Prepared by Guangdong Global Testing Technology Co., Ltd. Room 101-105, 203-210, Building 1, No.2, Keji 8 Road, Songshan Lake Park, Dongguan city, Guangdong, People’s Republic of China, 523808 This report shall not be reproduced, except in full, without the written approval of Guangdong Global Testing Technology Co., Ltd. REPORT NO.: E04A23080550F00202 Page 2 of 11 TRF No.: 04-E001-1A Global Testing , Great Quality. Revision History Rev. Issue Date Revisions Revised By V0 September 20, 2023 Initial Issue Jok Yang REPORT NO.: E04A23080550F00202 Page 3 of 11 TRF No.: 04-E001-1A Global Testing , Great Quality. Appendix A PHOTOGRAPHS OF THE EUT External-1 External-2 REPORT NO.: E04A23080550F00202 Page 4 of 11 TRF No.: 04-E001-1A Global Testing , Great Quality. External-3 External-4 REPORT NO.: E04A23080550F00202 Page 5 of 11 TRF No.: 04-E001-1A Global Testing , Great Quality. External-5 External-6 REPORT NO.: E04A23080550F00202 Page 6 of 11 TRF No.: 04-E001-1A Global Testing , Great Quality. External-7 REPORT NO.: E04A23080550F00202 Page 7 of 11 TRF No.: 04-E001-1A Global Testing , Great Quality. Internal-1 Internal-2 REPORT NO.: E04A23080550F00202 Page 8 of 11 TRF No.: 04-E001-1A Global Testing , Great Quality. Internal-3 Internal-4 REPORT NO.: E04A23080550F00202 Page 9 of 11 TRF No.: 04-E001-1A Global Testing , Great Quality. Internal-5 Internal-6 REPORT NO.: E04A23080550F00202 Page 10 of 11 TRF No.: 04-E001-1A Global Testing , Great Quality. Internal-7 Antenna RF IC REPORT NO.: E04A23080550F00202 Page 11 of 11 TRF No.: 04-E001-1A Global Testing , Great Quality. --- END OF REPORT---
