2AXEFXWG-102Ocean Star Lamp

Mode Names White Noise 1 Gentle Waves Music The Elements in Music Mode Names Relaxation Mode When you’re alone and relaxed Application Scenes drip drip drip Stillness Music Birds Chirping +Musical Instruments + Music The Elements in Music Button Description Do not allow children to operate this product alone. Please refer to the safety tips before operation. This product is suitable for indoor, and its protection grade is IP20. It is suitable for dry environment. Please avoid using in humid, overheated and dusty environment. Please use the power adapter provided by our company to power the product. If you need to replace the power adapter, use an adapter that meets the requirements of this product. Do not touch the product with hands in case of stable heat dissipation. The maximum and minimum ambient temperature of lamps for normal and stable working operation shall not exceed 40°C and - 20°C respectively. Ocean Star Lamp Manual XWG-102 Bluetooth Parameters: (Bluetooth: Bluetooth 5.0 2.4GHz with Low Power Consumption and Long Distance) Working Humidity: 10%~90% Matters Needing Attention EN 01 Why make ocean star lamps? Who needs this lamp? Scene Mode Explanation: (Next Song)Press Long to decrease volume (ON/OFF)Press to Set Time for 30 mins (Privious Song)Press Long to increase volume Remote Control Description EN 02 Power Input 5V2A Whole Lamp Switch There are eight modes in the scene mode classification one. After selecting the mode, press the previous mode and the next mode to change the mode. When playing the music, use these two buttons to adjust the volume. Previous Song\ Next Song. Control music in scenes mode and Bluetooth mode by using the 2 buttons. 4 Circuit Star Switch Regulation of Star Brightness . 3 Gears (30% 60% 100%) circulate. Regulation of Water Color. Single color, two colors, and three colors circulate. Bluetooth switch. There are voice reminders when opening or closing, and voice reminders are available on device links When you set the timer 2 hours, press the timer to turn off after 2 hours, and press the start timing light to flash twice for 1 second. Regulation of Water Texture Brightness. 3 Gears (30% 60% 100%) circulate. Voice control mode. Single light mode is silent shading dynamic voice control mode. There are eight modes in the scene mode classification two. After selecting the mode, press the previous mode and the next mode to change the mode. 4 Circuit LED Water Ripple Switch Speed Regulation of Water Ripple. 3 Gears (30% 60% 100%) circulate. 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 Product Parameters EN 03 Source: 4 Circuits of Stars + 4 Circuits of Water Lines Input Power: 5V2A Bluetooth Parameters Bluetooth Low Power Consumption SOC Scheme Supporting Standards BT2.1+EDR/3.0/4.2/5.0 High Performance PCB antenna External 4MB FLASH Up to 7dm 100m 1 4 3 8 9 2 7 10 11 14 15 5 12 6 13 Mode of Plots EN 04 BT White Noise Acoustics Projection Area Scene Mode/BT White Noise Cworking Temperature: -25°C~ + 75°C Storage Temperature:25°C ~+ 75°C Receiving Sensitivity 2Mbps-88dBm Reference Distance: 100m（Empty）Class1.5， Class2.0 Maximum 7dB Transmission Speed: SPP rate 75KB/S, BLE rate 12KB/S Bluetooth Protocol: V2.1 +EDR + 3.0 + BT4.2 ( BLE ) +5.0(BLE) Dual Mode Working Frequency Band: 2.4GHz〜2.48GHz License Free ISM Frequency Band The product is delivered with USB to type-C cable. TM Built-in Cptex Waves+Musical Instruments + Music Waves+Musical Instruments + Music Sound of Water Flow+Musical Instruments + Music Waves+Musical Instruments + Music Trickle+Musical Instruments + Music Waves+Musical Instruments + Music Waves and Slow-paced Accompaniment Music As the background music When you’re tired When you’re learning When you need to focus When you want to sleep When you relax When you sleep deep 微动 Silent Forest Dazing サンゴの海 White Noise 2 White Noise 3 White Noise 4 White Noise 5 White Noise 6 White Noise 7 White Noise 8 Sound of Running Water Huge Waves Light Rain Rainstorm + Thunder Sound of Dolphins Cry of Insects+ Birds Chirping Horrible Background Sleep is an absolute need that everyone must to be satisfied in life, just like food and water. Science has proved that as long as people lack sleep, insomnia or poor sleep quality, they will become restless, and have emotional fluctuations, memory loss, judgment ability declination, and even some illusions and hallucinations, even to the extent that it is difficult to maintain daily life and activities. People spend about a third of their life on sleep, so sleep is an indispensable life need for everyone. Lack of sleep for babies not only affects the growth of the body, but also may affect the normal development of the brain. Lack of sleep for adults not only affects their physical recovery, but also is not conducive to mental health. Lack of sleep for the aged may accelerate brain aging. For the Pregnant：This lamp is safe for birth and healthy for mother and baby; This lamp help to avoid the baby's inborn physiological and psychological defects; This lamp help babies have good personality, high EQ and early understanding. The Babies：This lamp can help babies not cry, have a high quality sleep, and a good appetite. Help your child understand early, learn to speak early, with nice character, high EQ, and awesome intelligence development. Help to develop children's memory, concentration, innovative thinking ability and other nine abilities, and help prevent and treat hyperactivity, autism, sensory disorders and other diseases. Scenes mode（Eight rhythm music mainly uses α brainwave music f / 1 fluctuation, musical instruments and Baroque music, with the color change of water stripe lamp + change of water pattern + change of water speed + change of brightness + star projection lamp breath, flicker, jump, constant light + brightness adjustment. Visual + auditory sensory stimulation improve sleep, with different modes to create the atmosphere!）Scene mode focuses on subconscious music therapy. There is an album of subconscious…

Text truncated - open the document above for the full version.

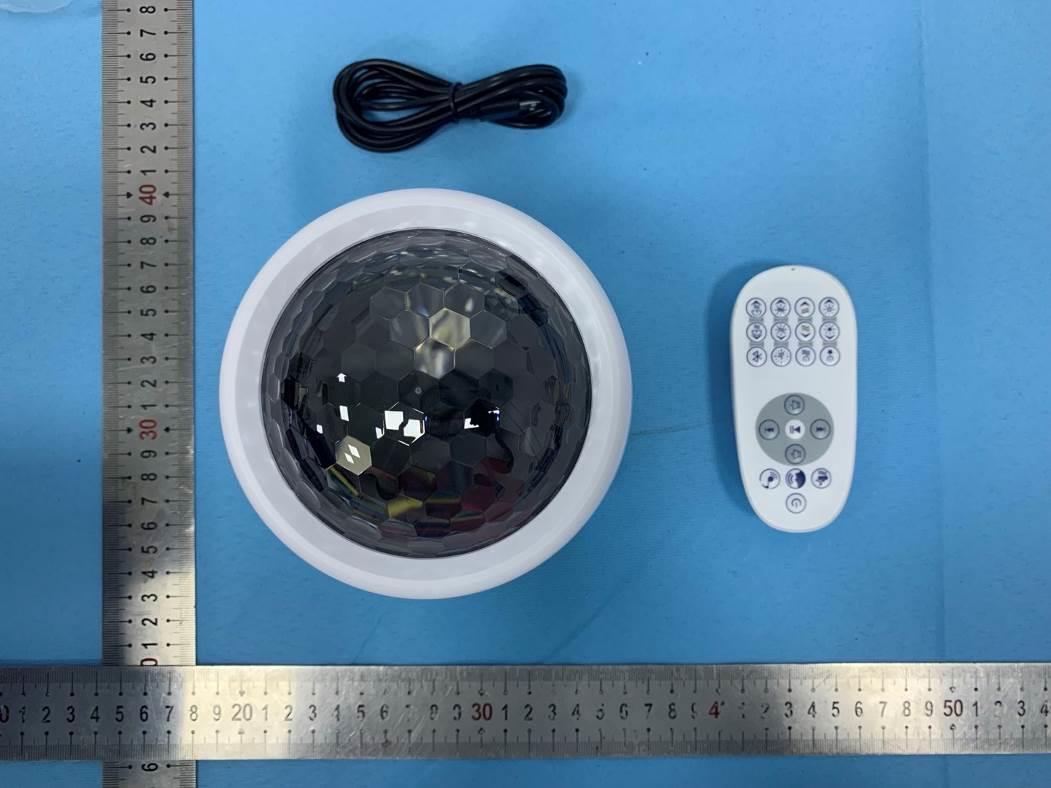

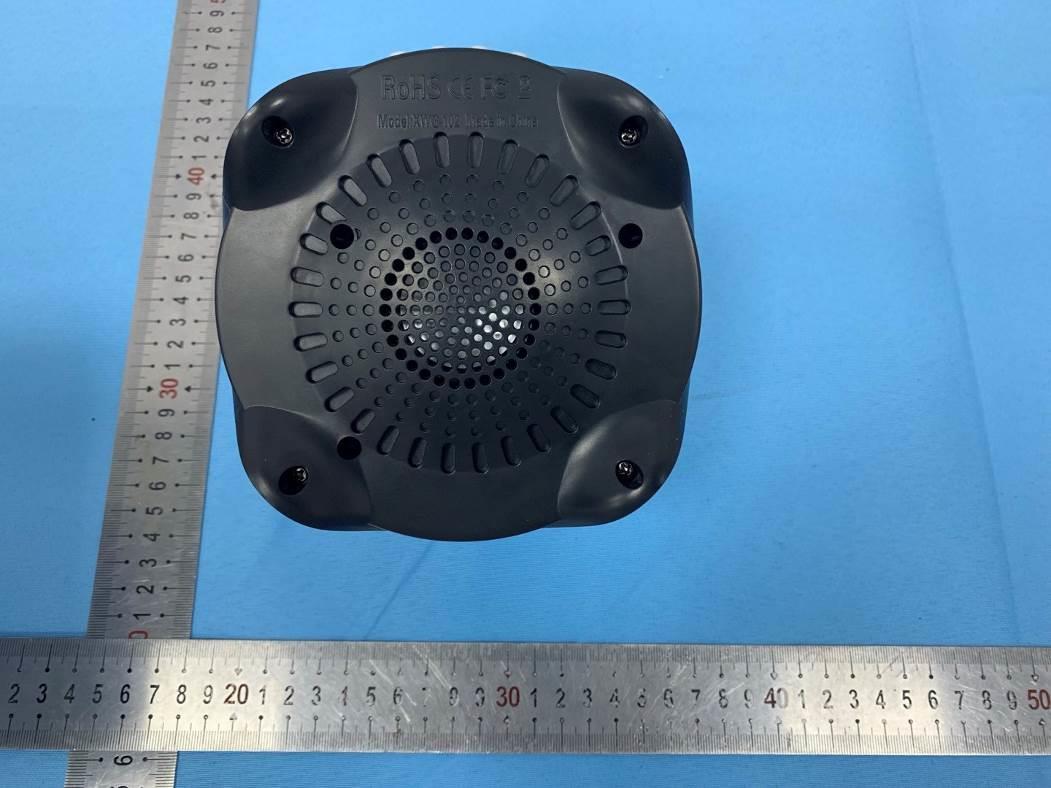

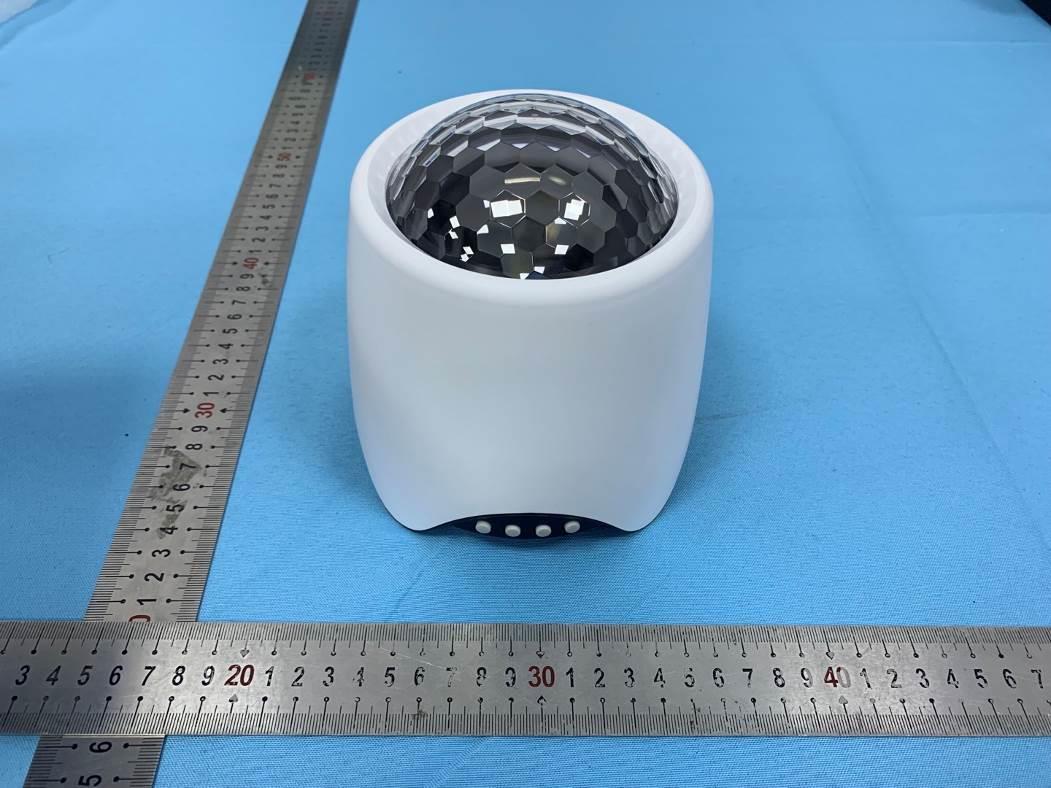

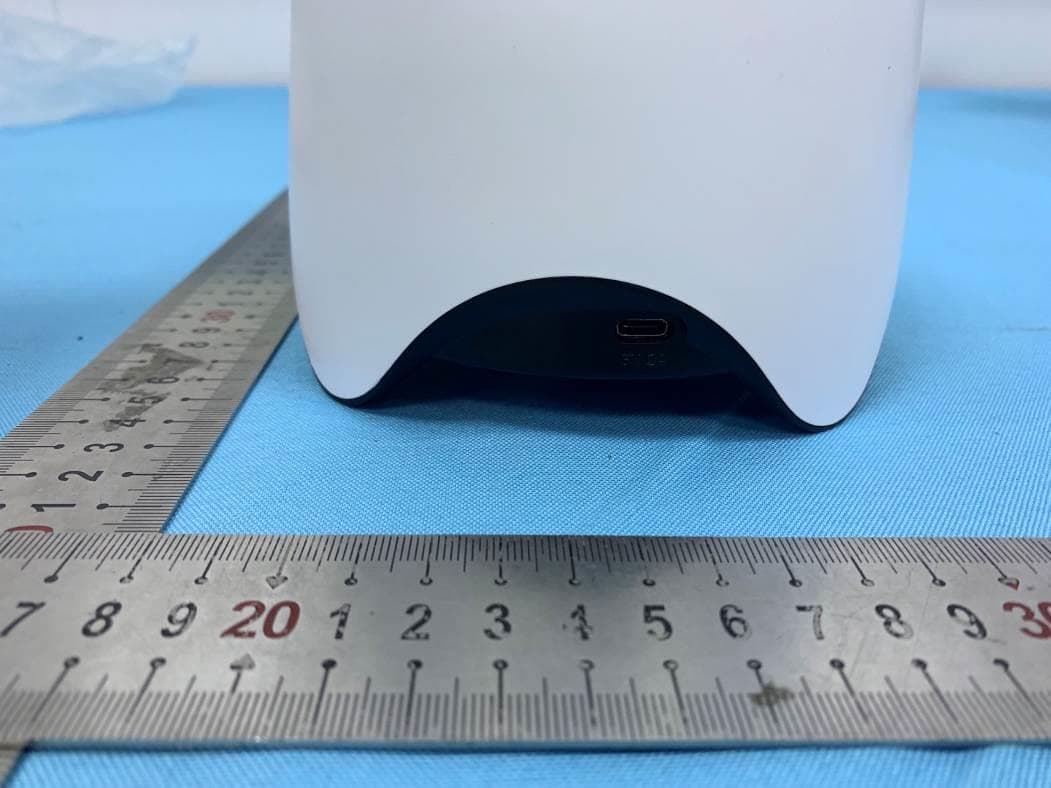

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AXEFXWG-102 ________________________________________________________________________________ _________ This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 1 of 4 1. EXTERIOR PHOTOGRAPHS Fig.1 Fig.2 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AXEFXWG-102 ________________________________________________________________________________ _________ This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 2 of 4 Fig.3 Fig.4 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AXEFXWG-102 ________________________________________________________________________________ _________ This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 3 of 4 Fig.5 Fig.6 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AXEFXWG-102 ________________________________________________________________________________ _________ This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 4 of 4 Fig.7

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AXEFXWG-102 This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 1 of 1 Label and Location Size: L4.0cm*W3.5cm Label Location Ocean Star Lamp Model No.: XWG-102 FCC ID: 2AXEFXWG-102 This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AXEFXWG-102 1. INTERIOR PHOTOGRAPHS Fig.1 Fig.2 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AXEFXWG-102 Fig.3 Fig.4 BT Antenna SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AXEFXWG-102 Fig.5 Fig.6 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AXEFXWG-102 Fig.7 Fig.8

Shenzhen Starway Photoelectric technology Co., LTD. 403-2, Building F, Guanghong Center, No. 163 Pingxin North Road, Pinghu Street, Longgang District, Shenzhen, China Declaration concerning Antenna Specification Federal Communication Commission Equipment Authorization Division, Application Processing Branch 7435 Oakland Mills Road Columbia, MD 21046 Date: 2020/09/22 TO WHOM IT MAY CONCERN It is hereby declared that the product Model No.: XWG-102 FCC ID: 2AXEFXWG-102 Fulfills the requirement in FCC test relating to the antenna type. The device specified above confirms to the FCC recommendations for Fixed Internal antenna type(s) described below: Antenna No. Model No. of antenna: Type of antenna: Gain of the antenna (Max.) Frequency range: 2.4G Antenna / PCB antenna 0dBi 2400-2500MHz The antenna will be fixed to the radio module by integral connector, and no other antennas not listed above should be used. Sincerely, Name: Hongyi Chen/Manager Company: Shenzhen Starway Photoelectric technology Co., LTD. Address: 403-2, Building F, Guanghong Center, No. 163 Pingxin North Road, Pinghu Street, Longgang District, Shenzhen, China Phone: 0755-28680632 Fax: 0755-28680632 E-Mail: [email protected]

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AXEFXWG-102 This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 1 of 3 FCC RF Exposure Evaluation 1. Product Information FCC ID: 2AXEFXWG-102 Product name Ocean Star Lamp Test Model XWG-102 Power supply Input: 5V, 2A Modulation Type GFSK ,π/4-DQPSK for Bluetooth V5.0 (DSS) GFSK for Bluetooth V5.0 Antenna Type PCB antenna Antenna Gain 0dBi (maximum) Hardware version / Software version / Bluetooth Operation frequency 2402MHz-2480MHz Bluetooth Version V5.0 Exposure category General population/uncontrolled environment EUT Type Production Unit Device Type Portable Device 2. Evaluation Method According to KDB447498 D01 General RF Exposure Guidance v06Section 4.3.1 Standalone SAR test exclusion considerations: “Unless specifically required by the published RF exposure KDB procedures, standalone 1-g head or body and 10-g extremity SAR evaluation for general population exposure conditions, by measurement or numerical simulation, is not required when the corresponding SAR Test Exclusion Threshold condition, listed below, is satisfied. These test exclusion conditions are based on source-based time-averaged maximum conducted output power of the RF channel requiring evaluation, adjusted for tune-up tolerance, and the minimum test separation distance required for the exposure conditions. The minimum test separation distance is determined by the smallest distance from the antenna and radiating structures or outer surface of the device, according to the host form factor, exposure conditions and platform requirements, to any part of the body or extremity of a user or bystander (see 5) of section 4.1). To qualify for SAR test exclusion, the test separation distances applied must be fully explained and justified by the operating configurations and exposure conditions of the transmitter and applicable host platform requirements, typically in the SAR measurement or SAR analysis report, according to the required published RF exposure KDB procedures. When no other RF exposure testing or reporting is required, a statement of justification and compliance must be included in the equipment approval, in lieu of the SAR report, to qualify for the SAR test exclusion. When required, the device specific conditions described in the other published RF exposure KDB procedures must be satisfied before applying these SAR test exclusion provisions; for example, handheld PTT two-way radios, handsets, laptops & tablets etc.“ [(max. power of channel, including tune-up tolerance, mW)/ (min. test separation distance, mm)+ · *√f (GHz)+ ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR, where: • f (GHz) is the RF channel transmit frequency in GHz • Power and distance are rounded to the nearest mW and mm before calculation • The result is rounded to one decimal place for comparison • 3.0 and 7.5 are referred to as the numeric thresholds in the step 2 below The test exclusions are applicable only when the minimum test separation distance is ≤ 50 mm and for transmission frequencies between 100 MHz and 6 GHz. When the minimum test separation distance is < 5 mm, a distance of 5 mm according to f) in section 4.1 is applied to determine SAR test exclusion. When one of the following test exclusion conditions is satisfied for all combinations of simultaneous transmission configurations, further equipment approval is not required to incorporate transmitter modules in host devices that operate in the mixed mobile and portable host platform exposure conditions. The grantee is responsible for documenting this according to Class I permissive change SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AXEFXWG-102 This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 2 of 3 requirements. Antennas that qualify for standalone SAR test exclusion must apply the estimated standalone SAR to determine simultaneous transmission test exclusion. a) The *∑ of (the highest measured or estimated SAR for each standalone antenna configuration, adjusted for maximum tune-up tolerance) / 1.6 W/kg+ + *∑ of MPE ratios+ is ≤ 1.0. b) The SAR to peak location separation ratios of all simultaneously transmitting antenna pairs operating in portable device exposure conditions are all ≤ 0.04, and the *∑ of MPE ratios+ is ≤ 1.0. 3. Refer Evaluation Method ANSI C95.1–1999: IEEE Standard for Safety Levels with Respect to Human Exposure to Radio Frequency Electromagnetic Fields, 3 kHz to 300 GHz. FCC KDB publication 447498 D01 General RF Exposure Guidance v06: Mobile and Portable Devices RF Exposure Procedures and Equipment Authorization Policies. FCC CFR 47 part1 1.1310: Radiofrequency radiation exposure limits. FCC CFR 47 part2 2.1093: Radiofrequency radiation exposure evaluation: portable devices 4. Conducted Power Results [BT Classics] Mode Channel Frequency (MHz) Average Conducted Output Power (dBm) GFSK 0 2402 0.668 39 2441 -0.437 78 2480 -1.426 π/4DQPSK 0 2402 3.048 39 2441 2.302 78 2480 1.267 BT LE 0 2402 0.173 19 2440 -0.566 39 2480 -1.465 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AXEFXWG-102 This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 3 of 3 5. Manufacturing Tolerance GFSK (Average) Channel Channel 0 Channel 39 Channel 78 Target (dBm) 0.0 -1.0 -1.0 Tolerance ±(dB) 1.0 1.0 1.0 π/4DQPSK (Average) Channel Channel 0 Channel 39 Channel 78 Target (dBm) 3.0 2.0 1.0 Tolerance ±(dB) 1.0 1.0 1.0 BT LE (Peak) Channel Channel 0 Channel 19 Channel 39 Target (dBm) 0.0 -1.0 -1.0 Tolerance ±(dB) 1.0 1.0 1.0 6. Evaluation Results 6.1 Standalone Evaluation Band/Mode f (GHz) Antenna Distance (mm) RF output power SAR Test Exclusion Threshold SAR Test Exclusion dBm mW GFSK 2.402 5 1.0 1.2589 0.39 < 3.0 Yes π/4DQPSK 2.402 5 4.0 2.5119 0.78 < 3.0 Yes BT LE 2.…

Text truncated - open the document above for the full version.

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AXEFXWG-102 Report No.: LCS200720205AEB This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 1 of 33 FCC TEST REPORT For shen zhen starway Photoelectric technology Co., LTD. Ocean Star Lamp Test Model: XWG-102 Prepared for : shen zhen starway Photoelectric technology Co., LTD. Address : 403-2, Building F, Guanghong Center, No. 163 Pingxin North Road, Pinghu Street, Longgang District, Shenzhen, China Prepared by : Shenzhen LCS Compliance Testing Laboratory Ltd. Address : 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Shajing Street, Baoan District, Shenzhen, China Tel : (+86)755-82591330 Fax : (+86)755-82591332 Web : www.LCS-cert.com Mail : [email protected] Date of receipt of test sample : August 24, 2020 Number of tested samples : 1 Serial number : Prototype Date of Test : August 24, 2020 ~ September 04, 2020 Date of Report : September 14, 2020 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AXEFXWG-102 Report No.: LCS200720205AEB This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 2 of 33 FCC TEST REPORT FCC CFR 47 PART 15 C (15.247) Report Reference No. ................. : LCS200720205AEB Date of Issue ................................... : September 14, 2020 Testing Laboratory Name ............ : Shenzhen LCS Compliance Testing Laboratory Ltd. Address ........................................... : 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Shajing Street, Baoan District, Shenzhen, China Testing Location/ Procedure ........... : Full application of Harmonised standards ■ Partial application of Harmonised standards □ Other standard testing method □ Applicant’s Name .......................... : shen zhen starway Photoelectric technology Co., LTD. Address ........................................... : 403-2, Building F, Guanghong Center, No. 163 Pingxin North Road, Pinghu Street, Longgang District, Shenzhen, China Test Specification Standard.......................................... : FCC CFR 47 PART 15 C (15.247) Test Report Form No. ................... : LCSEMC-1.0 TRF Originator ................................ : Shenzhen LCS Compliance Testing Laboratory Ltd. Master TRF ..................................... : Dated 2011-03 Shenzhen LCS Compliance Testing Laboratory Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen LCS Compliance Testing Laboratory Ltd. is acknowledged as copyright owner and source of the material. Shenzhen LCS Compliance Testing Laboratory Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. EUT Description. ........................... : Ocean Star Lamp Trade Mark .......................................................................................................................................... : N/A Model/ Type reference ........................................................................................................................ : XWG-102 Ratings ................................................................................................................................................ : Input: 5V, 2A Result ........................................... : Positive Compiled by: Supervised by: Approved by: Cherry Chen / Administrators Jin Wang / Technique principal Gavin Liang/ Manager SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AXEFXWG-102 Report No.: LCS200720205AEB This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 3 of 33 FCC -- TEST REPORT Type / Model........................... : XWG-102 EUT......................................... : Ocean Star Lamp Applicant............................... : shen zhen starway Photoelectric technology Co., LTD. Address.................................. : 403-2, Building F, Guanghong Center, No. 163 Pingxin North Road, Pinghu Street, Longgang District, Shenzhen, China Telephone............................... : / Fax.......................................... : / Manufacturer........................ : shen zhen starway Photoelectric technology Co., LTD. Address................................... : 403-2, Building F, Guanghong Center, No. 163 Pingxin North Road, Pinghu Street, Longgang District, Shenzhen, China Telephone............................... : / Fax.......................................... : / Factory................................... : shen zhen starway Photoelectric technology Co., LTD. Address................................... : 403-2, Building F, Guanghong Center, No. 163 Pingxin North Road, Pinghu Street, Longgang District, Shenzhen, China Telephone............................... : / Fax.......................................... : / Test Result Positive The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Test Report No. : LCS200720205AEB September 14, 2020 Date of issue SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AXEFXWG-102 Report No.: LCS200720205AEB This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 4 of 33 Revision History Revision Issue Date Revisions Revised By 000 September 14, 2020 Initial Issue Gavin Liang SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AXEFXWG-102 Report No.: LCS200720205AEB This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 5 of 33 TABLE OF CONTENTS 1. GENERAL INFORMATION .................................................…

Text truncated - open the document above for the full version.

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AXEFXWG-102 Report No.: LCS200720205AEB Page 1 of 14 Appendix B RF Test Data for BT LE V5.0(DTS) (Conducted Measurement) Product Name: Ocean Star Lamp Trade Mark: N/A Test Model: XWG-102 Environmental Conditions Temperature: 22.8  C Relative Humidity: 53.2% ATM Pressure: 100.0 kPa Test Engineer: Jam Zheng Supervised by: Li Huan B.1 Duty Cycle Test Mode Test Channel Ant Duty Cycle[%] Verdict BT LE 2440 Ant1 100 PASS #im grbble1hchnnav SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AXEFXWG-102 Report No.: LCS200720205AEB Page 2 of 14 B.2 Maximum Conducted Peak Output Power Mode Channel Conduct Peak Power[dBm] Limit [dBm] Verdict BT LE LCH 0.173 30 PASS BT LE MCH -0.566 30 PASS BT LE HCH -1.465 30 PASS Test Graphs LCH MCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AXEFXWG-102 Report No.: LCS200720205AEB Page 3 of 14 HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AXEFXWG-102 Report No.: LCS200720205AEB Page 4 of 14 B.3 Maximum Power Spectral Density Mode Channel PSD [dBm/3KHz] Limit [dBm/3KHz] Verdict BT LE LCH -15.451 8 PASS BT LE MCH -16.077 8 PASS BT LE HCH -16.726 8 PASS Test Graphs LCH MCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AXEFXWG-102 Report No.: LCS200720205AEB Page 5 of 14 HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AXEFXWG-102 Report No.: LCS200720205AEB Page 6 of 14 B.4 6dB Bandwidth Mode Channel 6dB Bandwidth [MHz] Limit [MHz] Verdict BT LE LCH 0.6544 ≥0.5 PASS BT LE MCH 0.6407 ≥0.5 PASS BT LE HCH 0.6475 ≥0.5 PASS Test Graphs LCH MCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AXEFXWG-102 Report No.: LCS200720205AEB Page 7 of 14 HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AXEFXWG-102 Report No.: LCS200720205AEB Page 8 of 14 B.5 RF Conducted Spurious Emissions Mode Channel Pref [dBm] Max. Level [dBm] Limit [dBm] Verdict BT LE LCH -3.751 -36.746 -23.751 PASS BT LE MCH -3.441 -36.679 -23.441 PASS BT LE HCH -4.451 -36.916 -24.451 PASS BT LE_LCH_Graphs Pref/BT LE/LCH Puw/BT LE/LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AXEFXWG-102 Report No.: LCS200720205AEB Page 9 of 14 BT LE_MCH_Graphs Pref/BT LE/MCH Puw/BT LE/MCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AXEFXWG-102 Report No.: LCS200720205AEB Page 10 of 14 BT LE_HCH_Graphs Pref/BT LE/HCH Puw/BT LE/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AXEFXWG-102 Report No.: LCS200720205AEB Page 11 of 14 B.6 Band-edge for RF Conducted Emissions Mode Channel Carrier Power[dBm] Max.Spurious Level [dBm] Limit [dBm] Verdict BT LE LCH -3.558 -49.663 -23.56 PASS BT LE HCH -4.875 -49.151 -24.88 PASS Test Graphs LCH HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AXEFXWG-102 Report No.: LCS200720205AEB Page 12 of 14 B.7 Restrict-band band-edge measurements Test Mode Test Chann el Ant Freq. Power [dBm] Gain Ground Factor E [dBuV/m] Detector Limit [dBuV/ m] Verdi ct BT LE 2402 Ant1 2310.0 -43.93 2.0 0 51.32 PEAK 74 PASS Ant1 2310.0 -53.38 2.0 0 41.88 AV 54 PASS Ant1 2390.0 -42.46 2.0 0 52.80 PEAK 74 PASS Ant1 2390.0 -52.85 2.0 0 42.41 AV 54 PASS 2480 Ant1 2483.5 -41.88 2.0 0 53.38 PEAK 74 PASS Ant1 2483.5 -52.12 2.0 0 43.14 AV 54 PASS Ant1 2500.0 -40.41 2.0 0 54.85 PEAK 74 PASS Ant1 2500.0 -52.33 2.0 0 42.93 AV 54 PASS SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AXEFXWG-102 Report No.: LCS200720205AEB Page 13 of 14 Restrict-band band-edge measurements_BT LE_2402_Ant1_PEAK Restrict-band band-edge measurements_BT LE_2402_Ant1_AV SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AXEFXWG-102 Report No.: LCS200720205AEB Page 14 of 14 Restrict-band band-edge measurements_BT LE_2480_Ant1_PEAK Restrict-band band-edge measurements_BT LE_2480_Ant1_AV

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AXEFXWG-102 _______________________________________________________________________________________________ 1. TEST SETUP PHOTOGRAPHS 1.1. Photo of Radiated Emissions Measurement Fig. 1 Fig. 2 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AXEFXWG-102 _______________________________________________________________________________________________ 1.2. Photo of Conducted Emissions Measurement Fig. 3
