Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

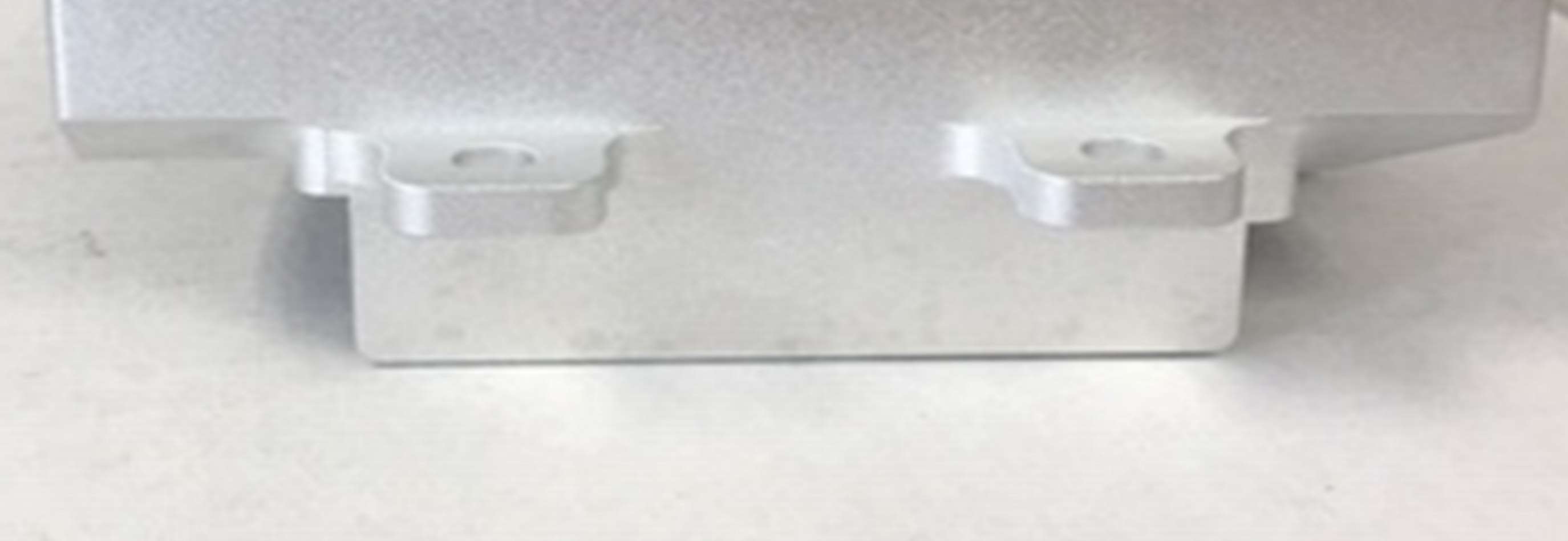

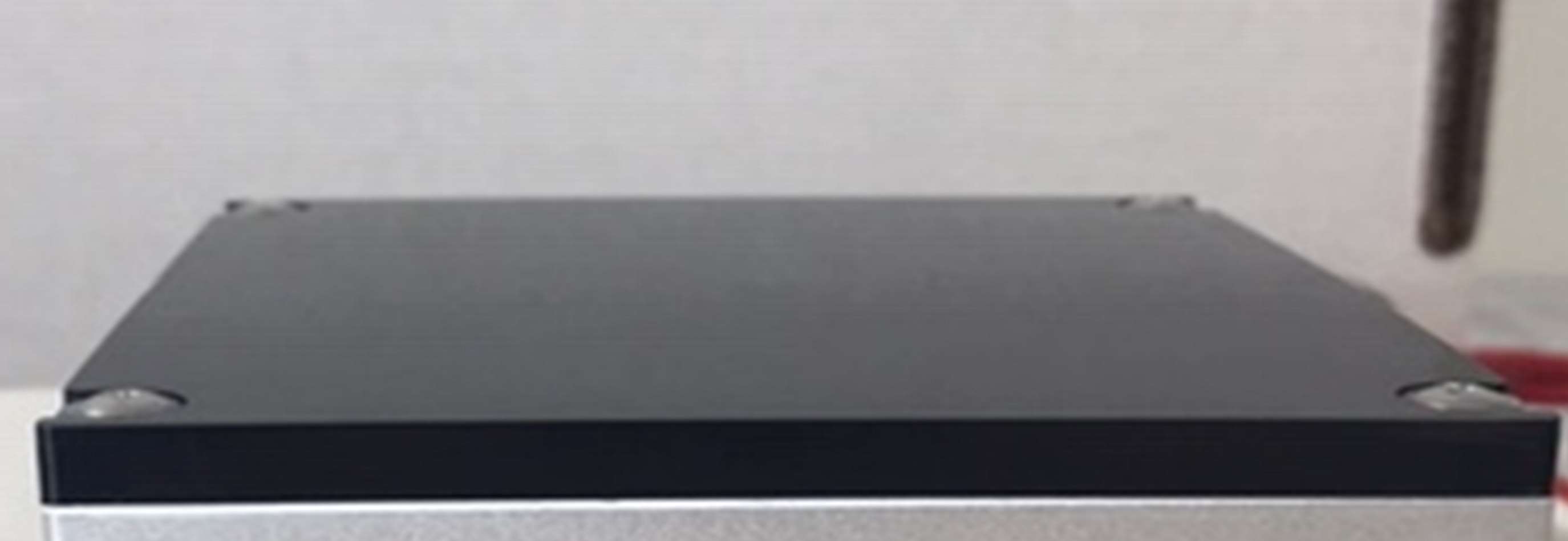

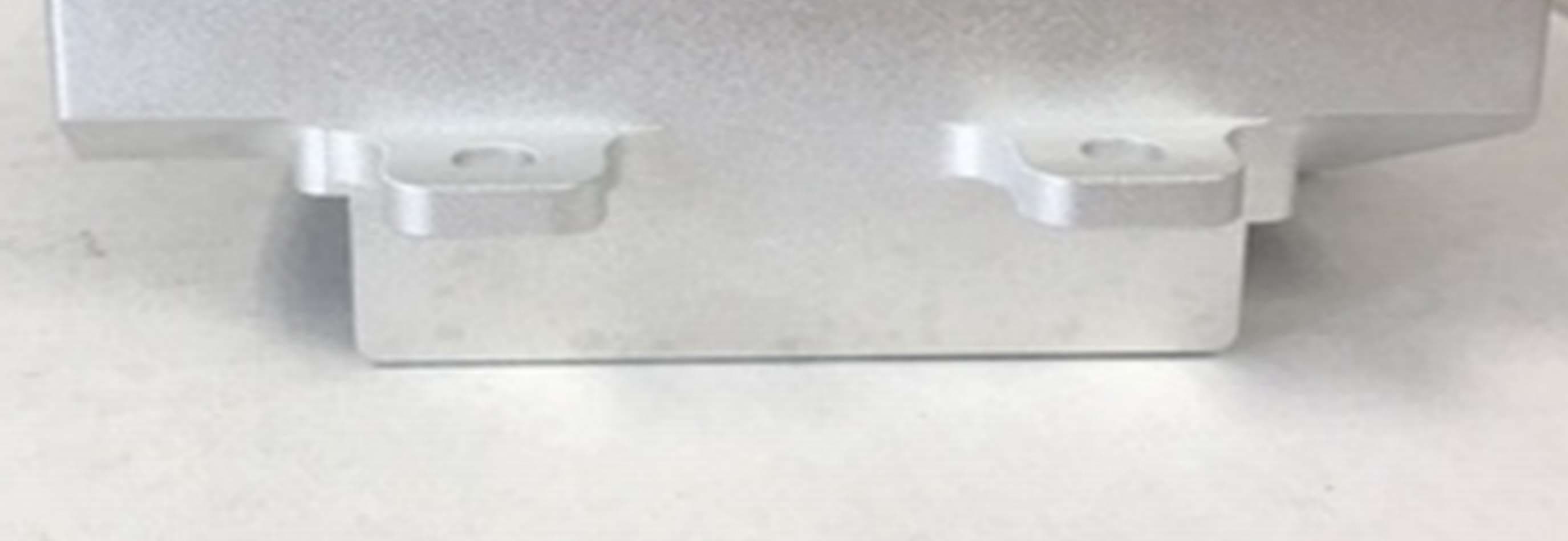

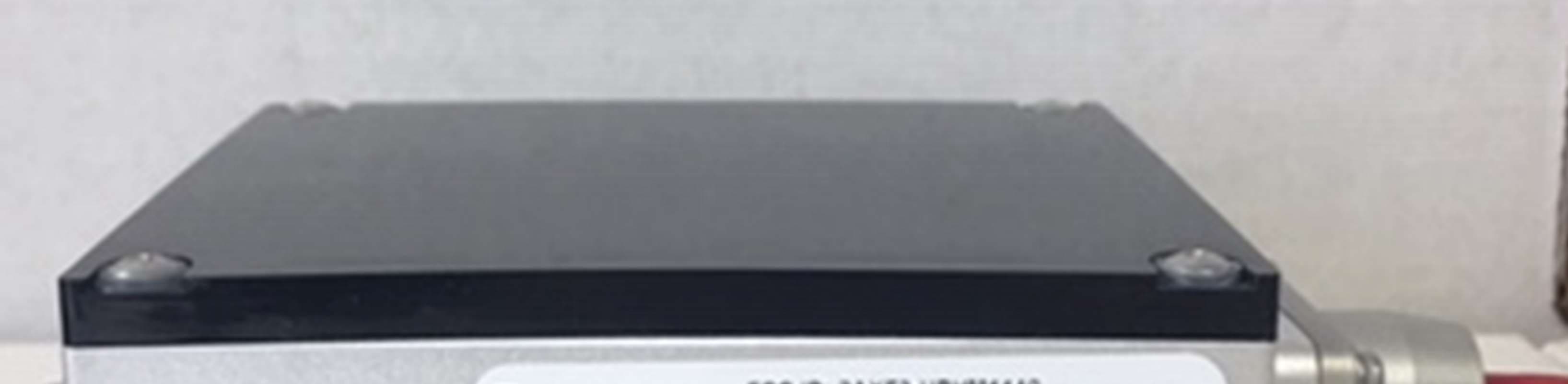

UR-HM1140 External Photos Document Number: PHOTO-1140-001 Revision: 000 Date: 25-Sep-2020 3409 Executive Center Drive Suite 226 Austin, TX 78731 | 512-722-6353 Page 1 of 3 UR-HM1140 External Photos Document Number: PHOTO-1140-001 Revision: 000 Date: 25-Sep-2020 3409 Executive Center Drive Suite 226 Austin, TX 78731 | 512-722-6353 Page 2 of 3 UR-HM1140 External Photos Document Number: PHOTO-1140-001 Revision: 000 Date: 25-Sep-2020 3409 Executive Center Drive Suite 226 Austin, TX 78731 | 512-722-6353 Page 3 of 3

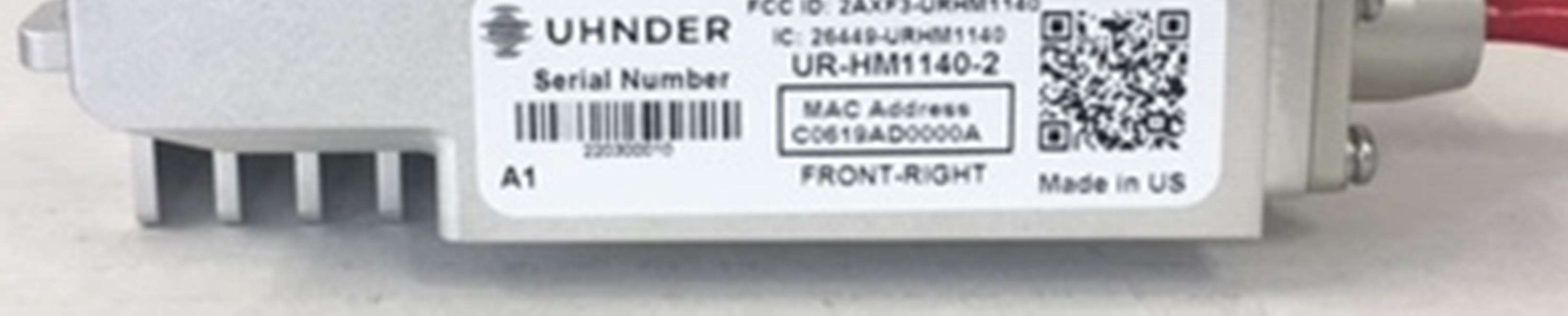

FCC Label Requirement UR-HM1140 Document Number: FCC-LABEL-001 Revision: 000 Date: 25-Sep-2020 3409 Executive Center Drive Suite 226 Austin, TX 78731 | 512-722-6353 Page 1 of 2 FCC Requirement Description Data FCC ID Number 2AXF3-URHM1140 IC Number 26449-URHM1140 Module / SKU Number UR-HM1140-1 FCC Requirement Description Data FCC ID Number 2AXF3-URHM1140 IC Number 26449-URHM1140 Module / SKU Number UR-HM1140-2 FCC Label Requirement UR-HM1140 Document Number: FCC-LABEL-001 Revision: 000 Date: 25-Sep-2020 3409 Executive Center Drive Suite 226 Austin, TX 78731 | 512-722-6353 Page 2 of 2 FCC Requirement Description Data FCC ID Number 2AXF3-URHM1140 IC Number 26449-URHM1140 Module / SKU Number UR-HM1140-3
A2LA Accredited IC recognized # 3462B-1 CETECOM Inc. 411 Dixon Landing Road Milpitas, CA 95035 U.S.A. Phone: + 1 (408) 586 6200 Fax: + 1 (408) 586 6299 E-mail: [email protected] http://www.cetecom.com CETECOM Inc. is a Delaware Corporation with Corporation number: 2905571 V4.0 2012-07-25 The BLUETOOTH trademarks are owned by Bluetooth SIG, Inc., U.S.A. and licensed to CETECOM Inc. © Copyright by CETECOM Radio Frequency Exposure Evaluation Report For: Uhnder Model Name: UR-HM1140-1, UR-HM1140-2, UR-HM1140-3 Product Description: 4D Digital Imaging Radar Sensor FCC ID: 2AXF3-URHM1140 IC ID: 26449-URHM1140 Applied Rules and Standards: CFR Part 1 (1.1307 & 1.1310), Part 2 (2.1091) ISEDC RSS-102 Issue 5 Report number: EMC_UHNDE_003_20001_MPE DATE: 2020-09-21 Test Report #: EMC_UHNDE_003_20001_MPE Date of Report: 2020-09-21 Page 2 of 6 1. Assessment This RF Exposure evaluation report provides information about compliance of the below identified device with the RF Exposure limits for mobile devices as defined in FCC CFR Part 1 (1.1307 &1.1310), Part 2 (2.1091), and ISEDC standard RSS-102, under given conditions (measured or rated RF output power, antenna gain, distance towards human body, multiple transmitter information as presented by the applicant). In addition, maximum antenna gain or minimum distance towards the human body is calculated, respectively, where relevant. The device meets the limits as stipulated by the above given FCC/ISEDC rule parts based on available specifications. Company Name Product Description Model # Uhnder 4D Digital Imaging Radar Sensor UR-HM1140-1, UR-HM1140-2, UR-HM1140-3 Responsible for Testing Laboratory: 2020-10-14 Compliance Cindy Li (EMC Lab Manager) Date Section Name Signature Responsible for the Report: 2020-10-14 Compliance Kris Lazarov (EMC Engineer) Date Section Name Signature The test results of this test report relate exclusively to the test item specified in Section3. CETECOM Inc. USA does not assume responsibility for any conclusions and generalizations drawn from the test results with regard to other specimens or samples of the type of the equipment represented by the test item. The test report may only be reproduced or published in full. Reproduction or publication of extracts from the report requires the prior written approval of CETECOM Inc. USA. Test Report #: EMC_UHNDE_003_20001_MPE Date of Report: 2020-09-21 Page 3 of 6 Contents 1. Assessment ................................................................................................................................... 2 2. Administrative Data ..................................................................................................................... 3 2.1. Identification of the Testing Laboratory Issuing the Test Report ......................................... 3 2.2. Identification of the Client ..................................................................................................... 3 2.3. Identification of the Manufacturer ......................................................................................... 3 3. Equipment under Assessment ...................................................................................................... 4 4. RF Exposure Limits ..................................................................................................................... 5 4.1. Power Density Limits acc. to FCC 1.1310(e) ........................................................................ 5 4.2. Routine Environmental Evaluation Categorical Exclusion Limits acc. to FCC 2.1091(c) ... 5 4.3. Exposure Limits RSS-102 ..................................................................................................... 5 4.4. RF Exposure Estimation (MPE Estimation) .......................................................................... 5 5. Evaluations for Compliance with MPE (Power Density) limits .................................................. 5 6. Revision History ........................................................................................................................... 6 2. Administrative Data 2.1. Identification of the Testing Laboratory Issuing the Test Report Company Name: CETECOM Inc. Department: Compliance Street Address: 411 Dixon Landing Road City/Zip Code Milpitas, CA 95035 Country USA Telephone / Fax +1 (408) 586 6200 / +1 (408) 586 6299 Compliance Manager: Cindy Li Responsible Project Leader: Akanksha Baskaran 2.2. Identification of the Client Client’s Name: Uhnder Street Address: 3409 Executive Center Drive Suite 205 City/Zip Code Austin TX Country US 2.3. Identification of the Manufacturer Manufacturer’s Name: Same as Client Manufacturers Address: City/Zip Code Country Test Report #: EMC_UHNDE_003_20001_MPE Date of Report: 2020-09-21 Page 4 of 6 3. Equipment under Assessment Model No UR-HM1140-1, UR-HM1140-2, UR-HM1140-3 – See Note 1 HW Version Version 1.1, s/n: MOD-1004 SW Version 0.7.5-RC6 Frequency Range: Nominal band: 76 GHz – 81 GHz Modulation Characteristics: PMCW Modes of Operation: Single Mode – Continuous transmit Antenna Information: 2*96=192 Virtual Receivers Co-located Transmitters/ Antennas? None Power Supply/ Rated Operating Voltage Range Vmin: 10V/ Vnom: 12V / Vmax: 16V Operating Temperature Range From: -10 C to +85 C, > 0.8 m/s air flow Sample Revision Prototype Production Pre-Production Device Category Fixed Installation Mobile Portable Exposure Category Occupational/ Controlled General Population/ Uncontrolled Note 1: The modules UR-HM1140-1, UR-HM1140-2, UR-HM1140-3 are identical electrically, and mechanically, and operate with the same firmware. The only difference between devices is the length of the attached cable. Test Report #: EMC_UHNDE_003_20001_MPE Date of Report: 2020-09-21 Page 5 of 6 4. RF Exposure Limits 4.1. Power Density Limits acc. to FCC 1.1310(e) Frequency Range (MHz) Power density (mW/cm 2 ) Averaging time (minutes) 1500 – 100000 1.0 30 4.2. Routine Environmental Eva…
Text truncated - open the document above for the full version.
A2LA Accredited IC recognized # 3462B-1 CETECOM Inc. 411 Dixon Landing Road Milpitas, CA 95035 U.S.A. Phone: + 1 (408) 586 6200 Fax: + 1 (408) 586 6299 E-mail: [email protected] http://www.cetecom.com CETECOM Inc. is a Delaware Corporation with Corporation number: 2905571 V4.0 2012-07-25 The BLUETOOTH trademarks are owned by Bluetooth SIG, Inc., U.S.A. and licensed to CETECOM Inc. © Copyright by CETECOM FCC / ISED Test Report For: Uhnder Model Name: UR-HM1140-1, UR-HM1140-2, UR-HM1140-3 Product Description: 4D Digital Imaging Radar Sensor FCC ID: 2AXF3-URHM1140 IC ID: 26449-URHM114 Applied Rules and Standards: 47 CFR Part 95 Subpart M RSS-251 Issue 2 & RSS-Gen Issue 5 REPORT #: EMC_UHNDE_003_20001_FCC_95M_Rev1 DATE: 2020-10-28 Test Report #: EMC_UHNDE_003_20001_FCC_95M_Rev1 FCC ID: 2AXF3-URHM1140 Date of Report 2020-10-28 Page 2 of 41 IC ID: 26449-URHM114 TABLE OF CONTENTS 1 ASSESSMENT .............................................................................................................................................................. 3 2 ADMINISTRATIVE DATA ............................................................................................................................................... 4 2.1 IDENTIFICATION OF THE TESTING LABORATORY ISSUING THE EMC TEST REPORT ........................................................................... 4 2.2 IDENTIFICATION OF THE CLIENT ............................................................................................................................................. 4 2.3 IDENTIFICATION OF THE MANUFACTURER ................................................................................................................................. 4 3 EQUIPMENT UNDER TEST (EUT) ................................................................................................................................... 5 3.1 EUT SPECIFICATIONS ......................................................................................................................................................... 5 3.2 EUT SAMPLE DETAILS ......................................................................................................................................................... 6 3.3 ACCESSORY EQUIPMENT (AE) DETAILS ................................................................................................................................... 6 3.4 TEST SAMPLE CONFIGURATION ............................................................................................................................................. 6 3.5 EUT MODE OF OPERATION ................................................................................................................................................... 6 3.6 JUSTIFICATION FOR WORST CASE MODE OF OPERATION ............................................................................................................ 6 4 SUBJECT OF INVESTIGATION ...................................................................................................................................... 6 5 MEASUREMENT RESULTS SUMMARY .......................................................................................................................... 7 6 MEASUREMENT UNCERTAINTY.................................................................................................................................... 7 6.1 ENVIRONMENTAL CONDITIONS: ............................................................................................................................................. 7 6.2 DATES OF TESTING: ............................................................................................................................................................ 7 7 MEASUREMENT PROCEDURES .................................................................................................................................... 8 8 TEST RESULT DATA .................................................................................................................................................. 11 8.1 OCCUPIED BANDWIDTH ...................................................................................................................................................... 11 8.2 FREQUENCY STABILITY ...................................................................................................................................................... 13 8.3 RADIATED POWER AND DUTY CYCLE .................................................................................................................................... 15 8.4 UNWANTED EMISSIONS ...................................................................................................................................................... 18 9 TEST SETUP PHOTOS ................................................................................................................................................ 40 10 TEST EQUIPMENT AND ANCILLARIES USED FOR TESTING ......................................................................................... 40 11 HISTORY ................................................................................................................................................................... 41 Test Report #: EMC_UHNDE_003_20001_FCC_95M_Rev1 FCC ID: 2AXF3-URHM1140 Date of Report 2020-10-28 Page 3 of 41 IC ID: 26449-URHM114 1 Assessment The following device was evaluated against the applicable criteria specified in FCC rules Parts 95 subpart M of Title 47 of the Code of Federal Regulations and the relevant ISED Canada standard RSS-251. No deviations were ascertained. Company Description Model # Uhnder 4D Digital Imaging Radar Sensor UR-HM1140-1, UR-HM1140-2, UR-HM1140-3 Responsible for Testing Laboratory: 2020-10-28 Compliance Cindy Li (EMC Lab Manager) Date Section Name Signature Responsible for the Report: 2020-10-28 Compliance Kris Lazarov (EMC Engineer) Date Section Name Signature Th…
Text truncated - open the document above for the full version.
CETECOM Inc. 411 Dixon Landing Road Milpitas, CA 95035 U.S.A. Phone: + 1 (408) 586 6200 Fax: + 1 (408) 586 6299 E-mail: [email protected] http://www.cetecom.com CETECOM Inc. is a Delaware Corporation with Corporation number: 2905571 FCC/ISED Test Setup Photos For: Uhnder Model Name: UR-HM1140-1, UR-HM1140-2, UR-HM1140-3 Product Description: 4D Digital Imaging Radar Sensor FCC ID: 2AXF3-URHM1140 IC ID: 26449-URHM1140 Addition to Report #: EMC_UHNDE_003_20001_FCC_95M DATE: 2020-09-21 Page 2 of 13 Radiated Measurements 9 KHz to 30 MHz Page 3 of 13 30 MHz to 1 GHz Page 4 of 13 1 GHz to 3 GHz Page 5 of 13 3 GHz to 18 GHz Page 6 of 13 18 GHz to 40 GHz Page 7 of 13 40 GHz to 231 GHz Page 8 of 13 Frequency Stability Page 9 of 13 EUT Photos EUT Front View Page 10 of 13 EUT Rear View Page 11 of 13 EUT Side View Page 12 of 13 Page 13 of 13 <<< The End >>>
| # | Rule Parts | Frequency Range | Power Output | Emission | Tolerance |
|---|---|---|---|---|---|
| 1 | 95M | 76.00 GHz - 77.00 GHz | 565.00 mW | 516MD1D | 144.0000000000 ppm |

4D Digital Imaging Radar Sensor
Equipment Class
VRD - Part 95 Vehicular Radar Systems
