2AXGNSKE-SZX-X01Music Galaxy Night Ligh

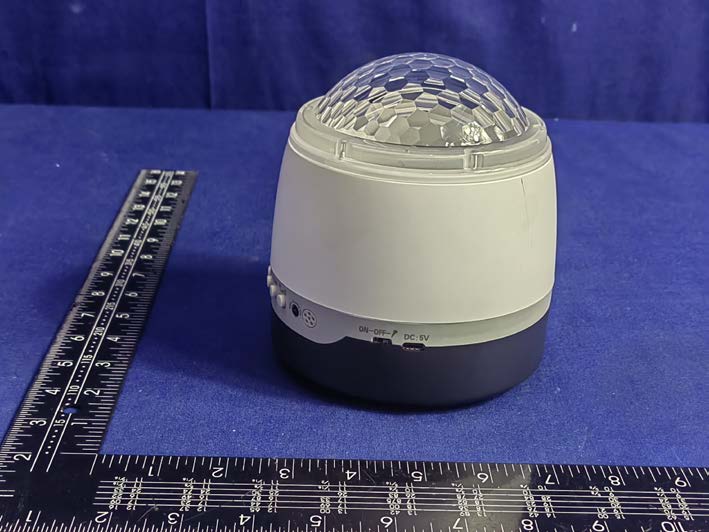

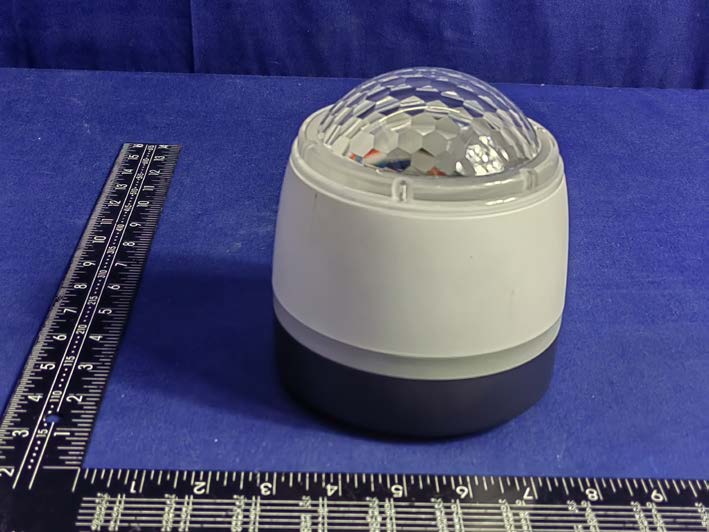

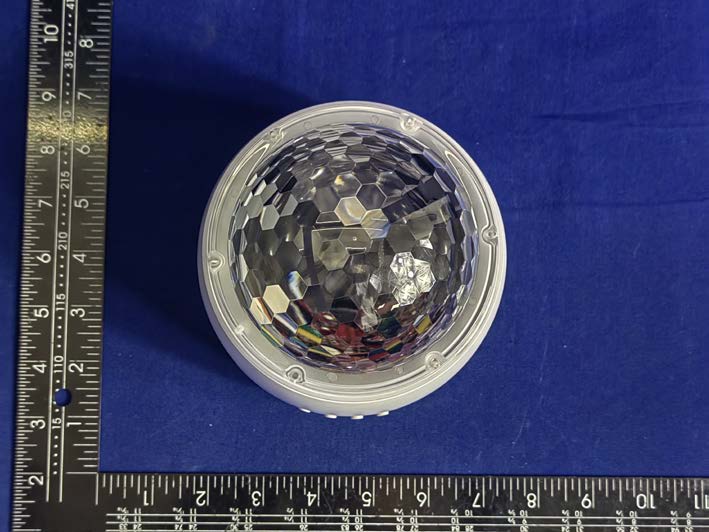

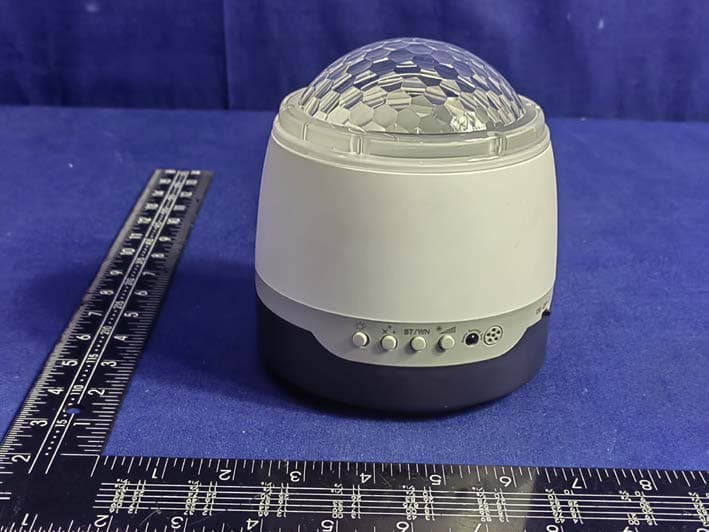

EUT EXTERNAL PHOTOGRAPHS ----------------The end----------------

Label location

EUT INTERNAL PHOTOGRAPHS PCB ANT ----------------The end----------------

FCC ID : 2AXGNSKE-SZX-X01 RF EXPOSURE EVALUATION According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environment impact of human exposure to radio frequency (RF) Radiation as specified in §1.1307(b) Limits for Maximum Permissible Exposure (MPE) Frequency Range(MHz) Electric Field Strength(V/m) Magnetic Field Strength(A/m) Power Density(mW/cm 2 ) Average Time (A) Limits for Occupational/Control Exposures 300-1500 -- -- F/300 6 1500- 100000 -- -- 5 6 (B) Limits for General Population/Uncontrol Exposures 300-1500 -- -- F/1500 6 1500- 100000 -- -- 1 30 11.1 Friis transmission formula: Pd= (Pout*G)\ (4*pi*R 2 ) Where Pd= Power density in mW/cm 2 Pout=output power to antenna in mW G= Numeric gain of the antenna relative to isotropic antenna Pi=3.1416 R= distance between observation point and center of the radiator in cm Pd the limit of MPE, 1mW/cm 2 ,If we know the maximum gain of the nd total power input to the antenna, through the calculation, we will know the distance where the MPE limit is reached. RF Exposure Information: The radiated output power of this device meets the limits of FCC/IC radio frequency exposure limits.This device should be operated with a minimum separation distance of 20cm (8 inches) between the equipment and a person's body. 11.2 Measurement Result BT Antenna gain: -0.68 dBi Measured power (dBm) Tune-up power (dBm) Max tune-up power (dBm) Antenna Gain Numeric Evaluation result (mW/cm2 ) Power density Limits (mW/cm2 ) 3.92 2 to 4 4 0.86 0.00043 1

Report No. ENS2202230144W00101R Page 1 of 59 Ver.1.0 TEST REPORT Product Name ： Music Galaxy Night Ligh Model Number ： SKE-SZX-X01 FCC ID ： 2AXGNSKE-SZX-X01 Prepared for : Shenzhen Skoe Technology Co., Ltd. Address : 4th Floor, Building A, Youth Pioneer Park, Jianshe East Road, Longhua District, Shenzhen City, China Prepared by : EMTEK (SHENZHEN) CO., LTD. Address : Building 69, Majialong Industry Zone, Nanshan District, Shenzhen, Guangdong, China Tel: (0755) 26954280 Fax: (0755) 26954282 Report Number : ENS2202230144W00101R Date(s) of Tests : February 24, 2022 to March 31, 2022 Date of issue : March 31, 2022 $二维码$ Report No. ENS2202230144W00101R Page 2 of 59 Ver.1.0 Table of Contents 1 TEST RESULT CERTIFICATION ............................................................................................................... 3 2 EUT TECHNICAL DESCRIPTION ............................................................................................................. 4 3 SUMMARY OF TEST RESULT .................................................................................................................. 5 4 TEST METHODOLOGY ............................................................................................................................. 6 4.1 GENERAL DESCRIPTION OF APPLIED STANDARDS ................................................................ 6 4.2 MEASUREMENT EQUIPMENT USED .......................................................................................... 6 4.3 DESCRIPTION OF TEST MODES ................................................................................................ 8 5 FACILITIES AND ACCREDITATIONS ....................................................................................................... 9 5.1 FACILITIES .................................................................................................................................... 9 5.2 EQUIPMENT.................................................................................................................................. 9 5.3 LABORATORY ACCREDITATIONS AND LISTINGS ..................................................................... 9 6 TEST SYSTEM UNCERTAINTY .............................................................................................................. 10 7 SETUP OF EQUIPMENT UNDER TEST .................................................................................................. 11 7.1 RADIO FREQUENCY TEST SETUP 1......................................................................................... 11 7.2 RADIO FREQUENCY TEST SETUP 2......................................................................................... 11 7.3 CONDUCTED EMISSION TEST SETUP ..................................................................................... 13 7.4 BLOCK DIAGRAM CONFIGURATION OF TEST SYSTEM ......................................................... 14 7.5 SUPPORT EQUIPMENT ............................................................................................................. 14 8 FREQUENCY HOPPING SYSTEM REQUIREMENTS ............................................................................ 15 8.1 STANDARD APPLICABLE .................................................................................................................. 15 8.2 EUT PSEUDORANDOM FREQUENCY HOPPING SEQUENCE ................................................................ 15 8.3 EQUAL HOPPING FREQUENCY USE ................................................................................................. 16 8.4 FREQUENCY HOPPING SYSTEM ....................................................................................................... 16 9 TEST REQUIREMENTS ........................................................................................................................... 17 9.1 20DB BANDWIDTH ..................................................................................................................... 17 9.2 CARRIER FREQUENCY SEPARATION ...................................................................................... 21 9.3 NUMBER OF HOPPING FREQUENCIES ................................................................................... 25 9.4 AVERAGE TIME OF OCCUPANCY (DWELL TIME) .................................................................... 27 9.5 MAXIMUM PEAK CONDUCTED OUTPUT POWER ................................................................... 30 9.6 CONDUCTED SUPRIOUS EMISSION ........................................................................................ 34 9.7 RADIATED SPURIOUS EMISSION ............................................................................................. 41 9.8 CONDUCTED EMISSION TEST ................................................................................................. 54 9.9 ANTENNA APPLICATION ............................................................................................................ 57 Report No. ENS2202230144W00101R Page 3 of 59 Ver.1.0 1 TEST RESULT CERTIFICATION Applicant : Shenzhen Skoe Technology Co., Ltd. Address : 4th Floor, Building A, Youth Pioneer Park, Jianshe East Road, Longhua District, Shenzhen City, China Manufacturer : Shenzhen Skoe Technology Co., Ltd. Address : 4th Floor, Building A, Youth Pioneer Park, Jianshe East Road, Longhua District, Shenzhen City, China EUT : Music Galaxy Night Ligh Model Name : SKE-SZX-X01 Trademark : N/A Measurement Procedure Used: APPLICABLE STANDARDS STANDARD TEST RESULT FCC 47 CFR Part 2, Subpart J FCC 47 CFR Part 15, Subpart C PASS The above equipment was tested by EMTEK (SHENZHEN) CO., LTD. The test data, data evaluation, test procedures, and equipment configurations shown in this report were made in accordance with the procedures given in ANSI C63.10 (2013) and the energy emitted by the sample EUT tested as described in this report is in compliance with the requirements of FCC Rules Part 2 and Part 15.247 The test results of th…

Text truncated - open the document above for the full version.

Report No. ENS2202230144W00101R Page 36 of 59 Ver.1.0 Test Model Conduceted Spurious RF Conducted Emission Bluetooth V5.0 Channel 0: 2402MHz GFSK Test Model Maximum Conduceted Level RBW=100kHz Bluetooth V5.0 Channel 39: 2441MHz GFSK Report No. ENS2202230144W00101R Page 37 of 59 Ver.1.0 Test Model Conduceted Spurious RF Conducted Emission Bluetooth V5.0 Channel 39: 2441MHz GFSK Test Model Maximum Conduceted Level RBW=100kHz Bluetooth V5.0 Channel 78: 2480MHz GFSK Report No. ENS2202230144W00101R Page 38 of 59 Ver.1.0 Test Model Band-edge Conducted Emissions Bluetooth V5.0 Channel 78: 2480MHz GFSK Test Model ConducetedSpurious RF Conducted Emission Bluetooth V5.0 Channel 78: 2480MHz GFSK Report No. ENS2202230144W00101R Page 39 of 59 Ver.1.0 Test Model Maximum Conduceted Level RBW=100kHz Bluetooth V5.0 Hopping GFSK Test Model Band-edge Conducted Emissions Bluetooth V5.0 Hopping GFSK Report No. ENS2202230144W00101R Page 40 of 59 Ver.1.0 Test Model Band-edge Conducted Emissions Bluetooth V5.0 Hopping GFSK Test Model Conduceted Spurious RF Conducted Emission Bluetooth V5.0 Hopping GFSK Report No. ENS2202230144W00101R Page 41 of 59 Ver.1.0 9.7 RADIATED SPURIOUS EMISSION 9.7.1 Applicable Standard According to FCC Part 15.247(d) and 15.209 and KDB 558074 D01 15.247 MEAS GUIDANCE v05r02 9.7.2 Conformance Limit According to FCC Part 15.247(d): radiated emissions which fall in the restricted bands, as defined in §15.205(a), must also comply with the radiated emission limits specified in §15.209(a) (see §15.205(c)). According to FCC Part15.205, Restricted bands MHz MHz MHz GHz 0.090-0.110 16.42-16.423 399.9-410 4.5-5.15 10.495-0.505 16.69475-16.69525 608-614 5.35-5.46 2.1735-2.1905 16.80425-16.80475 960-1240 7.25-7.75 4.125-4.128 25.5-25.67 1300-1427 8.025-8.5 4.17725-4.17775 37.5-38.25 1435-1626.5 9.0-9.2 4.20725-4.20775 73-74.6 1645.5-1646.5 9.3-9.5 6.215-6.218 74.8-75.2 1660-1710 10.6-12.7 6.26775-6.26825 123-138 2200-2300 14.47-14.5 8.291-8.294 149.9-150.05 2310-2390 15.35-16.2 8.362-8.366 156.52475-156.52525 2483.5-2500 17.7-21.4 8.37625-8.38675 156.7-156.9 2690-2900 22.01-23.12 8.41425-8.41475 162.0125-167.17 3260-3267 23.6-24.0 12.29-12.293 167.72-173.2 3332-3339 31.2-31.8 12.51975-12.52025 240-285 3345.8-3358 36.43-36.5 12.57675-12.57725 322-335.4 3600-4400 (2) 13.36-13.41 According to FCC Part15.205, the level of any transmitter spurious emission in Restricted bands shall not exceed the level of the emission specified in the following table Restricted Frequency(MHz) Field Strength (μV/m) Field Strength (dBμV/m) Measurement Distance 0.009-0.490 2400/F(KHz) 20 log (uV/m) 300 0.490-1.705 24000/F(KHz) 20 log (uV/m) 30 1.705-30 30 29.5 30 30-88 100 40 3 88-216 150 43.5 3 216-960 200 46 3 Above 960 500 54 3 9.7.3 Test Configuration Test according to clause 7.2 radio frequency test setup 2 9.7.4 Test Procedure This test is required for any spurious emission that falls in a Restricted Band, as defined in Section 15.205. It must be performed with the highest gain of each type of antenna proposed for use with the EUT. Use the following spectrum analyzer settings: For Above 1GHz: The EUT was placed on a turn table which is 1.5m above ground plane. Maximum procedure was performed on the highest emissions to ensure EUT compliance. Span = wide enough to fully capture the emission being measured RBW = 1 MHz VBW ≥ RBW Sweep = auto Detector function = peak Report No. ENS2202230144W00101R Page 42 of 59 Ver.1.0 Trace = max hold For Below 1GHz: The EUT was placed on a turn table which is 0.8m above ground plane. Maximum procedure was performed on the highest emissions to ensure EUT compliance. Span = wide enough to fully capture the emission being measured RBW = 100 kHz for VBW ≥ RBW Sweep = auto Detector function = peak Trace = max hold For Below 30MHz: The EUT was placed on a turn table which is 0.8m above ground plane. Maximum procedure was performed on the highest emissions to ensure EUT compliance. Span = wide enough to fully capture the emission being measured RBW = 9kHz VBW ≥ RBW Sweep = auto Detector function = peak Trace = max hold For Below 150KHz: The EUT was placed on a turn table which is 0.8m above ground plane. Maximum procedure was performed on the highest emissions to ensure EUT compliance. Span = wide enough to fully capture the emission being measured RBW = 200Hz VBW ≥ RBW Sweep = auto Detector function = peak Trace = max hold Follow the guidelines in ANSI C63.10-2013 with respect to maximizing the emission by rotating the EUT, measuring the emission while the EUT is situated in three orthogonal planes (if appropriate), adjusting the measurement antenna height and polarization, etc. A pre-amp and a high pass filter are required for this test, in order to provide the measuring system with sufficient sensitivity. Allow the trace to stabilize. The peak reading of the emission, after being corrected by the antenna factor, cable loss, pre-amp gain, etc., is the peak field strength, which must comply with the limit specified in Section 15.35(b). Submit this data. Now set the VBW to 10 Hz, while maintaining all of the other instrument settings. This peak level, once corrected, must comply with the limit specified in Section 15.209. If the dwell time per channel of the hopping signal is less than 100 ms, then the reading obtained with the 10 Hz VBW may be further adjusted by a “duty cycle correction factor”, derived from 20log(dwell time/100 ms), in an effort to demonstrate compliance with the 15.209 limit. Submit this data. Repeat above procedures until all frequency measured was complete. 9.7.5 Test Results  Spurious Emission below 30MHz (9KHz to 30MHz) Temperature: 26° C Relative Humidity: 54% ATM Pressure: 1011 mbar Freq. (MHz) Ant.Pol. Emission Level(dBuV/m) Limit 3m(dBuV/m) Over(dB) H/V PK AV PK AV PK AV -- -- -- -- -- -- -- -- Note: the amplitude of spurious emission that is attenuated by more than 20dB below the permissible limit has no need to be reported. Distance extrapolation factor =40lo…

Text truncated - open the document above for the full version.

TEST SETUP PHOTOGRAPHS 1.1. Photos of Conducted Emission Measurement 1.2. Photos of Radiation Emission Measurement Spurious Emission Test Setup (Below 1GHz) Spurious Emission Test Setup (Above 1GHz) ----------------The end----------------
