2AXGWH1L1AI speakerphone

l. Make sure Hll is connected to your computer via USB-C. 2. Go to hinotes.ai to connect your Bluetooth earphones to Hll. 3. Start your call and press the Record button on Hll. 4. BlueCatch'" captures both your voice and the other party's audio through your earphones. Need Help? 1. Full user manual: https://www.hidock.com/pages/user-manual 2. HiNotes Web App: hinotes.ai 3.Community: reddit.com/r/HiDockOfficial 4.Email us: [email protected] REGULATORY AND LEGAL INFORMATION FCC REGULATORY CONFRORMANC: This device complies with Part 15 of the FCC Rules. Operation is sub」ectto the following two conditions (1)Thi s device may not cause harmful interference (2)This device must accept any inte『ference 『eceived, including interfe『ence that may cause undesired o peration FCC Radiation Exposure Statement This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment . This transmitter must not be co‐located or operating in conjunction with any other antenna or transmitter. This equipment should be installed and operated with minimum distance 20cm between the radiator& your body. NOTE:This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide『easonableprotection against ha『mfulinterte『encein a residential installation This equipment generates uses and can radiate radio frequency energy and, if not installed and used ,n accordance with the instructions, may cause ha『mful interte『enceto『adiocommunications. Howeve『,there is no guarantee that interterence will not occur in a particular installation. If this equipment does cause harmful inte『ferenceto radio or television reception, which can be dete『minedby turning the equipment off and on, the user is encouraged tot『ytoco『rectthe interte『enceby one or more of the following measures:

Shenzhen Sugr Technology Co., LTD Add: 3 002, No. 3 6,Liuxian3 rdRoad,B aoanDi strict, Shenzhen China Tel: +86-15889352584 Fax: +86 755 2664 0196 Email: [email protected] Attestation Letter Date: 2026-04-13 FEDERAL COMMUNTCATfONS COMMISSION Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Dear Sir or Madam: Our product Af speakerphone, model: HiDock HIL,FCC fD:2AXGWH1Ll, for marketing purpose, this product only supports BT(GFSK ).The other functions, bands and modes was disabled to use b y manufacturer in the software, the end user has no capabi lity to activate it. Sincerely, Printed Name: Jay xie Title: Hardware Engineer 妇沁

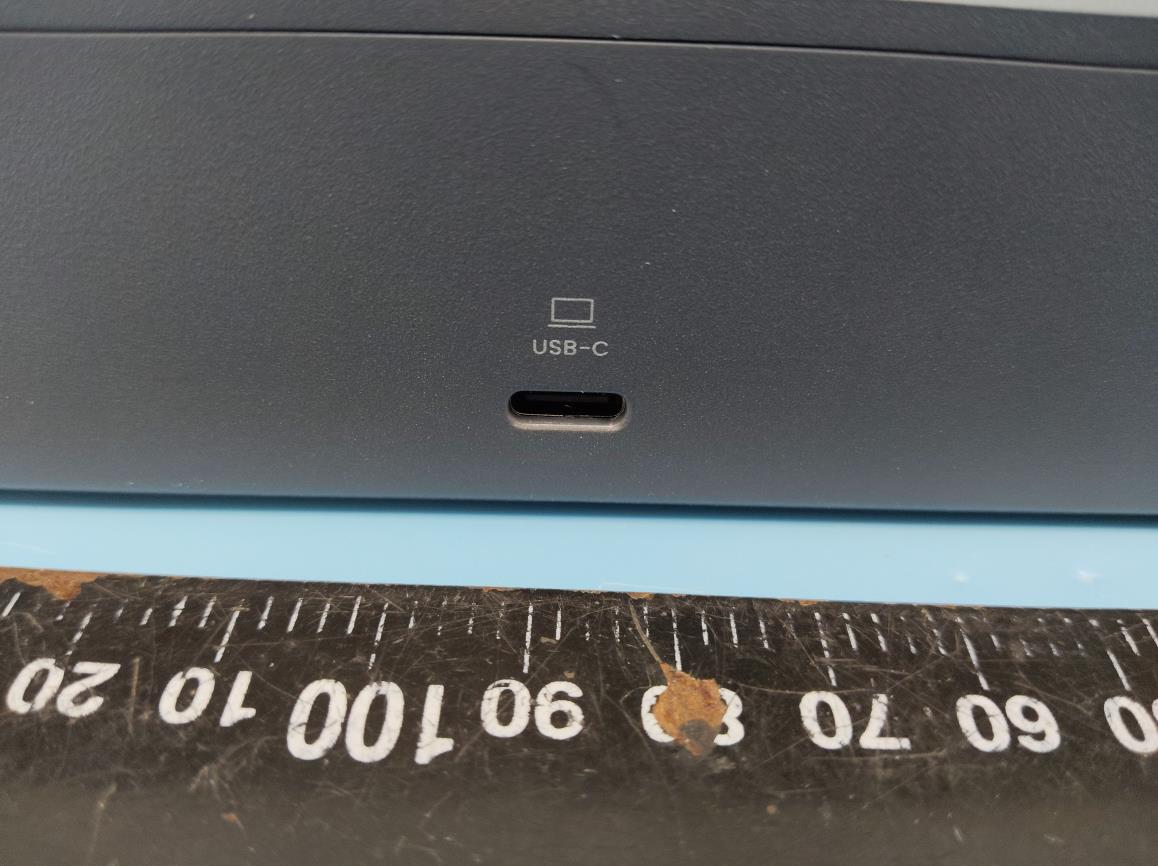

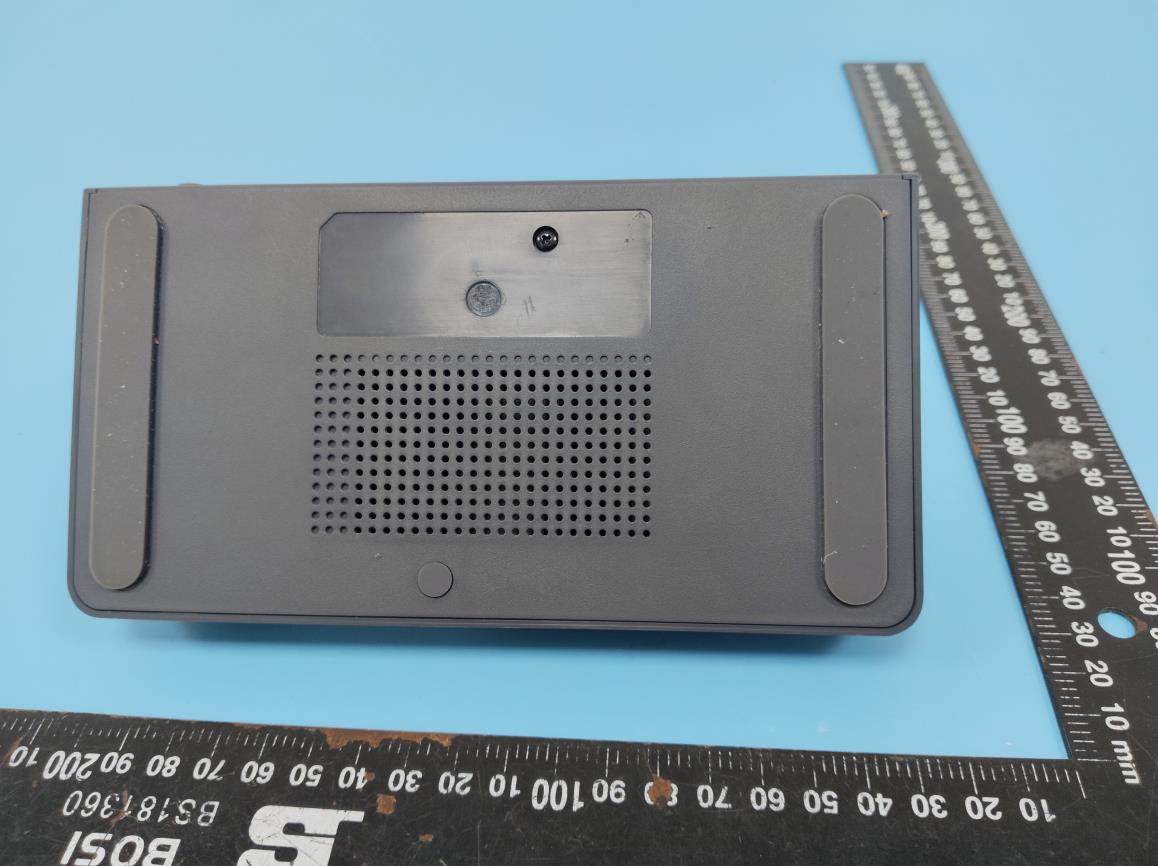

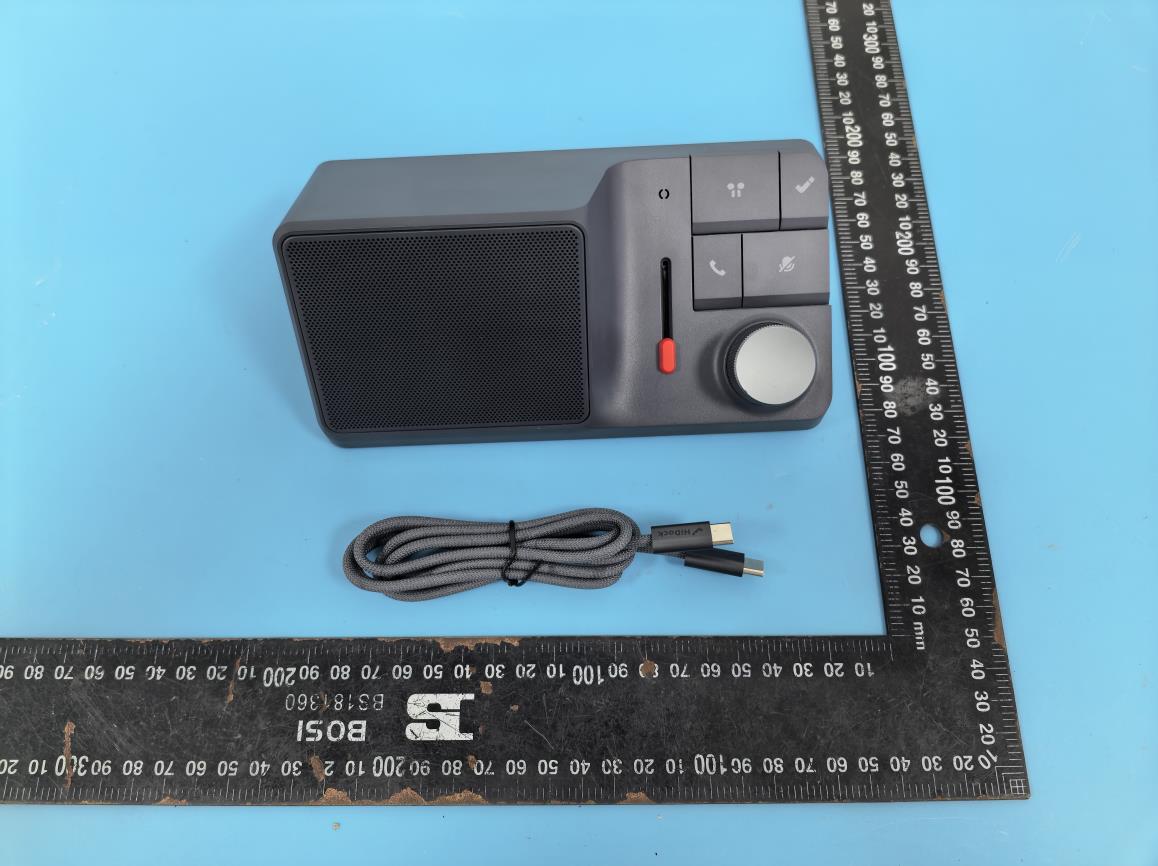

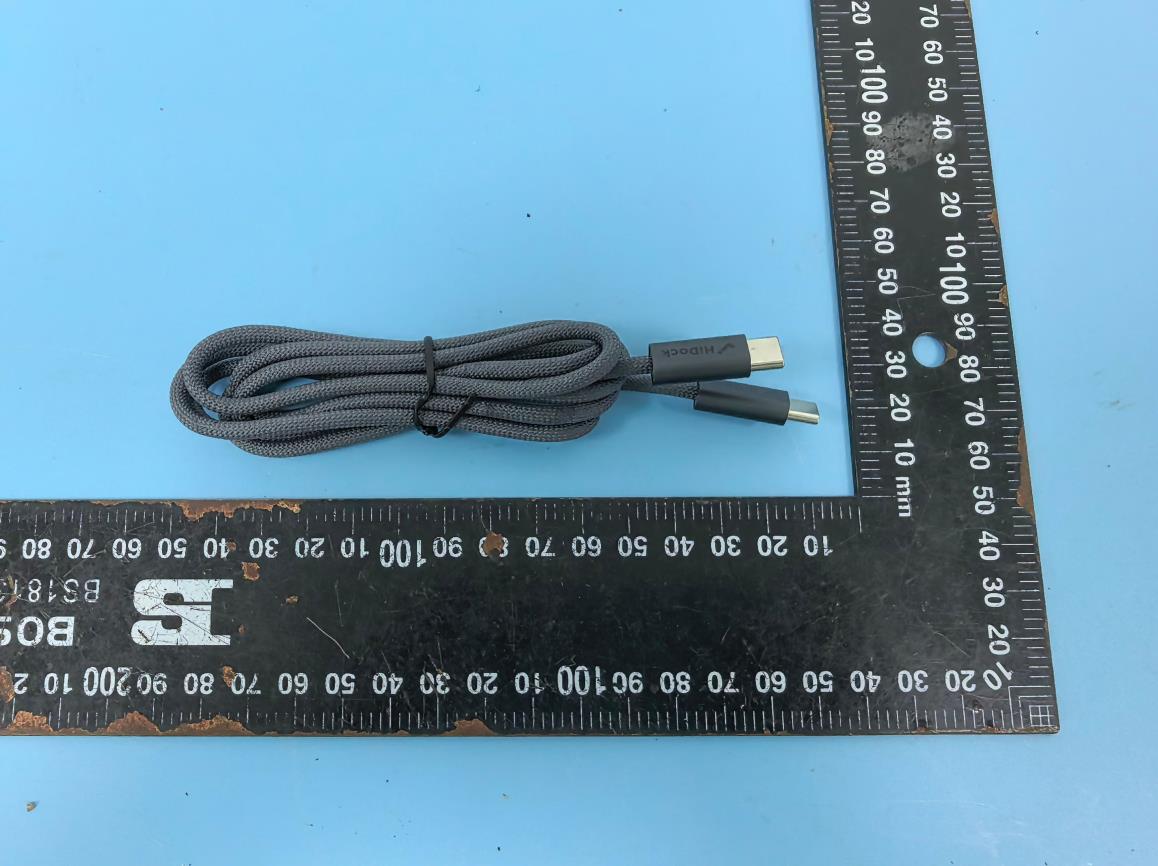

China Certification ICT Co., Ltd (Dongguan) EXHIBIT No.: 2603S51717E-RF-EXP Page 1 / 5 EUT EXTERNAL PHOTOGRAPHS China Certification ICT Co., Ltd (Dongguan) EXHIBIT No.: 2603S51717E-RF-EXP Page 2 / 5 China Certification ICT Co., Ltd (Dongguan) EXHIBIT No.: 2603S51717E-RF-EXP Page 3 / 5 China Certification ICT Co., Ltd (Dongguan) EXHIBIT No.: 2603S51717E-RF-EXP Page 4 / 5 China Certification ICT Co., Ltd (Dongguan) EXHIBIT No.: 2603S51717E-RF-EXP Page 5 / 5 *****END *****

China Certification ICT Co., Ltd (Dongguan) EXHIBIT No.: 2603S51717E-RF-INP Page 1 / 7 EUT INTERNAL PHOTOGRAPHS China Certification ICT Co., Ltd (Dongguan) EXHIBIT No.: 2603S51717E-RF-INP Page 2 / 7 China Certification ICT Co., Ltd (Dongguan) EXHIBIT No.: 2603S51717E-RF-INP Page 3 / 7 China Certification ICT Co., Ltd (Dongguan) EXHIBIT No.: 2603S51717E-RF-INP Page 4 / 7 China Certification ICT Co., Ltd (Dongguan) EXHIBIT No.: 2603S51717E-RF-INP Page 5 / 7 China Certification ICT Co., Ltd (Dongguan) EXHIBIT No.: 2603S51717E-RF-INP Page 6 / 7 China Certification ICT Co., Ltd (Dongguan) EXHIBIT No.: 2603S51717E-RF-INP Page 7 / 7 Antenna *****END *****

China Certification ICT Co., Ltd (Dongguan) Report No.:2603S51717E-RF-00AM1 Report Template: RF-FCC-BT-A/0 Page 53 of 55 5. RF EXPOSURE EVALUATION 5.1 RF Exposure Evaluation 5.1.1 Applicable Standard According to subpart 15.247(i) and subpart §1.1310, systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. Limits for Maximum Permissible Exposure (MPE) (§1.1310, §2.1091) (B) Limits for General Population/Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Averaging Time (minutes) 0.3–1.34 614 1.63 *(100) 30 1.34–30 824/f 2.19/f *(180/f²) 30 30–300 27.5 0.073 0.2 30 300–1500 / / f/1500 30 1500–100,000 / / 1.0 30 f = frequency in MHz; * = Plane-wave equivalent power density; According to §1.1310 and §2.1091 RF exposure is calculated. 5.1.2 Calculation formula Prediction of power density at the distance of the applicable MPE limit S = PG/4R² = power density (in appropriate units, e.g. mW/cm 2 ); P = power input to the antenna (in appropriate units, e.g., mW); G = power gain of the antenna in the direction of interest relative to an isotropic radiator, the power gain factor, is normally numeric gain; R = distance to the center of radiation of the antenna (appropriate units, e.g., cm); 5.1.3 Calculated Data Operation Modes Frequency (MHz) Antenna Gain Conducted output power including Tune-up Tolerance Evaluation Distance (cm) Power Density (mW/cm 2 ) MPE Limit (mW/cm 2 ) (dBi) (numeric) (dBm) (mW) BT 2402-2480 1.75 1.5 8.5 7.08 20 0.0021 1 Note: The Maximum Conducted Power including Tune-up Tolerance was declared by manufacturer. Result: Compliant. The device compliant transmission at 20cm distances.

TEST REPORT Applicant: Shenzhen Sugr Technology Co., LTD Address: 3002,No.36,Liuxian3rdRoad,BaoanDistrict,Shenzhen China FCC ID: 2AXGWH1L1 Product Name: AI speakerphone Standard(s): 47 CFR Part 15, Subpart C(15.247) ANSI C63.10-2020 KDB 558074 D01 15.247 Meas Guidance v05r02 The above device has been tested and found compliant with the requirement of the relative standards by China Certification ICT Co., Ltd (Dongguan) Report Number: 2603S51717E-RF-00AM1 Date Of Issue: 2026-05-14 Reviewed By: Calvin Chen Title: RF Test Supervisor Approved By: Sun Zhong Title: Manager Test Laboratory: China Certification ICT Co., Ltd (Dongguan) Room 101 & 201, Building 2, 256 Pingdong Road, Dalang Town, Dongguan City, Guangdong, China. Tel: +86-769-83085888 www.ccttt.com.cn China Certification ICT Co., Ltd (Dongguan) Report No.:2603S51717E-RF-00AM1 Report Template: RF-FCC-BT-A/0 Page 2 of 55 Test Facility The Test site used by China Certification ICT Co., Ltd (Dongguan) to collect test data is located on the No. 113, Pingkang Road, Dalang Town, Dongguan, Guangdong, China. The lab has been recognized as the FCC accredited lab under the KDB 974614 D01 and is listed in the FCC Public Access Link (PAL) database, FCC Registration No. : 442868, the FCC Designation No. : CN1314. The lab has been recognized by Innovation, Science and Economic Development Canada to test to Canadian radio equipment requirements, the CAB identifier: CN0123. Declarations China Certification ICT Co., Ltd (Dongguan) is not responsible for the authenticity of any test data provided by the applicant. Data included from the applicant that may affect test results are marked with a triangle symbol ―▲‖. Customer model name, addresses, names, trademarks etc. are not considered data. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested. This report cannot be reproduced except in full, without prior written approval of the Company. This report is valid only with a valid digital signature. The digital signature may be available only under the Adobe software above version 7.0. This report may contain data that are not covered by the accreditation scope and shall be marked with an asterisk ―★‖. Each test item follows the test standard(s) without deviation. China Certification ICT Co., Ltd (Dongguan) Report No.:2603S51717E-RF-00AM1 Report Template: RF-FCC-BT-A/0 Page 3 of 55 CONTENTS TEST REPORT ............................................................................................................................... 1 CONTENTS..................................................................................................................................... 3 DOCUMENT REVISION HISTORY........................................................................................... 5 1. GENERAL INFORMATION .................................................................................................... 6 1.1 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT) ....................................................... 6 1.1.1 General ........................................................................................................................................................... 6 1.1.2 Operation Frequency Detail ........................................................................................................................... 6 1.1.3 Antenna Information Detail▲ ....................................................................................................................... 6 1.1.4 Accessory Information ................................................................................................................................... 7 1.2 DESCRIPTION OF TEST CONFIGURATION ........................................................................................... 7 1.2.1 EUT Operation Condition .............................................................................................................................. 7 1.2.2 Support Equipment List and Details .............................................................................................................. 7 1.2.3 Support Cable List and Details ...................................................................................................................... 7 1.2.4 Block Diagram of Test Setup ......................................................................................................................... 8 1.3 MEASUREMENT UNCERTAINTY .......................................................................................................... 9 2. SUMMARY OF TEST RESULTS .......................................................................................... 10 3. REQUIREMENTS AND TEST PROCEDURES .................................................................. 11 3.1 AC LINE CONDUCTED EMISSIONS .................................................................................................... 11 3.1.1 Applicable Standard ..................................................................................................................................... 11 3.1.2 EUT Setup .................................................................................................................................................... 12 3.1.3 EMI Test Receiver Setup ............................................................................................................................. 12 3.1.4 Test Procedure ............................................................................................................................................. 13 3.1.5 Corrected Amplitude & Margin Calculation ................................................................................................ 13 3.2 RADIATED SPURIOUS EMISSIONS ...................................................................................................... 14 3.2.1 Applicable Standard ......................................................................…

Text truncated - open the document above for the full version.

承 認 書 SPECIFICATION FOR APPROVAL 客戶名稱 CUSTOMER ： 客戶料號 CUSTOMER’S P/N ： 料號 PART NUMBER ： WAN3216F245H08 規格 DESCRIPTION ： Chip Antenna 3216 L Ant 2.45G Type H08 版本 VERSION ： V1.6 日期 ISSUE DATE ： 2022/01/05 客 戶 承 認 CUSTOMER APPROVED 工 程 部 R&D CENTER 承 認 APPROVAL 確 認 CHECKED 製 作 DRAWN Ray Tennyson Snow 萬誠科技股份有限公司 OneWave Electronic Co., Ltd. 11261台北市北投區立功街151號1樓 1F, No. 151, Li Gong Street, Beitou District, Taipei City 11261, Taiwan 電話: (02) 2898-2220 TEL: +886 2 2898-2220 傳真: (02) 2898-5055 FAX: +886 2 2898-5055 2/11 ONEWAVE TECHNOLOGY CO., LTD. 3216 Chip antenna For Bluetooth / WLAN Applications Dimension (mm) L 3.23 ± 0.20 W 1.66 ± 0.20 T 0.45 ± 0.20 P/N: WAN3216F245H08 3/11 ONEWAVE TECHNOLOGY CO., LTD. Part Number Information WAN 3216 F 245 H 08 A B C D E F A Product Series Antenna B Dimension L x W 3.2 x 1.6mm (±0.2mm) C Material High K material D Working Frequency 2.4 ~ 2.5GHz E Feeding mode PIFA & Single Feeding F Antenna type Type = 08 1. Electrical Specification Remark : Bandwidth & Peak Gain was measured under evaluation board of next page Specification Part Number WAN3216F245H08 Central Frequency 2450 MHz Bandwidth 120 (Min.) MHz Return Loss -6.5 (Max) dB Peak Gain 1.75 dBi Impedance 50 Ohm Operating Temperature -40～+110 °C Maximum Power 4 W Resistance to Soldering Heats 10 ( @ 260°C) sec. Polarization Linear Azimuth Beamwidth Omni-directional Termination Cu / Sn (Leadless) 4/11 ONEWAVE TECHNOLOGY CO., LTD. 2. Recommended PCB Pattern Evaluation Board Dimension 2 nd Evaluation Board Dimension Suggested Matching Circuit 5/11 ONEWAVE TECHNOLOGY CO., LTD. Layout Dimensions in Clearance area( Size=5.9*5.0mm) FootPrint (Unit : mm) ◆ 2 nd Layout Dimensions in Clearance area( Size=8.0*3.0mm) Matching Circuit 50 ohm transmission Line 6/11 ONEWAVE TECHNOLOGY CO., LTD. 3. Measurement Results Return Loss 7/11 ONEWAVE TECHNOLOGY CO., LTD. Radiation Pattern Efficiency Peak Gain Directivity 2400MHz 81.46% 1.67 dBi 2.56 dBi 2450MHz 84.75% 1.75 dBi 2.46 dBi 2500MHz 82.68% 1.70 dBi 2.52 dBi Chamber Coordinate System X Y Z 8/11 ONEWAVE TECHNOLOGY CO., LTD. 4.Reliability and Test Condictions ITEM REQUIREMENTS TEST CONDITION Solderability 1. Wetting shall exceed 90% coverage 2. No visible mechanical damage Pre-heating temperature:150°C/60sec. Solder temperature:230±5°C Duration:4±1sec. Solder:Sn-Ag3.0-Cu0.5 Flux for lead free: rosin Solder heat Resistance 1. No visible mechanical damage 2. Central Freq. change :within ± 6% 10 ± 0.5 sec. 60 sec . . T E M P ( °C ) 150 °C 2 6 0 °C Pre-heating temperature:150°C/60sec. Solder temperature:260±5°C Duration:10±0.5sec. Solder:Sn-Ag3.0-Cu0.5 Flux for lead free: rosin Component Adhesion (Push test) 1. No visible mechanical damage The device should be reflow soldered(230±5°C for 10sec.) to a tinned copper substrate A dynometer force gauge should be applied the side of the component. The device must with-ST-F 0.5 Kg without failure of the termination attached to component. Component Adhesion (Pull test) 1. No visible mechanical damage Insert 10cm wire into the remaining open eye bend ,the ends of even wire lengths upward and wind together. Terminal shall not be remarkably damaged. Thermal shock 1. No visible mechanical damage 2. Central Freq. change :within ±6% Phase Temperature(°C) Time(min) 1 +110±5°C 30±3 2 Room Temperature Within 3sec 3 -40±2°C 30±3 4 Room Temperature Within 3sec +110°C=>30±3min -40°C=>30±3min Test cycle:10 cycles The chip shall be stabilized at normal condition for 2~3 hours before measuring. Resistance to High Temperature 1. No visible mechanical damage 2. Central Freq. change :within ±6% 3. No disconnection or short circuit. Temperature: +110±5°C Duration: 1000±12hrs The chip shall be stabilized at normal condition for 2~3 hours before measuring. Resistance to Low Temperature 1. No visible mechanical damage 2. Central Freq. change :within ±6% 3. No disconnection or short circuit. Temperature:-40±5°C Duration: 1000±12hrs The chip shall be stabilized at normal condition for 2~3 hours before measuring. Humidity 1. No visible mechanical damage 2. Central Freq. change :within ±6% 3. No disconnection or short circuit. Temperature: 40±2°C Humidity: 90% to 95% RH Duration: 1000±12hrs The chip shall be stabilized at normal condition for 2~3 hours before measuring. 4±1 sec. 60sec TEMP (°C) 150°C 230°C 9/11 ONEWAVE TECHNOLOGY CO., LTD. 5.Soldering and Mounting Mildly activated rosin fluxes are preferred. The minimum amount of solder can lead to damage from the stresses caused by the difference in coefficients of expansion between solder, chip and substrate. The terminations are suitable for all wave and re-flow soldering systems. If hand soldering cannot be avoided, the preferred technique is the utilization of hot air soldering tools. Recommended temperature profiles for re-flow soldering in Figure 1. Products attachment with a soldering iron is discouraged due to the inherent process control limitations. In the event that a soldering iron must be employed the following precautions are recommended. ‧Preheat circuit and products to 150°C ‧Never contact the ceramic with the iron tip ‧Use a 20 watt soldering iron with tip diameter of 1.0mm ‧280°C tip temperature (max) ‧1.0mm tip diameter (max) ‧Limit soldering time to 3 sec. SOLDERING COOLING NATURAL PRE-HEATING TEMPERATURE(°C) 60~120 s 10s max. 30~60s 250~260 230 180 150 TIME(sec.) Reflow Soldering SOLDERING COOLING NATURAL PRE-HEATING TEMPERATURE(°C) within 3s Gradual cooling 150 TIME(sec.) Iron Soldering Over 60s 350 300 10/11 ONEWAVE TECHNOLOGY CO., LTD. 6.Packaging Information Tape Specification: Reel Specification: (7’’, Φ180 mm) Tape Width(mm) A(mm) B(mm) C(mm) D(mm) Chip/Reel(pcs) 8 9.0±0.5 60±2 13.5±0.5 178±2 3000 11/11 ONEWAVE TECHNOLOGY CO., LTD. 7.Storage and Transportation Information Storage Conditions To maintain the solderability of terminal electrodes: 1. Temperature and humidity conditions: -10~ 40°C and 30~70% RH. 2. Recommended products should be used within 6 months from the time of…

Text truncated - open the document above for the full version.

China Certification ICT Co., Ltd (Dongguan) Report No.:2603S51717E-RF-00AM1 Page 1 of 15 Appendix A Test Information: Sample No.: 3JLY-3 Test Date: 2026/04/25 Test Site: RF Test Mode: Transmitting Tester: Chloe Zhao Test Result: Pass Environmental Conditions: Temperature: (°C) 24.7 Relative Humidity: (%) 60 ATM Pressure: (kPa) 101 Test Equipment List and Details: Manufacturer Description Model Serial Number Calibration Date Calibration Due Date R&S Spectrum Analyzer FSU26 200445 2025/11/10 2026/11/09 JD Test software JD Auto Test System V1.0 N/A N/A * Statement of Traceability: China Certification ICT Co., Ltd (Dongguan) attests that all calibrations have been performed, traceable to National Primary Standards and International System of Units (SI). China Certification ICT Co., Ltd (Dongguan) Report No.:2603S51717E-RF-00AM1 Page 2 of 15 20 dB Emission Bandwidth Mode Channel Result (MHz) DH1 Low 0.960 Middle 0.966 High 0.957 China Certification ICT Co., Ltd (Dongguan) Report No.:2603S51717E-RF-00AM1 Page 3 of 15 DH1_Low DH1_Middle DH1_High A Att 30 dB*Ref 20.5 dBm Offset 0.5 dB LVL Center2.402 GHzSpan3 MHz300 kHz/ 3DB RBW 30 kHz SWT 15 ms * VBW 100 kHz* 1 PK MAXH SGL -70 -60 -50 -40 -30 -20 -10 0 10 20 SWP 1000 of 1000 1 Marker 1 [T1 ] -14.73 dBm 2.401532000 GHz 1 Delta 1 [T1 ] 0.10 dB 960.000000000 kHz D1 5.485 dBm D2 -14.515 dBm ProjectNo.:2603S51717E-RF Tester:Chloe Zhao Date: 25.APR.2026 14:23:48 A Att 30 dB*Ref 20.5 dBm Offset 0.5 dB LVL Center2.441 GHzSpan3 MHz300 kHz/ 3DB RBW 30 kHz SWT 15 ms * VBW 100 kHz* 1 PK MAXH SGL -70 -60 -50 -40 -30 -20 -10 0 10 20 SWP 1000 of 1000 1 Marker 1 [T1 ] -14.72 dBm 2.440535000 GHz 1 Delta 1 [T1 ] -0.02 dB 966.000000000 kHz D1 5.298 dBm D2 -14.702 dBm ProjectNo.:2603S51717E-RF Tester:Chloe Zhao Date: 25.APR.2026 14:28:07 A Att 30 dB*Ref 20.5 dBm Offset 0.5 dB LVL Center2.48 GHzSpan3 MHz300 kHz/ 3DB RBW 30 kHz SWT 15 ms * VBW 100 kHz* 1 PK MAXH SGL -70 -60 -50 -40 -30 -20 -10 0 10 20 SWP 1000 of 1000 1 Marker 1 [T1 ] -15.01 dBm 2.479532000 GHz 1 Delta 1 [T1 ] 0.03 dB 957.000000000 kHz D1 5.071 dBm D2 -14.929 dBm ProjectNo.:2603S51717E-RF Tester:Chloe Zhao Date: 25.APR.2026 14:31:13 China Certification ICT Co., Ltd (Dongguan) Report No.:2603S51717E-RF-00AM1 Page 4 of 15 99% Occupied Bandwidth Mode Channel 99% OBW (MHz) DH1 Low 0.891 Middle 0.894 High 0.897 China Certification ICT Co., Ltd (Dongguan) Report No.:2603S51717E-RF-00AM1 Page 5 of 15 DH1_Low DH1_Middle DH1_High A Att 30 dB*Ref 20 dBm Offset 0.5 dB LVL 300 kHz/Center2.402 GHzSpan3 MHz * * 3DB RBW 30 kHz VBW 100 kHz SWT 15 ms 1 PK MAXH SGL -80 -70 -60 -50 -40 -30 -20 -10 0 10 20 SWP 1000 of 1000 1 Marker 1 [T1 ] 5.51 dBm 2.401829000 GHz OBW891.000000000 kHz T1 Temp 1 [T1 OBW] -13.21 dBm 2.401553000 GHz T2 Temp 2 [T1 OBW] -15.77 dBm 2.402444000 GHz ProjectNo.:2603S51717E-RF Tester:Chloe Zhao Date: 25.APR.2026 14:24:45 A Att 30 dB*Ref 20 dBm Offset 0.5 dB LVL 300 kHz/Center2.441 GHzSpan3 MHz * * 3DB RBW 30 kHz VBW 100 kHz SWT 15 ms 1 PK MAXH SGL -80 -70 -60 -50 -40 -30 -20 -10 0 10 20 SWP 1000 of 1000 1 Marker 1 [T1 ] 5.33 dBm 2.440829000 GHz OBW894.000000000 kHz T1 Temp 1 [T1 OBW] -13.77 dBm 2.440553000 GHz T2 Temp 2 [T1 OBW] -16.08 dBm 2.441447000 GHz ProjectNo.:2603S51717E-RF Tester:Chloe Zhao Date: 25.APR.2026 14:29:02 A Att 30 dB*Ref 20 dBm Offset 0.5 dB LVL 300 kHz/Center2.48 GHzSpan3 MHz * * 3DB RBW 30 kHz VBW 100 kHz SWT 15 ms 1 PK MAXH SGL -80 -70 -60 -50 -40 -30 -20 -10 0 10 20 SWP 1000 of 1000 1 Marker 1 [T1 ] 5.09 dBm 2.479829000 GHz OBW897.000000000 kHz T1 Temp 1 [T1 OBW] -13.46 dBm 2.479547000 GHz T2 Temp 2 [T1 OBW] -16.23 dBm 2.480444000 GHz ProjectNo.:2603S51717E-RF Tester:Chloe Zhao Date: 25.APR.2026 14:32:08 China Certification ICT Co., Ltd (Dongguan) Report No.:2603S51717E-RF-00AM1 Page 6 of 15 Channel Separation Mode Channel Result (MHz) Limit (MHz) Verdict DH1 Low 1.004 0.640 Pass Middle 1.004 0.644 Pass High 1 0.638 Pass Note: The limit is the maximum 20dB bandwidth *2/3. China Certification ICT Co., Ltd (Dongguan) Report No.:2603S51717E-RF-00AM1 Page 7 of 15 DH1_Low DH1_Middle DH1_High A Att 30 dB* Offset 0.5 dB LVL Ref 30 dBm 3DB RBW 30 kHz SWT 10 ms * VBW 100 kHz* Center2.4025 GHzSpan2 MHz200 kHz/ 1 PK MAXH -70 -60 -50 -40 -30 -20 -10 0 10 20 30 1 Marker 1 [T1 ] 5.47 dBm 2.401828000 GHz 1 Delta 1 [T1 ] 0.02 dB 1.004000000 MHz ProjectNo.:2603S51717E-RF Tester:Chloe Zhao Date: 25.APR.2026 14:38:50 A Att 30 dB* Offset 0.5 dB LVL Ref 30 dBm 3DB RBW 30 kHz SWT 10 ms * VBW 100 kHz* Center2.4415 GHzSpan2 MHz200 kHz/ 1 PK MAXH -70 -60 -50 -40 -30 -20 -10 0 10 20 30 1 Marker 1 [T1 ] 5.30 dBm 2.440828000 GHz 1 Delta 1 [T1 ] -0.01 dB 1.004000000 MHz ProjectNo.:2603S51717E-RF Tester:Chloe Zhao Date: 25.APR.2026 14:41:37 A Att 30 dB* Offset 0.5 dB LVL Ref 30 dBm 3DB RBW 30 kHz SWT 10 ms * VBW 100 kHz* Center2.4795 GHzSpan2 MHz200 kHz/ 1 PK MAXH -70 -60 -50 -40 -30 -20 -10 0 10 20 30 1 Marker 1 [T1 ] 5.02 dBm 2.478830000 GHz 1 Delta 1 [T1 ] 0.07 dB 1.000000000 MHz ProjectNo.:2603S51717E-RF Tester:Chloe Zhao Date: 25.APR.2026 14:47:49 China Certification ICT Co., Ltd (Dongguan) Report No.:2603S51717E-RF-00AM1 Page 8 of 15 Number of Hopping Frequency Mode Channel Result Limit Verdict DH1 Hopping 79 15 Pass China Certification ICT Co., Ltd (Dongguan) Report No.:2603S51717E-RF-00AM1 Page 9 of 15 DH1_Hopping A Att 30 dB*Ref 20 dBm Offset 0.5 dB LVL 8.35 MHz/Start2.4 GHzStop2.4835 GHz * 3DB RBW 100 kHz SWT 10 ms *VBW 300 kHz 1 PK MAXH -80 -70 -60 -50 -40 -30 -20 -10 0 10 20 1 Marker 1 [T1 ] 7.34 dBm 2.401837000 GHz 2 Marker 2 [T1 ] 7.54 dBm 2.404843000 GHz 1 Delta 1 [T1 ] -0.66 dB 78.239500000 MHz ProjectNo.:2603S51717E-RF Tester:Chloe Zhao Date: 25.APR.2026 14:54:15 China Certification ICT Co., Ltd (Dongguan) Report No.:2603S51717E-RF-00AM1 Page 10 of 15 Maximum Conducted Output Power Mode Test Frequency (MHz) Peak Output Power (dBm) Limit (dBm) Verdict DH1 2402 7.92 21.00 Pass 2441 7.72 21.00 Pass 2480 7.47 21.00 Pass China Certification ICT Co., Ltd (Dongguan) Report No.:2603S51717E-RF…

Text truncated - open the document above for the full version.

China Certification ICT Co., Ltd (Dongguan) EXHIBIT No.: 2603S51717E-RF-00A-TSP Page 1 / 5 TEST SETUP PHOTOGRAPHS Conducted Emissions Front View Conducted Emissions Side View China Certification ICT Co., Ltd (Dongguan) EXHIBIT No.: 2603S51717E-RF-00A-TSP Page 2 / 5 Radiated Emission 30 MHz-1 GHz View Radiated Emission 9 kHz-30 MHz Parallel View China Certification ICT Co., Ltd (Dongguan) EXHIBIT No.: 2603S51717E-RF-00A-TSP Page 3 / 5 Radiated Emission 9 kHz-30 MHz Perpendicular View Radiated Emission 9 kHz-30 MHz Ground-parallel View China Certification ICT Co., Ltd (Dongguan) EXHIBIT No.: 2603S51717E-RF-00A-TSP Page 4 / 5 Radiated Emission 1-18GHz View Radiated Emission 18-25GHz View China Certification ICT Co., Ltd (Dongguan) EXHIBIT No.: 2603S51717E-RF-00A-TSP Page 5 / 5 Test photo *****END *****
