2AXH8-BRJPWLFCMulti-Function Jump Starter

1. IMPORTANT SAFETY INSTRUCTIONS SAVE THESE INSTRUCTIONS. WARNING – RISK OF EXPLOSIVE GASES. WORKING IN THE VICINITY OF A LEAD-ACID BATTERY IS DANGEROUS. BATTERIES GENERATE EXPLOSIVE GASES DURING NORMAL OPERATION. IT IS IMPORTANT THAT YOU FOLLOW THESE INSTRUCTIONS EACH TIME YOU USE THE UNIT. To reduce the risk of battery explosion, follow these instructions and those published by the battery manufacturer and the manufacturer of any equipment you intend to use in the vicinity of a battery. Review cautionary markings on these products and on the engine. WARNING! RISK OF ELECTRIC SHOCK OR FIRE. 1.1 Read the entire manual before using this product. Failure to do so could result in serious injury or death. 1.2 Keep out of reach of children. 1.3 'RQRWSXW¿QJHUVRUKDQGVLQWRDQ\RIWKHXQLW¶VRXWOHWV 1.4 Do not expose the unit to rain or snow. 1.5 Use only recommended attachments (SA901 jump cable). Use of an attachment not recommended or sold by the jump starter manufacturer IRUWKLVXQLWPD\UHVXOWLQDULVNRI¿UHHOHFWULFVKRFNRULQMXU\WRSHUVRQV or damage to property. 1.6 7RUHGXFHWKHULVNRIGDPDJHWRWKHHOHFWULFSOXJRUFRUGSXOOE\WKH adaptor rather than the cord when disconnecting the unit. 1.7 Do not operate the unit with damaged cables or clamps. 1.8 'RQRWRSHUDWHWKHXQLWLILWKDVUHFHLYHGDVKDUSEORZEHHQGURSSHGRU RWKHUZLVHGDPDJHGLQDQ\ZD\WDNHLWWRDTXDOL¿HGVHUYLFHSHUVRQ 1.9 'RQRWGLVDVVHPEOHWKHXQLWWDNHLWWRDTXDOL¿HGVHUYLFHSHUVRQZKHQ service or repair is required. Incorrect reassembly may result in a risk of ¿UHRUHOHFWULFVKRFN 1.10 &KDQJHVRUPRGL¿FDWLRQVQRWH[SUHVVO\DSSURYHGE\WKHSDUW\ UHVSRQVLEOHIRUFRPSOLDQFHFRXOGYRLGWKHXVHU¶VDXWKRULW\WRRSHUDWH this device. WARNING! RISK OF EXPLOSIVE GASES. 1.11 7RUHGXFHWKHULVNRIDEDWWHU\H[SORVLRQIROORZWKHVHLQVWUXFWLRQVDQG those published by the battery manufacturer and the manufacturer of any equipment you intend to use in the vicinity of the battery. Review the cautionary markings on these products and on the engine. OWNER’S MANUAL PLEASE SAVE THIS OWNERS MANUAL AND READ BEFORE EACH USE. This manual will explain how to use the unit safely and effectively. Please read and follow these instructions and precautions carefully. MODEL DL-2000Li 0099002240-00 • 20 • 14. GAR ANTÍA LIMITADA SCHUMACHER ELECTRIC CORPORATION, 801 BUSINESS CENTER DRIVE, MOUNT PROSPECT, IL 60056-2179, REALIZA LA PRESENTE GARANTÍA LIMITADA AL COMPRADOR MINORISTA ORIGINAL DE ESTE PRODUCTO. LA PRESENTE GARANTÍA LIMITADA NO PUEDE TRANSFERIRSE NI CEDERSE. 6FKXPDFKHU(OHFWULF&RUSRUDWLRQ HO³)DEULFDQWH ́ RWRUJDJDUDQWtDSRUHVWD unidad por un (1) año y la batería interna por noventa (90) días contados DSDUWLUGHODIHFKDGHFRPSUDFRQWUDFXDOTXLHUPDWHULDOGHIHFWXRVRRGH mano de obra de la unidad que pudieran surgir durante su uso y bajo cuidado normal. Si su unidad cuenta con material defectuoso o defectos GHPDQRGHREUDODREOLJDFLyQGHORV)DEULFDQWHVFRQIRUPHDODSUHVHQWH JDUDQWtDVHUiVLPSOHPHQWHUHSDUDURVXVWLWXLUHOSURGXFWRSRUXQRQXHYR RSRUXQDXQLGDGUHSDUDGDDHOHFFLyQGHOIDEULFDQWH(VODREOLJDFLyQGHO comprador enviar la unidad con comprobante de compra y los gastos de envío prepagos al Fabricante o a sus representantes autorizados para que estos reparen o reemplacen el producto. El Fabricante no presta garantía por lo accesorios utilizados con este producto que no sean los fabricados por Schumacher Electric Corporation y que no estén aprobados para su uso con este producto. La presente *DUDQWtD/LPLWDGDVHUiQXODVLHOSURGXFWRVHXWLOL]DHQIRUPDHUUyQHD VHWUDWDGHPDQHUDLQDGHFXDGDHVUHSDUDGRRPRGL¿FDGRSRUSHUVRQDV que nos sean el Fabricante o si esta unidad es revendida a través de un vendedor minorista no autorizado. (O )DEULFDQWH QR UHDOL]D QLQJXQD RWUD JDUDQWtD LQFOXLGDV D WtWXOR HQXQFLDWLYRODVJDUDQWtDVH[SUHVDVLPSOtFLWDVROHJDOHVLQFOXLGDVDPRGR GHHMHPSORODVJDUDQWtDVLPSOtFLWDVGHFRPHUFLDELOLGDGRDGHFXDFLyQDXQ ¿QHVSHFt¿FR$VLPLVPRHO)DEULFDQWHQRVHUiUHVSRQVDEOHDQWHUHFODPRV SRU GDxRV DFFLGHQWDOHV HVSHFLDOHV QL GLUHFWRV HQ ORV TXH LQFXUUDQ ORV FRPSUDGRUHV XVXDULRV X RWUDV SHUVRQDV DVRFLDGDV DO SURGXFWR LQFOXLGDVDWtWXORHQXQFLDWLYRORVLQJUHVRV\JDQDQFLDVQRSHUFLELGDV YHQWDV DQWLFLSDGDV RSRUWXQLGDGHV FRPHUFLDOHV HO EXHQ QRPEUHOD interrupción de la actividad comercial o cualquier otro daño que haya SURYRFDGR7RGDVODVJDUDQWtDVH[FHSWRODJDUDQWtDOLPLWDGDLQFOXLGDHQ HOSUHVHQWHSRUPHGLRGHODSUHVHQWHTXHGDQH[SUHVDPHQWHDQXODGDV y excluidas. Algunos estados no permiten la exclusión ni la limitación de ORVGDxRVDFFLGHQWDOHVQLGLUHFWRVRHOSOD]RGHJDUDQWtDLPSOtFLWDSRUOR que las limitaciones o exclusiones mencionadas anteriormente podrían no corresponder con su caso. La presente garantía le otorga derechos OHJDOHVHVSHFt¿FRV\HVSUREDEOHTXHXVWHGFXHQWHFRQRWURVGHUHFKRV que podrían diferir de los incluidos en la presente garantía. LA PRESENTE GARANTÍA LIMITADA ES LA ÚNICA GARANTÍA LIMITADA EXPRESA Y EL FABRICANTE NO ASUME NI AUTORIZA A NADIE A ASUMIR O A ADQUIRIR NINGUNA OTRA OBLIGACIÓN RESPECTO DEL PRODUCTO QUE NO SEA LA PRESENTE GARANTÍA. 'LVWULEXLGRSRU%HVW3DUWV,QF0HPSKLV71 Multi-Function Jump Starter • 19 • COMPORTAMIENTORAZÓN LED verde sólido; LED rojo apagado; no bip. Cable conectado correctamente a la batería y el arrancador. LED rojo sólido; LED verde apagado; un bip por segundo. Protección de baja tensión LED rojo sólido; LED verde apagado; dos bips por segundo. Protección de polaridad inversa LEDS rojo y verde parpadean alternativamente; no bip. Protección de carga inversa LED rojo sólido; LED verde apagado; bip rapido. Protección contra cortocircuitos LEDs rojo y verde sólidos; no bip. $SDJDGRDXWRPiWLFRSRULQDFWLYLGDG Desconecte y vuelva a conectar las pinzas a la batería del vehículo. LEDs rojo y verde sólidos; bip una vez por seg…

Text truncated - open the document above for the full version.

Schumacher Electric Corporation 801 Business Center Drive, Mt. Prospect, ILLINOIS 60056, United States Statement Product: Multi-Function Jump Starter Model: DL-2000Li Additional Model: SL1452, SL1489, SL1487,SL1517 Trademark: N/A We hereby state that All models above are identical in interior structure, electrical circuits and components, and just model names are different for the marketing requirement. Your assistance on this matter is highly appreciated. Yours sincerely, Signature: Date: 2020/10 /16 Name: Patrick Clarke Company Name: Schumacher Electric Corporation Address: 801 Business Center Drive, Mt. Prospect, ILLINOIS 60056, United States Tel / Fax: 800 621 5485/847 298 1698 E-Mail: [email protected]

Schumacher Electric Corporation 2020-10-16 Federal Communications Commission Authorization & Evaluation Division 7345 Oakland Mills Road Columbia, Maryland 21046 Authority to Act as Agent On our behalf, I appoint Shenzhen Tongce Testing Lab. / 1B/F., Building 1, Yibaolai Industrial Park, Qiaotou, Fuyong, Baoan District, Shenzhen, Guangdong, China(Name of Agent company name and address) to act as our agent in the preparation of this application for equipment certification. I certify that submitted documents properly describe the device or system for which equipment certification is sought. I also certify that each unit manufactured, imported or marketed, as defined in the Federal Communications Commission’s regulations will have affixed to it a label identical to that submitted for approval with this application. For instances where our authorized agent signs the application for certification on our behalf, I acknowledge that all responsibility for complying with the terms and conditions for certification, still resides with Schumacher Electric Corporation / 801 Business Center Drive, Mt. Prospect, ILLINOIS 60056, United States(Applicant Name and address) <Signature> Name: Patrick Clarke Title: Vice President Applicant Company: Schumacher Electric Corporation

Schumacher Electric Corporation 2020-10-16 Equipment Autorisation Division Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 FCC ID: 2AXH8-BRJPWLFC Product Name: Multi-Function Jump Starter Request for Confidentiality Pursuant to Sections 0.457 and 0.459 of the commissions rules, we hereby request that the following documents be held confidential:  Schematics  Block diagram  Operation description These materials contain trade secrets and proprietary information and are not customarily released to the public. The public disclosure of this information might be harmful to the company and provide unjustified benefits to our competitors. <Signature> Name: Patrick Clarke Title: Vice President Company: Schumacher Electric Corporation

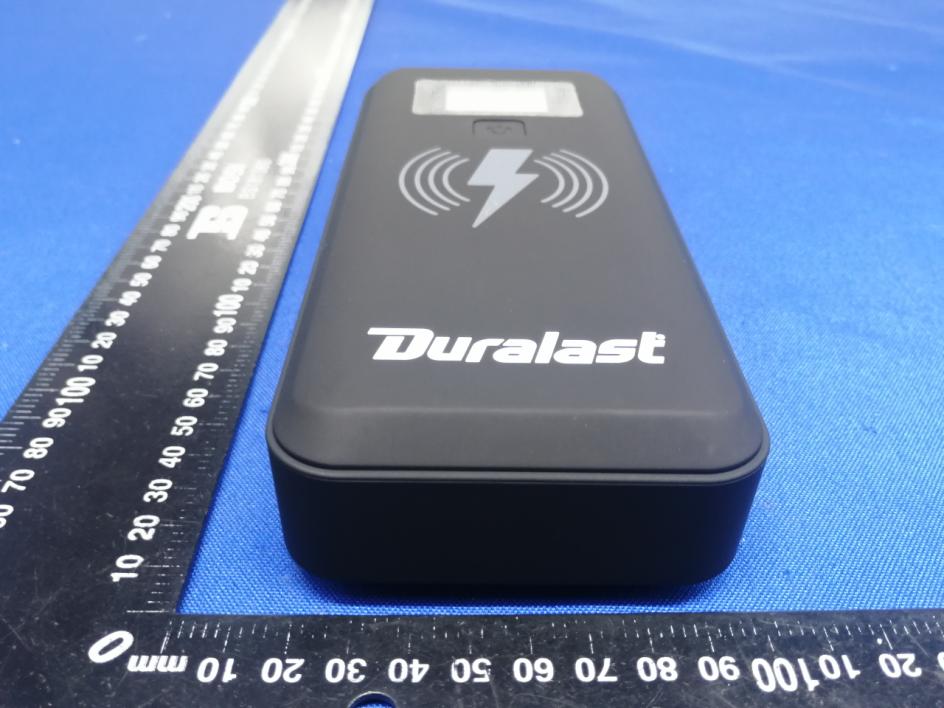

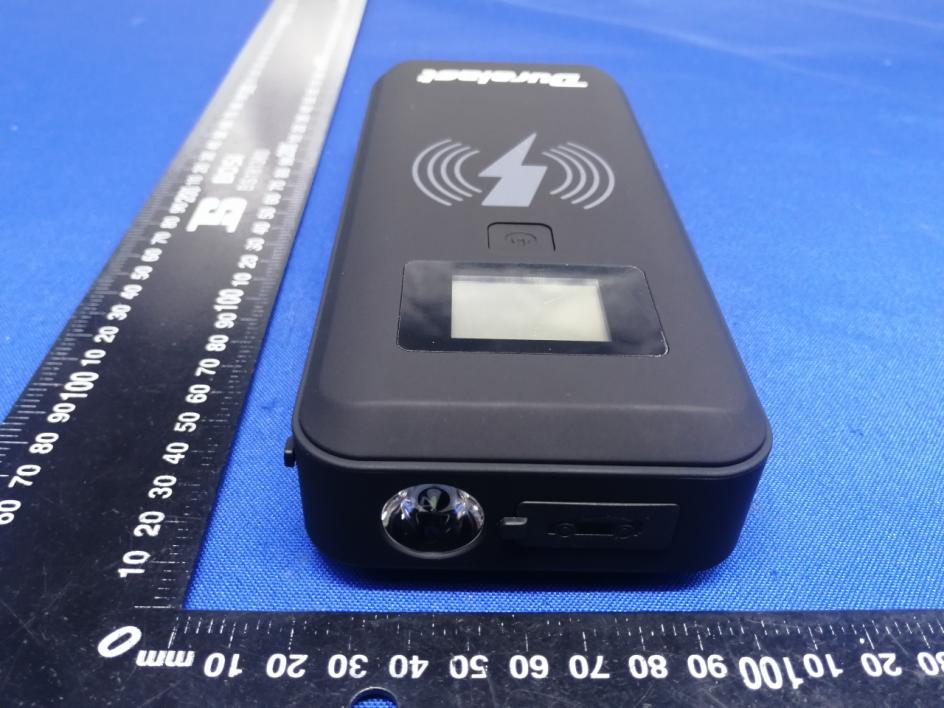

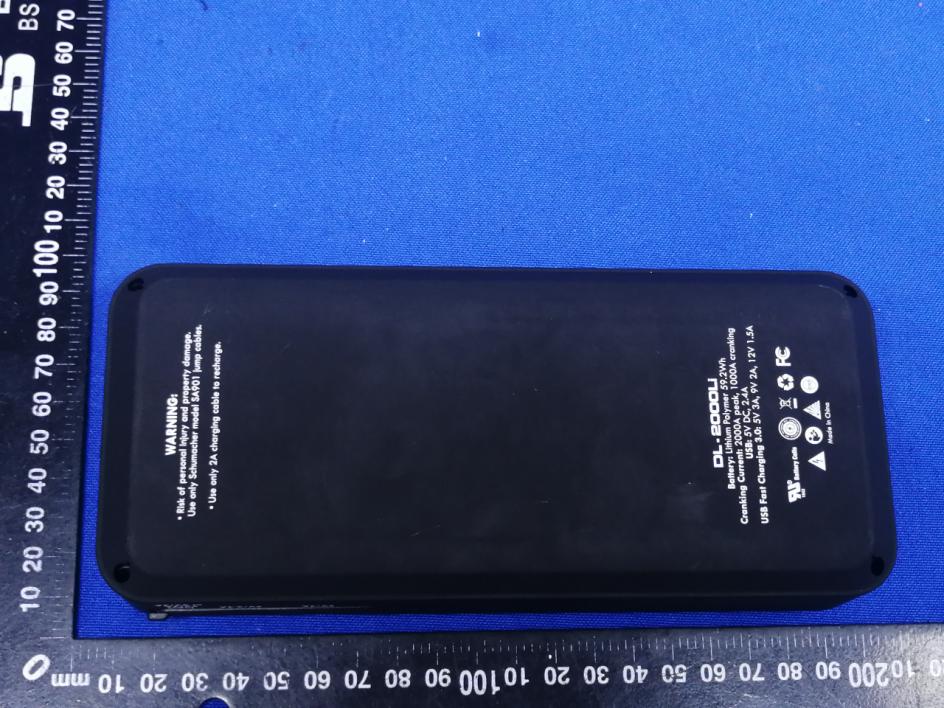

Page 1 of 3 Appendix B: Photographs of EUT Product: Multi-Function Jump Starter Model: DL-2000Li External Photos Page 2 of 3 Page 3 of 3

Label Artwork and Location Model: DL-2000Li Label: Size: L*W=45*22mm Multi-Function Jump Starter Model: DL-2000Li FCC ID:2AXH8-BRJPWLFC This device complies with part 15 of the FCC rules. Operation is subjec t to the following two conditions (1)this device may not cause harmful interference, and (2) this device must accept any interference received, including inter ference that may cause undesired operation. Location

Page 1 of 6 Appendix B: Photographs of EUT Product: Multi-Function Jump Starter Model: DL-2000Li Internal Photos Page 2 of 6 Page 3 of 6 Antenna Page 4 of 6 Page 5 of 6 Page 6 of 6

RF Exposure Evaluation 1 Measuring Standard KDB 680106 D01 RF Exposure Wireless Charging App v03; TCB Workshop, October 2018, 5.2 RF Exposure Procedures 2 Requirements According to the item 5 of KDB 680106 D01 RF Exposure Wireless Charging App v03: (1) Power transfer frequency is less than 1 MHz. Yes (2) Output power from each primary coil is less than or equal to 15 watts. Yes (3) The transfer system includes only single primary and secondary coils. This includes charging systems that may have multiple primary coils and clients that are able to detect and allow coupling only between individual pairs of coils. Yes (4) Client device is placed directly in contact with the transmitter. Yes (5) Mobile exposure conditions only (portable exposure conditions are not covered by this exclusion). No (6) The aggregate H-field strengths at 15 cm surrounding the device and 20 cm above the top surface from all simultaneous transmitting coils are demonstrated to be less than 50% of the MPE limit. Yes 3Limits The criteria listed in the following table shall be used to evaluate the environment impact of human exposure to radio frequency (RF) radiation as specified in 1.1307(b) Limits for Maximum Permissible Exposure (MPE) 4 Test Setup A: B: 5Test Procedure (1) The RF exposure test was performed in an echoic chamber; (2) The measurement probe was placed at test distance(15 cm from edges, 20 cm from top) Which is between the edge of the charger and the geometric center of probe, for test setup A; (3) In addition to what is described in KDB 680106 D01, please measure and provide magnetic and electrical field strength at a distance 10cm to 1cm at 1cm iteration, i.e. at a distance of 10cm, 9cm, 8cm, ....... 1cm. Which is between the edge of the charger and the edge of of probe, for test setup B; (4) The highest emission level are recorded and compared with limit as soon as measurement of each points (A,B, C,D, E)were completed; (5) The EUT was measured according to the dictates of KDB680106D01v03; And KDB Tracking Number 671578 ; TCB Workshop, October 2018, 5.2 RF Exposure Procedures Remark：The EUT’ s test position A, B,C, D and E is valid for the E and H field measurements. 6 Test Instruments list 7 Test Result Test Result for Test setup A: The cases which include the EUT powered by adapter and battery are tested, but the worse case is powered by battery and report its result. E-Filed Strength at (15 cm from edges A, B, C, D, 20 cm from top E) surrounding the EUT (V/m) Charging Load Worse case Test Position A(V/m) Test Position B(V/m) Test Position C(V/m) Test Position D(V/m) Test Position E(V/m) Limits (V/m) <5% 0.82 0.92 0.84 0.75 0.88 614 50% 1.20 1.34 1.28 1.47 1.39 614 >90 %1.44 1.63 1.57 1.70 1.46 614 H-Filed Strength at (15 cm from edges A, B, C, D, 20 cm from top E) surrounding the EUT (A/m) Charging Load Worse case Test Position A(A/m) Test Position B(A/m) Test Position C(A/m) Test Position D(A/m) Test Position E(A/m) Limits (A/m) <5% 0.109 0.116 0.118 0.106 0.104 1.63 50% 0.182 0.172 0.165 0.170 0.159 1.63 >90 % 0.109 0.116 0.118 0.106 0.104 1.63 Test Equipment Manufacturer Model No. Serial No. Cal.Date (mm-dd-yy) Cal.Duedate (mm-dd-yy) Magnetic field meter NARDA ELT-400 N-0925Jul. 28, 2020 Jul. 27, 2021 B-Field ProbeNARDA ELT-400 M-1354Jul. 28, 2020 Jul. 27, 2021 Test Result for Test setup B: Note: The cases which include the EUT powered by adapter and battery are tested, but the worse case is powered by battery and report its result. <5%, 50%, >90% load all have been tested, only worse case Max load (>90% load) is reported. E-Filed Strength at (distance 10cm to 1cm at 1cm iteration, i.e. at a distance of 10cm, 9cm, 8cm, ....... 1cm, Which is between the edge of the charger and the edge of of probe,) surrounding the EUT (V/m) Test distance (cm) Test Position A (V/m) Test Position B (V/m) Test Position C (V/m) Test Position D (V/m) Test Position E (V/m) Limits (V/m) 1 18.06 18.22 18.14 18.46 17.91 614 2 16.53 16.74 16.63 16.85 16.42 614 3 15.01 15.16 15.11 15.33 14.94 614 4 12.49 12.57 12.50 12.65 12.38 614 5 10.35 10.60 10.49 10.77 10.24 614 6 8.24 8.43 8.37 8.61 8.15 614 7 6.87 6.95 6.91 7.13 6.61 614 8 5.12 5.41 5.29 5.78 5.08 614 9 3.38 3.50 3.45 3.69 3.15 614 10 1.56 1.68 1.61 1.85 1.54 614 H-Filed Strength at (distance 10cm to 1cm at 1cm iteration, i.e. at a distance of 10cm, 9cm, 8cm, ....... 1cm, Which is between the edge of the charger and the edge of of probe,) surrounding the EUT (A/m) Test distance (cm) Test Position A(A/m) Test Position B(A/m) Test Position C(A/m) Test Position D(A/m) Test Position E(A/m) Limits (A/m) 1 0.285 0.304 0.327 0.279 0.266 1.63 2 0.216 0.238 0.249 0.212 0.208 1.63 3 0.203 0.226 0.231 0.200 0.192 1.63 4 0.149 0.152 0.161 0.147 0.135 1.63 5 0.123 0.140 0.145 0.120 0.118 1.63 6 0.118 0.132 0.136 0.117 0.115 1.63 7 0.115 0.130 0.133 0.113 0.112 1.63 8 0.112 0.126 0.130 0.111 06 0.110 1.63 9 0.110 0.125 0.122 0.110 0.108 1.63 10 0.110 0.123 0.120 0.109 0.106 1.63 7 Test Set-up Photo Test setup A Powerd by adapter Powerd by battery Test setup B Powerd by adapter Powerd by battery

Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com TEST REPORT FCC ID: 2AXH8-BRJPWLFC Product: Multi-Function Jump Starter Model No.: DL-2000Li Additional Model No.: SL1452, SL1489, SL1487, SL1517 Trade Mark: N/A Report No.: TCT200821E007 Issued Date: Sep. 03, 2020 Issued for: Schumacher Electric Corporation 801 Business Center Drive, Mt. Prospect, ILLINOIS 60056, United States Issued By: Shenzhen Tongce Testing Lab. 1B/F., Building 1, Yibaolai Industrial Park, Qiaotou, Fuyong, Baoan District, Shenzhen, Guangdong, China TEL: +86-755-27673339 FAX: +86-755-27673332 Note: This report shall not be reproduced except in full, without the written approval of Shenzhen Tongce Testing Lab. This document may be altered or revised by Shenzhen Tongce Testing Lab. personnel only, and shall be noted in the revision section of the document. The test results in the report only apply to the tested sample. Report No.: TCT200821E007 Page 2 of 31 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com TABLE OF CONTENTS 1. Test Certification ..................................................................................... 3 2. Test Result Summary .............................................................................. 4 3. EUT Description ....................................................................................... 5 4. General Information ................................................................................. 6 4.1. Test environment and mode ................................................................................. 6 4.2. Description of Support Units ................................................................................ 6 5. Facilities and Accreditations .................................................................. 7 5.1. Facilities ................................................................................................................. 7 5.2. Location ................................................................................................................. 7 5.3. Measurement Uncertainty ..................................................................................... 7 6. Test Results and Measurement Data ..................................................... 8 6.1. Antenna requirement ............................................................................................ 8 6.2. Conducted Emission ............................................................................................. 9 6.3. Radiated Spurious Emission Measurement ...................................................... 13 Appendix A: Photographs of Test Setup Appendix B: Photographs of EUT Report No.: TCT200821E007 Page 3 of 31 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com 1. Test Certification Product: Multi-Function Jump Starter Model No.: DL-2000Li Additional Model No.: SL1452, SL1489, SL1487, SL1517 Trade Mark: N/A Applicant: Schumacher Electric Corporation Address: 801 Business Center Drive, Mt. Prospect, ILLINOIS 60056, United States Manufacturer: Schumacher Electric Corporation Address: 801 Business Center Drive, Mt. Prospect, ILLINOIS 60056, United States Date of Test: Aug. 24, 2020 – Sep. 02, 2020 Applicable Standards: FCC CFR Title 47 Part 15 Subpart C The above equipment has been tested by Shenzhen Tongce Testing Lab. and found compliance with the requirements set forth in the technical standards mentioned above. The results of testing in this report apply only to the product/system, which was tested. Other similar equipment will not necessarily produce the same results due to production tolerance and measurement uncertainties. Tested By: Date: Sep. 02, 2020 Kevin Huang Reviewed By: Date: Sep. 03, 2020 Beryl Zhao Approved By: Date: Sep. 03, 2020 Tomsin Report No.: TCT200821E007 Page 4 of 31 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com 2. Test Result Summary Requirement CFR 47 Section Result Antenna requirement §15.203 PASS AC Power Line Conducted Emission §15.207 PASS Spurious Emission §15.209(a)(f) PASS Note: 1. PASS: Test item meets the requirement. 2. Fail: Test item does not meet the requirement. 3. N/A: Test case does not apply to the test object. 4. The test result judgment is decided by the limit of test standard. Report No.: TCT200821E007 Page 5 of 31 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com 3. EUT Description Product: Multi-Function Jump Starter Model No.: DL-2000Li Additional Model No.: SL1452, SL1489, SL1487, SL1517 Trade Mark: N/A Operation Frequency: 113.10KHz - 148.13KHz Modulation Technology: Load modulation Antenna Type: Inductive loop coil Antenna Power Supply: Rechargeable Li-ion Battery DC 14.8V Remark: All models above are identical in interior structure, electrical circuits and components, and model colors, appearance and power capacity are different in for the marketing requirement. Report No.: TCT200821E007 Page 6 of 31 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com 4. General Information 4.1. Test environment and mode Operating Environment: Condition Conducted Emission Radiated Emission Temperature: 25.0 C 25.0 C Humidity: 55 % RH 55 % RH Atmospheric Pressure: 1010 mbar 1010 mbar Test Mode: Engineering mode: Keep the EUT in continuous transmitting by select channel and modulations. The sample was placed 0.8m & 1.5m for the measurement below & above 1GHz above the ground plane of 3m chamber. Measurements in both horizontal and vertical polarities were performed. During the test, each emission was maximized by: having the EUT continuously working, investigated all operating modes, rotated about all 3 axis (X, Y & Z) and considered typical configuration to obtain worst position, manipulating interconnecting cables, rotating the turntable, varying antenna height from 1m to 4m in both horizontal and v…
