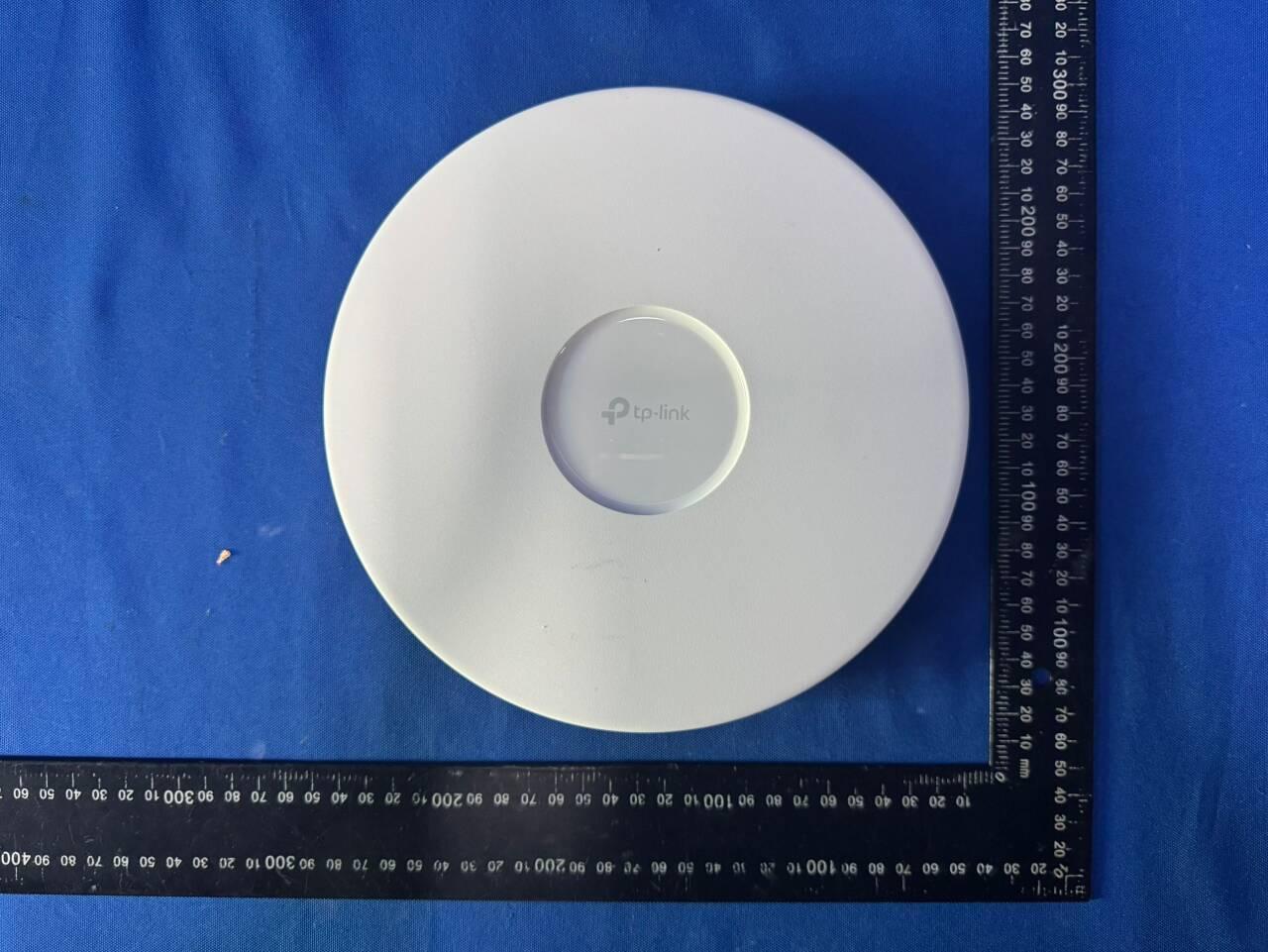

2AXJ4EAP670V22AX5400 Ceiling Mount Wi-Fi 6 Access Point

Regulatory Compliance Ceiling Mount EAP 1910013245 REV1.6.0 For Class A Ceiling Mount EAP: FCC Compliance Information Statement Product Name: Omada Ceiling Mount Access Point Model Number: EAP660 HD V1 Component NameModel I.T.E. Power SupplyT120200-2B1 (for EAP660 HD V1) Responsible party: TP-Link USA Corporation Address: 10 Mauchly, Irvine, CA 92618 Website: https://www.tp-link.com/us/ Tel: +1 626 333 0234 Fax: +1 909 527 6804 E-mail: [email protected] This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: 1) This device may not cause harmful interference. 2) This device must accept any interference received, including interference that may cause undesired operation. Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. Note: The manufacturer is not responsible for any radio or TV interference caused by unauthorized modifications to this equipment. Such modifications could void the user’s authority to operate the equipment. FCC RF Radiation Exposure Statement: This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled environment. This device and its antenna must not be co-located or operating in conjunction with any other antenna or transmitter. “To comply with FCC RF exposure compliance requirements, this grant is applicable to only Mobile Configurations. The antennas used for this transmitter must be installed to provide a separation distance of at least 20cm from all persons and must not be colocated or operating in conjunction with any other antenna or transmitter.” Product Name: I.T.E. Power Supply Model Number: T120200-2B1 / T120200-2B4 Responsible party: TP-Link USA Corporation Address: 10 Mauchly, Irvine, CA 92618 Website: https://www.tp-link.com/us/ Tel: +1 626 333 0234 Fax: +1 909 527 6804 E-mail: [email protected] This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: •Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. •Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. •Consult the dealer or an experienced radio/ TV technician for help. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: 1) This device may not cause harmful interference. 2) This device must accept any interference received, including interference that may cause undesired operation. Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. We, TP-Link USA Corporation, has determined that the equipment shown as above has been shown to comply with the applicable technical standards, FCC part 15. There is no unauthorized change is made in the equipment and the equipment is properly maintained and operated. Issue Date: 2023-09-05 CE Mark Warning This is a class A product. In a domestic environment, this product may cause radio interference, in which case the user may be required to take adequate measures. OPERATING FREQUENCY (the maximum transmitted power) 2412 MHz -2472 MHz (20dBm) 5150 MHz -5250 MHz (23dBm) 5250 MHz -5350 MHz (23dBm) 5470 MHz -5725 MHz (30dBm) EU Declaration of Conformity TP-Link hereby declares that the device is in compliance with the essential requirements and other relevant provisions of directives 2014/53/EU, 2009/125/EC, 2011/65/EU and (EU)2015/863. The original EU Declaration of Conformity may be found at https://www.tp-link.com/en/support/ce/. RF Exposure Information This device meets the EU requirements (2014/53/EU Article 3.1a) on the limitation of exposure of the general public to electromagnetic fields by way of health protection. The device complies with RF specifications when the device used at 20 cm from your body. National Restrictions Attention: This device may only be used indoors in all EU member states, EFTA countries and Northern Ireland. UKCA Mark UK Declaration of Conformity TP-Link hereby declares that the device is in compliance with the essential requirements and other relevant provisions of the Radio Equipment Regulations 2017. The original UK Declaration of Conformity may be found at https://www.tp-link.com/support/ukca National Restrictions Attention: This device may only be used indoors in Great Britain. UK Canadian Compliance Statement This device contains licence-exempt transmitter(s)/receiver(s) that comply with Innovation, Science and Economic Development Ca…

Text truncated - open the document above for the full version.

Quick Installation Guide Wireless Access Point Note: EAP650 is used as an example throughout the Guide. Images may differ from your actual product. Hardware Overview 1 RESET With the device powered on, press and hold the button for about 5 seconds until the LED flashes quickly. Then release the button. The device will restore to factory default settings. Ethernet Port: ETH (PoE) The port is used to connect to a router or a switch to transmit data, or to a PSE (Power Sourcing Equipment), such as a PoE switch, for both data transmission and Power over Ethernet (PoE) through Ethernet cable. Note: For EAPs with 10Gbps port, if you use a CAT5E cable, the 10Gbps link of the Ethernet port is less than 55m. To achieve a longer transmission distance, use a shielded CAT6A cable. Power Port Plug one end of the power adapter to this port and the other end to a standard electrical wall outlet to power the E A P. Note: Power adapter is not included in the package contents of certain models. For details, refer to the product specifications or datasheet. For power supply specifications, refer to the product label. Self-tapping Screws Plastic Wall Anchors 1 Remove the ceiling tile. Note: Make sure that the ceiling tile is larger than the EAP. Wing NutsWashersPan-head Screws The EAP can be mounted to the ceiling, the wall, or in a junction box, using the screws in the package. Choose the appropriate mounting and installation steps below. Note: This product requires heat dissipation through the metal bracket during use, please be careful not to touch the metal bracket in the heat dissipation. Hardware Installation 2 2 Insert the plastic wall anchors into the 6 mm diameter holes. Front Panel Rear Panel Option 1: Ceiling Mounting Option 2: Wall Mounting 5 Connect the Ethernet cable to the Ethernet port. Please pay attention to the triangle sign. Attach the EAP to the mounting bracket, then rotate it until it locks into place, as shown on the left. 2 Place the mounting bracket in the center of the ceiling tile. Mark positions for the screw holes and a location for the Ethernet cable hole. Drill 4 mm (5/32 in) diameter holes for the screws and a 25 mm (63/64 in) diameter hole for the Ethernet cable at the marked positions. Drill Hole for Ethernet cable 3 Secure the mounting bracket to the ceiling tile using pan-head screws, washers, and wing nuts, as shown on the left. 5 Attach the EAP to the mounting bracket by rotating it until it locks into place, as shown on the left. 2 Connect the Ethernet cable to the Ethernet port on the EAP. 3 Attach the EAP to the mounting bracket by rotating it until it locks into place, as shown on the left. Setup with videos Visit https://www.tp-link.com/support/setup-video/ or scan the QR code to search for the setup video of your product model. 4 Feed the Ethernet cable through the hole and set the ceiling tile back into place. 3 Secure the mounting bracket to the wall by driving the self-tapping screws into the anchors. Make sure that the shoulders of the mounting bracket are on the outside. 1 If your Ethernet cable feeds through the wall, position the mounting bracket below the cable hole. Mark positions for the screw holes and drill 6 mm (15/64 in) diameter holes at the marked positions. Option 2: Wall MountingOption 1: Ceiling MountingOption 3: Junction Box Mounting Blue On: Working normally/Initializing. For EAPs with dual-color LED: Normal power supply Orange On: For EAPs with dual-color LED: Low power supply Flash:• Flash twice: Initialization is completed. • Flash quickly: The EAP is resetting, or the Omada controller is locating the device*. • Flash once per second: The EAP is upgrading. • Flash Slowly: The EAP is in the isolated state. LED Indicator Off: Working abnormally/Power off/LED is turned off. * When the Locate feature is activated in the Omada controller, the LED flashes quickly to locate and identify the device. The LED will flash for 10 minutes. You can disable the feature manually to stop it from flashing. Option 3: Junction Box Mounting Prepare the cables and the junction box in advance. Ensure that the mounting holes align to your junction box. Route the cables through the square cable hole on the mounting bracket, and secure the mounting bracket to the junction box using screws. 1 The EAP can be powered via a power adapter or a PSE device (such as a PoE switch) which complies with Power Source Class 2 ( PS2) or Limited Power Source (LPS) of IEC 62368-1. Option 1: Via PoE Switch Option 2: Via Power Adapter Plug one end of the power adapter into the power port of the EAP and the other end to a standard electrical wall outlet. Note: Power adapter is not included in the package contents of certain models. For details, refer to the product specifications or datasheet. For power supply specifications, refer to the product label. Power Supply 3 Switch Power Adapter PoE Switch Connect an Ethernet cable from the PoE switch to the Ethernet port. Note: For PoE power supply specifications, refer to the product label. *Compatible wall junctions: ©2023 TP-Link 7106510424 REV1.5.0 4 Connect the Ethernet cable to the Ethernet port on the EAP. Method 2: Controller Mode Note: • Before you start, be sure to power up and connect your devices according to the topology figure. • A DHCP server (typically a router with DHCP function enabled) is required to assign IP addresses to the EAPs and clients in your local network. Choose a type of Omada Controller: Choose from the following methods to set up your EAPs: Method 1: Standalone Mode Via Omada App 1. Connect your device to the EAP by using the default SSIDs printed on the label at the bottom of the product. 2. Launch a web browser and enter http://tplinkeap.net in the address bar. Use admin for both Username and Password to log in. 3. Set up a new Username and Password for secure management purpose. Then you can configure the AP. To configure other EAPs, connect your device to each EAP by the corresponding default SSID and rep…

Text truncated - open the document above for the full version.

MRT Technology (Taiwan) Co., Ltd Report No.: 2509TW0110-U3 Phone: +886-3-3288388 Report Version: 1.0 Web: www.mrt-cert.com Issue Date: 2025-11-25 Page Number: 1 of 64 FCC ID : 2AXJ4EAP670V22 Applicant : TP-Link Corporation Limited Application Type : Certification Product : AX5400 Ceiling Mount Wi-Fi 6 Access Point Model No. : EAP670 Brand Name : tp-link FCC Classification : Unlicensed National Information Infrastructure (NII) FCC Rule Part(s) : Part15 Subpart E (Section 15.407) Test Procedure(s) : ANSI C63.10-2020+Cor 1-2023+C63.10a-2024 + Errata to C63.10a-2024 Received Date : September 16, 2025 Test Date : September 19, 2025 ~ November 25, 2025 MEASUREMENT REPORT SPOT CHECK EVALUATION Tested By : ( Owen Tsai ) Reviewed By : ( Paddy Chen ) Approved By : ( Chenz Ker) The test results relate only to the samples tested. This equipment has been shown to be capable of compliance with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures specified in KDB 789033 D02v02r01. Test results reported herein relate only to the item(s) tested. The test report shall not be reproduced except in full without the written approval of MRT Technology (Taiwan) Co., Ltd. Report No.: 2509TW0110-U3 Page Number: 2 of 64 Revision History Report No. Version Description Issue Date Note 2509TW0110-U3 1.0 Original Report 2025-11-25 Note: 1. This time, a. Change the DC-DC material. b. Change the peripheral crystal of the 5G chip (Pin-to-Pin change, from 96MHz to 48MHz) is changed. 2. Based on the above, we performed the Spot Check and verification some items. Report No.: 2509TW0110-U3 Page Number: 3 of 64 CONTENTS Description Page 1. INTRODUCTION ..................................................................................................................... 7 1.1. Scope ........................................................................................................................... 7 1.2. MRT Test Location ....................................................................................................... 7 2. PRODUCT INFORMATION ..................................................................................................... 8 2.1. Equipment Description .................................................................................................. 8 2.2. Product Specification Subjective to this Report ............................................................. 8 2.3. Working Frequencies for this report .............................................................................. 9 2.4. Description of Available Antennas ............................................................................... 10 2.5. Test Mode ................................................................................................................... 11 2.6. Configuration of Test System ...................................................................................... 12 2.7. Test System Details .................................................................................................... 13 2.8. Description of Test Software ....................................................................................... 13 2.9. Applied Standards ...................................................................................................... 13 2.10. Duty Cycle .................................................................................................................. 14 2.11. Test Configuration ...................................................................................................... 16 2.12. EMI Suppression Device(s)/Modifications ................................................................... 16 2.13. Labeling Requirements ............................................................................................... 16 3. DESCRIPTION OF TEST ...................................................................................................... 17 3.1. Evaluation Procedure ................................................................................................. 17 3.2. AC Line Conducted Emissions ................................................................................... 17 3.3. Radiated Emissions .................................................................................................... 18 4. ANTENNA REQUIREMENTS ................................................................................................ 19 5. TEST EQUIPMENT CALIBRATION DATE ............................................................................ 20 6. MEASUREMENT UNCERTAINTY ......................................................................................... 22 7. TEST RESULT ...................................................................................................................... 23 7.1. Summary .................................................................................................................... 23 7.2. 26dB Bandwidth Measurement ................................................................................... 25 7.2.1. Test Limit .................................................................................................................... 25 7.2.2. Test Procedure used ................................................................................................... 25 7.2.3. Test Setting ................................................................................................................. 25 7.2.4. Test Setup .................................................................................................................. 25 7.2.5. Test Result .................................................................................................................. 26 7.3. 6dB Bandwidth Measurement ..................................................................................... 29 Report No.: 2509TW0110-U3 Page Number: 4 of 64 7.3.1. Test Limit ........…

Text truncated - open the document above for the full version.

Report No.: 2509TW0110-UT 1 of 4 RF Test Photograph Description: Front View of Conducted Emission Test Setup Description: Back View of Conducted Emission Test Setup Report No.: 1904TW0103-UT 2 of 4 Description: Radiated Emission Test Setup for below 1GHz Description: Radiated Emission Test Setup for above 1GHz Report No.: 1904TW0103-UT 3 of 4 Description: Radiated Emission Test Setup for 18GHz~40GHz Description: Conducted Measurement Test Setup (BLE) Report No.: 1904TW0103-UT 4 of 4 Description: Conducted Measurement Test Setup (Wi-Fi 2.4G / 5G) Description: DFS Test Setup

Report No.: 2308TW0107-U5 Page Number: 177 of 281 Type 5 Radar Waveform_8 Type 5 Radar Waveform_9 Report No.: 2308TW0107-U5 Page Number: 178 of 281 Type 5 Radar Waveform_10 Type 5 Radar Waveform_11 Report No.: 2308TW0107-U5 Page Number: 179 of 281 Type 5 Radar Waveform_12 Type 5 Radar Waveform_13 Report No.: 2308TW0107-U5 Page Number: 180 of 281 Type 5 Radar Waveform_14 Report No.: 2308TW0107-U5 Page Number: 181 of 281 Type 5 Radar Waveform_15 Type 5 Radar Waveform_16 Report No.: 2308TW0107-U5 Page Number: 182 of 281 Type 5 Radar Waveform_17 Type 5 Radar Waveform_18 Type 5 Radar Waveform_19 Report No.: 2308TW0107-U5 Page Number: 183 of 281 Type 5 Radar Waveform_20 Type 5 Radar Waveform_21 Type 5 Radar Waveform_22 Report No.: 2308TW0107-U5 Page Number: 184 of 281 Type 5 Radar Waveform_23 Type 5 Radar Waveform_24 Report No.: 2308TW0107-U5 Page Number: 185 of 281 Type 5 Radar Waveform_25 Type 5 Radar Waveform_26 Report No.: 2308TW0107-U5 Page Number: 186 of 281 Type 5 Radar Waveform_27 Type 5 Radar Waveform_28 Report No.: 2308TW0107-U5 Page Number: 187 of 281 Type 5 Radar Waveform_29 Report No.: 2308TW0107-U5 Page Number: 188 of 281 Radar Type 6 - Radar Statistical Performance Trail # 1=Detection 0=No Detection Trail # 1=Detection 0=No Detection 0 1 15 1 1 1 16 1 2 1 17 1 3 1 18 1 4 1 19 1 5 1 20 1 6 1 21 1 7 1 22 1 8 1 23 1 9 1 24 1 10 1 25 1 11 1 26 1 12 1 27 1 13 1 28 1 14 1 29 1 Detection Percentage (%) 100% Report No.: 2308TW0107-U5 Page Number: 189 of 281 Type 6 Radar Waveform_0 Type 6 Radar Waveform_1 Report No.: 2308TW0107-U5 Page Number: 190 of 281 Type 6 Radar Waveform_2 Type 6 Radar Waveform_3 Report No.: 2308TW0107-U5 Page Number: 191 of 281 Type 6 Radar Waveform_4 Type 6 Radar Waveform_5 Report No.: 2308TW0107-U5 Page Number: 192 of 281 Type 6 Radar Waveform_6 Type 6 Radar Waveform_7 Report No.: 2308TW0107-U5 Page Number: 193 of 281 Type 6 Radar Waveform_8 Type 6 Radar Waveform_9 Report No.: 2308TW0107-U5 Page Number: 194 of 281 Type 6 Radar Waveform_10 Type 6 Radar Waveform_11 Report No.: 2308TW0107-U5 Page Number: 195 of 281 Type 6 Radar Waveform_12 Type 6 Radar Waveform_13 Report No.: 2308TW0107-U5 Page Number: 196 of 281 Type 6 Radar Waveform_14 Type 6 Radar Waveform_15 Report No.: 2308TW0107-U5 Page Number: 197 of 281 Type 6 Radar Waveform_16 Type 6 Radar Waveform_17 Report No.: 2308TW0107-U5 Page Number: 198 of 281 Type 6 Radar Waveform_18 Type 6 Radar Waveform_19 Report No.: 2308TW0107-U5 Page Number: 199 of 281 Type 6 Radar Waveform_20 Type 6 Radar Waveform_21 Report No.: 2308TW0107-U5 Page Number: 200 of 281 Type 6 Radar Waveform_22 Type 6 Radar Waveform_23 Report No.: 2308TW0107-U5 Page Number: 201 of 281 Type 6 Radar Waveform_24 Type 6 Radar Waveform_25 Report No.: 2308TW0107-U5 Page Number: 202 of 281 Type 6 Radar Waveform_26 Type 6 Radar Waveform_27 Report No.: 2308TW0107-U5 Page Number: 203 of 281 Type 6 Radar Waveform_28 Type 6 Radar Waveform_29 Report No.: 2308TW0107-U5 Page Number: 204 of 281 Product AX5400 Ceiling Mount Wi-Fi 6 Access Point Temperature 25 °C Test Engineer Jay Relative Humidity 65 % Test Site SR5 Test Date 2023/10/2 Test Item Radar Statistical Performance Check (802.11ax-HE160 mode – 5570MHz) -Master Radar Type 1-4 - Radar Statistical Performance Trial Frequency 1=Detection, 0=No Detection (MHz) Radar Type 1 Radar Type 2 Radar Type 3 Radar Type 4 0 5492 1 1 1 0 1 5496 1 1 0 0 2 5500 1 1 1 1 3 5504 1 1 1 1 4 5508 1 1 1 1 5 5512 1 1 1 1 6 5516 1 1 1 1 7 5520 1 1 1 1 8 5524 1 1 1 1 9 5528 0 1 1 0 10 5532 1 1 1 0 11 5540 1 1 0 1 12 5548 1 1 1 1 13 5556 1 1 1 1 14 5564 1 1 1 1 15 5572 1 1 1 1 16 5580 1 1 0 1 17 5588 1 1 1 1 18 5596 1 1 1 1 19 5604 1 1 0 1 20 5612 1 1 1 0 21 5616 1 1 1 1 22 5620 1 1 1 1 23 5624 1 1 1 1 24 5628 1 1 1 0 25 5632 1 1 1 1 26 5636 1 1 0 1 Report No.: 2308TW0107-U5 Page Number: 205 of 281 Trial Frequency 1=Detection, 0=No Detection (MHz) Radar Type 1 Radar Type 2 Radar Type 3 Radar Type 4 27 5640 1 1 1 0 28 5644 1 1 1 1 29 5648 1 1 1 1 Probability: 96.66% 100% 83.33% 76.66% Type1-4 89.1625% (>80%) Report No.: 2308TW0107-U5 Page Number: 206 of 281 Radar Type 1 - Radar Waveform Report No.: 2308TW0107-U5 Page Number: 207 of 281 Radar Type 2 - Radar Waveform Report No.: 2308TW0107-U5 Page Number: 208 of 281 Radar Type 3 - Radar Waveform Report No.: 2308TW0107-U5 Page Number: 209 of 281 Radar Type 4 - Radar Waveform Report No.: 2308TW0107-U5 Page Number: 210 of 281 Radar Type 5 - Radar Statistical Performance Trail # Test Freq. (MHz) 1=Detection 0=No Detection Trail # Test Freq. (MHz) 1=Detection 0=No Detection 0 5492 1 15 5572 1 1 5496 1 16 5580 1 2 5500 1 17 5588 1 3 5504 1 18 5596 1 4 5508 1 19 5604 1 5 5512 1 20 5612 1 6 5516 1 21 5616 1 7 5520 1 22 5620 1 8 5524 1 23 5624 1 9 5528 1 24 5628 1 10 5532 1 25 5632 1 11 5540 1 26 5636 1 12 5548 1 27 5640 1 13 5556 1 28 5644 1 14 5564 1 29 5648 1 Detection Percentage (%) 100% Report No.: 2308TW0107-U5 Page Number: 211 of 281 Type 5 Radar Waveform_0 Type 5 Radar Waveform_1 Report No.: 2308TW0107-U5 Page Number: 212 of 281 Type 5 Radar Waveform_2 Type 5 Radar Waveform_3 Report No.: 2308TW0107-U5 Page Number: 213 of 281 Type 5 Radar Waveform_4 Type 5 Radar Waveform_5 Report No.: 2308TW0107-U5 Page Number: 214 of 281 Type 5 Radar Waveform_6 Type 5 Radar Waveform_7 Report No.: 2308TW0107-U5 Page Number: 215 of 281 Type 5 Radar Waveform_8 Type 5 Radar Waveform_9 Report No.: 2308TW0107-U5 Page Number: 216 of 281 Type 5 Radar Waveform_10 Type 5 Radar Waveform_11 Report No.: 2308TW0107-U5 Page Number: 217 of 281 Type 5 Radar Waveform_12 Type 5 Radar Waveform_13 Report No.: 2308TW0107-U5 Page Number: 218 of 281 Type 5 Radar Waveform_14 Report No.: 2308TW0107-U5 Page Number: 219 of 281 Type 5 Radar Waveform_15 Type 5 Radar Waveform_16 Report No.: 2308TW0107-U5 Page Number: 220 of 281 Type 5 Radar Waveform_17 Type 5 Radar Waveform_18 Type 5 Radar Waveform_19 Report No.: 2308TW0107-U5 Page Number: 221 of 281 Type 5 Radar Waveform_20 Type 5 Radar Waveform_21 Type 5 Radar Waveform_22 Report No.…

Text truncated - open the document above for the full version.

Report No.: 2308TW0107-U5 Page Number: 80 of 281 Type 6 Radar Waveform_12 Type 6 Radar Waveform_13 Report No.: 2308TW0107-U5 Page Number: 81 of 281 Type 6 Radar Waveform_14 Type 6 Radar Waveform_15 Report No.: 2308TW0107-U5 Page Number: 82 of 281 Type 6 Radar Waveform_16 Type 6 Radar Waveform_17 Report No.: 2308TW0107-U5 Page Number: 83 of 281 Type 6 Radar Waveform_18 Type 6 Radar Waveform_19 Report No.: 2308TW0107-U5 Page Number: 84 of 281 Type 6 Radar Waveform_20 Type 6 Radar Waveform_21 Report No.: 2308TW0107-U5 Page Number: 85 of 281 Type 6 Radar Waveform_22 Type 6 Radar Waveform_23 Report No.: 2308TW0107-U5 Page Number: 86 of 281 Type 6 Radar Waveform_24 Type 6 Radar Waveform_25 Report No.: 2308TW0107-U5 Page Number: 87 of 281 Type 6 Radar Waveform_26 Type 6 Radar Waveform_27 Report No.: 2308TW0107-U5 Page Number: 88 of 281 Type 6 Radar Waveform_28 Type 6 Radar Waveform_29 Report No.: 2308TW0107-U5 Page Number: 89 of 281 Product AX5400 Ceiling Mount Wi-Fi 6 Access Point Temperature 25 °C Test Engineer Jay Relative Humidity 65 % Test Site SR5 Test Date 2023/10/2 Test Item Radar Statistical Performance Check (802.11ax-HE40 mode – 5510MHz) -Master Radar Type 1-4 - Radar Statistical Performance Trial Frequency 1=Detection, 0=No Detection (MHz) Radar Type 1 Radar Type 2 Radar Type 3 Radar Type 4 0 5491 0 1 1 1 1 5492 1 1 0 1 2 5493 1 1 0 0 3 5494 1 1 0 0 4 5495 1 1 1 1 5 5496 1 1 1 0 6 5497 1 1 0 0 7 5498 1 0 1 1 8 5499 1 1 1 1 9 5500 1 1 0 0 10 5501 1 1 1 0 11 5502 1 1 1 1 12 5504 1 1 1 1 13 5506 1 1 1 1 14 5508 1 1 1 1 15 5510 1 1 1 1 16 5512 1 1 1 1 17 5514 1 1 1 1 18 5516 1 1 1 1 19 5518 1 1 0 1 20 5520 1 1 1 1 21 5521 1 1 1 0 22 5522 1 1 1 1 23 5523 1 1 1 1 24 5524 1 1 1 0 25 5525 1 1 0 0 26 5526 1 1 1 1 Report No.: 2308TW0107-U5 Page Number: 90 of 281 Trial Frequency 1=Detection, 0=No Detection (MHz) Radar Type 1 Radar Type 2 Radar Type 3 Radar Type 4 27 5527 1 1 1 1 28 5528 1 1 1 1 29 5529 1 1 0 1 Probability: 96.66% 96.66% 73.33% 70% Type1-4 84.1625% (>80%) Report No.: 2308TW0107-U5 Page Number: 91 of 281 Radar Type 1 - Radar Waveform Report No.: 2308TW0107-U5 Page Number: 92 of 281 Radar Type 2 - Radar Waveform Report No.: 2308TW0107-U5 Page Number: 93 of 281 Radar Type 3 - Radar Waveform Report No.: 2308TW0107-U5 Page Number: 94 of 281 Radar Type 4 - Radar Waveform Report No.: 2308TW0107-U5 Page Number: 95 of 281 Radar Type 5 - Radar Statistical Performance Trail # Test Freq. (MHz) 1=Detection 0=No Detection Trail # Test Freq. (MHz) 1=Detection 0=No Detection 0 5491 0 15 5510 1 1 5492 1 16 5512 1 2 5493 1 17 5514 1 3 5494 1 18 5516 1 4 5495 1 19 5518 1 5 5496 1 20 5520 1 6 5497 1 21 5521 1 7 5498 1 22 5522 1 8 5499 1 23 5523 0 9 5500 1 24 5524 1 10 5501 1 25 5525 1 11 5502 1 26 5526 1 12 5504 1 27 5527 1 13 5506 0 28 5528 1 14 5508 1 29 5529 1 Detection Percentage (%) 90% Report No.: 2308TW0107-U5 Page Number: 96 of 281 Type 5 Radar Waveform_0 Type 5 Radar Waveform_1 Report No.: 2308TW0107-U5 Page Number: 97 of 281 Type 5 Radar Waveform_2 Type 5 Radar Waveform_3 Report No.: 2308TW0107-U5 Page Number: 98 of 281 Type 5 Radar Waveform_4 Type 5 Radar Waveform_5 Report No.: 2308TW0107-U5 Page Number: 99 of 281 Type 5 Radar Waveform_6 Type 5 Radar Waveform_7 Report No.: 2308TW0107-U5 Page Number: 100 of 281 Type 5 Radar Waveform_8 Type 5 Radar Waveform_9 Report No.: 2308TW0107-U5 Page Number: 101 of 281 Type 5 Radar Waveform_10 Type 5 Radar Waveform_11 Report No.: 2308TW0107-U5 Page Number: 102 of 281 Type 5 Radar Waveform_12 Type 5 Radar Waveform_13 Report No.: 2308TW0107-U5 Page Number: 103 of 281 Type 5 Radar Waveform_14 Type 5 Radar Waveform_15 Report No.: 2308TW0107-U5 Page Number: 104 of 281 Type 5 Radar Waveform_16 Type 5 Radar Waveform_17 Report No.: 2308TW0107-U5 Page Number: 105 of 281 Type 5 Radar Waveform_18 Type 5 Radar Waveform_19 Report No.: 2308TW0107-U5 Page Number: 106 of 281 Type 5 Radar Waveform_20 Type 5 Radar Waveform_21 Report No.: 2308TW0107-U5 Page Number: 107 of 281 Type 5 Radar Waveform_22 Type 5 Radar Waveform_23 Report No.: 2308TW0107-U5 Page Number: 108 of 281 Type 5 Radar Waveform_24 Type 5 Radar Waveform_25 Report No.: 2308TW0107-U5 Page Number: 109 of 281 Type 5 Radar Waveform_26 Type 5 Radar Waveform_27 Report No.: 2308TW0107-U5 Page Number: 110 of 281 Type 5 Radar Waveform_28 Type 5 Radar Waveform_29 Report No.: 2308TW0107-U5 Page Number: 111 of 281 Radar Type 6 - Radar Statistical Performance Trail # 1=Detection 0=No Detection Trail # 1=Detection 0=No Detection 0 1 15 1 1 1 16 1 2 1 17 1 3 1 18 1 4 1 19 1 5 1 20 1 6 1 21 1 7 1 22 1 8 1 23 1 9 1 24 1 10 1 25 1 11 1 26 1 12 1 27 1 13 1 28 1 14 1 29 1 Detection Percentage (%) 100% Report No.: 2308TW0107-U5 Page Number: 112 of 281 Type 6 Radar Waveform_0 Type 6 Radar Waveform_1 Report No.: 2308TW0107-U5 Page Number: 113 of 281 Type 6 Radar Waveform_2 Type 6 Radar Waveform_3 Report No.: 2308TW0107-U5 Page Number: 114 of 281 Type 6 Radar Waveform_4 Type 6 Radar Waveform_5 Report No.: 2308TW0107-U5 Page Number: 115 of 281 Type 6 Radar Waveform_6 Type 6 Radar Waveform_7 Report No.: 2308TW0107-U5 Page Number: 116 of 281 Type 6 Radar Waveform_8 Type 6 Radar Waveform_9 Report No.: 2308TW0107-U5 Page Number: 117 of 281 Type 6 Radar Waveform_10 Type 6 Radar Waveform_11 Report No.: 2308TW0107-U5 Page Number: 118 of 281 Type 6 Radar Waveform_12 Type 6 Radar Waveform_13 Report No.: 2308TW0107-U5 Page Number: 119 of 281 Type 6 Radar Waveform_14 Ty…
