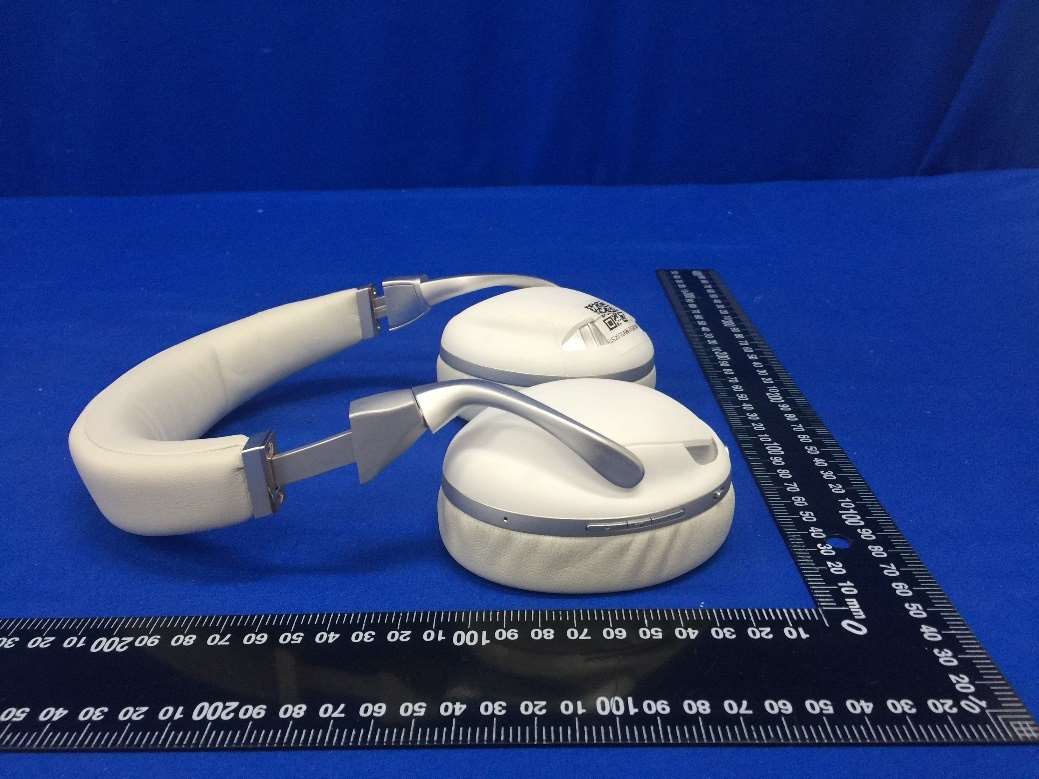

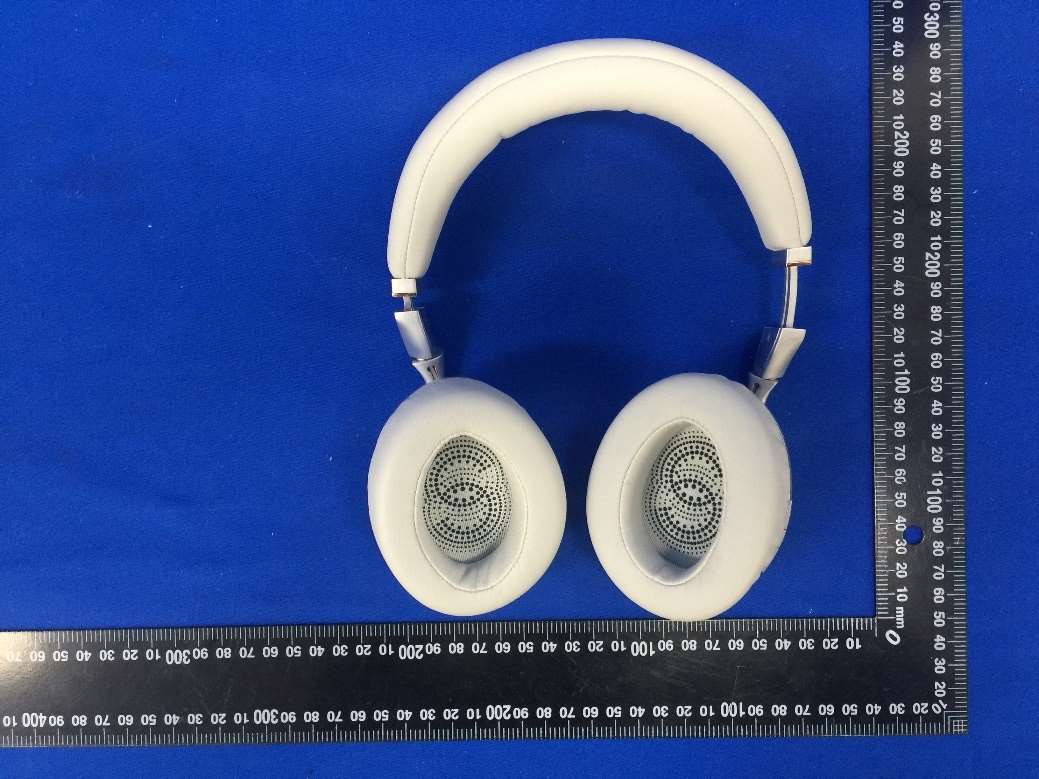

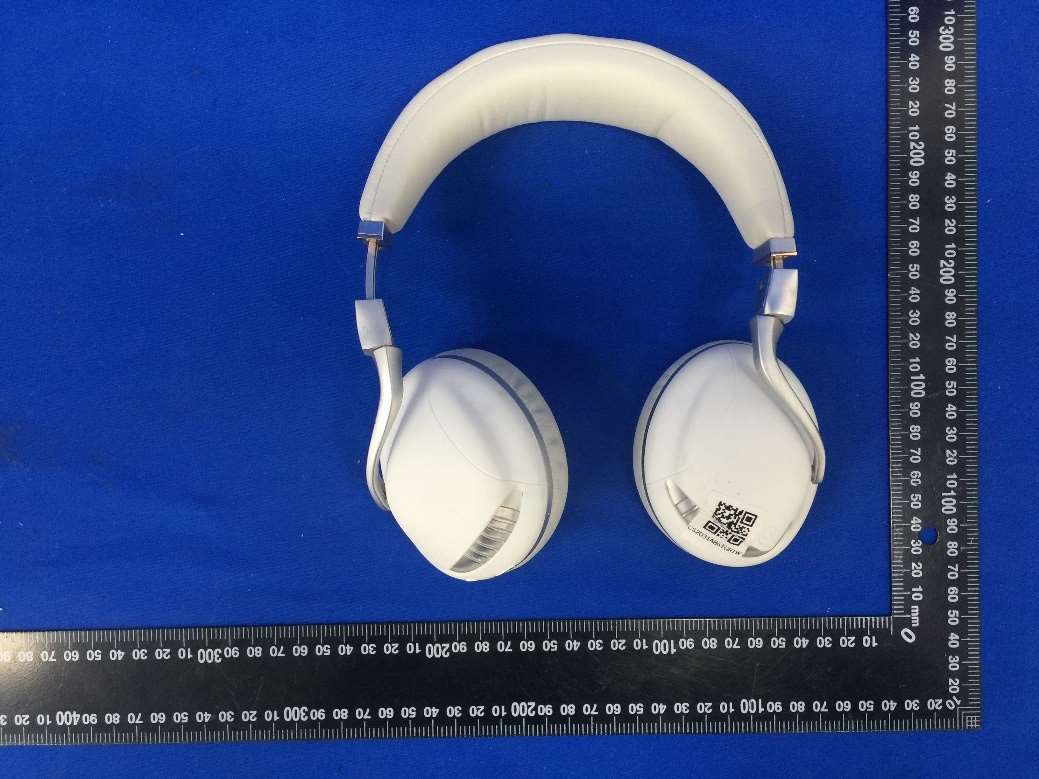

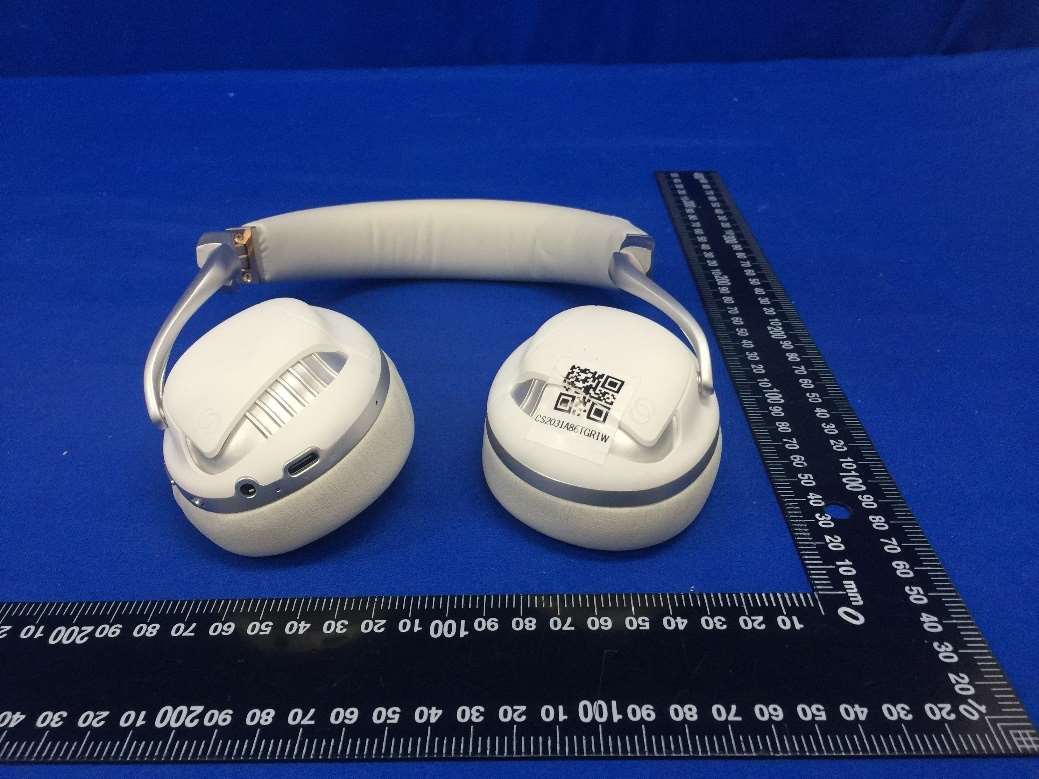

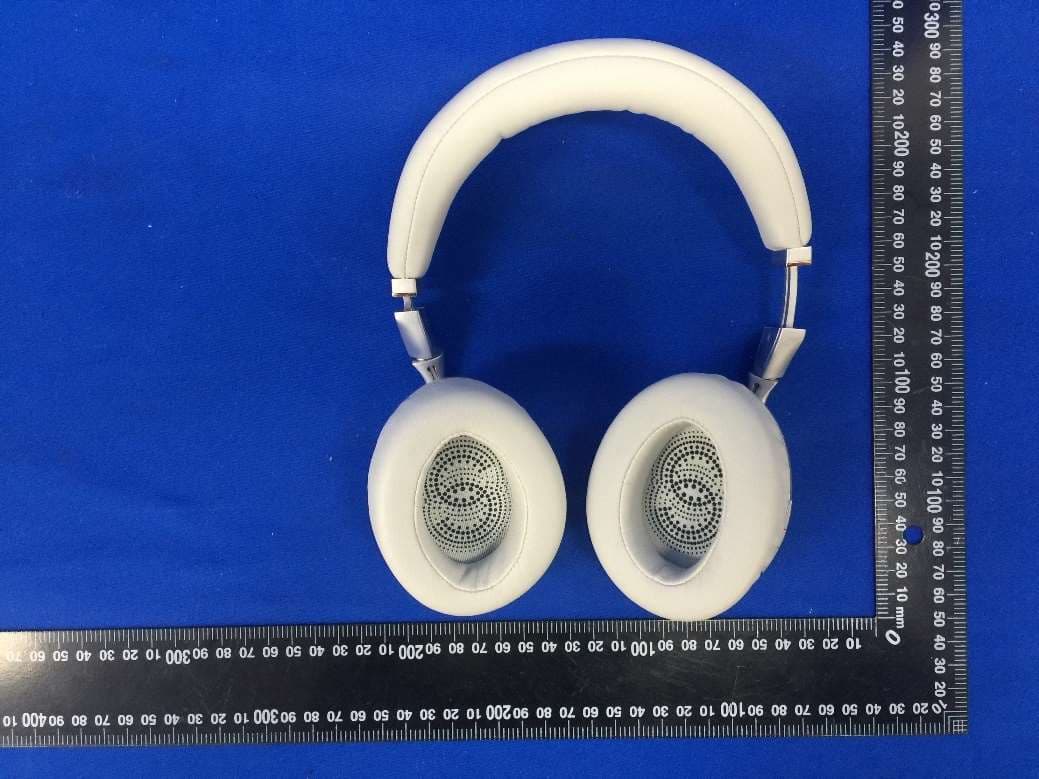

2AXKC-TGR101IRIS FLOW Headphones

IRIS FLOW HEADPHONES ACTIVE LISTENIN G Owners Manual 2 •Do NOT use the headphones at a high volume for any extended period. –To avoid hearing damage, use your headphones at a comfortable, moderate volume level. –Turn the volume down on your device before placing the headphones in/on your ears, then turn the volume up gradually until you reach a comfortable listening level. •Do NOT use your headphones while driving for phone calls or any other purpose. •Do NOT use the headphones if they emit any loud unusual noise. If this happens, turn the headphones off and contact IRIS customer service. •Remove headphones immediately if you experience a warming sensation or loss of audio. •Do NOT use mobile phone adapters to connect headphones to airplane seat jacks, as this could result in injury or property damage due to overheating. Contains small parts which may be a choking hazard. Not suitable for children under age 3. This product contains magnetic material. Consult your physician on whether this might affect your implantable medical device. •To reduce the risk of fire or electrical shock, do NOT expose this product to rain, liquids or moisture. •Do NOT make unauthorized alterations to this product. •Use this product only with an approved power supply which meets local regulatory requirements •The operating temperature range of this product is 32 to 95 F(0°C to 35°C) , and the storage temperature range is -4 to 113 F(-20°C to 45 °C) . Do NOT expose to excessive heat. •To prevent possible hearing damage, do not listen at high volume levels for long periods. •Turn the volume down on your device before placing the headphones on your ears. •Please fully read this user guide before use. IMPORTANT SAFETY INSTRUCTIONS Warnings REGULATORY INFORMATION This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -Reorient or relocate the receiving antenna. -Increase the separation between the equipment and receiver. -Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -Consult the dealer or an experienced radio/TV technician for help. This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device. Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de licence. L'exploitation est autorisée aux deux conditions suivantes : (1) l'appareil ne doit pas produire de brouillage, et (2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d'en compromettre le fonctionnement. 3 REGULATORY INFORMATION PRODUCT COMPLIES WITH EUROPEAN SAFETY REGULATION This marking indicates that this product should not be disposed with other household wastes throughout the EU. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used device, please use the return and collection systems or contact the retailer where the product was purchased. They can take this product for environmental safe recycling. This device contains a lithium-ion battery which is a sensitive component that can cause injury if damaged. Do not attempt to remove the battery. Contact IRIS or a IRIS authorized service provider to replace the battery. Replacement by non-qualified professionals can damage your device. Use of an unqualified battery may present a risk of fire, explosion, leakage, or other hazard. Dispose of your device, battery, and accessories according to local environmental regulations. Do not dispose of them in normal household waste. Improper disposal may lead to fire, explosion, and/or other hazards. Table of Hazardous Substances or Elements Hazardous Substances and Elements Component Name Lead (Pb) Mercury (Hg) Cadmium (Cd) Hexavalent (CR(VI)) Polybrominated Biphenyl (PBB) Polybrominated diphenylether (PBDE) PCBs O OOOOO Memory O OOOOO Communication O OOOOO Speaker O OOOOO Cables O OOOOO O: Indicates that this toxic or hazardous substance contained in all of the homogeneous materials for this part is below the limit requirement of SJ/T 11363-2006. X: Indicates that this toxic or hazardous substance contained in at least one of the homogeneous materials used for this part is above the limit requirement of SJ/T 11363-2006. Android, Google Assistant, Google Play and the Google Play logo are trademarks of Google LLC. The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by IRIS Audio Engineering Limited is under license. Wi-Fi is a register…

Text truncated - open the document above for the full version.

Test Report No.: EFGX20080228-IE-01-E01 Eurofins Electrical Testing Service (Shenzhen) Co., Ltd. 1st Floor, Building 2, Chungu, Meisheng Huigu Science and Technology Park, No. 83 Dabao Road, Bao'an District, Shenzhen. P.R.China. Telephone: +86-755-82911867, Fax : +86-755-82910749 Page 1 of 4 Test Report No.: EFGX20080228-IE-01-E01 Eurofins Electrical Testing Service (Shenzhen) Co., Ltd. 1st Floor, Building 2, Chungu, Meisheng Huigu Science and Technology Park, No. 83 Dabao Road, Bao'an District, Shenzhen. P.R.China. Telephone: +86-755-82911867, Fax : +86-755-82910749 Page 2 of 4 Test Report No.: EFGX20080228-IE-01-E01 Eurofins Electrical Testing Service (Shenzhen) Co., Ltd. 1st Floor, Building 2, Chungu, Meisheng Huigu Science and Technology Park, No. 83 Dabao Road, Bao'an District, Shenzhen. P.R.China. Telephone: +86-755-82911867, Fax : +86-755-82910749 Page 3 of 4 Test Report No.: EFGX20080228-IE-01-E01 Eurofins Electrical Testing Service (Shenzhen) Co., Ltd. 1st Floor, Building 2, Chungu, Meisheng Huigu Science and Technology Park, No. 83 Dabao Road, Bao'an District, Shenzhen. P.R.China. Telephone: +86-755-82911867, Fax : +86-755-82910749 Page 4 of 4

T G R 1 I R I S A u d i o E n g i n e e r i n g - L i m i t e d 5 V 1 A I R I S F l o w H e a d p h o n e s M a d e i n C h i n a TGR1W 5V 1A

Wireless Active Listening Over-Ear Headphones Black/Black/Rose Gold 5060819660012 IRIS FLOW Headphones Manufacturer: IRIS Audio Engineering Limited, Suite 305, 50 Eastcastle Street, London, England, W1W 8EA Model: TGR1 Irislistenwell.com © IRIS Audio Engineering Limited 2020 Input: 5V 1A FCC ID: 2AXKC-TGR101 IC: 26523-TGR101 名称: IRIS Flow 耳机 型号: TGR1 Designed in London Made in China

Wireless Active Listening Over-Ear Headphones Navy/Gunmetal/Racing Red 5060819660029 IRIS FLOW Headphones Manufacturer: IRIS Audio Engineering Limited, Suite 305, 50 Eastcastle Street, London, England, W1W 8EA Model: TGR1 Irislistenwell.com © IRIS Audio Engineering Limited 2020 Input: 5V 1A FCC ID: 2AXKC-TGR101 IC: 26523-TGR101 名称: IRIS Flow 耳机 型号: TGR1 Designed in London Made in China

Wireless Active Listening Over-Ear Headphones White/Silver/Rose Gold 5060819660005 IRIS FLOW Headphones Manufacturer: IRIS Audio Engineering Limited, Suite 305, 50 Eastcastle Street, London, England, W1W 8EA Model: TGR1 Irislistenwell.com © IRIS Audio Engineering Limited 2020 Input: 5V 1A FCC ID: 2AXKC-TGR101 IC: 26523-TGR101 名称: IRIS Flow 耳机 型号: TGR1 Designed in London Made in China

Explanation for IRIS Rating Label IRIS 产品铭牌说明 Due to product design constraint, we are not able to print all the required information on rating label, we would put the manufacturer’s name, manufacturer address, FCC ID, ID No. on the packaging label, refer to the following picture. IRIS就产品rating label 内容做以下说明: 受限于产品结构及功能设计 ，我们无法将所有 要求内容全部放在产品rating label上，现将制造商名称，地址，FCC ID，IC No.信息放 在产品包装上面，具体见下图示意。 特此说明。 Name / Title: Rob Reng/ Chief Technology Officer Company: IRIS Audio Engineering Limited Device rating label Packaging label

Test Report No.: EFGX20080228-IE-01-E01 Eurofins Electrical Testing Service (Shenzhen) Co., Ltd. 1st Floor, Building 2, Chungu, Meisheng Huigu Science and Technology Park, No. 83 Dabao Road, Bao'an District, Shenzhen. P.R.China. Telephone: +86-755-82911867, Fax : +86-755-82910749 Page 1 of 8 Test Report No.: EFGX20080228-IE-01-E01 Eurofins Electrical Testing Service (Shenzhen) Co., Ltd. 1st Floor, Building 2, Chungu, Meisheng Huigu Science and Technology Park, No. 83 Dabao Road, Bao'an District, Shenzhen. P.R.China. Telephone: +86-755-82911867, Fax : +86-755-82910749 Page 2 of 8 Test Report No.: EFGX20080228-IE-01-E01 Eurofins Electrical Testing Service (Shenzhen) Co., Ltd. 1st Floor, Building 2, Chungu, Meisheng Huigu Science and Technology Park, No. 83 Dabao Road, Bao'an District, Shenzhen. P.R.China. Telephone: +86-755-82911867, Fax : +86-755-82910749 Page 3 of 8 Test Report No.: EFGX20080228-IE-01-E01 Eurofins Electrical Testing Service (Shenzhen) Co., Ltd. 1st Floor, Building 2, Chungu, Meisheng Huigu Science and Technology Park, No. 83 Dabao Road, Bao'an District, Shenzhen. P.R.China. Telephone: +86-755-82911867, Fax : +86-755-82910749 Page 4 of 8 Test Report No.: EFGX20080228-IE-01-E01 Eurofins Electrical Testing Service (Shenzhen) Co., Ltd. 1st Floor, Building 2, Chungu, Meisheng Huigu Science and Technology Park, No. 83 Dabao Road, Bao'an District, Shenzhen. P.R.China. Telephone: +86-755-82911867, Fax : +86-755-82910749 Page 5 of 8 Test Report No.: EFGX20080228-IE-01-E01 Eurofins Electrical Testing Service (Shenzhen) Co., Ltd. 1st Floor, Building 2, Chungu, Meisheng Huigu Science and Technology Park, No. 83 Dabao Road, Bao'an District, Shenzhen. P.R.China. Telephone: +86-755-82911867, Fax : +86-755-82910749 Page 6 of 8 Test Report No.: EFGX20080228-IE-01-E01 Eurofins Electrical Testing Service (Shenzhen) Co., Ltd. 1st Floor, Building 2, Chungu, Meisheng Huigu Science and Technology Park, No. 83 Dabao Road, Bao'an District, Shenzhen. P.R.China. Telephone: +86-755-82911867, Fax : +86-755-82910749 Page 7 of 8 Test Report No.: EFGX20080228-IE-01-E01 Eurofins Electrical Testing Service (Shenzhen) Co., Ltd. 1st Floor, Building 2, Chungu, Meisheng Huigu Science and Technology Park, No. 83 Dabao Road, Bao'an District, Shenzhen. P.R.China. Telephone: +86-755-82911867, Fax : +86-755-82910749 Page 8 of 8 END Bluetooth Antenna Bluetooth Antenna

Eurofins Electrical Testing Service(Shenzhen)Co.,Ltd 1st Floor, Building 2, Chungu, Meisheng Huigu Science and Technology Park, No. 83 Dabao Road, Bao'an District, Shenzhen. P.R.China. Telephone: +86-755-82911867, Fax : +86-755-82910749 RF EXPOSURE EXEMPT REPORT APPLICANT : IRIS Audio Engineering Limited PRODUCT NAME : IRIS FLOW Headphones MODEL NAME : TGR1 BRAND NAME : IRIS FCC ID : 2AXKC-TGR101 STANDARD(S) : 47 CFR Part 1.1307 47 CFR Part 2.1093 KDB447498D01 General RF Exposure Guidance v06 RECEIPT DATE : 2020-08-27 TEST DATE : 2020-08-27 ISSUE DATE : 2020-09-15 Eurofins Electrical Testing Service(Shenzhen)Co.,Ltd 1st Floor, Building 2, Chungu, Meisheng Huigu Science and Technology Park, No. 83 Dabao Road, Bao'an District, Shenzhen. P.R.China. Telephone: +86-755-82911867, Fax : +86-755-82910749 Equipment Under Test (EUT) Description EUT Type: IRIS FLOW Headphones Hardware Version: N/A Software Version: N/A Antenna Type: FPC Antenna Antenna Gain: 3.2 dBi For BT: Frequency Bands: 2402MHz ~ 2480MHz Modulation Mode: GFSK,π/4-DQPSK, 8-DPSK For BLE: Frequency Bands: 2402MHz ~ 2480MHz Modulation Mode: GFSK Eurofins Electrical Testing Service(Shenzhen)Co.,Ltd 1st Floor, Building 2, Chungu, Meisheng Huigu Science and Technology Park, No. 83 Dabao Road, Bao'an District, Shenzhen. P.R.China. Telephone: +86-755-82911867, Fax : +86-755-82910749 Standard Requirement According to KDB447498D01 General RF Exposure Guidance v06 4.3.1. Standalone SAR test exclusion considerations Unless specifically required by the published RF exposure KDB procedures, standalone 1-g head or body and 10-g extremity SAR evaluation for general population exposure conditions, by measurement or numerical simulation, is not required when the corresponding SAR Exclusion Threshold condition, listed below, is satisfied. Limits The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] · [√f(GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR, where The test exclusions are applicable only when the minimum test separation distance is ≤ 50 mm and for transmission frequencies between 100 MHz and 6 GHz. When the minimum test separation distance is < 5 mm, a distance of 5 mm is applied to determine SAR test exclusion EUT RF Exposure For BT/BLE The Max. power (including tune-up tolerance) is 3.0 dBm on the highest channel 2.48 GHz (*) 3.0 dBm logarithmic terms convert to numeric result is nearly 2.0 mW According to the formula. calculate the test exclusion thresholds: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] · [√f(GHz)] General RF Exposure = (2.0 mW / 5 mm) x √2.48 GHz = 0.63 SAR requirement: (1) S = 3.0 (1) < (2) So the SAR report is not required. (2) - End of the Report - RF channel transmit frequency in GHz 17

Test Report No.: EFGX20080228-IE-01-E02 Eurofins Electrical Testing Service (Shenzhen) Co., Ltd. 1st Floor, Building 2, Chungu, Meisheng Huigu Science and Technology Park, No. 83 Dabao Road, Bao'an District, Shenzhen. P.R.China. Telephone: +86-755-82911867, Fax : +86-755-82910749 Page 1 of 35 EUROFINS ELECTRICAL TESTING SERVICE (SHENZHEN) CO., LTD. RADIO TEST - REPORT FCC&IC Compliance Test Report for Product name: IRIS FLOW Headphones Model name: TGR1 FCC ID: 2AXKC-TGR101 IC: 26523-TGR101 Test Report Number: EFGX20080228-IE-01-E02 Test Report No.: EFGX20080228-IE-01-E02 Eurofins Electrical Testing Service (Shenzhen) Co., Ltd. 1st Floor, Building 2, Chungu, Meisheng Huigu Science and Technology Park, No. 83 Dabao Road, Bao'an District, Shenzhen. P.R.China. Telephone: +86-755-82911867, Fax : +86-755-82910749 Page 2 of 35 1 General Information 3 1.1 Notes 3 1.2 Testing laboratory 4 1.3 Details of applicant 4 1.4 Details of manufacturer 4 1.5 Application details 5 1.6 Test item 5 1.7 Test standards 5 2 Technical test 6 2.1 Summary of test results 6 2.2 Test environment 6 2.3 Measurement uncertainty 6 2.4 Test mode 7 2.5 Test equipment utilized 8 2.6 Auxiliary Equipment Used during Test: 8 2.7 Test software information: 8 2.8 Test setup- ac line conducted 9 2.9 Setup diagram for conducted tests 9 2.10 Setup diagram for radiated tests below 30MHz 9 2.11 Setup diagram for radiated tests below 1GHz 10 2.12 Setup diagram for radiated tests above 1GHz 10 2.13 Test results 11 3 Technical Requirement 12 3.1 Conducted emission AC power port 12 3.2 Duty cycle 15 3.3 6dB bandwidth 16 3.4 99% Occupied Bandwidth 17 3.5 Frequency Stability 18 3.6 Conducted Peak output power 19 3.7 Power spectral density 20 3.8 Conducted Spurious Emissions 21 3.9 Band edge 22 3.10 Spurious radiated emissions for transmitter 25 Test Report No.: EFGX20080228-IE-01-E02 Eurofins Electrical Testing Service (Shenzhen) Co., Ltd. 1st Floor, Building 2, Chungu, Meisheng Huigu Science and Technology Park, No. 83 Dabao Road, Bao'an District, Shenzhen. P.R.China. Telephone: +86-755-82911867, Fax : +86-755-82910749 Page 4 of 35 1.2 Testing laboratory Eurofins Electrical Testing Service (Shenzhen) Co., Ltd. 1st Floor, Building 2, Chungu, Meisheng Huigu Science and Technology Park, No. 83 Dabao Road, Bao'an District, Shenzhen. P.R.China. Telephone : +86-755-82911867 Fax : +86-755-82910749 The Laboratory has passed the Accreditation by the American Association for Laboratory Accrediation (A2LA). The Accreditation number is 5376.01 The Laboratory has been listed by industry Canada to perform electromagnetic emission measurements, The CAB identifier is CN0088 1.3 Details of applicant FCC: Name : IRIS Audio Engineering Limited Address : 50 Eastcastle Street London United Kingdom Telephone : 02045098216 Fax : N/A IC: Name : IRIS Audio Engineering Limited Address : Suite 305, 50 Eastcastle Street , London W1W 8EA United Kingdom Of Great Britain And Northern Ireland Telephone : 02045098216 Fax : N/A 1.4 Details of manufacturer FCC: Name : IRIS Audio Engineering Limited Address : 50 Eastcastle Street London United Kingdom Telephone : 02045098216 Fax : N/A IC: Name : IRIS Audio Engineering Limited Address : Suite 305, 50 Eastcastle Street , London W1W 8EA United Kingdom Of Great Britain And Northern Ireland Telephone : 02045098216 Fax : N/A Test Report No.: EFGX20080228-IE-01-E02 Eurofins Electrical Testing Service (Shenzhen) Co., Ltd. 1st Floor, Building 2, Chungu, Meisheng Huigu Science and Technology Park, No. 83 Dabao Road, Bao'an District, Shenzhen. P.R.China. Telephone: +86-755-82911867, Fax : +86-755-82910749 Page 5 of 35 1.5 Application details Date of receipt of application : 2020-08-27 Date of receipt of test item : 2020-08-27 Date of test : 2020-08-27-2020-09-15 Date of issue 2020-10-22 1.6 Test item Product type : IRIS FLOW Headphones Model name : TGR1 Brand : IRIS Serial number : N/A Ratings : Input: 5V ⎓ 1A, Battery: 3.7V 1250maH Test voltage : Input: 5V ⎓ 1A FCC ID : 2AXKC-TGR101 IC : 26523-TGR101 PMN : IRIS FLOW Headphones HVIN : Additional information : N/A RadioTechnical data Frequency range : 2402MHz – 2480MHz Radio Tech. : Bluetooth Low Energy Frequency channel : 40 Channels Modulation : GFSK Antenna type : FPC antenna Antenna gain : 3.2 dBi Radio module Type : Bluetooth 5 Model : QCC3034 Manufacturer : Qualcomm 1.7 Test standards Test Standards FCC Part 15 Subpart C September 9, 2020 PART 15 - RADIO FREQUENCY DEVICES Subpart C - Intentional Radiators RSS-247 Issue 2 February 2017 RSS-247 — Digital Transmission Systems (DTSs), Frequency Hop- ping Systems (FHSs) and Licence-Exempt Local Area Network (LE- LAN) Devices RSS-GEN Issue 5 March 2019 RSS-Gen — General Requirements for Compliance of Radio Appa- ratus Test Method 1: ANSI C63.4-2014, American National Standard for Methods of Measurement of Radio-Noise Emis- sions from Low-Voltage Electrical and Electronic Equipment in the Range of 9 kHz to 40 GHz. 2: ANSI C63.10-2013, American National Standard for Testing Unlicensed Wireless Devices. 3: KDB558074 D01 15.247 Meas Guidance v05r02 Test Report No.: EFGX20080228-IE-01-E02 Eurofins Electrical Testing Service (Shenzhen) Co., Ltd. 1st Floor, Building 2, Chungu, Meisheng Huigu Science and Technology Park, No. 83 Dabao Road, Bao'an District, Shenzhen. P.R.China. Telephone: +86-755-82911867, Fax : +86-755-82910749 Page 6 of 35 2 Technical test 2.1 Summary of test results No deviations from the technical specification(s) were ascertained in the course of the tests performed. or The deviations as specified were ascertained in the course of the tests performed. 2.2 Test environment Ac line conducted Enviroment Parameter Temperature Relative Humidity 101.2kPa 25.1 57.3% RF Conducted Enviroment Parameter Temperature Relative Humidity 101.1kPa 24.6 55.3% Radiated Enviroment Parameter Temperature Relative Humidity 101.1Kpa 24.1 52.5% 2.3 Measurement uncertainty The uncertainty is calculated using the methods suggested in the "Guide to t…

Text truncated - open the document above for the full version.

Test Report No.: EFGX20080228-IE-01-E02 Eurofins Electrical Testing Service (Shenzhen) Co., Ltd. 1st Floor, Building 2, Chungu, Meisheng Huigu Science and Technology Park, No. 83 Dabao Road, Bao'an District, Shenzhen. P.R.China. Telephone: +86-755-82911867, Fax : +86-755-82910749 Page 1 of 23 Appendix A: 6dB Bandwidth Test Result TestMode Antenna Channel DTS BW [MHz] FL[MHz] FH[MHz] Limit[MHz] Verdict BLE_BT4.0 Ant1 2402 0.756 2401.604 2402.360 >=0.5 PASS 2440 0.720 2439.628 2440.348 >=0.5 PASS 2480 0.704 2479.636 2480.340 >=0.5 PASS Test Report No.: EFGX20080228-IE-01-E02 Eurofins Electrical Testing Service (Shenzhen) Co., Ltd. 1st Floor, Building 2, Chungu, Meisheng Huigu Science and Technology Park, No. 83 Dabao Road, Bao'an District, Shenzhen. P.R.China. Telephone: +86-755-82911867, Fax : +86-755-82910749 Page 2 of 23 Test Graphs BLE_BT4.0_Ant1_2402 BLE_BT4.0_Ant1_2440 Test Report No.: EFGX20080228-IE-01-E02 Eurofins Electrical Testing Service (Shenzhen) Co., Ltd. 1st Floor, Building 2, Chungu, Meisheng Huigu Science and Technology Park, No. 83 Dabao Road, Bao'an District, Shenzhen. P.R.China. Telephone: +86-755-82911867, Fax : +86-755-82910749 Page 3 of 23 BLE_BT4.0_Ant1_2480 Test Report No.: EFGX20080228-IE-01-E02 Eurofins Electrical Testing Service (Shenzhen) Co., Ltd. 1st Floor, Building 2, Chungu, Meisheng Huigu Science and Technology Park, No. 83 Dabao Road, Bao'an District, Shenzhen. P.R.China. Telephone: +86-755-82911867, Fax : +86-755-82910749 Page 4 of 23 Appendix B: Occupied Channel Bandwidth Test Result TestMode Antenna Channel OCB [MHz] FL[MHz] FH[MHz] Limit[MHz] Verdict BLE_BT4.0 Ant1 2402 1.0520 2401.459 2402.511 --- PASS 2440 1.0351 2439.468 2440.503 --- PASS 2480 1.0395 2479.464 2480.504 --- PASS Test Report No.: EFGX20080228-IE-01-E02 Eurofins Electrical Testing Service (Shenzhen) Co., Ltd. 1st Floor, Building 2, Chungu, Meisheng Huigu Science and Technology Park, No. 83 Dabao Road, Bao'an District, Shenzhen. P.R.China. Telephone: +86-755-82911867, Fax : +86-755-82910749 Page 5 of 23 Test Graphs BLE_BT4.0_Ant1_2402 BLE_BT4.0_Ant1_2440 Test Report No.: EFGX20080228-IE-01-E02 Eurofins Electrical Testing Service (Shenzhen) Co., Ltd. 1st Floor, Building 2, Chungu, Meisheng Huigu Science and Technology Park, No. 83 Dabao Road, Bao'an District, Shenzhen. P.R.China. Telephone: +86-755-82911867, Fax : +86-755-82910749 Page 6 of 23 BLE_BT4.0_Ant1_2480 Test Report No.: EFGX20080228-IE-01-E02 Eurofins Electrical Testing Service (Shenzhen) Co., Ltd. 1st Floor, Building 2, Chungu, Meisheng Huigu Science and Technology Park, No. 83 Dabao Road, Bao'an District, Shenzhen. P.R.China. Telephone: +86-755-82911867, Fax : +86-755-82910749 Page 7 of 23 Appendix C: Maximum conducted output power Test Result TestMode Antenna Channel Result[dBm] Limit[dBm] Verdict BLE_BT4.0 Ant1 2402 -0.82 ≦30 PASS 2440 -0.80 ≦30 PASS 2480 -0.87 ≦30 PASS TestMode Antenna Channel e.i.r.p Result[dBm] Limit[dBm] Verdict BLE_BT4.0 Ant1 2402 2.37 ≦36 PASS 2440 2.40 ≦36 PASS 2480 2.33 ≦36 PASS Test Report No.: EFGX20080228-IE-01-E02 Eurofins Electrical Testing Service (Shenzhen) Co., Ltd. 1st Floor, Building 2, Chungu, Meisheng Huigu Science and Technology Park, No. 83 Dabao Road, Bao'an District, Shenzhen. P.R.China. Telephone: +86-755-82911867, Fax : +86-755-82910749 Page 8 of 23 Test Graphs BLE_BT4.0_Ant1_2402 BLE_BT4.0_Ant1_2440 Test Report No.: EFGX20080228-IE-01-E02 Eurofins Electrical Testing Service (Shenzhen) Co., Ltd. 1st Floor, Building 2, Chungu, Meisheng Huigu Science and Technology Park, No. 83 Dabao Road, Bao'an District, Shenzhen. P.R.China. Telephone: +86-755-82911867, Fax : +86-755-82910749 Page 9 of 23 BLE_BT4.0_Ant1_2480 Test Report No.: EFGX20080228-IE-01-E02 Eurofins Electrical Testing Service (Shenzhen) Co., Ltd. 1st Floor, Building 2, Chungu, Meisheng Huigu Science and Technology Park, No. 83 Dabao Road, Bao'an District, Shenzhen. P.R.China. Telephone: +86-755-82911867, Fax : +86-755-82910749 Page 10 of 23 Appendix D: Maximum power spectral density Test Result TestMode Antenna Channel Result[dBm/3-100kHz] Limit[dBm/3kHz] Verdict BLE_BT4.0 Ant1 2402 -11.28 ≦8 PASS 2440 -11.25 ≦8 PASS 2480 -11.47 ≦8 PASS Test Report No.: EFGX20080228-IE-01-E02 Eurofins Electrical Testing Service (Shenzhen) Co., Ltd. 1st Floor, Building 2, Chungu, Meisheng Huigu Science and Technology Park, No. 83 Dabao Road, Bao'an District, Shenzhen. P.R.China. Telephone: +86-755-82911867, Fax : +86-755-82910749 Page 11 of 23 Test Graphs BLE_BT4.0_Ant1_2402 BLE_BT4.0_Ant1_2440 Test Report No.: EFGX20080228-IE-01-E02 Eurofins Electrical Testing Service (Shenzhen) Co., Ltd. 1st Floor, Building 2, Chungu, Meisheng Huigu Science and Technology Park, No. 83 Dabao Road, Bao'an District, Shenzhen. P.R.China. Telephone: +86-755-82911867, Fax : +86-755-82910749 Page 12 of 23 BLE_BT4.0_Ant1_2480 Test Report No.: EFGX20080228-IE-01-E02 Eurofins Electrical Testing Service (Shenzhen) Co., Ltd. 1st Floor, Building 2, Chungu, Meisheng Huigu Science and Technology Park, No. 83 Dabao Road, Bao'an District, Shenzhen. P.R.China. Telephone: +86-755-82911867, Fax : +86-755-82910749 Page 13 of 23 Appendix E: Band edge measurements Test Result TestMode Antenna ChName Channel RefLevel[dBm] Result[dBm] Limit[dBm] Verdict BLE_BT4.0 Ant1 Low 2402 -1.01 -50.29 ≦-21.01 PASS High 2480 -1.50 -49.31 ≦-21.5 PASS Test Report No.: EFGX20080228-IE-01-E02 Eurofins Electrical Testing Service (Shenzhen) Co., Ltd. 1st Floor, Building 2, Chungu, Meisheng Huigu Science and Technology Park, No. 83 Dabao Road, Bao'an District, Shenzhen. P.R.China. Telephone: +86-755-82911867, Fax : +86-755-82910749 Page 14 of 23 Test Graphs BLE_BT4.0_Ant1_Low_2402 BLE_BT4.0_Ant1_High_2480 Test Report No.: EFGX20080228-IE-01-E02 Eurofins Electrical Testing Service (Shenzhen) Co., Ltd. 1st Floor, Building 2, Chungu, Meisheng Huigu Science and Technology Park, No. 83 Dabao Road, Bao'an District, Shenzhen. P.R.China. Telephone: +86-755-82911867, Fax : +86-755-82910749 Page 15 of 23 Appen…

Text truncated - open the document above for the full version.

Test Report No.: EFGX20080228-IE-01-E01 Eurofins Electrical Testing Service (Shenzhen) Co., Ltd. 1st Floor, Building 2, Chungu, Meisheng Huigu Science and Technology Park, No. 83 Dabao Road, Bao'an District, Shenzhen. P.R.China. Telephone: +86-755-82911867, Fax : +86-755-82910749 Page 1 of 2 Conducted Emission Radiated Emission test below 1GHz Test Report No.: EFGX20080228-IE-01-E01 Eurofins Electrical Testing Service (Shenzhen) Co., Ltd. 1st Floor, Building 2, Chungu, Meisheng Huigu Science and Technology Park, No. 83 Dabao Road, Bao'an District, Shenzhen. P.R.China. Telephone: +86-755-82911867, Fax : +86-755-82910749 Page 2 of 2 Radiated Emission test Above 1GHz
