2AXKF-C003Beidou+GPS tracker

BD+GPS Tracker Terminal Quick Installation User Manual (Version V2.1) Thank you very much for using GPS TRACKER, the user manual will guide how to operate this product, please read it carefully before using it in order to get the correct method of operation. If the appearance, color and accessories of this product are modified, please refer to the actual product. The manufacturer is not liable for faults and omissions which in the user manual. 1、Product functions & Parameters 1.1 Product functions Location inquiry, geo‐fence, power‐off alarm, vibration alarm, movement alarm, over‐speed alarm, historical route playback, parking report, remote power/oil off. 1.2 Parameters ●QUECTEL EC25‐A module (different modules for different countries, the following are the frequency bands for EC25‐A, different countries with different modules and frequency) 4G:LTE FDD:B2/B4/B12 3G :WCDMA: B2/B4/B5 ●Wide voltage input range: 9 ‐75V; ●LocaƟon Ɵme: average warm start:≤3sec(open sky) Average cold start:≤35sec(open sky) ●Device dimensions:99mm × 52mm × 17mm; ●LocaƟon accuracy:≤10 meters; ●Working Temp:‐20°C ‐ 75°C PLEASE NOTE: Install and use this product under the voltage input range, if illegal installation, the user should take the responsibility themselves if any damage happened! 2、Product accessories and LED light status 2.1 Product accessories: Standard: the device/ charging cable / quick installation user manual / double‐sided stickers Optional: micro‐phone, SOS button, relay 2.2 Device LED light status 2.2.1 Red LED (Power supply/working) Light status Meaning light Working normal off Power off 2.2.2 Yellow LED (LTE signal) Light status Meaning Quick flash 1 time within 2 seconds LTE initialization light GPRS normal communication/online off LTE sleep/power off 2.2.3 Blue LED (GPS signal) Light status Meaning Quick flash 1 time within 2 seconds GPS signal searching light GPS location finished off GPS sleep/power off 3、Installation instructions 3.1 Preparation before installation: 1, Open the box and check whether the device and the accessories are complete, otherwise please contact your dealer. 2, SIM card selection, the device works with standard SIM card, and support full Netcom band. 3, SIM card installation, there is a small back cover on one side of the terminal, push out the small back cover, pick up the metal cover of the SIM card slot, put the SIM card chip down into the card slot, and cover the metal cover of the card slot. Note: (1) Before installing or removing the SIM card, please switch off the device; (2) Should activate the LTE function of the SIM card; (3) Should activate the caller ID function; (activate or not according to the functions you chose.) (4) If your SIM card required you to input the SIM PIN, please refer to your mobile phone user manual to turn off the SIM PIN function. (5) Please ensure that the SIM card is valid. 3.2 Installation We recommend a hidden installation, and we suggest that you ask a professional organization designated by the dealer. Please note the following: 1, Hidden installation, pay attention to waterproof; 2, Do not put together with the launch source, such as reversing radar, anti‐theft device or other in‐ vehicle communication equipment; 3, LTE antenna was built‐in the device, make sure that the GPS receiving surface (GPS antenna surface without label) is upward (toward the sky), and there is no metal shielding on the top. Recommended installation location: (1) Inside the decorative frame under the front windshield of the car; (2) Areas around the front dashboard of the car (non‐metallic material surface); (3) Under the decorative plate of the rear windshield of the car; (4) Inside the car door or the middle column; (5) Inside the instrument panel or under the rear seat of the electric bicycle/motorcycle 4、Wiring precautions 5.1 Please select the harness provided by the original factory. The red line is the positive and the black is the negative pole of the power supply. When installing the negative pole of the power supply, please choose to ground or connect metal separately. Do not connect with other ground wires. 5.2 ACC line (orange line) connected to the vehicle's ACC switch; if ACC auto anti‐theft function is required, make sure to connect the ACC line. The device will enter into the armed state or not according to ACC status. If the ACC line is not connected, the vehicle will enter into the armed state. If so, a vibration alarm will be triggered if vibration when vehicle moving. 5.3 The oil‐off control line (yellow line) connected to the thin yellow line of the circuit breaker. Proper use of the product: InstallaƟon → Switch on → Seƫngs → Register Installation: When installing, the GPS antenna surface should face the sky. There should be no electromagnetic wave absorber (such as metal or explosion‐proof film). Switch on: Insert the SIM card with right direction, connect the cable according to the wiring diagram, and then switch on the device. Register platform account: The registration method varies according to the dealer's platform, please consult the dealer. 5、SMS commands and instructions: Send SMS command from user’s SIM card number to the SIM card number which inside the GPS device. The commands in the following SMS command list are in English input format, and the letters are case‐sensitive according to the instruction requirements. Common inquiry SMS command format Device reply Center number setting 101#13712345678# OK Device status query CXZT Version, ID, IP, etc... Chinese address inquiry 123 Chinese address Latitude and longitude link query G1234 Google map link Reset the device CQ system reset OK! Restart GPS CQGPS GPS reset OK! Restore factory settings FORMAT OK! Revise APN apn123456 cmnet apn ok Revise APN user name apnuser123456 user apnuser ok Revise APN password apnpasswd123456 password apnpasswd ok ignition/motion upload interval freq,123456,20 OK Flameout upload time interval setting static,123456,120 OK Revise Server IP IP+…

Text truncated - open the document above for the full version.

Shenzhen Xingmai Digital Co.,Ltd. Agent Authorization Date: 2020-09-12 Company: Shenzhen Xingmai Digital Co.,Ltd. Address: Room 401, Building C, Huali Industrial Park, No. 404, Yu'an 2nd Road, 28 District, Xin'an Street, Bao'an District, Shenzhen, China Product Description: Beidou+GPS tracker FCC ID Number: 2AXKF-C003 Tested Model Number: C003 We authorize Eurofins Product Service GmbH, Storkower Strasse 38c, D-15526 Reichenwalde, Germany, to act on our behalf on all matters concerning the certification of above mentioned equipment. We declare that Eurofins Product Service GmbH is allowed to forward all information related to the approval and certification of equipment to the regulatory agencies as required and to discuss any issues concerning the approval application. Any and all acts carried out by Eurofins Product Service GmbH on our behalf shall have the same effect as acts of our own. We, Shenzhen Xingmai Digital Co.,Ltd., the undersigned, hereby authorize Shenzhen Toby Technology Co., Ltd. (Ivan Su, Supervisor of EMC Dep.), Shenzhen Microwave Certification Services Co., Ltd. (Gilbert Lui, Marketing Manager) and Ka.Ma.S UG (Karin Schmidt, CEO) on our behalf, to apply to the Federal Communications Commission on our equipment. We, the undersigned, hereby authorize Shenzhen Toby Technology Co., Ltd. (Ivan Su, Supervisor of EMC Dep.) to act on our behalf in matters relating to the application for a FCC equipment authorization for mentioned FCC ID Number including the signing of Form 731, necessary forms and documents in connection with this application. Any and all acts carried out by Shenzhen Toby Technology Co., Ltd. (Ivan Su, Supervisor of EMC Dep.) on our behalf shall have the same effect as acts of our own. This authorization expires on February 28, 2022. Yours Sincerely, <Signature of Wenhui Chen > Name： Wenhui Chen Company: Shenzhen Xingmai Digital Co.,Ltd. Address: Room 401, Building C, Huali Industrial Park, No. 404, Yu'an 2nd Road, 28 District, Xin'an Street, Bao'an District, Shenzhen, China Phone: 0755-29181990 Fax: 0755-29106689 E-Mail: [email protected]

Shenzhen Xingmai Digital Co.,Ltd. CONFIDENTIALITY REQUEST for Certification under the FCC Rules Date: Sep. 12, 2020 Federal Communication Commission Equipment Authorization Division, Application Processing Branch 7435 Oakland Mills Road Columbia, MD 21046 TO WHOM IT MAY CONCERN Pursuant to Paragraphs §0.457 and 0.459 of the Commission’s Rules (47 C.F.R.) and Section §552(b)(4) of the Freedom of Information Act, we request confidentiality for the following product: FCC ID Number: 2AXKF-C003 Tested Model Number: C003 For the product stated above, we request that the following information be held confidential: Exhibits Long-Term Confidentiality Short-Term Confidentiality Short-Term Confidentiality Days Block Diagram Schematic Diagram/ Circuit Diagram Circuit Description/ Operational Description Parts List Tune Up Information User’s Manual External Photos Internal Photos Test Setup Photos The long-term confidentiality exhibits contain our trade secrets and proprietary information that could be of benefit to our competitors. The short-term confidentiality on the basis of ensuring that business sensitive information remains confidential until the actual marketing of our new device. Please do not hesitate to contact me if you have any queries. Yours Sincerely, <Signature of Wenhui Chen > Name： Wenhui Chen Company: Shenzhen Xingmai Digital Co.,Ltd. Address: Room 401, Building C, Huali Industrial Park, No. 404, Yu'an 2nd Road, 28 District, Xin'an Street, Bao'an District, Shenzhen, China Phone: 0755-29181990 Fax: 0755-29106689 E-Mail: [email protected]

Shenzhen Xingmai Digital Co.,Ltd. Model Declaration Letter FCC ID: 2AXKF-C003 We, the undersigning company Company Name: Shenzhen Xingmai Digital Co.,Ltd. Address: Room 401, Building C, Huali Industrial Park, No. 404, Yu'an 2nd Road, 28 District, Xin'an Street, Bao'an District, Shenzhen, China Hereby confirm that the following products: Product description: Beidou+GPS tracker Model(s): C003, AK-GT01, AK-GT02, AK-GT03, AK-GTZZ, X1, X2, X3, X5, X6, X7, X8, X9, X10, X11, X12, X13, X13B, X13C, X20, X21, X22, X33, X35, X36, X37, X38, X39, X50, X51, X52, X53, X55, X56, X57, X58, X59, X60, XZZ, C001, C002, C003, C005, C006, C007, C008, C009, C10, C11, C12, C13，C15，C16, C17, C18, C19, C20, C21, C22, C23，C25, C26, C27, C28, C29, C30, C31, C32, C33，C35, C36, C37, C38, C39, C50, C51, C52, C53, C55, C56, C57, C58, C59, C60, CZZ, ZZ means digital number Brand Name: XINGMAI All these models are identical in the same PCB, layout and electrical circuit, the only difference is the appearance. <Signature of Wenhui Chen > Name： Wenhui Chen Company: Shenzhen Xingmai Digital Co.,Ltd. Address: Room 401, Building C, Huali Industrial Park, No. 404, Yu'an 2nd Road, 28 District, Xin'an Street, Bao'an District, Shenzhen, China Phone: 0755-29181990 Fax: 0755-29106689 E-Mail: [email protected]

Report No.: TB-FCC175225 Page: 2 of 10 FCC ID: 2AXKF-C003 TB-RF-075-1.0 Appendix II ID Label Location ID LOCATION

Report No.: TB-FCC175225 Page: 1 of 10 FCC ID: 2AXKF-C003 TB-RF-074-1.0 Appendix IFCC ID Label FCC ID: 2AXKF-C003 Beidou+GPS tracker Model: C003

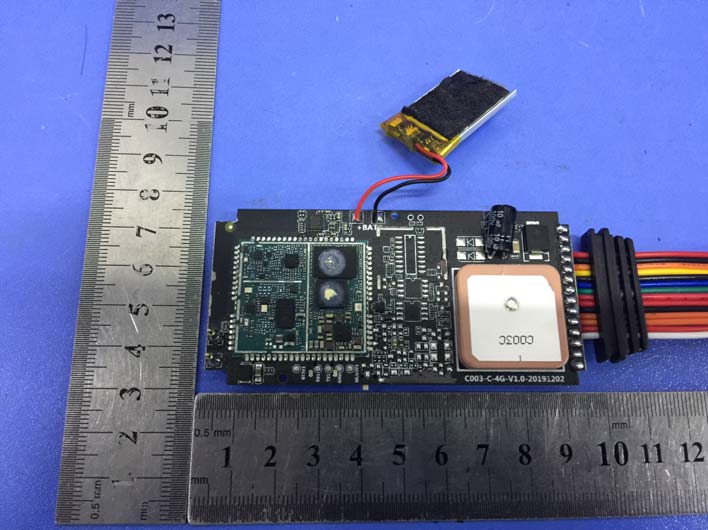

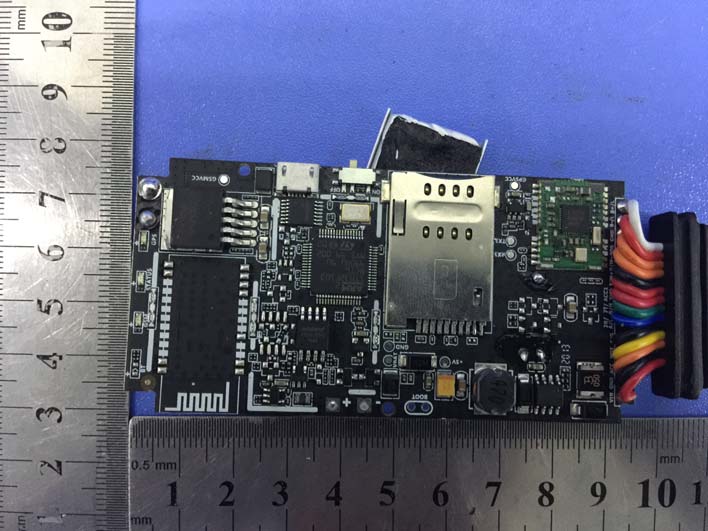

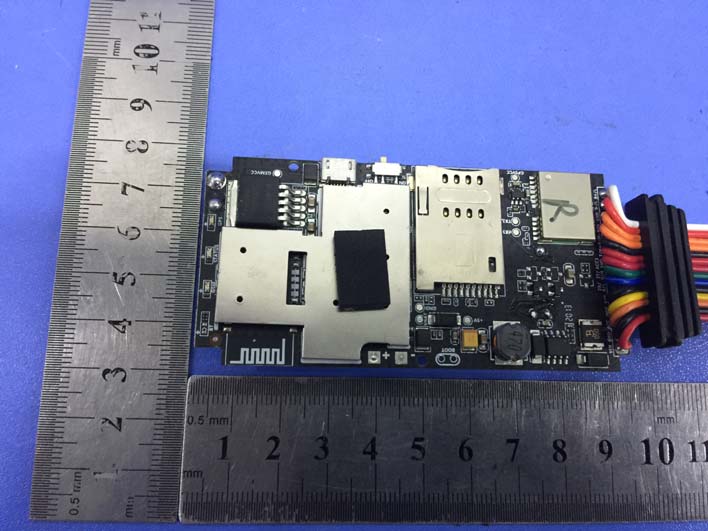

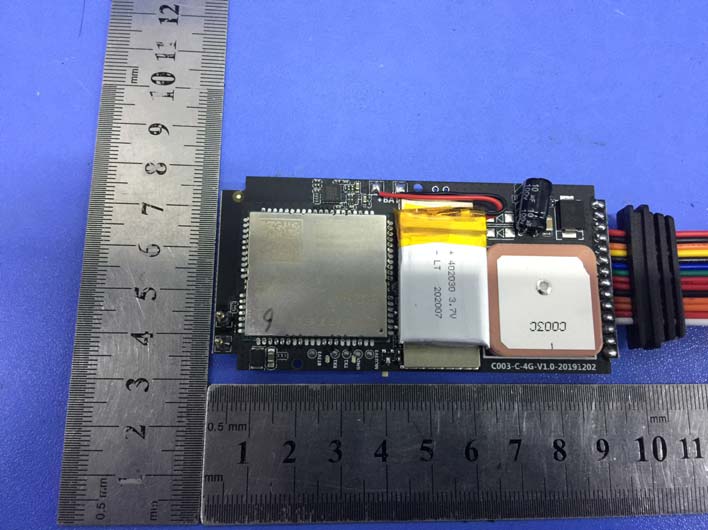

Report No.: TB-FCC175225 Page: 6 of 10 FCC ID: 2AXKF-C003 TB-RF-075-1.0 Appendix IV EUT Internal Photographs Photo 7 Appearance of PCB Photo 8 Appearance of PCB 3G/4G Antenna Report No.: TB-FCC175225 Page: 7 of 10 FCC ID: 2AXKF-C003 TB-RF-075-1.0 Photo 9 Appearance of PCB Photo 10 Appearance of PCB Report No.: TB-FCC175225 Page: 8 of 10 FCC ID: 2AXKF-C003 TB-RF-075-1.0 Photo 11 Appearance of PCB Photo 12 Appearance of PCB Report No.: TB-FCC175225 Page: 9 of 10 FCC ID: 2AXKF-C003 TB-RF-075-1.0 Photo 13 Appearance of PCB

Shenzhen Toby Technology Co., Ltd. Report No.: TB-MPE175227 Page: 1 of 3 TB-RF-075-1.0 1A/F., Bldg.6, Yusheng Industrial Zone, The National Road No.107 Xixiang Section 467, Xixiang, Bao’an, Shenzhen, China Tel: +86 75526509301 Fax: +86 75526509195 Maximum Permissible Exposure Evaluation FCC ID: 2AXKF-C003 1. Client Information Applicant : Shenzhen Xingmai Digital Co.,Ltd. Address : Room 401, Building C, Huali Industrial Park, No. 404, Yu'an 2nd Road, 28 District, Xin'an Street, Bao'an District, Shenzhen, China Manufacturer : Shenzhen Xingmai Digital Co.,Ltd. Address : Room 401, Building C, Huali Industrial Park, No. 404, Yu'an 2nd Road, 28 District, Xin'an Street, Bao'an District, Shenzhen, China 2. General Description of EUT EUT Name : Beidou+GPS tracker Models No. : C003, AK-GT01, AK-GT02, AK-GT03, AK-GTZZ, X1, X2, X3, X5, X6, X7, X8, X9, X10, X11, X12, X13, X13B, X13C, X20, X21, X22, X33, X35, X36, X37, X38, X39, X50, X51, X52, X53, X55, X56, X57, X58, X59, X60, XZZ, C001, C002, C003, C005, C006, C007, C008, C009, C10, C11, C12, C13，C15，C16, C17, C18, C19, C20, C21, C22, C23，C25, C26, C27，C28, C29，C30, C31, C32, C33，C35, C36, C37, C38, C39, C50，C51，C52，C53, C55, C56, C57 , C58, C59, C60, CZZ, ZZ means digital number Model Difference : All these models are identical in the same PCB, layout and electrical circuit, the only difference is the appearance. Sample ID : 20200804-10_1-01 S/N : 19171534261 UMTS Band II: TX:1850MHz-1910MHz, RX: 1930MHz-1990MHz UMTS Band IV: TX:1710MHz-1755MHz, RX: 2110MHz-2155MHz UMTS Band V: TX: 824MHz-849MHz, RX: 869MHz-894MHz LTE Band 2:TX: 1850MHz-1910MHz, RX: 1930MHz-1990MHz LTE Band 4:TX: 1710MHz-1755MHz, RX: 2110MHz-2155MHz LTE Band 12: TX: 699MHz -716MHz, RX: 729MHz-746MHz Antenna Type: FPC Antenna Product Description : Antenna Gain: 0.7dBi; Power Rating : Input: DC 9V-95V or DC 3.7V by Li-ion Battery. Software Version : C003_XM_808_2_9_20200702 Hardware Version : 20200623 Report No.: TB-MPE175227 Page: 2 of 3 TB-RF-075-1.0 MPE Calculations 1. Antenna Gain: Band Antenna Type Antenna Gain UMTS Band II FPC 0.7 dBi UMTS Band IV FPC 0.7 dBi UMTS Band V FPC 0.7 dBi LTE Band 2 FPC 0.7 dBi LTE Band 4 FPC 0.7 dBi LTE Band 12 FPC 0.7 dBi 2. EUT Operation Condition: Software provided by client enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. 3. Exposure Evaluation: Equation from page 18 of OET Bulletin 65, Edition 97-01 S=(PG)/4πR 2 Where S: power density P: power input to the antenna G: power gain of the antenna in the direction of interest relative to an isotropic radiator. R: distance to the center of radiation of the antenna 4. Test Result: Worst Maximum MPE Result Mode N TX Conducted Power(max) (dBm) Turn-up Power (dB) Max tune up power (dBm) [P] ANT Gain (dBi) [G] Distance (cm) [R] Power Density (mW/ cm 2 ) [S] WCDMA Band II 1 22.85 22±1 23 0.7 20 0.0446 WCDMA Band IV 1 22.20 22±1 23 0.7 20 0.0446 WCDMA Band V 1 21.92 22±1 23 0.7 20 0.0446 LTE Band 2 1 23.10 23±1 24 0.7 20 0.0587 LTE Band 4 1 23.64 23±1 24 0.7 20 0.0587 LTE Band 12 1 21.11 21±1 22 0.7 20 0.0370 Note: (1) N TX = Number of Transmit Antennas RF Output power specifies that Maximum Conducted Peak Output Power. Report No.: TB-MPE175227 Page: 3 of 3 TB-RF-075-1.0 5. Conclusion: As specified in Table 1B of 47 CFR 1.1310- Limits for Maximum Permissible Exposure (MPE), Limits for General Population/ Uncontrolled Exposure Frequency Range (MHz) Power density (mW/ cm 2 ) 300-1,500 F/1500 1,500-100,000 1.0 300-1500MHz: The worst MPE is calculated as 0.0446 mW / cm 2 < limit 846.6/1500=0.5644 mW/cm 2 . So, RF exposure limit warning or SAR test are not required. 1500-100000MHz: The worst MPE is calculated as 0.0587 mW / cm 2 < limit 1mW/cm 2 . So, RF exposure limit warning or SAR test are not required. The EUT will only be used with a separation of 20cm or greater between the antenna and nearby persons and can therefore be considered a mobile transmitter per 47 CFR2.1091 (b). The RF Exposure Information page from the manual is included here for reference. Note For a more detailed features description, please refer to the RF Test Report. -----END OF THE REPORT-----

Shenzhen Toby Technology Co., Ltd. Report No.: TB-FCC175225 Page: 1 of 57 TB-RF-074-1.0 1A/F., Bldg.6, Yusheng Industrial Zone, The National Road No.107 Xixiang Section 467, Xixiang, Bao’an, Shenzhen, China Tel: +86 75526509301 Fax: +86 75526509195 FCC Radio Test Report FCC ID: 2AXKF-C003 Original Grant Report No. : TB-FCC175225 Applicant : Shenzhen Xingmai Digital Co.,Ltd. Equipment Under Test (EUT) EUT Name : Beidou+GPS tracker Model No. : Please see the page of 5 S/N : 19171534261 Brand Name : XINGMAI Sample ID : 20200804-10_1-01 Receipt Date : 2020-08-24 Test Date : 2020-08-25 to 2020-09-12 Issue Date : 2020-09-12 Standards : FCC Part 2, FCC Part 22 Subpart H, FCC Part 24 Subpart E, FCC Part 27 ANSI/TIAC63.26: 2015 Conclusions : PASS In the configuration tested, the EUT complied with the standards specified above, The EUT technically complies with the FCC requirements Test/Witness Engineer : Jack Deng Engineer Supervisor Ivan Su Engineer Manager : Ray Lai This report details the results of the testing carried out on one sample. The results contained in this test report do not relate to other samples of the same product. The manufacturer should ensure that all products in series production are in conformity with the product sample detailed in the report. Report No.: TB-FCC175225 Page: 2 of 57 TB-RF-074-1.0 Contents CONTENTS ............................................................................................................................................. 2 1. GENERAL INFORMATION ABOUT EUT ............................................................................. 5 1.1 Client Information ................................................................................................................. 5 1.2 General Description of EUT (Equipment Under Test) ................................................... 5 1.3 Block Diagram Showing the Configuration of System Tested ...................................... 6 1.4 Description of Support Units .............................................................................................. 6 1.5 Description of Test Mode .................................................................................................... 7 1.6 Measurement Uncertainty .................................................................................................. 8 1.7 Test Facility ........................................................................................................................... 8 2. TEST SUMMARY ....................................................................................................................... 9 3. TEST SOFTWARE ..................................................................................................................... 9 4. TEST EQUIPMENT .................................................................................................................. 10 5. FREQUENCY STABILITY ...................................................................................................... 11 5.1 Test Standard and Requirement ..................................................................................... 11 5.2 Test Setup ........................................................................................................................... 11 5.3 Test Procedure ................................................................................................................... 12 5.4 Deviation From Test Standard ......................................................................................... 12 5.5 EUT Operating Condition ................................................................................................. 12 5.6 Test Data ............................................................................................................................. 12 6. CONDUCTED RF OUTPUT POWER ................................................................................... 13 6.1 Test Standard and Limit .................................................................................................... 13 6.2 Test Setup ........................................................................................................................... 13 6.3 Test Procedure ................................................................................................................... 13 6.4 Deviation From Test Standard ......................................................................................... 13 6.5 EUT Operating Condition ................................................................................................. 13 6.6 Test Data ............................................................................................................................. 13 7. PEAK-AVERAGE RATIO ....................................................................................................... 14 7.1 Test Standard and Limit .................................................................................................... 14 7.2 Test Setup ........................................................................................................................... 14 7.3 Test Procedure ................................................................................................................... 14 7.4 Deviation From Test Standard ......................................................................................... 14 7.5 EUT Operating Condition ................................................................................................. 14 7.6 Test Data ............................................................................................................................. 14 8. RADIATED OUTPUT POWER .............................................................................................. 15 8.1 Test Standard and Limit .................................................................................................... 15 8.2 Test Setup ..................................…

Text truncated - open the document above for the full version.

Shenzhen Toby Technology Co., Ltd. Report No.: TB-FCC175226 Page: 1 of 153 TB-RF-074-1.0 1A/F., Bldg.6, Yusheng Industrial Zone, The National Road No.107 Xixiang Section 467, Xixiang, Bao’an, Shenzhen, China Tel: +86 75526509301 Fax: +86 75526509195 FCC Radio Test Report FCC ID: 2AXKF-C003 Original Grant Report No. : TB-FCC175226 Applicant : Shenzhen Xingmai Digital Co.,Ltd. Equipment Under Test (EUT) EUT Name : Beidou+GPS tracker Model No. : Please see the page of 5 S/N : 19171534261 Brand Name : XINGMAI Sample ID : 20200804-10_1-01 Receipt Date : 2020-08-24 Test Date : 2020-08-25 to 2020-09-12 Issue Date : 2020-09-12 Standards : 47 CFR FCC Part 2, 24(E), 27 Test Method : ANSI C63.26 2015 Conclusions : PASS In the configuration tested, the EUT complied with the standards specified above, Test/Witness Engineer : Jack Deng Engineer Supervisor : Ivan Su Engineer Manager : Ray Lai This report details the results of the testing carried out on one sample. The results contained in this test report do not relate to other samples of the same product. The manufacturer should ensure that all products in series production are in conformity with the product sample detailed in the report. Report No.: TB-FCC175226 Page: 2 of 153 TB-RF-074-1.0 Contents CONTENTS ............................................................................................................................................. 2 1. GENERAL INFORMATION ABOUT EUT ............................................................................. 5 1.1 Client Information ................................................................................................................. 5 1.2 General Description of EUT (Equipment Under Test) ................................................... 5 1.3 Block Diagram Showing the Configuration of System Tested ...................................... 8 1.4 Description of Support Units .............................................................................................. 8 1.5 Description of Test Mode .................................................................................................... 9 1.6 Measurement Uncertainty ................................................................................................ 10 1.7 Test Facility ......................................................................................................................... 10 2. TEST SUMMARY ..................................................................................................................... 11 3. TEST SOFTWARE ................................................................................................................... 11 4. TEST EQUIPMENT .................................................................................................................. 12 5. CONDUCTED RF OUTPUT POWER ................................................................................... 13 5.1 Test Standard and Limit .................................................................................................... 13 5.2 Test Setup ........................................................................................................................... 13 5.3 Test Procedure ................................................................................................................... 13 5.4 Deviation From Test Standard ......................................................................................... 13 5.5 EUT Operating Condition ................................................................................................. 13 5.6 Test Data ............................................................................................................................. 13 6. PEAK-AVERAGE RATIO ....................................................................................................... 14 6.1 Test Standard and Limit .................................................................................................... 14 6.2 Test Setup ........................................................................................................................... 14 6.3 Test Procedure ................................................................................................................... 14 6.4 Deviation From Test Standard ......................................................................................... 14 6.5 EUT Operating Condition ................................................................................................. 14 6.6 Test Data ............................................................................................................................. 14 7. OCCUPIED BANDWIDTH ...................................................................................................... 15 7.1 Test Standard and Limit .................................................................................................... 15 7.2 Test Setup ........................................................................................................................... 15 7.3 Test Procedure ................................................................................................................... 15 7.4 Deviation From Test Standard ......................................................................................... 16 7.5 EUT Operating Condition ................................................................................................. 16 7.6 Test Data ............................................................................................................................. 16 8. OUT OF BAND EMISSION AT ANTENNA TERMINALS ................................................. 17 8.1 Test Standard and Limit .................................................................................................... 17 8.2 Test Setup ........................................................................................................................... 17 8.3 Test P…

Text truncated - open the document above for the full version.

Report No.: TB-FCC175226 Page: 100 of 153 TB-RF-074-1.0 Low Channel High Channel LTE BAND 2 (20MHz RB Size 1& RB Offset 0 QPSK) LTE BAND 2 (20MHz RB Size 100& RB Offset 0 QPSK) Report No.: TB-FCC175226 Page: 101 of 153 TB-RF-074-1.0 Low Channel High Channel LTE BAND 2 (20MHz RB Size 1& RB Offset 0 16QAM) LTE BAND 2 (20MHz RB Size 100& RB Offset 0 16QAM) Report No.: TB-FCC175226 Page: 102 of 153 TB-RF-074-1.0 Low Channel High Channel LTE BAND 4 (1.4MHz RB Size 1& RB Offset 0 QPSK) LTE BAND 4 (1.4MHz RB Size 6& RB Offset 0 QPSK) Report No.: TB-FCC175226 Page: 103 of 153 TB-RF-074-1.0 Low Channel High Channel LTE BAND 4 (1.4MHz RB Size 1& RB Offset 0 16QAM) LTE BAND 4 (1.4MHz RB Size 6& RB Offset 0 16QAM) Report No.: TB-FCC175226 Page: 104 of 153 TB-RF-074-1.0 Low Channel High Channel LTE BAND 4 (3MHz RB Size 1& RB Offset 0 QPSK) LTE BAND 4 (3MHz RB Size 15& RB Offset 0 QPSK) Report No.: TB-FCC175226 Page: 105 of 153 TB-RF-074-1.0 Low Channel High Channel LTE BAND 4 (3MHz RB Size 1& RB Offset 0 16QAM) LTE BAND 4 (3MHz RB Size 15& RB Offset 0 16QAM) Report No.: TB-FCC175226 Page: 106 of 153 TB-RF-074-1.0 Low Channel High Channel LTE BAND 4 (5MHz RB Size 1& RB Offset 0 QPSK) LTE BAND 4 (5MHz RB Size 25& RB Offset 0 QPSK) Report No.: TB-FCC175226 Page: 107 of 153 TB-RF-074-1.0 Low Channel High Channel LTE BAND 4 (5MHz RB Size 1& RB Offset 0 16QAM) LTE BAND 4 (5MHz RB Size 25& RB Offset 0 16QAM) Report No.: TB-FCC175226 Page: 108 of 153 TB-RF-074-1.0 Low Channel High Channel LTE BAND 4 (10MHz RB Size 1& RB Offset 0 QPSK) LTE BAND 4 (10MHz RB Size 50& RB Offset 0 QPSK) Report No.: TB-FCC175226 Page: 109 of 153 TB-RF-074-1.0 Low Channel High Channel LTE BAND 4 (10MHz RB Size 1& RB Offset 0 16QAM) LTE BAND 4 (10MHz RB Size 50& RB Offset 0 16QAM) Report No.: TB-FCC175226 Page: 110 of 153 TB-RF-074-1.0 Low Channel High Channel LTE BAND 4 (15MHz RB Size 1& RB Offset 0 QPSK) LTE BAND 4 (15MHz RB Size 75& RB Offset 0 QPSK) Report No.: TB-FCC175226 Page: 111 of 153 TB-RF-074-1.0 Low Channel High Channel LTE BAND 4 (15MHz RB Size 1& RB Offset 0 16QAM) LTE…

Text truncated - open the document above for the full version.
