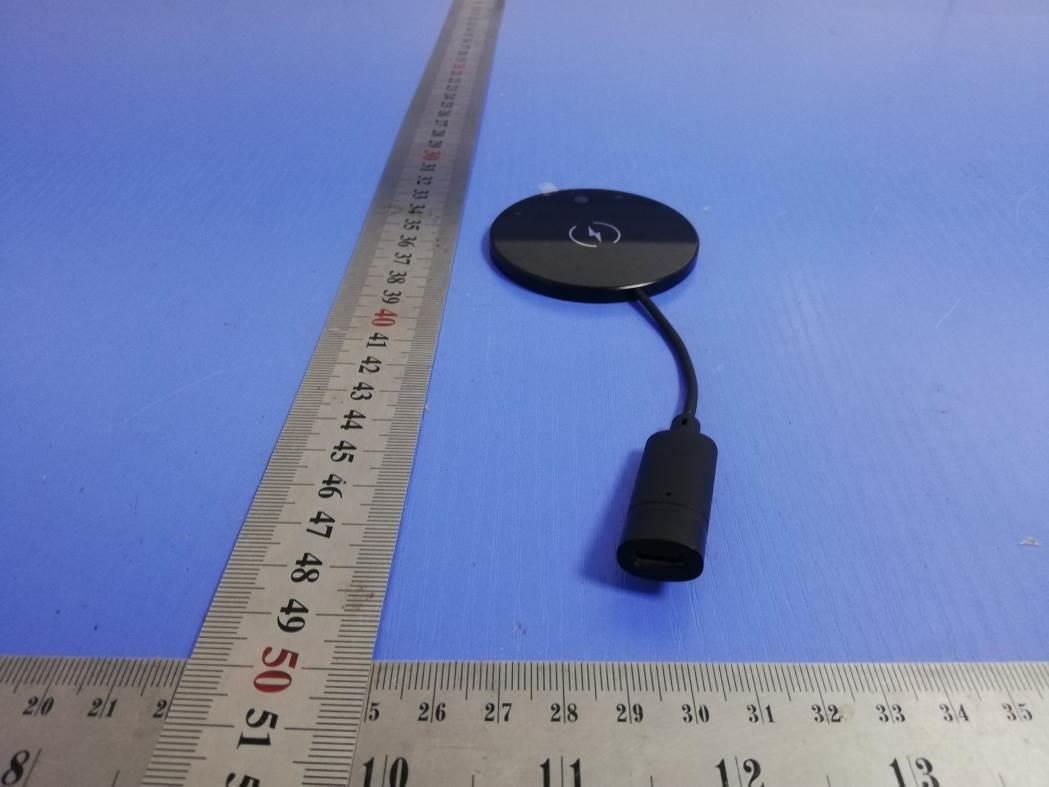

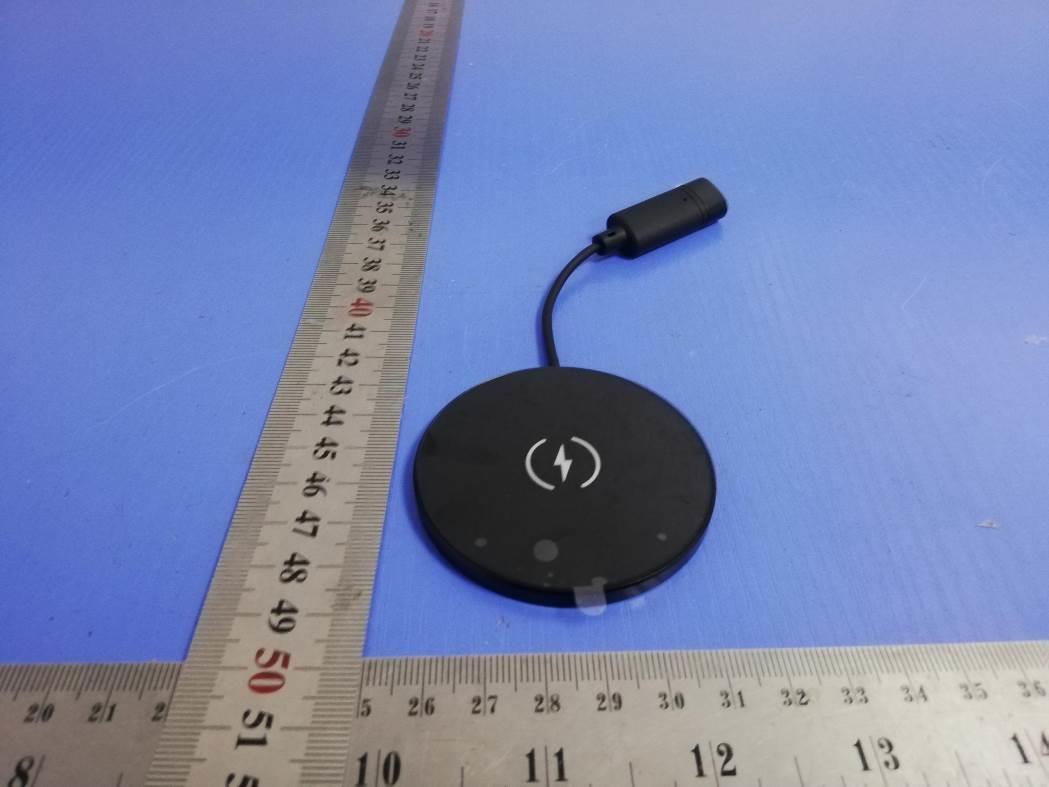

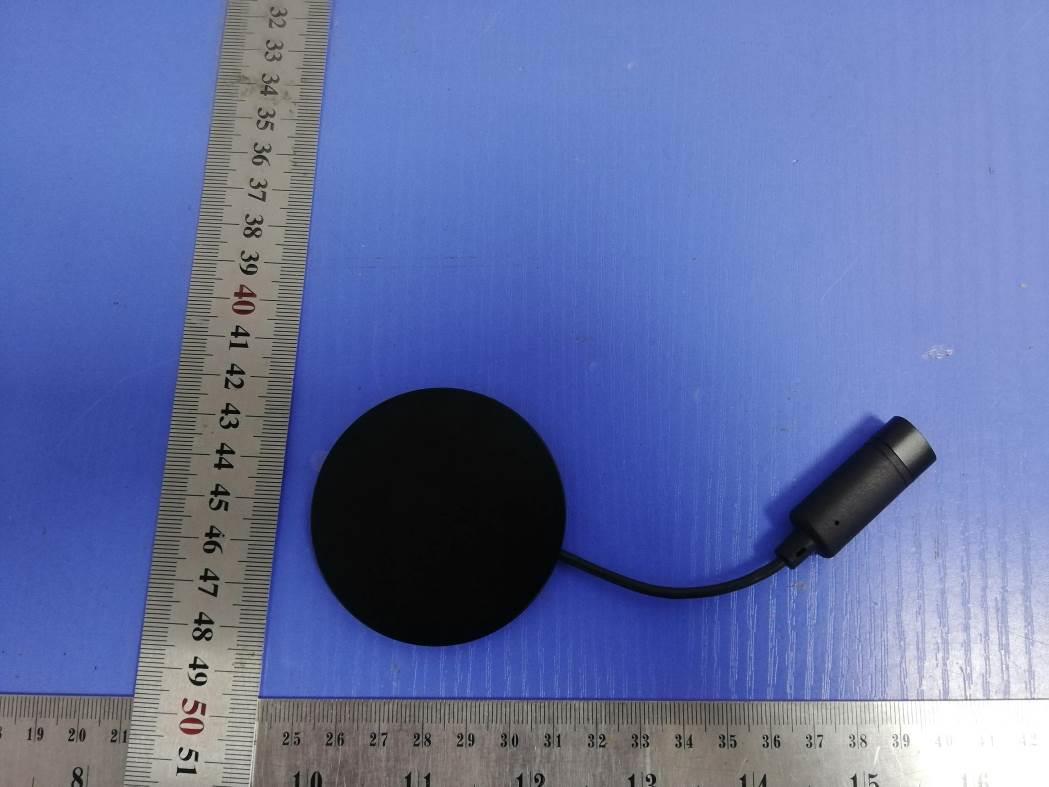

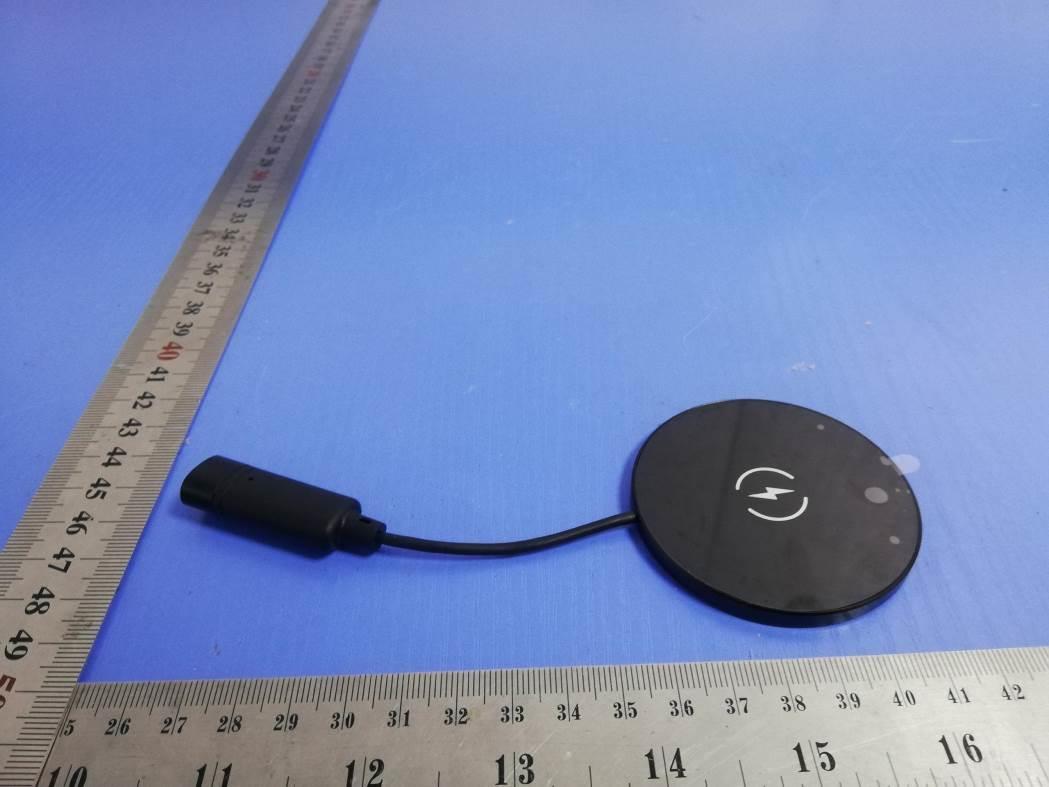

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AXKKTYH-50086 This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 1 of 3 External Photos of the EUT Fig.1 Fig.2 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AXKKTYH-50086 This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 2 of 3 Fig.3 Fig.4 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AXKKTYH-50086 This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 3 of 3 Fig.5

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AXKKTYH-50086 This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 1 of 1 Label and Location Size: L: 3.0cm*W: 2.0cm Label Location Magnetic wireless charger A7 Model No.: TYH-50086 FCC ID : 2AXKKTYH-50086 Input: DC5V, 3A / DC9V, 2A / DC12V, 1.5A Output: 7.5W/10W/15W

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AXKKTYH-50086 This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 1 of 3 Internal Photos of the EUT Fig.1 Fig.2 Antenna SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AXKKTYH-50086 This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 2 of 3 Fig.3 Fig.4 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AXKKTYH-50086 This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 3 of 3 Fig.5

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AXKKTYH-50086 ___________________________________________________________________________ This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 1 of 10 RF Exposure Evaluation Report 1. Product Information FCC ID: 2AXKKTYH-50086 Product Name Magnetic wireless charger A7 Model Number TYH-50086 Power Supply Input: DC5V, 3A / DC9V, 2A / DC12V, 1.5A Output: 7.5W/10W/15W Modulation Type CW (Continuous Wave) Frequency Range 110 KHz - 205 KHz Operation Frequency 128.0 KHz Antenna Type Coil Antenna Hardware version / Software version / Accessories Mobile phone Exposure category General population/uncontrolled environment EUT Type Production Unit Device Type Mobile Device Sample number 210506085A 2. Evaluation Method Per KDB 680106 D01 Section 3. RF Exposure Requirements; 1) Consumer wireless power transfer devices approved under Part 18 in some cases have to demonstrate compliance with RF exposure requirements. The potential for exposure must be assessed according to the operating configurations of the wireless system and the exposure conditions of users and bystanders. RF exposure must be evaluated with the client device(s) being charged by the primary at maximum output power. The RF exposure requirements must be determined in conjunction with the device operating characteristics, according to the mobile and portable exposure requirements in Section 2.1091 and Section 2.1093 of the rules. SAR and MPE limits do not cover the frequency range for wireless power transfer applications which operate below 100 kHz and 300 kHz respectively; therefore, RF exposure compliance needs to be determined with respect to 1.1307 (c) and (d) of the FCC rules. 2) Based on the design and implementation of the power transfer application, it must be clearly identified if mobile or portable RF exposure conditions apply. Devices that are installed to provide separation of at least 20 cm from users and bystanders may qualify for mobile exposure conditions. For some conditions where users and bystanders may be exposed at closer than 20 cm, section 2.1091(d) (4) of the rules may apply. 3) For devices designed for typical desktop applications, such a wireless charging pads, RF exposure evaluation should be conducted assuming a user separation distance of 15 cm. E and H field strength measurements or numerical modeling may be used to demonstrate compliance. Measurements should be made from all sides and the top of the primary/client pair, with the 15 cm measured from the center of the probe(s) to the edge of the device. Emissions between 100 kHz to 300 kHz should be assessed versus the limits at 300 kHz in Table 1 of Section 1.1310: 614 V/m and 1.63 A/m. A KDB inquiry is required to determine the applicable exposure limits below 100 kHz. SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AXKKTYH-50086 ___________________________________________________________________________ This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 2 of 10 4) Portable exposure conditions from 100 kHz to 6 GHz are determined with respect to SAR requirements. Existing SAR systems and test procedures are generally intended for measurements above 100 MHz. While numerical modeling can be an alternative, the constraints of substantial computational resources at low frequencies could introduce further limitations. Under these circumstances, including operations below 100 kHz, the Commission may consider a combination of analytical analysis, field strength, radiated and conducted power measurements, in conjunction with some limited numerical modeling to assess compliance. 5) Depending on the operating frequency, existing SAR and MPE measurement procedures may be adapted to evaluate wireless power transfer devices for compliance with respect to mobile or portable exposure conditions. If the grantee or its test lab have any questions regarding RF exposure evaluation they should contact the FCC Laboratory with sufficient system operating configuration details to determine if RF exposure evaluation is necessary and, if required, how to apply specific test procedures. Below 100 MHz, when SAR testing is required and the device is operating at close proximity to persons, information on device design, implementation, operating configurations, exposure conditions of users and bystanders are needed to determine the evaluation and testing requirements. In addition, the influence of nearby objects may also need consideration according to the wireless power transfer system implementation; for example, the effects of placing the device, its coils or radiating elements on or near metallic surfaces 3. Evaluation Limit 3.1 Refer evaluation method ANSI C95.1–1999: IEEE Standard for Safety Levels with Respect to Human Exposure to Radio Frequency Electromagnetic Fields, 3 kHz to 300 GHz. FCC KDB publication 680106 D01 RF Exposure Wireless Charging Apps v03: RF Exposure Considerations for Low Power Consumer Wireless Power Transfer Applications FCC CFR 47 part1 1.1310: Radiofrequency radiation exposure limits. FCC CFR 47 part2 2.1091: Radiofrequency radiation exposure evaluation: mobile devices FCC CFR 47 part 18.107:Indusial, Scientific, and Medical Equipment 3.2 Limit Limits for Maximum Permissible Exposure (MPE)/Controlled Exposure Frequency Range(MHz) Electric Field Strength(V/m) Magnetic Field Strength(A/m) Power Density (mW/cm²) Averaging Time (minute) Limits for Occupational/Controlled Exposure 0.3-3.0 614 1.63 *100 6 3.0-30 1842/f 4.89/f *900/f 2 6 30-300 61.4 0.163 1.0 6 300-1,500 / / f/300 6 1,500-100,000 / / 5 6 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AXKKTYH-50086 ___________________________________________________________________________ This report shall not be reproduced except in full, without the written approval of…

Text truncated - open the document above for the full version.

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AXKKTYH-50086 Report No.: LCS210506085AEA This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 1 of 22 FCC TEST REPORT For Shenzhen Tongyinhai Precision Electronics Co., Ltd. Huizhou Branch Magnetic wireless charger A7 Test Model: TYH-50086 Prepared for : Shenzhen Tongyinhai Precision Electronics Co., Ltd. Huizhou Branch Address : Plant 27, xingwang street, lilin village, lilin town, zhongkai high tech zone, huizhou city, China. Prepared by : Shenzhen LCS Compliance Testing Laboratory Ltd. Address : 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel : (+86)755-82591330 Fax : (+86)755-82591332 Web : www.LCS-cert.com Mail : [email protected] Date of receipt of test sample : May 18, 2021 Number of tested samples : 1 Sample number : 210506085A Serial number : Prototype Date of Test : May 18, 2021 ~ May 24, 2021 Date of Report : May 25, 2021 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AXKKTYH-50086 Report No.: LCS210506085AEA This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 2 of 22 FCC TEST REPORT FCC CFR 47 PART 18 Report Reference No. ................ : LCS210506085AEA Date Of Issue ................................. : May 25, 2021 Testing Laboratory Name ............ : Shenzhen LCS Compliance Testing Laboratory Ltd. Address .......................................... : 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Testing Location/ Procedure .......... : Full application of Harmonised standards ■ Partial application of Harmonised standards □ Other standard testing method □ Applicant’s Name ......................... : Shenzhen Tongyinhai Precision Electronics Co., Ltd. Huizhou Branch Address .......................................... : Plant 27, xingwang street, lilin village, lilin town, zhongkai high tech zone, huizhou city, China. Test Specification Standard ......................................... : FCC CFR 47 PART 18 Test Report Form No. .................... : LCSEMC-1.0 TRF Originator................................ : Shenzhen LCS Compliance Testing Laboratory Ltd. Master TRF .................................... : Dated 2011-03 Shenzhen LCS Compliance Testing Laboratory Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen LCS Compliance Testing Laboratory Ltd. is acknowledged as copyright owner and source of the material. Shenzhen LCS Compliance Testing Laboratory Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Test Item Description. .................. : Magnetic wireless charger A7 Trade Mark ..................................... : N/A Test Model ...................................... : TYH-50086 Power Supply ................................. : Input: DC5V, 3A / DC9V, 2A / DC12V, 1.5A Output: 7.5W/10W/15W Result ........................................... : Positive Compiled by: Supervised by: Approved by: Jin Wang/ Administrator Linda He/ Technique principal Gavin Liang/ Manager SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AXKKTYH-50086 Report No.: LCS210506085AEA This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 3 of 22 FCC TEST REPORT Test Result Positive The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Test Report No. : LCS210506085AEA May 25, 2021 Date of issue Test Model.............................. : TYH-50086 EUT......................................... : Magnetic wireless charger A7 Applicant............................... : Shenzhen Tongyinhai Precision Electronics Co., Ltd. Huizhou Branch Address.................................. : Plant 27, xingwang street, lilin village, lilin town, zhongkai high tech zone, huizhou city, China. Telephone............................... : / Fax.......................................... : / Manufacturer........................ : Shenzhen Tongyinhai Precision Electronics Co., Ltd. Huizhou Branch Address................................... : Plant 27, xingwang street, lilin village, lilin town, zhongkai high tech zone, huizhou city, China. Telephone............................... : / Fax.......................................... : / Factory................................... : Shenzhen Tongyinhai Precision Electronics Co., Ltd. Huizhou Branch Address................................... : Plant 27, xingwang street, lilin village, lilin town, zhongkai high tech zone, huizhou city, China. Telephone............................... : / Fax.......................................... : / SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AXKKTYH-50086 Report No.: LCS210506085AEA This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 4 of 22 Revision History Revision Issue Date Revisions Revised By 000 May 25, 2021 Initial Issue Gavin Liang SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AXKKTYH-50086 Report No.: LCS210506085AEA This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 5 of 22 TABLE OF CONTENTS 1. GENERAL INFORMATION ............................................................................................... 6 1.1 Description of Device (EUT) .................................................................................................... 6 1.2 Su…

Text truncated - open the document above for the full version.

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AXKKTYH-50086 _______________________________________________________________________________________________ This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 1 of 2 Appendix A Photographs of Test Setup Conducted Emission-AC adapter charge mode Radiated Emission below 30MHz SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AXKKTYH-50086 _______________________________________________________________________________________________ This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 2 of 2 Radiated Emission Below 1 GHz
