2AXKQ2029Guitar Effects Pedal

10004237R5 User Guide v210203 MONO OUT Connect TS cable to amp or other gear for mono operation STEREO OUT Connect TS cable for stereo only (in addition to MONO output) 9VDC POWER IN Connect 400 mA isolated power supply (sold separately) MONO IN Connect TS cable from guitar or other gear for mono operation USB TYPE-C Connect to computer for firmware updates STEREO IN Connect TS cable for stereo only (in addition to MONO input) SPEEDDEPTHINTENSITY SHADESHAPEMODE CHORUS BRIGADE FLANGER DBLR TREM 65 A B ON PRESET STORE STORE Hold down to save current settings as stored preset PRESET LED Lit when stored settings are active MODE Switches the modulation configuration Chorus Brigade (stereo only): Classic/Dual Flanger Dblr: Normal/Invert Trem 65: Dual mono/stereo panned Phaser X90: Dual mono/180º stereo offset Dharma Trem 61: Dual mono/LFO stereo phase EFFECT MODE Selects variations within the active effect Chorus Brigade: Chorus/Vibrato Flanger Dblr: Flanger/Doubler Trem 65: Sine/Square Phaser X90: Script/Block Dharma Trem 61: Classic/Vibe-y INTENSITY Adjusts the modulation character Chorus Brigade: Intensity (mode A only) Flanger Dblr: Feedback Trem 65: LFO Shape Phaser X90: N/A Dharma Trem 61: Crossover DEPTH Adjusts the modulation amount PRESET SWITCH Press to toggle effect on/off with stored settings ON LED Lit when knob settings are active SHADE Adjusts the modulation character Chorus Brigade: Output level - noon unity gain Flanger Dblr: Wet/dry mix - noon max flange Trem 65: Input drive - noon unity gain Phaser X90: Input drive - noon stock level Dharma Trem 61: Dynamic speed threshold SHAPE Adjusts the modulation character Chorus Brigade: N/A Flanger Dblr: Manual sweep Trem 65: N/A Phaser X90: N/A Dharma Trem 61: Dynamic speed amount EFFECT TYPE Push up or down to cycle through modulation types SPEED Adjusts the modulation rate ON SWITCH Press to toggle effect on/off with knob settings Your aural abstractions, from subtle to bold, require tools of limitless expression. Astra arrives to reveal a universe of resplendent analog warble. Built upon the pioneering bucket-brigade chorus, studio-standard flanger/doubler, and definitive tube-driven tremolo, Astra has your colors. Now go forth, and paint your masterpiece. Get MoreFree Phaser X90 and Dharma Trem 61 effects, full documentation, and help: uaudio.com/guitar/start Power SupplyIsolated 9VDC, center-negative, 400 mA minimum, 2.1x5.5 mm barrel connector (sold separately) 1/MONO 9VDC USB 2/STEREO2/STEREO PAIR IN 1/MONO www.uaudio.com Caution: To help maintain the safety of your product, the chosen power supply must be a certified power supply complying with Limited Power Source (LPS) requirements with the following characteristics and electrical ratings: Isolated 9VDC, center-negative, 400 mA minimum, 2.1x5.5 mm barrel connector. Additional details at help.uaudio.com. Before using this unit, be sure to carefully read the applicable items of these operating instructions and the safety suggestions. Afterwards, keep them handy for future reference. Take special care to follow the warnings indicated on the unit, as well as in the operating instructions. • Read the instructions. • Keep these instructions. • Heed all warnings. • Follow all instructions. • Do not use this apparatus near water. • Clean only with dry cloth. • Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions. • Do not install near any heat source such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat. • Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. • Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus. • Only use with attachments/accessories specified by the manufacturer. • Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped. • Astra Modulation Machine does not contain a fuse or any other user-replaceable parts. • A compliance marking label is provided on bottom of the unit. Uniited States Class B Manual Statement NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try and correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and the receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. Japanese Class B Manual Statement VCCI-B This is Class B equipment. Although this equipment is intended for use in residential environment, it could cause poor reception if used near a radio television receiver. Please follow instructions in the instruction manual. Korea KCC: . License exempt. This device complies with Industry Canada license-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause in…

Text truncated - open the document above for the full version.

User Guide v210203 1/MONO 9VDC USB 2/STEREO2/STEREO PAIR IN 1/MONO DECAYPREDELAYMIX BASSTREBLEMOD SPRING 65 PLATE 140 HALL 224 A B C ONPRESET STORE Free Chamber & Plate 224 reverb effect, full documentation, and help: uaudio.com/guitar/start Power Supply Get More Isolated 9VDC, center-negative, 400 mA minimum, 2.1x5.5 mm barrel connector (sold separately) STORE Hold down to save current settings as stored preset PRESET LED Lit when stored settings are active MOD Adjusts the modulation amount and/or rate Spring 65 Wow & Flutter Plate 140 Rate & Depth Hall 224, Chamber & Plate 224 Chorus EFFECT MODE Selects variations within the active effect Spring 65 Bright/Smooth/Ambient Plate 140 Plate 1/Plate 2/Plate 3 Hall 224 Room A/Small Hall A/ Large Hall B Chamber & Plate 224 Perc Plate/Const Plate/Chamber MIX Adjusts the dry/wet balance PREDELAY Adjusts the time before reverb onset PRESET SWITCH Press to toggle effect on/off with stored settings ON LED Lit when knob settings are active BASS Spring 65, Plate 140 Low frequency response Hall 224, Chamber & Plate 224 Low frequency decay TREBLE Spring 65, Plate 140 High frequency response Hall 224, Chamber & Plate 224 High frequency decay EFFECT TYPE Push up or down to cycle through reverb types DECAY Adjusts the reverb tail time ON SWITCH Press to toggle effect on/off with knob settings MONO OUT Connect TS cable to amp or other gear for mono operation STEREO OUT Connect TS cable for stereo only (in addition to MONO output) 9VDC POWER IN Connect 400 mA isolated power supply (sold separately) MONO IN Connect TS cable from guitar or other gear for mono operation USB TYPE-C Connect to computer for firmware updates STEREO IN Connect TS cable for stereo only (in addition to MONO input) Immersed in the light, you search for a guide. Golden emerges with the touchstones to illuminate your journey. Here shine the quintessential emulations of the finest reverbs ever created. The tube-driven springs of a 1960's guitar amplifier, the nostalgic warmth of studio plates, the endless algorithmic wonder of early digital reverb.Here you remain,forever Golden. www.uaudio.com Caution: To help maintain the safety of your product, the chosen power supply must be a certified power supply complying with Limited Power Source (LPS) requirements with the following characteristics and electrical ratings: Isolated 9VDC, center-negative, 400 mA minimum, 2.1x5.5 mm barrel connector. Additional details at help.uaudio.com. Before using this unit, be sure to carefully read the applicable items of these operating instructions and the safety suggestions. Afterwards, keep them handy for future reference. Take special care to follow the warnings indicated on the unit, as well as in the operating instructions. • Read the instructions. • Keep these instructions. • Heed all warnings. • Follow all instructions. • Do not use this apparatus near water. • Clean only with dry cloth. • Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions. • Do not install near any heat source such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat. • Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. • Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus. • Only use with attachments/accessories specified by the manufacturer. • Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped. • Golden Reverberator does not contain a fuse or any other user-replaceable parts. • A compliance marking label is provided on bottom of the unit. Uniited States Class B Manual Statement NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try and correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and the receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. Japanese Class B Manual Statement VCCI-B This is Class B equipment. Although this equipment is intended for use in residential environment, it could cause poor reception if used near a radio television receiver. Please follow instructions in the instruction manual. Korea KCC: . License exempt. This device complies with Industry Canada license-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device. Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de licence. L'exploitation est autorisée aux deux conditions suivantes : (1) l'appareil ne doit pas produire de brouillage, et (2) l'utilisateur de l'appareil doit acc…

Text truncated - open the document above for the full version.

User Guide v210203b “FCC ID: 2AXKQ2029” and “IC ID: 26610-2029“ 1/MONO 9VDC USB 2/STEREO2/STEREO PAIR IN 1/MONO DELAYFEEDBACKMIX DIVISION COLOR MOD TAPE EP-III ANALOG DMM PRECISION A B C ON TAP TEMPO | PRESET STORE STORE Hold down to save current settings as stored preset TEMPO LED Blinks RED with quarter note tempo, blinks GREEN when stored preset is active MOD Adjusts the modulation amount and/or rate Tape EP-III Wow & Flutter Analog DMM Depth Precision Rate, Depth, Feedback, Mix Cooper Time Cube Bass EFFECT MODE Selects variations within the active effect Tape EP-III: Machine model and tape age Minty Clean/Used Warm/Dark Worn Analog DMM: Modulation Vibrato/Off/Chorus Precision: Modulation Flanger/Off/Chorus Cooper Time Cube: Filter Off/Mid/Hi MIX Adjusts the dry/wet balance COLOR Adjusts the delay character Tape EP-III Record Level Analog DMM Input Gain Precision Tone Cooper Time Cube Treble FEEDBACK Adjusts the number of repeats TAP TEMPO | PRESET Tap to set tempo. Hold for 1.5s then release to toggle stored preset on/off. ON LED Lit when effect is active unless stored preset is recalled DIVISION Adjusts the delay time’s quarter note tempo ratio EFFECT TYPE Push up or down to cycle through delay types DELAY Adjusts the echo time ON SWITCH Press to toggle effect on/off MONO OUT Connect TS cable to amp or other gear for mono operation STEREO OUT Connect TS cable for stereo only (in addition to MONO output) 9VDC POWER IN Connect 400 mA isolated power supply (sold separately) MONO IN Connect TS cable from guitar or other gear for mono operation USB TYPE-C Connect to computer for firmware updates STEREO IN Connect TS cable for stereo only (in addition to MONO input) You are embarking on a path that few have travelled before. Thankfully, the echo commanders of yore left us the sonic signposts, faithfully and maniacally emulated herein. From the definitive tape echo, to syrupy bucket-brigade repeats, to hi-fidelity studio delays, Starlight Echo Station is your starting point — from here to the never-ending beyond. Get More Free Cooper Time Cube delay effect, full documentation, and help: uaudio.com/guitar/start Power SupplyIsolated 9VDC, center-negative, 400 mA minimum, 2.1x5.5 mm barrel connector (sold separately) www.uaudio.com Caution: To help maintain the safety of your product, the chosen power supply must be a certified power supply complying with Limited Power Source (LPS) requirements with the following characteristics and electrical ratings: Isolated 9VDC, center-negative, 400 mA minimum, 2.1x5.5 mm barrel connector. Additional details at help.uaudio.com. Before using this unit, be sure to carefully read the applicable items of these operating instructions and the safety suggestions. Afterwards, keep them handy for future reference. Take special care to follow the warnings indicated on the unit, as well as in the operating instructions. • Read the instructions. • Keep these instructions. • Heed all warnings. • Follow all instructions. • Do not use this apparatus near water. • Clean only with dry cloth. • Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions. • Do not install near any heat source such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat. • Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. • Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus. • Only use with attachments/accessories specified by the manufacturer. • Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped. • Starlight Echo Station does not contain a fuse or any other user-replaceable parts. • A compliance marking label is provided on bottom of the unit. Uniited States Class B Manual Statement NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try and correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and the receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. Japanese Class B Manual Statement VCCI-B This is Class B equipment. Although this equipment is intended for use in residential environment, it could cause poor reception if used near a radio television receiver. Please follow instructions in the instruction manual. Korea KCC: . License exempt. This device complies with Industry Canada license-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device. Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de licence. L'exploitation e…

Text truncated - open the document above for the full version.

FCC Confidentiality Letter - Emperor Approvers: Keith Koegler Dan Freeman Allan Timms DocuSign Envelope ID: EEAAE1E6-5CC3-44E3-9CE8-1B6F2C75990C Federal Communications Commission Equipment Authorization Division 7435 Oakland Mills Road Columbia, MD 21048 Date: December 9 th , 2020 Subject: Request for Permanent Confidentiality FCC ID: 2AXKQ2029 To Whom It May Concern: In accordance with §0.457(d) and §0.459 of CFR 47, and KDB 726920, Universal Audio, Inc. hereby requests permanent confidentiality for documents filed under the following exhibit types: 1. Schematics 2. Block Diagrams 3. Operational Description 4. Parts List / Tune-up Info 5. SDR Software / Security Info These items contain detailed system and equipment description and related information about the product which Universal Audio, Inc. considers to be proprietary, confidential and a custom design which otherwise would not be released to the general public. Since this design is a basis from which future technological products will evolve, Universal Audio, Inc. also feels that this information would be of benefit to its competitors, and that the disclosure of the information in these exhibits would give our competitors an unfair advantage in the market. We are aware that exhibit types cover letters, attestations, label document, test reports, RF exposure information (SAR and MPE reports), cannot be requested to be classified confidential and are thus subject to publication, as will be documents of all other exhibits types for which we have not requested a confidentiality classification. Best Regards, _______________________________ Signature DocuSign Envelope ID: EEAAE1E6-5CC3-44E3-9CE8-1B6F2C75990C Name: Rick Fabiano Title: CFO Company Name: Universal Audio, Inc. Address: 4585 Scotts Valley Drive, Scotts Valley, CA 95066 DocuSign Envelope ID: EEAAE1E6-5CC3-44E3-9CE8-1B6F2C75990C

FCC Short term Confidentiality Request - Emperor Approvers: Keith Koegler Dan Freeman Allan Timms DocuSign Envelope ID: 227E35B0-DD00-4853-A99A-F629E109B9BA Federal Communications Commission Equipment Authorization Division 7435 Oakland Mills Road Columbia, MD 21048 Date: December 9 th , 2020 Subject: Request for Short Term Confidentiality FCC-ID: 2AXKQ2029 To Whom It May Concern: In accordance with §0.457(d) and §0.459 of CFR 47, Universal Audio, Inc. hereby requests short term confidentiality for documents filed under the following exhibit types: 1. External Photos 2. Test Setup Photos 3. User’s Manual 4. Internal Photos until the product will be publicly announced. Short term confidentiality release date / period: 180 days from grant issue date (max 180 days from grant issue date) These items contain detailed system and equipment description and related information about the product which Universal Audio, Inc. considers to be proprietary, confidential and a custom design which otherwise would not be released to the general public. Since this design is a basis from which future technological products will evolve, Universal Audio, Inc. also feels that this information would be of benefit to its competitors, and that the disclosure of the information in these exhibits would give our competitors an unfair advantage in the market. We are informed and aware of our obligation that we have to inform the involved TCB in written and in due time if we intend to market the product prior to the above specified confidentiality release date so that the short term confidentiality classification can be reset prior to product launch. We are aware that exhibit types cover letters, attestations, label document, test reports, RF exposure information (SAR and MPE reports), cannot be requested to be classified confidential and are thus subject to publication, as will be documents of all other exhibits types for which we have not requested a confidentiality classification. Best Regards, DocuSign Envelope ID: 227E35B0-DD00-4853-A99A-F629E109B9BA ____________________________________ Signature Name: Rick Fabiano Title: CFO Company Name: Universal Audio, Inc. Address: 4585 Scotts Valley Drive, Scotts Valley, CA 95066 DocuSign Envelope ID: 227E35B0-DD00-4853-A99A-F629E109B9BA 12/16/2020

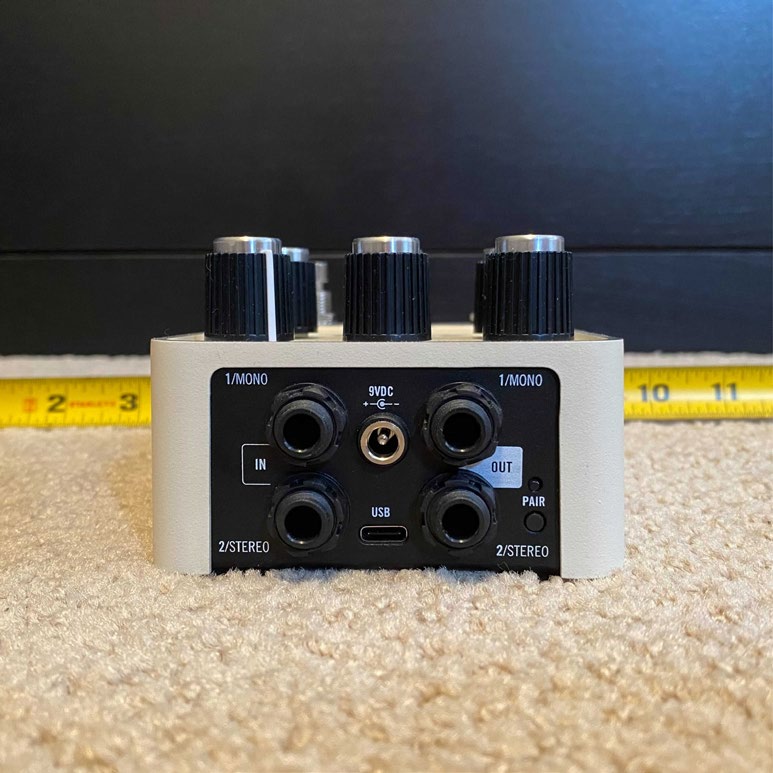

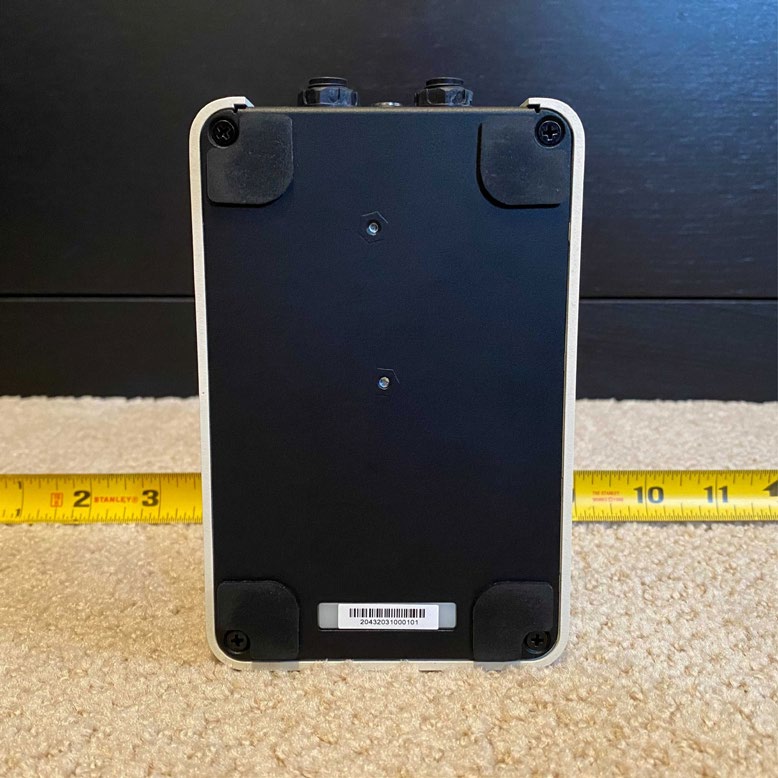

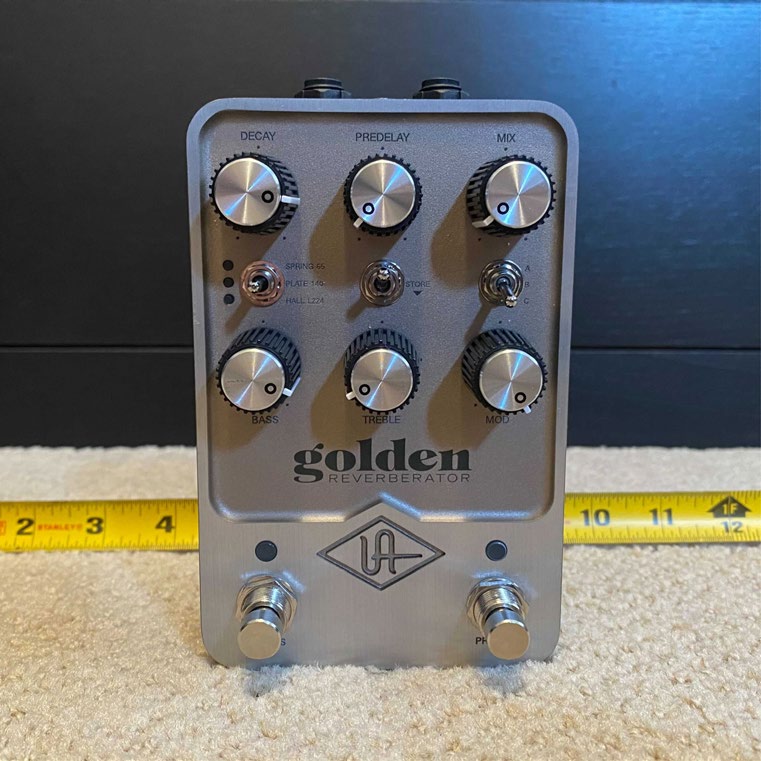

Universal Audio 2AXKQ2029 External Photos 2AXKQ2029 used for Model Numbers GPM-GOLD, GPM-STAR, and GPM-ASTRA Golden Reverberator Starlight Echo Station Astra Modulation Machine
