2AXKW-LW46Smart Watch

User Instructions Please read the instructions before use: ●We reserve the right to modify the contents of this notice without prior notice. Depending on normal conditions, certain functions may vary in specific software versions. ●This product should be charged for at least 2 hours before use, but avoid charging in an unoccupied environment for a long time when charging. ●Please connect the magnetic charging cable to the charging port of the smart watch automatically. ●Please use a charging head with input voltage: 5V/1A or 5V/2A and use the original charging cable provided by the manufacturer. ●Before using this product, please download the login program on your mobile phone, you can use the wristband time to set your personal information. ●Charging with the car charger is strictly prohibited (the voltage is unstable when the car ignition is turned off). APP download and login ● APP download method "OnWear Pro ": 1. Apple phones can be downloaded in the App Store. 2. Android phones can be downloaded from Google play store and App Store. 3. Or scan the QR code on the watch to download the APP (Compatible: IOS11.0 or above / Android 6.0 or above). After installing the APP, please follow the interface prompts to register and login, you need to turn on Bluetooth. In the device interface, select the Bluetooth name LW46 to bind and the watch can be used normally. Operation method ●On the dial screen, swipe from the top to the bottom to enter the shortcut screen ●On the dial screen, swipe from the bottom to the top to enter the information list screen ●On the dial screen, swipe from left to right to enter the menu style ●On the dial interface, swipe from right to left to enter the step count, heart rate and sleep interface Sports data Swipe the touch screen from right to left to access the sports data screen to view the day's data: steps, distance, calories Information Once the watch is connected to the mobile app, new pop-up messages on the phone are pushed to the watch side simultaneously. The watch stores several messages. Sleep Monitoring Shows the day's sleep monitoring status, data is updated daily and specific data can be synced to the APP for viewing. Blood Oxygen Monitoring Blood oxygen measurement: the red light at the bottom lights up to start the measurement, which is completed after approximately 30 to 60 seconds. The measurements at this point are based on the PPG technique measurements. Sports modes Access the interface for various sports modes: outdoor running, walking, treadmill, climbing, cycling, basketball, yoga, elliptical, etc. Weather The weather is automatically synced to the watch when it is connected to the mobile app Heart rate monitoring Heart rate measurement: the green light at the bottom lights up to start the measurement, which is completed after approximately 30 to 60 seconds. The measurements at this point are based on PPG technology. Language assistant Once the watch is connected to the mobile app, the language assistant function can be used directly Frequently used contacts Once the watch is connected to the mobile app, find your frequently used contacts in the settings and add them as required. Alarm clock Find the alarm function in the list and add an alarm according to the appropriate settings. Stopwatch Stopwatch timing: click on the triangle to start, click again to pause, after the pause, click on the left button to resume.. Women's Health Once the watch is connected to the mobile app, you need to set the gender as female in the app, and the watch will indicate the corresponding status according to the body health prompt setting. Breathing exercises Choose the appropriate time to inhale and exhale according to the interface to achieve the exercise. Dial switching The watch has several built-in dials that can be switched with a long press and supports push dials (there is also a large selection of dials available in the app).. Music Control music remotely. Once connected to the app and with the music player turned on, the watch can remotely control the music playing on the phone. Timer When the appropriate time is selected, the timer is activated and the timer will end the vibration reminder. Restoring the factory Confirm that restoring the factory will delete all personal data. Switch the device Press and hold the button for 3 seconds to switch on. The watch will turn on automatically when charging. Click on the switch-off icon to shut down. System Information View the watch's Bluetooth name, Mac address, firmware version number and other information. Incoming calls After connecting the app, if a call comes in from your phone, you can answer the call directly on the watch or hang up. Dialing After connecting the app, please pair the watch Bluetooth with your mobile phone. Bluetooth shows connected status, you can make calls from the watch Product parameters Please read this manual first to ensure safe and correct use ● The data from this product is for health management reference only. Please do not use it as medical data. If abnormal body data is found, hospital examination shall prevail. ● This watch is water resistant to IP68. You can use it normally in daily life, such as washing your hands, in the rain, etc. Please do not place the watch in hot water, do not perform operations such as pressing underwater or deep diving, and do not expose the watch to corrosive liquids to prevent damage to the watch. Water resistance rating. IP68 Sensor. 3-axis G-sensor Synchronisation method. Bluetooth Resolution: 240×280 Display screen: 1.69 inch TFT Working time: approx. 7-10 days Working temperature: -10°C～50°C Packing list: main unit, charging cable Compatible system. IOS 11.0 or above, Android 6.0 or above FCC Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential in…

Text truncated - open the document above for the full version.

SHENZHEN LINWEAR INNOVATION TECHNOLOGY CO.,LTD. Agent Authorization Company: SHENZHEN LINWEAR INNOVATION TECHNOLOGY CO.,LTD. Address: 3F, Building G, Dongsheng Science Park, No. 69 Guanlan Avenue, Longhua, Shenzhen, China Product Name: Smart Watch Trade Mark: N/A Model Number(s): LW46, LA21, LA21Pro, LA27, LA88, LA99, LW31, LW41, LW45, LW47, LW49, LW53, LW55, LW57, LW59, LW61, LW63, LW65, LW67, LW71, LW72, LW73, LW77, LW81, LW91, S8, HOAIYO V46, HOAIYO V21, H1 FCC ID: 2AXKW-LW46 We authorize MiCOM Labs Inc., 575 Boulder Court, Pleasanton, California 94566, USA, to act on our behalf on all matters concerning the certification of above named equipment. We declare that MiCOM Labs Inc. is allowed to forward all information related to the approval and certification of equipment to the regulatory agencies as required and to discuss any issues concerning the approval application. Any and all acts carried out by MiCOM Labs on our behalf shall have the same effect as acts of our own. Signature: Date: 2022-07-13 Name: Senlin Jiang Title: / Company: SHENZHEN LINWEAR INNOVATION TECHNOLOGY CO.,LTD.

SHENZHEN LINWEAR INNOVATION TECHNOLOGY CO.,LTD. Date: 2022-07-13 To: MiCOM Labs Inc 575 Boulder Court, Pleasanton, California 94566, USA Dear Sir/Madam, We, SHENZHEN LINWEAR INNOVATION TECHNOLOGY CO.,LTD. Hereby declares the following statement for MiCOM Labs Inc, PCB board, structure and internal of these model(s) are the same, Only different customers and model number is different for these model: Product name: Smart Watch Trade Mark:N/A Model No.: LW46, LA21, LA21Pro, LA27, LA88, LA99, LW31, LW41, LW45, LW47, LW49, LW53, LW55, LW57, LW59, LW61, LW63, LW65, LW67, LW71, LW72, LW73, LW77, LW81, LW91, S8, HOAIYO V46, HOAIYO V21, H1 Signature: Date: 2022-07-13 Name: Senlin Jiang Title: / Company: SHENZHEN LINWEAR INNOVATION TECHNOLOGY CO.,LTD.

SHENZHEN LINWEAR INNOVATION TECHNOLOGY CO.,LTD. Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 USA Date: 2022-07-13 Subject; Request for Confidentiality FCC ID: 2AXKW-LW46 To Whom It May Concern, Pursuant to the provisions of the Commission’s rules Title 47 Sections §0.457 and §0.459, we are requesting the Commission to withhold the following attachment(s) as confidential documents from public disclosure indefinitely. These documents contain detailed system and equipment descriptions and are considered as proprietary information in operation of the equipment. The public disclosure of these documents might be harmful to our company and would give competitors an unfair advantage in the market. Schematic Diagram Block Diagram Operational Description In additional to above mentioned documents, in order to comply with the marketing regulations in Title 47 CFR §2.803 and the importation rules in Title 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices, we request Short Term Confidentiality of the following attachment(s); External Photos Test Setup Photos Internal Photos User Manual For 45 days, pursuant to Public Notice DA 04-1705. OR For 180 days pursuant to KDB 726920 D01. It is our understanding that all measurement test reports, FCC ID label format and correspondence during the certification review process cannot be granted as confidential documents and this information will be available for public review once the grant of equipment authorization is issued. Sincerely, Signature: Name: Senlin Jiang Title: /

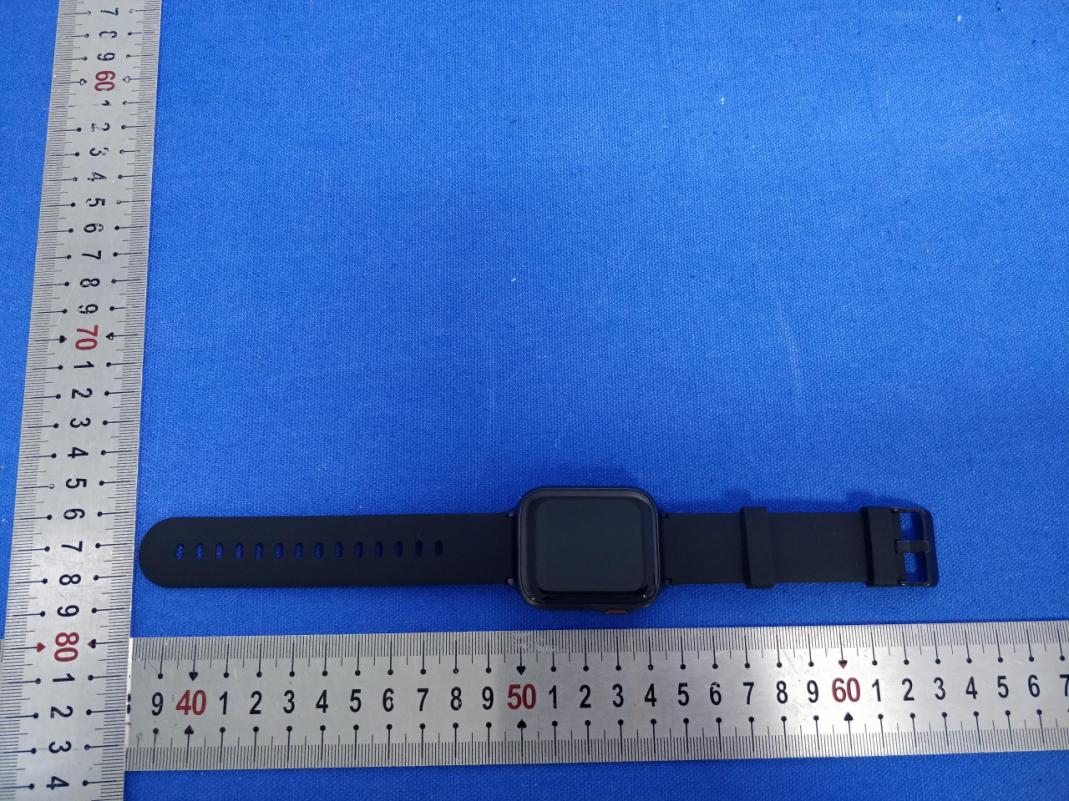

Page 1 of 4 FCC ID: 2AXKW-LW46 Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity External Photos of the EUT Fig. 1 Fig. 2 Page 2 of 4 FCC ID: 2AXKW-LW46 Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity Fig. 3 Fig. 4 Page 3 of 4 FCC ID: 2AXKW-LW46 Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity Fig. 5 Fig. 6 Page 4 of 4 FCC ID: 2AXKW-LW46 Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity Fig. 7

Page 1 of 1 FCC ID: 2AXKW-LW46 Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity LABEL AND LOCATION (Size: L: 2.0cm x W: 2.0cm) Label Location Smart Watch Model: LW46 FCC ID: 2AXKW-LW46

Page 1 of 5 FCC ID: 2AXKW-LW46 Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity Internal Photos of the EUT Fig. 1 Fig. 2 Page 2 of 5 FCC ID: 2AXKW-LW46 Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity Fig. 3 Fig. 4 BT Antenna Page 3 of 5 FCC ID: 2AXKW-LW46 Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity Fig. 5 Fig. 6 Page 4 of 5 FCC ID: 2AXKW-LW46 Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity Fig. 7 Fig. 8 Page 5 of 5 FCC ID: 2AXKW-LW46 Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity Fig. 9

Page 1 of 5 FCC ID: 2AXKW-LW46 Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity FCC RF Exposure Evaluation 1. Product Information FCC ID : 2AXKW-LW46 Product name : Smart Watch Test Model : LW46 Additional Model No. : LA21, LA21Pro, LA27, LA88, LA99, LW31, LW41, LW45, LW47, LW49, LW53, LW55, LW57, LW59, LW61, LW63, LW65, LW67, LW71, LW72, LW73, LW77, LW81, LW91, S8, HOAIYO V46, HOAIYO V21, H1 Model Declaration : PCB board, structure and internal of these model(s) are the same, So no additional models were tested Power Supply : Input: DC 5V, 1A DC 3.7V by Rechargeable Li-ion Battery, 210mAh Hardware Version : T54D_V1.1 Software Version : V1.20 Frequency Range : 2402MHz ~ 2480MHz Channel Number : 79 channels for Bluetooth V5.0 (DSS) 40 channels for Bluetooth V5.0 (DTS) Channel Spacing : 1MHz for Bluetooth V5.0(DSS) 2MHz for Bluetooth V5.0(DTS) Modulation Type : GFSK , π/4-DQPSK, 8-DPSK for Bluetooth V5.0 (DSS) GFSK for Bluetooth V5.0 (DTS) Bluetooth Version : V5.0 Antenna Type : Internal Antenna Antenna Gain : 5.09dBi Exposure category : General population/uncontrolled environment EUT Type : Production Unit Device Type : Portable Device Page 2 of 5 FCC ID: 2AXKW-LW46 Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity 2. Evaluation method and Limit According to KDB447498 D01 General RF Exposure Guidance v06 Section 4.3.1 Standalone SAR test exclusion considerations: “Unless specifically required by the published RF exposure KDB procedures, standalone 1-g head or body and 10-g extremity SAR evaluation for general population exposure conditions, by measurement or numerical simulation, is not required when the corresponding SAR Test Exclusion Threshold condition, listed below, is satisfied. These test exclusion conditions are based on source-based time-averaged maximum conducted output power of the RF channel requiring evaluation, adjusted for tune-up tolerance, and the minimum test separation distance required for the exposure conditions.22 The minimum test separation distance is determined by the smallest distance from the antenna and radiating structures or outer surface of the device, according to the host form factor, exposure conditions and platform requirements, to any part of the body or extremity of a user or bystander (see 5) of section 4.1). To qualify for SAR test exclusion, the test separation distances applied must be fully explained and justified by the operating configurations and exposure conditions of the transmitter and applicable host platform requirements, typically in the SAR measurement or SAR analysis report, according to the required published RF exposure KDB procedures. When no other RF exposure testing or reporting is required, a statement of justification and compliance must be included in the equipment approval, in lieu of the SAR report, to qualify for the SAR test exclusion. When required, the device specific conditions described in the other published RF exposure KDB procedures must be satisfied before applying these SAR test exclusion provisions; for example, handheld PTT two-way radios, handsets, laptops & tablets etc.“ [(max. power of channel, including tune-up tolerance, mW)/ (min. test separation distance, mm)] · [√f (GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR, where: • f (GHz) is the RF channel transmit frequency in GHz • Power and distance are rounded to the nearest mW and mm before calculation • The result is rounded to one decimal place for comparison • 3.0 and 7.5 are referred to as the numeric thresholds in the step 2 below The test exclusions are applicable only when the minimum test separation distance is ≤ 50 mm and for transmission frequencies between 100 MHz and 6 GHz. When the minimum test separation distance is < 5 mm, a distance of 5 mm according to f) in section 4.1 is applied to determine SAR test exclusion. When one of the following test exclusion conditions is satisfied for all combinations of simultaneous transmission configurations, further equipment approval is not required to incorporate transmitter modules in host devices that operate in the mixed mobile and portable host platform exposure conditions. The grantee is responsible for documenting this according to Class I permissive change requirements. Antennas that qualify for standalone SAR test exclusion must apply the estimated standalone SAR to determine simultaneous transmission test exclusion. a) The [∑ of (the highest measured or estimated SAR for each standalone antenna configuration, adjusted for maximum tune-up tolerance) / 1.6 W/kg] + [∑ of MPE ratios] is ≤ 1.0. b)The SAR to peak location separation ratios of all simultaneously transmitting antenna pairs operating in portable device exposure conditions are all ≤ 0.04, and the [∑ of MPE ratios] is ≤ 1.0. 3. Refer Evaluation Method ANSI C95.1–1999: IEEE Standard for Safety Levels with Respect to Human Exposure to Radio Frequency Electromagnetic Fields, 3 kHz to 300 GHz. FCC KDB publication 447498 D01 General RF Exposure Guidance v06: Mobile and Portable Devices RF Exposure Procedures and Equipment Authorization Policies. FCC CFR 47 part1 1.1310: Radiofrequency radiation exposure limits. FCC CFR 47 part2 2.1093: Radiofrequency radiation exposure evaluation: portable devices Page 3 of 5 FCC ID: 2AXKW-LW46 Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: ww…
