2AXLVGLD-1005Remote control

NATURAL ENERGY LAMP User Manual English Package including Thank you for purchasing this product. To ensure proper use and trouble-free operation, please read the user manual before use. LED Light DiffuserIncrease Brightness Decrease Brightness AC/DC Adapter RF Remote Control Support Stand Power / Light Temperature DC Port Timer - 1 - How to Use 1. Install Support (See Picture 1) 2. Set up Lighting Temperature 3. Set up Lighting Brightness 4. Timer Press the power button to switch the color temperature from daylight, natural light, and warm light. Press the +/ - button to adjust the brightness. Short press to adjust for 5 levels of brightness. Long press to customize your desired brightness and then release the button. Press the Timer button to set a 10/ 20/ 30/ 60 minutes timer. The light will turn off itself with the end of the setting time. Short press to turn off the timing function. - 2 - Specification 6. Remote Control Lighting Brightness Levels Selection low, middle and high brightness levels are available. Need Attention:To avoid interference by other remote controls with the same frequency, please pair the lamp with the remote control when using it for the first time. Pairing method: Hold the Timer Reset Button for 5 seconds until the 4 timer indicators(10/20/30/60 minutes) all light up. The pairing is successful after the indicator lights go out. Lighting Temperature Selection. Daylight, natural light and warm light are available. Adapter Input Voltage Device Input Voltage Power Rating Daylight Warm Light Materials Natural Light AC 100-240 V DC 24V. 1A 5500-5700 K 4000-4200 K 2800-3000 K ABS+PC 2-20W - 3 - Reminder Warranty 1. Before use: 2. When using: 3. After use: Please do not use the natural energy lamp, if you have an eye disease such as cataracts, glaucoma, diseases of the optic nerve, and inflammation of the vitreous humor, etc. Please do not stare at the light of the appliance or it may hurt your eyes. Eye pain and headaches may arise after the first use. These will disappear later, as the nervous system accustoms to the new stimulation. This product has a one-year warranty from the date of purchase. The warranty does not apply to products which have been lost, altered, broken, or damaged by misuse or failure to follow the instruction provided with the product. For any inquiries concerning our products, or if you want to apply for a replacement or refund, please feel free to contact us by: [email protected] Please start with a short period of illumination at the beginning, and gradually increase the light exposure time. The most effective period of the treatment is from 6 am. to 8 pm. and we recommend using it every day. Keep using the lamp in a poor light season for at least 7 consecutive days or even longer, depending on your individual needs. Please consult your doctor before use, if you have diabetics or you are taking medication such as pain relievers, anti-hypertensive, or antidepressants, etc. - 4 - ON/OFF Button Timer Reset Button Different Time Settings Lighting Brightness Levels Adjustment Press the / button to adjust the brightness. Short press to adjust for 5 levels of brightness. Long press to customize yourdesired brightness and then release the button. Press the button to turn on/ off the natural energy lamp. Short press the button to turn off the Timer. Press the 10/ 20/ 30/ 60 minutes button for different timing settings. [email protected] MADE IN CHINA This device complies with Part 15 of the FCC rules. Operation is subject to the follo wing two conditions: 1) this device may not cau se harmful interference, a nd 2) this device must accept any interference received, including interference that may cause undesired operation. Caution: Changes or modifications not expressly approved by the party responsible for compliance could void your authority to operate the equipment. The device has been evaluated to meet general RF exposure requirement. The device can be used in portable exposure condition without restriction.

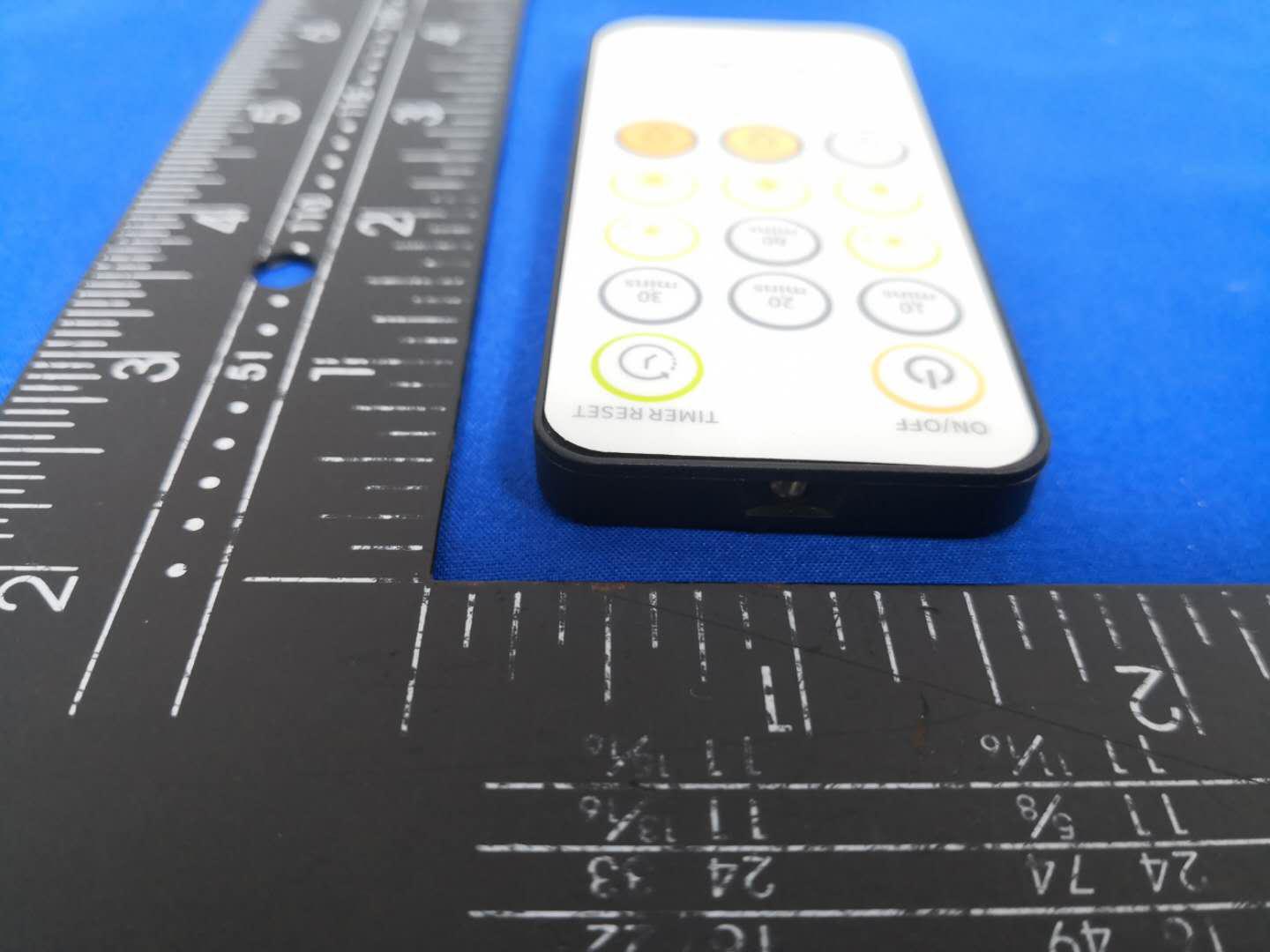

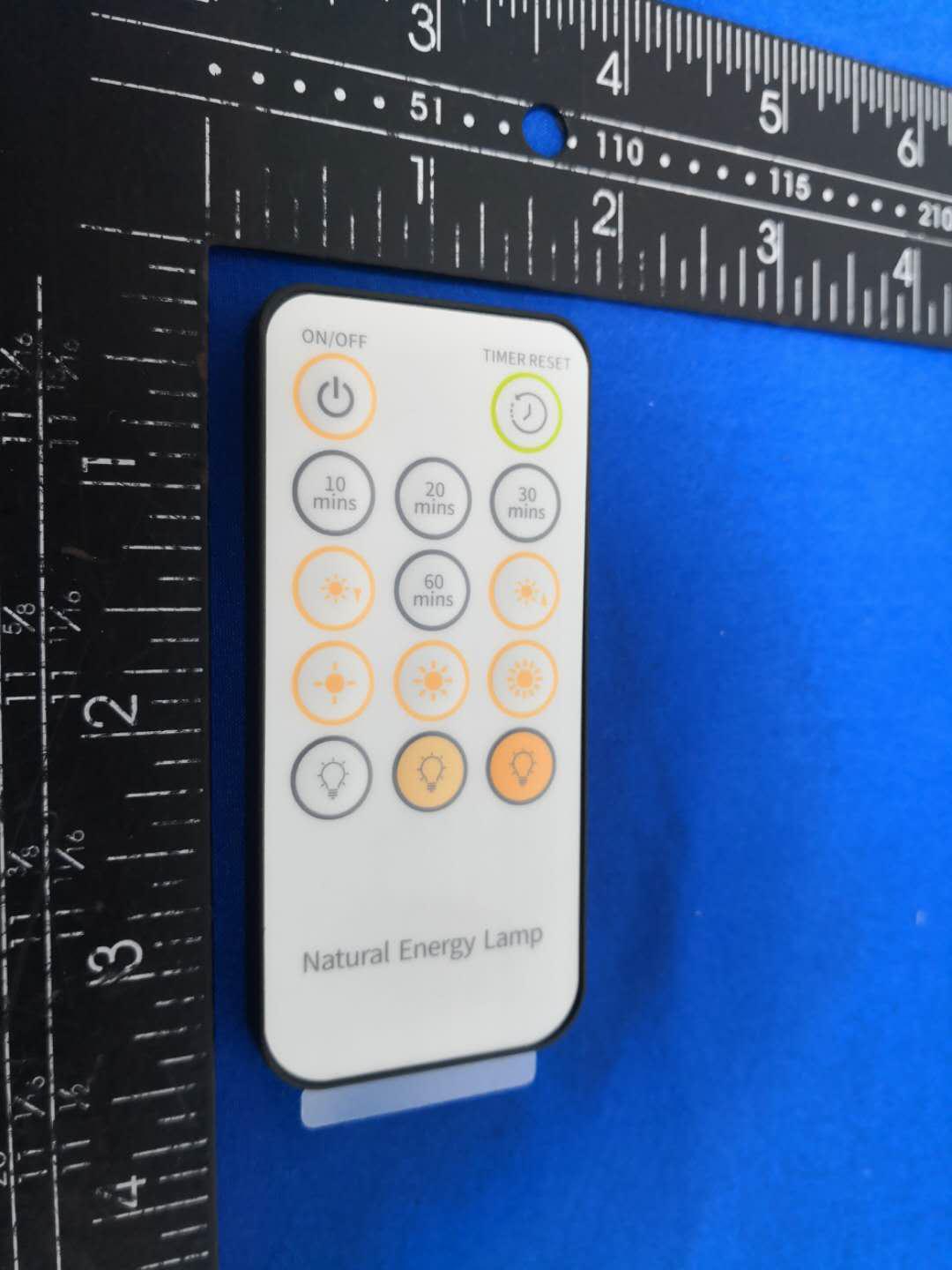

EUT Photos

Page 1 of 35 FCC TEST REPORT FCC ID: 2AXLVGLD-1005 Product : Remote control Model Name : GLD-1005 Brand : N/A Report No. : PTC20050901301E-FC01 Prepared for ShenZhen HuaZhiTai Technology Co.,LTD 3F ,E Block ,Nanlian Hengyu Science and Technology Park, No.1 Ruiji Road ,Longgang Distri ct,Shenzhen City, Guangdong province,China Prepared by Precise Testing & Certification Co., Ltd. Building 1, No. 6, Tongxin Road, Dongcheng Street, Dongguan, Guangdong, China Page 2 of 35 Report No.: PTC20050901301E-FC01 1 TEST RESULT CERTIFICATION Applicant’s name : ShenZhen HuaZhiTai Technology Co.,LTD 3F ,E Block ,Nanlian Hengyu Science and Technology Park, No.1 Ruiji Address : Road ,Longgang District,Shenzhen City, Guangdong province,China Manufacture's : ShenZhen HuaZhiTai Technology Co.,LTD 3F ,E Block ,Nanlian Hengyu Science and Technology Park, No.1 Ruiji Road ,Longgang District,Shenzhen City, Guangdong province,China Product name : Remote control Model name : GLD-1005 Standards : FCC CFR47 Part 15 Section 15.231 Test procedure : ANSI C63.10:2013 Test Date : August 10,2020 to September 5, 2020 Date of Issue : September 7, 2020 Test Result : Pass This device described above has been tested by PTC, and the test results show that the equipment under test (EUT) is in compliance with the FCC requirements. And it is applicable only to the tested sample identified in the report. This report shall not be reproduced except in full, without the written approval of PTC, this document may be altered or revised by PTC, personal only, and shall be noted in the revision of the document. Test Engineer: Technical Manager: Leo Yang / Engineer Chris Du / Manager Address : Page 3 of 35 Report No.: PTC20050901301E-FC01 Contents Page 1 TEST RESULT CERTIFICATION .......................................................................................................................... 2 2 TEST SUMMARY ..................................................................................................................................................... 5 3 GENERAL INFORMATION .................................................................................................................................... 6 3.1 GENERAL DESCRIPTION OF E.U.T ................................................................................................................. 6 3.2 TEST METHODOLOGY ..................................................................................................................................... 7 3.3 TEST SITE ...................................................................................................................................................... 8 4 EQUIPMENT DURING TEST.................................................................................................................................. 9 4.1 EQUIPMENTS LIST .......................................................................................................................................... 9 4.2 MEASUREMENT UNCERTAINTY ..................................................................................................................... 10 4.3 DESCRIPTION OF SUPPORT UNITS ............................................................................................................... 11 5 CONDUCTED EMISSION ..................................................................................................................................... 12 5.1 E.U.T. OPERATION ...................................................................................................................................... 12 5.2 EUT SETUP.................................................................................................................................................. 12 5.3 TEST SET-UP (BLOCK DIAGRAM OF CONFIGURATION) .............................................................................. 13 5.4 MEASUREMENT PROCEDURE ....................................................................................................................... 13 5.5 CONDUCTED EMISSION LIMIT ....................................................................................................................... 13 5.6 MEASUREMENT DESCRIPTION ...................................................................................................................... 13 5.7 CONDUCTED EMISSION TEST RESULT ......................................................................................................... 13 6 RADIATED SPURIOUS EMISSIONS .................................................................................................................. 14 6.1 EUT OPERATION.......................................................................................................................................... 16 6.2 TEST SETUP ................................................................................................................................................. 17 6.3 SPECTRUM ANALYZER SETUP ...................................................................................................................... 18 6.4 TEST PROCEDURE........................................................................................................................................ 19 6.5 SUMMARY OF TEST RESULTS ...................................................................................................................... 20 7 OCCUPIED BANDWIDTH .................................................................................................................................... 24 7.1 APPLICABLE STANDARD ............................................................................................................................... 24 7.2 CONFORMANCE LIMIT ................................................................................................................................... 24 7.3 TEST PROCEDURE.....................................................................................…

Text truncated - open the document above for the full version.

Radiated Spurious Emissions From 30MHz-1000MHz Test frequency from 1GHz-5GHz
