2AXMIGET002ALL IN ONE

General Electrical Touch Co., Limited

Click to zoom

Application Details

Equipment Class: DSS - Part 15 Spread Spectrum Transmitter
Date of Grant: Mar 11, 2021
Application Purpose: Original Equipment
Date of Application: Mar 10, 2021
Equipment Note: ALL IN ONE
Frequency Range: 2402.00000000 - 2480.00000000
Company: General Electrical Touch Co., Limited
Country: China

Documents & Files

Select a file to view

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

Product Instruction Product Name： Product Model： Product Version： GEO-080R5B250C700-I-MBVM-PG 020-AT V2.2 Please read this manual carefully before using ALL IN ONE Warning 1. The Device is not a medical device 2. Temperature accuracy is ±0.5° 3. The temperature threshold to define if an user has fever is set by SW to 37.5°. Make sure that the threshold is set correctly. 4. After reboot, wait 15min for Ambient temperature calibration of the device 5. The device works only in indoor or semi indoor environment. Avoid direct sunlight or rain 6. Elevated body temperature in the context of use should be confirmed with secondary evaluation methods (e.g., an NCIT or clinical grade contact thermometer) 7．Contact information Carl Chen Project Manager +86 18606271067 [email protected] General Electrical Touch Co., Limited Rm.1902,Easey Comm.Bldg.,253-261 Hennessy Road,Wanchai,HongKong, China This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body. Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de licence. L'exploitation est autorisée aux deux conditions suivantes: (1) l'appareil ne doit pas produire de brouillage, et (2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d'en compromettre le fonctionnement. Pr1。ductdescription (Reference legend) This product is aimed at the needs of large capacity, high performance, wide application, and customization in the face recognition application process. It introduces a face recognition intelligent temperature measurement hardware that can be combined with face 「ecognitionalgorithms without user cooperation. Realize living body detection, human face dynamic recognition, body temperature indu?tion measurement, warn of abnormal body temperature and remind use「sto put on masks to p「ovideusers with a safe environment for use. The product is based on Rockchip RK3399, dual-core Cortex-A72 (2.0 GHz) and quad-core Co巾x-A53 application p「ocessor(1.4 GHz), 200W RGB + IR binocular camera, supports WI问＋Gigabit networking and rich peripheral security interfaces, Meet the needs of use「accesscontrol management, body temperature detection and identification. The product is suitable for office areas, hotels, passage gates, office buildings, schools, shopping malls, shops, communities, public services and management, etc. where facerecognition and temperature measu『ementare requi「ed. Features 画困回囹因 � 因 Hi g h perfonnance Binocular国meraDistance sensin g Tricolor lamp Infrared temperature S田urityinterface Multiple installation measurement 7 8 NO. Content Combined with face reco g ni甘。nalg。rithmand infra陪dsensor temperature measurement, it su p p。rts10,000-level human face da恼base un'cfor 'iow ii g 'fii and stron g 'iiackii g hi', ai'I have g ood Provide development Kit, Satisfy SI / ISVThe manufacture「ssecond町developmentneeds RF function 2412Mhz~2472Mhz maximum output power.0.062W Bluetooth: Frequency Range: 2402Mhz~2480Mhz 0.003W

Cover Letter(s)

C5266091_X8_Ed.1 1/1 Letter of Authorization Company: General Electrical Touch Co., Limited Address: Rm.1902,Easey Comm.Bldg.,253-261 Hennessy Road,Wanchai,HongKong, China Product Name: ALL IN ONE Model Number: GEO-080R5B250C700-I-MBVM-PG020-AT FCC Identifier: 2AXMIGET002 We authorize LGAI Technological Center S.A., Ronda de la Font del Carme, s/n, 08193 Bellaterra, Spain, to act on our behalf on all matters concerning the above named equipment. Any individual within LGAI Technological Center S.A. is authorized to act on our behalf and take action on the application. We declare that authorize LGAI Technological Center S.A., Ronda de la Font del Carme, s/n, 08193 Bellaterra, Spain, is allowed to forward all information related to the approval project to the Federal Communication Commission and to discuss any issues concerning the approval application. Any and all acts carried out by LGAI Technological Center S.A. on our behalf shall have the same effect as acts of our own. Name: Carl Chen Date: 2021-3-3 Title: Project Manager Signature of applicant:

Cover Letter(s)

C5266091_X10_Ed.1 1/1 General Electrical Touch Co., Limited Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 Date: 2021-3-3 Subject: Request for Confidentiality FCC ID: 2AXMIGET002 To Whom It May Concern, Pursuant to the provisions of Sections 0.457 and 0.459 of Commission's rules (47CFR0.457, 0.459), we are requesting the Commission to withhold the following attachment(s) as confidential document from public disclosure. Exhibits Long-Term Confidentiality Short-Term Confidentiality ID Label/Location No No Attestation Statement No No External Photos No Block Diagram Schematics Test Report No No Test Setup Photos No User’s Manual Internal Photos Parts List / Tune Up RF Exposure Info Operational Description Cover Letter(s) No No SDR Software / Security Info No Above mentioned document contains detailed system and equipment description are considered as proprietary information in operation of the equipment. The public disclosure of above documents might be harmful to our company and would give competitor an unfair advantage in the market. It is our understanding that all measurement test reports, FCC ID label format and correspondent during certification review process cannot be granted as confidential documents and those information will be available for public review once the grant of equipment authorization is issued. Sincerely, Signature: Name: Carl Chen Title: Project Manager

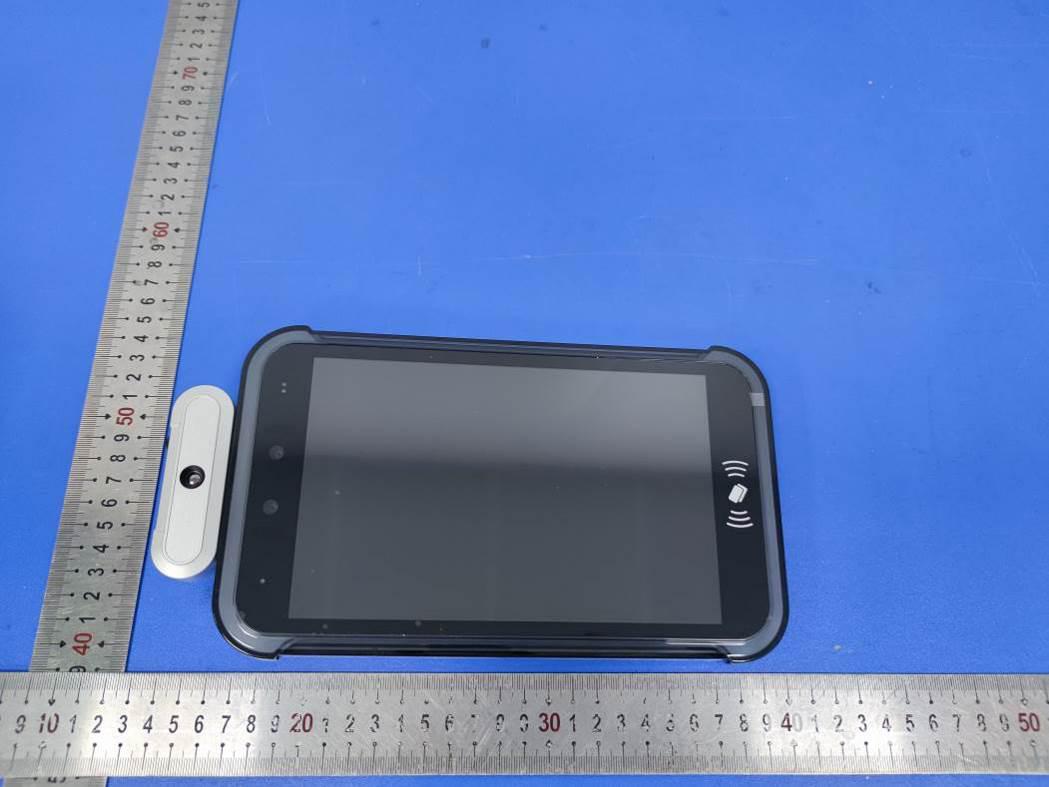

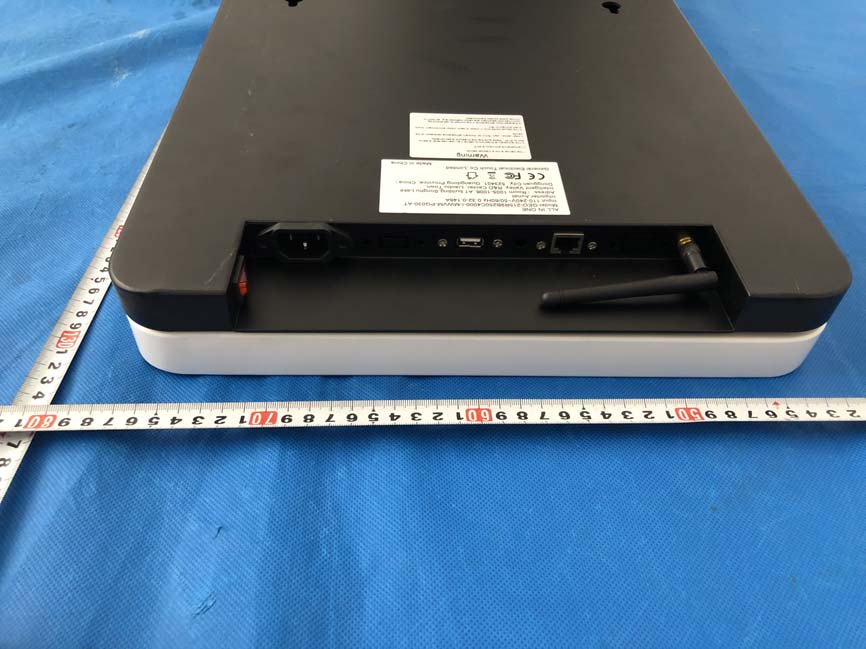

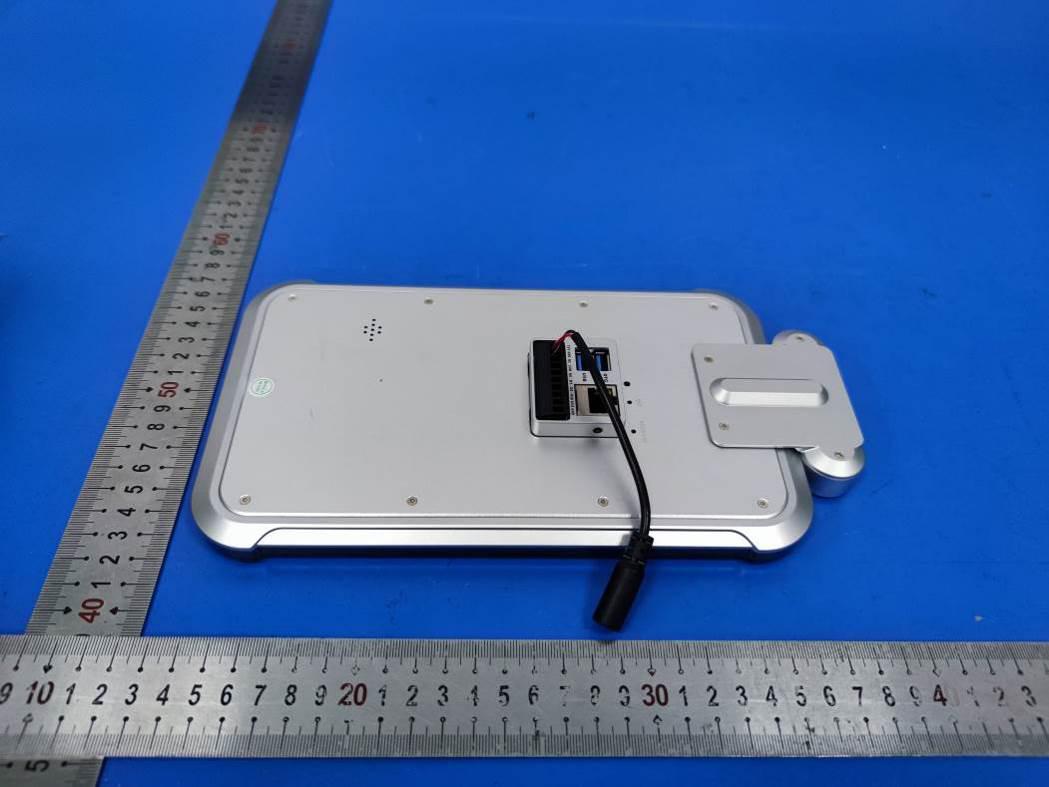

External Photos

SHENZHENLCSCOMPLIANCETESTINGLABORATORYLTD.FCCID:2AXMIGET002 EXTERIORPHOTOGRAPHS Fig.1 Fig.2 SHENZHENLCSCOMPLIANCETESTINGLABORATORYLTD.FCCID:2AXMIGET002 Fig.3 Fig.4 SHENZHENLCSCOMPLIANCETESTINGLABORATORYLTD.FCCID:2AXMIGET002 Fig.5 Fig.6 SHENZHENLCSCOMPLIANCETESTINGLABORATORYLTD.FCCID:2AXMIGET002 Fig.7 Fig.8

ID Label/Location Info

Internal Photos

SHENZHENLCSCOMPLIANCETESTINGLABORATORYLTD.FCCID:2AXMIGET002 INTERIORPHOTOGRAPHS Fig.1 Fig.2 WIFIAntenna BTAntenna SHENZHENLCSCOMPLIANCETESTINGLABORATORYLTD.FCCID:2AXMIGET002 Fig.3 Fig.4 SHENZHENLCSCOMPLIANCETESTINGLABORATORYLTD.FCCID:2AXMIGET002 Fig.5 Fig.6 SHENZHENLCSCOMPLIANCETESTINGLABORATORYLTD.FCCID:2AXMIGET002 Fig.7 Fig.8 SHENZHENLCSCOMPLIANCETESTINGLABORATORYLTD.FCCID:2AXMIGET002 Fig.9 Fig.10 RF chipset SHENZHENLCSCOMPLIANCETESTINGLABORATORYLTD.FCCID:2AXMIGET002 Fig.11 Fig.12 SHENZHENLCSCOMPLIANCETESTINGLABORATORYLTD.FCCID:2AXMIGET002 Fig.13 Fig.14 SHENZHENLCSCOMPLIANCETESTINGLABORATORYLTD.FCCID:2AXMIGET002 Fig.15 Fig.16 SHENZHENLCSCOMPLIANCETESTINGLABORATORYLTD.FCCID:2AXMIGET002 Fig.17 Fig.18 SHENZHENLCSCOMPLIANCETESTINGLABORATORYLTD.FCCID:2AXMIGET002 Fig.19 Fig.20 SHENZHENLCSCOMPLIANCETESTINGLABORATORYLTD.FCCID:2AXMIGET002 Fig.21

RF Exposure Info

SHENZHENLCSCOMPLIANCETESTINGLABORATORYLTD.FCCID:2AXMIGET002 Thisreportshallnotbereproducedexceptinfull,withoutthewrittenapprovalofShenzhenLCSComplianceTestingLaboratoryLtd. Page 1 of 5 FCCRFExposureEvaluation 1.ProductInformation FCCID2AXMIGET002 Productname ALLINONE Modelnumber GEO-080R5B250C700-I-MBVM-PG020-AT Powersupply Input:DC12V,1.8A,21.6W ForACAdapterInput:AC100-240V,50/60Hz,0.7A Output:DC12V,1.8A,21.6W ModulationType GFSK,π/4-DQPSK,8-DPSKforBluetoothV4.2(DSS) GFSKforBluetoothV4.2(DTS) IEEE802.11b:DSSS(CCK,DQPSK,DBPSK); IEEE802.11g/n:OFDM(64QAM,16QAM,QPSK,BPSK) AntennaTypeInternalAntenna AntennaGain2dBi(Max.) Hardwareversion/ Softwareversion / FCCOperationfrequency 2402MHz~2480MHz 2412MHz-2462MHz ExposurecategoryGeneralpopulation/uncontrolledenvironment EUTTypeProductionUnit DeviceTypeMobileDevices 2.EvaluationMethod SystemsoperatingundertheprovisionsofFCC47CFRsectionshallbeoperatedinamannerthatensuresthatthepublic isnotexposedtoradiofrequencyenergylevelinexcessoftheCommission’sguidelines. Inaccordancewith47CFRFCCPart2SubpartJ,section2.1091thisdevicehasbeendefinedasmobiledevicewhereby adistanceof0.2mnormallycanbemaintainedbetweentheuserandthedevice,andbelowRFPermissibleExposure limitshallcomplywith. InaccordancewithKDB447498D01forSimultaneoustransmissionMPEtestexclusionapplieswhenthesumofthe MPEratiosforallsimultaneoustransmittingantennasincorporatedinahostdevice,basedonthecalculated/estimated, numericallymodelledormeasuredfieldstrengthsorpowerdensity,is≤1.0.TheMPEratioofeachantennais determinedattheminimumtestseparationdistancerequiredbytheoperatingconfigurationsandexposureconditionsof thehostdevice,accordingtotheratiooffieldstrengthsorpowerdensitytoMPElimit,atthetestfrequency.Eitherthe maximumpeakorspatiallyaveragedresultsfrommeasurementsornumericalsimulationsmaybeusedtodeterminethe MPEratios.SpatialaveragingdoesnotapplywhenMPEisestimatedusingsimplecalculationsbasedonfar-field plane-waveequivalentconditions.Theantennainstallationandoperatingrequirementsforthehostdevicemustmeetthe minimumtestseparationdistancesrequiredbyallantennas,inbothstandaloneandsimultaneoustransmissionoperations, tosatisfycompliance. 3.Limit 3.1ReferEvaluationMethod ANSIC95.1–1999:IEEEStandardforSafetyLevelswithRespecttoHumanExposuretoRadioFrequency ElectromagneticFields,3kHzto300GHz. FCCKDBpublication447498D01General1RFExposureGuidancev06:MobileandPortableDevicesRFExposure ProceduresandEquipmentAuthorizationPolicies. FCCCFR47part11.1310:Radiofrequencyradiationexposurelimits. FCCCFR47part22.1091:Radiofrequencyradiationexposureevaluation:mobiledevices SHENZHENLCSCOMPLIANCETESTINGLABORATORYLTD.FCCID:2AXMIGET002 Thisreportshallnotbereproducedexceptinfull,withoutthewrittenapprovalofShenzhenLCSComplianceTestingLaboratoryLtd. Page 2 of 5 3.2Limit LimitsforMaximumPermissibleExposure(MPE)/ControlledExposure Frequency Range(MHz) ElectricField Strength(V/m) MagneticField Strength(A/m) PowerDensity (mW/cm²) AveragingTime (minute) LimitsforOccupational/ControlledExposure 0.3–3.0 3.0–30 30–300 300–1500 1500–100,000 614 1842/f 61.4 / / 1.63 4.89/f 0.163 / / (100)* (900/f 2 )* 1.0 f/300 5 6 6 6 6 6 LimitsforMaximumPermissibleExposure(MPE)/UncontrolledExposure Frequency Range(MHz) ElectricField Strength(V/m) MagneticField Strength(A/m) PowerDensity (mW/cm²) AveragingTime (minute) LimitsforOccupational/ControlledExposure 0.3–3.0 3.0–30 30–300 300–1500 1500–100,000 614 824/f 27.5 / / 1.63 2.19/f 0.073 / / (100)* (180/f 2 )* 0.2 f/1500 1.0 30 30 30 30 30 F=frequencyinMHz *=Plane-waveequivalentpowerdensity 4.MPECalculationMethod PredicationofMPElimitatagivendistance Equationfrompage18ofOETBulletin65,Edition97-01 S=PG/4πR² Where:S=powerdensity P=powerinputtoantenna G=powergainoftheantennainthedirectionofinterestrelativetoanisotropicradiator R=distancetothecenterofradiationoftheantenna 5.AntennaInformation GEO-080R5B250C700-I-MBVM-PG020-ATAntennacanonlyuseantennascertificatedasfollowsprovidedby manufacturer; Internal Identification Antennatypeand antennanumber Operatefrequencyband Maximumantenna gain Note AntennaInternalAntenna2402MHz~2480MHz2dBiBTAntenna AntennaInternalAntenna2412MHz-2462MHz2dBiWIFIAntenna SHENZHENLCSCOMPLIANCETESTINGLABORATORYLTD.FCCID:2AXMIGET002 Thisreportshallnotbereproducedexceptinfull,withoutthewrittenapprovalofShenzhenLCSComplianceTestingLaboratoryLtd. Page 3 of 5 6.ConductedPower <BTMaxConductedPower> ModeChannelFrequency(MHz) MaxConductedPower (dBm) GFSK 024022.649 3924412.942 7824802.822 π/4DQPSK 024024.787 3924415.067 7824804.971 8DPSK 024025.094 3924415.256 7824805.159 <BTLEMaxConductedPower> ModeChannelFrequency(MHz) MaxConductedPower (dBm) GFSK 024024.176 1924405.018 3924805.559 <2.4GWLANMaxConductedPower> ModeChannelFrequency(MHz) MaxConductedPower (dBm) IEEE802.11b 1241217.37 6243717.64 11246217.13 IEEE802.11g 1241217.94 6243717.47 11246217.57 IEEE802.11n HT20 1241217.63 6243717.88 11246217.12 IEEE802.11n HT40 3242217.89 6243717.65 9245217.61 SHENZHENLCSCOMPLIANCETESTINGLABORATORYLTD.FCCID:2AXMIGET002 Thisreportshallnotbereproducedexceptinfull,withoutthewrittenapprovalofShenzhenLCSComplianceTestingLaboratoryLtd. Page 4 of 5 7.ManufacturingTolerance <BT> GFSK(Peak) ChannelChannel0Channel39Channel78 Target(dBm)2.02.02.0 Tolerance±(dB)1.01.01.0 π/4DQPSK(Peak) ChannelChannel0Channel39Channel78 Target(dBm)4.05.04.0 Tolerance±(dB)1.01.01.0 8DPSK(Peak) ChannelChannel0Channel39Channel78 Target(dBm)5.05.05.0 Tolerance±(dB)1.01.01.0 <BTLE> GFSK(Peak) ChannelChannel0Channel19Channel39 Target(dBm)4.05.05.0 Tolerance±(dB)1.01.01.0 <2.4GWIFI> 11B(Peak) ChannelChannel1Channel6Channel11 Target(dBm) 17.017.017.0 Tolerance±(dB) 1.01.01.0 11G(Peak) ChannelChannel1Channel6Channel11 Target(dBm) 17.017.017.0 Tolerance±(dB)1.01.01.0 11N20SISO(Peak) ChannelChannel1Channel6Channel11 Target(dBm) 17.017.017.0 Tolerance±(dB)1.01.01.0 11N40SISO(Peak) ChannelChannel3Channel6Channel9 Target(dBm) 17.017.017.0 Tolerance±(dB)1.01.01.0 SHENZHENLCSCOMPLIANCETESTINGLABORATORYLTD.FCCID:2AXMIGET002 Thisreportshallnotbereproducedexce…

Text truncated - open the document above for the full version.

Test Report

SHENZHENLCSCOMPLIANCETESTINGLABORATORYLTD.FCCID:2AXMIGET002ReportNo.:LCS210128049AEA Thisreportshallnotbereproducedexceptinfull,withoutthewrittenapprovalofShenzhenLCSComplianceTestingLaboratoryLtd. Page1of36 FCCTESTREPORT FOR GeneralElectricalTouchCo.,Limited ALLINONE TestModel:GEO-080R5B250C700-I-MBVM-PG020-AT Preparedfor:GeneralElectricalTouchCo.,Limited Address: Rm.1902,EaseyComm.Bldg.,253-261HennessyRoad,Wanchai, HongKong Preparedby:ShenzhenLCSComplianceTestingLaboratoryLtd. Address: 101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei, ShajingStreet,BaoanDistrict,Shenzhen,518000,China Tel:(+86)755-82591330 Fax:(+86)755-82591332 Web:www.LCS-cert.com Mail:[email protected] Dateofreceiptoftestsample:January29,2021 Numberoftestedsamples:2 SampleNo. ： 210128049A-1,210128049A-2 Serialnumber:Prototype DateofTest:January29,2021~February02,2021 DateofReport:February05,2021 SHENZHENLCSCOMPLIANCETESTINGLABORATORYLTD.FCCID:2AXMIGET002ReportNo.:LCS210128049AEA Thisreportshallnotbereproducedexceptinfull,withoutthewrittenapprovalofShenzhenLCSComplianceTestingLaboratoryLtd. Page2of36 FCCTESTREPORT FCCCFR47PART15C(15.247) ReportReferenceNo......................:LCS210128049AEA DateofIssue.......................................:February05,2021 TestingLaboratoryName..............:ShenzhenLCSComplianceTestingLaboratoryLtd. Address................................................: 101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei, ShajingStreet,BaoanDistrict,Shenzhen,518000,China TestingLocation/Procedure............ : FullapplicationofHarmonisedstandards■ PartialapplicationofHarmonisedstandards□ Otherstandardtestingmethod□ Applicant’sName.............................: GeneralElectricalTouchCo.,Limited Address................................................: Rm.1902,EaseyComm.Bldg.,253-261HennessyRoad,Wanchai, HongKong TestSpecification Standard..............................................:FCCCFR47PART15C(15.247) TestReportFormNo.........................:LCSEMC-1.0 TRFOriginator....................................:ShenzhenLCSComplianceTestingLaboratoryLtd. MasterTRF.........................................:Dated2011-03 ShenzhenLCSComplianceTestingLaboratoryLtd.Allrightsreserved. Thispublicationmaybereproducedinwholeorinpartfornon-commercialpurposesaslongasthe ShenzhenLCSComplianceTestingLaboratoryLtd.isacknowledgedascopyrightownerandsourceofthe material.ShenzhenLCSComplianceTestingLaboratoryLtd.takesnoresponsibilityforandwillnot assumeliabilityfordamagesresultingfromthereader'sinterpretationofthereproducedmaterialduetoits placementandcontext. TestItemDescription.....................:ALLINONE TradeMark..........................................:N/A TestModel...........................................:GEO-080R5B250C700-I-MBVM-PG020-AT Ratings.................................................: Input:DC12V,1.8A,21.6W ForACAdapterInput:AC100-240V,50/60Hz,0.7A Output:DC12V,1.8A,21.6W Result..................................................:Positive Testedby:Compiledby:Approvedby: ScentHu/Administrators JinWang/Techniqueprincipal GavinLiang/Manager SHENZHENLCSCOMPLIANCETESTINGLABORATORYLTD.FCCID:2AXMIGET002ReportNo.:LCS210128049AEA Thisreportshallnotbereproducedexceptinfull,withoutthewrittenapprovalofShenzhenLCSComplianceTestingLaboratoryLtd. Page3of36 FCC--TESTREPORT TestResult Positive Thetestreportmerelycorrespondstothetestsample. Itisnotpermittedtocopyextractsofthesetestresultwithoutthewrittenpermissionofthetestlaboratory. TestReportNo.:LCS210128049AEA February05,2021 Dateofissue TestModel.............................. : GEO-080R5B250C700-I-MBVM-PG020-AT EUT......................................... : ALLINONE Applicant...............................:GeneralElectricalTouchCo.,Limited Address...................................:Rm.1902,EaseyComm.Bldg.,253-261HennessyRoad, Wanchai,HongKong Telephone...............................:/ Fax..........................................:/ Manufacturer.........................: GeneralElectricalTouchCo.,Limited Address...................................: Rm.1902,EaseyComm.Bldg.,253-261HennessyRoad, Wanchai,HongKong Telephone...............................:/ Fax..........................................:/ Factory...................................: / Address...................................: / Telephone...............................:/ Fax..........................................:/ SHENZHENLCSCOMPLIANCETESTINGLABORATORYLTD.FCCID:2AXMIGET002ReportNo.:LCS210128049AEA Thisreportshallnotbereproducedexceptinfull,withoutthewrittenapprovalofShenzhenLCSComplianceTestingLaboratoryLtd. Page4of36 RevisionHistory RevisionIssueDateRevisionsRevisedBy 000February05,2021InitialIssueGavinLiang SHENZHENLCSCOMPLIANCETESTINGLABORATORYLTD.FCCID:2AXMIGET002ReportNo.:LCS210128049AEA Thisreportshallnotbereproducedexceptinfull,withoutthewrittenapprovalofShenzhenLCSComplianceTestingLaboratoryLtd. Page5of36 TABLEOFCONTENTS DescriptionPage 1.GENERALINFORMATION........................................................................................................6 1.1DescriptionofDevice(EUT).............................................................................................................6 1.2SupportequipmentList.....................................................................................................................7 1.3ExternalI/OCable..............................................................................................................................7 1.4DescriptionofTestFacility...............................................................................................................7 1.5StatementoftheMeasurementUncertainty..................................................................................7 1.6MeasurementUncertainty.................................................................................................................7 1.7DescriptionofTestModes.....................................................................................…

Text truncated - open the document above for the full version.

Test Report

SHENZHENLCSCOMPLIANCETESTINGLABORATORYLTD.FCCID:2AXMIGET002 Page1of52 AppendixA RFTestDataforBTV4.2(BDR/EDR)(ConductedMeasurement) ProductName:ALLINONE TradeMark:N/A TestModel:GEO-080R5B250C700-I-MBVM-PG020-AT EnvironmentalConditions Temperature: 24.6C RelativeHumidity:54.1% ATMPressure:100.0kPa TestEngineer:KayHu Supervisedby:LiHuan A.1MaxmumConductedPeakOutputPower ModeChannel.MaximumPeakOutputPower[dBm]Limit[dBm]Verdict GFSK LCH2.64921PASS MCH2.94221PASS HCH2.82221PASS π/4DQPSK LCH4.78721PASS MCH5.06721PASS HCH4.97121PASS 8DPSK LCH5.09421PASS MCH5.25621PASS HCH5.15921PASS SHENZHENLCSCOMPLIANCETESTINGLABORATORYLTD.FCCID:2AXMIGET002 Page2of52 TestGraphs GFSK/LCH GFSK/MCH SHENZHENLCSCOMPLIANCETESTINGLABORATORYLTD.FCCID:2AXMIGET002 Page3of52 GFSK/HCH π/4DQPSK/LCH SHENZHENLCSCOMPLIANCETESTINGLABORATORYLTD.FCCID:2AXMIGET002 Page4of52 π/4DQPSK/MCH π/4DQPSK/HCH SHENZHENLCSCOMPLIANCETESTINGLABORATORYLTD.FCCID:2AXMIGET002 Page5of52 8DPSK/LCH 8DPSK/MCH SHENZHENLCSCOMPLIANCETESTINGLABORATORYLTD.FCCID:2AXMIGET002 Page6of52 8DPSK/HCH SHENZHENLCSCOMPLIANCETESTINGLABORATORYLTD.FCCID:2AXMIGET002 Page7of52 A.220dBBandwidth ModeChannel.20dBBandwidth[MHz]Limit[MHz]Verdict GFSK LCH1.026NotSpecifiedPASS MCH1.033NotSpecifiedPASS HCH1.032NotSpecifiedPASS π/4DQPSK LCH1.366NotSpecifiedPASS MCH1.366NotSpecifiedPASS HCH1.368NotSpecifiedPASS 8DPSK LCH1.347NotSpecifiedPASS MCH1.347NotSpecifiedPASS HCH1.349NotSpecifiedPASS TestGraphs GFSK/LCH SHENZHENLCSCOMPLIANCETESTINGLABORATORYLTD.FCCID:2AXMIGET002 Page8of52 GFSK/MCH GFSK/HCH SHENZHENLCSCOMPLIANCETESTINGLABORATORYLTD.FCCID:2AXMIGET002 Page9of52 π/4DQPSK/LCH π/4DQPSK/MCH SHENZHENLCSCOMPLIANCETESTINGLABORATORYLTD.FCCID:2AXMIGET002 Page10of52 π/4DQPSK/HCH 8DPSK/LCH SHENZHENLCSCOMPLIANCETESTINGLABORATORYLTD.FCCID:2AXMIGET002 Page11of52 8DPSK/MCH 8DPSK/HCH SHENZHENLCSCOMPLIANCETESTINGLABORATORYLTD.FCCID:2AXMIGET002 Page12of52 A.3OccupiedBandwidth ModeChannel. Occupied Bandwidth[MHz] Limit[MHz]Verdict GFSK LCH0.90296NotSpecifiedPASS MCH0.90292NotSpecifiedPASS HCH0.90416NotSpecifiedPASS π/4DQPSK LCH1.1941NotSpecifiedPASS MCH1.1953NotSpecifiedPASS HCH1.1948NotSpecifiedPASS 8DPSK LCH1.2045NotSpecifiedPASS MCH1.2051NotSpecifiedPASS HCH1.2064NotSpecifiedPASS TestGraphs GFSK/LCH SHENZHENLCSCOMPLIANCETESTINGLABORATORYLTD.FCCID:2AXMIGET002 Page13of52 GFSK/MCH GFSK/HCH SHENZHENLCSCOMPLIANCETESTINGLABORATORYLTD.FCCID:2AXMIGET002 Page14of52 π/4DQPSK/LCH π/4DQPSK/MCH SHENZHENLCSCOMPLIANCETESTINGLABORATORYLTD.FCCID:2AXMIGET002 Page15of52 π/4DQPSK/HCH 8DPSK/LCH SHENZHENLCSCOMPLIANCETESTINGLABORATORYLTD.FCCID:2AXMIGET002 Page16of52 8DPSK/MCH 8DPSK/HCH SHENZHENLCSCOMPLIANCETESTINGLABORATORYLTD.FCCID:2AXMIGET002 Page17of52 A.4CarrierFrequencySeparation ModeChannel.CarrierFrequencySeparation[MHz]Limit[MHz]Verdict GFSK LCH1.0030.689PASS MCH0.9940.689PASS HCH1.0240.689PASS π/4DQPSK LCH1.0060.912PASS MCH0.9880.912PASS HCH1.0180.912PASS 8DPSK LCH0.9880.899PASS MCH0.9800.899PASS HCH1.0080.899PASS TestGraphs GFSK/LCH SHENZHENLCSCOMPLIANCETESTINGLABORATORYLTD.FCCID:2AXMIGET002 Page18of52 GFSK/MCH GFSK/HCH SHENZHENLCSCOMPLIANCETESTINGLABORATORYLTD.FCCID:2AXMIGET002 Page19of52 π/4DQPSK/LCH π/4DQPSK/MCH SHENZHENLCSCOMPLIANCETESTINGLABORATORYLTD.FCCID:2AXMIGET002 Page20of52 π/4DQPSK/HCH 8DPSK/LCH

Test Report

SHENZHENLCSCOMPLIANCETESTINGLABORATORYLTD.FCCID:2AXMIGET002 Page21of52 8DPSK/MCH 8DPSK/HCH A.5HoppingChannelNumber ModeChannel.NumberofHoppingChannel[N]Limit[N]Verdict GFSKHop79>=15PASS π/4DQPSKHop79>=15PASS 8DPSKHop79>=15PASS SHENZHENLCSCOMPLIANCETESTINGLABORATORYLTD.FCCID:2AXMIGET002 Page22of52 TestGraphs GFSK/Hop π/4DQPSK/Hop SHENZHENLCSCOMPLIANCETESTINGLABORATORYLTD.FCCID:2AXMIGET002 Page23of52 8DPSK/Hop SHENZHENLCSCOMPLIANCETESTINGLABORATORYLTD.FCCID:2AXMIGET002 Page24of52 A.6DwellTime ModePacketChannel BurstWidth [ms/hop/ch] Total Hops[hop*ch] DwellTime[s]Limit[s]Verdict GFSK DH5LCH 2.92106.70.3120.4 PASS DH5MCH 2.92106.70.3120.4 PASS DH5HCH 2.93106.70.3130.4 PASS π/4DQPSK 2DH5LCH 2.92106.70.3140.4 PASS 2DH5MCH 2.92106.70.3120.4 PASS 2DH5HCH 2.93106.70.3120.4 PASS 8DPSK 3DH5LCH 2.92106.70.3120.4 PASS 3DH5MCH 2.92106.70.3120.4 PASS 3DH5HCH 2.93106.70.3130.4 PASS TestGraphs GFSK_DH5/LCH SHENZHENLCSCOMPLIANCETESTINGLABORATORYLTD.FCCID:2AXMIGET002 Page25of52 GFSK_DH5/MCH GFSK_DH5/HCH SHENZHENLCSCOMPLIANCETESTINGLABORATORYLTD.FCCID:2AXMIGET002 Page26of52 π/4DQPSK _2DH5/LCH π/4DQPSK _2DH5/MCH SHENZHENLCSCOMPLIANCETESTINGLABORATORYLTD.FCCID:2AXMIGET002 Page27of52 π/4DQPSK _2DH5/HCH 8DPSK_3DH5/LCH SHENZHENLCSCOMPLIANCETESTINGLABORATORYLTD.FCCID:2AXMIGET002 Page28of52 8DPSK_3DH5/MCH 8DPSK_3DH5/HCH SHENZHENLCSCOMPLIANCETESTINGLABORATORYLTD.FCCID:2AXMIGET002 Page29of52 A.7RFConductedSpuriousEmissions ModeChannelPref[dBm]Max.Level[dBm]Limit[dBm]Verdict GFSK LCH1.824 -36.079-18.176 PASS MCH2.353-34.715-17.647PASS HCH2.016-36.976-17.984PASS π/4DQPSK LCH0.762-35.532-19.238PASS MCH0.966-35.910-19.034PASS HCH0.927-36.739-19.073PASS 8DPSK LCH0.633-34.017-19.367PASS MCH0.852-36.016-19.148PASS HCH0.817-33.680-19.183PASS GFSK_LCH_Graphs Pref SHENZHENLCSCOMPLIANCETESTINGLABORATORYLTD.FCCID:2AXMIGET002 Page30of52 Puw SHENZHENLCSCOMPLIANCETESTINGLABORATORYLTD.FCCID:2AXMIGET002 Page31of52 GFSK_MCH_Graphs Pref Puw SHENZHENLCSCOMPLIANCETESTINGLABORATORYLTD.FCCID:2AXMIGET002 Page32of52 GFSK_HCH_Graphs Pref Puw SHENZHENLCSCOMPLIANCETESTINGLABORATORYLTD.FCCID:2AXMIGET002 Page33of52 π/4DQPSK_LCH_Graphs Pref Puw SHENZHENLCSCOMPLIANCETESTINGLABORATORYLTD.FCCID:2AXMIGET002 Page34of52 π/4DQPSK_MCH_Graphs Pref Puw SHENZHENLCSCOMPLIANCETESTINGLABORATORYLTD.FCCID:2AXMIGET002 Page35of52 π/4DQPSK_HCH_Graphs Pref Puw SHENZHENLCSCOMPLIANCETESTINGLABORATORYLTD.FCCID:2AXMIGET002 Page36of52 8DPSK_LCH_Graphs Pref Puw SHENZHENLCSCOMPLIANCETESTINGLABORATORYLTD.FCCID:2AXMIGET002 Page37of52 8DPSK_MCH_Graphs Pref Puw SHENZHENLCSCOMPLIANCETESTINGLABORATORYLTD.FCCID:2AXMIGET002 Page38of52 8DPSK_HCH_Graphs Pref Puw SHENZHENLCSCOMPLIANCETESTINGLABORATORYLTD.FCCID:2AXMIGET002 Page39of52 A.8Band-edgeforRFConductedEmissions ModeChannel Carrier Frequency [MHz] Carrier Power [dBm] Frequency Hopping Max Spurious Level [dBm] Limit [dBm] Verdict GFSK LCH2402 2.072Off-49.794-17.93 PASS 2.493On-44.870-17.51 PASS HCH2480 2.478Off-46.862-17.52 PASS 2.835On-39.469-17.17 PASS π/4DQPSK LCH2402 0.686Off-49.422-19.31 PASS 1.232On-46.178-18.77 PASS HCH2480 1.186Off-45.346-18.81 PASS 1.399On-41.766-18.6 PASS 8DPSK LCH2402 0.982Off-49.536-19.02 PASS 1.406On-42.290-18.59 PASS HCH2480 1.233Off-46.228-18.77 PASS 1.460On-41.764-18.54 PASS SHENZHENLCSCOMPLIANCETESTINGLABORATORYLTD.FCCID:2AXMIGET002 Page40of52 TestGraphs GFSK/LCH/NoHop GFSK/LCH/Hop

Test Report

SHENZHENLCSCOMPLIANCETESTINGLABORATORYLTD.FCCID:2AXMIGET002 Page41of52 GFSK/HCH/NoHop GFSK/HCH/Hop SHENZHENLCSCOMPLIANCETESTINGLABORATORYLTD.FCCID:2AXMIGET002 Page42of52 π/4DQPSK/LCH/No Hop π/4DQPSK/LCH/Hop SHENZHENLCSCOMPLIANCETESTINGLABORATORYLTD.FCCID:2AXMIGET002 Page43of52 π/4DQPSK/HCH/No Hop π/4DQPSK/HCH/Hop SHENZHENLCSCOMPLIANCETESTINGLABORATORYLTD.FCCID:2AXMIGET002 Page44of52 8DPSK/LCH/NoHop 8DPSK/LCH/Hop SHENZHENLCSCOMPLIANCETESTINGLABORATORYLTD.FCCID:2AXMIGET002 Page45of52 8DPSK/HCH/NoHop 8DPSK/HCH/Hop SHENZHENLCSCOMPLIANCETESTINGLABORATORYLTD.FCCID:2AXMIGET002 Page46of52 A.8Restrict-bandband-edgemeasurements Test Mode HoppingFreq. Power [dBm] Gain Ground Factor E [dBuV/m] Detector Limit [dBuV/m] Verdict GFSK Off2310.0-43.022.0052.24PEAK74PASS Off2310.0-53.382.0041.88AV54PASS Off2390.0-41.532.0053.73PEAK74PASS Off2390.0-53.042.0042.22AV54PASS Off2483.5-27.402.0067.85PEAK74PASS Off2483.5-52.142.0043.12AV54PASS Off2500.0-40.022.0055.24PEAK74PASS Off2500.0-52.372.0042.89AV54PASS π/4DQPSK Off2310.0-43.182.0052.08PEAK74PASS Off2310.0-53.382.0041.88AV54PASS Off2390.0-43.442.0051.82PEAK74PASS Off2390.0-53.002.0042.26AV54PASS Off2483.5-26.572.0068.68PEAK74PASS Off2483.5-51.982.0043.28AV54PASS Off2500.0-40.892.0054.37PEAK74PASS Off2500.0-52.382.0042.88AV54PASS 8DPSK Off2310.0-43.862.0051.40PEAK74PASS Off2310.0-53.352.0041.91AV54PASS Off2390.0-43.142.0052.12PEAK74PASS Off2390.0-52.942.0042.32AV54PASS Off2483.5-29.572.0065.69PEAK74PASS Off2483.5-51.992.0043.27AV54PASS Off2500.0-40.612.0054.65PEAK74PASS Off2500.0-52.402.0042.86AV54PASS SHENZHENLCSCOMPLIANCETESTINGLABORATORYLTD.FCCID:2AXMIGET002 Page47of52 Restrict-bandband-edgemeasurements_HoppingOff_GFSK_PEAK(LowChannel) Restrict-bandband-edgemeasurements_HoppingOff_GFSK_Average(LowChannel) SHENZHENLCSCOMPLIANCETESTINGLABORATORYLTD.FCCID:2AXMIGET002 Page48of52 Restrict-bandband-edgemeasurements_HoppingOff_GFSK_PEAK(HighChannel) Restrict-bandband-edgemeasurements_HoppingOff_GFSK_Average(HighChannel) SHENZHENLCSCOMPLIANCETESTINGLABORATORYLTD.FCCID:2AXMIGET002 Page49of52 Restrict-bandband-edgemeasurements_HoppingOff_π/4-DQPSK_PEAK(LowChannel) Restrict-bandband-edgemeasurements_HoppingOff_π/4-DQPSK_Average(LowChannel) SHENZHENLCSCOMPLIANCETESTINGLABORATORYLTD.FCCID:2AXMIGET002 Page50of52 Restrict-bandband-edgemeasurements_HoppingOff_π/4-DQPSK_PEAK(HighChannel) Restrict-bandband-edgemeasurements_HoppingOff_π/4-DQPSK_Average(HighChannel) SHENZHENLCSCOMPLIANCETESTINGLABORATORYLTD.FCCID:2AXMIGET002 Page51of52 Restrict-bandband-edgemeasurements_HoppingOff_8DPSK_PEAK(LowChannel) Restrict-bandband-edgemeasurements_HoppingOff_8DPSK_Average(LowChannel) SHENZHENLCSCOMPLIANCETESTINGLABORATORYLTD.FCCID:2AXMIGET002 Page52of52 Restrict-bandband-edgemeasurements_HoppingOff_8DPSK_PEAK(HighChannel) Restrict-bandband-edgemeasurements_HoppingOff_8DPSK_Average(HighChannel)

Test Setup Photos

SHENZHENLCSCOMPLIANCETESTINGLABORATORYLTD.FCCID:2AXMIGET002 _______________________________________________________________________________________________ TESTSETUPPHOTOGRAPHS PhotoofRadiatedEmissionsMeasurement Below1GHz Above1GHz SHENZHENLCSCOMPLIANCETESTINGLABORATORYLTD.FCCID:2AXMIGET002 _______________________________________________________________________________________________ PowerLineConductedEmission

Contact Information

Applicant

Carl Chen(Project Manager)

[email protected]+86-18606271067Fax: 0769-8287 7606

Technical Contact

Shenzhen LCS Compliance Testing Laboratory Ltd.Gavin Liang

[email protected]86-755-82591330

Shenzhen · China

Test Firm

Shenzhen LCS Compliance Testing Laboratory Ltd.Gavin Liang

[email protected]0755-82591330Fax: 0755-82591132

Technical Specifications

#	Rule Parts	Frequency Range	Power Output
1	15C	2.40 GHz - 2.48 GHz	3.40 mW

Confidentiality

Long Term

Grant Notes

Output power listed is conducted. The antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons. End-users must be provided with operating procedures for satisfying RF exposure compliance. The device contains 20MHz and 40MHz bandwidth.
