Attestation Statement. Old Code: C5266091 24 New Code: 00015544 Ed.3 Change reason: FRN is added to the Applicant information section. 1/1 TO: Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 The Commission adopted rules that prohibit equipment authorization for “covered” telecommunications equipment and video surveillance equipment produced by entities identified on the Commission’s Covered List 1 , which is periodically updated. See the Covered List for more details. This Attestation Statement is to confirm that we follow the Section 2.911(d)(5)(i)-(ii) Applicant Company name: Embrava Pty Ltd Grantee code: 2AXMZ FCC ID: 2AXMZ-AS1-WE-H1-U2 FRN: 0030014955 Contact Name: Patrice Empeigne Address: Level 38, Tower 3, International Towers Sydney, 300 Barangaroo Avenue, Sydney, NSW 2000, Australia Telephone No: +61413691126 Fax No: +61413691126 Email: [email protected] i. [Embrava Pty Ltd] (“the applicant”) certifies that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. The applicant must sign this certification. ii. [Embrava Pty Ltd] (“the applicant”) certifies that, as of the date of the filing of the application, the applicant [is not] (as a specifically named entity or any of its subsidiaries or affiliates) identified on the Covered List as an entity producing “covered” equipment. The applicant must sign this certification. [Embrava Pty Ltd] (“the applicant”) certifies that, as of the date of the filing of the application, the applicant [is not] identified on the Covered List as an entity producing “covered” equipment . Date: 2025/9/10 Applicant’s Name: Patrice Empeigne Title: CTO Signature 1 The Commission’s Covered List is published by the Public Safety and Homeland Security Bureau and posted on the Commission’s website. This Covered List, which is periodically updated, identifies particular equipment, produced by particular entities, that constitutes “covered” equipment. https://www.fcc.gov/supplychain/coveredlist

Embrava Pty Ltd Code 00018768 Ed. 1 Item 1. The device is able to install software/program installation? ☐Yes, go to Item 2. ☒No. In this case, the rest of the items do not apply. The device cannot support installation of Kaspersky cybersecurity or anti-virus software. Item 2. Technical Requirements for Kaspersky Cybersecurity Software: # General Requirements (For all Devices) Yes / No or N/A Comments 1 Internet connection for activation and updates (For all Operating Systems) No # General Requirements (For Windows Devices) Yes / No or N/A Comments 1 Storage: 1500 MB free space on the hard drive N/A Device Any Sign Company name Embrava Pty Ltd Grantee code 2AXMZ FCC ID 2AXMZ-AS1-WE-H1-U2 FRN 0030014955 Contact name Patrice Empeigne Address Level 38, Tower 3, International Towers Sydney, 300 Barangaroo Avenue, Sydney, NSW 2000, Australia Telephone number +61413691126 E-mail [email protected] Chipset/module information AIC880D Operating System (if applicable) Web UI Storage Capacity (hard drive or other permanent memory storage, if applicable) None 2 2 Operating System: Microsoft Windows 8, 8.1, 10 & 11 Home / Pro / Enterprise Microsoft Windows 7 Starter / Home Basic & Premium / Professional / Ultimate SP1 or higher N/A 3 Processor: 1 GHz or higher (x86 or x64) N/A 4 Memory (RAM)1 GB (32-bit) or 2 GB (64-bit) N/A 5 Screen Resolution: Minimum resolution of 1024 x 768 N/A # General Requirements (For macOS devices) Yes / No or N/A Comments 1 Operating System macOS® 13 – 14 N/A 2 Memory (RAM)4 GB N/A 3 Storage: 3455 MB free space on the hard drive N/A # General Requirements (For Android Devices) Yes / No or N/A Comments 1 Storage: 150 MB free space N/A 2 Operating System: Android™ 10 – 14 N/A 3 Screen Resolution: Minimum resolution of 320 x 480 N/A # General Requirements (for iOS devices) Yes / No or N/A Comments 1 Storage: 150 MB free space N/A 2 Operating System: iOS® 17 N/A # General Requirements (For Linux system) Yes / No or N/A Comments 1 Hard drive: 1 GB of free space N/A 2 CPU: Intel Pentium 1 GHz or higher 3 3 RAM: 1 GB 4 Minimum software requirements: AlmaLinux OS 8 or later; AlterOS 7.5 or later; Astra Linux Common Edition 2.12 or later; CentOS 6.7 or later; Debian GNU/Linux 10.0 or later; EulerOS 2.0 or later; Oracle Linux 7.3 or later ; Red Hat Enterprise Linux 6.7 or later ; Rocky Linux 8.5 or later ; SUSE Linux Enterprise Server 12.5 or later; Ubuntu 12.04 or later ; Uncom OS Home / Business / Education / Enterprise 2.2 or later; ALT Linux Workstaton / Workstation K / Server / Education 8 or later; ROSA Linux Workstation / Server 12 or later ; RED OS 7.3 and later ; After reviewed the technical requirements, is the device capable of supporting the installation of Kaspersky software? ☐ Yes, go to Item 3. ☒ No. In this case, the rest of the items do not apply. The device cannot support installation of Kaspersky software Item 3. Connectivity Capabilities: # Physical Interface Purpose Justification 1 1 The justification field is used to justify why the software cannot be received through that interface. Check the annex for more indications. 4 1 # Wireless Interface Purpose Justification 1 1 After the review of this items, the device: ☒ Cannot support installation of any cybersecurity or anti-virus software on the covered list. ☐ Potentially can operate with any cybersecurity or anti-virus software on the covered list – additional third- party proof is provided to demonstrate compliance with requirements as of 2.911(d)5(i),(ii) – “Proof of Compliance with Covered List Software Requirements” of this document applies Signature: Name: Patrice Empeigne Date: 16 October 2025 5 Proof of Compliance with Covered List Software Requirements 1. Did a test Firm or third party (other than the certification body and applicant) provide a list of software installed on the device and after scan results with no evidence of Kaspersky software? ☐ YES ☒ NO ☐ N/A If YES, provide: File Name: Third-Party Name (including Test Firm: Has other objective evidence been provided that no Kaspersky software is installed? ☐ YES ☒ NO ☐ N/A If YES, provide: File Name: Third-Party Name (including Test Firm: Signature: Name: Patrice Empeigne Date: 16 October 2025

TCB CALL página 1 File FCC ID: 2AXMZ-AS1-WE-H1-U2 Please upload an exhibit that explains how does the TCB verify the new agent information: 1- Is the address of the agent a valid physical US mailing address (not a US post office box, not a virtual mailbox, not P.O. Boxes, not a vacant lot, not a public building, etc.) ○ We have checked if the address exists in a real and potential building (Google maps) + official US register, after this verification and the evidence below we can guarantee the following: not a US post office box not a virtual mailbox not P.O. Boxes not a vacant lot not a public building(note) ► We checked the FCC FRN Search based on the information provided by the grantee. On the official register from : https://bizfileonline.sos.ca.gov/search/business TCB CALL página 2 In google: TCB CALL página 3 ► CONCLUSION by TCB: The ASOP defined and provided by grantee is VALID and confirmed. Therefore the exhibit "2AXMZ-AS1-WE-H1-U2 US Agent Attestation" included in the file is ok. 2- Is the agent physically located at that valid US address such that the agent can be legally served at that address? Yes , check above 3- Has the listed agent clearly agreed in writing to serve as the agent for the grantee at that address? Yes, it is included in the exhibit "2AXMZ-AS1-WE-H1-U2 US Agent Attestation" >

C5266091_X10_Ed.2 1/1 < Embrava Pty Ltd > Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 Date: 16 October 2025 Subject: Request for Confidentiality FCC ID: 2AXMZ-AS1-WE-H1-U2 To Whom It May Concern, Pursuant to the provisions of Sections 0.457 and 0.459 of Commission's rules (47CFR0.457, 0.459), we are requesting the Commission to withhold the following attachment(s) as confidential document from public disclosure. Exhibits Long-Term Confidentiality Short-Term Confidentiality NOTE 2 ID Label/Location No No Attestation Statement No No External Photos No ☐ Block Diagram ☒☐ Schematics ☒☐ Test Report No No Test Setup Photos No ☐ User’s Manual ☐ NOTE 1 ☒ Internal Photos ☐ NOTE 1 ☒ Parts List / Tune Up ☐☐ RF Exposure Info No No Operational Description ☒☐ Cover Letter(s) No No SDR Software / Security Info ☐ No N OTE 1: Long-Term Confidentiality may be permitted under special conditions (See II. LONG-TERM CONFIDENTIALITY, Section 3 of KDB 726920, use last in force) NOTE 2: Short-Term Confidentiality can be requested for a maximum of 180 days from the date of the grant. A bove mentioned document contains detailed system and equipment description are considered as proprietary information in operation of the equipment. The public disclosure of above documents might be harmful to our company and would give competitor an unfair advantage in the market. In case of short-term Confidentiality, the applicant requests the exhibits selected above are withheld from public view for a period of _180__ days from the date of the Grant of Equipment Authorization and prior to marketing. It is our understanding that all measurement test reports, FCC ID label format and correspondent during certification review process cannot be granted as confidential documents and those information will be available for public review once the grant of equipment authorization is issued. x C5266091_X10_Ed.2 1/1 Sincerely, Signature: Name: Patrice Empeigne Title: CTO

C5266091_X8_Ed.1 1/1 Letter of Authorization < Embrava Pty Ltd > Company: Embrava Pty Ltd Address: Level 38, Tower 3, International Towers Sydney, 300 Barangaroo Avenue, Sydney, NSW 2000, Australia Product Name: Any Sign Model Number: AS1 FCC Identifier: 2AXMZ-AS1-WE-H1-U2 We authorize LGAI Technological Center S.A., Ronda de la Font del Carme, s/n, 08193 Bellaterra, Spain, to act on our behalf on all matters concerning the above named equipment. Any individual within LGAI Technological Center S.A. is authorized to act on our behalf and take action on the application. We declare that authorize LGAI Technological Center S.A., Ronda de la Font del Carme, s/n, 08193 Bellaterra, Spain, is allowed to forward all information related to the approval project to the Federal Communication Commission and to discuss any issues concerning the approval application. Any and all acts carried out by LGAI Technological Center S.A. on our behalf shall have the same effect as acts of our own. Name: Patrice Empeigne Date: 16 October 2025 Title: CTO Signature of applicant:

C5266091_X13_Ed.1 1/1 < Embrava Pty Ltd > FCC Software Configuration Control Declaration Date: 16 October 2025 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Attn: OET Dept. Product name/ model: Any Sign / AS1 Regarding FCC Country Code Selection guidelines identified in KDB 594280. “All applications for equipment authorization for transmitters that can have radio parameters, or other technical parameters, reported to the Commission set by software must have an attestation indicating that no third party will have software, or configuration control, to program the device out of compliance of the technical rules under which it has been certified.” We declare that no third party will have software, or configuration control, to program the device out of compliance of the technical rules under which it has been certified. Signature of applicant Name: Patrice Empeigne Title: CTO FCC ID： 2AXMZ-AS1-WE-H1-U2

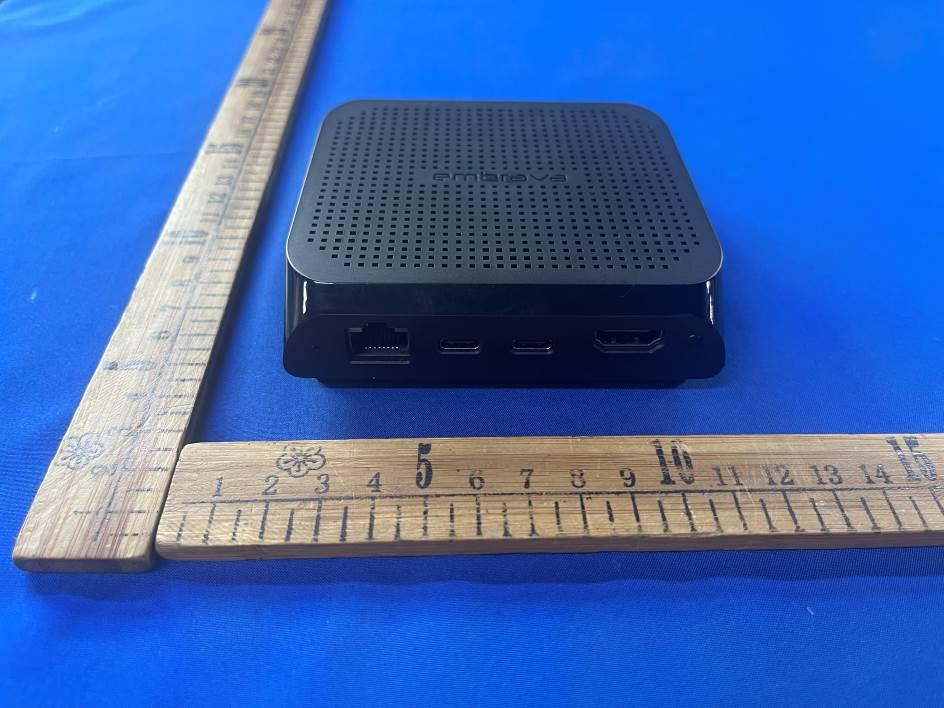

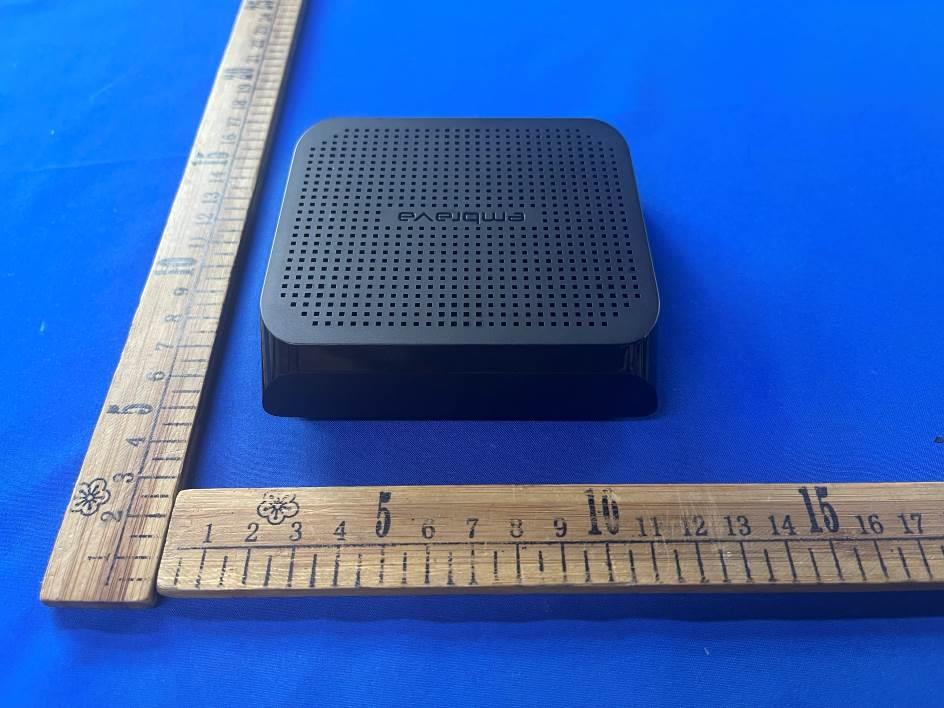

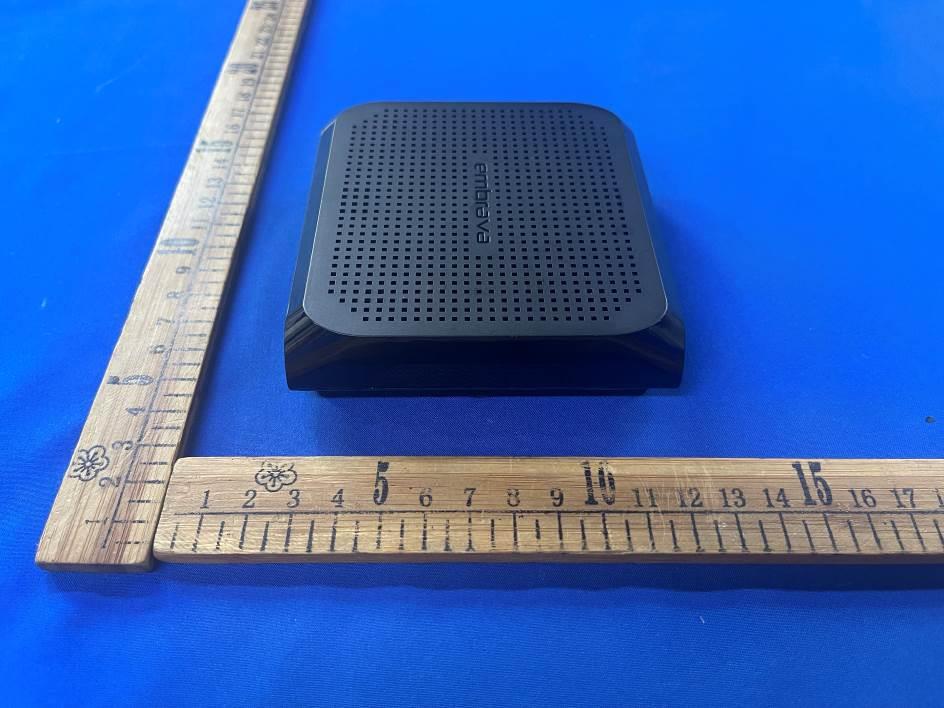

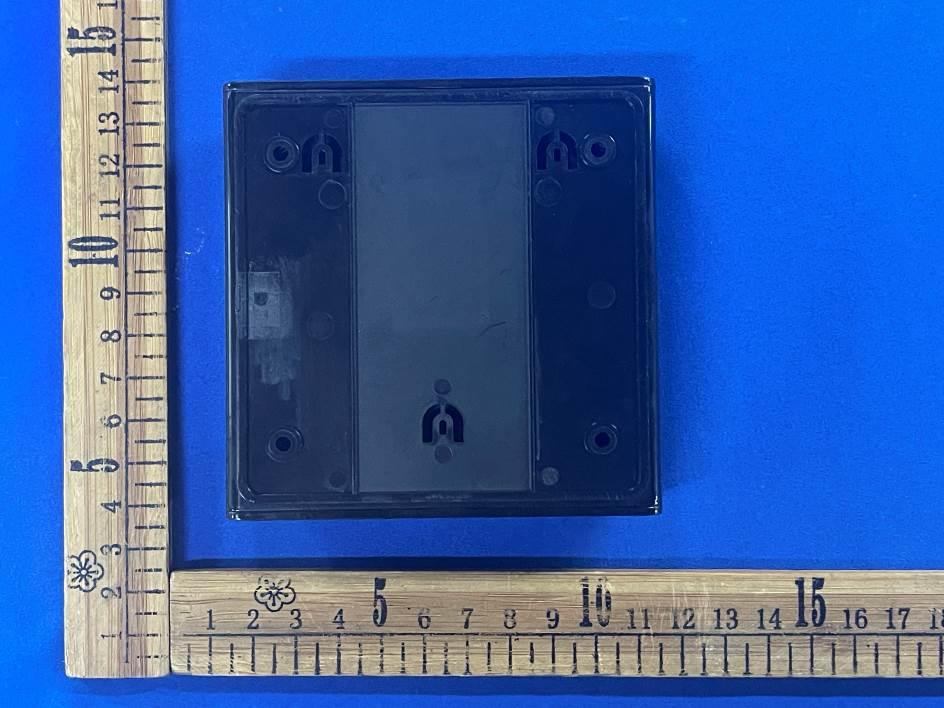

Report No.: TCT250928E065-B Page 1 of 3 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com Appendix- External Photographs of EUT Product: Any Sign Model: AS1 Report No.: TCT250928E065-B Page 2 of 3 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com Report No.: TCT250928E065-B Page 3 of 3 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com

Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com TEST REPORT FCC ID. ............................ : 2AXMZ-AS1-WE-H1-U2 Test Report No. ............... : TCT250928E072 Date of issue ................... : Oct. 15, 2025 Testing laboratory .......... : SHENZHEN TONGCE TESTING LAB Testing location/ address: 2101 & 2201, Zhenchang Factory, Renshan Industrial Zone, Fuhai Subdistrict, Bao'an District, Shenzhen, Guangdong, 518103, People's Republic of China Applicant's name ............ : Embrava Pty Ltd Address ........................... : Level 38, Tower 3, International Towers Sydney, 300 Barangaroo Avenue, Sydney, NSW 2000, Australia Manufacturer's name ... : Zhongshan Sanxun Electronics LTD Address ........................... : Yagang Ind. Zone, Sanxiang, Zhongshan City, Guang Dong, China Standard(s) ..................... : FCC CFR Title 47 Part 1.1307 FCC CFR Title 47 Part 2.1091 Product Name ................. : Any Sign Trade Mark ...................... : N/A Model/Type reference..... : AS1 Rating(s).......................... : DC 12V Date of receipt of test item ......................................... : Sep. 28, 2025 Date (s) of performance of test ................................... : Sep. 28, 2025 ~ Oct. 15, 2025 Tested by (+signature) ... : Ronaldo LUO Check by (+signature) .... : Beryl ZHAO Approved by (+signature): Tomsin General disclaimer: This report shall not be reproduced except in full, without the written approval of SHENZHEN TONGCE TESTING LAB. This document may be altered or revised by SHENZHEN TONGCE TESTING LAB personnel only, and shall be noted in the revision section of the document. The test results in the report only apply to the tested sample. Report No.: TCT250928E072 Page 2 of 7 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com Table of Contents 1. General Product Information .................................................................. 3 1.1. EUT description ..................................................................................................... 3 1.2. Model(s) list ............................................................................................................ 3 2. General Information ................................................................................. 4 2.1. Test environment and mode ................................................................................. 4 2.2. Description of Support Units ................................................................................ 4 3. Facilities and Accreditations .................................................................. 5 3.1. Facilities ................................................................................................................. 5 3.2. Location ................................................................................................................. 5 4. Limit .......................................................................................................... 6 5. Test Results and Measurement Data ..................................................... 7 Report No.: TCT250928E072 Page 3 of 7 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com 1. General Product Information 1.1. EUT description Product Name ....................... : Any Sign Model/Type reference........... : AS1 Sample Number....................: TCT250928E065-0101 Operation Frequency ........... : For 2.4G WIFI: 2412MHz~2462MHz (802.11b/802.11g/802.11n(HT20)/802.11ax(HE20)) 2422MHz~2452MHz (802.11n(HT40)/802.11ax(HE40)) For 5G WIFI: Band 1: 5180MHz~5240MHz Band 3: 5745MHz~5825MHz Modulation Type ................... : For 2.4G WIFI: 802.11b: Direct Sequence Spread Spectrum (DSSS) 802.11g/802.11n/802.11ax: Orthogonal Frequency Division Multiplexing (OFDM) For 5G WIFI: 256QAM, 64QAM, 16QAM, BPSK, QPSK Antenna Type ........................ : FPC Antenna Antenna Gain ........................ : For 2.4G WIFI: 2.37dBi For 5G WIFI: Band 1: 4.14dBi Band 3: 4.14dBi Rating(s)................................ : DC 12V Note: The antenna gain listed in this report is provided by applicant, and the test laboratory is not responsible for this parameter. 1.2. Model(s) list None. Report No.: TCT250928E072 Page 4 of 7 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com 2. General Information 2.1. Test environment and mode Item Normal condition Temperature +25ºC Voltage DC 12V Humidity 56% Atmospheric Pressure: 1008 mbar Test Mode: Transmitting Mode: Keep the EUT in continuous transmitting by select channel 2.2. Description of Support Units The EUT has been tested as an independent unit together with other necessary accessories or support units. The following support units or accessories were used to form a representative test configuration during the tests. Equipment Model No. Serial No. FCC ID Trade Name / / / / / Note: 1. All the equipment/cables were placed in the worst-case configuration to maximize the emission during the test. 2. Grounding was established in accordance with the manufacturer’s requirements and conditions for the intended use. 3. For conducted measurements (Output Power, 20dB Occupied Bandwidth, Carrier Frequencies Separation, Hopping Channel Number, Dwell Time, Spurious Emissions), the antenna of EUT is connected to the test equipment via temporary antenna connector, the antenna connector is soldered on the antenna port of EUT, and the temporary antenna connector is listed in the Test Instruments. Report No.: TCT250928E072 Page 5 of 7 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com 3. Facilities and Accreditations 3.1. Facilities The test facility is recognized, certified, or accredited by the following organizations: ● FCC - Registration No.: 645098 SHENZHEN TONGCE TESTING LAB Designation Number: CN1205 The testing lab has been registered and fully described in a report with th…

Text truncated - open the document above for the full version.

Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com TEST REPORT FCC ID. ............................ : 2AXMZ-AS1-WE-H1-U2 Test Report No. ............... : TCT250928E066 Date of issue ................... : Oct. 15, 2025 Testing laboratory .......... : SHENZHEN TONGCE TESTING LAB Testing location/ address: 2101 & 2201, Zhenchang Factory, Renshan Industrial Zone, Fuhai Subdistrict, Bao'an District, Shenzhen, Guangdong, 518103, People's Republic of China Applicant's name ............ : Embrava Pty Ltd Address ........................... : Level 38, Tower 3, International Towers Sydney, 300 Barangaroo Avenue, Sydney, NSW 2000, Australia Manufacturer's name ... : Zhongshan Sanxun Electronics LTD Address ........................... : Yagang Ind. Zone, Sanxiang, Zhongshan City, Guang Dong, China Standard(s) ..................... : FCC CFR Title 47 Part 15 Subpart E Section 15.407 KDB 662911 D01 Multiple Transmitter Output v02r01 KDB 789033 D02 General U-NII Test Procedures New Rules v02r01 Product Name ................. : Any Sign Trade Mark ...................... : N/A Model/Type reference..... : AS1 Rating(s).......................... : DC 12V Date of receipt of test item ......................................... : Sep. 28, 2025 Date (s) of performance of test ................................... : Sep. 28, 2025 ~ Oct. 15, 2025 Tested by (+signature) ... : Ronaldo LUO Check by (+signature) .... : Beryl ZHAO Approved by (+signature): Tomsin General disclaimer: This report shall not be reproduced except in full, without the written approval of SHENZHEN TONGCE TESTING LAB. This document may be altered or revised by SHENZHEN TONGCE TESTING LAB personnel only, and shall be noted in the revision section of the document. The test results in the report only apply to the tested sample. Report No.: TCT250928E066 Page 2 of 135 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com TABLE OF CONTENTS 1. General Product Information .................................................................. 3 1.1. EUT description ..................................................................................................... 3 1.2. Model(s) list ............................................................................................................ 3 1.3. Test Frequency ...................................................................................................... 4 2. Test Result Summary .............................................................................. 5 3. General Information ................................................................................. 6 3.1. Test environment and mode ................................................................................. 6 3.2. Description of Support Units ................................................................................ 7 4. Facilities and Accreditations .................................................................. 8 4.1. Facilities ................................................................................................................. 8 4.2. Location ................................................................................................................. 8 5. Measurement Uncertainty ....................................................................... 8 6. Test Results and Measurement Data ..................................................... 9 6.1. Antenna requirement ............................................................................................ 9 6.2. Conducted Emission ........................................................................................... 10 6.3. Maximum Conducted Output Power .................................................................. 14 6.4. 6dB Emission Bandwidth.................................................................................... 16 6.5. 26dB Bandwidth and 99% Occupied Bandwidth .............................................. 17 6.6. Power Spectral Density ....................................................................................... 18 6.7. Band edge ............................................................................................................ 19 6.8. Unwanted Emissions .......................................................................................... 30 6.9. Frequency Stability Measurement ..................................................................... 47 Appendix A: Test Result of Conducted Test Appendix B: Photographs of Test Setup Appendix C: Photographs of EUT Report No.: TCT250928E066 Page 3 of 135 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com 1. General Product Information 1.1. EUT description Product Name ....................... : Any Sign Model/Type reference........... : AS1 Sample Number....................: TCT250928E065-0101 Operation Frequency ........... : Band 1: 5180MHz~5240MHz Band 3: 5745MHz~5825MHz Channel Bandwidth .............. : 802.11a: 20MHz 802.11n: 20MHz, 40MHz 802.11ac: 20MHz, 40MHz 802.11ax: 20MHz, 40MHz Modulation Technology ....... : Orthogonal Frequency Division Multiplexing (OFDM) Modulation Type ................... : 256QAM, 64QAM, 16QAM, BPSK, QPSK Antenna Type ........................ : FPC Antenna Antenna Gain ........................ : Band 1: 4.14dBi Band 3: 4.14dBi Rating(s)................................ : DC 12V Note: 1. The antenna gain listed in this report is provided by applicant, and the test laboratory is not responsible for this parameter. 2. 802.11ax support full RU only 1.2. Model(s) list None. Report No.: TCT250928E066 Page 4 of 135 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com 1.3. Test Frequency Band 1 20MHz 40MHz Channel Frequency Channel Frequency 36 5180 38 5190 40 5200 46 5230 48 5240 Band 3 20MHz 40MHz Channel Frequency Channel Frequency 149 5745 151 5755 157 5785 159 5795 165 5825 Note: In se…

Text truncated - open the document above for the full version.

FPCantenna model： BW258FNX14-5B1L120 description： 2.4G/5.8GFPCantenna Features:Frequencyran- ge:2400-2500MHz; 5150-5850MHz Structure:360ºomnidirectionalradiat- ion Linetype:RG1.13 Linelength:120mm Size:14mmx5mm ComplieswithRoHSandREACHregulati- ons AntennaSpecificationDocum- ent BENT WIRELESS 1/13 AntennaDatasheet www.batwireless.cn Catalogue September-12-2025-A01 2/13 BATWI- RELESS www.batwireless.cn 1.productdescription 3 2.sizeofproduct4 3.pictureofrealproducts5 4.dimensionaldrawing6 5.testingfacility7-8 6.performancedata 9-10 6.1voltagestanding-waveratio9 6.2returnloss9 6.3gain10 6.4productiveness 10 6.5Antennagainandefficiency10 7.radiationpatterndiagram 11-12 7.12Dradiationpatterndiagram11 7.23Dradiationpatterndiagram12 legalnotice： Intheinterestofprovidingsuperiorservicetoourusers,ShenzhenBatWirelessTechnologyCo.,Ltd.(hereinafter"BatWireless")strives topresentcomprehensiveandaccurateproductinformationinthismanual.However,giventhetime-sensitivenatureofthismanual,BatWireless cannotguaranteeitsperpetualtimelinessorapplicability.BatWirelessreservestherighttoupdatethecontentwithoutpriornotice.Forthelatest version,werecommendthatvaluedusersregularlyvisitBatWireless'officialwebsiteorcontactourstaff.Weappreciateyourunderstandingand support! CopyrightNotice:Allcontentsinthisproductmanual(includingtext,graphics,logos,anddesigns)areprotectedundercopyrightlawsand internationalcopyrighttreaties.Noentityorindividualmayreproduce,modify,distribute,oruseanypartofthismanualinanyform(including electronic,mechanical,orphotocopying)withoutpriorwrittenauthorizationfromourcompany.Violatorswillbeheldlegallyliable.Allrights reserved. TrademarkStatement:AllproductnamesandcorporateidentifiersrelatedtoBatWirelessappearinginthismanualarelegallyownedbyourcompany (includingaffiliatedentities).Unauthorizeduse,reproduction,orimitationisstrictlyprohibited.Third-partytrademarksreferencedinthismanualareownedby theirrespectiverightsholders.Theirinclusionisforillustrativepurposesonlyanddoesnotconstitutecommercialassociationorimpliedauthorization.Our companyreservestherighttopursuelegalactionforanyinfringement. Disclaimer:Theproductinformationinthismanualisforreferenceonly.Actualperformancemayvarydependingonusageenvironmentandconfiguration. Thecompanymakesnoexpressorimpliedwarrantiesregardingtheaccuracy,completeness,orapplicabilityofthemanualcontent,andshallnotbeliablefor anydirectorindirectlossesarisingfromuseorinabilitytousetheinformationherein.Usersshouldindependentlyevaluateproductsuitabilityandfollow operationalguidelines.Thecompanyreservesthefinalrightofinterpretation. Classicusecases: ConsumerElectronics:BluetoothHeadsets,Smartwatches,RemoteControlforDrones Industrialfield:RFIDtags,wirelesssensors AutomotiveElectronics:胎压监测,车载天线 TheBW258FNX14-5B1L120wirelessbatisaversatilecomponentwidelyusedinwirelesscommunications.Featuringflexiblepolyimidesubstrates, itcanbendandfoldtoadapttocurvedsurfacesorconfinedspaces.Thismaterialenablescircuitdesignstoaccommodatecomplexspatiallayouts,makingit idealforwearabledevicesandfoldablesmartphones.Withathicknessof0.1~0.3mm,itsignificantlyreducesdeviceweightandenhancesportability. Combininghigh-frequencyperformance,flexibility,andhighintegration,thiscomponentisessentialforminiaturizingandoptimizingwirelessdevices. 1.Productdescription/Description www.batwireless.cn September-12-2025-A01 BatWirelessofferscustomizedservicestooptimizeyourdevices.OurexperiencedR&Dteamisreadytorespondpromptlyto yourneeds.Foranyinquiries,pleasecontactoursalesteamorFieldAssistanceEngineers(FAE). 3/13 PartNumberDescription BW Company BatWireless 258 Band/Frequency 2400-2500MHz，5150-5850MHz F Name FPCAntenna N Type/Type Built-in/Internal X Constant X/X 14-5 Size/Dimensions 14-5mm/14-5mm B1 Interface/Connector IPEX-1/IPEX-1 L WireLengthWireLength 120 Length/Length 120/120 BW258FNX14-5B1L120 BATWI- RELESS Joggle IPEX-1IPEX-2IPEX-3IPEX-4IPEX-5SMA Optionalcustomization Wirelength 100150200250300500 Optionalcustomization Alphabetoflines RG0.81RG1.13RG1.37RG174RG178RG316 Optionalcustomization SelectionTable Parameters/Parameters Typicalvalue/Typ. Units Notes Type/AntennaType FPCAntenna Frequency/FrequencyRange 2400-2500，5150-5850MHz InputImpedance 50 Ω Standingwaveratio/V.S.W.R <4.4 Gain 4.14 dBi PolarizationType Vertical/Vertical PowerCapacity 50W LightningProtection - Workingvoltage/DCvoltage -V Radiator - Size/Dimensions 14x5 mm Interfacetype/Connectortype IPEX-1(customizable) CableType RG1.13(Customizable) Cablelength/CableLength 120（customizable） mm Mountingmethod Button Color Black Material/Meterial FPC Weight/Weight - g WaterproofRating - ROHSStandard/ROHSComplaint Accordwith Operatingtemperature -45~+85 °C Storagetemperature -45~+85 °C 2..Productspecifications/Specification www.batwireless.cn September-12-2025-A01 ElectricalCharacteristics MechanicalCharacteristics EnvironmentalCharacteristics 4/13 BATWI- RELESS 3..PhysicalFigure/Dimensions www.batwireless.cn September-12-2025-A01 5/13 BATWI- RELESS 4..DimensionDrawing/MechanicalDrawing www.batwireless.cn September-12-2025-A01 6/13 BATWI- RELESS TestingCapability Description/Capabilitydescription Activemeasurementac- tivetesting Capability/testindicators:TRP,TIS,EIRP,EIS,etc Mode/Testmode:2G/3G/4G/5G,Wi-Fib/g/n/a/ac/ax,BT,NB-IOT,Cat-M (eMTC),GPS/BEIDOU/GLONASS,ZigBee,LoRa(Non-signaling),etc. Pasivemeasurementpa- ssivetesting Testcategory:Gain,Efficiency,2Dpattern,3Dpattern,Patternroundness, AxialRatio,ECC,Phasecenter,etc.Polarizationmode:Circularpolarization, Linearpolarization,Ellipticalpolarization. DT-3500datasheet/systemspecifications Specification: Description Testfrequency: 400MHz-8.5GMHz SystemSize: L*W*H=4*3.5*3.5m NumberofProbes: 23(Probe)+1(link) IntervalAngle/SamplingClamps: 15º SamplingDiameter: 2200mm CarryingCapacity: ≦40kg 5..Testequipment/TestEquipment Keysi…
