2AXP2-DK22Dongle Kit V2

Wireless Dongle Kit V2 Quick Start Guide GLO -WDV2-MS-MB GLO -WDV2-MS-MG 2.4 GHz lag -fr ee wireless connectivity Mini mum Range: 5 meters Operating frequency: 2405MHz-2476MHz RF power :<=4.29dBm Working temperature: 0-40°C Setting Up: To pair this dongle with your wireless Glorious mouse, ru n the Glorious Pairing Utility that ca n be downloaded from www.gloriousgaming.com. Support/Service: If you have any questions or issues wit h your Glorious product, please do not hesitate to contact us. Alternatively, please visit us at ww w.gloriousgaming.com where you can find our frequently asked questions, troubleshooting tips and look at other Glorious products. Copyright an d Intellectual Property Information: 2020 Glorious LLC. All rights reserved. Glorious, the glorious head logo, Glorious logo, “Ascend” and “Model O” logo are trademarks or registered trademarks of Glorious LLC. and/or affiliated companies in th e United States or other countries. All other trademarks and trad e names ar e the property of their respective owners and other company and product names mentioned herein may be trademarks of their respective companies. Glorious LLC (“Glorious”) may have copyright, trademarks, trade secrets, patents, patent applications, or other intellectual property rights (whether registered or unregistered) concerning the product in this guide. furnishing of this guide does not give you a license to any such copyright, trademark, patent or other intellectual property right. The Glorious Model O Wireless (t he “Product”) may differ from pictures whether on packaging or otherwise. Glorious LLC assumes no responsibility for suc h differences or for any errors that may appear. Information contained herein is subject to change without notice. Warranty: 2- year limi ted Manufacturer Warranty Kee p out of reach of children below the age of 10 Limitation of Liability: Glorious shall in no event be liable for any lost profits, loss of information or data, special, incidental, indirect, punitive or consequential or incidental damages, arising in any way out of distribution of, sale of, resale of, use of, or inability to use the Product. In no event shall Glorious’s liability exceed the retail purchase price of the Product. General: These terms shall be governed by an d construed under the laws of the jurisdiction in which the Product was purchased. If any term herei n is held to be invalid or unenforceable, the n suc h term (i n so far as it is invalid or unenforceable) shall be give n no effect an d deemed to be excluded without invalidating any of the remaining terms. Glorious reserves the right to ame nd any term at any time without notice. FCC Statement This equipment has bee n tested and found to comply wit h the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: Reorient or relocate the receiving antenna. Increase the separation between the equipment and receiver. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. Consult the dealer or an experienced radio/TV technician for help. This equipment must not be co-l ocated or operating in conjunction with any other antenna or transmitter. End-users and installers must be provided with antenna installation instructions and consider removing the no-c oll ocation statement. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Caution! Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. Canada Statement - English: This device contains licence-exempt transmitter(s)/receiver(s) that comply with Innovation, Science and Economic Development Canada’s licence-exempt RSS(s). Operation is subject to the following two conditions: This device may not cause interference. This device must accept any interference, including interference that may cause undesired operation of the device. The device has been evaluated to meet general RF exposure requirement. The device can be used in portable exposure condition without restriction - French: L’émetteur/récepteur exempt de licence contenu dans le présent appareil est conforme aux CNR d’Innovation, Sciences et Développement économique Canada applicables aux appareils radio exempts de licence. L’exploitation est autorisée aux deux conditions suivantes : L’appareil ne doit pas produire de brouillage; L’appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d’en compromettre le fonctionnement. L'appareil a été évalué pour répondre aux exigences générales d'exposition aux RF. L'appareil peut être utilisé dans des conditions d'exposition portables sans restriction SIMPLIFIED EU DECLARATION OF CONFORMITY The simplified EU declaration of conformity referred to in Article 10(9) shall be provided as follows: Hereby, Glorious LLC declares that the radio equipment Dongle Kit V2 is in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: http//www.gloriousgaming.com RF Exposure State…

Text truncated - open the document above for the full version.

C5266091_X8_Ed.1 1/1 Letter of Authorization < Glorious LLC > Company: Glorious LLC Address:13809 Research Blvd Suite 500 PMB 93206 Austin, TX 78750, USA Product Name: Dongle Kit V2 Model Number: Dongle Kit V2 FCC Identifier: 2AXP2-DK22 We authorize LGAI Technological Center S.A., Ronda de la Font delCarme, s/n, 08193 Bellaterra, Spain, to act on our behalf on all matters concerning the above named equipment. Any individual within LGAI Technological Center S.A. is authorized to act on our behalf and take action on the application. We declare that authorize LGAI Technological Center S.A., Ronda de la Font del Carme, s/n, 08193 Bellaterra, Spain, is allowed to forward all information related to the approval project to the Federal Communication Commission and to discuss any issues concerning the approval application. Any and all acts carried out by LGAI Technological Center S.A. on our behalf shall have the same effect as acts of our own. Name: Shazim Mohammad Date: 12/12/2022 Title: General Manager Signature of applicant:

C5266091_X10_Ed.2 1/1 < Glorious LLC> Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046Date: 12/12/2022 Subject: Request for Confidentiality FCC ID: 2AXP2-DK22 To Whom It May Concern, Pursuant to the provisions of Sections 0.457 and 0.459 of Commission's rules (47CFR0.457, 0.459), we are requesting the Commission to withhold the following attachment(s) as confidential document from public disclosure. Exhibits Long-Term Confidentiality Short-Term Confidentiality NOTE 2 ID Label/Location Attestation Statement External Photos Block Diagram Schematics Test Report Test Setup Photos User’s Manual NOTE 1 Internal Photos NOTE 1 Parts List / Tune Up / BOM List RF Exposure Info Operational Description Cover Letter(s) FCC Software Security Requirements for UNII devices NOTE 1: Long-Term Confidentiality may be permitted under special conditions (See II. LONG-TERM CONFIDENTIALITY, Section 3 of KDB 726920, use last in force) NOTE 2: Short-Term Confidentiality can be requested for a maximum of 180 days from the date of the grant. Above mentioned document contains detailed system and equipment description are considered as proprietary information in operation of the equipment. The public disclosure of above documents might be harmful to our company and would give competitor an unfair advantage in the market. In case of short-term Confidentiality, the applicant requests the exhibits selected above are withheld from public view for a period of _180_ days from the date of the Grant of Equipment Authorization and prior to marketing. C5266091_X10_Ed.2 1/1 It is our understanding that all measurement test reports, FCC ID label format and correspondent during certification review process cannot be granted as confidential documents and those information will be available for public review once the grant of equipment authorization is issued. Sincerely, Signature: Name: Shazim Mohammad Title: General Manager

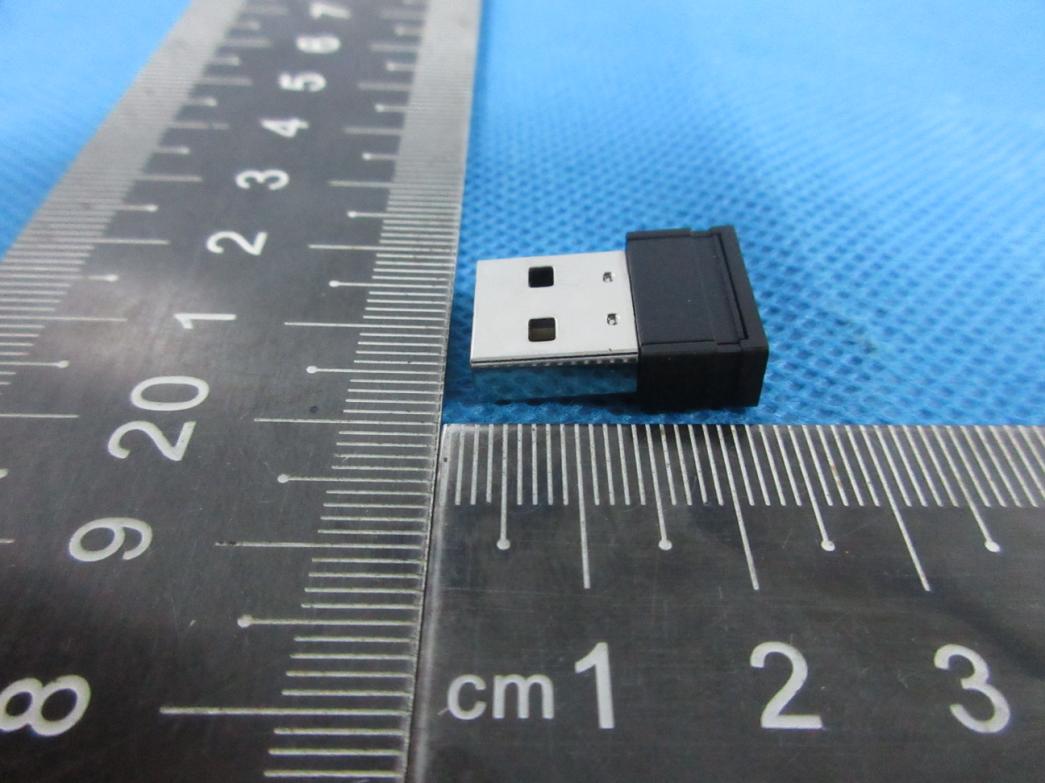

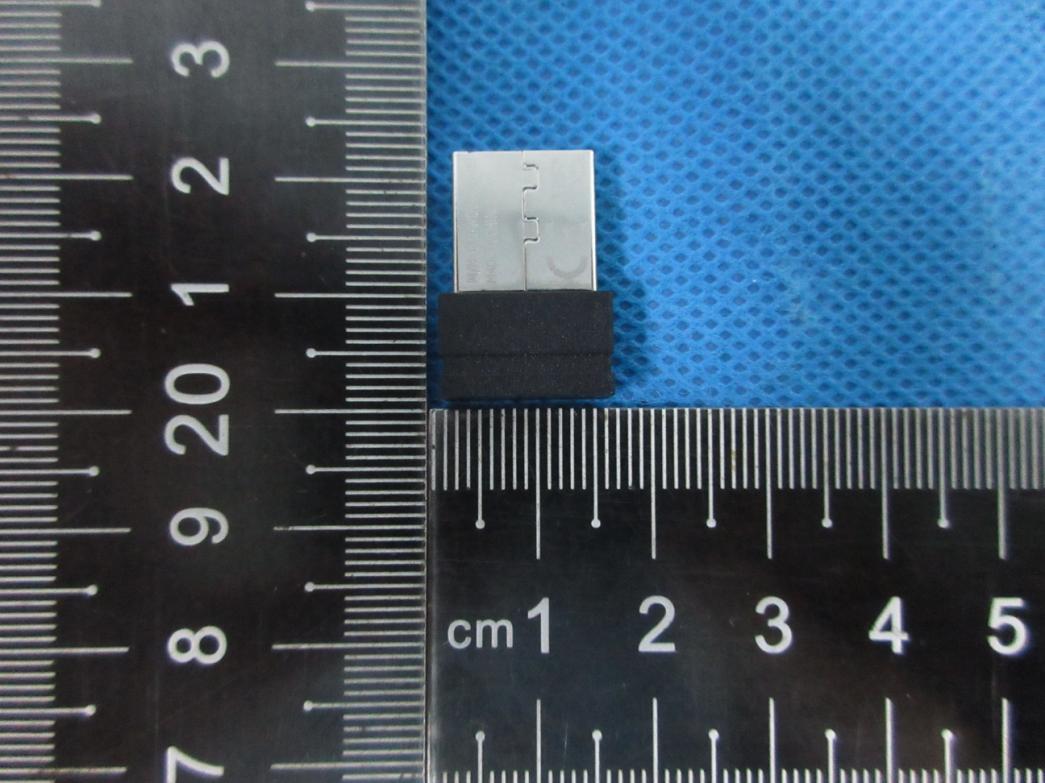

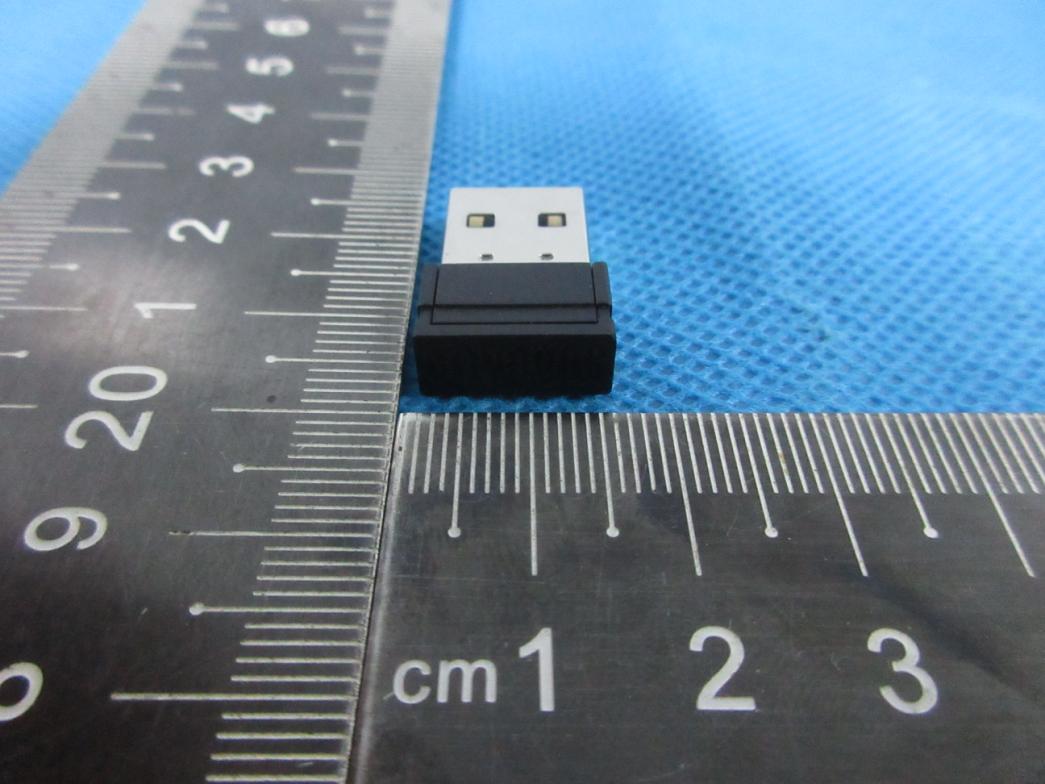

ATTACHMENT PHOTOGRAPHS OF EUT Photo 1 Photo 2 Photo 3 Photo 4 Photo 5 Photo 6

FCC ID: 2AXP2-DK22 IC: 26530-DK22 Dongle Kit V2 Matte Black SKU: GLO-ACC-MS-WDKV2-MB 0 810069 975382 품 명:마우스 모델: Dongle Kit V� 인증 번호: R-R-cG�-DONGLE-V� 제조업자:Glorious LLC 제조국:중국 HIDF16000018 R3E180 RoHS 000000000000 Rating: 5V ⎓ 500mA Designed in the USA. Made in China. 220-JP5720 59x37mm = cut label location

Photo 1 Photo 2 Photo 3 Photo 4 ANT Photo 5

FCC ID: 2AXP2-DK22 Portable device According to §15.247(e)(i) and §1.1307(b)(1), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. According to KDB447498 D01 General RF Exposure Guidance V06 The 1-g SAR and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)]·[√f(GHZ)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR, where: • f(GHZ) is the RF channel transmit frequency in GHz • Power and distance are rounded to the nearest mW and mm before calculation • The result is rounded to one decimal place for comparison When the minimum test separation distance is < 5 mm, a distance of 5 mm is applied to determine SAR test exclusion. SRD 2.4G: Modulation Channel Freq. (GHz) Conduct ed power (dBm) Conducte d power (mW) Tune-up power (dBm) Max tune-up power (dBm) Max tune-up power (mW) Distance (mm) Result calculatio n SAR Exclusion threshold SAR test exclusion 2.405-1.430.72-1±101.00<50.310163.00YES 2.451-0.030.990±111.26<50.394193.00YES 2.4760.051.010±111.26<50.396193.00YES 2.405-1.30.74-1±101.00<50.310163.00YES 2.4510.631.160±111.26<50.394193.00YES 2.4760.191.040±111.26<50.396193.00YES GFSK(1M) GFSK(2M) Conclusion: For the max result : 0.39619 ≤ 3.0 for 1g SAR, SAR is not required. Signature: Date: 12/9/2022 NAME AND TITLE (Please print or type): Alex li /Manager COMPANY (Please print or type): Shenzhen NTEK Testing Technology Co., Ltd./ 1/F, Building E, Fenda Science Park, Sanwei Community, Xixiang Street Bao’an District, Shenzhen P.R. China.

Report No.: S22110801502001 Version.1.3 Page 1 of 55 RADIO TEST REPORT FCC ID: 2AXP2-DK22 Product: Dongle Kit V2 Trade Mark: GLORIOUS Model No.: Dongle Kit V2 Family Model: N/A Report No.: S22110801502001 Issue Date: Nov 29. 2022 Prepared for Glorious LLC 13809 Research Blvd Suite 500 PMB 93206 Austin, TX 78750, USA Prepared by Shenzhen NTEK Testing Technology Co., Ltd. 1/F, Building E, Fenda Science Park, Sanwei Community, Xixiang Street Bao’an District, Shenzhen 518126 P.R. China Tel. 400-800-6106, 0755-2320 0050, 0755-2320 0090 Website: http://www.ntek.org.cn Report No.: S22110801502001 Version.1.3 Page 2 of 55 TABLE OF CONTENTS 1 TEST RESULT CERTIFICATION ...................................................................................................................... 3 2 SUMMARY OF TEST RESULTS ......................................................................................................................... 4 3 FACILITIES AND ACCREDITATIONS ............................................................................................................. 5 3.1 FACILITIES..................................................................................................................................................... 5 3.2 LABORATORY ACCREDITATIONS AND LISTINGS ................................................................................. 5 3.3 MEASUREMENT UNCERTAINTY ............................................................................................................... 5 4 GENERAL DESCRIPTION OF EUT .................................................................................................................. 6 5 DESCRIPTION OF TEST MODES ..................................................................................................................... 8 6 SETUP OF EQUIPMENT UNDER TEST ........................................................................................................... 9 6.1 BLOCK DIAGRAM CONFIGURATION OF TEST SYSTEM ....................................................................... 9 6.2 SUPPORT EQUIPMENT............................................................................................................................... 10 6.3 EQUIPMENTS LIST FOR ALL TEST ITEMS .............................................................................................. 11 7 TEST REQUIREMENTS .................................................................................................................................... 13 7.1 CONDUCTED EMISSIONS TEST ............................................................................................................... 13 7.2 RADIATED SPURIOUS EMISSION ............................................................................................................ 16 7.3 6DB BANDWIDTH ....................................................................................................................................... 25 7.4 DUTY CYCLE ............................................................................................................................................... 26 7.5 PEAK OUTPUT POWER .............................................................................................................................. 28 7.6 POWER SPECTRAL DENSITY ................................................................................................................... 29 7.7 CONDUCTED BAND EDGE MEASUREMENT......................................................................................... 31 7.8 SPURIOUS RF CONDUCTED EMISSIONS................................................................................................ 32 7.9 ANTENNA APPLICATION .......................................................................................................................... 33 8 TEST RESULTS ................................................................................................................................................... 34 8.1 1M: ................................................................................................................................................................. 34 8.2 2M: ................................................................................................................................................................. 45 Report No.: S22110801502001 Version.1.3 Page 3 of 55 1 TEST RESULT CERTIFICATION Applicant’s name ......................... : Glorious LLC Address ....................................... : 13809 Research Blvd Suite 500 PMB 93206 Austin, TX 78750, USA Manufacturer's Name .................. : Glorious LLC Address ....................................... : 13809 Research Blvd Suite 500 PMB 93206 Austin, TX 78750, USA Product description Product name .............................. : Dongle Kit V2 Model and/or type reference ...... : Dongle Kit V2 Family Model ............................... : N/A Test Sample Number ................... : S221108015003 Measurement Procedure Used: APPLICABLE STANDARDS APPLICABLE STANDARD/ TEST PROCEDURE TEST RESULT FCC 47 CFR Part 2, Subpart J FCC 47 CFR Part 15, Subpart C ANSI C63.10-2013 KDB 558074 D01 15.247 Meas Guidance v05r02 Complied This device described above has been tested by Shenzhen NTEK Testing Technology Co., Ltd., and the test results show that the equipment under test (EUT) is in compliance with the FCC requirements. And it is applicable only to the tested sample identified in the report. This report shall not be reproduced except in full, without the written approval of Shenzhen NTEK Testing Technology Co., Ltd., this document may be altered or revised by Shenzhen NTEK Testing Technology Co., Ltd., personnel only, and shall be noted in the revision of the document. The test results of this report relate only to the tested sample identified in this report. Date of Test : Nov 08. 2022 ~ Nov 29. 2022 Testing Engineer : (Mary Hu) Authorized Signatory : (Alex Li) Report No.: S221108015…

Text truncated - open the document above for the full version.

© 2021 PixArtImaging Inc. Confidential Information Wireless Nano Dongle Antenna Pattern 1 No.5, Innovation Road 1, Hsinchu Science Park, Hsinchu,Taiwan, R.O.C. PAR2452 3D/2D Radiation Pattern (Dongle天線_0dBm) X Y Z PAR2452 3D/2D Radiation Pattern (Dongle天線_0dBm) X Y Z Comparison Table Antenna Designation: PCB Antenna AntennaGain (dBi): 3.8dBi Operation Frequency: 2402~2481MHz Antenna model: ACX-AT8010 Width: 2.5mm Length:8.1mm EIRP- Pcond=Gant (Directivity) Gant =Gant (Directivity) +Efficiency For example： EIRP=3.8dBm, Pcond =-3.9dBm, Efficiency=-3.9dB Gant (Directivity)=3.8-(-3.9)=7.7dBi Gant =7.7-3.9=3.8dBi

Radiated Measurement Photos Conducted Measurement Photos
