2AXPY-G171High Speed Remote Control Vehicle

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -- Reorient or relocate the receiving antenna. -- Increase the separation between the equipment and receiver. -- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -- Consult the dealer or an experienced radio/TV technician for help. Warning: changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment

Model difference declaration letter Differences Description We SANHE PLASTIC TOY INDUSTRY CO.,LTD state: Product： High Speed Remote Control Vehicle Model Name： G171,G172,G173,G174,G175,G176,G177,G178,G179, G180,G181,G182,G183,G184,G185,G186,G187,G188, G189,G190,G191,258,278,288,2035,2036,661,662, 2032-1,073,077,260ES-A,260ES-B,260ES-C,HAK101, S222 The above product with same circuit, PCB layout, electrical parts, materials and wiring structures, Appearance shape, the materials of decorative accessories is same, only different color, Signatory Date: 2020-09-27 <Signature> Name：Eden Yang Title：Manager Company: SANHE PLASTIC TOY INDUSTRY CO.,LTD Address: Beside Chenghua primary School, Wenguan Road, Chenghai District, Shantou City, Guangdong Province.

SANHE PLASTIC TOY INDUSTRY CO.,LTD Sep 27. 2020 Equipment Autorisation Division Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 FCC ID: 2AXPY-G171 Product Name: High Speed Remote Control Vehicle Request for Confidentiality Pursuant to Sections 0.457 and 0.459 of the commission’s rules, we hereby request that the following documents be held confidential: (List here the documents for which you are seeking confidentiality – for example ...)  Schematics  Block diagram  Operation description These materials contain trade secrets and proprietary information and are not customarily released to the public. The public disclosure of this information might be harmful to the company and provide unjustified benefits to our competitors. <Signature> Name：Eden Yang Title：Manager Company： SANHE PLASTIC TOY INDUSTRY CO.,LTD

SANHE PLASTIC TOY INDUSTRY CO.,LTD Sep 27, 2020: Federal Communications Commission Authorization & Evaluation Division 7345 Oakland Mills Road Columbia, Maryland 21046 Authority to Act as Agent On our behalf, I appoint Flux Compliance Service Laboratory 105 Floor Bao hao Technology Building 1 NO.15 Gong ye West Road Hi-Tech Industrial, Song shan lake Dongguan China (Name of Agent company name and address) to act as our agent in the preparation of this application for equipment certification. I certify that submitted documents properly describe the device or system for which equipment certification is sought. I also certify that each unit manufactured, imported or marketed, as defined in the Federal Communications Commission’s regulations will have affixed to it a label identical to that submitted for approval with this application. For instances where our authorized agent signs the application for certification on our behalf, I acknowledge that all responsibility for complying with the terms and conditions for certification, still resides with SANHE PLASTIC TOY INDUSTRY CO.,LTD Beside Chenghua primary School, Wenguan Road, Chenghai District, Shantou City, Guangdong Province. (Applicant Name and address) <Signature> Name：Eden Yang Title：Manager Company： SANHE PLASTIC TOY INDUSTRY CO.,LTD

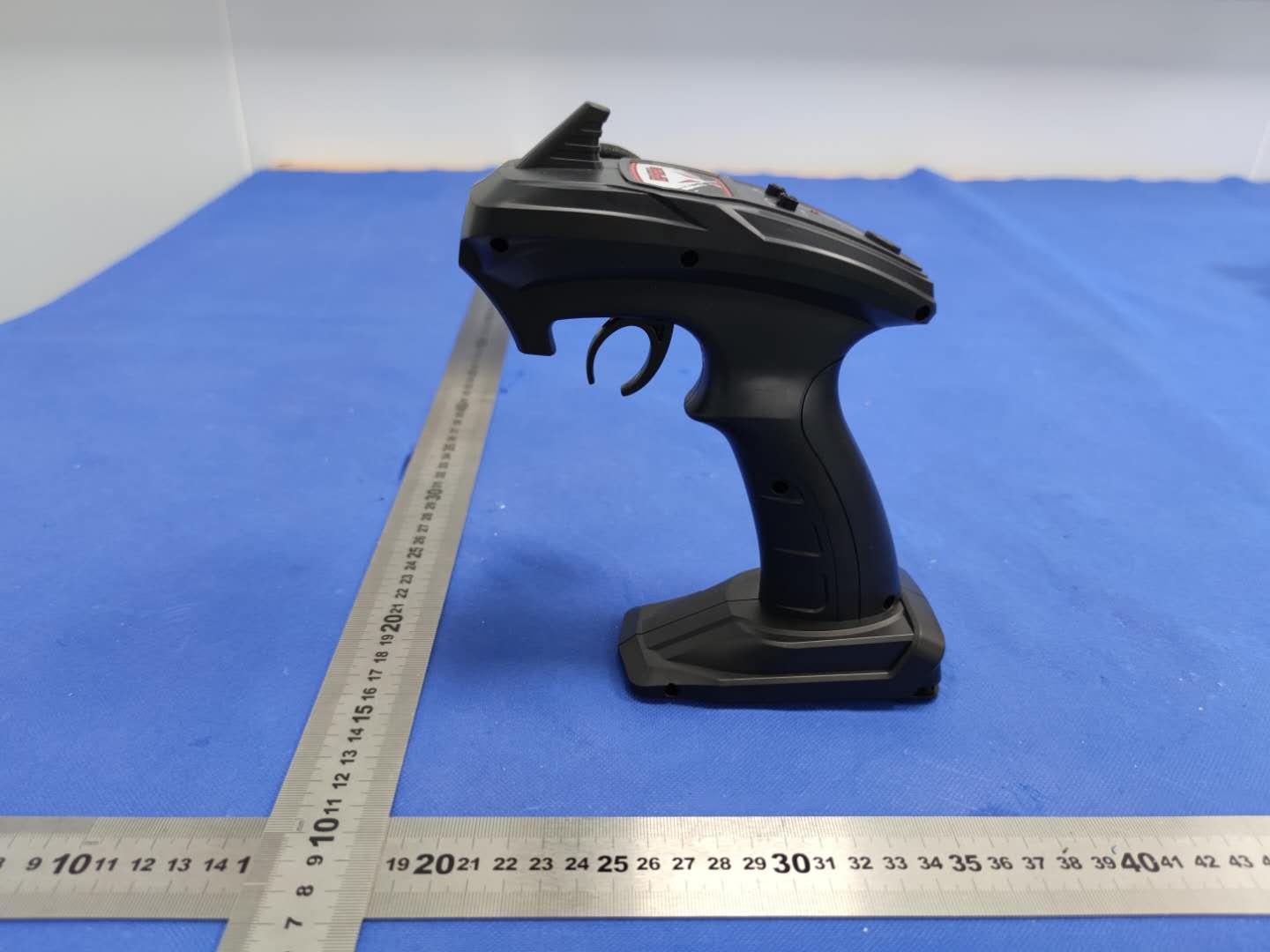

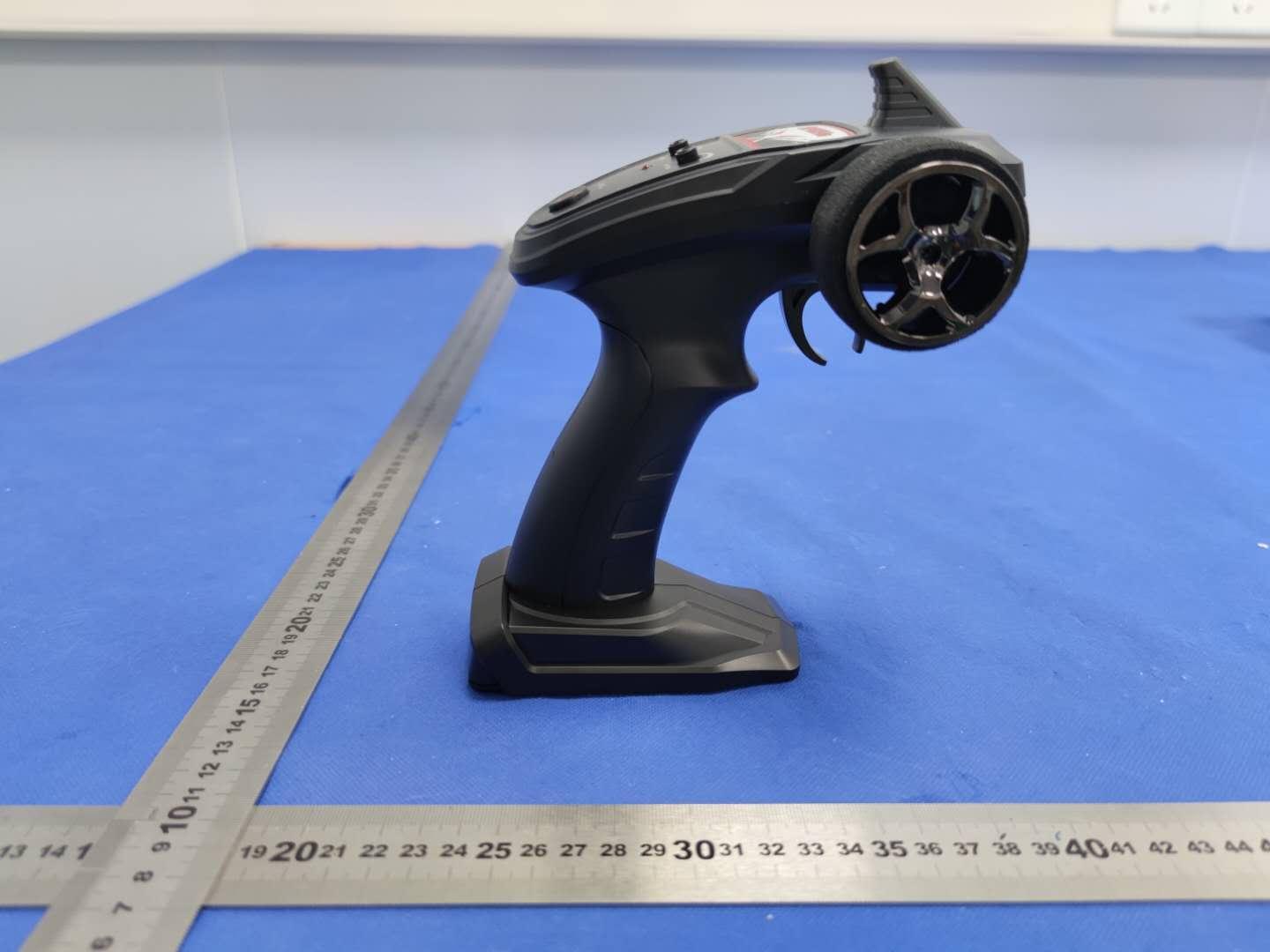

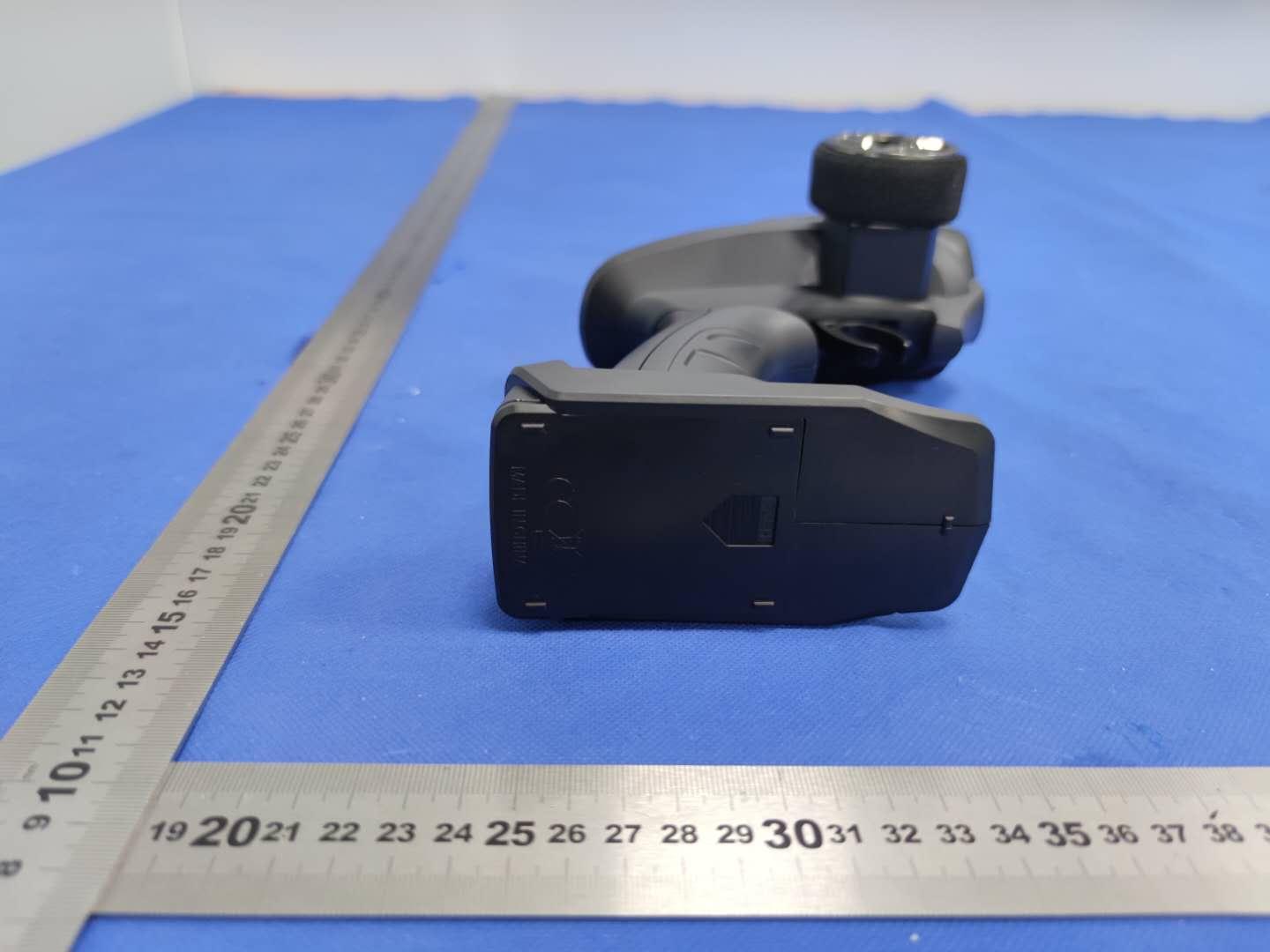

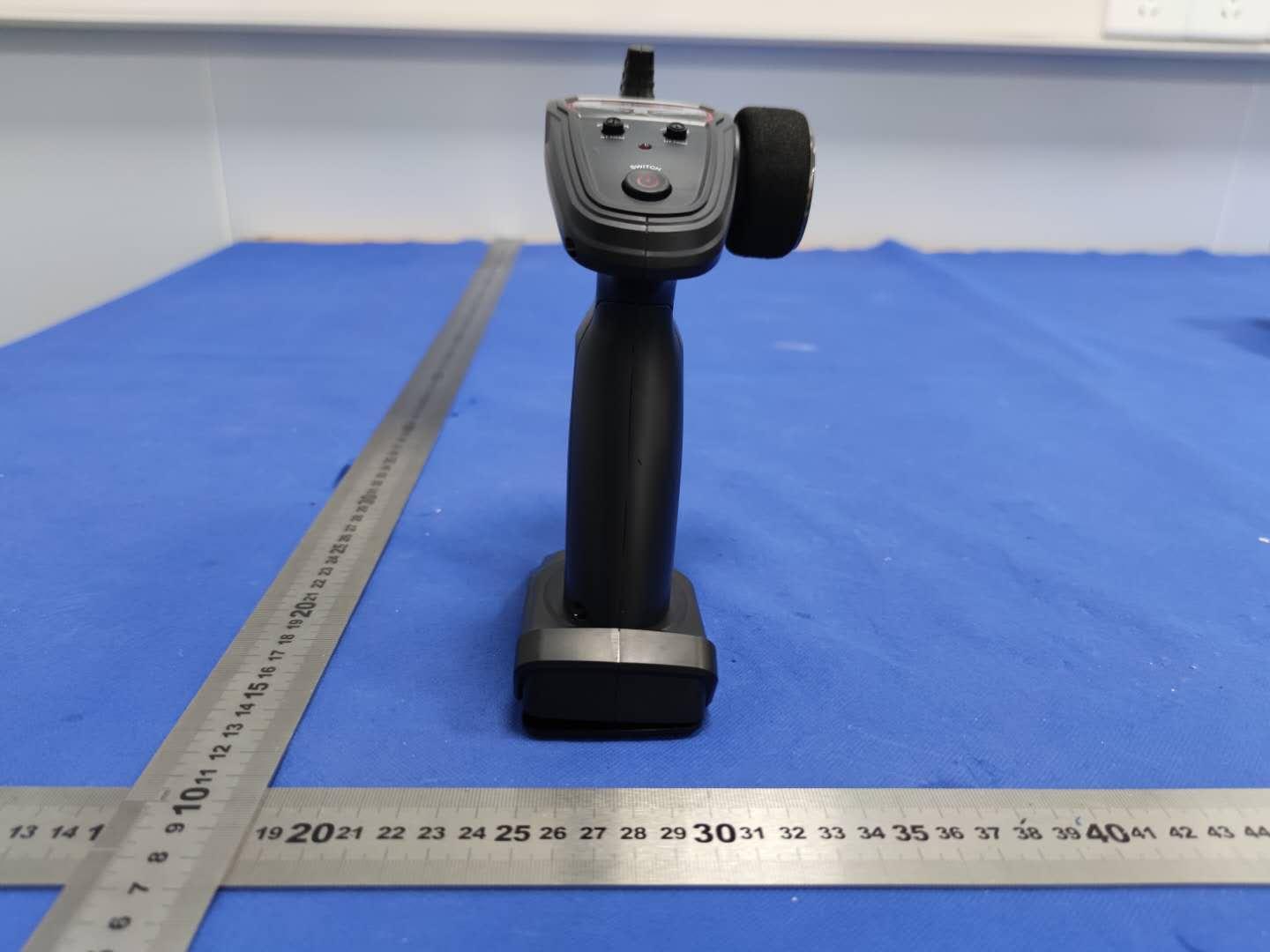

Page 1 of 3 Report No.:FCS202009002 External photos Photo 1 Photo 2 Page 2 of 3 Report No.:FCS202009002 Photo 3 Photo 4 Page 3 of 3 Report No.:FCS202009002 Photo 5 Photo 6

Label and Label Location FCC ID: 2AXPY-G171 L*W: 10mm*7mm white font on a Black label

Page 1 of 3 Report No.:FCS202009002 Internal photos Photo 1 Photo 2 Page 2 of 3 Report No.:FCS202009002 Photo 3 Photo 4 Antenna Page 3 of 3 Report No.:FCS202009002 Photo 5 Photo 6

RF Exposure evaluation According to 447498 D01 General RF Exposure Guidance v05 The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] ·[√f(GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10- g extremity SAR, where f(GHz) is the RF channel transmit frequency in GHz  Power and distance are rounded to the nearest mW and mm before calculation The result is rounded to one decimal place for comparison eirp = pt x gt = (EXd) 2 /30 where: pt = transmitter output power in watts, gt = numeric gain of the transmitting antenna (unitless), E = electric field strength in V/m, --- 10 ((dBuV/m)/20) /10 6 d = measurement distance in meters (m)---3m Sopt = (EXd) 2 /30 x gt Ant gain= 2 dBi ; so Ant numeric gain= 1.585 Field strength =93.18 dBμV/m @3m So Pt={ [10 (93.18/20) /10 6 x3] 2 /30x1.585 }x1000 mW = 0.4 mW So ( 0.4 mW/5mm)x √2.440 GHz = 0.125 < 3 Then SAR evaluation is not required

FCC Test Report Report No: FCS202009002W01 Issued for Applicant: SANHE PLASTIC TOY INDUSTRY CO.,LTD Address: Beside Chenghua primary School, Wenguan Road, Chenghai District, Shantou City, Guangdong Province. Product Name: High Speed Remote Control Vehicle Brand Name: N/A Model Name: G171 Series Model: G172,G173,G174,G175,G176,G177,G178,G179,G180,G181, G182,G183,G184,G185,G186,G187,G188,G189,G190,G191, 258,278,288,2035,2036,661,662,2032-1,073,077, 260ES-A,260ES-B,260ES-C,HAK101,S222 FCC ID: 2AXPY-G171 Issued By: Flux Compliance Service Laboratory Add: Room 105 Floor Bao hao Technology Building 1 NO.15 Gong ye West Road Hi-Tech Industrial, Song shan lake Dongguan Tel: 769-27280901 Fax:769-27280901 http://www.fcs-lab.com Page 2 of 31 Report No.: FCS202009002W01 Flux Compliance Service Laboratory Room 105 Floor Bao hao Technology Building 1 NO.15 Gong ye West Road Hi-Tech Industrial, Song shan lake Dongguan Tel: 769-27280901 Fax:769-27280901 http://www.fcs-lab.com TEST RESULT CERTIFICATION Applicant’s Name .................. : SANHE PLASTIC TOY INDUSTRY CO.,LTD Address ................................. : Beside Chenghua primary School, Wenguan Road, Chenghai District, Shantou City, Guangdong Province. Manufacture's Name ............. : SANHE PLASTIC TOY INDUSTRY CO.,LTD Address ................................. : Beside Chenghua primary School, Wenguan Road, Chenghai District, Shantou City, Guangdong Province. Product Description Product Name ....................... : High Speed Remote Control Vehicle Brand Name ........................ : N/A Model Name .......................... : G171 Series Model ......................... : G172,G173,G174,G175,G176,G177,G178,G179,G180,G181,G182,G183, G184,G185,G186,G187,G188,G189,G190,G191,258,278,288,2035,2036, 661,662,2032-1,073,077,260ES-A,260ES-B,260ES-C,HAK101,S222 Test Standards ...................... : FCC Rules and Regulations Part 15 Subpart C, Section 249 Test Procedure ...................... : ANSI C63.10:2013 This device described above has been tested FCS, the test results show that the equipment under test (EUT) is in compliance with the FCC requirements. And it is applicable only to the tested sample identified in the report. This report shall not be reproduced except in full, without the written approval of FCS, this document may be altered or revised by FCS, personal only, and shall be noted in the revision of the document.. Date of Test ............................. : Date (s) of performance of tests : Septemper 01, 2020 ~ Septemper 23, 2020 Date of Issue ............................ : Septemper 23, 2020 Test Result ................................ : Pass Tested by : (Scott Shen) Reviewed by : (Duke Qian) Approved by : (Kait Chen) Page 3 of 31 Report No.: FCS202009002W01 Flux Compliance Service Laboratory Room 105 Floor Bao hao Technology Building 1 NO.15 Gong ye West Road Hi-Tech Industrial, Song shan lake Dongguan Tel: 769-27280901 Fax:769-27280901 http://www.fcs-lab.com Table of Contents Page 1. SUMMARY OF TEST RESULTS .......................................................................................... 5 1.1 TEST FACTORY ............................................................................................................ 6 1.2 MEASUREMENT UNCERTAINTY ................................................................................. 6 2. GENERAL INFORMATION ................................................................................................... 7 2.1 GENERAL DESCRIPTION OF THE EUT ....................................................................... 7 2.2 DESCRIPTION OF THE TEST MODES......................................................................... 9 2.3 DESCRIPTION OF NECESSARY ACCESSORIES AND SUPPORT UNITS ................ 10 2.4 EQUIPMENTS LIST..................................................................................................... 11 3. RADIATED EMISSION MEASUREMENT ........................................................................... 12 3.1 LIMIT ........................................................................................................................... 12 3.2 TEST PROCEDURE .................................................................................................... 13 3.3 TEST SETUP ............................................................................................................... 14 3.4 TEST RESULTS .......................................................................................................... 15 4. BAND EDGE TEST ............................................................................................................ 22 4.1 LIMIT ........................................................................................................................... 22 4.2 TEST PROCEDURE .................................................................................................... 22 4.3 TEST SETUP ............................................................................................................... 23 4.4 TEST RESULTS .......................................................................................................... 24 5. 20 DB BANDWIDTH TEST ................................................................................................. 28 5.1 LIMIT ........................................................................................................................... 28 5.2 TEST PROCEDURE .................................................................................................... 28 5.3 TEST SETUP ............................................................................................................... 28 5.4 TEST RESULTS .......................................................................................................... 29 6. ANTENNA REQUIREMENT................................................................................................ 31 6.1 STANDARD REQUIREMENT .............................…

Text truncated - open the document above for the full version.

Page 1 of 1 Report No.:FCS202009002 Blow 1GHz for radiated emission test setup Above 1GHz for radiated emission test setup
