2AXQH-QI-15Qi Wireless Charging Holder

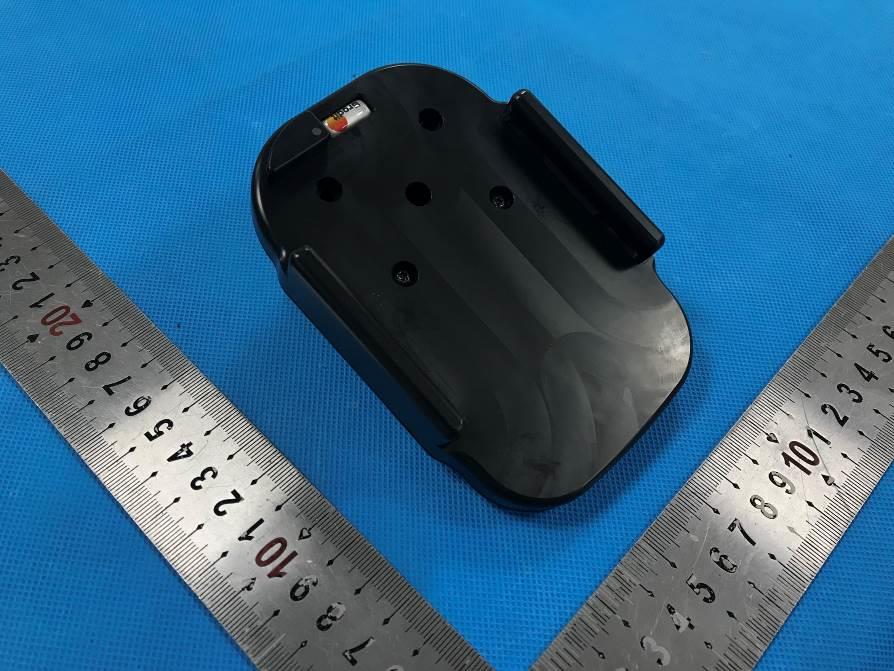

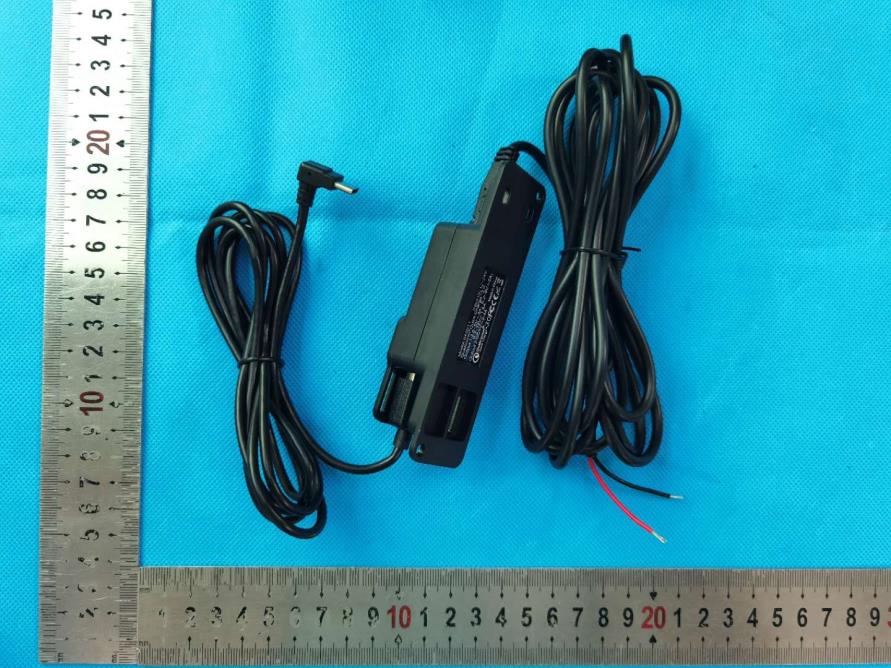

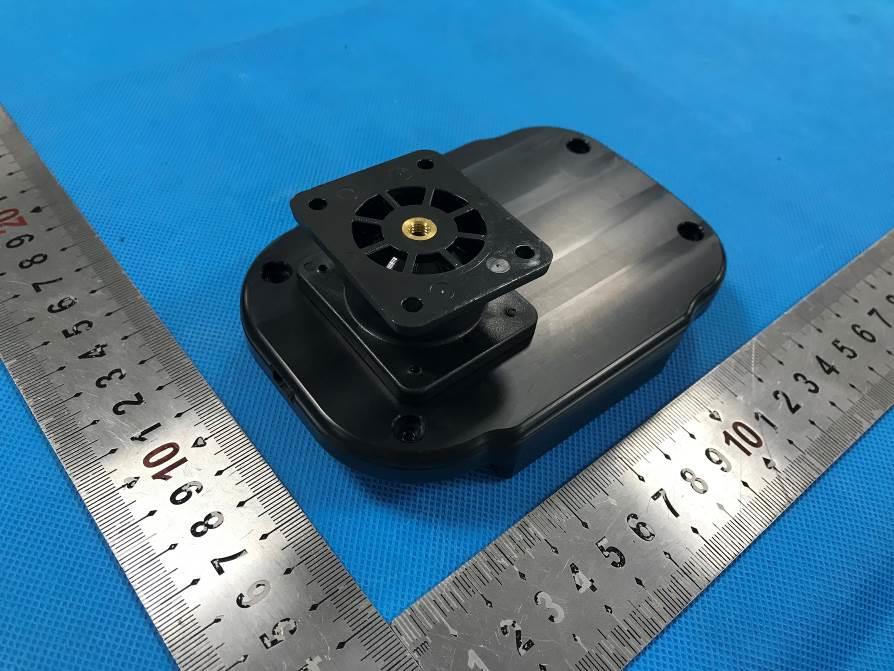

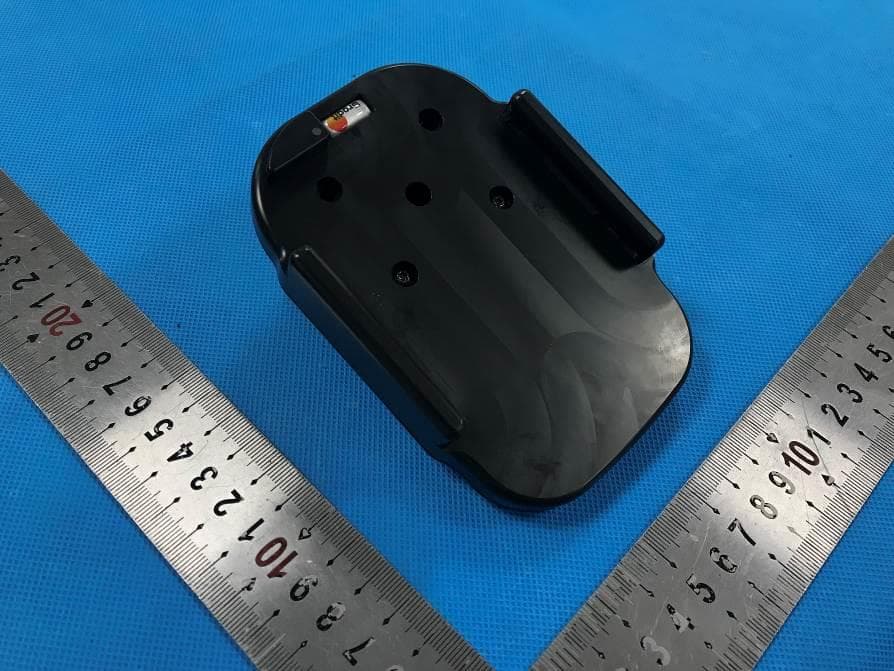

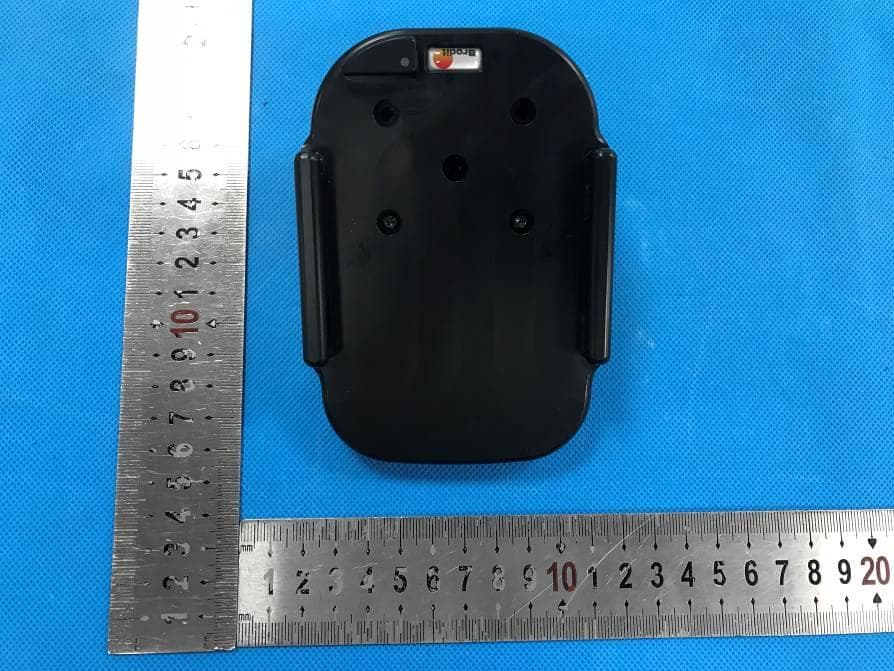

Made in Sweden Qi WIRELESS CHARGING HOLDER Model: Qi-15-2.1-IP 1200 5W / 7.5W / 10W DC 5V / 9V 1 x Type-C USB 127mm x 88mm x 50mm Wireless Output: Input: Ports: Size: SPECIFICATIONS 1 PRODUCT LAYOUT 2 4 3 1. Type-C USB port 2. LED Indicator 3. Tilt Swivel 4. Amps Standard Mounting Plate Warning:Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. NOTE:This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. NOTE: This device complies with part 18 of the FCC Rules. Information to the user. 1.The device has potential interference, but the interference is very small and meets the requirements of the FCC rule 2.Equipment system maintenance is simple, please refer to the manual 3. The user can take simple measures to correct the interference. Such as staying away from interference sources, turning off interference sources, etc. FCC Statement: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: —Reorient or relocate the receiving antenna. —Increase the separation between the equipment and receiver. —Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. —Consult the dealer or an experienced radio/TV technician for help. RF exposure compliance statement: This device has been evaluated to meet the general RF exposure requirement CONNECT YOUR HOLDER 1. Connect the Type-C USB cable to the holder and either the cigarette charger or install kit included. 2. The LED indicator will flash red once then remain off while in standby mode. 3. The holder is now ready to start charging your phone. CHARGE YOUR DEVICE 1. Carefully slide your phone down the holder groves until it naturally rests at the bottom. 2. The wireless charger will automatically connect to your phone and start charging. 3. The holder LED indicator will turn blue when charging commences and your phone screen will display the charging icon. REMOVE YOUR DEVICELED STATUS 1. Your phone can be removed anytime while charging. Carefully slide your phone up the holder groves until fully removed. 2. The holder stops charging automatically when your phone is removed. 3. The holder LED indicator will turn off when in standby mode. Standby mode = LED off Charging mode = Blue LED on Fault / Not charging = Red LED on Foriegn object detected = Red LED flashing

Brodit AB Agent Authorization Company: Brodit AB Address: Gesallvagen 8, 546 34 Karlsborg, Sweden Product Name: Qi Wireless Charging Holder Model Number(s): Qi-15-2.1-IP1200 Product Description:Qi Wireless Charging Holder We authorize MiCOM Labs Inc., 575 Boulder Court, Pleasanton, California 94566, USA, to act on our behalf on all matters concerning the certification of abov e named equipment. We declare that MiCOM Labs Inc. is allowed to forward all information related to the approval and certification of equipment to the regulatory agencies as required and to discus s any issues concerning the approval application. Any and all acts carried out by MiCOM Labs on our behalf shall have the same effect as acts of our own. Date: Sep. 24, 2020 Signature: Name: Peter Hermansson Title: manager Company: Brodit AB

Brodit AB Date: Sep. 24, 2020 Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 USA Subject; Request for Confidentiality FCC ID: 2AXQH-QI-15 To Whom It May Concern, Pursuant to the provisions of the Commission’s rules Title 47 Sections §0.457 and §0.459, we are requesting the Commission to withhold the following attachment(s) as confidential documents from public disclosure indefinitely. These documents contain detailed system and equipment descriptions and are considered as proprietary information in operation of the equipment. The public disclosure of these documents might be harmful to our company and would give competitors an unfair advantage in the market. Schematic Diagram Block Diagram Parts List Operational Description Tune-up Procedure In additional to above mentioned documents, in order to comply with the marketing regulations in Title 47 CFR §2.803 and the importation rules in Title 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices, we request Short Term Confidentiality of the following attachment(s); External Photos Test Setup Photos Internal Photos User Manual For 45 days, pursuant to Public Notice DA 04-1705. OR For 180 days pursuantto KDB 726920 D01. It is our understanding that all measurement test reports, FCC ID label format and correspondence during the certification review process cannot be granted as confidential documents and this information will be available for public review once the grant of equipment authorization is issued. Sincerely, Signature: Name: Peter Hermansson Title: manager

Brodit AB Gesallvagen 8， 546 34 Karlsborg, S weden Tel: +74 0505-10900 Email:[email protected] Sep. 24, 2020 FCC ID: 2AXQH-QI-15 Model Number: Qi-15-2.1-IP1200 To: Federal Communication Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 To Whom It May Concern, We, Brodit AB hereby declare that our product (Qi Wireless Charging Holder ) Model Number: Qi-15-2.1-IP1200 will conduct FCC compliance testing, the sDOC part in recognized test lab. (Shenzhen HUAK Testing Technology Co.,Ltd.). The product conforms KDB 680106 D01 V03 Clause 5 b) as follows; Requirements of KDB 680106 D01 Yes / No Description Power transfer frequency is less than 1 MHz Yes The device operate in the frequency range 135.6KHz Output power from each primary coil is less than 15 watts Yes The maximu m output power of the primary coil is 5W. The transfer system includes only single primary and secondary coils. This includes charging systems that may have multiple primary coils and clients that are able to detect and allow coupling only between individual pairs of coils. Yes The transfer system includes single coil that is able to detect receiver device. Client device is placed directly in contact with the transmitter. Yes Client device is placed directly in contact with the transmitter. Mobile exposure conditions only (portable exposure conditions are not covered by this exclusion). Yes Mobile exposure conditions only The aggregate H-field strengths at 15 cm surrounding the device and 20 cm above the top surface from all simultaneous transmitting coils are demonstrated to be less than 50% of the MPE limit. Yes The EUT H-field strengths at 15 cm surrounding the device and 20 cm above the top surface from all simultaneous transmitting coils are demonstrated to be less than 50% of the MPE limit. Brodit AB Gesallvagen 8， 546 34 Karlsb org, Sweden Tel: +74 0505-10900Email: [email protected] Please contact me if you have any question. Sincerely, Name: Peter Hermansson Company: Brodit AB Address: Gesallvagen 8, 546 34 Karlsborg, Sweden Tel: +74 0505-10900 Email: [email protected]

SIZE: 20*45mm Qi Wireless Charging Holder MODEL: Qi-15-2.1-IP1200 FCC ID: 2AXQH-QI-15

Page 1 of 8 Report No.: HK2006181454-2E FCC TEST REPORT Test report On Behalf of Brodit AB For Qi Wireless Charging Holder Model No.: Qi-15-2.1-IP1200 FCC ID: 2AXQH-QI-15 Prepared for : Brodit AB Gesallvagen 8, 546 34 Karlsborg, Sweden Prepared By : Shenzhen HUAK Testing Technology Co., Ltd. 1F, B2 Building, Junfeng Zhongcheng Zhizao Innovation Park, Fuhai Street, Bao'an District, Shenzhen City, China Date of Test: Aug. 12, 2020 ~ Aug. 26, 2020 Date of Report: Aug. 26, 2020 Report Number: HK2008172225-2E Page 2 of 8 Report No.: HK2006181454-2E Note: 1.For a more detailed features description, please refer to the manufacturer’s specifications or the User's Manual. 2. Channel List Channel Frequency (KHz) Channel Frequency (MHz) Channel Frequency (MHz) Channel Frequency (MHz) 01 135.6 The EUT antenna is Coil Antenna. No antenna other than that furnished by the responsible party shall be used with the device. 2. SUMMARY OF TEST RESULTS 2.1 Test procedures according to the technical standards: FCC KDB680106 D01 RF Exposure Wireless Charging Apps v03 FCC CFR 47 Standard Section Test Item Judgment Remark FCC CFR 47 part1, 1.1310 KDB680106 D01 v03 - part 3 Electric Field Strength (E) (V/m) PASS Magnetic Field Strength (H) (A/m) PASS 2.2 MEASUREMENT UNCERTAINTY The reported uncertainty of measurement y ±U，where expended uncertainty U is based on a standard uncertainty multiplied by a coverage factor of k=2，providing a level of confidence of approximately 95 %. No. Item Uncertainty 1 All emissions,radiated(<30M)(9KHz-30MHz) ±2.45dB 2 Temperature ±0.5°C 3 Humidity ±2% Page 3 of 8 Report No.: HK2006181454-2E 2.3 Test Instruments Description Brand Model No. Frequency Range Calibrated Date Calibrated Until Broadband Field Meter NARDA NBM-550 - Dec. 26, 2019 Dec. 25, 2020 Magnetic Field Meter NARDA ELT-400 1 – 400kHz Dec. 26, 2019 Dec. 25, 2020 Magnetic Probe NARDA HF-3061 300kHz – 30MHz Dec. 26, 2019 Dec. 25, 2020 Magnetic Probe NARDA HF-0191 27 – 1000MHz Dec. 26, 2019 Dec. 25, 2020 Broadband Field Meter NARDA NBM-550 - Dec. 26, 2019 Dec. 25, 2020 Electric Field Meter COMBINOVA EFM 200 5Hz – 400kHz Dec. 26, 2019 Dec. 25, 2020 E-Field Probe NARDA EF-0391 100kHz – 3GHz Dec. 26, 2019 Dec. 25, 2020 E-Field Probe NARDA EF-6091 100MHz – 60GHz Dec. 26, 2019 Dec. 25, 2020 NOTE: 1. The calibration interval of the above test instruments is 12 months . Page 4 of 8 Report No.: HK2006181454-2E 3. MAXIMUM PERMISSIBLE EXPOSURE 3.1 MAXIMUM PERMISSIBLE EXPOSURE Limit of Maximum Permissible Exposure Limits for Occupational / Controlled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm²) Averaging Time |E|²,|H|² or S (minutes) 0.3-3.0 614 1.63 (100)* 6 3.0-30 1842 / f 4.89 / f (900 / f)* 6 30-300 61.4 0.163 1.0 6 300-1500 F/300 6 1500-100,000 5 6 Limits for General Population / Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm²) Averaging Time |E|²,|H|² or S (minutes) 0.3-1.34 614 1.63 (100)* 30 1.34-30 824/f 2.19/f (180 / f)* 30 30-300 27.5 0.073 0.2 30 300-1500 F/1500 30 1500-100,000 1 30 Note 1: f = frequency in MHz ; *Plane-wave equivalent power density Note 2: For the applicable limit, see FCC 1.1310, 680106 D01 RF Exposure Wireless Charging Apps v03 Note 3: Emissions between 100 kHz to 300 kHz should be assessed versus the limits at 300 kHz in Table 1 of Section 1.1310: 614 V/m and 1.63A/m. A KDB inquiry is required to determine the applicable exposure limits below 100 kHz. Page 5 of 8 Report No.: HK2006181454-2E 4. TEST PROCEDURE a. For devices designed for typical desktop applications, such a wireless charging pads, RF exposure evaluation should be conducted assuming a user separation distance of (H-field & E- field strengths for all sides is 15cm, H-field strengths of top side is 20cm). E and H field strength measurements or numerical modeling may be used to demonstrate compliance. Measurements should be made from all sides and the top of the primary/client pair, with the 15 cm measured from the center of the probe(s) to the edge of the device. 4.1 TEST SETUP 4.2 RESULT OF MAXIMUM PERMISSIBLE EXPOSURE Page 6 of 8 Report No.: HK2006181454-2E For Full load mode: E-Field Strength at 15 cm from the edges surrounding the EUT (V/m) Frequency Range (MHz) Test Position A Test Position B Test Position C Test Position D Test Position E(20cm) Limits Test (V/m) 0.1356 4.01 4.16 4.37 3.27 0.67 614 H-Field Strength at 15 cm from the edges surrounding the EUT (A/m) Frequency Range (MHz) Test Position A Test Position B Test Position C Test Position D Test Position E(20cm) Limits Test (V/m) 0.1356 0.89 1.26 0.43 0.67 0.47 1.63 For Half Load mode: E-Field Strength at 15 cm from the edges surrounding the EUT (V/m) Frequency Range (MHz) Test Position A Test Position B Test Position C Test Position D Test Position E(20cm) Limits Test (V/m) 0.1356 2.65 4.08 4.51 0.61 1.33 614 H-Field Strength at 15 cm from the edges surrounding the EUT (A/m) Frequency Range (MHz) Test Position A Test Position B Test Position C Test Position D Test Position E(20cm) Limits Test (V/m) 0.1356 1.04 0.58 0.75 0.26 0.84 1.63 Page 7 of 8 Report No.: HK2006181454-2E For No load mode: E-Field Strength at 15 cm from the edges surrounding the EUT (V/m) Frequency Range (MHz) Test Position A Test Position B Test Position C Test Position D Test Position E(20cm) Limits Test (V/m) 0.1356 2.36 4.31 0.79 1.79 2.38 614 H-Field Strength at 15 cm from the edges surrounding the EUT (A/m) Frequency Range (MHz) Test Position A Test Position B Test Position C Test Position D Test Position E(20cm) Limits Test (V/m) 0.1356 0.68 1.46 1.10 1.61 1.18 1.63 Remark: According KDB 680106 D01 RF Exposure Wireless C harging App v03, section 5, b). The aggregate H-field strengths at 15 cm surrounding the device and 20 cm above the top surface from all simultaneous transmitting coils are demonstrated to be less than 50% of the …

Text truncated - open the document above for the full version.

Page 1 of 17Report No.: HK2008172225-1E FCC TEST REPORT Test report On Behalf of Brodit AB For Qi Wireless Charging Holder Model No.: Qi-15-2.1-IP1200 FCC ID: 2AXQH-QI-15 Prepared for : Brodit AB Gesallvagen 8, 546 34 Karlsborg, Sweden Prepared By : Shenzhen HUAK Testing Technology Co., Ltd. 1F, B2 Building, Junfeng Zhongcheng Zhizao Innovation Park, Fuhai Street, Bao'an District, Shenzhen City, China Date of Test: Aug. 12, 2020 ~ Aug. 26, 2020 Date of Report: Aug. 26, 2020 Report Number: HK2008172225-1E Page 2 of 17 Report No.: HK2008172225-1E TEST RESULT CERTIFICATION Applicant’s name .................. : Brodit AB Address ................................... : Gesallvagen 8, 546 34 Karlsborg, Sweden Manufacture's Name............. : Lyte Ltd Address ................................... : 1st Floor, White Collar Factory, 1 Old Street Yard, London, EC1Y 8AF Product description Trade Mark .............................. : Brodit Product name.......................... : Qi Wireless Charging Holder Model and/or type reference . : Qi-15-2.1-IP1200 Standards............................... : FCC CFR 47 PART 18 This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen HUAK Testing Technology Co., Ltd. is acknowledged as copyright owner and source of the material. Shenzhen HUAK Testing Technology Co., Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Date of Test .......................................... : Date (s) of performance of tests ............ : Aug. 12, 2020 ~ Aug. 26, 2020 Date of Issue .......................................... : Aug. 26, 2020 Test Result ............................................. : Pass Testing Engineer : (Gary Qian) Technical Manager : (Eden Hu) Authorized Signatory : (Jason Zhou) Page 3 of 17 Report No.: HK2008172225-1E Table of Contents 1. TEST SUMMARY ....................................................................................................................................................................................... 4 1.1 TES T P ROCEDURES AND RES ULTS ................................................................................................................................ 4 1.2 TES T FA CILITY ............................................................................................................................................................................ 4 1.3 MEASUREME NT UNCERTA INTY ......................................................................................................................................... 4 2. GEN ERAL INFO RMATION ....................................................................................................................................................................... 5 2.1 General Descri ption of EUT ...................................................................................................................................................... 5 2.2. Carrier Frequency of Channels............................................................................................................................................... 6 2.3 Operation of EUT during testing .............................................................................................................................................. 6 2.4 Descripti on of Test Setup........................................................................................................................................................... 6 2.5 Measurem ent Instruments List................................................................................................................................................. 7 3. CONDUCTED EMISSION TEST............................................................................................................................................................. 8 3.1 Test Specification ......................................................................................................................................................................... 8 3.2 Test data .......................................................................................................................................................................................... 9 4. Radiated Sp urious Emission Measurement .....................................................................................................................................10 4.1 Block Diagram of Test Setup ..................................................................................................................................................10 4.2 Test Result .................................................................................................................................................................................11 5. PHOTOGRAPH OF TEST.........................................................................................................................................................................12 6. PHOTOGRAPH OF TEST.........................................................................................................................................................................13 Page 4 of 17 Report No.: HK2008172225-1E 1. TEST SUMMARY 1.1 TEST PROCEDURES AND RESULTS DESCRIPTION OF TEST Section number RESULT CONDUCTED EMISSIONS TEST §18.307 N/A RADIATED EMISSION TEST §18.305 COMPLIANT NOTE: N/A means not applicable in this report. 1.2 TEST FACILITY Test Firm : Shenzhen HUAK Testing Technology Co., Ltd. Address 1F, B2 Building, Junfeng Zhongcheng Zhizao Innovation Park, Fuhai Street, Bao'an District, Shenzhen City, China 1.3 MEASUREMENT UNCERTAINTY Measurement Uncertainty Conducted Emission Expanded Uncertainty = 2.23dB, k=2 Radiated emission expanded uncertainty(9kHz-30MHz) = 3.08dB, k=2 Radiated emission expanded uncertainty(3…
