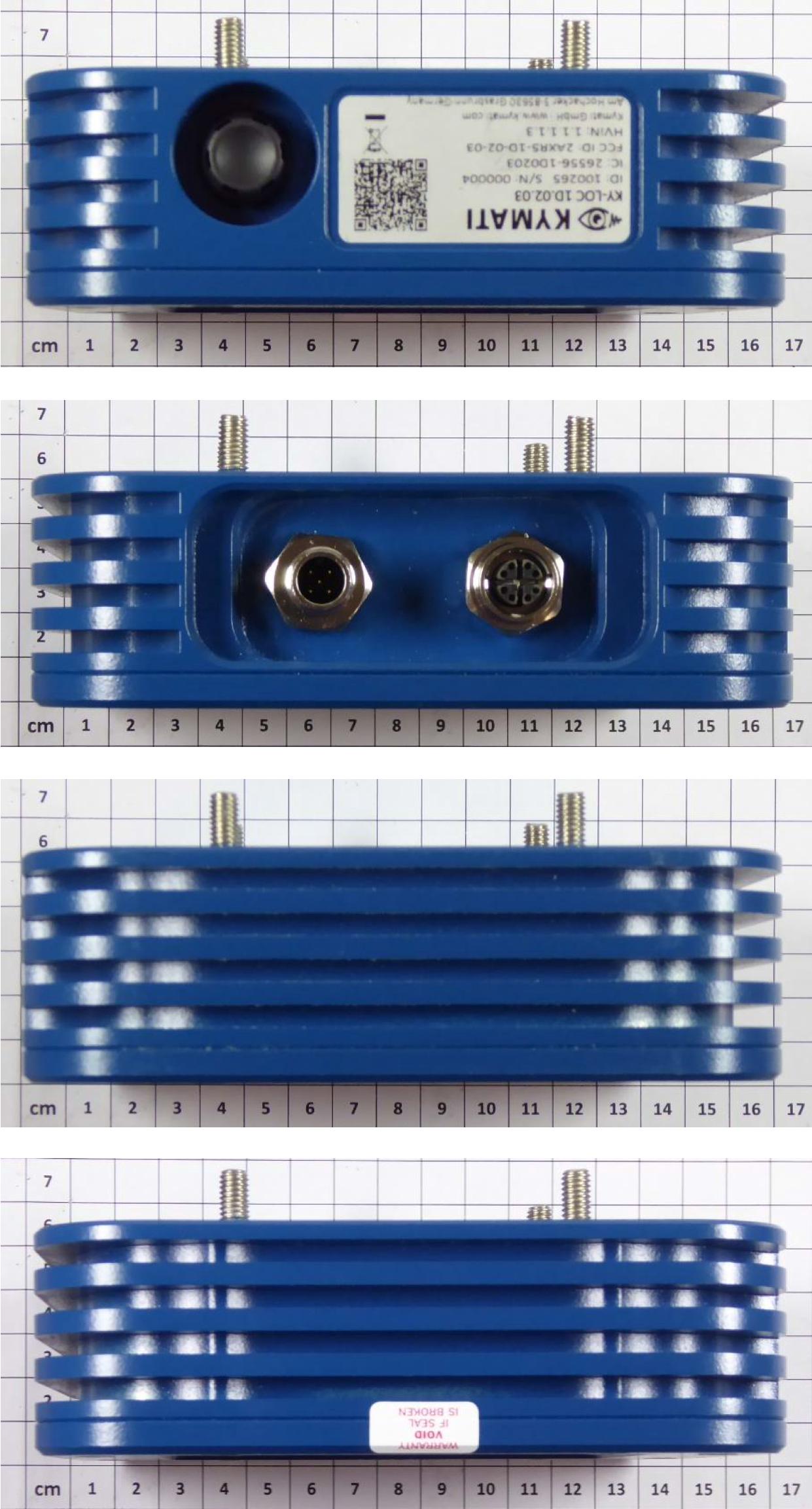

2AXR5-1D-02-03Radar Sensor

Kymati GmbH

Click to zoom

Application Details

Equipment Class: FDS - Part 15 Field Disturbance Sensor
Date of Grant: Sep 29, 2024
Application Purpose: Original Equipment
Date of Application: Sep 22, 2024
Equipment Note: Radar Sensor
Frequency Range: 61000.00000000 - 61500.00000000
Company: Kymati GmbH
Country: Germany

Documents & Files

Select a file to view

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

Document: KY-DOC.0124, Ver. 10/2022 www.kymati.com, +49 89 515 759 900 © Kymati GmbH – Modifications and errors excepted DATA SHEET KY-LOC 1D.02.01 • Precise and reliable distance measurement between two Radar sensors to activate warning thresholds and measure positions. • Maintenance-free indoor and outdoor operation. • RF based, no interference with WiFi and mobile communication networks. RADAR DISTANCE MEASUREMENT moving or fixed moving or fixed Distance measurement transmitted data The KY-LOC 1D.02.01 Radar is designed to measure the distance (line-of- sight) between two units. The measurement is resistant to vibration or angular misalignment. Parallel to the measurement, independent user data can be transmitted wirelessly between the units. The sensors can be installed with an individual side and height offset, while they always measure the shortest line of sight between the devices. Several integrated send/receive antennas ensure the measurement integrity. KY-LOC 1D.02.01 does not require/allocate any WiFi or mobile communication frequencies and is also not affected by such radio signals. TECHNICAL DATA: KY-LOC 1D.02.01 Measurement range 1) 2m ≤ x ≤ 500 m Repeat accuracy of measurement 1) up to 15 mm Absolute distance accuracy 1) up to 50 mm Update rate up to 20 Hz User data transfer parallel to measurement up to 1 kbit/s Protection IP 66, IP66k and IP68 (cntd. plugs, 24h@1m) Operating temperature -30 ... +75 °C; -22 ... 167 F Weight, dimensions LxWxD 1060 g; 138x138x43mm (without support) Voltage, power consumption (M12, 5 pin, male, A-coded) 9 ... 36 V DC or PoE (802.3af), 5 W Frequency 61 GHz (ISM band) Interface (M12, 8 pin, female, X-coded) Ethernet (100Base-Tx), PoE (802.3af) 1) Values may vary with radio regulations applicable KY-LOC 1D.02.01- Quick Facts • High frequency radio measurement. • Easy to install, adjustable mounting bracket included. • No precise horizontal or vertical alignment required. • Parallel wireless user data trans- mission without the use of WiFi. • Highly reliable under adverse weather conditions, dust, and dirt. • No interference with WiFI or mobile communication. • Multiple KY-LOC pairs can operate in parallel using different channel settings. • Maintenance-free. Document: KY-DOC.0124, Ver. 10/2022 www.kymati.com, +49 89 515 759 900 © Kymati GmbH – Modifications and errors excepted DATA SHEET KY-LOC 1D.02.01 APPLICATION EXAMPLES • Separate power supply or PoE • All interfacing options (see below) Mechanical Interface Electrical Interface • Output signal module KY-XTRA B.10.01 with digital output signals based on defined distance warning thresholds • Data interface: Ethernet • Power: separate power supply or PoE • Interface converter KY-XTRA B.01.01 enabling: Profibus, Profinet, Ethernet IP, Modbus, CAN CONTAINER CRANES • Trolley position • Independent from drive unit steel rope lengthening LIFTING EQUIPMENT • Cabin / platform height • Not depending on mechanical wear or deformation SKEWING AVOIDANCE • Gantry cranes and other equipment • OEM and retrofit for all existing machines Pushing car X-Y CRANE POSITION • Tracking product storage coordinates • Crane motion automation Quenching car Charging car Combustion chambers COKE OVEN • Position measurement of moving machines • Resistant to hot steam and acidic environment Installation detail
