2AXSA-W6ECPN W6

FCC Software Configuration Control Declaration Shenzhen Magic Vision Digital Technology Co., Ltd. FCC Software Configuration Control Declaration Date: December 10, 2020 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Attn: OET Dept. Product/ Model Number: ECPN W6/ W6 Regarding FCC Country Code Selection guidelines identified in KDB 594280 D01 V02r01. “All applications for equipment authorization for transmitters that can have radio parameters, or other technical parameters, reported to the Commission set by software must have an attestation indicating that no third party will have software, or configuration control, to program the device out of compliance of the technical rules under which it has been certified.” We declare that no third party will have software, or configuration control, to program the device out of compliance of the technical rules under which it has been certified. Name: Wenhao Chen Date: 2020/12/02 Title: R&D Director Signature of applicant

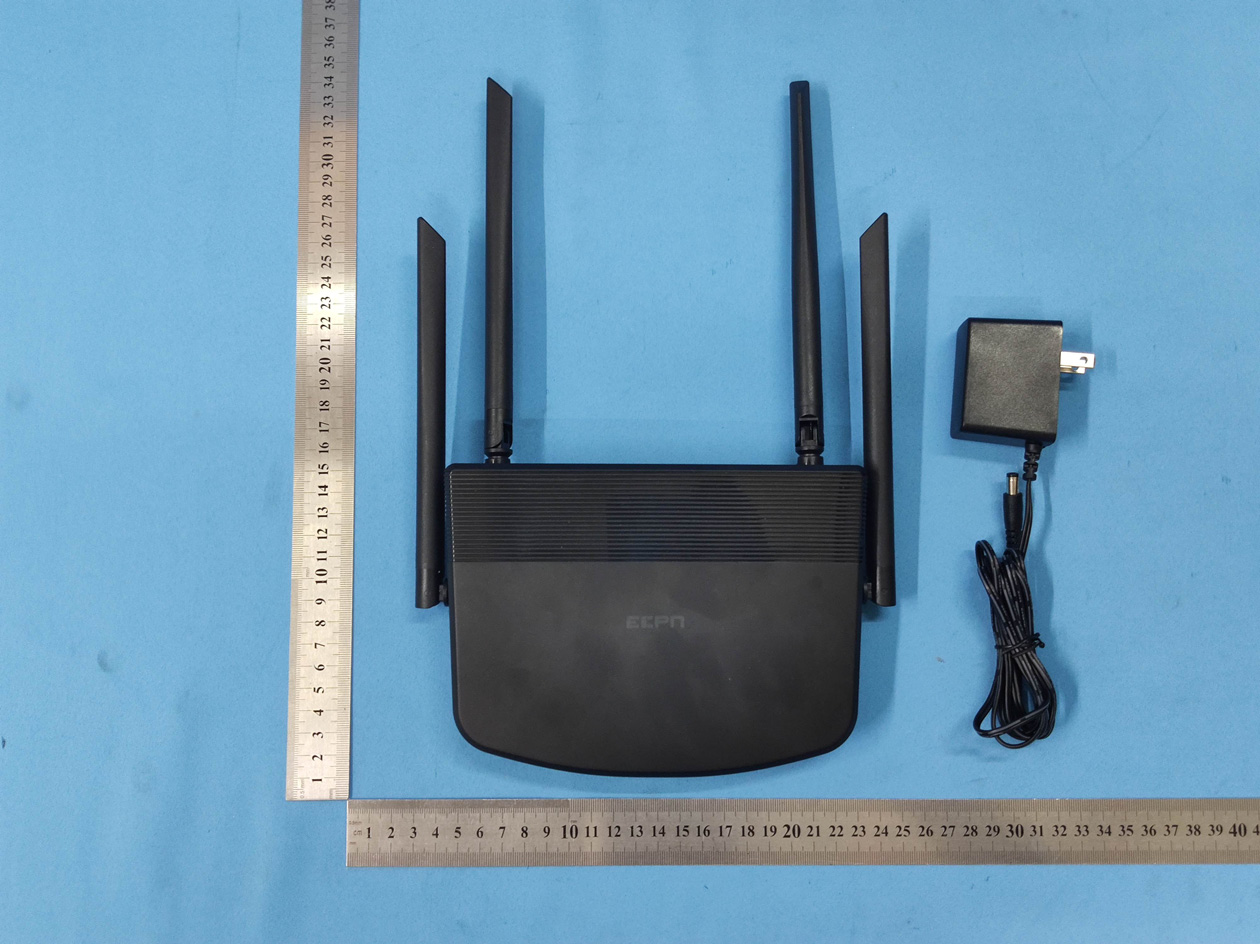

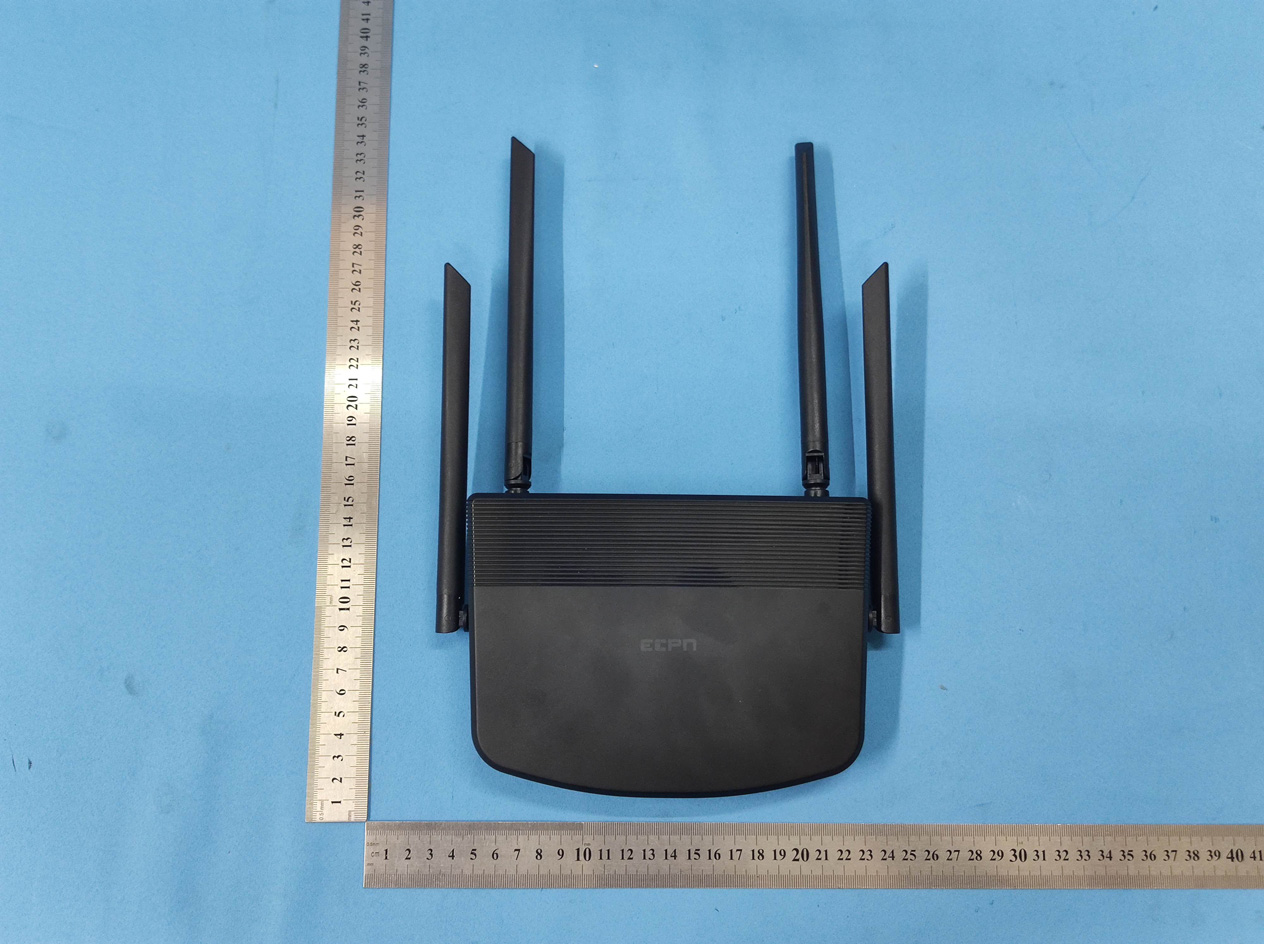

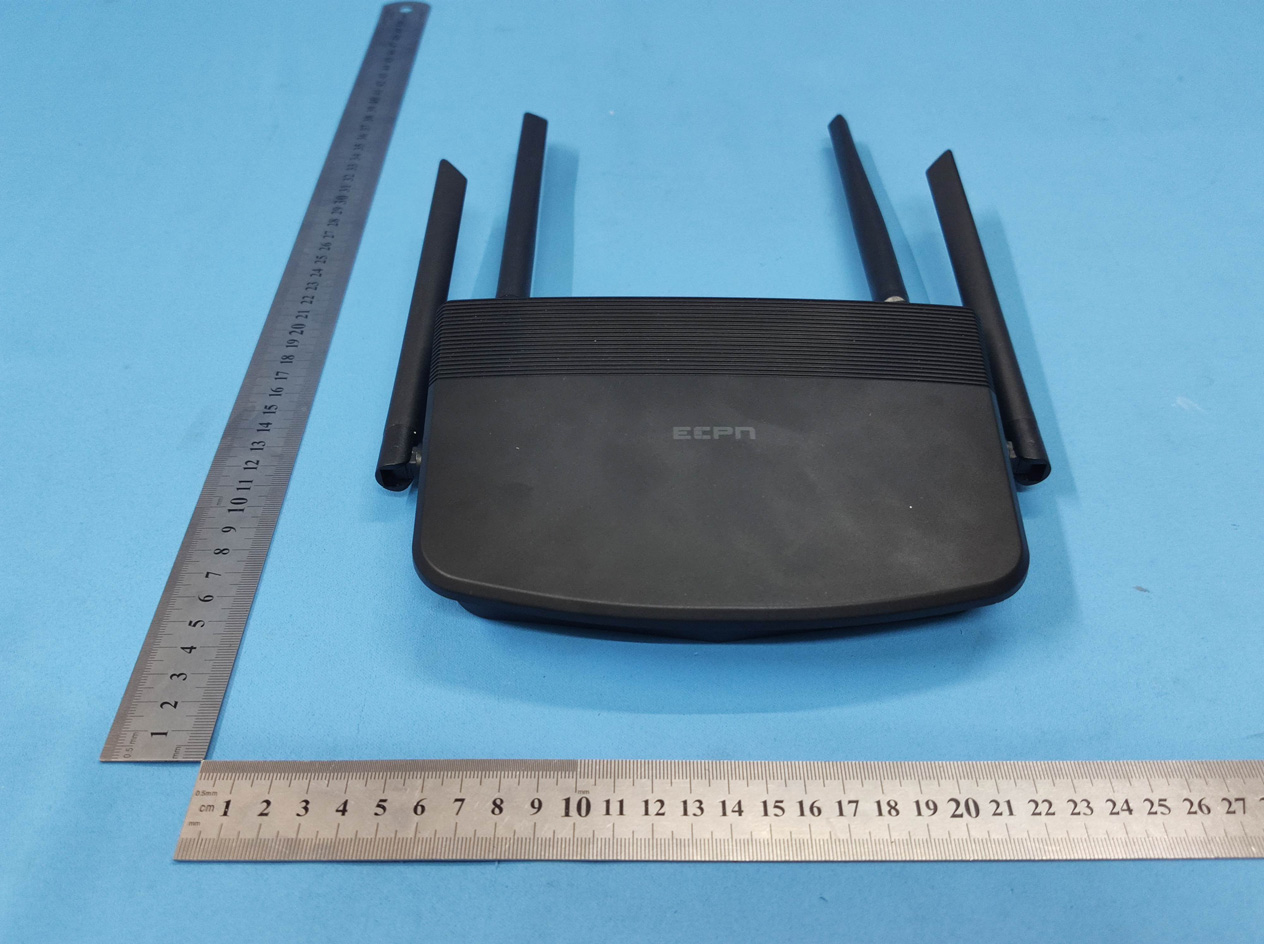

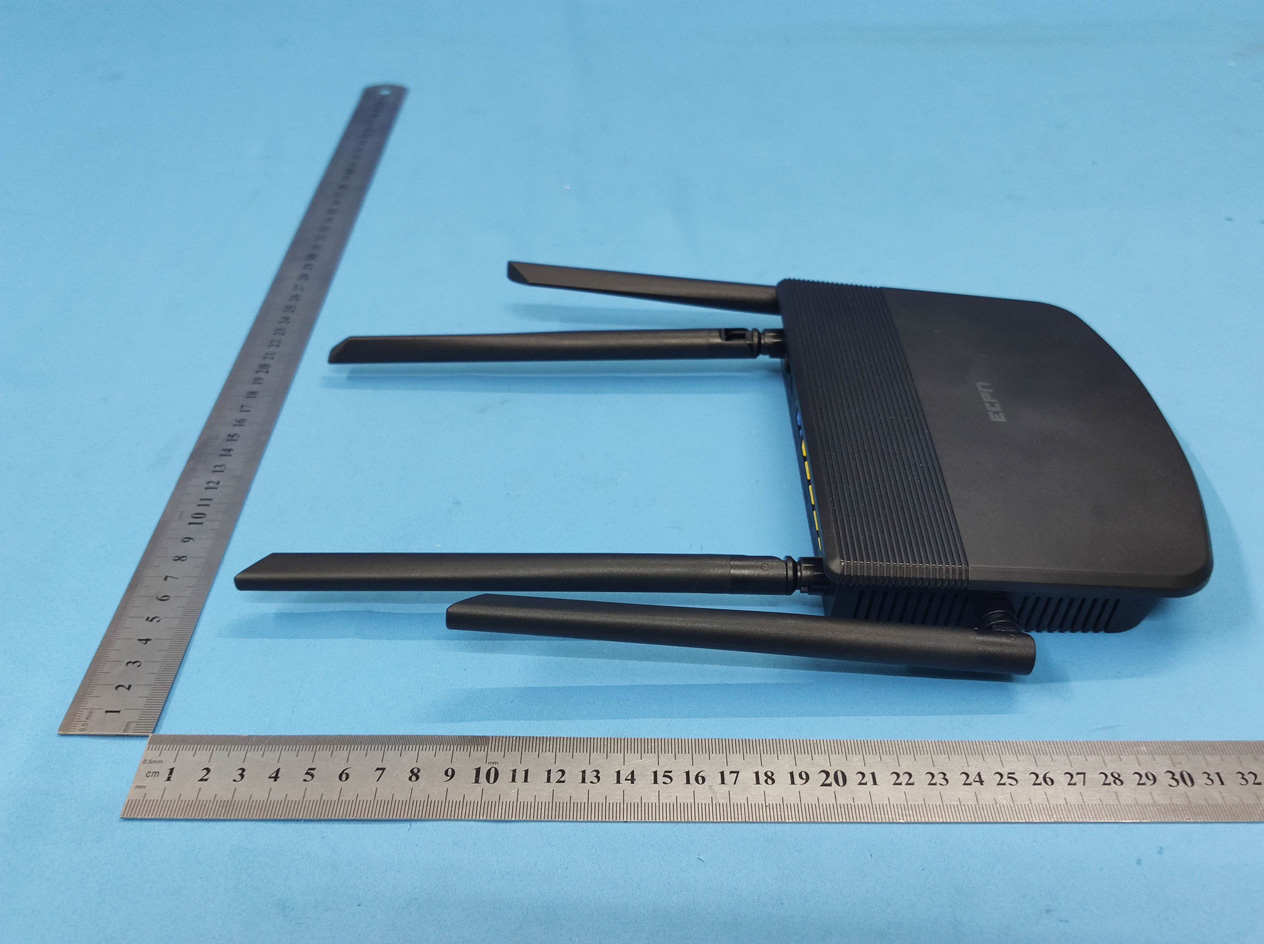

Test Model No.: W6

Model No.: W6 Label location

Test Model No.: W6

FCC ID: 2AXSA-W6 RF Exposure Evaluation Limits The criteria listed in the following table shall be used to evaluate the environment impact of human exposure to radio frequency (RF) radiation as specified in 1.1307(b) Limits for Maximum Permissible Exposure (MPE) Frequency range (MHz) Electric field strength (V/m) Magnetic field strength (A/m) Power density (mW/cm 2 ) Averaging time (minutes) (A) Limits for Occupational/Controlled Exposures 0.3–3.0 614 1.63 *(100) 6 3.0–30 1842/f 4.89/f *(900/f 2 ) 6 30–300 61.4 0.163 1.0 6 300–1500 f/300 6 1500–100,000 5 6 (B) Limits for General Population/Uncontrolled Exposure 0.3–1.34 614 1.63 *(100) 30 1.34–30 824/f 2.19/f *(180/f 2 ) 30 30–300 27.5 0.073 0.2 30 300–1500 f/1500 30 1500–100,000 1.0 30 f = frequency in MHz Friis transmission formula: Pd = (Pout*G)/(4*pi*r 2 ) Where Pd = power density in mW/cm 2 , Pout = output power to antenna in mW; G = gain of antenna in linear scale, Pi = 3.1416; R = distance between observation point and center of the radiator in cm Pd id the limit of MPE, 1 mW/cm 2 . If we know the maximum gain of the antenna and the total power input to the antenna, through the calculation, we will know the distance r where the MPE limit is reached. Test Procedure Software provided by client enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. Test Result of RF Exposure Evaluation 2.4G WiFi mode Frequency Range (MHz) Output power to antenna (mW) Power Density at R=20cm (mW/cm 2 ) Limit (mW/cm 2 ) Result 2412~2462 416.87 0.2623 1.0 PASS Remark: antenna gain=5dBi 5G WiFi mode Frequency Range (MHz) Output power to antenna (mW) Power Density at R=20cm (mW/cm 2 ) Limit (mW/cm 2 ) Result 5180~5240 237.14 0.1492 1.0 PASS Remark: antenna gain=5dBi SRD @ 5.8G band: Frequency Range (MHz) Output power to antenna (mW) Power Density at R=20cm (mW/cm 2 ) Limit (mW/cm 2 ) Result 5745~5825 553.35 0.3481 1.0 PASS Remark: antenna gain=5dBi Remark: The max power density is less than SAR exempt limit, so SAR evaluation is not required.

Global United Technology Services Co., Ltd. Report No.: GTS202010000093F03 Authorized Signature: Robinson Luo Laboratory Manager This results shown in this test report refer only to the sample(s) tested, this test report cannot be reproduced, except in full, without prior written permission of the company. The report would be invalid without specific stamp of test institute and the signatures of compiler and approver. Page 1 of 72 TEST REPORT Applicant: Shenzhen Magic Vision Digital Technology Co., Ltd. Address of Applicant: 5/F, building 2, new material port, Changyuan, Nanshan District, Shenzhen 518110, China Manufacturer: Sichuan Tianyi Comheart Telecom Co., Ltd. Address of Manufacturer: No. 198, Section 1, Xueshan Avenue, Dayi County, Chengdu, Sichuan, China Equipment Under Test (EUT) Product Name: ECPN W6 Model No.: W6 Trade Mark: ECPN FCC ID: 2AXSA-W6 Applicable standards: FCC CFR Title 47 Part 15 Subpart E Section 15.407 Date of sample receipt: November 24, 2020 Date of Test: November 24, 2020- December 05, 2020 Date of report issue: December 05, 2020 Test Result : PASS * * In the configuration tested, the EUT complied with the standards specified above. Report No.: GTS202010000093F03 Global United Technology Services Co., Ltd. No. 123-128, Tower A, Jinyuan Business Building, No.2, Laodong Industrial Zone, Xixiang Road, Baoan District, Shenzhen, Guangdong, China 518102 Telephone: +86 (0) 755 2779 8480 Fax: +86 (0) 755 2779 8960 Page 2 of 72 2 Version Version No. Date Description 00 December 05, 2020 Original Prepared By: Date: December 05, 2020 Project Engineer Check By: Date: December 05, 2020 Reviewer Report No.: GTS202010000093F03 Global United Technology Services Co., Ltd. No. 123-128, Tower A, Jinyuan Business Building, No.2, Laodong Industrial Zone, Xixiang Road, Baoan District, Shenzhen, Guangdong, China 518102 Telephone: +86 (0) 755 2779 8480 Fax: +86 (0) 755 2779 8960 Page 3 of 72 3 Contents Page 1 COVER PAGE ........................................................................................................................................... 1 2 VERSION ...................................................................................................................................................2 3 CONTENTS ...............................................................................................................................................3 4 TEST SUMMARY ......................................................................................................................................4 4.1 MEASUREMENT UNCERTAINTY .............................................................................................................4 5 GENERAL INFORMATION .......................................................................................................................5 5.1 GENERAL DESCRIPTION OF EUT ..........................................................................................................5 5.2 TEST MODE .........................................................................................................................................7 5.3 TEST FACILITY.....................................................................................................................................7 5.4 TEST LOCATION...................................................................................................................................7 5.5 DESCRIPTION OF SUPPORT UNITS ........................................................................................................7 5.6 DEVIATION FROM STANDARDS ..............................................................................................................7 5.7 ABNORMALITIES FROM STANDARD CONDITIONS ....................................................................................7 6 TEST INSTRUMENTS LIST ......................................................................................................................8 7 TEST RESULTS AND MEASUREMENT DATA .....................................................................................10 7.1 ANTENNA REQUIREMENT: ...................................................................................................................10 7.2 CONDUCTED EMISSIONS ....................................................................................................................11 7.3 EMISSION BANDWIDTH AND 99% OCCUPIED BANDWIDTH ....................................................................14 7.4 PEAK TRANSMIT POWER ....................................................................................................................30 7.5 POWER SPECTRAL DENSITY ..............................................................................................................33 7.6 BAND EDGE.......................................................................................................................................43 7.7 RADIATED EMISSION ..........................................................................................................................52 7.8 FREQUENCY STABILITY ......................................................................................................................70 8 TEST SETUP PHOTO .............................................................................................................................72 9 EUT CONSTRUCTIONAL DETAILS .......................................................................................................72 Report No.: GTS202010000093F03 Global United Technology Services Co., Ltd. No. 123-128, Tower A, Jinyuan Business Building, No.2, Laodong Industrial Zone, Xixiang Road, Baoan District, Shenzhen, Guangdong, China 518102 Telephone: +86 (0) 755 2779 8480 Fax: +86 (0) 755 2779 8960 Page 4 of 72 4 Test Summary Test Item Section in CFR 47 Result Antenna requirement 15.203 PASS AC Power Line Conducted Emission 15.207 PASS Peak Transmit Power 15.407(a)(1) PASS Power Sp…

Text truncated - open the document above for the full version.

Report No.: GTS202010000093F03 Global United Technology Services Co., Ltd. No. 123-128, Tower A, Jinyuan Business Building, No.2, Laodong Industrial Zone, Xixiang Road, Baoan District, Shenzhen, Guangdong, China 518102 Telephone: +86 (0) 755 2779 8480 Fax: +86 (0) 755 2779 8960 Page 37 of 72 802.11n(HT20) ANT0 ANT1 Report No.: GTS202010000093F03 Global United Technology Services Co., Ltd. No. 123-128, Tower A, Jinyuan Business Building, No.2, Laodong Industrial Zone, Xixiang Road, Baoan District, Shenzhen, Guangdong, China 518102 Telephone: +86 (0) 755 2779 8480 Fax: +86 (0) 755 2779 8960 Page 38 of 72 802.11n(HT40) ANT0 ANT1 Report No.: GTS202010000093F03 Global United Technology Services Co., Ltd. No. 123-128, Tower A, Jinyuan Business Building, No.2, Laodong Industrial Zone, Xixiang Road, Baoan District, Shenzhen, Guangdong, China 518102 Telephone: +86 (0) 755 2779 8480 Fax: +86 (0) 755 2779 8960 Page 39 of 72 802.11ax(HT20) ANT0 ANT1 Report No.: GTS202010000093F03 Global United Technology Services Co., Ltd. No. 123-128, Tower A, Jinyuan Business Building, No.2, Laodong Industrial Zone, Xixiang Road, Baoan District, Shenzhen, Guangdong, China 518102 Telephone: +86 (0) 755 2779 8480 Fax: +86 (0) 755 2779 8960 Page 40 of 72 Report No.: GTS202010000093F03 Global United Technology Services Co., Ltd. No. 123-128, Tower A, Jinyuan Business Building, No.2, Laodong Industrial Zone, Xixiang Road, Baoan District, Shenzhen, Guangdong, China 518102 Telephone: +86 (0) 755 2779 8480 Fax: +86 (0) 755 2779 8960 Page 41 of 72 802.11ax(HT40) ANT0 ANT1 Report No.: GTS202010000093F03 Global United Technology Services Co., Ltd. No. 123-128, Tower A, Jinyuan Business Building, No.2, Laodong Industrial Zone, Xixiang Road, Baoan District, Shenzhen, Guangdong, China 518102 Telephone: +86 (0) 755 2779 8480 Fax: +86 (0) 755 2779 8960 Page 42 of 72 802.11ax(HT80) ANT0 ANT1 Report No.: GTS202010000093F03 Global United Technology Services Co., Ltd. No. 123-128, Tower A, Jinyuan Business Building, No.2, Laodong Industrial Zone, Xixiang Road, Baoan District, Shenzhen, Guangdong, China 518102 Telephone: +86 (0) 755 2779 8480 Fax: +86 (0) 755 2779 8960 Page 43 of 72 7.6 Band Edge Test Requirement: FCC Part15 E Section 15.407 and 5.205 Test Method: ANSI C63.10:2013 Test site: Measurement Distance: 3m (Semi-Anechoic Chamber) Receiver setup: Frequency Detector RBW VBW Remark 30MHz-1GHz Quasi-peak 120KHz 300KHz Quasi-peak Value Above 1GHz Peak 1MHz 3MHz Peak Value AV 1MHz 3MHz Average Value Limit: Frequency Limit (dBuV/m @3m) Remark 30MHz-88MHz 40.0 Quasi-peak Value 88MHz-216MHz 43.5 Quasi-peak Value 216MHz-960MHz 46.0 Quasi-peak Value 960MHz-1GHz 54.0 Quasi-peak Value Above 1GHz 54.0 Average Value 68.2 Peak Value Undesirable emission limits: (1) For transmitters operating in the 5.15-5.25 GHz band: all emissions outside of the 5.15-5.35 GHz band shall not exceed an EIRP of -27 dBm/MHz. (2) For transmitters operating in the 5.25-5.35 GHz band: all emissions outside of the 5.15-5.35 GHz band shall not exceed an EIRP of -27 dBm/MHz. Devices operating in the 5.25-5.35 GHz band that generate emissions in the 5.15-5.25 GHz band must meet all applicable technical requirements for operation in the 5.15-5.25 GHz band (including indoor use) or alternatively meet an out-of-band emission EIRP limit of -27 dBm/MHz in the 5.15-5.25 GHz band. (3) For transmitters operating in the 5.47-5.725 GHz band: all emissions outside of the 5.47-5.725 GHz band shall not exceed an EIRP of −27 dBm/MHz. Test Procedure: a. The EUT was placed on the top of a rotating table 1.5 m above the ground at a 3 meter camber. The table was rotated 360 degrees to determine the position of the highest radiation. b. The EUT was set 3 meters away from the interference-receiving antenna, which was mounted on the top of a variable-height antenna tower. c. The antenna height is varied from one meter to four meters above the ground to determine the maximum value of the field strength. Both horizontal and vertical polarizations of the antenna are set to make the measurement. d. For each suspected emission, the EUT was arranged to its worst case and then the antenna was tuned to heights from 1 meter to 4 meters and the rotable table was turned from 0 degrees to 360 degrees to find the maximum reading. e. The test-receiver system was set to Peak Detect Function and Specified Bandwidth with Maximum Hold Mode. f. If the emission level of the EUT in peak mode was 10dB lower than the limit specified, then testing could be stopped and the peak values of the EUT would be reported. Otherwise the emissions that did not have 10dB margin would be re-tested one by one using peak, quasi- Report No.: GTS202010000093F03 Global United Technology Services Co., Ltd. No. 123-128, Tower A, Jinyuan Business Building, No.2, Laodong Industrial Zone, Xixiang Road, Baoan District, Shenzhen, Guangdong, China 518102 Telephone: +86 (0) 755 2779 8480 Fax: +86 (0) 755 2779 8960 Page 44 of 72 peak or average method as specified and then reported in a data sheet. Test setup: For radiated emissions above 1GHz Test Instruments: Refer to section 5.10 for details Test mode: Refer to section 5.2 for details Test results: Pass Remarks: 1. Only the worst case Main Antenna test data. 2. Final Level =Receiver Read level + Antenna Factor + Cable Loss – Preamplifier Factor 3. The emission levels of other frequencies are very lower than the limit and not show in test report. 4. The pre-test were performed on lowest, middle and highest frequencies, only the worst case’s (lowest and highest frequencies) data was showed. 5. According to KDB 789033 D02 v02r01 section G) 1) (d), for For measurements above 1000 MHz @ 3m distance, the limit of field strength is computed as follows: E[dBuV/m] = EIRP[dBm] + 95.2; For example, if EIRP = -27dBm E[dBuV/m] = -27 + 95.2 = 68.2dBuV/m. Report No.: GTS202010000093F03 Global United Technology Services Co., Ltd. No. 123-128, Tower A, Jinyuan Business Building, No.2, Laodong Industria…

Text truncated - open the document above for the full version.

Global United Technology Services Co., Ltd. Report No.: GTS202010000093F04 Authorized Signature: Robinson Luo Laboratory Manager This results shown in this test report refer only to the sample(s) tested, this test report cannot be reproduced, except in full, without prior written permission of the company. The report would be invalid without specific stamp of test institute and the signatures of compiler and approver. Page 1 of 70 TEST REPORT Applicant: Shenzhen Magic Vision Digital Technology Co., Ltd. Address of Applicant: 5/F, building 2, new material port, Changyuan, Nanshan District, Shenzhen 518110, China Manufacturer: Sichuan Tianyi Comheart Telecom Co., Ltd. Address of Manufacturer: No. 198, Section 1, Xueshan Avenue, Dayi County, Chengdu, Sichuan, China Equipment Under Test (EUT) Product Name: ECPN W6 Model No.: W6 Trade Mark: ECPN FCC ID: 2AXSA-W6 Applicable standards: FCC CFR Title 47 Part 15 Subpart E Section 15.407 Date of sample receipt: November 24, 2020 Date of Test: November 24, 2020- December 05, 2020 Date of report issued: December 05, 2020 Test Result : PASS * * In the configuration tested, the EUT complied with the standards specified above. Report No.: GTS202010000093F04 Global United Technology Services Co., Ltd. No. 123-128, Tower A, Jinyuan Business Building, No.2, Laodong Industrial Zone, Xixiang Road, Baoan District, Shenzhen, Guangdong, China 518102 Telephone: +86 (0) 755 2779 8480 Fax: +86 (0) 755 2779 8960 Page 2 of 70 2 Version Version No. Date Description 00 December 05, 2020 Original Prepared By: Date: December 05, 2020 Project Engineer Check By: Date: December 05, 2020 Reviewer Report No.: GTS202010000093F04 Global United Technology Services Co., Ltd. No. 123-128, Tower A, Jinyuan Business Building, No.2, Laodong Industrial Zone, Xixiang Road, Baoan District, Shenzhen, Guangdong, China 518102 Telephone: +86 (0) 755 2779 8480 Fax: +86 (0) 755 2779 8960 Page 3 of 70 3 Contents Page 1 COVER PAGE ........................................................................................................................................... 1 2 VERSION ...................................................................................................................................................2 3 CONTENTS ...............................................................................................................................................3 4 TEST SUMMARY ......................................................................................................................................4 4.1 MEASUREMENT UNCERTAINTY .............................................................................................................4 5 GENERAL INFORMATION .......................................................................................................................5 5.1 GENERAL DESCRIPTION OF EUT ..........................................................................................................5 5.2 TEST MODE .........................................................................................................................................7 5.3 DESCRIPTION OF SUPPORT UNITS ........................................................................................................7 5.4 DEVIATION FROM STANDARDS ..............................................................................................................7 5.5 ABNORMALITIES FROM STANDARD CONDITIONS ....................................................................................7 5.6 TEST FACILITY ....................................................................................................................................8 5.7 TEST LOCATION ..................................................................................................................................8 6 TEST INSTRUMENTS LIST ......................................................................................................................9 7 TEST RESULTS AND MEASUREMENT DATA .....................................................................................11 7.1 ANTENNA REQUIREMENT ....................................................................................................................11 7.2 CONDUCTED EMISSIONS ....................................................................................................................12 7.3 CONDUCTED PEAK OUTPUT POWER ...................................................................................................15 7.4 CHANNEL BANDWIDTH .......................................................................................................................17 7.5 POWER SPECTRAL DENSITY ..............................................................................................................32 7.6 BAND EDGE .......................................................................................................................................41 7.6.1 Radiated Emission Method .........................................................................................................41 7.7 SPURIOUS EMISSION .........................................................................................................................53 7.7.1 Radiated Emission Method .........................................................................................................53 7.8 FREQUENCY STABILITY ......................................................................................................................68 8 TEST SETUP PHOTO .............................................................................................................................70 9 EUT CONSTRUCTIONAL DETAILS .......................................................................................................70 Report No.: GTS202010000093F04 Global United Technology Services Co., Ltd. No. 123-128, Tower A, Jinyuan Business Building, No.2, Laodong Industrial Zone, Xixiang Road, Bao…

Text truncated - open the document above for the full version.

Report No.: GTS202010000093F04 Global United Technology Services Co., Ltd. No. 123-128, Tower A, Jinyuan Business Building, No.2, Laodong Industrial Zone, Xixiang Road, Baoan District, Shenzhen, Guangdong, China 518102 Telephone: +86 (0) 755 2779 8480 Fax: +86 (0) 755 2779 8960 Page 36 of 70 802.11n(HT40) ANT0 ANT1 Report No.: GTS202010000093F04 Global United Technology Services Co., Ltd. No. 123-128, Tower A, Jinyuan Business Building, No.2, Laodong Industrial Zone, Xixiang Road, Baoan District, Shenzhen, Guangdong, China 518102 Telephone: +86 (0) 755 2779 8480 Fax: +86 (0) 755 2779 8960 Page 37 of 70 802.11ax(HT20) ANT0 ANT1 Report No.: GTS202010000093F04 Global United Technology Services Co., Ltd. No. 123-128, Tower A, Jinyuan Business Building, No.2, Laodong Industrial Zone, Xixiang Road, Baoan District, Shenzhen, Guangdong, China 518102 Telephone: +86 (0) 755 2779 8480 Fax: +86 (0) 755 2779 8960 Page 38 of 70 Report No.: GTS202010000093F04 Global United Technology Services Co., Ltd. No. 123-128, Tower A, Jinyuan Business Building, No.2, Laodong Industrial Zone, Xixiang Road, Baoan District, Shenzhen, Guangdong, China 518102 Telephone: +86 (0) 755 2779 8480 Fax: +86 (0) 755 2779 8960 Page 39 of 70 802.11ax(HT40) ANT0 ANT1 Report No.: GTS202010000093F04 Global United Technology Services Co., Ltd. No. 123-128, Tower A, Jinyuan Business Building, No.2, Laodong Industrial Zone, Xixiang Road, Baoan District, Shenzhen, Guangdong, China 518102 Telephone: +86 (0) 755 2779 8480 Fax: +86 (0) 755 2779 8960 Page 40 of 70 802.11ax(HT80) ANT0 ANT1 Report No.: GTS202010000093F04 Global United Technology Services Co., Ltd. No. 123-128, Tower A, Jinyuan Business Building, No.2, Laodong Industrial Zone, Xixiang Road, Baoan District, Shenzhen, Guangdong, China 518102 Telephone: +86 (0) 755 2779 8480 Fax: +86 (0) 755 2779 8960 Page 41 of 70 7.6 Band edge 7.6.1 Radiated Emission Method Test Requirement: FCC Part15 C Section 15.209 and 15.205 Test Method: ANSI C63.10: 2013 Test Frequency Range: 9kHz to 40GHz, only worse case is reported Test site: Measurement Distance: 3m Receiver setup: Frequency Detector RBW VBW Value Above 1GHz Peak 1MHz 3MHz Peak RMS 1MHz 3MHz RMS Limit: All emissions shall be limited to a level of −27 dBm/MHz at 75 MHz or more above or below the band edge increasing linearly to 10 dBm/MHz at 25 MHz above or below the band edge, and from 25 MHz above or below the band edge increasing linearly to a level of 15.6 dBm/MHz at 5 MHz above or below the band edge, and from 5 MHz above or below the band edge increasing linearly to a level of 27 dBm/MHz at the band edge. Test setup: Test Procedure: 1. The EUT was placed on the top of a rotating table 1.5 meters above the ground at a 3 meter camber. The table was rotated 360 degrees to determine the position of the highest radiation. 2. The EUT was set 3 meters away from the interference-receiving antenna, which was mounted on the top of a variable-height antenna tower. 3. The antenna height is varied from one meter to four meters above the ground to determine the maximum value of the field strength. Both horizontal and vertical polarizations of the antenna are set to make the measurement. 4. For each suspected emission, the EUT was arranged to its worst case and then the antenna was tuned to heights from 1 meter to 4 meters and the rota table was turned from 0 degrees to 360 degrees to find the maximum reading. 5. The test-receiver system was set to Peak Detect Function and Specified Bandwidth with Maximum Hold Mode. 6. If the emission level of the EUT in peak mode was 10dB lower than the limit specified, then testing could be stopped and the peak values of the EUT would be reported. Otherwise the emissions that did not have 10dB margin would be re-tested one by one using peak, quasi-peak or average method as specified and then reported in a data sheet. 7. The radiation measurements are performed in X, Y, Z axis positioning. And found the X axis positioning which it is worse case, only the test worst case mode is recorded in the report. Report No.: GTS202010000093F04 Global United Technology Services Co., Ltd. No. 123-128, Tower A, Jinyuan Business Building, No.2, Laodong Industrial Zone, Xixiang Road, Baoan District, Shenzhen, Guangdong, China 518102 Telephone: +86 (0) 755 2779 8480 Fax: +86 (0) 755 2779 8960 Page 42 of 70 Test Instruments: Refer to section 6.0 for details Test mode: Refer to section 5.2 for details Test results: Pass Remarks: 1. Only the worst case Main Antenna test data.. 2. Final Level =Receiver Read level + Antenna Factor + Cable Loss – Preamplifier Factor 3. The emission levels of other frequencies are very lower than the limit and not show in test report. 4. The pre-test were performed on lowest, middle and highest frequencies, only the worst case’s (lowest and highest frequencies) data was showed. 5. According to KDB 789033 D02v02r01 section G) 1) d),for measurements above 1000 MHz @3m distance, the limit of field strength is computed as follows: E[dBuV/m] = EIRP[dBm] + 95.2; E[dBuV/m] = -27 + 95.2 = 68.2dBuV/m. E[dBuV/m] = 10 + 95.2 = 105.2dBuV/m. E[dBuV/m] = 15.6 + 95.2 = 110.8dBuV/m. E[dBuV/m] = 27 + 95.2 = 122.2dBuV/m Report No.: GTS202010000093F04 Global United Technology Services Co., Ltd. No. 123-128, Tower A, Jinyuan Business Building, No.2, Laodong Industrial Zone, Xixiang Road, Baoan District, Shenzhen, Guangdong, China 518102 Telephone: +86 (0) 755 2779 8480 Fax: +86 (0) 755 2779 8960 Page 43 of 70 Measurement Data: All the antennas were tested, and only show the worst case (ANT0) in this report. 802.11a 5745 Report No.: GTS202010000093F04 Global United Technology Services Co., Ltd. No. 123-128, Tower A, Jinyuan Business Building, No.2, Laodong Industrial Zone, Xixiang Road, Baoan District, Shenzhen, Guangdong, China 518102 Telephone: +86 (0) 755 2779 8480 Fax: +86 (0) 755 2779 8960 Page 44 of 70 802.11a 5200 Report No.: GTS202010000093F04 Global United Technology Services Co., Ltd. No. 123-128, Tower A, Jin…

Text truncated - open the document above for the full version.

Test Model No.: W6 Radiated Emission Conducted Emission
