UHF Wireless Microphone System WMU96 User Manual Transmitter Receiver Thanks for purchasing MCOPLUS UHF-WMU96 wireless microphone Foreword UHF-WMU96 is an wireless microphone with dual-transmitter triggered by one receiver,it utilizes UHF wireless FM technology and high-resolution lattice screen,16-level adjustable volume,and integrated into LCF(, Auto-scanning, Auto IR Channel-match,stereo / mono switchable audio mode, RF signal strength adjustment, MIC/LINE IN input dual selection, power monitoring at receiver end, sound pickup dynamic display, backlight adjustment and other functions, at the same time with strong shielding anti-noise performance, it’s a high-quality microphone to broadcasting level. Low Cut Filter Mode) Main Features Audio Dynamic Display Bar Low Cut Filter Auto IR Sync Transmitter Power Monitor Real-time Monitor Low Power Consumption Lattice LCD Optional Language 120m Working Distance Dual-Mic Trigger Auto-scanning Adjustable RF Signal Strength 16 Levels Volume Adjustment Mono/Stereo Audio Switch AA Battery LCD 120m EN/中文 Transmitter Power Monitor Audio Dynamic Display Bar LCF Low Cut Filtering Mode 16 Levels Volume Adjustment Adjustable RF Signal Strength Lattice LCD Display, High Resolution Mono/Stereo Switchable Output Modes ABS Manufacturing, Excellent Shielding Auto-scanning for Quick Channel Selection Used for Multiple Devices Working Together Low-consumption, Super-long Standby Time Dual Transmitters Triggered by One Receiver, 1/2 Double Group Options Working Distance is Up to 120m (120m in Open Area, 80m in Barrier Area) Manual or Auto IR Sync 1 ½ 1or 2 Group Fast Switch USE 2X AA Battery Notice Transmitter(Tx) Receiver(Rx) Package Contents Main Parts: ! ! ! ! ! ! ! The antenna will affect the working distance. Please protect the antenna and avoidany man-made damage; Do not expose the device in rain or humid environment, otherwise there will be a danger of short circuit; When using auto IR sync, please stay within 60cm, otherwise the signal may be too weak and the sync will not be successful; In the case of stereo/mono mode switch, please preset the mode before using to avoid the transient interference caused by switching during usage; The working distance will be affected by the surrounding environment. Please try to keep the environment open without interference during usage, and close the WIFI of the device itself; When using this product in a short distance, it is recommended to set RF strength at ‘LOW’ to reduce the power consumption; For smart phone shooting, customers must separately purchase a TRS-TRRS audio converting cable,and pay attention to set the mobile phone mode to 'Flight Mode' to avoid incoming call interference;(It does not support the original recording system of some android systems, thethird-party APP is recommended to be used in this case); Please keep this product in dry environment; 2 Transmitter ! Multiple Selections： + + WMU96(A)=2TX + RX WMU96(B)=TX + RX + Transmitter(Tx) Receiver(Rx) Transmitter(Tx) Receiver(Rx) Transmitter(Tx) 3 Accessories: Belt Clip 3.5mm Mic Input Cable 3.5mm-3.5mm Output Cable 3.5mm-XLR Output Cable Cold Shoe User Manual Components 1 2 3 4 5 6 7 8 9 Group 1 Antenna Group PowerWorking Status Indicator Light Power Switch SET Function Button LCD Screen 3.5mm Audio Output Socket 3.5mm Monitoring Socket IR Sensor 1/4Cold boots fixed hole Belt Clip Group 2 Antenna 10 11 13 14 12 13 14 4 1 2 3 4 5 6 7 8 9 11 10 12 15 15 15 AA Battery Compartments Function Selection Button + Function Selection Button - Group 1-group1 and 2-Group 2 exchanging switch Battery Installation Transmitter and receiver is powered by 2 AA batteries, please follow the steps to install the battery: 2.Take the battery pack door out. 3.Install the batteries to the compartment according to its positive and negative poles, and then put it back in the microphone body. Attention 1.To open the battery cover door, you have to press the door.(please follow the arrow direction ) Please make sure to turn the microphone in “off” condition while you intend to install the battery, in case the microphone will produce big noise when it is working. Battery Instruction When the power is on, LCD screen will display the electric quantity of the batteries. Before you install the batteries, please check out whether the battery is still in expiration date. + - + - - + + - 5 Lavalier Transmitter / Receiver Power / Muting Button +Button + - -Button Long Press Short Press Power On / Off Enter/the function menuExit Short Press Long Press Function Adjustment (+) Function Button Instruction Low cut function: Appropriately remove the low frequency part of the sound, reduce the ambient noise of the low frequency part, to make sound more clean and clear. Signal strength high / low switching effect: With high signal strength, the wireless working distance is up to 80-120M, high power consumption, battery life is short; With low signal strength, the wireless working distance is up to 30-60M, low power consumption, the battery can be used for a long time. Muting Mode（This function is only for transmitter, when the mute function is turned on and the screen is lighted up） SET Function Menu 1.Confirm the selected function 2.Exit the function adjustment menu Short Press Short Press Function Adjustment (-) 6 WMU96 LED Indicator Light Instruction 7 TX RX POWER POWER green light Power full red light Power half Power low red light flash Power low Power full Power half green light green light flash red light flash Installation and Usage Lavalier Transmitter 2.Long press the power button to turn on the transmitter 1.Insert the 3.5mm audio input line into MIC socket 8 3.After the channel matching with the receiver,it could check whether transmitter is work normally according volume bar display 4. Connect the belt clip to the connection hole 0dB 4dB 7dB 12dB 16dB 19dB 24dB Mic gain 1 CH-96 520.000MHz Audio dynamic display bar 9 Receiver screen description CH01 1 2 Group 1 Signal Strength Di…

Text truncated - open the document above for the full version.

Hongkong Mcoplus Technology Co.,Ltd Agent Authorization Company: Hongkong Mcoplus Technology Co.,Ltd Address: 1105 building A, no.339, bulong road, bantian st., longgang district, shenzhen, China Product Name: microphone Model Number(s ): WMU96, WMU99, WMU48, WMU-MINI, WMV-PLUS, WM-P2, WM-NET, WMU-CLA, WM-GII100, WM-GII200, WM-MIX Product Description: microphone We authorize MiCOM Labs Inc., 575 Boulder Court, Pleasanton, California 94566, USA, to act on our behalf on all matters concerning the certification of above named equipment. We declare that MiCOM Labs Inc. is allowed to forward all information related to the approval and certification of equipment to the regulatory agencies as required and to discuss any issues concerning the approval application. Any and all acts carried out by MiCOM Labs on our behalf shall have the same effect as acts of our own. Signature: Date: Oct. 09, 2020 Name: MACRO YUAN Title: CEO Company: Hongkong Mcoplus Technology Co.,Ltd

Hongkong Mcoplus Technology Co.,Ltd Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 USA Date: Oct. 09, 2020 Subject; Request for Confidentiality FCC ID: 2AXSC-WMU96 To Whom It May Concern, Pursuant to the provisions of the Commission’s rules Title 47 Sections §0.457 and §0.459, we are requesting the Commission to withhold the following attachment(s) as confidential documents from public disclosure indefinitely. These documents contain detailed system and equipment descriptions and are considered as proprietary information in operation of the equipment. The public disclosure of these documents might be harmful to our company and would give competitors an unfair advantage in the market. Schematic Diagram Block Diagram Parts List Operational Description Tune-up Procedure It is our understanding that all measurement test reports, FCC ID label format and correspondence during the certification review process cannot be granted as confidential documents and this information will be available for public review once the grant of equipment authorization is issued. Sincerely, Signature: Name: MACRO YUAN Title: CEO

Model Difference Declaration To Whom It May Concern, We, Hongkong Mcoplus Technology Co.,Ltd(microphone); Model Number: WMU96, WMU99, WMU48, WMU-MINI, WMV-PLUS, WM-P2, WM-NET, WMU-CLA, WM-GII100, WM-GII200, WM-MIX; All model’s the function, s oftware and electric circuit are the same, only with a product color and model named different for commercial purpose. Test sample model: WMU96. Please contact me if you have any question. Name: MACRO YUAN Date: Oct. 09, 2020 Title: CEO Signature of applicant:

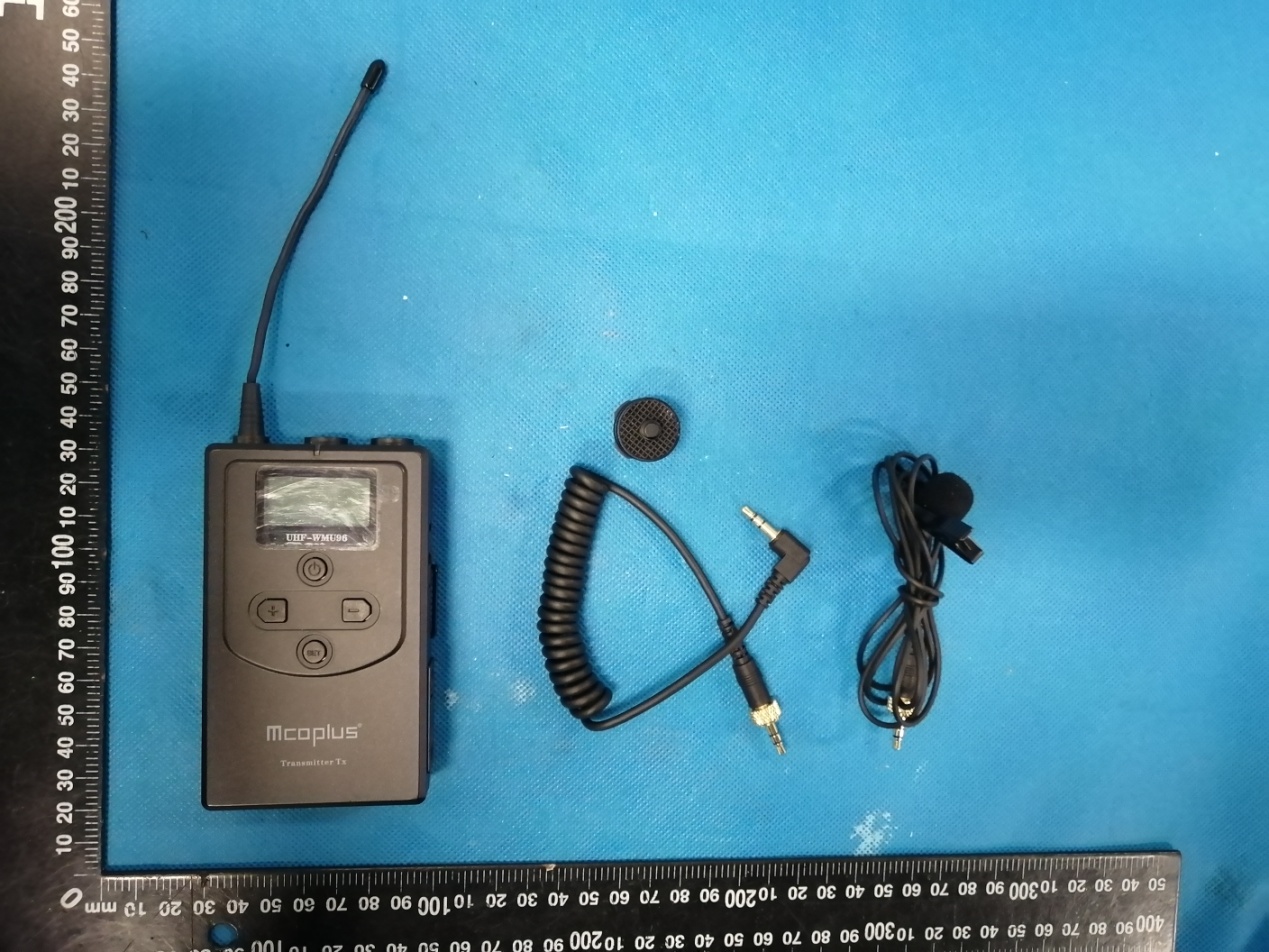

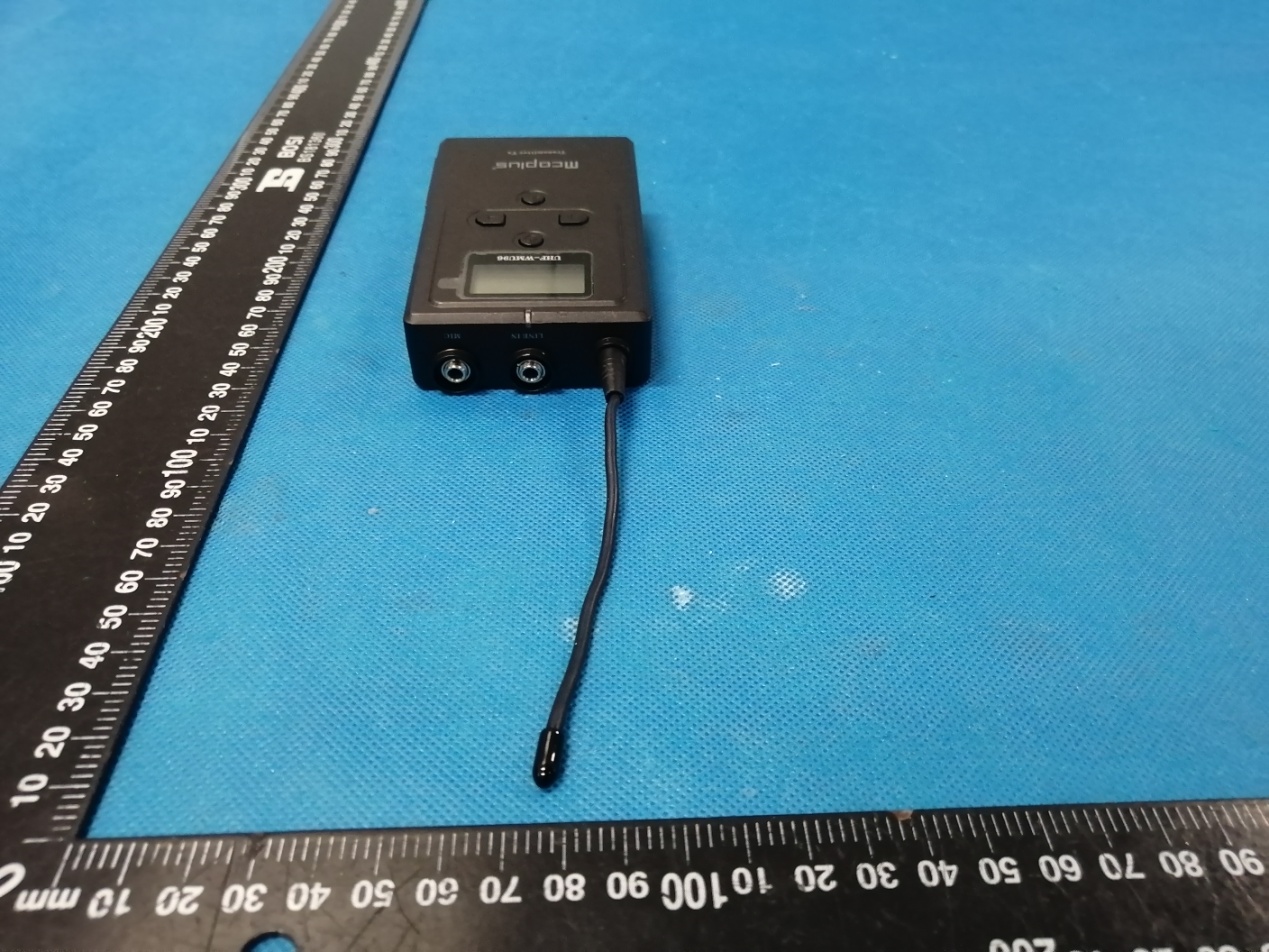

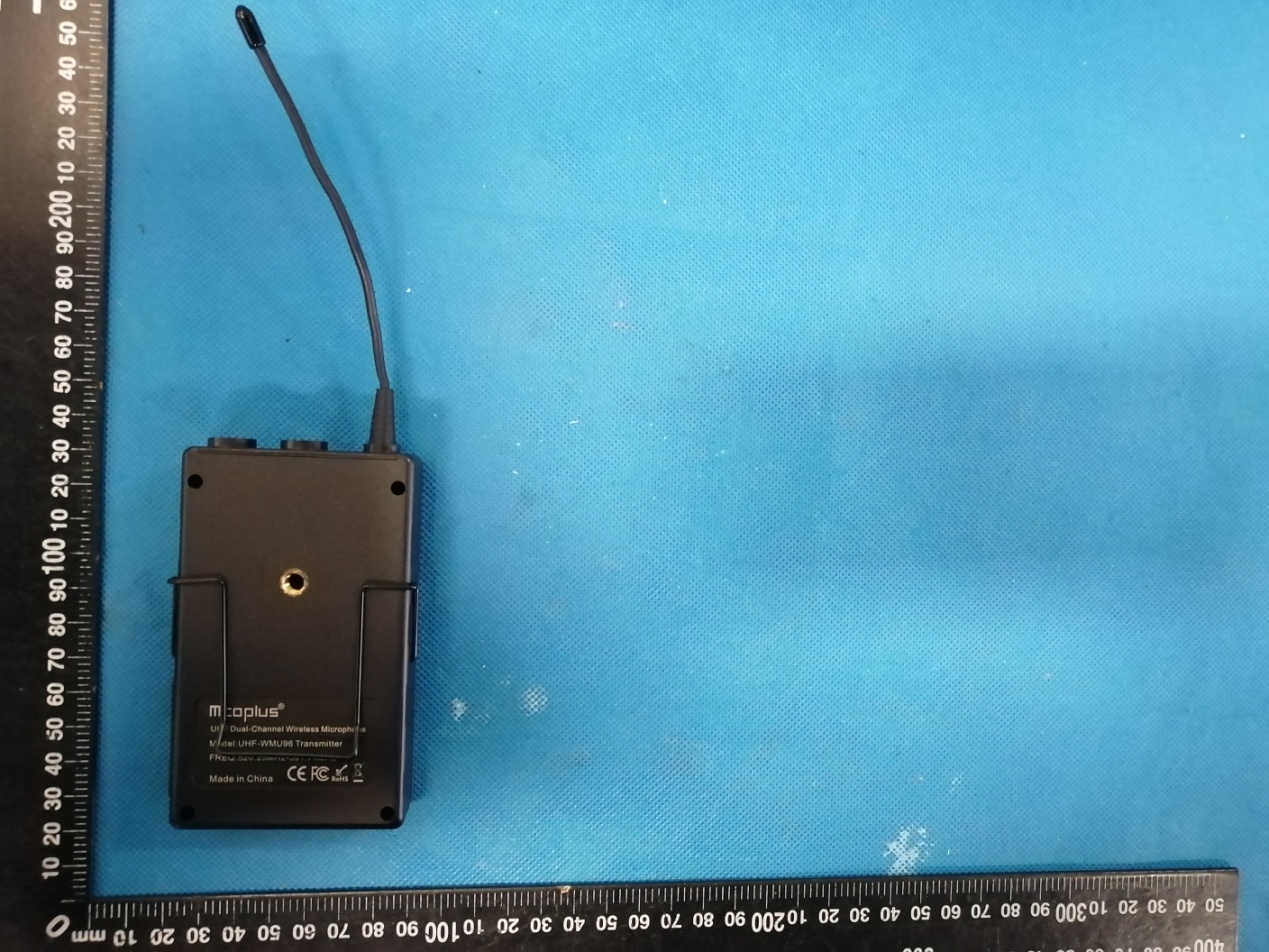

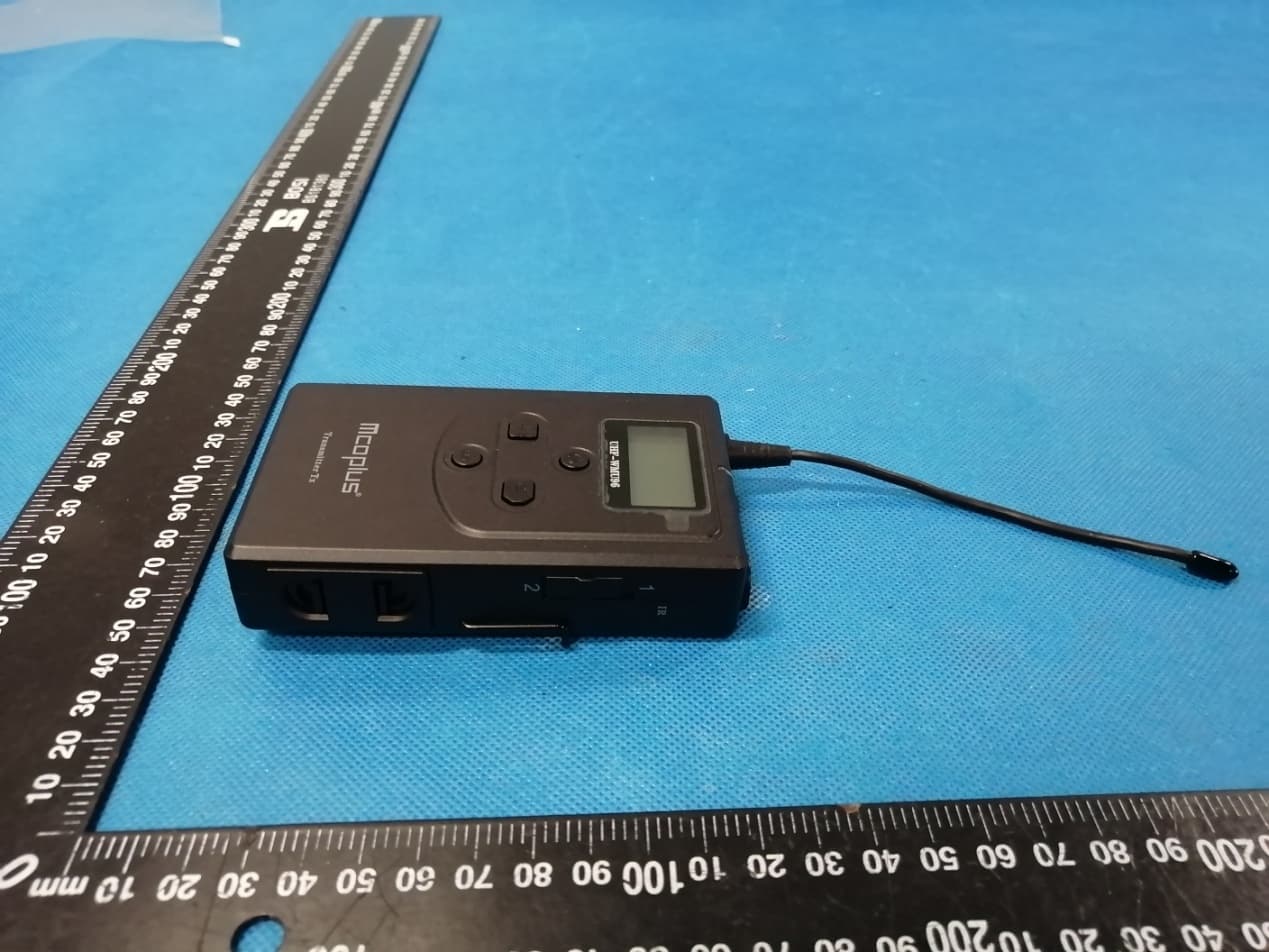

Annex A External Photos Report No.: HK2009112747-E Page 1 of 4 FM Antenna Report No.: HK2009112747-E Page 2 of 4 Report No.: HK2009112747-E Page 3 of 4 Report No.: HK2009112747-E Page 4 of 4

FCC ID LABEL: Ca. 5mm x 10mm Include in manual: This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Label Location FCC ID: 2AXSC-WMU96

Annex B Internal Photos Report No.: HK2009112747-E Page 1 of 3 Report No.: HK2009112747-E Page 2 of 3 Report No.: HK2009112747-E Page 3 of 3

RF EXPOSURE EVALUATION 1. PRODUCT INFORMATION Product Description microphone Model Name WMU96 FCC ID 2AXSC-WMU96 2. EVALUATION METHOD According to 447498 D01 General RF Exposure Guidance v05 The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] ·[√f(GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR. Where f(GHz) is the RF channel transmit frequency in GHz Power and distance are rounded to the nearest mW and mm before calculation 3. CALCULATION According to the follow transmitter output power（P t ）formula： Pt=-5.88dBm=3.87mW The result for RF exposure evaluation SAR= (3.87mW /5mm) .[√0.5903(GHz)]=0.595<3.0 for 1-g SAR 4. CONCLUSION The SAR evaluation is not required.
