2AXSI-SSERIESNFC Card Reader/Writer

- I – OmniCure® S1500 PRO S2000 PRO/ELITE USER’S GUIDE Excelitas Canada Inc. 2260 Argentia Road Mississauga (ON) L5N 6H7 Canada +1 905.821.2600 www.excelitas.com Printed in Canada Draft Rev 5 User Guide - 1 – S1500 and S2000 PRO/ELITE User’s Guide © Excelitas Canada Inc. All rights reserved No part of this publication may be reproduced, transmitted, transcribed, stored in a retrieval system or translated into any language in any form by any means without the prior written consent of Excelitas Canada Inc. Every effort has been made to insure information in this manual is accurate; however, information in this manual is subject to change without notice and does not represent a commitment on the part of the authors. Trademarks OmniCure ® and Intelli-Lamp ® are trademarks of Excelitas Canada Inc. All other product names are trademarks of their respective owners. User Guide - 2 – 1 Table of Contents Excelitas Canada Inc. ..................................................................................................... I 1 Table of Contents .................................................................................................... 2 2 Table of Figures ....................................................................................................... 4 3 Introduction ............................................................................................................. 5 4 Getting Started ........................................................................................................ 6 4.1 Box Contents: .................................................................................................. 6 4.2 Front Panel ...................................................................................................... 7 4.3 Rear Panel ....................................................................................................... 8 5 Safety Precautions .................................................................................................. 9 5.1 Glossary of Symbols ........................................................................................ 9 5.2 Optical Safety Data .......................................................................................... 9 5.3 Safety Precautions ......................................................................................... 10 6 Installing the Lamp Module .................................................................................. 13 7 Inserting and Removing the Light Guide ............................................................. 17 8 Powering Up and Powering Down ........................................................................ 18 9 Output Intensity Modes/Calibration Process ....................................................... 19 10 Adjusting the Light Output ................................................................................... 21 10.1 Adjusting the Light Output in the Relative Mode (“CAL” LED is OFF) ............. 21 10.2 Adjusting the Light Output in the Absolute Mode ............................................ 22 11 Locking and Unlocking the UP/DOWN Adjustment Button ................................ 24 12 Timed Exposures................................................................................................... 25 12.1 Adjusting the Exposure Time ......................................................................... 25 12.2 Running a Timed Exposure ............................................................................ 25 13 Interfacing with the S2000 PRO/ELITE ................................................................. 26 13.1 Connection Options ....................................................................................... 26 13.2 Input/ Output Signals and Descriptions .......................................................... 26 13.3 Radiometer RS-232 Phono Connector: Signal Descriptions ........................... 31 13.4 Audio Style Foot Pedal Connector: Signal Descriptions ................................. 31 14 Viewing the Accumulated Lamp Hours ................................................................ 31 15 Messages / Indicators ........................................................................................... 32 16 LED Light Ring ...................................................................................................... 33 17 Clearing Audible Alarm ......................................................................................... 34 18 Remote Automated Control Requirements .......................................................... 34 18.2 Com Port Configuration: ................................................................................ 34 18.3 Message Format and Protocol: ...................................................................... 34 18.4 Command Descriptions: ................................................................................. 35 18.5 Command Timing Specification:..................................................................... 41 18.6 Graphic User Interface Control: ..................................................................... 41 18.7 Sample Code: ................................................................................................ 41 19 S2000 PRO/ELITE WEB Graphical User Interface ............................................... 44 20 StepCure ................................................................................................................ 44 21 Routine Care and Maintenance ............................................................................ 45 User Guide - 3 – 21.1 Replacing the Lamp Module .......................................................................... 46 21.2 Replacing the External Fuses ........................................................................ 46 21.3 Replacing the Air Filter ................................................................................... 46 21.4 Replacing…

Text truncated - open the document above for the full version.

Date 08/12/2020 TUV SUD America Inc. 10 Centennial Drive Peabody, MA 01960, USA Dear Sir or Madam, We, Excelitas Canada Inc.2260 Argentia Road, Mississauga, Ontario, L5N 6H7 Canada hereby authorize TÜV SÜD Canada at 11 Gordon Collins Drive, Gormley, Ontario, Canada, L0H 1G0, phone # 905-883-7255, to act as our agent in all matters relating to applications for equipment authorization, including the signing of all documents relating to these matters. Yours sincerely, Name: Daoud S. Attayi, P. Eng. Title: Regulatory Specialist

Date 18/01/2021 Federal Communications Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 Confidentiality Request FCC ID: 2AXSI- SSERIES Pursuant to Sections 0.457(d)(1)(ii) and 0.459 of the Commission’s Rules, Excelitas Canada Inc. hereby requests permanent confidential treatment of information accompanying this application as outlined below: Schematics Bill of Materials/Parts List Block Diagrams Theory of Operation/Operation Description Excelitas Canada Inc. also hereby requests short-term confidential treatment of information accompanying this application as outlined below for a period of period of 90 days: Internal Photos External Photos User Manual Test Set-up Photographs The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457(d)(1)(ii), disclosure of this Application and all accompanying materials will not be made before the date of the Grant for this Application. Yours sincerely, Name: Daoud Attayi, P.Eng. Title: Regulatory Specialist Company: Excelitas Canada Inc.

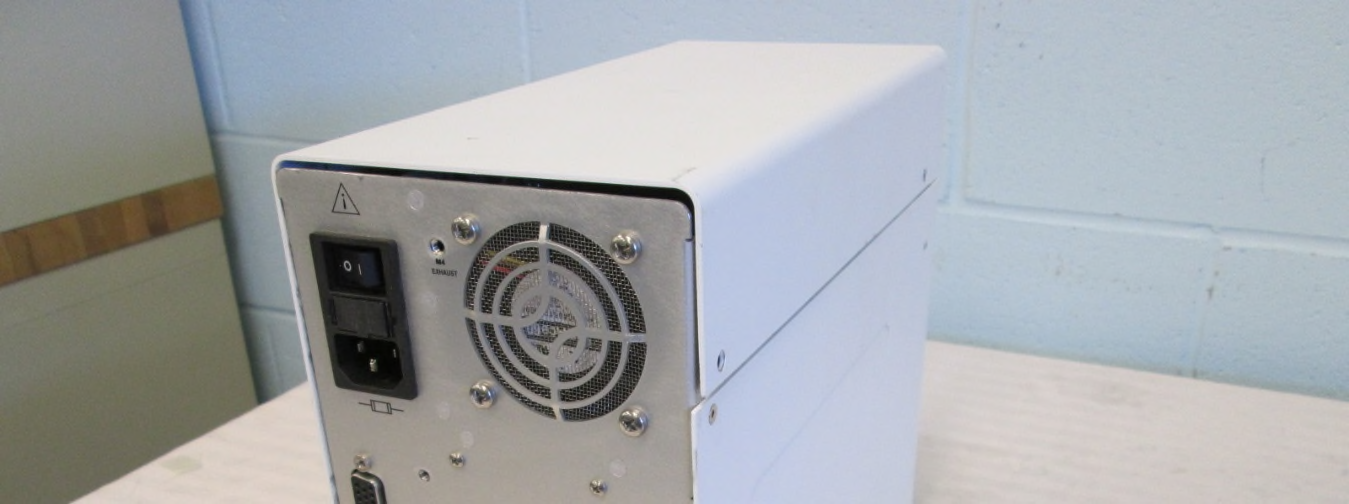

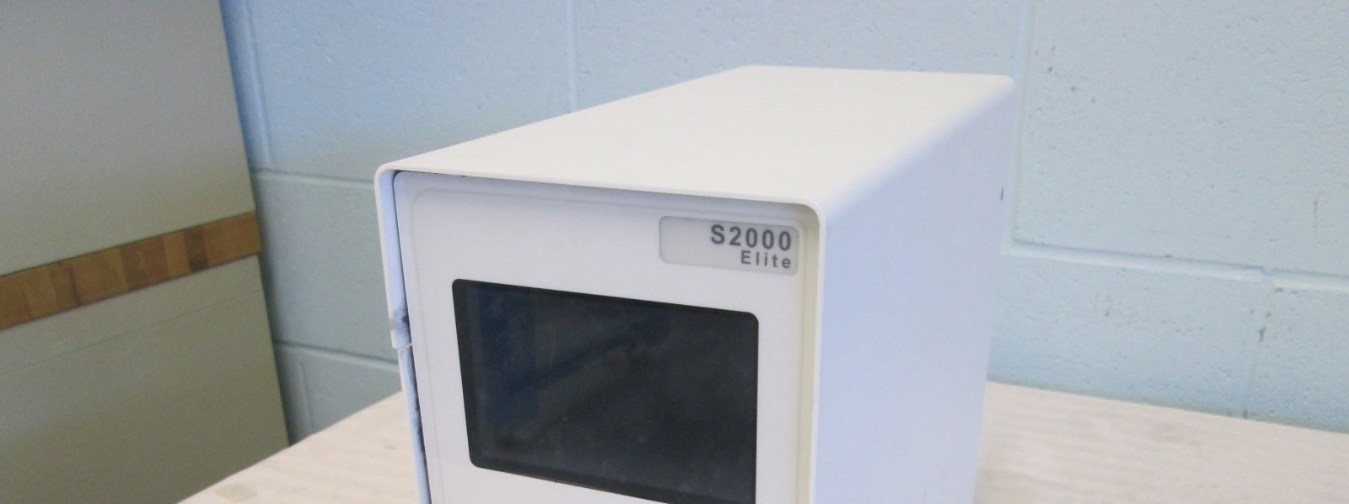

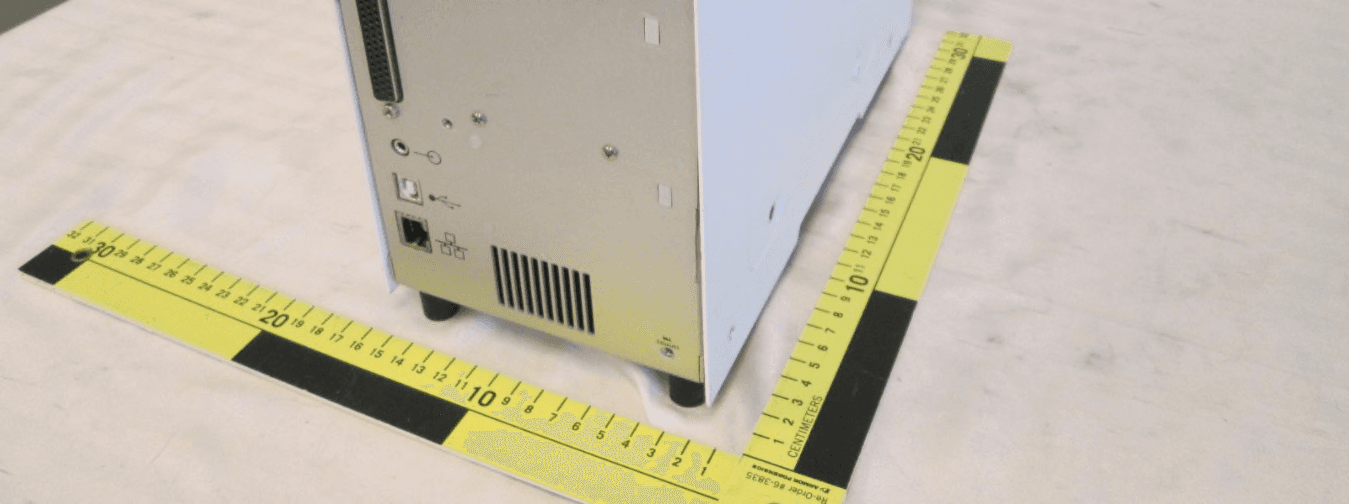

EUT – External view 1 EUT – External view 2

Excelitas Canada Inc. 2260 Argentia Road Mississauga, Ontario L5N 6H7 Canada ___________________________________________________________________________ Applicant: Excelitas Canada Inc. FCC ID: 2AXSI- SSERIES Product: OmniCure® S Series IC: 26590-SSERIES Model: S2000 Elite, S2000 Pro, S1500 Pro P a g e | 1 Label Samples Excelitas Canada Inc. 2260 Argentia Road Mississauga, Ontario L5N 6H7 Canada ___________________________________________________________________________ Applicant: Excelitas Canada Inc. FCC ID: 2AXSI- SSERIES Product: OmniCure® S Series IC: 26590-SSERIES Model: S2000 Elite, S2000 Pro, S1500 Pro P a g e | 2 Label Location

EUT – Internal view 1 Cover removed, EUT right side EUT – Internal view 2 Cover removed. EUT left side EUT – Internal view 3 Front cover removed 13.56 MHz PCB location indicated 13.56 MHz PCB EUT – Internal view 4 Close-up of 13.56 MHz PCB, side 1 EUT – Internal view 5 Close-up of 13.56 MHz PCB, side 2

© TÜV SÜD Canada Inc. This test report shall not be reproduced except in full, without written approval of TÜV SÜD Canada Inc. Exhibit: RF Exposure – FCC FCC ID: 2AXSI-SSERIES Client Excelitas Canada Inc. Product S2000-ELITE Standard(s) FCC KDB 447498:2015 Page 2 of 3 Report Issued: 12/14/2020 Report File #: 7169008581R-FCCSAR-000 © TÜV SÜD Canada Inc. This test report shall not be reproduced except in full, without written approval of TÜV SÜD Canada Inc. RF Exposure – FCC The device is evaluated for portable applications as a worst case usage scenario where the radiating structure is within 20cm from the body of the user. SAR evaluation is applied. General SAR test exclusion guidance for NFC: As per FCC KDB 447498 Section 4.3.1 c) 2), the 1-g extremity SAR Test Exclusion Threshold for frequencies below 100 MHz at test separation distances ≤ 50 mm is determined by: A) The power threshold determined by the equation in Section 4.3.1 c) 1) at Distance = 50 mm, and Frequency = 100 MHz multiplied by 0.5. B) The power threshold in Section 4.3.1 c) 1) is determined by Power threshold in Section 4.3.1 b) multiplied by [1+log(100/f(MHz))] Where f(MHz) = 13.56 MHz C) The power threshold in Section 4.3.1 b) for frequencies 100 MHz – 1500 MHz is: [Power allowed at numeric threshold for 50 mm in Section 4.3.1 a)] + [Test separation distance – 50mm] x [f(MHz)/150] D) Power allowed at a numeric threshold of 3.0 (for 1-g SAR) at 50 mm in Section 4.3.1 a)] is: [(3.0)/((f(GHz)^0.5)] x [Test separation distance] Client Excelitas Canada Inc. Product S2000-ELITE Standard(s) FCC KDB 447498:2015 Page 3 of 3 Report Issued: 12/14/2020 Report File #: 7169008581R-FCCSAR-000 © TÜV SÜD Canada Inc. This test report shall not be reproduced except in full, without written approval of TÜV SÜD Canada Inc. SAR Calculations The EUT transmits at 13.56 MHz frequency. Therefore, solving the above in reverse sequence: D) [3.0/(0.1GHz^0.5)] x [50 mm] = 474.3416 mW C) 474.3416 mW + [(50 mm – 50 mm) x (13.56 MHz/150)] = 474.3416 mW B) [474.3416 mW] x [1+log(100/13.56 MHz)] = 885.9470 mW A) (885.9470 mW) x (0.5) = 442.974 mW The power threshold for 13.56 MHz SAR test exclusion is therefore 443.0 mW. The 13.56 MHz power level is -30.33 dBm = 0.000927 mW < 443.0 mW Results SAR test exclusion applies for the 13.56 MHz transmitter.

Registration # 6844A-3 Testing Laboratory Certificate #2955.02 R-4023, G-506 C-4498, T-1246 Registration # CA6844 Page 1 of 50 Report Issued: 1/18/2021 Report File #: 7169008581R-FCC-000 © TÜV SÜD Canada Inc. This test report shall not be reproduced except in full, without written approval of TÜV SÜD Canada Inc FCC 15 225 Rev1 RF Test Report As per RSS-210 Annex B.6, Issue 10:2019 & FCC Part 15 Subpart 15.225:2019 Low Power Licence Exempt Radio Communication Devices Intentional Radiators on the OmniCure S2000 Elite Issued by: TÜV SÜD Canada Inc. 11 Gordon Collins Dr, Gormley, ON, L0H 1G0 Canada Ph: (905) 883-7255 Testing produced for Excelitas Canada Inc See Appendix A for full client & EUT details. Prepared by: Raymond Lee Au, Project Engineer Reviewed by: Amir Emami, Project Engineer Client Excelitas Canada Inc. Product OmniCure S2000 Elite Standard(s) RSS 210 Annex B.6, Issue 10:2019 FCC Part 15 Subpart 15.225:2019 Page 2 of 50 Report Issued: 1/18/2021 Report File #: 7169008581R-FCC-000 © TÜV SÜD Canada Inc. This test report shall not be reproduced except in full, without written approval of TÜV SÜD Canada Inc Table of Contents Table of Contents ................................................................................................................... 2 Report Scope .......................................................................................................................... 3 Summary ................................................................................................................................ 5 Test Results Summary ....................................................................................................... 6 Notes, Justifications, or Deviations ................................................................................... 7 Sample Calculation(s) ........................................................................................................ 8 Applicable Standards, Specifications and Methods ............................................................... 9 Document Revision Status ................................................................................................... 10 Definitions and Acronyms ................................................................................................... 11 Testing Facility .................................................................................................................... 12 Calibrations and Accreditations ....................................................................................... 12 Testing Environmental Conditions and Dates ................................................................. 13 Detailed Test Results Section .............................................................................................. 14 Radiated Emission Field Strength .................................................................................... 15 Transmitter Spurious Radiated Emissions ....................................................................... 26 Carrier Frequency Stability .............................................................................................. 37 Power Line Conducted Emissions ................................................................................... 39 20dB and 99% Occupied Bandwidth ............................................................................... 45 Appendix A – EUT Summary .............................................................................................. 49 Client Excelitas Canada Inc. Product OmniCure S2000 Elite Standard(s) RSS 210 Annex B.6, Issue 10:2019 FCC Part 15 Subpart 15.225:2019 Page 3 of 50 Report Issued: 1/18/2021 Report File #: 7169008581R-FCC-000 © TÜV SÜD Canada Inc. This test report shall not be reproduced except in full, without written approval of TÜV SÜD Canada Inc Report Scope This report addresses the EMC verification testing and test results of the OmniCure S2000 Elite unit from Excelitas Canada Inc. This unit is herein referred to as EUT (Equipment Under Test). The EUT was tested for compliance against the following standards: RSS-210 Annex B.6, Issue 10:2019, FCC Part 15 Subpart C 15.225:2019 Test procedures, results, justifications, and engineering considerations, if any, follow later in this report. This report does not imply product endorsement by any government, accreditation agency, or TÜV SÜD Canada Inc. Opinions or interpretations expressed in this report, if any, are outside the scope of TÜV SÜD Canada Inc accreditations. Any opinions expressed do not necessarily reflect the opinions of TÜV SÜD Canada Inc, unless otherwise stated. The tested sample is the OmniCure S2000 Elite. As per the client/manufacturer, this test report is also applicable to other similar models in the product family, the S1500 Pro, and the S2000 Pro. The tested sample is the most populated model in the product family, and the features of the other models are subsets of the tested unit. The following shows their differences: Client Excelitas Canada Inc. Product OmniCure S2000 Elite Standard(s) RSS 210 Annex B.6, Issue 10:2019 FCC Part 15 Subpart 15.225:2019 Page 4 of 50 Report Issued: 1/18/2021 Report File #: 7169008581R-FCC-000 © TÜV SÜD Canada Inc. This test report shall not be reproduced except in full, without written approval of TÜV SÜD Canada Inc Model Variants’ Differences As provided by the client/manufacturer The tested sample is the S2000 Elite Client Excelitas Canada Inc. Product OmniCure S2000 Elite Standard(s) RSS 210 Annex B.6, Issue 10:2019 FCC Part 15 Subpart 15.225:2019 Page 5 of 50 Report Issued: 1/18/2021 Report File #: 7169008581R-FCC-000 © TÜV SÜD Canada Inc. This test report shall not be reproduced except in full, without written approval of TÜV SÜD Canada Inc Summary The results contained in this report relate only to the item(s) tested. EUT Model: S2000 ELITE EUT FCC Certification #, FCC ID: 2AXSI-SSERIES ISED Certification #, IC: 26590-SSERIES EUT pas…

Text truncated - open the document above for the full version.

Test setup photo 1 Radiated measurements, 9 kHz – 30 MHz Test setup photo 2 Radiated measurements, 30 MHz – 1 GHz Test setup photo 3 Radiated measurements, 1 GHz – 2 GHz Test setup photo 4 Power line conducted emissions measurements Test setup photo 5 Frequency Stability at Extreme Temperatures Test setup photo 6 Frequency Stability at Extreme Voltages
