2AXSU-HTV5Bluetooth audio receiver

FCC Warning: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. Caution: Any changes or modifications to this device not explicitly approved by manufacturer could void your authority to operate this equipment. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. The device has been evaluated to meet general RF exposure requirement. The device can be used in portable exposure condition without restriction.

ShenZhen HongTaiDingYe Electronics Co.,ltd Agent Authorization Company: ShenZhen HongTaiDingYe Electronics Co.,ltd Address: W2033,2nd floor Shenzhen chengyun Buliding,beier Road ,Bantian Street,LongGang, ShenZhen, Guangdong, China Product Name: Bluetooth audio receiver Model Number(s): HT-06A, HT-08H Product Description: Bluetooth audio receiver FCC ID: 2AXSU-HTV5 We authorize MiCOM Labs Inc., 575 Boulder Court, Pleasanton, California 94566, USA, to act on our behalf on all matters concerning the certification of above named equipment. We declare that MiCOM Labs Inc. is allowed to forward all information related to the approval and certification of equipment to the regulatory agencies as required and to discuss any issues concerning the approval application. Any and all acts carried out by MiCOM Labs on our behalf shall have the same effect as acts of our own. Signature: Date: 2021-05-28 Name: Huan Yang Title: Sales Manager Company: ShenZhen HongTaiDingYe Electronics Co.,ltd

ShenZhen HongTaiDingYe Electronics Co.,ltd Add: W2033,2nd floor Shenzhen chengyun Buliding,beier Road, Bantian Street, LongGang District, ShenZhen, Guangdong, China Tel: 0755-23143515 Fax: 0769-87282782 Date: 2021-05-28 Dear Sir/Madam, We, ShenZhen HongTaiDingYe Electronics Co.,ltd Hereby declares the following statement , PCB board, circuit, structure and internal of these model(s) are the same, Only model number is different for marketing purpose: Product name: Bluetooth audio receiver Models No.: HT-06A, HT-08H Sincerely, Client’s name / title : Huan Yang / Sales Manager Contact information / address: W2033,2nd floor Shenzhen chengyun Buliding,beier Road, Bantian Street, LongGang District, ShenZhen, Guangdong, China Tel: 0755-23143515 Fax: 0769-87282782 E-Mail: [email protected]

2AXSU-HTV5 2021-05-28 ShenZhen HongTaiDingYe Electronics Co.,ltd Huan Yang Sales Manager

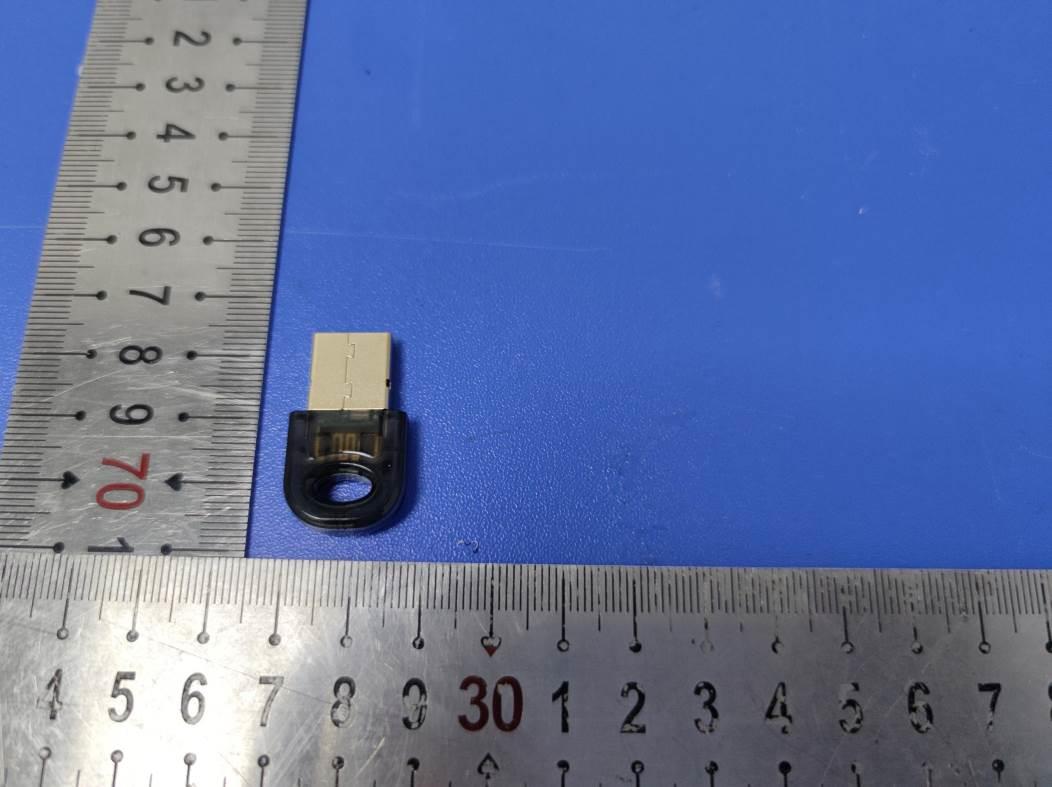

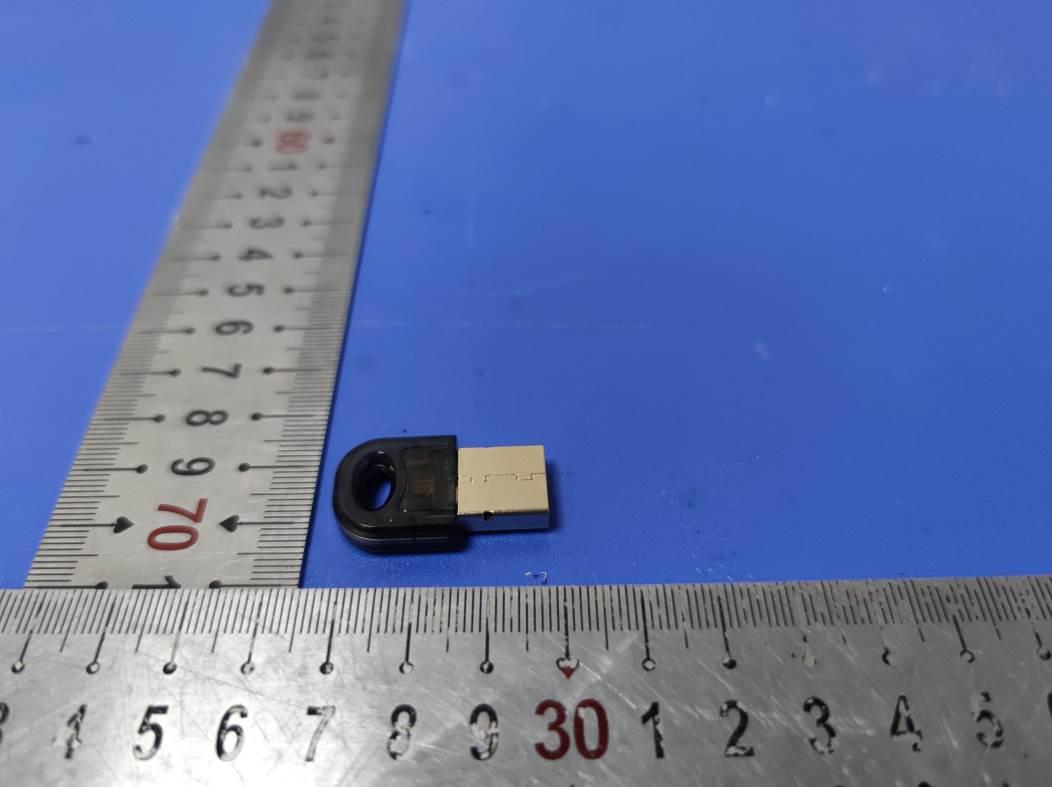

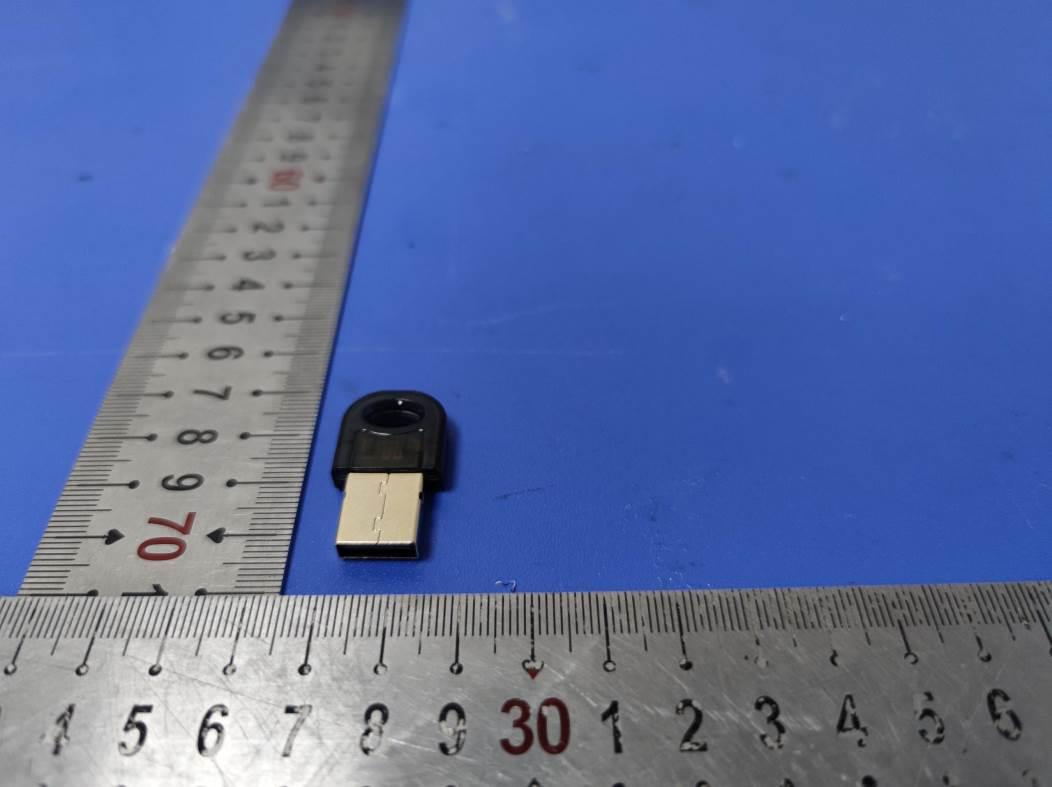

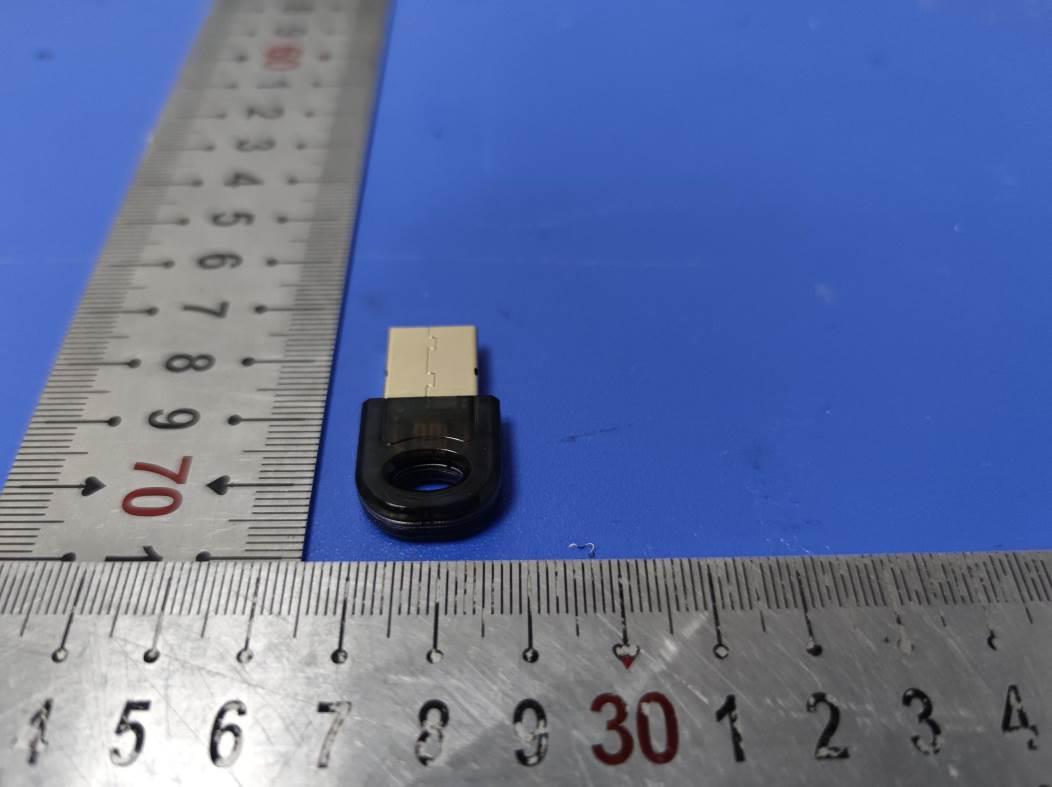

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AXSU-HTV5 EXTERIOR PHOTOGRAPHS Fig.1 Fig.2 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AXSU-HTV5 Fig.3 Fig.4 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AXSU-HTV5 Fig.5 Fig.6 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AXSU-HTV5 Fig.7 HT-08H

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AXSU-HTV5 This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 1 of 1 Label and Location Size: L0.7cm*W0.5cm Label Location FCC ID: 2AXSU-HTV5

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AXSU-HTV5 INTERIOR PHOTOGRAPHS Fig.1 Fig.2 BT Antenna SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AXSU-HTV5 Fig.3 Fig.4

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AXSU-HTV5 ________________________________________________________________________ ___ This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 1 of 4 FCC RF Exposure Evaluation 1. Product Information FCC ID : 2AXSU-HTV5 Product name : Bluetooth audio receiver Test Model : HT-06A Power supply : Input: DC 5V, 1A Operation frequency : 2402MHz-2480MHz Channel Number : 79 Channels for Bluetooth V5.0(DSS) 40 channels for Bluetooth V5.0(DTS) Channel Spacing : 1MHz for Bluetooth V5.0(DSS) 2MHz for Bluetooth V5.0(DTS) Modulation Type : GFSK, π/4-DQPSK, 8-DPSK for Bluetooth V5.0(DSS) GFSK for Bluetooth V5.0(DTS) Bluetooth Version : V5.0 Antenna Type : PCB Antenna Antenna Gain : 0dBi(Max.) Hardware version : / Software version : / Exposure category : General population/uncontrolled environment EUT Type : Production Unit Device Type : Portable Device SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AXSU-HTV5 ________________________________________________________________________ ___ This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 2 of 4 2. Evaluation method and Limit According to KDB447498 D01 General RF Exposure Guidance v06 Section 4.3.1 Standalone SAR test exclusion considerations: “Unless specifically required by the published RF exposure KDB procedures, standalone 1-g head or body and 10-g extremity SAR evaluation for general population exposure conditions, by measurement or numerical simulation, is not required when the corresponding SAR Test Exclusion Threshold condition, listed below, is satisfied. These test exclusion conditions are based on source-based time-averaged maximum conducted output power of the RF channel requiring evaluation, adjusted for tune-up tolerance, and the minimum test separation distance required for the exposure conditions.22 The minimum test separation distance is determined by the smallest distance from the antenna and radiating structures or outer surface of the device, according to the host form factor, exposure conditions and platform requirements, to any part of the body or extremity of a user or bystander (see 5) of section 4.1). To qualify for SAR test exclusion, the test separation distances applied must be fully explained and justified by the operating configurations and exposure conditions of the transmitter and applicable host platform requirements, typically in the SAR measurement or SAR analysis report, according to the required published RF exposure KDB procedures. When no other RF exposure testing or reporting is required, a statement of justification and compliance must be included in the equipment approval, in lieu of the SAR report, to qualify for the SAR test exclusion. When required, the device specific conditions described in the other published RF exposure KDB procedures must be satisfied before applying these SAR test exclusion provisions; for example, handheld PTT two-way radios, handsets, laptops & tablets etc.“ [(max. power of channel, including tune-up tolerance, mW)/ (min. test separation distance, mm)] · [√f (GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR, where: • f (GHz) is the RF channel transmit frequency in GHz • Power and distance are rounded to the nearest mW and mm before calculation • The result is rounded to one decimal place for comparison • 3.0 and 7.5 are referred to as the numeric thresholds in the step 2 below The test exclusions are applicable only when the minimum test separation distance is ≤ 50 mm and for transmission frequencies between 100 MHz and 6 GHz. When the minimum test separation distance is < 5 mm, a distance of 5 mm according to f) in section 4.1 is applied to determine SAR test exclusion. When one of the following test exclusion conditions is satisfied for all combinations of simultaneous transmission configurations, further equipment approval is not required to incorporate transmitter modules in host devices that operate in the mixed mobile and portable host platform exposure conditions. The grantee is responsible for documenting this according to Class I permissive change requirements. Antennas that qualify for standalone SAR test exclusion must apply the estimated standalone SAR to determine simultaneous transmission test exclusion. a) The [∑ of (the highest measured or estimated SAR for each standalone antenna configuration, adjusted for maximum tune-up tolerance) / 1.6 W/kg] + [∑ of MPE ratios] is ≤ 1.0. b)The SAR to peak location separation ratios of all simultaneously transmitting antenna pairs operating in portable device exposure conditions are all ≤ 0.04, and the [∑ of MPE ratios] is ≤ 1.0. 3. Refer Evaluation Method ANSI C95.1–1999: IEEE Standard for Safety Levels with Respect to Human Exposure to Radio Frequency Electromagnetic Fields, 3 kHz to 300 GHz. FCC KDB publication 447498 D01 General RF Exposure Guidance v06: Mobile and Portable Devices RF Exposure Procedures and Equipment Authorization Policies. FCC CFR 47 part1 1.1310: Radiofrequency radiation exposure limits. FCC CFR 47 part2 2.1093: Radiofrequency radiation exposure evaluation: portable devices SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AXSU-HTV5 ________________________________________________________________________ ___ This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 3 of 4 4. Conducted Power Results <BT> Mode Channel Frequency (MHz) Peak Conducted Output Power (dBm) GFSK 0 2402 0.763 39 2441 1.215 78 2480 1.793 π/4DQPSK 0 2402 3.103 39 2441 3.542 78 2480 4.281 8DPSK 0 2402 3.619 39 2441 4.080 78 2480 4.884 <BT LE> Mode Channel Frequency (MHz) Conduct Peak Power (dBm) GFSK 0 2402 1.618 19 2440 1.947 39 2480 2.408 <BT 2LE> Mode Channel Frequency (MHz) Conduct Peak Power (dBm) GFSK 0 2402 1.5…

Text truncated - open the document above for the full version.

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AXSU-HTV5 Report No.: LCS210510101AEB Page 1 of 25 Appendix B RF Test Data for BT V5.0(BDR/EDR) (Conducted Measurement) Product Name: Bluetooth audio receiver Trade Mark: N/A Test Model: HT-06A Environmental Conditions Temperature: 24.2 C Relative Humidity: 54.1% ATM Pressure: 100.0 kPa Test Engineer: Carl Fu Supervised by: Li Huan B.1 Duty Cycle BT LE Test Mode Test Channel Ant Duty Cycle[%] Verdict BT LE 2440 Ant1 100 PASS #im grbble1hchnnav SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AXSU-HTV5 Report No.: LCS210510101AEB Page 2 of 25 BT 2LE Test Mode Test Channel Ant Duty Cycle[%] Verdict BT LE 2440 Ant1 100 PASS #im grbble1hchnnav SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AXSU-HTV5 Report No.: LCS210510101AEB Page 3 of 25 B.2 Maximum Conducted Peak Output Power BT LE Mode Channel Conduct Peak Power[dBm] Limit [dBm] Verdict BT LE LCH 1.618 30 PASS BT LE MCH 1.947 30 PASS BT LE HCH 2.408 30 PASS Test Graphs LCH MCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AXSU-HTV5 Report No.: LCS210510101AEB Page 4 of 25 HCH BT 2LE Mode Channel Conduct Peak Power[dBm] Limit [dBm] Verdict BT LE LCH 1.586 30 PASS BT LE MCH 1.822 30 PASS BT LE HCH 2.348 30 PASS Test Graphs LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AXSU-HTV5 Report No.: LCS210510101AEB Page 5 of 25 MCH HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AXSU-HTV5 Report No.: LCS210510101AEB Page 6 of 25 B.3 Maximum Power Spectral Density BT LE Mode Channel PSD [dBm/3KHz] Limit [dBm/3KHz] Verdict BT LE LCH -15.907 8 PASS BT LE MCH -14.969 8 PASS BT LE HCH -14.494 8 PASS Test Graphs LCH MCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AXSU-HTV5 Report No.: LCS210510101AEB Page 7 of 25 HCH BT 2LE Mode Channel PSD [dBm/3KHz] Limit [dBm/3KHz] Verdict BT LE LCH -17.482 8 PASS BT LE MCH -16.481 8 PASS BT LE HCH -16.468 8 PASS Test Graphs LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AXSU-HTV5 Report No.: LCS210510101AEB Page 8 of 25 MCH HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AXSU-HTV5 Report No.: LCS210510101AEB Page 9 of 25 B.4 6dB Bandwidth BT LE Mode Channel 6dB Bandwidth [MHz] Limit [MHz] Verdict BT LE LCH 0.6460 ≥0.5 PASS BT LE MCH 0.6899 ≥0.5 PASS BT LE HCH 0.6760 ≥0.5 PASS Test Graphs LCH MCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AXSU-HTV5 Report No.: LCS210510101AEB Page 10 of 25 HCH BT 2LE Mode Channel 6dB Bandwidth [MHz] Limit [MHz] Verdict BT LE LCH 1.348 ≥0.5 PASS BT LE MCH 1.145 ≥0.5 PASS BT LE HCH 1.178 ≥0.5 PASS Test Graphs LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AXSU-HTV5 Report No.: LCS210510101AEB Page 11 of 25 MCH HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AXSU-HTV5 Report No.: LCS210510101AEB Page 12 of 25 B.6 RF Conducted Spurious Emissions BT LE Mode Channel Pref [dBm] Max. Level [dBm] Limit [dBm] Verdict BT LE LCH 0.928 -27.385 -19.072 PASS BT LE MCH 0.664 -37.286 -19.336 PASS BT LE HCH 1.425 -37.374 -18.575 PASS BT LE_LCH_Graphs Pref/BT LE/LCH Puw/BT LE/LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AXSU-HTV5 Report No.: LCS210510101AEB Page 13 of 25 BT LE_MCH_Graphs Pref/BT LE/MCH Puw/BT LE/MCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AXSU-HTV5 Report No.: LCS210510101AEB Page 14 of 25 BT LE_HCH_Graphs Pref/BT LE/HCH Puw/BT LE/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AXSU-HTV5 Report No.: LCS210510101AEB Page 15 of 25 BT 2LE Mode Channel Pref [dBm] Max. Level [dBm] Limit [dBm] Verdict BT LE LCH 0.105 -37.404 -19.895 PASS BT LE MCH 0.509 -35.177 -19.491 PASS BT LE HCH 1.134 -37.961 -18.866 PASS BT LE_LCH_Graphs Pref/BT LE/LCH Puw/BT LE/LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AXSU-HTV5 Report No.: LCS210510101AEB Page 16 of 25 BT LE_MCH_Graphs Pref/BT LE/MCH Puw/BT LE/MCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AXSU-HTV5 Report No.: LCS210510101AEB Page 17 of 25 BT LE_HCH_Graphs Pref/BT LE/HCH Puw/BT LE/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AXSU-HTV5 Report No.: LCS210510101AEB Page 18 of 25 B.7 Band-edge for RF Conducted Emissions BT LE Mode Channel Carrier Power[dBm] Max.Spurious Level [dBm] Limit [dBm] Verdict BT LE LCH 0.023 -50.276 -19.98 PASS BT LE HCH 0.946 -49.535 -19.05 PASS Test Graphs LCH HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AXSU-HTV5 Report No.: LCS210510101AEB Page 19 of 25 BT 2LE Mode Channel Carrier Power[dBm] Max.Spurious Level [dBm] Limit [dBm] Verdict BT LE LCH 0.167 -49.668 -19.83 PASS BT LE HCH 1.182 -48.706 -18.82 PASS Test Graphs LCH HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AXSU-HTV5 Report No.: LCS210510101AEB Page 20 of 25 B.8 Restrict-band band-edge measurements BT LE Test Mode Test Chann el Ant Freq. Power [dBm] Gain Ground Factor E [dBuV/m] Detector Limit [dBuV/ m] Verdi ct BT LE 2402 Ant1 2310.0 -41.73 2.0 0 53.53 PEAK 74 PASS Ant1 2310.0 -53.35 2.0 0 41.90 AV 54 PASS Ant1 2390.0 -42.75 2.0 0 52.51 PEAK 74 PASS Ant1 2390.0 -53.00 2.0 0 42.26 AV 54 PASS 2480 Ant1 2483.5 -43.09 2.0 0 52.16 PEAK 74 PASS Ant1 2483.5 -52.30 2.0 0 42.96 AV 54 PASS Ant1 2500.0 -42.99 2.0 0 52.27 PEAK 74 PASS Ant1 2500.0 -52.23 2.0 0 43.02 AV 54 PASS SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AXSU-HTV5 Report No.: LCS210510101AEB Page 21 of 25 Restrict-band band-edge measurements_BT LE_2402_Ant1_PEAK Restrict-band band-edge measurements_BT LE_2402_Ant1_AV SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AXSU-HTV5 Report No.: LCS210510101AEB Page 22 of 25 Restrict-band band-edge measurements_BT LE_2480_Ant1_PEAK Restrict-band band-edge measurements_BT LE_2480_Ant1_AV SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AXSU-HTV5 Report No.: LCS210510101AEB Page 23 of 25 BT 2LE Test Mode Test Chann el Ant Freq. Power [dBm] Gain Ground Factor E [dBuV/m] Detector Limit [dBuV/ m] Verdi ct BT LE 2402 Ant1 2310.0 -42…

Text truncated - open the document above for the full version.

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AXSU-HTV5 Report No.: LCS210510101AEB This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 1 of 33 FCC TEST REPORT For ShenZhen HongTaiDingYe Electronics Co.,ltd Bluetooth audio receiver Test Model: HT-06A Additional Model No.: HT-08H Prepared for : ShenZhen HongTaiDingYe Electronics Co.,ltd Address : W2033,2nd floor Shenzhen chengyun Buliding,beier Road, Bantian Street, LongGang District, ShenZhen, Guangdong, China Prepared by : Shenzhen LCS Compliance Testing Laboratory Ltd. Address : 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel : (+86)755-82591330 Fax : (+86)755-82591332 Web : www.LCS-cert.com Mail : [email protected] Date of receipt of test sample : May 11, 2021 Number of tested samples : 2 Sample No. : 210510101A-1, 210510101A-2 Serial number : Prototype Date of Test : May 11, 2021 ~ May 20, 2021 Date of Report : May 24, 2021 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AXSU-HTV5 Report No.: LCS210510101AEB This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 2 of 33 FCC TEST REPORT FCC CFR 47 PART 15 C (15.247) Report Reference No. ................. : LCS210510101AEB Date of Issue ................................... : May 24, 2021 Testing Laboratory Name ............ : Shenzhen LCS Compliance Testing Laboratory Ltd. Address ........................................... : 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Testing Location/ Procedure ........... : Full application of Harmonised standards ■ Partial application of Harmonised standards □ Other standard testing method □ Applicant’s Name .......................... : ShenZhen HongTaiDingYe Electronics Co.,ltd Address ........................................... : W2033,2nd floor Shenzhen chengyun Buliding,beier Road, Bantian Street, LongGang District, ShenZhen, Guangdong, China Test Specification Standard.......................................... : FCC CFR 47 PART 15 C (15.247) Test Report Form No. ................... : LCSEMC-1.0 TRF Originator ................................ : Shenzhen LCS Compliance Testing Laboratory Ltd. Master TRF ..................................... : Dated 2011-03 Shenzhen LCS Compliance Testing Laboratory Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen LCS Compliance Testing Laboratory Ltd. is acknowledged as copyright owner and source of the material. Shenzhen LCS Compliance Testing Laboratory Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. EUT Description. ........................... : Bluetooth audio receiver Trade Mark .......................................................................................................................................... : N/A Test Model .......................................................................................................................................... : HT-06A Ratings ................................................................................................................................................ : Input: DC 5V, 1A Result ........................................... : Positive Compiled by: Supervised by: Approved by: Cherry Chen/ Administrators Jin Wang/ Technique principal Gavin Liang/ Manager SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AXSU-HTV5 Report No.: LCS210510101AEB This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 3 of 33 FCC -- TEST REPORT Test Model........................... : HT-06A EUT......................................... : Bluetooth audio receiver Applicant............................... : ShenZhen HongTaiDingYe Electronics Co.,ltd Address.................................. : W2033,2nd floor Shenzhen chengyun Buliding,beier Road, Bantian Street, LongGang District, ShenZhen, Guangdong, China Telephone............................... : / Fax.......................................... : / Manufacturer........................ : ShenZhen HongTaiDingYe Electronics Co.,ltd Address................................... : W2033,2nd floor Shenzhen chengyun Buliding,beier Road, Bantian Street, LongGang District, ShenZhen, Guangdong, China Telephone............................... : / Fax.......................................... : / Factory................................... : ShenZhen HongTaiDingYe Electronics Co.,ltd Address................................... : 2F, No8 Pushaheng Road, Shahu Community, Tangxia, Dongguan Telephone............................... : / Fax.......................................... : / Test Result Positive The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Test Report No. : LCS210510101AEB May 24, 2021 Date of issue SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AXSU-HTV5 Report No.: LCS210510101AEB This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 4 of 33 Revision History Revision Issue Date Revisions Revised By 000 May 24, 2021 Initial Issue Gavin Liang SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AXSU-HTV5 Report No.: LCS210510101AEB This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 5 of 33 TABLE OF CONTENTS 1. GENERAL INFORMATION ........................................................…

Text truncated - open the document above for the full version.

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AXSU-HTV5 _______________________________________________________________________________________________ TEST SETUP PHOTOGRAPHS Photo of Radiated Emissions Measurement Below 1 GHz Above 1 GHz SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AXSU-HTV5 _______________________________________________________________________________________________ Photo of Conducted Emissions Measurement Fig. 3
