2AXTDUX8125-M42FEDM Module

1 Ubiik Inc. Product Model Name UX8125-M42F Dimension 28 mm * 13 mm Weight 2g Operation Frequency Host Interface AT Command interface over UART Modulation GMSK Single Operation Voltage 3.3V~3.45V Operation Temperature -40°C~85°C Receiver Sensitivity -120 dBm @6.25kbps Transmit Power Max. 26dBm EDM Module User Manual Ubiik’s End Device Module is a Low-Power Long Range module with a full Weightless protocol stack up to the AT command interface. The module is an easy to use, low-power solution for long range bidirectional wireless communication of data, Suitable for IoT devices. 2 Ubiik Inc. Warning This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -Reorient or relocate the receiving antenna. -Increase the separation between the equipment and receiver. -Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -Consult the dealer or an experienced radio/ TV technician for help. Any changes or modifications not expressly approved by the grantee of this device could void the user's authority to operate the equipment. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This transmitter module is authorized only for use in device where the antenna may be installed such that 20 cm may be maintained between the antenna and users. The final end product must be labeled in a visible area with the following: "Contains FCC ID: 2AXTDUX8125-M42F”. *Information for the OEMs and Integrators： This device is intended only for OEM integrators under the following conditions：The module can be used to installation in other host. The transmitter module may not be collocated with any other transmit or antenna. The module shall be only used with the integral antenna(s) that has been originally tested and certified with this module. As long as 2 conditions above are met, further transmitter test will not be required. However, the OEM integrator is still responsible for testing their end-product for any additional compliance requirement with this module installed (for example, digital device emission, PC peripheral requirements, etc.) The final end product must be labeled in a visible area with the following: ”Contains FCC ID: 2AXTDUX8125-M42F”.The equipment complies with FCC RF exposure limits set forth for an uncontrolled environment. The equipment must not be co-located or operating in conjunction with any other antenna or transmitter.

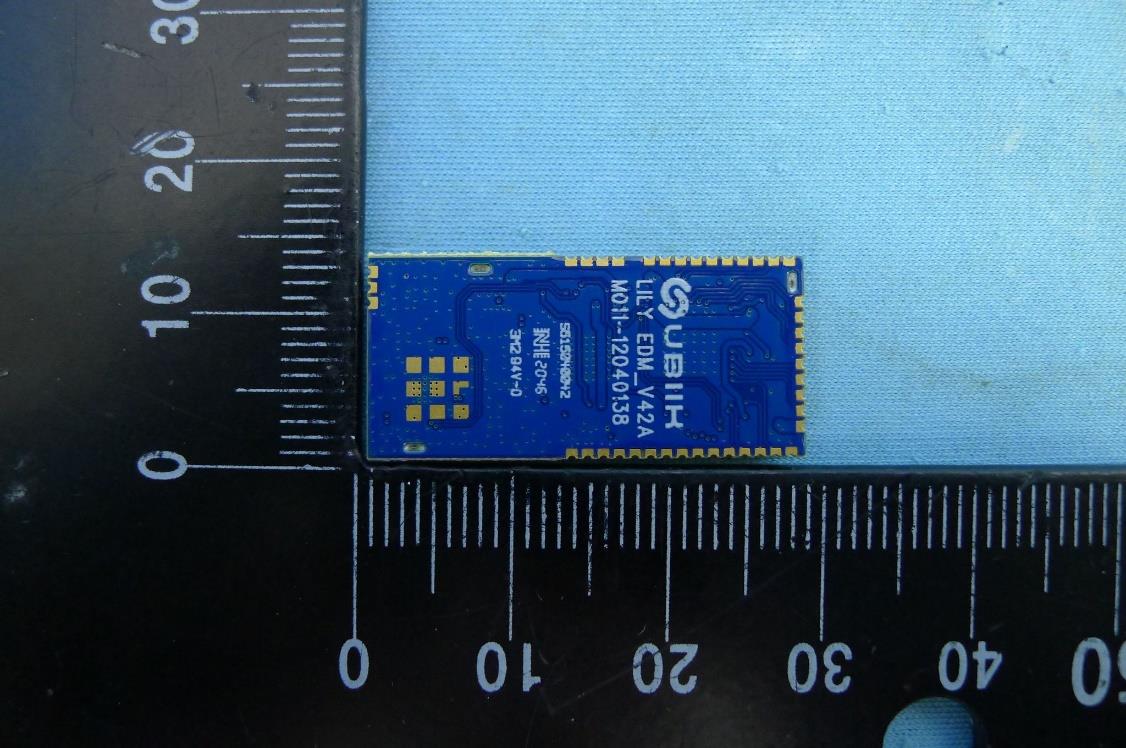

Report No.: 2101TW0501-U1 Product: Weightless EDM Brand Name: Ubiik Model Number: UX8125-M42F 1 of 8 External Photograph (1) EUT Photo (2) EUT Photo Report No.: 2101TW0501-U1 2 of 8 (3) EUT Photo (4) EUT Photo Report No.: 2101TW0501-U1 3 of 8 (5) EUT Photo (6) EUT Photo Report No.: 2101TW0501-U1 4 of 8 (7) EUT Photo (8) EUT Photo Report No.: 2101TW0501-U1 5 of 8 (9) EUT Photo (10) EUT Photo Report No.: 2101TW0501-U1 6 of 8 (11) EUT Photo (12) EUT Photo Report No.: 2101TW0501-U1 7 of 8 (13) EUT Photo (14) EUT Photo Report No.: 2101TW0501-U1 8 of 8 (15) EUT Photo

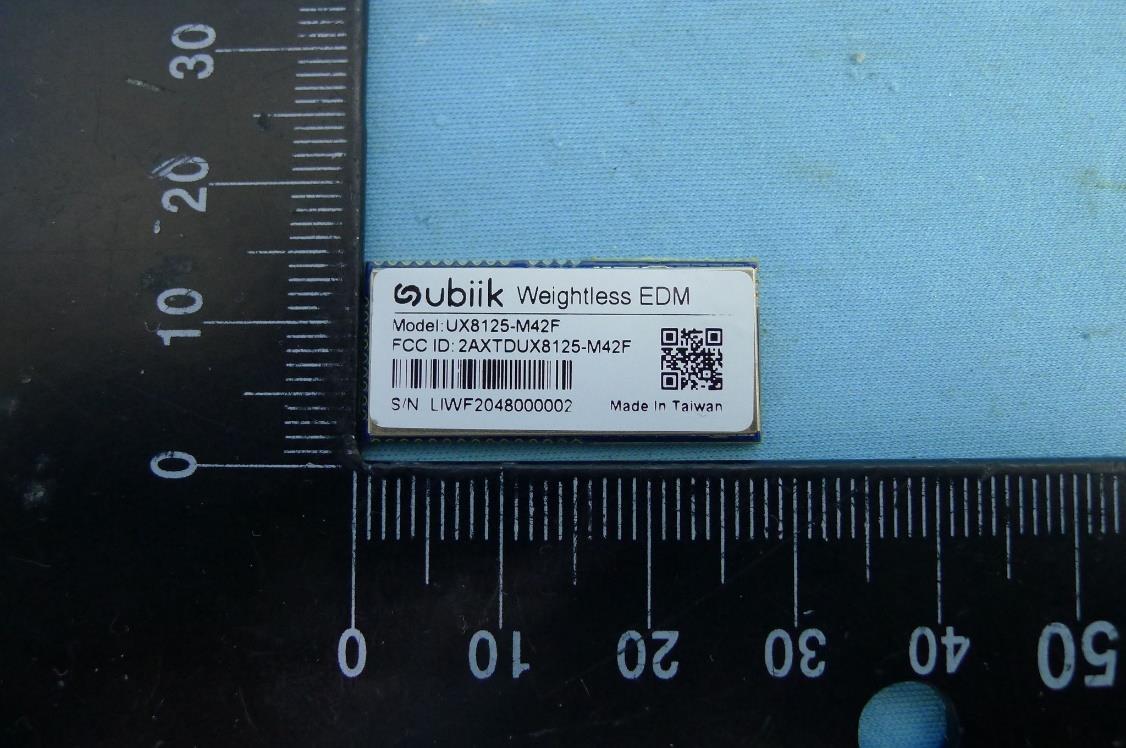

Label Label location

Report No.: 2101TW0501-U1 Product: Weightless EDM Brand Name: Ubiik Model Number: UX8125-M42F 1 of 2 Internal Photograph (1) EUT Photo (2) EUT Photo Report No.: 2101TW0501-U1 2 of 2 (3) EUT Photo

MRT Technology (Taiwan) Co., Ltd Report No.: 2101TW0501-U2 Phone: +886-3-3288388 Report Version: 2.0 Fax: +886-3-3288918 Issue Date: 2021-04-22 Web: www.mrt-cert.com FCC ID: 2AXTDUX8125-M42F Page Number: 1 of 5 Maximum Permissible Exposure FCC ID: 2AXTDUX8125-M42F APPLICANT: Ubiik Inc. Application Type: Certification Product: Weightless EDM Model No.: UX8125-M42F Brand Name: Ubiik FCC Rule Part(s): Part 2.1091 (Mobile) Received Date: December 11, 2020 Test Date: December 11, 2020 ~ January 3, 2021 Reviewed By : ( Paddy Chen ) Approved By : ( Chenz Ker ) The test results relate only to the samples tested. This equipment has been shown to be capable of compliance with the applicable technical standards as indicated in the measurement report. Test results reported herein relate only to the item(s) tested. The test report shall not be reproduced except in full without the written approval of MRT Technology (Taiwan) Co., Ltd. Report No.: 2101TW0501-U2 FCC ID: 2AXTDUX8125-M42F Page Number: 2 of 5 Revision History Report No. Version Description Issue Date 2101TW0501-U2 1.0 Original Report 2021-3-15 2101TW0501-U2 2.0 Revise Antenna’s MFR & Part No. on P3 2021-4-22 Report No.: 2101TW0501-U2 FCC ID: 2AXTDUX8125-M42F Page Number: 3 of 5 1. PRODUCT INFORMATION 1.1. Equipment Description 1.2. Antenna Description No. Manufacturer Part No. Antenna Type Peak Gain 1 WHA YU Industrial Co., LTD C1991-690054-A Dipole 3.29dBi Product Name Weightless EDM Model No. UX8125-M42F Trademark Ubiik Frequency Range 902~928MHz Type of Modulation FHSS (GMSK) Report No.: 2101TW0501-U2 FCC ID: 2AXTDUX8125-M42F Page Number: 4 of 5 2. Maximum Permissible Exposure(MPE) 2.1. Limits According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environment impact of human exposure to radio frequency (RF) radiation as specified in 1.1307(b) LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (Minutes) (A) Limits for Occupational/ Control Exposures 0.3-3.0 614 1.63 *100 6 3.0-30 1842/f 4.89/f *900/f 2 6 30-300 61.4 0.163 1.0 6 300-1500 -- -- f/300 6 1500-100,000 -- -- 5 6 (B) Limits for General Population/ Uncontrolled Exposures 0.3-1.4 614 1.63 *100 30 1.34-30 824/f 2.19/f *180/f 2 30 30-300 27.5 0.073 0.2 30 300-1500 -- -- f/1500 30 1500-100,000 -- -- 1.0 30 Note : (1) f= Frequency in MHz , (2) * = Plane-wave equivalent power density Calculation Formula: Pd = (Pout*G)/(4*pi*r 2 ) Where Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 r = distance between observation point and center of the radiator in cm Under normal use condition, is at least 20cm away from the body of the user . So, this device is classified as Mobile Device. Report No.: 2101TW0501-U2 FCC ID: 2AXTDUX8125-M42F Page Number: 5 of 5 2.2. Test Result Frequency Band (MHz) Output Power (dBm) Output Power (mW) Antenna Gain (dBi) Distance (cm) Power Density (mW/cm 2 ) Limit (mW/cm 2 ) 902~928 25.84 236.59 3.29 20 0.1628 0.6133 Therefore, the maximum calculations are less than the “1” limit. Complies with FCC radiation exposure requirement specified in the FCC Rule 2.1091. The End

MRT Technology (Taiwan) Co., Ltd Report No.: 2101TW0501-U1 Phone: +886-3-3288388 Report Version: 2.0 Fax: +886-3-3288918 Issue Date: 2021-04-22 Web: www.mrt-cert.com FCC ID: 2AXTDUX8125-M42F Page Number: 1 of 66 FCC ID: 2AXTDUX8125-M42F APPLICANT: Ubiik Inc. Application Type: Certification Product: Weightless EDM Model No.: UX8125-M42F FCC Classification: (DSS) FCC Part 15 Spread Spectrum Transmitter FCC Rule Part(s): Part 15.247 Test Procedure(s): ANSI C63.10-2013 Received Date: December 11, 2020 Test Date: December 11, 2020 ~ April 19, 2021 MEASUREMENT REPORT FCC PART 15.247 Tested By : ( Peter Syu ) Reviewed By : ( Paddy Chen ) Approved By : ( Chenz Ker) The test results only relate to the tested sample. This equipment has been shown to be capable of compliance with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures specified in ANSI C63.10. Test results reported herein relate only to the item(s) tested. The test report shall not be reproduced except in full without the written approval of MRT Technology (Taiwan) Co., Ltd. Report No.: 2101TW0501-U1 FCC ID: 2AXTDUX8125-M42F Page Number: 2 of 66 Revision History Report No. Version Description Issue Date Note 2101TW0501-U1 1.0 Original Report 2021-04-20 2101TW0501-U1 2.0 Revise Antenna’s MFR & Part No. on P15 2021-04-22 Report No.: 2101TW0501-U1 FCC ID: 2AXTDUX8125-M42F Page Number: 3 of 66 CONTENTS Description Page 1. INTRODUCTION ......................................................................................................................7 1.1. Scope ............................................................................................................................ 7 1.2. MRT Test Location ........................................................................................................ 7 2. PRODUCT INFORMATION ......................................................................................................8 2.1. Equipment Description .................................................................................................. 8 2.2. Product Specification Subjective to this Standard .......................................................... 8 2.3. Test Mode ..................................................................................................................... 8 2.4. Operation Frequency / Channel List .............................................................................. 9 2.5. Test Configuration ....................................................................................................... 12 2.6. Test Software .............................................................................................................. 12 2.7. EMI Suppression Device(s)/Modifications .................................................................... 12 2.8. Labeling Requirements ................................................................................................ 12 3. DESCRIPTION of TEST ......................................................................................................... 13 3.1. Evaluation Procedure .................................................................................................. 13 3.2. AC Line Conducted Emissions .................................................................................... 13 3.3. Radiated Emissions ..................................................................................................... 14 4. ANTENNA REQUIREMENTS ................................................................................................. 15 5. TEST EQUIPMENT CALIBRATION DATE ............................................................................. 16 6. MEASUREMENT UNCERTAINTY.......................................................................................... 17 7. TEST RESULT ....................................................................................................................... 18 7.1. Summary ..................................................................................................................... 18 7.2. 20dB Bandwidth Measurement .................................................................................... 19 7.2.1. Test Limit ................................................................................................................. 19 7.2.2. Test Procedure used ................................................................................................ 19 7.2.3. Test Setting .............................................................................................................. 19 7.2.4. Test Setup ............................................................................................................... 19 7.2.5. Test Result ............................................................................................................... 20 7.3. Output Power Measurement ........................................................................................ 21 7.3.1. Test Limit ................................................................................................................. 21 7.3.2. Test Procedure Used ............................................................................................... 21 7.3.3. Test Setting .............................................................................................................. 22 7.3.4. Test Setup ............................................................................................................... 22 Report No.: 2101TW0501-U1 FCC ID: 2AXTDUX8125-M42F Page Number: 4 of 66 7.3.5. Test Result ............................................................................................................... 23 7.4. Carrier Frequency Separation Measurement ............................................................... 24 7.4.1. Test Limit ...........................................................................…

Text truncated - open the document above for the full version.

Report No.: 2101TW0501-U1 Product: Weightless EDM Brand Name: Ubiik Model Number: UX8125-M42F 1 of 3 Test Photograph Test Mode 1 Description: Front View of Conducted Emission Test Setup Test Mode 1 Description: Back View of Conducted Emission Test Setup Report No.: 2101TW0501-U1 2 of 3 Test Mode: Mode 1 Description: Radiated Emission Test Setup for below 1GHz Test Mode: Mode 1 Description: Radiated Emission Test Setup for above 1GHz Report No.: 2101TW0501-U1 3 of 3 Test Mode: Mode 1 Description: Conducted Emission Test Setup
