2AXTR-ECL2248-2723Base Station with LTE

1 2 3 4 5 6 7 ECL2248-2723 Installation Manual Corporate Headquarters EUCAST Co., Ltd. 4F, Sungok bldg, 262, Hwangsaeul-ro, Bundang-gu, Seonam-si, Gyeonggi-do, Korea 13595 Tel: +82-31-706-5261 - ii - EUCAST Co. Ltd. All rights Reserved = CONFIDENTIAL = 8 9 Revision History 10 11 Version Date Author/Editor Comment 1.0 2020-10-19 H/W Initial draft version 2.0 2020-12-09 H/W revision 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 - iii - EUCAST Co. Ltd. All rights Reserved = CONFIDENTIAL = 28 INDEX 29 1 Introduction ............................................................................................................... vii 30 1.1 System SPEC. ......................................................................................................................................................... vii 31 1.1.1 ECL2248-2723 Exterior .................................................................................................................................. vii 32 1.1.2 Electricity consumption. .................................................................................................................................. vii 33 1.1.3 Size and Weight .............................................................................................................................................. viii 34 1.1.4 Environmental condition ................................................................................................................................. viii 35 1.1.5 Physical Interface ........................................................................................................................................... viii 36 1.1.5.1 Interface Overview .................................................................................................................................. viii 37 1.1.5.2 Detailed Definition of Interface ................................................................................................................. ix 38 2 Start installation ..........................................................................................................x 39 2.1 Installation and Workspace ....................................................................................................................................... x 40 2.2 Survey of installation area ....................................................................................................................................... xi 41 2.3 Movement of equipment .......................................................................................................................................... xi 42 3 System installation ................................................................................................... xii 43 3.1 ECL2248-2723 components ................................................................................................................................... xii 44 3.2 ECL2248-2723 installation ..................................................................................................................................... xii 45 3.2.1 Install order ECL2248-2723 in Wall .............................................................................................................. xiii 46 3.2.1.1 Bracket drawing and material preparation ............................................................................................... xiii 47 3.2.1.2 Fix the Bracket to the ground ................................................................................................................... xiii 48 3.2.1.3 Fix the Bracket to the ECL2248-2723 ..................................................................................................... xiv 49 3.2.1.4 Assembling the ECL2248-2723 ............................................................................................................... xiv 50 51 52 53 54 - iv - EUCAST Co. Ltd. All rights Reserved = CONFIDENTIAL = 55 Figure index 56 Figure 1. ECL2248-2723 Exterior ................................................................................................................................. vii 57 Figure 2. Interface Ports ............................................................................................................................................... viii 58 Figure 3. ECL2248-2723 Installation sample. ................................................................................................................ x 59 Figure 4. Compositions of ECL2248-2723 Mechanical ............................................................................................... xii 60 Figure 5. Bracket Mechanical drawings ...................................................................................................................... xiii 61 Figure 6. Wall Side Bracket ......................................................................................................................................... xiv 62 Figure 7. ECL2248-2723 Side Bracket ........................................................................................................................ xiv 63 Figure 8. Assembly sequence ..................................................................................................................................... xiv 64 65 Table index 66 67 Table 1.Electricity consumption .................................................................................................................................... vii 68 Table 2. Size and Weight ............................................................................................................................................... viii 69 Table 3. Environmental Requirements ........................................................................................................................ viii 70 Table 4. Interface overview .........................................................................................................................…

Text truncated - open the document above for the full version.

EIJ CAST EUCAST Co., Ltd. 4F Sungok Bldg, 262, Hwangsaeul-ro, Bundang-gu, Seongnam-si, Gyeonggi-do, Korea, 13595 Date: DEC 09, 2020 Confidentiality Request FCC ID : 2AXTR-ECL2248-2723 Pursuant to Sections 0.457(d)(1)(ii) and 0.459 of the Commission's Rules, EUCAST Co., Ltd. hereby requests permanent confidential tr eatment of information accompanying this application as outlined below: Schematics/Circuit Diagrams Bill of Material/Parts List Block Diagrams HW Description EUCAST Co., Ltd. also hereby requests short-term confidential treatment of information accompanying this application as outlined below for a period of 180 days: Internal Photos External Photos Test Setup Photos User Manual Installation Manual The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457(d)(1)(ii), disclosure of this Application and all accompanying materials will not be made before the date of the Grant for this Application. Sincerely, Munkyu Lee Vice President/Director of Hardware Mobile : +82-10-8632-9567, E-mail : [email protected]

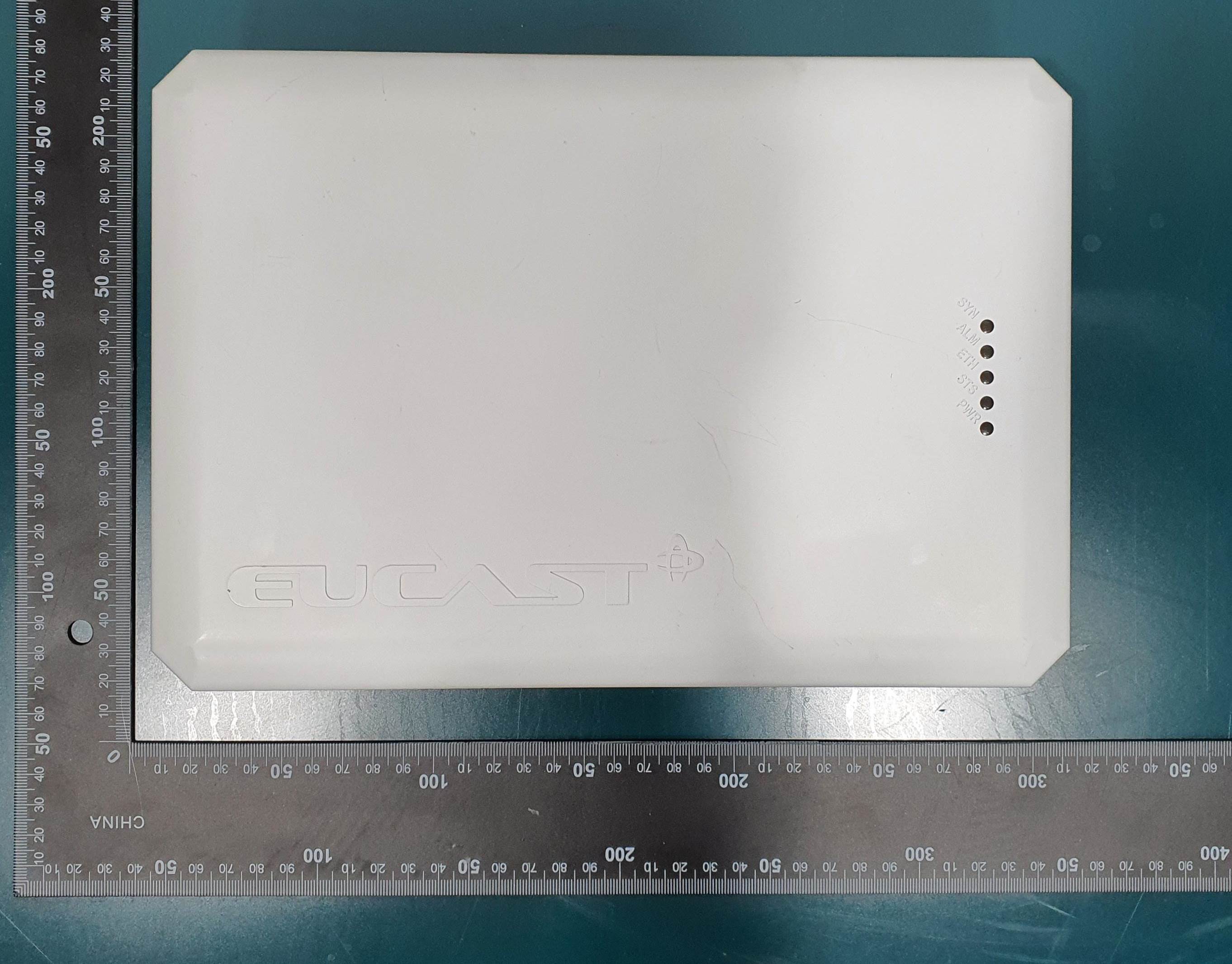

EUCAST Co., Ltd. MODEL: ECL2248-2723 External Photos EUT Type: LTE enterprise small cell base station Page 1 of 4 © 2020 PCTEST V 1.0 2020 All rights reserved. Unless otherwise specified, no part of this report may be reproduced or utilized in any part, form or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from PCTEST Engineering Laboratory, Inc. If you have any questions about this international copyright or have an enquiry about obtaining additional rights to this report or assembly of contents thereof, please contact [email protected]. EXTERNAL PHOTOGRAPHS 1. External Photo (Front view) EUCAST Co., Ltd. MODEL: ECL2248-2723 External Photos EUT Type: LTE enterprise small cell base station Page 2 of 4 © 2020 PCTEST V 1.0 2020 All rights reserved. Unless otherwise specified, no part of this report may be reproduced or utilized in any part, form or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from PCTEST Engineering Laboratory, Inc. If you have any questions about this international copyright or have an enquiry about obtaining additional rights to this report or assembly of contents thereof, please contact [email protected]. 2. External Photo (Rear view) EUCAST Co., Ltd. MODEL: ECL2248-2723 External Photos EUT Type: LTE enterprise small cell base station Page 3 of 4 © 2020 PCTEST V 1.0 2020 All rights reserved. Unless otherwise specified, no part of this report may be reproduced or utilized in any part, form or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from PCTEST Engineering Laboratory, Inc. If you have any questions about this international copyright or have an enquiry about obtaining additional rights to this report or assembly of contents thereof, please contact [email protected]. 3. External Photo (Left side view) 4. External Photo (Right side view) EUCAST Co., Ltd. MODEL: ECL2248-2723 External Photos EUT Type: LTE enterprise small cell base station Page 4 of 4 © 2020 PCTEST V 1.0 2020 All rights reserved. Unless otherwise specified, no part of this report may be reproduced or utilized in any part, form or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from PCTEST Engineering Laboratory, Inc. If you have any questions about this international copyright or have an enquiry about obtaining additional rights to this report or assembly of contents thereof, please contact [email protected]. 5. External Photo (Top view) 6. External Photo (Bottom view)

FCC Label and Location Model No. : ECL2248-2723 EUCAST Co., Ltd. MADE IN KOREA S/N : EEXXXXXXXXXXXXXXX FCC ID : 2AXTR-ECL2248-2723 Model No. : ECL2248-2723 EUCAST Co., Ltd. MADE IN KOREA S/N : EEXXXXXXXXXXXXXXX FCC ID : 2AXTR-ECL2248-2723 Fix it to the enclosure with screws. Name Plate -. Aluminum name plate -. Etching and Ink filling. Name Plate -. Aluminum name plate -. Etching and Ink filling.

EUCAST Co., Ltd. MODEL: ECL2248-2723 Internal Photos EUT Type: LTE enterprise small cell base station Page 1 of 6 © 2020 PCTEST V 1.0 2020 All rights reserved. Unless otherwise specified, no part of this report may be reproduced or utilized in any part, form or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from PCTEST Engineering Laboratory, Inc. If you have any questions about this international copyright or have an enquiry about obtaining additional rights to this report or assembly of contents thereof, please contact [email protected]. I N TERNAL PHOTOGRAPHS 1. Internal Photo (Open view) 1/2 EUCAST Co., Ltd. MODEL: ECL2248-2723 Internal Photos EUT Type: LTE enterprise small cell base station Page 2 of 6 © 2020 PCTEST V 1.0 2020 All rights reserved. Unless otherwise specified, no part of this report may be reproduced or utilized in any part, form or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from PCTEST Engineering Laboratory, Inc. If you have any questions about this international copyright or have an enquiry about obtaining additional rights to this report or assembly of contents thereof, please contact [email protected]. 2. Internal Photo (Open view) 2/2 EUCAST Co., Ltd. MODEL: ECL2248-2723 Internal Photos EUT Type: LTE enterprise small cell base station Page 3 of 6 © 2020 PCTEST V 1.0 2020 All rights reserved. Unless otherwise specified, no part of this report may be reproduced or utilized in any part, form or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from PCTEST Engineering Laboratory, Inc. If you have any questions about this international copyright or have an enquiry about obtaining additional rights to this report or assembly of contents thereof, please contact [email protected]. 3. Internal Photo (Top view) 1/2 4. Internal Photo (Top view) 2/2 EUCAST Co., Ltd. MODEL: ECL2248-2723 Internal Photos EUT Type: LTE enterprise small cell base station Page 4 of 6 © 2020 PCTEST V 1.0 2020 All rights reserved. Unless otherwise specified, no part of this report may be reproduced or utilized in any part, form or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from PCTEST Engineering Laboratory, Inc. If you have any questions about this international copyright or have an enquiry about obtaining additional rights to this report or assembly of contents thereof, please contact [email protected]. 5. Internal Photo (Bottom view) EUCAST Co., Ltd. MODEL: ECL2248-2723 Internal Photos EUT Type: LTE enterprise small cell base station Page 5 of 6 © 2020 PCTEST V 1.0 2020 All rights reserved. Unless otherwise specified, no part of this report may be reproduced or utilized in any part, form or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from PCTEST Engineering Laboratory, Inc. If you have any questions about this international copyright or have an enquiry about obtaining additional rights to this report or assembly of contents thereof, please contact [email protected]. 6. Internal Photo (Antenna) EUCAST Co., Ltd. MODEL: ECL2248-2723 Internal Photos EUT Type: LTE enterprise small cell base station Page 6 of 6 © 2020 PCTEST V 1.0 2020 All rights reserved. Unless otherwise specified, no part of this report may be reproduced or utilized in any part, form or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from PCTEST Engineering Laboratory, Inc. If you have any questions about this international copyright or have an enquiry about obtaining additional rights to this report or assembly of contents thereof, please contact [email protected]. 7. Internal Photo (Shield can) 1/2 8. Internal Photo (Shield can) 2/2

FCC ID: 2AXTR-ECL2248- 2723 MAXIMUM PERMISSIBLE EXPOSURE REPORT Approved by: Quality Manager Test Report S/N: Test Dates: EUT Type: Page 1 of 7 8K20091701-01.2AXTR 9/17/2020 - 10/27/2020 LTE enterprise small cell base station © 2020 PCTEST V1.0 All rights reserved. Unless otherwise specified, no part of this report may be reproduced or utilized in any part, form or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from PCTEST. If you have any questions about this international copyright or have an enquiry about obtaining additional rights to this report or assembly of contents thereof, please contact [email protected]. Applicant Name: EUCAST Co., Ltd. (13595) 4th FL Sungok Bldg, 262, Hwangsaeul-ro Bundang-Gu, Seongnam-si, Gyeonggi-do, Korea Date of Testing: 9/21 ~ 10/27/2020 Test Site/Location: PCTEST KOREA Lab. Yongin-si, Gyeonggi-do, Korea Test Report Serial No.: 8K20091701-01.2AXTR FCC ID: 2AXTR-ECL2248-2723 APPLICANT: EUCAST Co., Ltd. EUT Type: LTE enterprise small cell base station Model: ECL2248-2723 FCC Classification: Part 30 Fixed Transmitter (5GB) FCC Rule Part: FCC Part 1 (§1.1310) and Part 2 (§2.1091) Test Procedure(s): KDB 447498 D01 This equipment has been shown to be capable of compliance with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures specified in FCC KDB 447498 D01. Test results reported herein relate only to the item(s) tested. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. Prepared by KI SUNG KIM Reviewed by JAE CHUL SHIN PCTEST KOREA CO., LTD. (#1407) 13, Heungdeok 1-ro, Giheung-gu, Yongin-si, Gyeonggi-do 16954, Korea Tel. +82 31.660.7319 / Fax +82 31.660.7918 http://www.pctest.com RF EXPOSURE EVALUATION Maximal Permissible Exposure [MPE] FCC ID: 2AXTR-ECL2248- 2723 MAXIMUM PERMISSIBLE EXPOSURE REPORT Approved by: Quality Manager Test Report S/N: Test Dates: EUT Type: Page 2 of 7 8K20091701-01.2AXTR 9/17/2020 - 10/27/2020 LTE enterprise small cell base station © 2020 PCTEST V1.0 All rights reserved. Unless otherwise specified, no part of this report may be reproduced or utilized in any part, form or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from PCTEST. If you have any questions about this international copyright or have an enquiry about obtaining additional rights to this report or assembly of contents thereof, please contact [email protected]. TABLE OF CONTENTS 1.0 RF EXPOSURE EVALUATION – MAXIMUM PERMISSIBLE EXPOSURE (MPE) ........................ 3 1.1 Introduction ............................................................................................................................................ 3 1.2 EUT Description ..................................................................................................................................... 3 1.3 MPE Requirements Overview ................................................................................................................ 4 1.4 Procedure .............................................................................................................................................. 5 1.5 Summary of Results............................................................................................................................... 6 2.0 CONCLUSION ................................................................................................................................. 7 FCC ID: 2AXTR-ECL2248- 2723 MAXIMUM PERMISSIBLE EXPOSURE REPORT Approved by: Quality Manager Test Report S/N: Test Dates: EUT Type: Page 3 of 7 8K20091701-01.2AXTR 9/17/2020 - 10/27/2020 LTE enterprise small cell base station © 2020 PCTEST V1.0 All rights reserved. Unless otherwise specified, no part of this report may be reproduced or utilized in any part, form or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from PCTEST. If you have any questions about this international copyright or have an enquiry about obtaining additional rights to this report or assembly of contents thereof, please contact [email protected]. 1.0 RF EXPOSURE EVALUATION – MAXIMUM PERMISSIBLE EXPOSURE (MPE) 1.1 Introduction This document is prepared to show compliance with the RF Exposure requirements as required in §1.1310 of the FCC Rules and Regulations. The limit for Maximum Permissible Exposure (MPE), specified in FCC §1.1310, is listed in Table 1-1. According to FCC §1.1310: the criteria listed in the following table shall be used to evaluate the environmental impact of human exposure to radio-frequency (RF) radiation as specified in §1.1307(b). Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (Minutes) (A) Limits For Occupational / Control Exposures (f = frequency) 30-300 61.4 0.163 1.0 6 300-1500 ... ... f/300 6 1500-100,000 ... ... 5.0 6 (B) Limits For General Population / Uncontrolled Exposure (f = frequency) 30-300 27.5 0.073 0.2 30 300-1500 ... ... f/1500 30 1500-100,000 ... ... 1.0 30 Table 1-1. Limits for Maximum Permissible Exposure (MPE) 1.2 EUT Description The EUCAST Co., Ltd. CBSD FCC ID: 2AXTR-ECL2248-2723 is a 2-port device which supports single carrier configurations (1CC). Each carrier operates using 10 or 20MHz bandwidth. It supports the following modulation schemes: QPSK, 16-QAM and 64-QAM. Bandwidth Antenna Frequency (MHz) Modulation Max EIRP [dBm] 10 MHz A + B 3555 16-QAM 27.34 20 MHz A + B 3620 16-QAM 31.15 Table 1-2. Maximum EIRP Summary FCC ID: 2AXTR-ECL2248- 2723 MAXIMUM PERMISSIBLE EXPOSURE REPORT Approved by: Quality Mana…

Text truncated - open the document above for the full version.

FCC ID: 2AXTR-ECL2248-2723 MEASUREMENT REPORT (CERTIFICATION) Approved by: Quality Manager Test Report S/N: Test Dates: EUT Type: Page 1 of 143 8K20091701-01-R3.2AXTR 9/17/2020 - 10/27/2020 LTE enterprise small cell base station © 2020 PCTEST. PK-QP-16-09 Rev.02 All rights reserved. Unless otherwise specified, no part of this report may be reproduced or utilized in any part, form or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from PCTEST. If you have any questions about this international copyright or have an enquiry about obtaining additional rights to this report or assembly of contents thereof, please contact [email protected]. Prepared by KI SUNG KIM Reviewed by JAE CHUL SHIN PCTEST KOREA CO., LTD. (#1407) 13, Heungdeok 1-ro, Giheung-gu, Yongin-si, Gyeonggi-do 16954, Korea Tel. +82 31.660.7319 / Fax +82 31.660.7918 http://www.pctest.com MEASUREMENT REPORT Part 96 LTE Applicant Name: EUCAST Co., Ltd. (13595) 4th FL Sungok Bldg, 262, Hwangsaeul-ro Bundang-Gu, Seongnam-si, Gyeonggi-do, Korea Date of Testing: 9/21 ~ 10/27/2020 Test Site/Location: PCTEST Lab. Yongin-si, Gyeonggi-do, Korea Test Report Serial No.: 8K20091701-01-R3.2AXTR FCC ID: 2AXTR-ECL2248-2723 APPLICANT: EUCAST Co., Ltd. Application Type: Certification Model: ECL2248-2723 EUT Type: LTE enterprise small cell base station FCC Classification: Citizens Band Category A Devices (CBD) FCC Rule Part(s): 96 Test Procedure(s): ANSI C63.26-2015, ANSI/TIA-603-E-2016, KDB 971168 D01 v03r01, KDB 940660 D01 v02, KDB 662911 D01 v02r01 This equipment has been shown to be capable of compliance with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures specified in §2.947. Test results reported herein relate only to the item(s) tested. This revised Test Report (S/N: 8K20091701-01-R3.2AXTR) supersedes and replaces the previously issued test report (S/N: 8K20091701- 01-R2.2AXTR ) on the same subject device for the same type of testing as indicated. Please discard or destroy the previously issued test report(s) and dispose of it accordingly. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. FCC ID: 2AXTR-ECL2248-2723 MEASUREMENT REPORT (CERTIFICATION) Approved by: Quality Manager Test Report S/N: Test Dates: EUT Type: Page 2 of 143 8K20091701-01-R3.2AXTR 9/17/2020 - 10/27/2020 LTE enterprise small cell base station © 2020 PCTEST. PK-QP-16-09 Rev.02 All rights reserved. Unless otherwise specified, no part of this report may be reproduced or utilized in any part, form or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from PCTEST. If you have any questions about this international copyright or have an enquiry about obtaining additional rights to this report or assembly of contents thereof, please contact [email protected]. T A B L E O F C O N T E N T S 1.0 INTRODUCTION ........................................................................................................................................... 4 1.1 Scope ................................................................................................................................................................. 4 1.2 PCTEST Test Location ....................................................................................................................................... 4 1.3 Test Facility / Accreditations ............................................................................................................................... 4 2.0 PRODUCT INFORMATION ........................................................................................................................... 5 2.1 Equipment Description ....................................................................................................................................... 5 2.2 Device Capabilities ............................................................................................................................................. 5 2.3 Test Configuration .............................................................................................................................................. 5 2.4 EMI Suppression Device(s)/Modifications .......................................................................................................... 5 3.0 DESCRIPTION OF TESTS ........................................................................................................................... 6 3.1 Measurement Procedures .................................................................................................................................. 6 4.0 MEASUREMENT UNCERTAINTY ................................................................................................................ 7 5.0 TEST EQUIPMENT CALIBRATION DATA ................................................................................................... 8 6.0 SAMPLE CALCULATIONS ........................................................................................................................... 9 7.0 TEST RESULTS .......................................................................................................................................... 10 7.1 Summary .......................................................................................................................................................... 10 7.2 Occupied Bandwidth ........................................................................................................................................ 12 7.3 Conducted Power Measurement and EIRP ......................................................…

Text truncated - open the document above for the full version.

FCC ID: 2AXTR-ECL2248-2723 MEASUREMENT REPORT (CERTIFICATION) Approved by: Quality Manager Test Report S/N: Test Dates: EUT Type: Page 80 of 143 8K20091701-01-R3.2AXTR 9/17/2020 - 10/27/2020 LTE enterprise small cell base station © 2020 PCTEST. PK-QP-16-09 Rev.02 All rights reserved. Unless otherwise specified, no part of this report may be reproduced or utilized in any part, form or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from PCTEST. If you have any questions about this international copyright or have an enquiry about obtaining additional rights to this report or assembly of contents thereof, please contact [email protected]. Plot 7-80. Conducted Spurious Emission Plot (10 MHz BW, Middle Channel, Port 0, 30 MHz to 3530 MHz) Plot 7-81. Conducted Spurious Emission Plot (10 MHz BW, Middle Channel, Port 1, 30 MHz to 3530 MHz) FCC ID: 2AXTR-ECL2248-2723 MEASUREMENT REPORT (CERTIFICATION) Approved by: Quality Manager Test Report S/N: Test Dates: EUT Type: Page 81 of 143 8K20091701-01-R3.2AXTR 9/17/2020 - 10/27/2020 LTE enterprise small cell base station © 2020 PCTEST. PK-QP-16-09 Rev.02 All rights reserved. Unless otherwise specified, no part of this report may be reproduced or utilized in any part, form or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from PCTEST. If you have any questions about this international copyright or have an enquiry about obtaining additional rights to this report or assembly of contents thereof, please contact [email protected]. Plot 7-82. Conducted Spurious Emission Plot (10 MHz BW, Middle Channel, Port 0, 3530 MHz to 3580 MHz) Plot 7-83. Conducted Spurious Emission Plot (10 MHz BW, Middle Channel, Port 1, 3530 MHz to 3580 MHz) FCC ID: 2AXTR-ECL2248-2723 MEASUREMENT REPORT (CERTIFICATION) Approved by: Quality Manager Test Report S/N: Test Dates: EUT Type: Page 82 of 143 8K20091701-01-R3.2AXTR 9/17/2020 - 10/27/2020 LTE enterprise small cell base station © 2020 PCTEST. PK-QP-16-09 Rev.02 All rights reserved. Unless otherwise specified, no part of this report may be reproduced or utilized in any part, form or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from PCTEST. If you have any questions about this international copyright or have an enquiry about obtaining additional rights to this report or assembly of contents thereof, please contact [email protected]. Plot 7-84. Conducted Spurious Emission Plot (10 MHz BW, Middle Channel, Port 0, 3670 MHz to 3720 MHz) Plot 7-85. Conducted Spurious Emission Plot (10 MHz BW, Middle Channel, Port 1, 3670 MHz to 3720 MHz) FCC ID: 2AXTR-ECL2248-2723 MEASUREMENT REPORT (CERTIFICATION) Approved by: Quality Manager Test Report S/N: Test Dates: EUT Type: Page 83 of 143 8K20091701-01-R3.2AXTR 9/17/2020 - 10/27/2020 LTE enterprise small cell base station © 2020 PCTEST. PK-QP-16-09 Rev.02 All rights reserved. Unless otherwise specified, no part of this report may be reproduced or utilized in any part, form or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from PCTEST. If you have any questions about this international copyright or have an enquiry about obtaining additional rights to this report or assembly of contents thereof, please contact [email protected]. Plot 7-86. Conducted Spurious Emission Plot (10 MHz BW, Middle Channel, Port 0, 3720 MHz to 6500 MHz) Plot 7-87. Conducted Spurious Emission Plot (10 MHz BW, Middle Channel, Port 1, 3720 MHz to 6500 MHz) FCC ID: 2AXTR-ECL2248-2723 MEASUREMENT REPORT (CERTIFICATION) Approved by: Quality Manager Test Report S/N: Test Dates: EUT Type: Page 84 of 143 8K20091701-01-R3.2AXTR 9/17…

Text truncated - open the document above for the full version.
