2AXUXNASAWLSPBWireless Suction Power Bank

Front Back

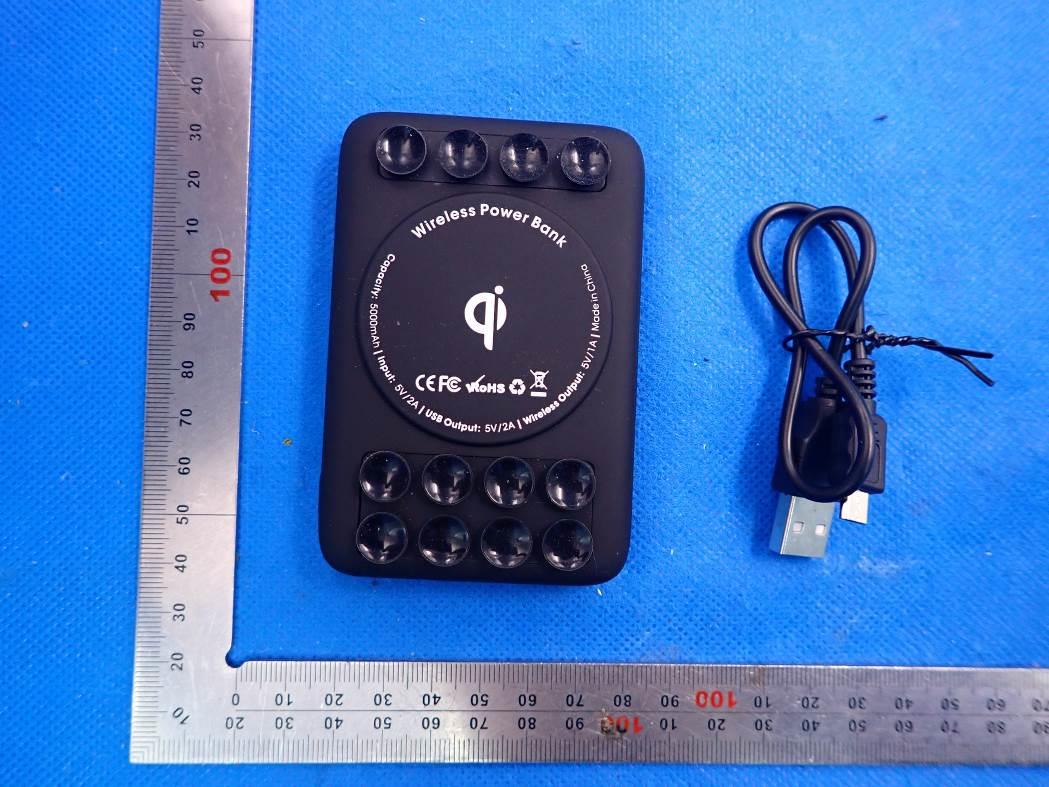

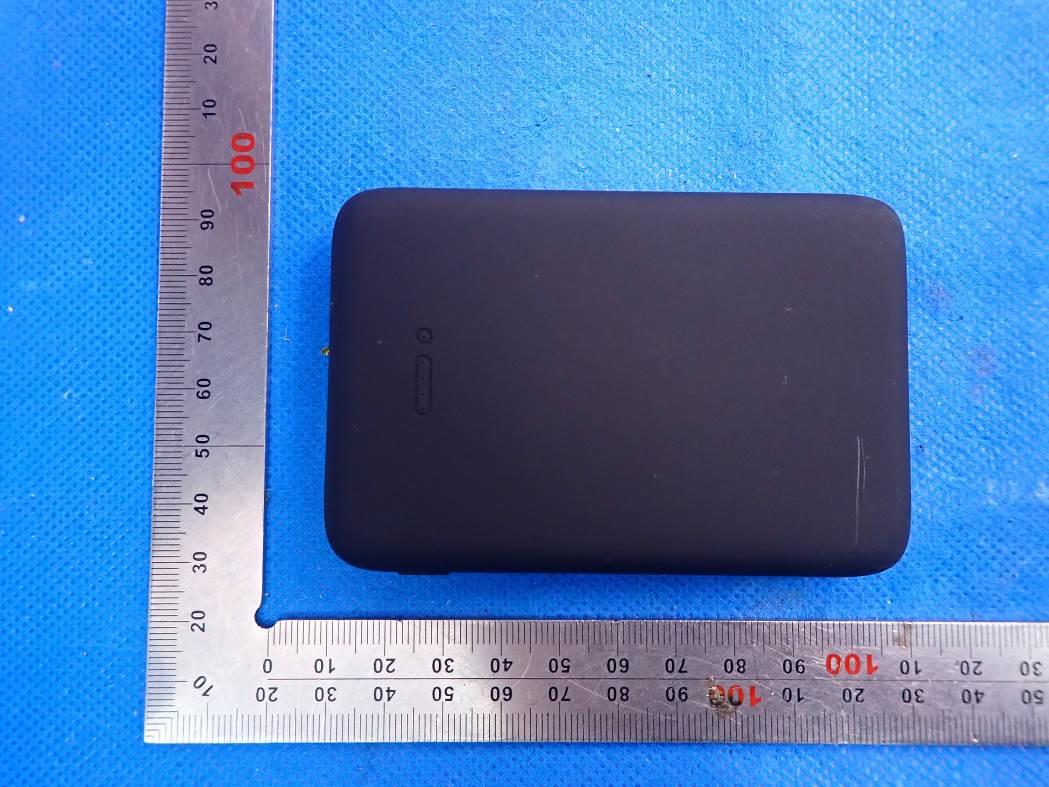

External Photos ALL VIEW OF EUT TOP VIEW OF EUT BOTTOM VIEW OF EUT FRONT VIEW OF EUT BACK VIEW OF EUT LEFT VIEW OF EUT RIGHT VIEW OF EUT VIEW OF EUT (PORT)-1 VIEW OF EUT (PORT)-2

FCC ID Label Location FCC ID:2AXUXNASAWLSPB

Internal Photos OPEN VIEW OF EUT INTERNAL VIEW OF EUT-1 INTERNAL VIEW OF EUT-2 INTERNAL VIEW OF EUT-3 R=1cm Antenna VIEW OF BATTERY

MAGNUM BRANDS LTD Declaration concerning Antenna Specification It is hereby declared that the product Model No.: NASAWLSPB FCC ID: 2AXUXNASAWLSPB fulfills the requirement in FCC test relating to the antenna type. The device specified above confirms to the FCC recommendations for internal antenna type(s) described below: Type of antenna: Coil Antenna Frequency range: 110-250 KHz The mounting of the antenna is fixed to the radio module and no other antenna should be used. Company name: MAGNUM BRANDS LTD Address: Unit L, Braintree Industrial Estate, Braintree Road HA4 0EJ, Ruislip LONDON United Kingdom Date: 2020-12-22 Signature:

Page 1 of 14 RF Exposure Report Report No.: AGC01147201204FH03 APPLICATION PURPOSE : Original Equipment PRODUCT DESIGNATION : Wireless Suction Power Bank BRAND NAME : MAGNUM BRANDS MODEL NAME : NASAWLSPB APPLICANT : MAGNUM BRANDS LTD DATE OF ISSUE : Dec. 11, 2020 STANDARD(S) : KDB680106 D01 RF Exposure Wireless Charging Base App v03 REPORT VERSION : V1.0 Attestation of Global Compliance (Shenzhen) Co., Ltd Report No.: AGC01147201204FH03 Page 2 of 14 REPORT REVISE RECORD Report Version Revise Time Issued Date Valid Version Notes V1.0 / Dec. 11, 2020 Valid Initial Release Report No.: AGC01147201204FH03 Page 3 of 14 TABLE OF CONTENTS 1. VERIFICATION OF CONFORMITY ............................................................................................................... 4 2. GENERAL INFORMATION ............................................................................................................................ 5 2.1. PRODUCT DESCRIPTION ..................................................................................................................... 5 3. DESCRIPTION OF TEST MODES................................................................................................................. 6 4. SYSTEM TEST CONFIGURATION ............................................................................................................... 6 5. TEST FACILITY ............................................................................................................................................. 7 6. RADIO FREQUENCY (RF) EXPOSURE TEST ............................................................................................. 8 6.1. LIMITS ..................................................................................................................................................... 8 6.2. TEST SETUP ........................................................................................................................................... 8 APPENDIX A: PHOTOGRAPHS OF TEST SETUP ........................................................................................ 10 Report No.: AGC01147201204FH03 Page 4 of 14 1. VERIFICATION OF CONFORMITY Applicant MAGNUM BRANDS LTD Address Unit L, Braintree Industrial Estate, Braintree Road HA4 0EJ, Ruislip LONDON United Kingdom Manufacturer MAGNUM BRANDS LTD Address Unit L, Braintree Industrial Estate, Braintree Road HA4 0EJ, Ruislip LONDON United Kingdom Factory MAGNUM BRANDS LTD Address Unit L, Braintree Industrial Estate, Braintree Road HA4 0EJ, Ruislip LONDON United Kingdom Product Designation Wireless Suction Power Bank Brand Name MAGNUM BRANDS Test Model: NASAWLSPB Date of test Dec. 03, 2020 to Dec. 11, 2020 Deviation No any deviation from the test method Condition of Test Sample Normal Report Template AGCRT-US-BR/RF We hereby certify that: The above equipment was tested by Attestation of Global Compliance (Shenzhen) Co., Ltd. The test data, data evaluation, test procedures, and equipment configurations shown in this report were made in accordance with the procedures given in KDB680106 D01. The results of testing in this report apply to the product/system which was tested only. Prepared By Sky Dong (Project Engineer) Dec. 11, 2020 Reviewed By Max Zhang (Reviewer) Dec. 11, 2020 Approved By Forrest Lei (Authorized Officer) Dec. 11, 2020 Report No.: AGC01147201204FH03 Page 5 of 14 2. GENERAL INFORMATION 2.1.PRODUCT DESCRIPTION A major technical description of EUT is described as following Operation Frequency 110-250kHz Test Frequency 125kHz Maximum field strength 69.55dBuV/m(PK)@3m Number of channels 1 Antenna Designation Coil Antenna (Met 15.203 Antenna requirement) Hardware Version V1.0 Software Version V2.1 Power Supply DC 3.7V by battery DC 5V by adapter Report No.: AGC01147201204FH03 Page 6 of 14 3. DESCRIPTION OF TEST MODES NO. TEST MODE DESCRIPTION 1 Wireless charging Mode+USB Discharge(Full load) 2 Wireless charging Mode+USB Discharge(Half load) 3 Wireless charging Mode+USB Discharge(Null load) Note: 1. The mode 1 was the worst case and only the data of the worst case record in this report. 4. SYSTEM TEST CONFIGURATION Item Equipment Model No. ID or Specification Remark 1 Wireless Suction Power Bank NASAWLSPB 2AXUXNASAWLSPB EUT 2 Adapter MX24Z1-1900940 DC 5V AE 3 Wireless Load N/A 5W AE Report No.: AGC01147201204FH03 Page 7 of 14 5. TEST FACILITY TEST EQUIPMENT LIST Description Manufacturer Model S/N Cal. Date Cal. Due Broadband Field Meter Narda Safety Test Solutions GmbH ELT-400 J-0004 May 25,2020 May 24,2021 Probe FHP Narda Safety Test Solutions GmbH 2300/90.10 J-0015 May 25,2020 May 24,2021 TestSite Attestation of Global Compliance(Shenzhen) Co., Ltd Location 1-2/F,Building19,JunfengIndustrialPark,ChongqingRoad,HepingCommunity,FuhaiSt reet,Bao'anDistrict,Shenzhen,Guangdong,China Designation Number CN1259 FCC Test Firm Registration Number 975832 A2LA Cert. No. 5054.02 Description Attestation of Global Compliance(Shenzhen) Co., Ltd is accredited by A2LA Report No.: AGC01147201204FH03 Page 8 of 14 6. RADIO FREQUENCY (RF) EXPOSURETEST 6.1. LIMITS For devices designed for typical desktop applications, such a wireless charging pads, RF exposure evaluation should be conducted assuming a user separation distance of 15 cm. E and H field strength measurements or numerical modeling may be used to demonstrate compliance. Measurements should be made from all sides and the top of the primary/client pair, with the 15 cm measured from the center of the probe(s) to the edge of the device. Emissions between 100 kHz to 300 kHz should be assessed versus the limits at 300 kHz in Table 1 of Section 1.1310: 614 V/m and 1.63 A/m. 6.2. TEST SETUP Note: Position A: Front of EUT; Position B: Left of EUT; Position C: back of EUT; Position D: Right of EUT; Position E: Top of EUT(20 cm measure distance); Report No.: AGC01147201204FH03 Page 9 of 14 6.3. TEST PROCEDURE The EUT was placed on a non-conductive table top and the ancillary equipment (e.g.mobile pho…

Text truncated - open the document above for the full version.

Page 1 of 30 FCC Test Report Report No.: AGC01147201204FE04 FCC ID : 2AXUXNASAWLSPB APPLICATION PURPOSE : Original Equipment PRODUCT DESIGNATION : Wireless Suction Power Bank BRAND NAME : MAGNUM BRANDS MODEL NAME : NASAWLSPB APPLICANT : MAGNUM BRANDS LTD DATE OF ISSUE : Dec. 11, 2020 STANDARD(S) TEST PROCEDURE(S) : FCC Part 15 Rules REPORT VERSION : V1.0 Attestation of Global Compliance (Shenzhen) Co., Ltd Report No.: AGC01147201204FE04 Page 2 of 30 REPORT REVISE RECORD Report Version Revise Time Issued Date Valid Version Notes V1.0 / Dec. 11, 2020 Valid Initial Release Report No.: AGC01147201204FE04 Page 3 of 30 TABLE OF CONTENTS 1. VERIFICATION OF CONFORMITY ............................................................................................................... 4 2. GENERAL INFORMATION ............................................................................................................................ 5 2.1. PRODUCT DESCRIPTION ..................................................................................................................... 5 3. MEASUREMENT UNCERTAINTY ................................................................................................................. 6 4. DESCRIPTION OF TEST MODES ................................................................................................................. 7 5. SYSTEM TEST CONFIGURATION ............................................................................................................... 8 5.1. CONFIGURATION OF EUT SYSTEM ..................................................................................................... 8 5.2. EQUIPMENT USED IN EUT SYSTEM ..................................................................................................... 8 5.3. SUMMARY OF TEST RESULTS .............................................................................................................. 8 6. TEST FACILITY ............................................................................................................................................. 9 7. RADIATED EMISSION ................................................................................................................................. 10 7.1TEST LIMIT ............................................................................................................................................. 10 7.2. MEASUREMENT PROCEDURE ............................................................................................................ 11 7.3. TEST SETUP ......................................................................................................................................... 12 7.4. TEST RESULT ....................................................................................................................................... 13 8. 20DB BANDWIDTH ..................................................................................................................................... 16 8.1. MEASUREMENT PROCEDURE ........................................................................................................... 16 8.2. TEST SET-UP (BLOCK DIAGRAM OF CONFIGURATION) ................................................................... 16 8.3. MEASUREMENT RESULTS .................................................................................................................. 17 9. FCC LINE CONDUCTED EMISSION TEST ................................................................................................ 18 9.1. LIMITS OF LINE CONDUCTED EMISSION TEST ................................................................................ 18 9.2. BLOCK DIAGRAM OF LINE CONDUCTED EMISSION TEST .............................................................. 18 9.3. PRELIMINARY PROCEDURE OF LINE CONDUCTED EMISSION TEST ............................................ 19 9.4. FINAL PROCEDURE OF LINE CONDUCTED EMISSION TEST .......................................................... 19 9.5. TEST RESULT OF LINE CONDUCTED EMISSION TEST .................................................................... 20 APPENDIX A: PHOTOGRAPHS OF TEST SETUP ........................................................................................ 22 APPENDIX B: PHOTOGRAPHS OF EUT ....................................................................................................... 24 Report No.: AGC01147201204FE04 Page 4 of 30 1. VERIFICATION OF CONFORMITY Applicant MAGNUM BRANDS LTD Address Unit L, Braintree Industrial Estate, Braintree Road HA4 0EJ, Ruislip LONDON United Kingdom Manufacturer MAGNUM BRANDS LTD Address Unit L, Braintree Industrial Estate, Braintree Road HA4 0EJ, Ruislip LONDON United Kingdom Factory MAGNUM BRANDS LTD Address Unit L, Braintree Industrial Estate, Braintree Road HA4 0EJ, Ruislip LONDON United Kingdom Product Designation Wireless Suction Power Bank Brand Name MAGNUM BRANDS Test Model NASAWLSPB Date of test Dec. 03, 2020 to Dec. 11, 2020 Deviation No any deviation from the test method Condition of Test Sample Normal Test Result Pass Report Template AGCRT-US-BR/RF We hereby certify that: The above equipment was tested by Attestation of Global Compliance (Shenzhen) Co., Ltd. The test data, data evaluation, test procedures, and equipment configurations shown in this report were made in accordance with the procedures given in ANSI C63.10 (2013) and the energy emitted by the sample EUT tested as described in this report is in compliance with Section 15.207, 15.209, 15.203 of the FCC Part 15, Subpart C Rules. The results of testing in this report apply to the product/system which was tested only. Prepared By Sky Dong (Project Engineer) Dec. 11, 2020 Reviewed By Max Zhang (Reviewer) Dec. 11, 2020 Approved By Forrest Lei (Authorized Officer) Dec. 11, 2020 Report No.: AGC01147201204FE04 Page 5 of 30 2. GENERAL INFORMATION 2.1. PRODUCT DESCRIPTION A major technical description of EUT is described as following Operation Frequency 110-…

Text truncated - open the document above for the full version.

Test Setup Photos FCC RADIATED EMISSION TEST SETUP BELOW 1GHZ FCC LINE CONDUCTED EMISSION TEST SETUP
