VERSION 0.5 JANUARY 8, 2021 GTW-BL100 WIRELESS GATEWAY OPERATING INSTRUCTIONS January 8, 2021 GTW-BL100 Wireless Gateway 1 REVISIONS Revision Author Date Changes 0.1 J. Walz September 29, 2020 Initial Draft 0.2 J. Walz November 13, 2020 Added FCC Compliance Statement 0.3 J. Walz November 23, 2020 Updated Safety and Specifications 0.4 J. Walz December 2, 2020 Modified IC Compliance Statement 0.5 J. Walz January 8, 2021 Updated Intended Use Section ABBREVIATIONS Acronym Description BLE Bluetooth Low Energy LED Light Emitting Diode MQTT MQ Telemetry Transport USB Universal Serial Bus January 8, 2021 GTW-BL100 Wireless Gateway 2 TABLE OF CONTENTS Revisions ................................................................................................................................................... 1 Abbreviations ............................................................................................................................................ 1 FCC Compliance and Advisory Statement ................................................................................................. 4 Industry Canada Compliance and Advisory Statement ............................................................................. 4 Safety Information .................................................................................................................................... 4 Installation................................................................................................................................................. 4 Professional Installation ........................................................................................................................ 4 Intended Use ......................................................................................................................................... 5 Product Disposal ....................................................................................................................................... 5 Maintenance and Cleaning ....................................................................................................................... 5 Contact Information .................................................................................................................................. 5 GTW-BL100 Wireless Gateway .................................................................................................................. 6 Compatible Sensors .................................................................................................................................. 6 Interfaces .................................................................................................................................................. 6 Connections .............................................................................................................................................. 7 DC Input ................................................................................................................................................ 7 Ethernet ................................................................................................................................................ 7 USB ........................................................................................................................................................ 7 Hardware ................................................................................................................................................... 8 Cable Guides ......................................................................................................................................... 8 Antenna ..................................................................................................................................................... 9 Mounting Bracket ................................................................................................................................ 10 Deployment ............................................................................................................................................. 11 Pairing ..................................................................................................................................................... 12 Reset........................................................................................................................................................ 12 Gateway Configuration ........................................................................................................................... 13 Set-Up ................................................................................................................................................. 13 Programming Gateway ID ................................................................................................................... 14 Programming Broker IP Address ......................................................................................................... 15 Reading Gateway ID and Broker IP Address ........................................................................................ 15 Message Simulation ................................................................................................................................ 16 Message Simulation Mode Set-Up ...................................................................................................... 16 January 8, 2021 GTW-BL100 Wireless Gateway 3 Specifications .......................................................................................................................................... 17 January 8, 2021 GTW-BL100 Wireless Gateway 4 FCC COMPLIANCE AND ADVISORY STATEMENT This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: 1. This device may not cause harmful interference. 2. This device must accept any interference received, includi…

Text truncated - open the document above for the full version.

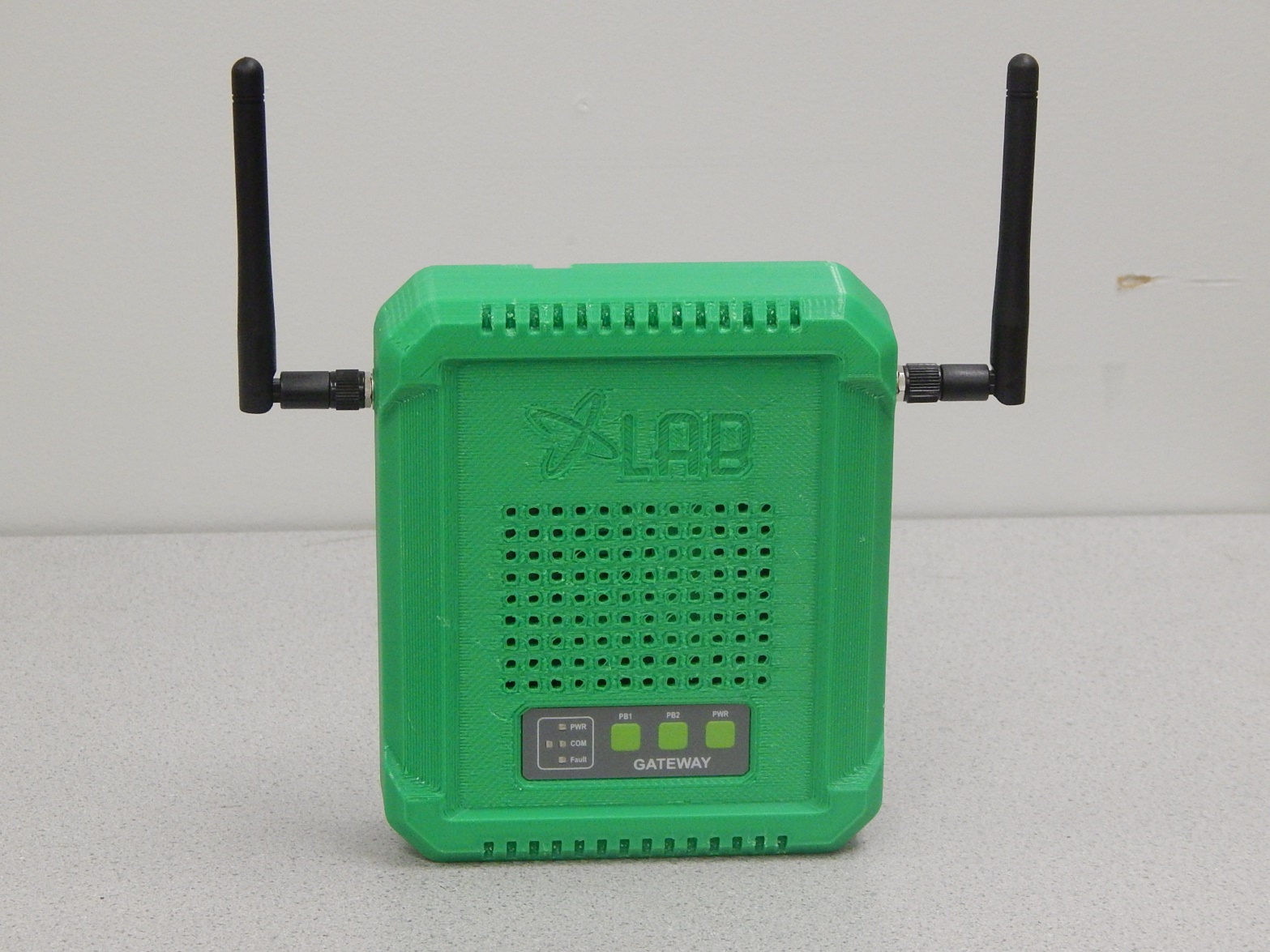

www.nemko.com Nemko Canada Inc., a testing laboratory, is accredited by the Standards Council of Canada. The tests included in this report are within the scope of this accreditation External photos.docx; Date: May 2013 SCC Accredited LAB LAB Accrédité CCN TM ONE WORLDOURAPPROVAL External photos 406932-1RADWL Date of issue: Applicant: Electronics4All Inc. Product: Gateway Model: GTW-BL100 FCC ID: IC Registration number: 2AXVKGTW01 26661-GTW01 Section 1: External photos Report reference ID: 406932-1RADWL Page 2 of 5 Section 1. External photos 1.1 Top front view Section 1: External photos Report reference ID: 406932-1RADWL Page 3 of 5 1.2 Top rear view Section 1: External photos Report reference ID: 406932-1RADWL Page 4 of 5 1.3 Side View Section 1: External photos Report reference ID: 406932-1RADWL Page 5 of 5 1.4 Side View

Label Information for GTW-BL100 Series: Z-Ultimate 3000T Colour: White Dimensions: 2.0" (L) × 0.5" (W) Label 1 Label 2

www.nemko.com Nemko Canada Inc., a testing laboratory, is accredited by the Standards Council of Canada. The tests included in this report are within the scope of this accreditation Internal photos.docx; Date: May 2013 SCC Accredited LAB LAB Accrédité CCN TM ONE WORLDOURAPPROVAL Internal photos 406932-2RADWL Date of issue: Applicant: Electronics4All Inc. Product: Gateway Model: GTW-BL100 FCC ID: IC Registration number: 2AXVKGTW01 26661-GTW01 Section 1: Internal photos Report reference ID: 406932-2RADWL Page 2 of 4 Section 1. Internal photos Section 1: Internal photos Report reference ID: 406932-2RADWL Page 3 of 4 Section 1: Internal photos Report reference ID: 406932-2RADWL Page 4 of 4

Prediction of MPE limit at a given distance Equation from page 18 of OET Bulletin 65, Edition 97-01 where:S = power density P = power input to the antenna G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the center of radiation of the antenna Fundamental transmit (prediction) frequency:2402MHz Maximum measured conducted peak output power:3.91dBm Cable and/or jumper loss:0.0dB Maximum peak power at antenna input terminal:3.91dBm Tx On time:1.000ms Tx period time:1.000ms Average factor:100% Maximum calculated average power at antenna input terminal:2.460mW Single Antenna gain (typical):2dBi Number of antennae:1 Total system gain (typical):2.0dBi MPE limit for uncontrolled exposure at prediction frequency:1 mW/cm 2 10 W/m 2 Minimum calculated prediction distance for compliance:1cm Typical (declared) distance:20cm Average power density at prediction frequency:0.000776 mW/cm 2 0.00776 W/m 2 Margin of Compliance:31.10270dB Maximum allowable antenna gain:33.10270dBi 2 4R PG S  = Choose Scandinavian trust

www.nemko.com Nemko Canada Inc., a testing laboratory, is accredited by the Standards Council of Canada. The tests included in this report are within the scope of this accreditation FCC 15.247, RSS-247 Issue 2; Date: April, 2020 SCC Accredited LAB LAB Accrédité CCN TM Choose Scandinavian trust RADIO TEST REPORT – 406932-2TRFWL Type of assessment: Final product testing Applicant: Product: Electronics4All Inc. Gateway Model: GTW-BL100 FCC ID: IC Registration number: 2AXVKGTW01 26661-GTW01 Specifications:  FCC 47 CFR Part 15 Subpart C, §15.247  RSS-247, Issue 2, Feb 2017, Section 5 Date of issue: November 11, 2020 Avul Nzenza, EMC/RF Specialist Tested by Signature Andrey Adelberg, Senior EMC/RF Specialist Reviewed by Signature Report reference ID: 406932-2TRFWL Page 2 of 41 Lab locations Company name Nemko Canada Inc. Facilities Ottawa site: 303 River Road Ottawa, Ontario Canada K1V 1H2 Tel: +1 613 737 9680 Fax: +1 613 737 9691 Montréal site: 292 Labrosse Avenue Pointe-Claire, Québec Canada H9R 5L8 Tel: +1 514 694 2684 Fax: +1 514 694 3528 Cambridge site: 1-130 Saltsman Drive Cambridge, Ontario Canada N3E 0B2 Tel: +1 519 650 4811 Almonte site: 1500 Peter Robinson Road West Carleton, Ontario Canada K0A 1L0 Tel: +1 613 256-9117 Test site registration Organization Recognition numbers and location FCC/ISED FCC: CA2040; IC: 2040A-4 (Ottawa/Almonte); FCC: CA2041; IC: 2040G-5 (Montreal); CA0101 (Cambridge) Website www.nemko.com Limits of responsibility Note that the results contained in this report relate only to the items tested and were obtained in the period between the date of initial receipt of samples and the date of issue of the report. This test report has been completed in accordance with the requirements of ISO/IEC 17025. All results contained in this report are within Nemko Canada’s ISO/IEC 17025 accreditation. Copyright notification Nemko Canada Inc. authorizes the applicant to reproduce this report provided it is reproduced in its entirety and for use by the company’s employees only. Any use which a third party makes of this report, or any reliance on or decisions to be made based on it, are the responsibility of such third parties. Nemko Canada Inc. accepts no responsibility for damages, if any, suffered by any third party as a result of decisions made or actions based on this report. © Nemko Canada Inc. Report reference ID: 406932-2TRFWL Page 3 of 41 Table of Contents Table of Contents ......................................................................................................................................................................................................... 3 Report summary ................................................................................................................................................................................. 4 1.1 Test specifications .................................................................................................................................................................................................... 4 1.2 Test methods ............................................................................................................................................................................................................ 4 1.3 Exclusions ................................................................................................................................................................................................................. 4 1.4 Statement of compliance .......................................................................................................................................................................................... 4 1.5 Test report revision history ....................................................................................................................................................................................... 4 Engineering considerations ................................................................................................................................................................. 5 2.1 Modifications incorporated in the EUT for compliance ............................................................................................................................................ 5 2.2 Technical judgment .................................................................................................................................................................................................. 5 2.3 Deviations from laboratory tests procedures ........................................................................................................................................................... 5 Test conditions ................................................................................................................................................................................... 6 3.1 Atmospheric conditions ............................................................................................................................................................................................ 6 3.2 Power supply range .................................................................................................................................................................................................. 6 Measurement uncertainty .................................................................................................................................................................. 7 4.1 Uncertainty of measurement ................................................................................................................................................................................... 7 Information provided by the applicant ................................................................................................................................................ 8 5.1 Disclaimer …

Text truncated - open the document above for the full version.

www.nemko.com Nemko Canada Inc., a testing laboratory, is accredited by the Standards Council of Canada. The tests included in this report are within the scope of this accreditation setup photos.docx; Date: May 2013 SCC Accredited LAB LAB Accrédité CCN TM ONE WORLDOUR APPROVAL Setup photos 406932-3RADWL Date of issue: Applicant: Electronics4All Inc. Product: Gateway Model: GTW-BL100 FCC ID: IC Registration number: 2AXVKGTW01 26661-GTW01 Section 1: setup photos Report reference ID: 406932-3RADWL Page 2 of 4 Section 1. Setup photos Radiated spurious emissions below 1 GHz Radiated spurious emissions below 1 GHz Section 1: setup photos Report reference ID: 406932-3RADWL Page 3 of 4 Radiated spurious emissions above 1 GHz Radiated spurious emissions above 1 GHz Section 1: setup photos Report reference ID: 406932-3RADWL Page 4 of 4 Conducted Emissions_ setup photo Conducted Emissions_ setup photo
