2AXW7-T1Toy car Music player

201BT‐12V 1.USB port: External USB/ automatic identification2.AUX ports: AUX ports can be automatically recognized after input of external audio source. 3.Power display: the current power is displayed when the music is played or when the music is paused4.One press of this button is to play horn sound/long press control light on/off, 5. Short press to play music/then short press to switch to the previous song/long press to adjust the volume, 6. Story button: Short press story/long press to adjust and reduce the volume7. Mode key: Bluetooth mode/built-in music mode can be switched (U disk /TF card can be inserted to switch The U disk mode F card mode) 2. Normal test After power on/starting, first check whether all the buttons of the function are normal; press the music speaker button to see if there is a music speaker; press the switch button to see if it will pause/play when the music sounds; and press the music button and the story button long to test the volume increase or decrease.Key test is normal, test USB, memory card, whether can be normal recognition. 3.Abnormal test A. Press the music button immediately to see if the start sound will be cut off. It is normal to cut off. B. After starting, press all the keys randomly or press several keys at the same time to see if there is a stuck state, then close it and repeat for about three times C. Pay special attention to confirm whether there are other products being upgraded in the workshop during the test. If there are, please do not test. FCC Warning Statement Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits ar e designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a par ticular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: ‐‐ Reorient or relocate the r eceiving antenna. ‐‐ Increase the separation between the equipment and receiver. ‐‐Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. ‐‐ Consult the dealer or an experienced radio/TV technician for help. This device complies with part 15 of the FCC Rules. Oper ation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Co m Ad d PEN Pr o Mo d Pr o We act We an d issu our Sig Na m Title Com mpany: TAM dress: ROO NGJIANG DIS oduct Name del Numbe oduct Desc authorize M on our beha declare tha d certificatio ues concern behalf shal nature: me: e: mpany: TAMC MCO SUMM OM 2512, BU STRICT, JIA e: Toy car M er(s): T1, S1 ription: Toy MiCOM Lab alf on all ma at MiCOM L n of equipm ning the app ll have the s Coco Tan Manager TAMCO SU CO SUMMI Agen MIT VEHICLE UILDING 11, ANGMEN, Ch usic player , D7 y car Music p bs Inc., 575 atters conce Labs Inc. is ment to the r proval applic same effect UMMIT VEH T VEHICL nt Auth E JIANGMEN YING CUI Y hina player Boulder C o erning the c allowed to f regulatory a cation. Any t as acts of ICLE JIANG LE JIANGM horizat N CO., LTD. YUAN ZHONG ourt, Pleasa certification forward all i agencies as and all acts our own. GMEN CO., L MEN CO., L tion GTIAN INTE anton, Califo of above na information s required a s carried ou Date: LTD. LTD. ERNATIONAL ornia 94566 amed equip related to t nd to discu ut by MiCOM Nov. 05, 20 L GARDEN 6, USA, to pment. the approva ss any M Labs on 020 al

Office o Federa 7435 O Columb USA Subjec t FCC ID To Wh o Pursua are req u docume These d propriet might b It is ou r corresp docume authoriz Sincer e Signat u Name: Title: M of Engineeri l Communic Oakland Mills bia, MD 210 t; Request f D: 2AXW7-T om It May C nt to the pro uesting the ents from pu documents tary informa be harmful to Schema Block D Parts Lis Operatio Tune-up r understand pondence du ents and thi zation is iss ely, ure: Coco Tan Manager TAMCO ing Techno cations Com s Road 046 for Confiden T1 Concern, ovisions of t Commissio ublic disclos contain det ation in ope o our comp atic Diagram iagram st onal Descri p Procedure ding that all uring the ce s informatio sued. SUMMIT V logy mmission ntiality the Commis on to withho sure indefin tailed syste ration of th e any and wo m ption e l measurem ertification re on will be av VEHICLE J ssion’s rule old the follow nitely. m and equi e equipmen ould give co ment test rep eview proce vailable for JIANGMEN s Title 47 S wing attach pment desc nt. The publ ompetitors a ports, FCC ess cannot public revi e N CO., LTD Sections §0. hment(s) as criptions an ic disclosu r an unfair ad ID label for be granted ew once the D. Date: Nov. 457 and § 0 confidentia d are consi re of these d vantage in mat and as confide n e grant of eq 05, 2020 0.459, we al dered as documents the market . ntial quipment .

Model Difference Declaration To Whom It May Concern, We,TAMCO SUMMIT VEHICLE JIANGMEN CO., LTD. (Toy car Music player ) Trademark: N/A; Model Number: T1, S1, D7 All model’s the function, software and electric circuit are the same, only model named different for commercial purpose. Test sample model: T1 Please contact me if you have any question. Name: Coco Tan Date: Nov. 05, 2020 Title: Manager Signature of applicant:

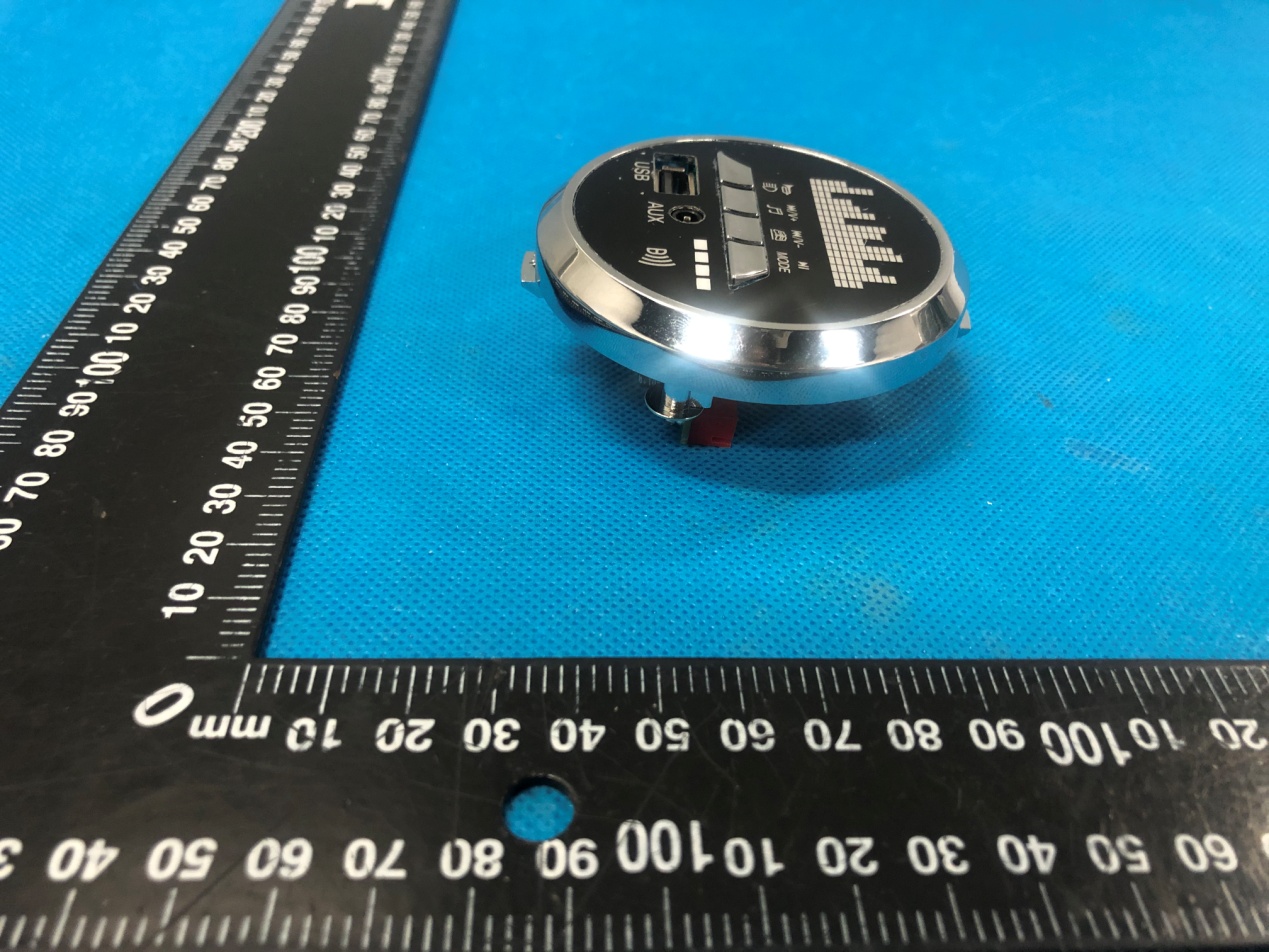

Annex A External Photos Report No.:HK2010293215-E Page 1 of 4 Report No.:HK2010293215-E Page 2 of 4 Report No.:HK2010293215-E Page 3 of 4 Report No.:HK2010293215-E Page 4 of 4

FCC ID LABEL: Ca. 8mm x 10mm Label Location FCC ID: 2AXW7-T1

Annex B Internal Photo Report No.:HK2010293215-E Page 1 of 2 Report No.HK2010293215-E Page 2 of 2 Antenna

MPE ESTIMATION FCC ID: 2AXW7-T1 1, Limit for General Population/ Uncontrolled Exposures Frequency Power density (mW/ cm 2 ) Averaging time(minutes) 300MHz----1.5GHz F/1500 30 1.5GHz---100GHz 1.0 30 2, Estimation Result For 2.4G WIFI: Mode Max PK Output power(dBm) Tune Up Power(dBm) Max Tune Up power(mW) Antenna Gain(dBi) Antenna Gain (linear) MPE (mW/cm²) BT 3.74 3±1(4) 2.51 0 1 0.0005 Note: Note: The estimation distance is 20cm The device could not transmit simultaneously in 2.4G Note: PK Output power= conducted power. Conducted power see the test report HK2010293215-E Gantenna gain=0dBi when the minimum test separation distance is >20 cm, a distance of 20 cm is applied to determine RF Exposure test exclusion. The test exclusion threshold is 0.0005mW/cm² which is< 1.0mW/cm², RF Exposure testing is not required. -------The End-------

Page 1 of 43 Report No.: HK2010293215-E TEST REPORT FCC PART 15 SUBPART C 15.247 Test report On Behalf of TAMCO SUMMIT VEHICLE JIANGMEN CO., LTD. For Toy car Music player Model No.: T1, S1, D7 FCC ID: 2AXW7-T1 Prepared for : TAMCO SUMMIT VEHICLE JIANGMEN CO., LTD. ROOM 2512, BUILDING 11, YING CUI YUAN ZHONGTIAN INTERNATIONAL GARDEN PENGJIANG DISTRICT, JIANGMEN, China Prepared By : Shenzhen HUAK Testing Technology Co., Ltd. 1F, B2 Building, Junfeng Zhongcheng Zhizao Innovation Park, Fuhai Street, Bao'an District, Shenzhen City, China Date of Test: Oct. 29, 2020 ~Nov. 03, 2020 Date of Report: Nov. 03, 2020 Report Number: HK2010293215-E Page 2 of 43 Report No.: HK2010293215-E TEST RESULT CERTIFICATION Applicant’s name ................. : TAMCO SUMMIT VEHICLE JIANGMEN CO., LTD. Address ................................. : ROOM 2512, BUILDING 11, YING CUI YUAN ZHONGTIAN INTERNATIONAL GARDEN PENGJIANG DISTRICT, JIANGMEN, China Manufacture's Name ............ : TAMCO SUMMIT VEHICLE JIANGMEN CO., LTD. Address ................................. : ROOM 2512, BUILDING 11, YING CUI YUAN ZHONGTIAN INTERNATIONAL GARDEN PENGJIANG DISTRICT, JIANGMEN, China Product description Trade Mark: N/A Product name ........................... : Toy car Music player Model and/or type reference : T1, S1, D7 Standards ............................. : 47 CFR FCC Part 15 Subpart C 15.247 This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen HUAK Testing Technology Co., Ltd. is acknowledged as copyright owner and source of the material. Shenzhen HUAK Testing Technology Co., Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Date of Test ............................................ : Date (s) of performance of tests ............. : Oct. 29, 2020 ~Nov. 03, 2020 Date of Issue ........................................... : Nov. 03, 2020 Test Result ............................................... : Pass Prepared by: Project Engineer Reviewed by: Project Supervisor Approved by: Technical Director Page 3 of 43 Report No.: HK2010293215-E Table of Contents Page 1. SUMMARY............................................................................................................................................................ 5 1.1. TEST STANDARDS ..................................................................................................................................................... 5 1.2. TEST DESCRIPTION ........................................................................................................................................................ 5 1.3. TEST FACILITY .............................................................................................................................................................. 6 1.4. STATEMENT OF THE MEASUREMENT UNCERTAINTY ............................................................................................................... 6 2. GENERAL INFORMATION ....................................................................................................................................... 7 2.1. ENVIRONMENTAL CONDITIONS ........................................................................................................................................ 7 2.2. GENERAL DESCRIPTION OF EUT ...................................................................................................................................... 7 2.3. DESCRIPTION OF TEST MODES AND TEST FREQUENCY .......................................................................................................... 8 2.4. EQUIPMENTS USED DURING THE TEST .............................................................................................................................. 9 2.5. RELATED SUBMITTAL(S) / GRANT (S) .............................................................................................................................. 10 2.6. MODIFICATIONS ......................................................................................................................................................... 10 2.7. DESCRIPTION OF TEST SETUP ................................................................................................................................ 10 3. TEST CONDITIONS AND RESULTS ......................................................................................................................... 11 3.1. CONDUCTED EMISSIONS TEST ....................................................................................................................................... 11 3.2. RADIATED EMISSIONS AND BAND EDGE .......................................................................................................................... 13 3.3. MAXIMUM PEAK CONDUCTED OUTPUT POWER ............................................................................................................... 24 3.4. 20DB BANDWIDTH ..................................................................................................................................................... 25 3.5. FREQUENCY SEPARATION ............................................................................................................................................. 28 3.6. NUMBER OF HOPPING FREQUENCY ................................................................................................................................. 30 3.7. TIME OF OCCUPANCY (DWELL TIME) .............................................................................................................................. 32 3.8. OUT‐OF‐BAND EMISSIONS ............................................................................................................................................ 35 3.9. PSEUDORANDOM FREQUENCY HOPPING SEQUENCE .........................................…

Text truncated - open the document above for the full version.

Test Model：T1 Radiated Emission
