2AXWI-M3001True Wireless Gaming Earphone

5-Link Technology Co., Ltd.
True Wireless Gaming Earphone - FCC ID 2AXWI-M3001 - 5-Link Technology Co., Ltd.
Click to zoom

Application Details

Equipment Class
DSS - Part 15 Spread Spectrum Transmitter
Date of Grant
Jan 07, 2021
Application Purpose
Original Equipment
Date of Application
Jan 06, 2021
Equipment Note
True Wireless Gaming Earphone
Frequency Range
2402.00000000 - 2480.00000000
Company
5-Link Technology Co., Ltd.
Country
China

Documents & Files

Select a file to view

Users Manual

↗

External Photos

↗

ID Label/Location Info

↗

Internal Photos

↗

Operational Description

↗

RF Exposure Info

↗

Test Report

↗

Test Setup Photos

↗

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

External Photos

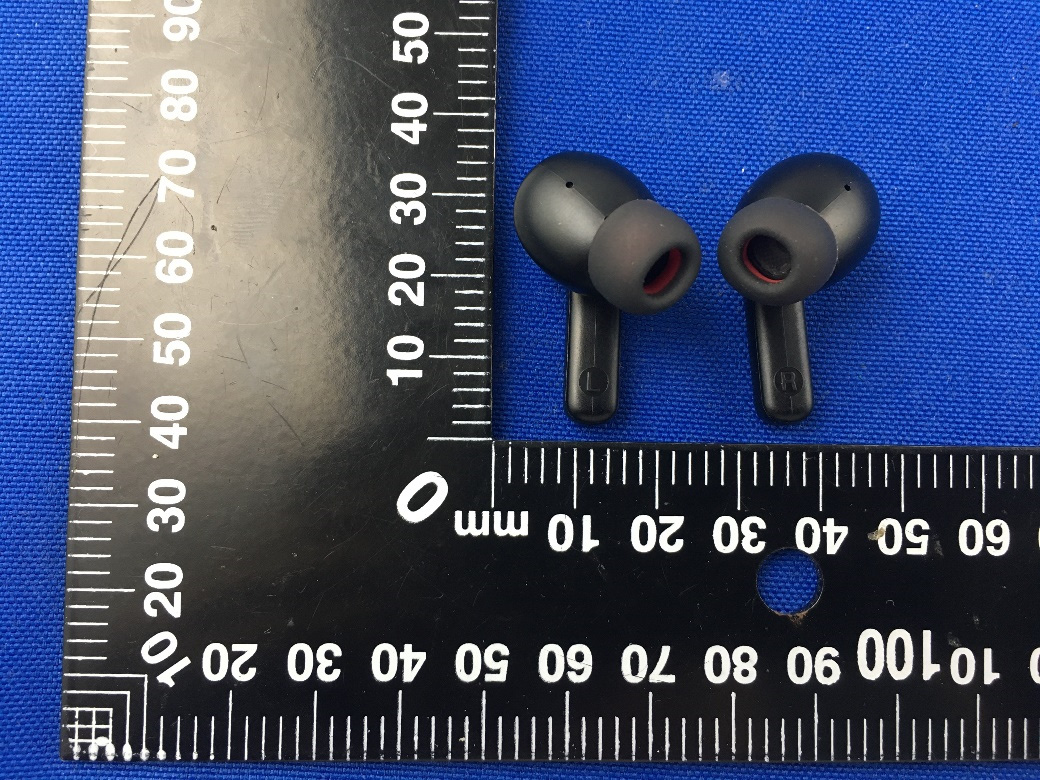

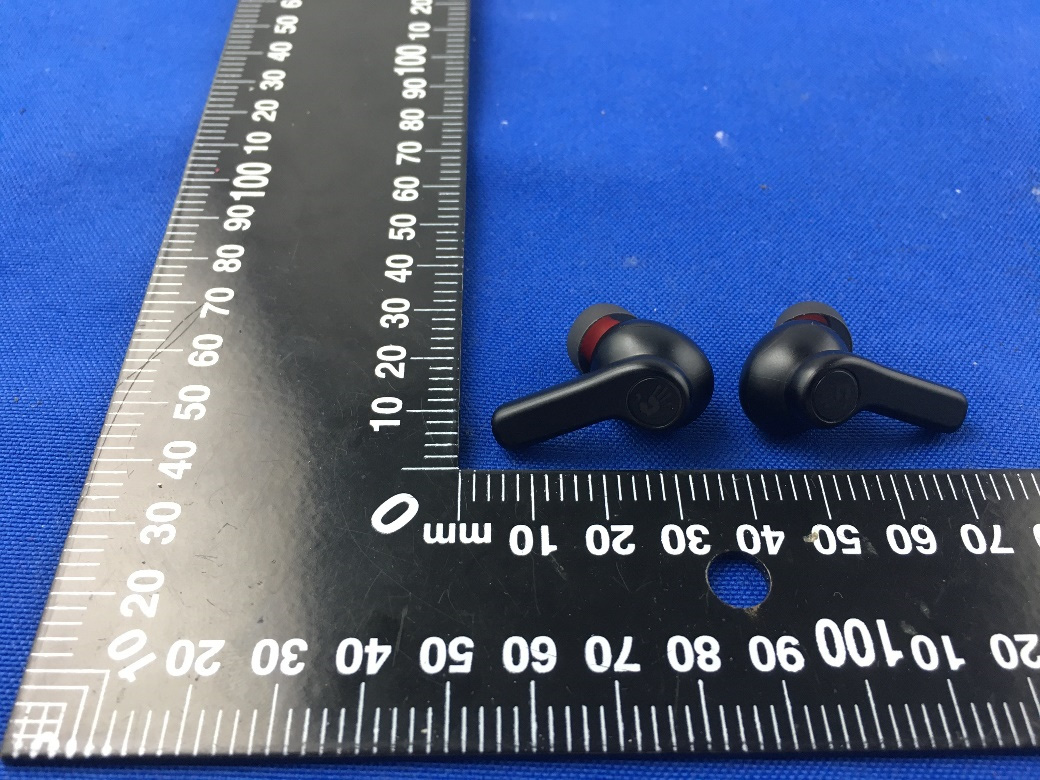

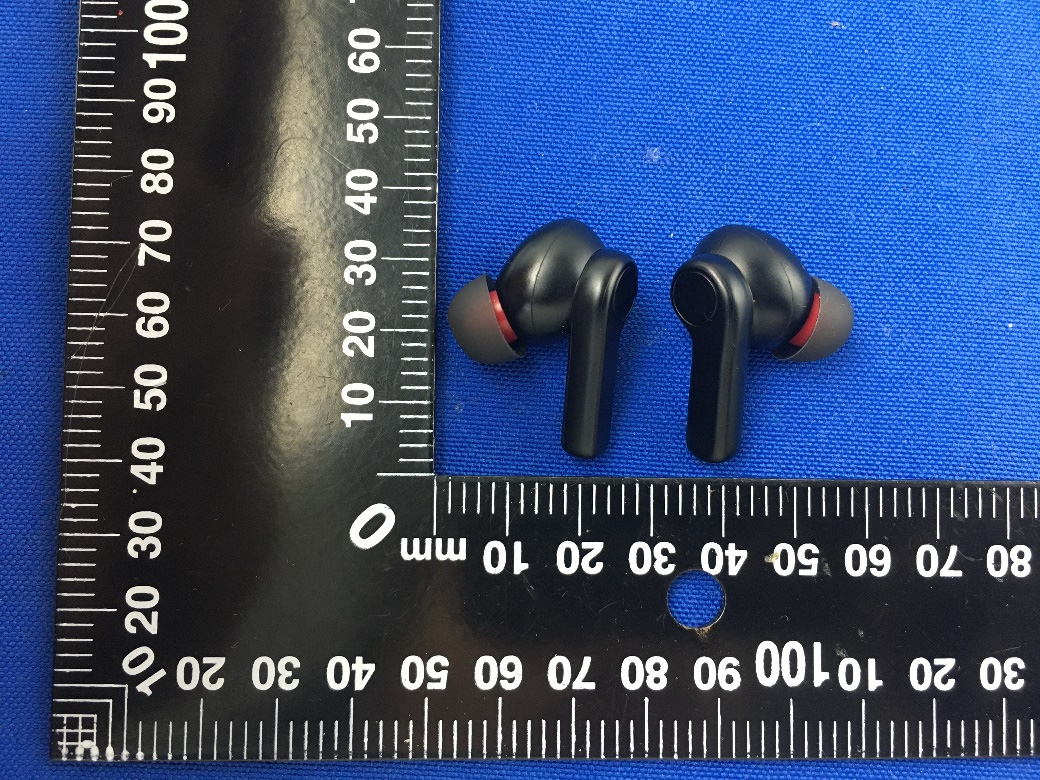

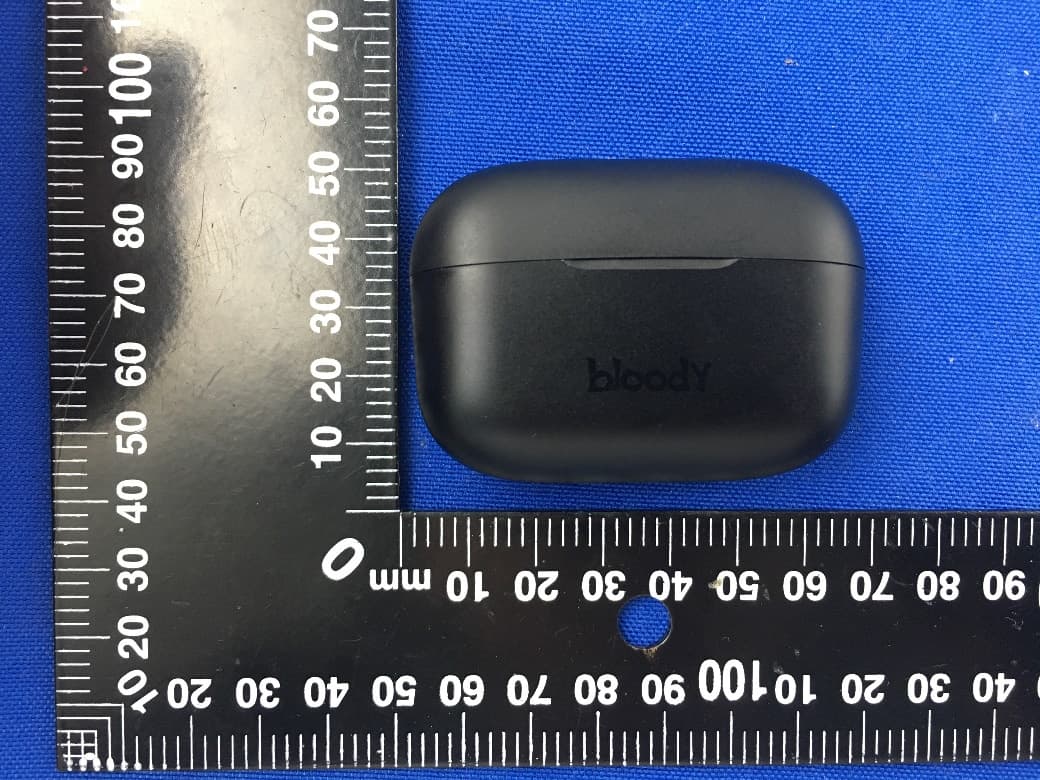

Annex No.: BL-SZ20B0474-AW 1 / 4 EUT EXTERNAL PHOTOS FRONT VIEW OF EUT REAR VIEW OF EUT Left ear: 2AXWI-M30 Right ear: 2AXWI-M3001 Annex No.: BL-SZ20B0474-AW 2 / 4 LEFT SIDE VIEW OF EUT RIGHT SIDE OF EUT Annex No.: BL-SZ20B0474-AW 3 / 4 TOP VIEW OF EUT BOTTOM VIEW OF EUT Annex No.: BL-SZ20B0474-AW 4 / 4 Accessory-Charging Case Accessory-Charging Case

ID Label/Location Info

m30雷雕(黑白通用) - 菲林 The device is too small, FCC ID will show on the user manual FCC ID:2AXWI-M3001

Internal Photos

Annex No.: BL-SZ20B0474-AI 1 / 3 EUT INTERNAL PHOTOS EUT UNCOVER VIEW MAIN BOARD TOP VIEW Left ear: 2AXWI-M30 Right ear: 2AXWI-M3001 Annex No.: BL-SZ20B0474-AI 2 / 3 MAIN BOARD REAR VIEW Battery Photo (FRONT) RF Chip Ceramics Antenna Annex No.: BL-SZ20B0474-AI 3 / 3 Battery Photo (REAR)

Operational Description

version01 5-LinkTechnologyCo.,Ltd. DeclarationconcerningAntennaSpecification Itisherebydeclaredthattheproduct ModelNo.:BloodyM30 FCCID:2AXWI-M3001 fulfillstherequirementinFCCtestrelatingtotheantennatype. ThedevicespecifiedaboveconfirmstotheFCCrecommendationsforinternalantennatype(s) describedbelow: ModelNo.ofantenna: N/A Typeofantenna:CeramicsAntenna Gainoftheantenna:2dBi Frequencyrange:2402-2480MHz Themountingoftheantennaisfixedtotheradiomoduleandnootherantennashouldbeused. Companyname:5-LinkTechnologyCo.,Ltd. Address: No.7,XingwangRoad,XiwangIndustrialDistrict,Tiantangwei,Fenggang Town, City:DongguanCity, ZIP/Postalcode: Country:Guangdong,China Place:DongguanCity,Date:2021-01-06 Signature:

RF Exposure Info

RF Exposure Evaluation for FCC ID: 2AXWI‐M3001 Refer user manual this device is a True Wireless Gaming Earphone, and this device was designed used in portable devices that the minimum distance between human’s body is 5mm. Based on the 47CFR 2.1093, this device belongs to portable device. The definition of the category as following: Portable Derives: CFR Title 47 §2.1093(b) (b) For purposes of this section, a portable device is defined as a transmitting device designed to be used so that the radiating structure(s) of the device is/are within 20 centimeters of the body of the user. FCC KDB 447498 D01 General RF Exposure Guidance v06 Limit Unless specifically required by the published RF exposure KDB procedures, standalone 1‐g head or body and 10‐g extremity SAR evaluation for general population exposure conditions, by measurement or numerical simulation, is not required when the corresponding SAR Test Exclusion Threshold condition, listed below, is satisfied. These test exclusion conditions are based on source‐ based time‐averaged maximum conducted output power of the RF channel requiring evaluation, adjusted for tune‐up tolerance, and the minimum test separation distance required for the exposure conditions. The minimum test separation distance is determined by the smallest distance from the antenna and radiating structures or outer surface of the device, according to the host form factor, exposure conditions and platform requirements, to any part of the body or extremity of a user or bystander. The 1‐g and 10‐g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune‐up tolerance, mW) / (min. test separation distance, mm)] · [√f(GHz) ] ≤ 3.0 for 1‐g SAR and ≤ 7.5 for 10‐g extremity SAR Where • f (GHz) is the RF channel transmit frequency in GHz • Power and distance are rounded to the nearest mW and mm before calculation • The result is rounded to one decimal place for comparison The test exclusions are applicable only when the minimum test separation distance is ≤ 50 mm and for transmission frequencies between 100 MHz and 6 GHz. When the minimum test separation distance is < 5 mm, a distance of 5 mm is applied to determine SAR test exclusion. Test data BLUETOOTH Mode GFSK (BR+EDR) GFSK π/4-DQPSK 8-DPSK Peak Power (dBm) 0.46 2.73 3.35 Note: This report listed the worst case peak power value, please refer to RF test Report No. BL- SZ20B0474-602, section A.2 Peak Output Power. Turn-up power Mode Power Range (dBm) Bluetooth (-0.50) – 3.50 RF Exposure Evaluation Result Mode Tune-up limit power(dBm) Distance (mm) Calculation Frequency (MHz) Calculation Results Threshold Value Verdict Bluetooth 3.50 5 2480 0.71 3.0 Compliance ‐‐END OF REPORT‐‐

Test Report

Report No.: BL-SZ20B0474-602 2 / 73 Revision History Version Issue Date Revisions Content Rev. 01 Jan. 05, 2021 Initial Issue TABLE OF CONTENTS 1 ADMINISTRATIVE DATA (GENERAL INFORMATION) .......................................................................... 5 1.1 Identification of the Testing Laboratory ....................................................................................... 5 1.2 Identification of the Responsible Testing Location ...................................................................... 5 1.3 Laboratory Condition ................................................................................................................... 5 1.4 Announce .................................................................................................................................... 5 2 PRODUCT INFORMATION ...................................................................................................................... 6 2.1 Applicant Information ................................................................................................................... 6 2.2 Manufacturer Information ............................................................................................................ 6 2.3 Factory Information ..................................................................................................................... 6 2.4 General Description for Equipment under Test (EUT) ................................................................ 6 2.5 Technical Information .................................................................................................................. 7 2.6 Additional Instructions ................................................................................................................. 8 3 SUMMARY OF TEST RESULTS .............................................................................................................. 9 3.1 Test Standards ............................................................................................................................ 9 3.2 Verdict ......................................................................................................................................... 9 4 GENERAL TEST CONFIGURATIONS ................................................................................................... 10 4.1 Test Environments .................................................................................................................... 10 4.2 Test Equipment List ................................................................................................................... 10 4.3 Measurement Uncertainty ......................................................................................................... 11 4.4 Description of Test Setup .......................................................................................................... 12 4.4.1 For Antenna Port Test ............................................................................................................... 12 4.4.2 For AC Power Supply Port Test ................................................................................................ 1 2 4.4.3 For Radiated Test (Below 30 MHz) ........................................................................................... 13 4.4.4 For Radiated Test (30 MHz-1 GHz) .......................................................................................... 13 4.4.5 For Radiated Test (Above 1 GHz) ............................................................................................. 14 4.5 Measurement Results Explanation Example ............................................................................. 15 4.5.1 For conducted test items: .......................................................................................................... 15 Report No.: BL-SZ20B0474-602 3 / 73 5 TEST ITEMS ........................................................................................................................................... 16 5.1 Antenna Requirements .............................................................................................................. 16 5.1.1 Relevant Standards ................................................................................................................... 16 5.1.2 Antenna Anti-Replacement Construction .................................................................................. 16 5.1.3 Antenna Gain ............................................................................................................................ 16 5.2 Frequency Hopping Systems .................................................................................................... 1 7 5.2.1 Relevant Standards ................................................................................................................... 17 5.2.2 Description of the systems ........................................................................................................ 17 5.3 Number of Hopping Frequencies .............................................................................................. 19 5.3.1 Limit ........................................................................................................................................... 19 5.3.2 Test Setup ................................................................................................................................. 19 5.3.3 Test Procedure .......................................................................................................................... 19 5.3.4 Test Result ................................................................................................................................ 19 5.4 Peak Output Power ................................................................................................................... 20 5.4.1 Test Limit ........................................................…

Text truncated - open the document above for the full version.

Test Setup Photos

Annex No.: BL-SZ20B0474-AR-2 1 / 4 TEST SETUP PHOTOS 1 Radiated Test Photo Below 30MHz 30MHz-1GHz Annex No.: BL-SZ20B0474-AR-2 2 / 4 Close-up Above 1GHz Annex No.: BL-SZ20B0474-AR-2 3 / 4 Close-up 2 Conducted Test Photo Conducted Test Annex No.: BL-SZ20B0474-AR-2 4 / 4 3 Conducted Emissions Test Photo 1 Test Photo 2

Contact Information

Applicant

Cherry Lin
[email protected]+86-769-82097855Fax: +86-769-82199660

Test Firm

Shenzhen BALUN Technology Co., Ltd.Hanson Lin
[email protected]86-755-66833830

Technical Specifications

#Rule PartsFrequency RangePower Output
115C2.40 GHz - 2.48 GHz2.20 mW
Confidentiality
Long Term
Grant Notes
Power listed is conducted.
