2AXX8-A880SWiFi Module

A880S-D40L SDIO/USB WiFi 2.4G/5G/BLE Module A880S-D40L SDIO/USB WiFi 2.4G/5G/BLE Product Specification 802.11a/b/g/n/ac/ax WiFi & BLE 5.4 Module 1T1R (AICSEMI AIC8800D40L) Version V1.2 History Document Release Date Modification Initials Approved Version V1.2 2025/09/15 First Version A880S-D40L SDIO/USB WiFi 2.4G/5G/BLE Module 1 Overview. AIC8800D40L is a highly integrated chip with dual band WiFi 802.11a/b/g/n/ac/ax, BLE5.4 for wireless application. 1.1 Wi‐Fi Features  CMOS single‐chip fully‐integrated RF, Modem and MAC  Support 2.4GHz/5GHz Wi‐Fi6  Data rates up to 286.8Mbps with 20/40MHz bandwidth  Support STA, AP, Wi‐Fi Direct modes concurrently  Support STBC, beamforming  Support 5MHz/10MHz mode RX sensitivity ‐97dBm in11b 1M mode Tx power up to 14dBm in 11b mode, 17dBm in HT/VHT/HE MCS7 mode Support Wi‐Fi6 TWT  Support Two NAV, Buffer Report, Spatial reuse, Multi‐BSSID, intra‐PPDU power save  Support LDPC  Support MU‐MIMO, OFDMA  Support DCM, Mid‐amble, UORA  Support WEP/WPA/WPA2/WPA3‐SAE Personal, MFP 1.2 BLE 5.4 Features  Supports all the mandatory and optional features of Bluetooth low energy 5.4  Supports advanced master and slave topologies 1.3 Other Features  Integrated low power timer and watchdog  512 bits eFuse 1.4 Applications  IoT device  Wireless device A880S-D40L SDIO/USB WiFi 2.4G/5G/BLE Module 2 Application Diagram 3 Recommended Operating Conditions Parameter Min Typ Max Unit Operation Voltage 3.0 3.3 3.6 V Working Current 1000 mA Operation Temperature -20 80 °C A880S-D40L SDIO/USB WiFi 2.4G/5G/BLE Module 4 Dimensions（Units: mm）（Dimensional tolerance ±10%） Note: The height of the module with a shielding cover is 2.2±0.2mm, while the overall height of the module without a shielding cover is 1.8±0.2mm 5. Pin Definition There are 4 ground pads at the bottom of the module, which are used to enhance grounding and heat dissipation. A880S-D40L SDIO/USB WiFi 2.4G/5G/BLE Module 6 Pin Description Pin Function Type Voltage Description 1 GND GND - GND 2 WL/BT_ANT（NC） ORF - WiFi/BLE RF input/output if use IPEX,This Pin NC 3 GND GND - GND 4 BT_ANT（NC） BT/BLE RF TX/RX Note: The software configuration allows you to choose whether to output BT and WiFi in combination or separately. If configured for combined output, this pin is not connected. If configured for separate output, this pin is connected to the BT antenna. 5 NC 6 HOST_WAKE_BT I/O VDDIO HOST_WAKE_BT 7 BT_WAKE_HOST I/O VDDIO BT_WAKE_HOST 8 NC 9 VBAT IPMU 3.3V 3.3V power Supply 10 USB_DP I/O 3.3V USB_DAT+ 11 USB_DM I/O 3.3V USB_DAT- 12 WL_REG_ON I 3.3V WiFi/BT Enable, highly effective. 13 WL_WAKE_HOST I/O VDDIO WL_WAKE_HOST 14 SDIO_D2 I/O VDDIO SDIO_D2 15 SDIO_D3 I/O VDDIO SDIO_D3 16 SDIO_CMD I/O VDDIO SDIO_CMD 17 SDIO_CLK I VDDIO SDIO_CLK 18 SDIO_D0 I/O VDDIO SDIO_D0 19 SDIO_D1 I/O VDDIO SDIO_D1 20 GND GND - GND 21 NC 22 VDDIO IPMU VDDIO IO power, all IO level selection pins, supports 1.8V and 3.3V 23 NC 24 NC 25 PCM_OUT O VDDIO PCM_OUT 26 PCM_CLK I/O VDDIO PCM_CLK 27 PCM_IN I VDDIO PCM_IN 28 PCM_SYNC I/O VDDIO PCM_SYNC 29 NC 30 NC 31 GND GND - GND 32 NC 33 GND GND - GND 34 NC 35 NC 36 GND GND - GND 37 UART0_TX O VDDIO UART0_TX 38 UART0_RX I VDDIO UART0_RX 39 NC 40 NC 41 BT_UART_RTS O VDDIO BT_UART_RTS 42 BT_UART_TXD O VDDIO BT_UART_TXD 43 BT_UART_RXD I VDDIO BT_UART_RXD 44 BT_UART_CTS I VDDIO BT_UART_CTS A880S-D40L SDIO/USB WiFi 2.4G/5G/BLE Module Note: Regarding the description of module 12 pins: The PWRKEY of AIC8800 has two pins, namely PWR_WF and PWR_BT, which are in an OR relationship. Pulling up either one can achieve power-on. The chip inside the pin has a 200K pull-down resistor, and a 47K pull-up resistor is recommended. The pin thresholds are as follows: Regarding the WL_REG_ON pin of the 8800 module: It should be noted that the voltage level of this pin does not follow the VDDIO voltage. The PWR_WF pin is connected to a 47K pull-up resistor on the module, which pulls it up to 3.3V. Inside the chip, there is a 200K pull-down resistor, so the voltage of this pin is around 2.67V. If the baseboard does not require reset control for the module, the WL_REG_ON pin of the module can be left floating. Do not connect this pin to a 1.8V pull-up. Otherwise, it may cause abnormal power-on enable issues for the module. 7 Current consumption (Test Setintv 100) Parameter Test Item TX Power Current Unit WiFi TX 2.4G,11b, CCK,1Mbps 21dBm 390 mA 2.4G,11b, CCK,11Mbps 21dBm 330 mA 2.4G,11g, OFDM, 6Mbps 21dBm 380 mA 2.4G,11g, OFDM, 54Mbps 19dBm 300 mA 2.4G,11n,HT20, MCS0 20dBm 360 mA 2.4G,11n,HT20, MCS7 18dBm 290 mA 2.4G,11n,HT40, MCS0 20dBm 330 mA 2.4G,11n,HT40, MCS7 18dBm 180 mA 2.4G,11ax,HE20, MCS0 20dBm 320 mA 2.4G,11ax,HE20, MCS11 16dBm 170 mA 2.4G,11ax,HE40, MCS0 20dBm 300 mA 2.4G,11ax,HE40, MCS11 16dBm 170 mA 5G, 11a, OFDM, 6Mbps 19dBm 530 mA 5G, 11a, OFDM, 54Mbps 18dBm 350 mA 5G,11n,HT20, MCS0 18dBm 520 mA 5G,11n,HT20, MCS7 16dBm 330 mA 5G,11n,HT40, MCS0 18dBm 460 mA 5G,11n,HT40, MCS7 16dBm 260 mA 5G,11ac,VHT20, MCS0 18dBm 500 mA 5G,11ac,VHT20, MCS8 16dBm 250 mA 5G,11ac,VHT40, MCS0 18dBm 460 mA 5G,11ac,VHT40, MCS9 15dBm 230 mA 5G,11ax,HE20, MCS0 18dBm 480 mA 5G,11ax,HE20, MCS11 14dBm 250 mA 5G,11ax,HE40, MCS0 18dBm 450 mA 5G,11ax,HE40, MCS11 14dBm 200 mA Stop WiFi TX - - 66 mA WiFi RX - - 80 mA Stop WiFi RX - - 46 mA BLE TX BLE 1M 6dBm 100 mA Stop BLE TX - - 25 mA BLE RX - 38 mA Stop BLE RX - - 23 mA A880S-D40L SDIO/USB WiFi 2.4G/5G/BLE Module 8 RF Characteristics 8.1 WiFi 2.4G WLAN Transmitter Characteristics Parameter Test Item Typical Value CH1 CH7 CH13 Unit Output Power 11b,CCK, 1Mbps 20±2dBm,EVM<-18dB 21.15 21.05 21.07 dBm 11b,CCK,11Mbps 20±2dBm,EVM<-15dB 21.29 21.14 21.19 dBm 11g,OFDM, 6Mbps 20±2dBm,EVM<-15dB 21.29 21.14 21.19 dBm 11g,OFDM,54Mbps 19±2dBm,EVM<-30dB 21.29 20.94 21.07 dBm 11n, HT20 MCS0 20±2dBm,EVM<-15dB 20.28 20.00 20.21 dBm 11n, HT20 MCS7 18±2dBm,EVM<-36dB 17.72 17.95 18.16 dBm 11ax, HE20 MCS0 20±2dBm,EVM<-15dB 21.18 20.81 20.93 dBm 11ax, HE20 MCS11 16±2dBm,EVM<-36dB 16.60 16.86 17.06 dB…

Text truncated - open the document above for the full version.

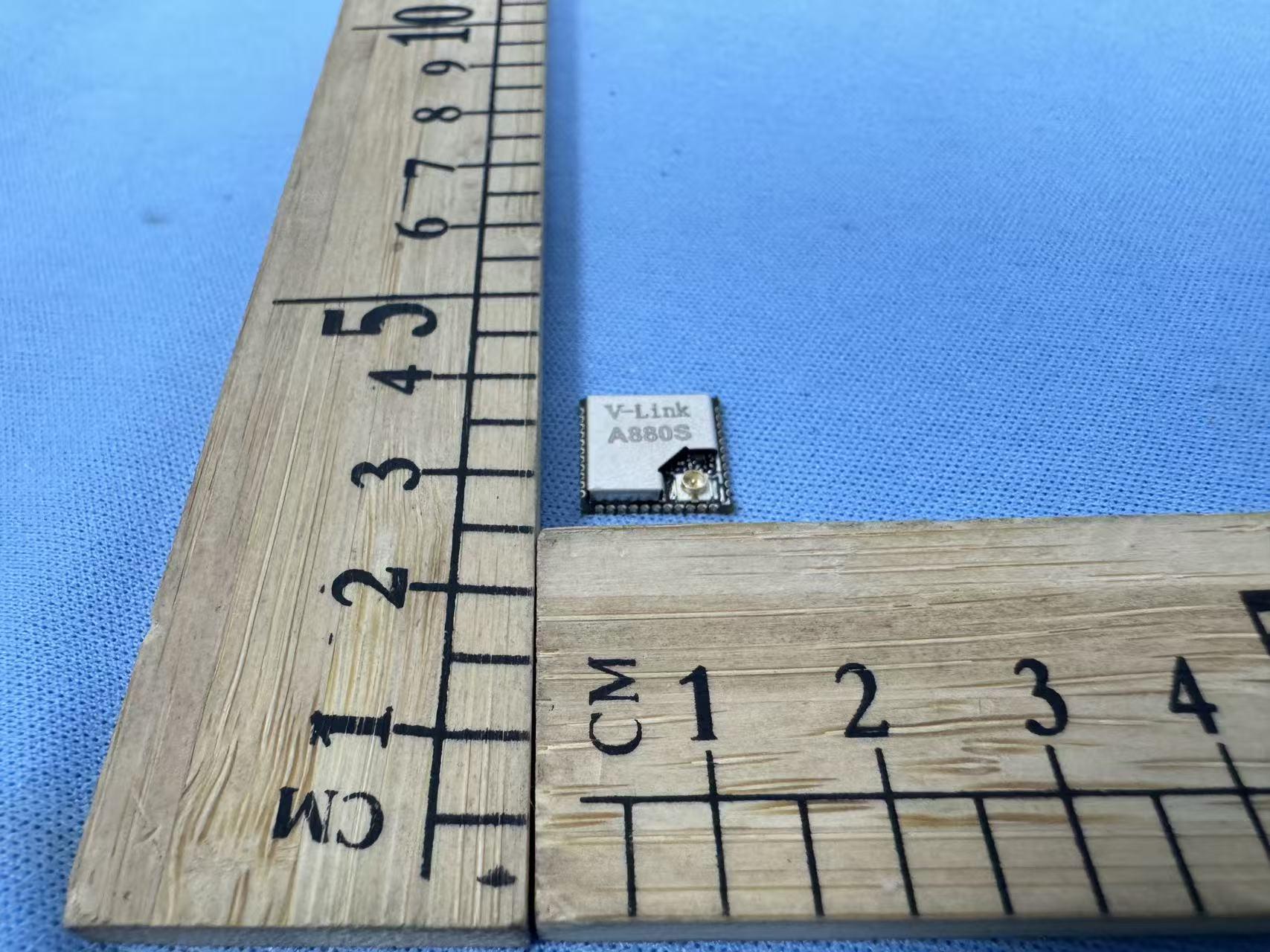

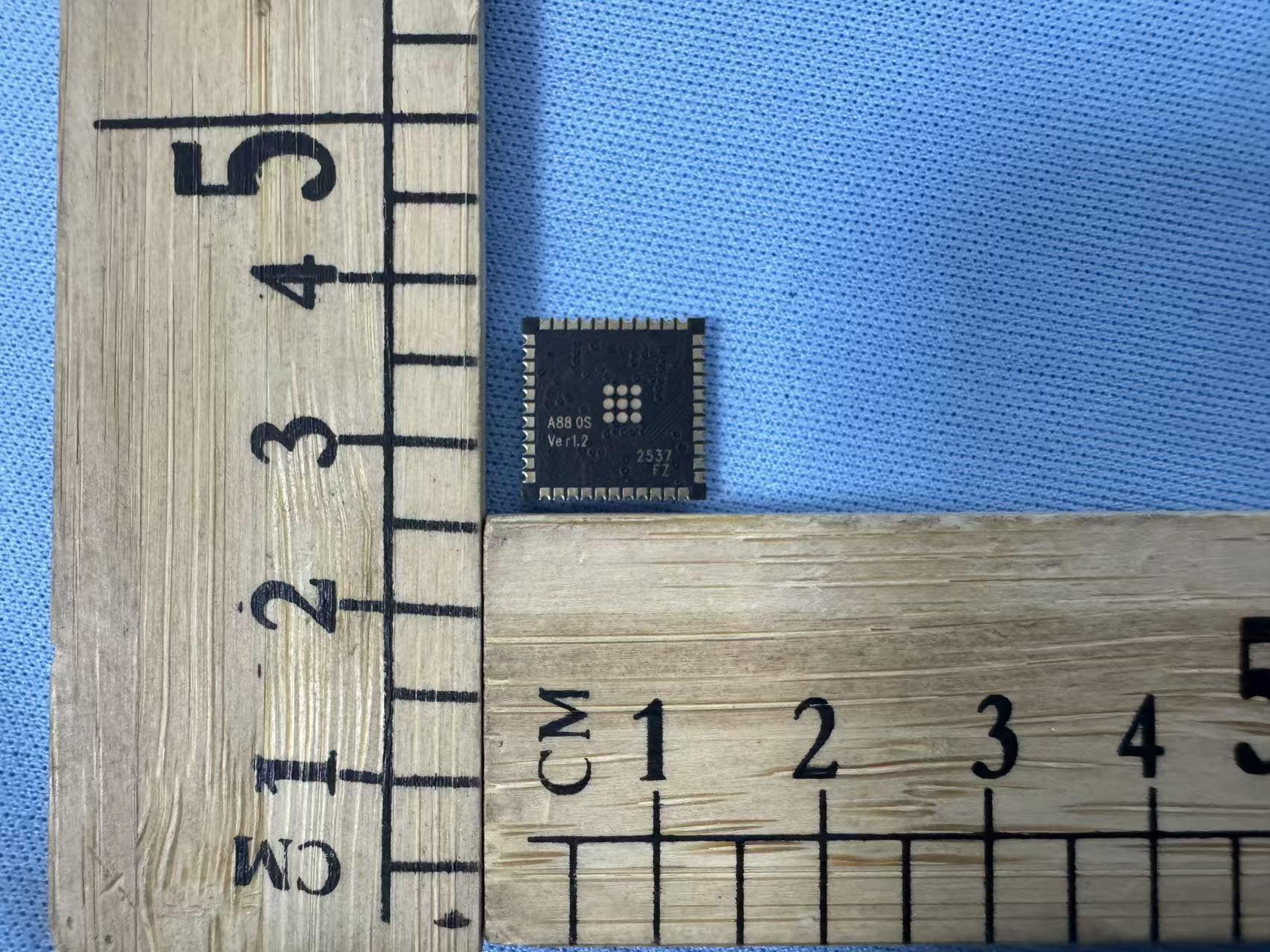

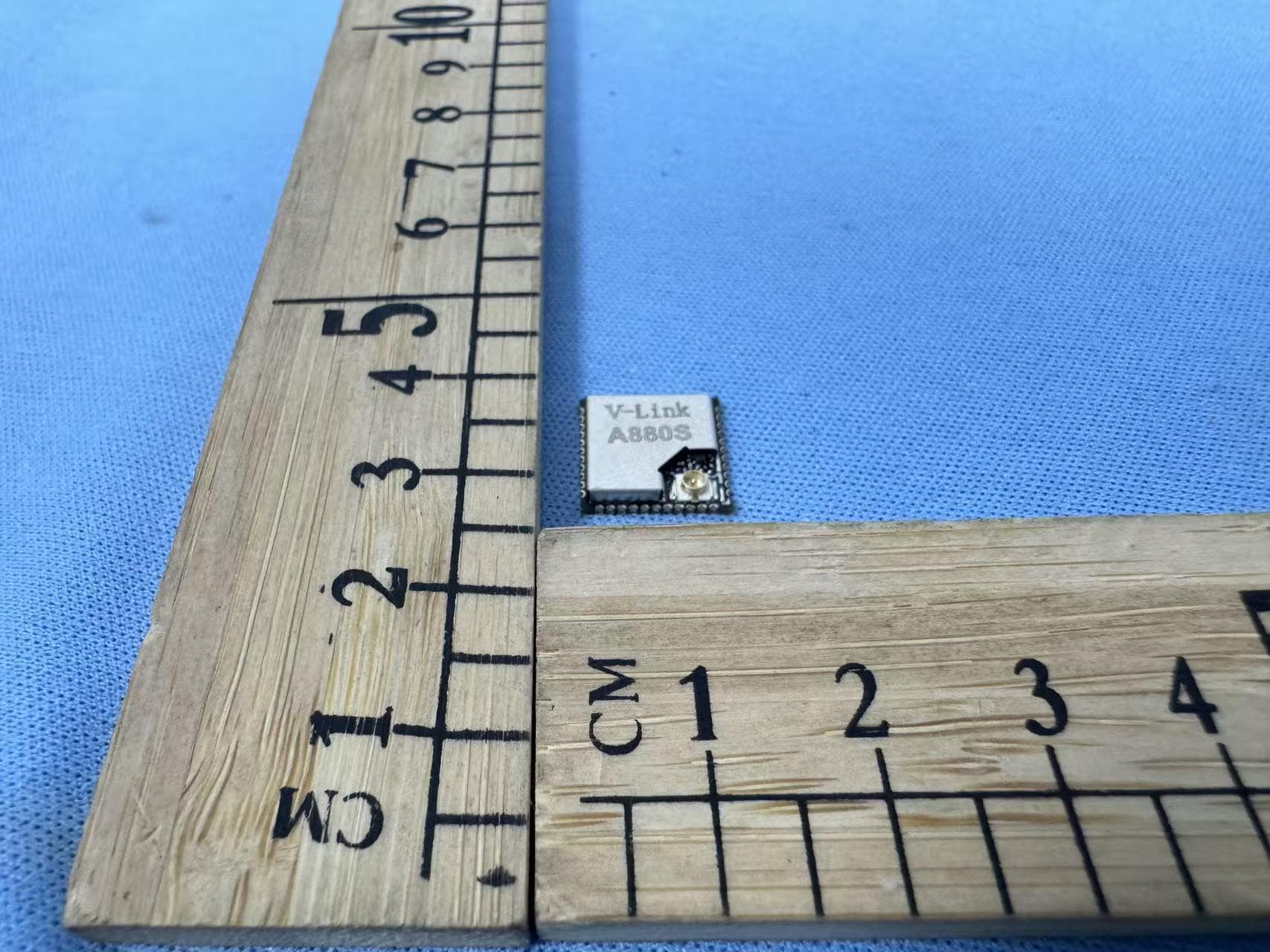

DNT2512220622R15055-P01Page: 1 of 2 DongguanDNTestingCo.,Ltd. Add:No.1,WestFourthStreet,XingfaSouthRoad,WushaCommunity,Chang'anTown,DongguanCity,GuangdongP.R.China Web:www.dn-testing.comTel:+86-769-88087383E-mail:[email protected] PHOTOGRAPHSOFEUT FCCID:2AXX8-A880S InternalPhotos AntennaPhotos DNT2512220622R15055-P01Page: 2 of 2 DongguanDNTestingCo.,Ltd. Add:No.1,WestFourthStreet,XingfaSouthRoad,WushaCommunity,Chang'anTown,DongguanCity,GuangdongP.R.China Web:www.dn-testing.comTel:+86-769-88087383E-mail:[email protected] InternalPhotos --END--

DNT2512220622R15055-P01Page: 1 of 2 DongguanDNTestingCo.,Ltd. Add:No.1,WestFourthStreet,XingfaSouthRoad,WushaCommunity,Chang'anTown,DongguanCity,GuangdongP.R.China Web:www.dn-testing.comTel:+86-769-88087383E-mail:[email protected] PHOTOGRAPHSOFEUT FCCID:2AXX8-A880S AntennaTerminalTestView RadiatedEmissionTestView|(Below1G) DNT2512220622R15055-P01Page: 2 of 2 DongguanDNTestingCo.,Ltd. Add:No.1,WestFourthStreet,XingfaSouthRoad,WushaCommunity,Chang'anTown,DongguanCity,GuangdongP.R.China Web:www.dn-testing.comTel:+86-769-88087383E-mail:[email protected] RadiatedEmissionTestView|(Above1G) RadiatedEmissionTestView|(Above1G) --END--

Report No.: DNT2512220622R15055-17937Date：January 13, 2026 Page： 72 / 79 Dongguan DN Testing Co., Ltd. Add: No. 1, West Fourth Street, Xingfa South Road, Wusha Community, Chang 'an Town, Dongguan City, Guangdong P.R.China Web: www.dn-testing.comTel:+86-769-88087383E-mail: [email protected] 11N40SISO_Ant1_2437_0~Reference 11N40SISO_Ant1_2437_30~1000 11N40SISO_Ant1_2437_1000~26500 Report No.: DNT2512220622R15055-17937Date：January 13, 2026 Page： 73 / 79 Dongguan DN Testing Co., Ltd. Add: No. 1, West Fourth Street, Xingfa South Road, Wusha Community, Chang 'an Town, Dongguan City, Guangdong P.R.China Web: www.dn-testing.comTel:+86-769-88087383E-mail: [email protected] 11N40SISO_Ant1_2452_0~Reference 11N40SISO_Ant1_2452_30~1000 11N40SISO_Ant1_2452_1000~26500 Report No.: DNT2512220622R15055-17937Date：January 13, 2026 Page： 74 / 79 Dongguan DN Testing Co., Ltd. Add: No. 1, West Fourth Street, Xingfa South Road, Wusha Community, Chang 'an Town, Dongguan City, Guangdong P.R.China Web: www.dn-testing.comTel:+86-769-88087383E-mail: [email protected] 11AX20SISO_Ant1_2412_0~Reference 11AX20SISO_Ant1_2412_30~1000 11AX20SISO_Ant1_2412_1000~26500 Report No.: DNT2512220622R15055-17937Date：January 13, 2026 Page： 75 / 79 Dongguan DN Testing Co., Ltd. Add: No. 1, West Fourth Street, Xingfa South Road, Wusha Community, Chang 'an Town, Dongguan City, Guangdong P.R.China Web: www.dn-testing.comTel:+86-769-88087383E-mail: [email protected] 11AX20SISO_Ant1_2437_0~Reference 11AX20SISO_Ant1_2437_30~1000 11AX20SISO_Ant1_2437_1000~26500 Report No.: DNT2512220622R15055-17937Date：January 13, 2026 Page： 76 / 79 Dongguan DN Testing Co., Ltd. Add: No. 1, West Fourth Street, Xingfa South Road, Wusha Community, Chang 'an Town, Dongguan City, Guangdong P.R.China Web: www.dn-testing.comTel:+86-769-88087383E-mail: [email protected] 11AX20SISO_Ant1_2462_0~Reference 11AX20SISO_Ant1_2462_30~1000 11AX20SISO_Ant1_2462_1000~26500 Report No.: DNT2512220622R15055-17937Date：January 13, 2026 Page： 77 / 79 Dongguan DN Testing Co., Ltd. Add: No. 1, West Fourth Street, Xingfa South Road, Wusha Community, Chang 'an Town, Dongguan City, Guangdong P.R.China Web: www.dn-testing.comTel:+86-769-88087383E-mail: [email protected] 11AX40SISO_Ant1_2422_0~Reference 11AX40SISO_Ant1_2422_30~1000 11AX40SISO_Ant1_2422_1000~26500 Report No.: DNT2512220622R15055-17937Date：January 13, 2026 Page： 78 / 79 Dongguan DN Testing Co., Ltd. Add: No. 1, West Fourth Street, Xingfa South Road, Wusha Community, Chang 'an Town, Dongguan City, Guangdong P.R.China Web: www.dn-testing.comTel:+86-769-88087383E-mail: [email protected] 11AX40SISO_Ant1_2437_0~Reference 11AX40SISO_Ant1_2437_30~1000 11AX40SISO_Ant1_2437_1000~26500 Report No.: DNT2512220622R15055-17937Date：January 13, 2026 Page： 79 / 79 Dongguan DN Testing Co., Ltd. Add: No. 1, West Fourth Street, Xingfa South Road, Wusha Community, Chang 'an Town, Dongguan City, Guangdong P.R.China Web: www.dn-testing.comTel:+86-769-88087383E-mail: [email protected] 11AX40SISO_Ant1_2452_0~Reference 11AX40SISO_Ant1_2452_30~1000 11AX40SISO_Ant1_2452_1000~26500 The End Report

Report No.: DNT2512220622R15055-17937Date：January 13, 2026 Page： 51 / 79 Dongguan DN Testing Co., Ltd. Add: No. 1, West Fourth Street, Xingfa South Road, Wusha Community, Chang 'an Town, Dongguan City, Guangdong P.R.China Web: www.dn-testing.comTel:+86-769-88087383E-mail: [email protected] 11G_Ant1_2412 11G_Ant1_2437 11G_Ant1_2462 Report No.: DNT2512220622R15055-17937Date：January 13, 2026 Page： 52 / 79 Dongguan DN Testing Co., Ltd. Add: No. 1, West Fourth Street, Xingfa South Road, Wusha Community, Chang 'an Town, Dongguan City, Guangdong P.R.China Web: www.dn-testing.comTel:+86-769-88087383E-mail: [email protected] 11N20SISO_Ant1_2412 11N20SISO_Ant1_2437 11N20SISO_Ant1_2462 Report No.: DNT2512220622R15055-17937Date：January 13, 2026 Page： 53 / 79 Dongguan DN Testing Co., Ltd. Add: No. 1, West Fourth Street, Xingfa South Road, Wusha Community, Chang 'an Town, Dongguan City, Guangdong P.R.China Web: www.dn-testing.comTel:+86-769-88087383E-mail: [email protected] 11N40SISO_Ant1_2422 11N40SISO_Ant1_2437 11N40SISO_Ant1_2452 Report No.: DNT2512220622R15055-17937Date：January 13, 2026 Page： 54 / 79 Dongguan DN Testing Co., Ltd. Add: No. 1, West Fourth Street, Xingfa South Road, Wusha Community, Chang 'an Town, Dongguan City, Guangdong P.R.China Web: www.dn-testing.comTel:+86-769-88087383E-mail: [email protected] 11AX20SISO_Ant1_2412 11AX20SISO_Ant1_2437 11AX20SISO_Ant1_2462 Report No.: DNT2512220622R15055-17937Date：January 13, 2026 Page： 55 / 79 Dongguan DN Testing Co., Ltd. Add: No. 1, West Fourth Street, Xingfa South Road, Wusha Community, Chang 'an Town, Dongguan City, Guangdong P.R.China Web: www.dn-testing.comTel:+86-769-88087383E-mail: [email protected] 11AX40SISO_Ant1_2422 11AX40SISO_Ant1_2437 11AX40SISO_Ant1_2452 Report No.: DNT2512220622R15055-17937Date：January 13, 2026 Page： 56 / 79 Dongguan DN Testing Co., Ltd. Add: No. 1, West Fourth Street, Xingfa South Road, Wusha Community, Chang 'an Town, Dongguan City, Guangdong P.R.China Web: www.dn-testing.comTel:+86-769-88087383E-mail: [email protected] Appendix E: Band edge measurements Test Result TestModeAntennaChNameFrequency[MHz]RefLevel[dBm]Result[dBm]Limit[dBm]Verdict 11BAnt1 Low24124.41-44.57≤-25.59PASS High24622.48-47.39≤-27.52PASS 11GAnt1 Low2412-1.60-32.28≤-31.6PASS High2462-2.78-47.19≤-32.78PASS 11N20SISOAnt1 Low2412-1.56-32.87≤-31.56PASS High2462-1.68-46.31≤-31.68PASS 11N40SISOAnt1 Low2422-4.50-38.15≤-34.5PASS High2452-4.71-45.43≤-34.71PASS 11AX20SISOAnt1 Low2412-1.44-32.01≤-31.44PASS High2462-1.48-47.1≤-31.48PASS 11AX40SISOAnt1 Low2422-3.16-34.97≤-33.16PASS High2452-4.79-43.22≤-34.79PASS Report No.: DNT2512220622R15055-17937Date：January 13, 2026 Page： 57 / 79 Dongguan DN Testing Co., Ltd. Add: No. 1, West Fourth Street, Xingfa South Road, Wusha Community, Chang 'an Town, Dongguan City, Guangdong P.R.China Web: www.dn-testing.comTel:+86-769-88087383E-mail: [email protected] Test Graphs 11B_Ant1_Low_2412 11B_Ant1_High_2462 11G_Ant1_Low_2412 Report No.: DNT2512220622R15055-17937Date：January 13, 2026 Page： 58 / 79 Dongguan DN Testing Co., Ltd. Add: No. 1, West Fourth Street, Xingfa South Road, Wusha Community, Chang 'an Town, Dongguan City, Guangdong P.R.China Web: www.dn-testing.comTel:+86-769-88087383E-mail: [email protected] 11G_Ant1_High_2462 11N20SISO_Ant1_Low_2412 11N20SISO_Ant1_High_2462 Report No.: DNT2512220622R15055-17937Date：January 13, 2026 Page： 59 / 79 Dongguan DN Testing Co., Ltd. Add: No. 1, West Fourth Street, Xingfa South Road, Wusha Community, Chang 'an Town, Dongguan City, Guangdong P.R.China Web: www.dn-testing.comTel:+86-769-88087383E-mail: [email protected] 11N40SISO_Ant1_Low_2422 11N40SISO_Ant1_High_2452 11AX20SISO_Ant1_Low_2412 Report No.: DNT2512220622R15055-17937Date：January 13, 2026 Page： 60 / 79 Dongguan DN Testing Co., Ltd. Add: No. 1, West Fourth Street, Xingfa South Road, Wusha Community, Chang 'an Town, Dongguan City, Guangdong P.R.China Web: www.dn-testing.comTel:+86-769-88087383E-mail: [email protected] 11AX20SISO_Ant1_High_2462 11AX40SISO_Ant1_Low_2422 11AX40SISO_Ant1_High_2452 Report No.: DNT2512220622R15055-17937Date：January 13, 2026 Page： 61 / 79 Dongguan DN Testing Co., Ltd. Add: No. 1, West Fourth Street, Xingfa South Road, Wusha Community, Chang 'an Town, Dongguan City, Guangdong P.R.China Web: www.dn-testing.comTel:+86-769-88087383E-mail: [email protected] Appendix F: Conducted Spurious Emission Test Result TestModeAntennaFrequency[MHz] FreqRange [Mhz] RefLevel [dBm] Result [dBm] Limit [dBm] Verdict 11BAnt1 2412 Reference1.581.58---PASS 30~10001.58-59.44≤-28.42PASS 1000~265001.58-44.2≤-28.42PASS 2437 Reference4.304.30---PASS 30~10004.30-59.99≤-25.7PASS 1000~265004.30-41.86≤-25.7PASS 2462 Reference2.882.88---PASS 30~10002.88-59.82≤-27.12PASS 1000~265002.88-42.01≤-27.12PASS 11GAnt1 2412 Reference-0.02-0.02---PASS 30~1000-0.02-60.81≤-30.02PASS 1000~26500-0.02-50.51≤-30.02PASS 2437 Reference0.070.07---PASS 30~10000.07-59.39≤-29.93PASS 1000~265000.07-49.81≤-29.93PASS 2462 Reference-0.31-0.31---PASS 30~1000-0.31-59.76≤-30.31PASS 1000~26500-0.31-50.38≤-30.31PASS 11N20SISOAnt1 2412 Reference-1.62-1.62---PASS 30~1000-1.62-59.45≤-31.62PASS 1000~26500-1.62-49.38≤-31.62PASS 2437 Reference-1.49-1.49---PASS 30~1000-1.49-59.54≤-31.49PASS 1000~26500-1.49-49.85≤-31.49PASS 2462 Reference-2.73-2.73---PASS 30~1000-2.73-59.47≤-32.73PASS 1000~26500-2.73-49.3≤-32.73PASS 11N40SISOAnt1 2422 Reference-4.82-4.82---PASS 30~1000-4.82-60.53≤-34.82PASS 1000~26500-4.82-50.12≤-34.82PASS 2437 Reference-4.29-4.29---PASS 30~1000-4.29-59.47≤-34.29PASS 1000~26500-4.29-49.76≤-34.29PASS 2452 Reference-4.13-4.13---PASS 30~1000-4.13-59.5≤-34.13PASS 1000~26500-4.13-49.53≤-34.13PASS 11AX20SISOAnt1 2412 Reference-1.48-1.48---PASS 30~1000-1.48-59.78≤-31.48PASS 1000~26500-1.48-50.52≤-31.48PASS 2437 Reference0.190.19---PASS 30~10000.19-59.32≤-29.81PASS 1000~265000.19-49.94≤-29.81PASS 2462 Reference-1.08-1.08---PASS 30~1000-1.08-59.05≤-31.08PASS 1000~26500-1.08-49.25≤-31.08PASS 11AX40…

Text truncated - open the document above for the full version.

Dongguan DN Testing Co., Ltd. Add: No. 1, West Fourth Street, Xingfa South Road, Wusha Community, Chang 'an Town, Dongguan City, Guangdong P.R.China Web: www.dn-testing.comTel:+86-769-88087383E-mail: [email protected] FCC Test Report Application No.: DNT2512220622R15055-17937 Applicant: ShenZhen V-Link Technology Co., LTD. Address of Applicant: Room 1803, BaiRuiDa Building, Bantian Sub-district, LongGang District, Shenzhen, China EUT Description: WiFi Module Model No.: A880S-D40L-WI-WS-H Additional Model(s): A880S-D40L-NI-WS-H, A880S-D40L-WI-NS-H, A880S-D40L-NI-NS-H, A880S-D40L-WI-WS, A880S-D40L-NI-WS, A880S-D40L-WI-NS, A880S- D40L-NI-NS FCC ID: 2AXX8-A880S Power Supply: DC 3.3V Trade Mark: / Standards: 47 CFR FCC Part 2, Subpart J 47 CFR Part 15, Subpart C ANSI C63.10: 2020 Date of Receipt: 2025/12/22 Date of Test: 2025/12/23 to 2026/01/12 Date of Issue: 2026/01/13 Test Result:PASS Prepared By:(Testing Engineer) Reviewed By:(Project Engineer) Approved By:(Manager) Note: If there is any objection to the results in this report, please submit a written inquiry to the company within 15 days from the date of receiving the report. The test report is effective only with both signature and specialized stamp, and is issued by the company in accordance with the requirements of the "Conditions of Issuance of Test Reports" printed in the attached page. Unless otherwise stated, the results presented in this report only apply to the samples tested this time. Partial reproduction of this report is not allowed unless approved by the company in writing. Report No.: DNT2512220622R15055-17937Date：January 13, 2026 Page： 2 / 79 Dongguan DN Testing Co., Ltd. Add: No. 1, West Fourth Street, Xingfa South Road, Wusha Community, Chang 'an Town, Dongguan City, Guangdong P.R.China Web: www.dn-testing.comTel:+86-769-88087383E-mail: [email protected] Report Revise Record Report VersionRevise TimeIssued DateValid VersionNotes V1.0/Jan.13, 2026ValidOriginal Report Report No.: DNT2512220622R15055-17937Date：January 13, 2026 Page： 3 / 79 Dongguan DN Testing Co., Ltd. Add: No. 1, West Fourth Street, Xingfa South Road, Wusha Community, Chang 'an Town, Dongguan City, Guangdong P.R.China Web: www.dn-testing.comTel:+86-769-88087383E-mail: [email protected] 1 Test Summary Test ItemTest RequirementTest MethodTest ResultResult Antenna Requirement 15.203/247(b)--Clause 3.1PASS AC Power Line Conducted Emission 15.207ANSI C63.10: 2020Clause 3.2N/A Duty Cycle----Clause 3.3PASS DTS (6 dB) Bandwidth15.247 (a)(2)ANSI C63.10: 2020Clause 3.4PASS Conducted Output Power15.247 (b)(3)ANSI C63.10: 2020Clause 3.5PASS Power Spectral Density15.247 (e)ANSI C63.10: 2020Clause 3.6PASS Band-edge for RF Conducted Emissions 15.247(d)ANSI C63.10: 2020Clause 3.7PASS RF Conducted Spurious Emissions 15.247(d)ANSI C63.10: 2020Clause 3.8PASS Radiated Spurious Emissions15.247(d);15.205/15.209ANSI C63.10: 2020Clause 3.9PASS Restricted bands around fundamental frequency (Radiated Emission) 15.247(d);15.205/15.209ANSI C63.10: 2020Clause 3.10PASS Note: 1. “N/A” denotes test is not applicable in this test report. Report No.: DNT2512220622R15055-17937Date：January 13, 2026 Page： 4 / 79 Dongguan DN Testing Co., Ltd. Add: No. 1, West Fourth Street, Xingfa South Road, Wusha Community, Chang 'an Town, Dongguan City, Guangdong P.R.China Web: www.dn-testing.comTel:+86-769-88087383E-mail: [email protected] Contents 1 Test Summary..................................................................................................................................................................3 2 General Information..........................................................................................................................................................5 2.1 Test Location..........................................................................................................................................................5 2.2 General Description of EUT...................................................................................................................................6 2.3 Channel List........................................................................................................................................................... 7 2.4 Test Environment and Mode..................................................................................................................................7 2.5 Power Setting of Test Software............................................................................................................................. 9 2.6 Description of Support Units................................................................................................................................ 10 2.7 Test Facility..........................................................................................................................................................10 2.8 Measurement Uncertainty (95% confidence levels, k=2).................................................................................... 10 2.9 Equipment List..................................................................................................................................................... 11 2.10 Assistant equipment used for test......................................................................................................................12 3 Test results and Measurement Data..............................................................................................................................13 3.1 Antenna Requirement..........................................................................................................................................13 3.2 Duty Cycle............................................................................................................................................................14 3.3 DTS (6 dB) Bandwidth..............................................................…

Text truncated - open the document above for the full version.

Report No.: DNT2512220622R15055-17935Date：January 13, 2026Page： 48 / 53 Dongguan DN Testing Co., Ltd. Add: No. 1, West Fourth Street, Xingfa South Road, Wusha Community, Chang 'an Town, Dongguan City, Guangdong P.R.China Web: www.dn-testing.comTel:+86-769-88087383E-mail: [email protected] Test Graphs BLE_1M_Ant1_2402_0~Reference BLE_1M_Ant1_2402_30~1000 BLE_1M_Ant1_2402_1000~26500 Report No.: DNT2512220622R15055-17935Date：January 13, 2026Page： 49 / 53 Dongguan DN Testing Co., Ltd. Add: No. 1, West Fourth Street, Xingfa South Road, Wusha Community, Chang 'an Town, Dongguan City, Guangdong P.R.China Web: www.dn-testing.comTel:+86-769-88087383E-mail: [email protected] BLE_1M_Ant1_2440_0~Reference BLE_1M_Ant1_2440_30~1000 BLE_1M_Ant1_2440_1000~26500 Report No.: DNT2512220622R15055-17935Date：January 13, 2026Page： 50 / 53 Dongguan DN Testing Co., Ltd. Add: No. 1, West Fourth Street, Xingfa South Road, Wusha Community, Chang 'an Town, Dongguan City, Guangdong P.R.China Web: www.dn-testing.comTel:+86-769-88087383E-mail: [email protected] BLE_1M_Ant1_2480_0~Reference BLE_1M_Ant1_2480_30~1000 BLE_1M_Ant1_2480_1000~26500 Report No.: DNT2512220622R15055-17935Date：January 13, 2026Page： 51 / 53 Dongguan DN Testing Co., Ltd. Add: No. 1, West Fourth Street, Xingfa South Road, Wusha Community, Chang 'an Town, Dongguan City, Guangdong P.R.China Web: www.dn-testing.comTel:+86-769-88087383E-mail: [email protected] BLE_2M_Ant1_2402_0~Reference BLE_2M_Ant1_2402_30~1000 BLE_2M_Ant1_2402_1000~26500 Report No.: DNT2512220622R15055-17935Date：January 13, 2026Page： 52 / 53 Dongguan DN Testing Co., Ltd. Add: No. 1, West Fourth Street, Xingfa South Road, Wusha Community, Chang 'an Town, Dongguan City, Guangdong P.R.China Web: www.dn-testing.comTel:+86-769-88087383E-mail: [email protected] BLE_2M_Ant1_2440_0~Reference BLE_2M_Ant1_2440_30~1000 BLE_2M_Ant1_2440_1000~26500 Report No.: DNT2512220622R15055-17935Date：January 13, 2026Page： 53 / 53 Dongguan DN Testing Co., Ltd. Add: No. 1, West Fourth Street, Xingfa South Road, Wusha Community, Chang 'an Town, Dongguan City, Guangdong P.R.China Web: www.dn-testing.comTel:+86-769-88087383E-mail: [email protected] BLE_2M_Ant1_2480_0~Reference BLE_2M_Ant1_2480_30~1000 BLE_2M_Ant1_2480_1000~26500 The End Report

Dongguan DN Testing Co., Ltd. Add: No. 1, West Fourth Street, Xingfa South Road, Wusha Community, Chang 'an Town, Dongguan City, Guangdong P.R.China Web: www.dn-testing.comTel:+86-769-88087383E-mail: [email protected] FCC Test Report Application No.: DNT2512220622R15055-17935 Applicant: ShenZhen V-Link Technology Co., LTD. Address of Applicant: Room 1803, BaiRuiDa Building, Bantian Sub-district, LongGang District, Shenzhen, China EUT Description: WiFi Module Model No.: A880S-D40L-WI-WS-H Additional Model(s): A880S-D40L-NI-WS-H, A880S-D40L-WI-NS-H, A880S-D40L-NI-NS-H, A880S-D40L-WI-WS, A880S-D40L-NI-WS, A880S-D40L-WI-NS, A880S- D40L-NI-NS FCC ID: 2AXX8-A880S Power Supply: DC 3.3V Trade Mark: / Standards: 47 CFR Part 2, Subpart J 47 CFR Part 15, Subpart C ANSI C63.10: 2020 Date of Receipt: 2025/12/22 Date of Test: 2025/12/23to 2026/01/12 Date of Issue: 2026/01/13 Test Result:PASS Prepared By:(Testing Engineer) Reviewed By:(Project Engineer) Approved By:(Manager) Note: If there is any objection to the results in this report, please submit a written inquiry to the company within 15 days from the date of receiving the report. The test report is effective only with both signature and specialized stamp, and is issued by the company in accordance with the requirements of the "Conditions of Issuance of Test Reports" printed in the attached page. Unless otherwise stated, the results presented in this report only apply to the samples tested this time. Partial reproduction of this report is not allowed unless approved by the company in writing. Report No.: DNT2512220622R15055-17935Date：January 13, 2026Page： 2 / 53 Dongguan DN Testing Co., Ltd. Add: No. 1, West Fourth Street, Xingfa South Road, Wusha Community, Chang 'an Town, Dongguan City, Guangdong P.R.China Web: www.dn-testing.comTel:+86-769-88087383E-mail: [email protected] Report Revise Record Report VersionRevise TimeIssued DateValid VersionNotes V1.0/Jan.13, 2025ValidOriginal Report Report No.: DNT2512220622R15055-17935Date：January 13, 2026Page： 3 / 53 Dongguan DN Testing Co., Ltd. Add: No. 1, West Fourth Street, Xingfa South Road, Wusha Community, Chang 'an Town, Dongguan City, Guangdong P.R.China Web: www.dn-testing.comTel:+86-769-88087383E-mail: [email protected] 1 Test Summary Test ItemTest RequirementTest MethodTest ResultResult Antenna Requirement 15.203/247(b)--Clause 3.1PASS Duty Cycle----Clause 3.2PASS DTS (6 dB) Bandwidth15.247 (a)(2)ANSI C63.10: 2020Clause 3.3PASS Conducted Output Power15.247 (b)(3)ANSI C63.10: 2020Clause 3.4PASS Power Spectral Density15.247 (e)ANSI C63.10: 2020Clause 3.5PASS Band-edge for RF Conducted Emissions 15.247(d)ANSI C63.10: 2020Clause 3.6PASS RF Conducted Spurious Emissions 15.247(d)ANSI C63.10: 2020Clause 3.7PASS Radiated Spurious Emissions15.247(d);15.205/15.209ANSI C63.10: 2020Clause 3.8PASS Restricted bands around fundamental frequency (Radiated Emission) 15.247(d);15.205/15.209ANSI C63.10: 2020Clause 3.9PASS AC Power Line Conducted Emission 15.207ANSI C63.10: 2020Clause 3.10N/A Note: 1. “N/A” denotes test is not applicable in this test report. Report No.: DNT2512220622R15055-17935Date：January 13, 2026Page： 4 / 53 Dongguan DN Testing Co., Ltd. Add: No. 1, West Fourth Street, Xingfa South Road, Wusha Community, Chang 'an Town, Dongguan City, Guangdong P.R.China Web: www.dn-testing.comTel:+86-769-88087383E-mail: [email protected] Contents 1 Test Summary..................................................................................................................................................................3 2 General Information..........................................................................................................................................................5 2.1 Test Location..........................................................................................................................................................5 2.2 General Description of EUT...................................................................................................................................5 2.3 Test Environment...................................................................................................................................................6 2.4 Channel List........................................................................................................................................................... 6 2.5 Power Setting of Test Software............................................................................................................................. 7 2.6 Assistant equipment used for test..........................................................................................................................7 2.7 Description of Support Units.................................................................................................................................. 7 2.8 Test Facility............................................................................................................................................................7 2.9 Equipment List....................................................................................................................................................... 8 2.10 Measurement Uncertainty (95% confidence levels, k=2)....................................................…

Text truncated - open the document above for the full version.
