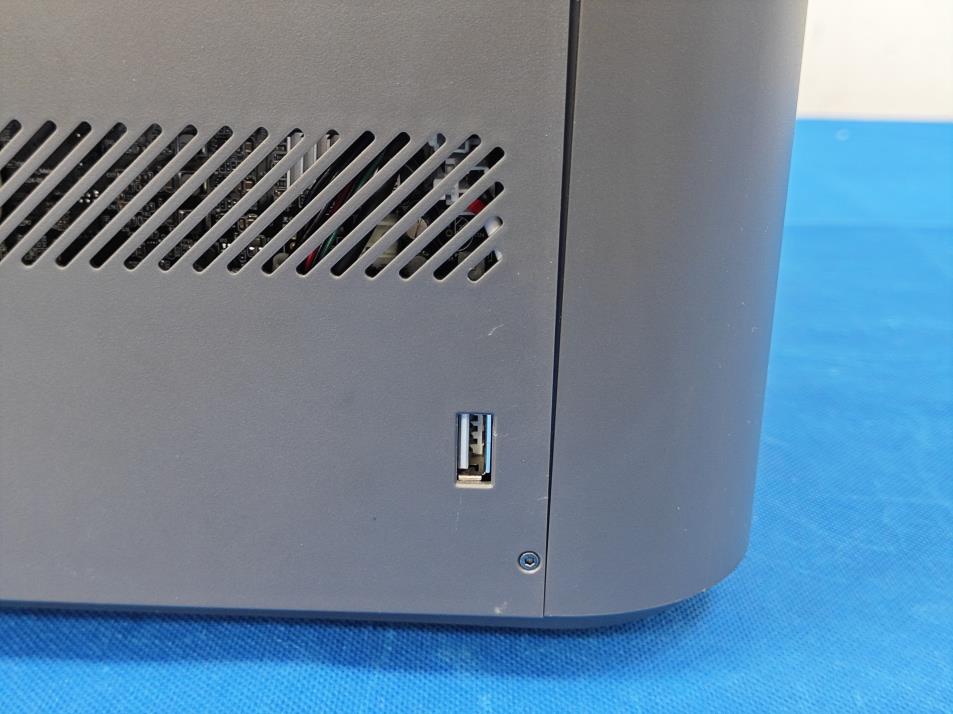

Report No.: BCTC2407256987E External Photos Report No.: BCTC2407256987E Report No.: BCTC2407256987E Report No.: BCTC2407256987E Report No.: BCTC2407256987E Report No.: BCTC2407256987E

Size:60*60mm 3D Printer FCC ID: 2AXYK-MONO4ULTRA This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Label location

Report No.: BCTC2407256987E Internal Photos Report No.: BCTC2407256987E Antenna Report No.: BCTC2407256987E Report No.: BCTC2407256987E Report No.: BCTC2407256987E Report No.: BCTC2407256987E Report No.: BCTC2407256987E Report No.: BCTC2407256987E Report No.: BCTC2407256987E

FCC §15.247 (i), §2.1091 – RF Exposure FCC ID: 2AXYK-MONO4ULTRA Applied procedures / limit According to FCC §15.247(i) and §1.1307(b)(1), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. Limits for Occupational / Controlled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm 2 ) Averaging Time |E| 2 ,|H| 2 or S (minutes) 0.3-3.0 614 1.63 (100)* 6 3.0-30 1842 / f 4.89 / f (900 / f)* 6 30-300 61.4 0.163 1.0 6 300-1500 F/300 6 1500-100,000 5 6 Note: ƒ is frequency in MHz * = Power density limit is applicable at frequencies greater than 100 MHz Limits for General Population / Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm 2 ) Averaging Time |E| 2 ,|H| 2 or S (minutes) 0.3-1.34 614 1.63 (100)* 30 1.34-30 824/f 2.19/f (180/f)* 30 30-300 27.5 0.073 0.2 30 300-1500 F/1500 30 1500-100,000 1.0 30 Note: f = frequency in MHz * = Plane-wave equivalent power density MPE PREDICTION Predication of MPE limit at a given distance, Equation from OET Bulletin 65, Edition 97-01 Where: S = power density P = power input to antenna G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the center of radiation of the antenna, R=0.2m TEST RESULTS Conclusion: For the max result : 0.008≤ 1.0, compliance with FCC's RF Exposure Tune up Produce power Maximu m peak output power (dBm) Output power to antenn a (mW) Antenna Gain (numeric) Power Density (S) (mW/ cm2) Limit (mW / cm2 ) Result WIFI 13±1 14 25.12 1.6 (2.04dBi) 0.008 1 Pass

Address： Building H, Yongli Industrial Zone, Shabei Hongli, Baolong Street, Longgang District, Shenzhen TEL:0755-28700870 FAX：0755-28483275 Website:www.kxwxjs.com 1 承 认 书 客户名称： 客户料号： 科信料号： 规格描述：双频黑色软内置/1.13线L= 120 MM(1代端子) 制作日期：2023 年 11 月 13 日 出厂确认： 部 门审 核批 准 射频部刘景雄李斌 结构部李志晓李斌 品质部王飞李斌 客户确认： 检 查审 核批 准 Shenzhen Kexin wireless Technology Co., LTD 地址：深圳市龙岗区宝龙街道沙背坜鸿永利工业区H栋 TEL:0755-28700870FAX：0755-28483275 Website:www.kxwxjs.com 2 △文件制定、修改、废止记录 文件名称日期控制版次关联内容制定批准 样品承认书2023.11.13V1首次制作李志晓李斌 地址：深圳市龙岗区宝龙街道沙背坜鸿永利工业区H栋 TEL:0755-28700870FAX：0755-28483275 Website:www.kxwxjs.com 3 目录 1、封面/签字页面............................................................1 2、文本控制记录...............................................................2 3 、目录 ...........................................................................3 4、产品性能参数...............................................................4 5、产品设计图纸...............................................................5 6 、电气性能测试报告 ..................................................6-8 7 、产品图片 ......................................................................9 8 、可靠性试要求 .....................................................9-11 9 、环保要求 ..................................................................11 10、环境要求.........................................................11-14 地址：深圳市龙岗区宝龙街道沙背坜鸿永利工业区H 栋 TEL:0755-28700870FAX ：0755-28483275 Website:www.kxwxjs.com 4 4、产品性能参数 电性能指标ElectricalSpecifications 频率范围FrequencyRange (MHz) 2400-2500/ 5150-5850 输入阻抗Input Impendence(Ω) 50 电压驻波比V.S.W.R ≤3.0（未匹配设备仅供参考） 参考 增益Gain (db i) 2.04 极化形式PolarizationType垂直 Vertical 辐射方向RadiationDirection全向 Omni-Directional 通断测试ContinuityTest通路 机械指标MechanicalSpecifications 线缆长度AntennaLength(M) 120 ±3mm 连接器型号ConnectType IPEX(1 代) 外壳材质RadomeMaterial / 固定方式Mounting粘贴 天线尺寸Size 50 *14 *0.3 mm 同轴线材Cables RG1.13黑色 工作温度OperatingTemp-30 ~ +75 ̊C 地址：深圳市龙岗区宝龙街道沙背坜鸿永利工业区 H 栋 TEL:0755-28700870FAX：0755-28483275 Website:www.kxwxjs.com 6 6、 电气性能测试报告 效率&增益： FreqEffiGain (MHz)(%)(dBi) 240039.88 0.62 245042.10 0.69 250048.96 2.04 515036.48 -0.67 535036.860.38 555047.50 1.95 585040.27 1.16 数据测试文件 2.45.8FPC.xls 地址：深圳市龙岗区宝龙街道沙背坜鸿永利工业区H栋 TEL:0755-28700870FAX：0755-28483275 Website:www.kxwxjs.com 7 7.3D&2D方向图： 地址：深圳市龙岗区宝龙街道沙背坜鸿永利工业区H栋 TEL:0755-28700870FAX：0755-28483275 Website:www.kxwxjs.com 8 地址：深圳市龙岗区宝龙街道沙背坜鸿永利工业区H栋 TEL:0755-28700870FAX：0755-28483275 Website:www.kxwxjs.com 9 8.产品图片： 9、可靠性试验要求 测试项具体说明 1. 弯折耐 久测试 测试目的：验证具有弯曲功能的天线弯头可满足长期使用的耐久； 预置条件： 1)测试样品电性能满足要求，样品外观无开裂、磨损等缺陷； 2)最少样品数量：3pcs。 测试过程： 1、测试前检查天线机械，电气功能是否正常；将整个天线水平放置并把天线连接头固 定； 2、以人工或机械的方式旋转天线底座至与连接头成90度的位置，然后旋转到原来的位 置，一个往复计数一次，测试频率：每分钟30~40次，共弯曲500次，每100次间歇5min； 3、测试后，检查天线外观及机械性能。 判据： 1、测试完成后天线不可有明显的物理损坏，且将天线折成与垂直方向成30度情况下不 能滑动。 2、测试前后电性能无变化； 2. 天线侧 压测试 测试目的：验证产品外置天线集成后抗侧压能力，考验天线自身强度、产品与设备接 触部位的强度，如壳体强度、止转限位筋强度等。 预置条件： 1）测试样品电性能满足要求，样品外观无开裂、磨损等缺陷。 2）天线按正常状态安装与产品上，并将产品固定好。 3）每项测试样品至少为3pcs; 测试步骤： 1、测试前，检查待测样品外观及功能； 2、进行以下两项测试，两项测试分别使用两套物料： 测试1：使天线处于打开伸直状态，在天线末端处5mm位置分别朝内、朝外、朝上、朝 下施加20N力，并保持5S，每个方向重复此操作10次。 测试2：使天线处于90度折弯状态，扭转天线至止转限位筋发挥作用时，在天线末端处 5mm位置施加20N力，并保持5S，重复此操作10次。完成正反两个限位位置的测试。 3、在以上两组测试中，如发现当天线受力后，天线变形角度已大于30°时，外力仍小于 地址：深圳市龙岗区宝龙街道沙背坜鸿永利工业区H栋 TEL:0755-28700870FAX：0755-28483275 Website:www.kxwxjs.com 10 20N ，则保持变形角度为 30 °，持续 5s 后撤销外力，重复以上操作 10 次；完成 4 个方向 测试，共计 40 次； 4 、测试完成后，检查样品机械、电气性能。 5 、如果同一个产品上存在多根天线，则产品上的每个天线安装位置都要进行测试。 判据： 1 、测试完成后天线的机械、电气功能正常； 2 、天线可以出现手动可恢复的弯曲现象，外壳不允许破裂，线芯不允许断裂。 3 、主设备的限位筋开裂，外壳卡扣不能出现松脱、断裂现象； 4 、测试前后天线电性能无变化； 3. 天线旋 转耐久 测试 测试目的：验证天线固定头和天线本体之间具备自由旋转功能的天线可满足长期使用的 耐久性能要求； 预置条件：测试样品电性能满足要求，样品外观无开裂、磨损等缺陷; 测试过程： 180度可旋转天线： 1、测试前保证天线机械、电气功能正常，不可有物理损坏； 2、将天线底座弯折成与连接头垂直的方向 3、将天线安装在对应机种的固定台上，并弯折天线底座使之与连接头成垂直方向。 4、以人工或机械的方式向左旋转天线底座至水平位置（90度），然后旋转到原来的位 置，再向右旋转天线底座至水平位置（90度），然后旋转到原来的位置，整个往复计数 1次。 5、测试频率每分钟30~40次，共旋转1000次； 6、测试后，检查天线机械及电气性能。 360度可旋转天线： 1、测试前保证天线机械、电气功能正常，不可有物理损坏； 2、将天线底座弯折成与连接头垂直的方向 2、将天线安装在对应机种的固定台上，并弯折天线底座使之与连接头成垂直方向 3、以人工或机械的方式向左旋转360度回到原来的位置，再向右旋转天线底座360回到 原来的位置，整个往复计数2次。 4、测试频率每分钟30~40次，共旋转1000次； 5、测试后，检查天线机械及电气性能。 判据： 1、测试完成后天线不可有明显的物理损坏，且测试后天线旋转头还具备固定天线旋转 位置的功能，主设备的限位结构无损伤； 2、测试前后电性能无变化。 4. 整机自 由跌落 测试 验证桌面、手持终端在使用/搬运过程中跌落强度是否满足要求。 测试程序： 试验条件： （1）天线打开状态连同整机跌落高度0.8m，6面，1个循环，共记6次，大理石平台， 进行受控跌落； (2）最少样品数量：3pcs 2、程序 （1）保证样品机械功能和电气功能正常； （2）每个样品进行对应要求高度和跌落次数的进行受控跌落； 地址：深圳市龙岗区宝龙街道沙背坜鸿永利工业区H栋 TEL:0755-28700870FAX：0755-28483275 Website:www.kxwxjs.com 11 （ 3 ）测试过程中要求每测试一个面检查外观及功能，进行下一个面测试时，若造成 的故障可手动恢复，手动恢复后进行测试。 判据： 1 个循环测试完成后，样品机械功能正常和电气功能正常，允许手动可恢复的机械失效 现象发生。允许不影响用户正常使用和安全的轻微机械故障。 5. 天线抗 拉测试 测试目的：验证天线连接处的强度是否满足要求； 预置条件：测试样品电性能满足要求，样品外观无开裂、磨损等缺陷; 测试过程： 1、测试前初检，保证样机配件在测试前功能正常； 2、固定住固定头,对天线转轴处施加1.8kgf的拉力,力量达到1.8kgf时保持2S； 3、重复操作步骤(2)20次； 4、固定天线转轴,对天线端施加1.8kgf的拉力,力量达到1.8kgf时保持2S； 5、重复操作步骤(4)20次。 判据： 1、测试完成后天线不可有明显的物理损坏。 2、测试前后电性能无变化。 6. 天线安 装力 测试目的：验证天线在生产装配的安装力是否满足人体舒适要求； 预置条件：ONT和天线都必须是全新样品，初次安装；第二次安装由于结构件磨损，安 装力会明显减小，导致测试数据无效; 测试过程： 1、测试前初检，保证ONT外壳和天线为全新样机，未进行过天线安装； 2、固定ONT外壳，将天线压入ONT外壳天线安装孔；可以使用压力机进行，记录天线 安装力。 3、样机数量：13pcs 检查点、应达到的要求、指标和预期结果： 1、天线安装力小于30N； 7. 天线异 响测试 测试目的：验证天线在摇晃过程中无异响噪音情况； 测试判据：手动摇晃单体天线，无异响噪音； 10、环保要求 符合ROHS2.0标准要求，达标欧洲RHOS\REACH要求，达标中国RHOS\REACH 要求，电镀的无铅化要求。 10、环境要求 环境参数指标引用标准 存储温度范围（°C）-30～+75 参考标准: IEC 60068-2-1/2/6 工作温度范围（°C）-30～+75 存储湿度范围40°C，95％湿度，96小时 工作湿度范围5%～95% 地址：深圳市龙岗区宝龙街道沙背坜鸿永利工业区H栋 TEL:0755-28700870FAX：0755-28483275 Website:www.kxwxjs.com 12 /14/30/31/78 ETSIEN300 019-2-1/2/3 GR-63-CORE 交变湿热 1)保持温度为+25°C，在1小时内将湿度升至95%RH 2)保持湿度为95%RH；在3小时内升温至+55°C； 3)保持+55°C，95%RH9小时 4)保持湿度为95%RH；在3小时内降温至+25°C； 5)保持+25°C，95%RH9小时 6)重复步骤2)到5）5次（共6个循环）； 7)温度保持在+25°C，在1小时内降低湿度至50%； 8)保持+25°C，50%RH2小时 检查点应达到的要求指标和预期结果： 1、天线不应发生变色、开裂、脱胶、翘曲变形、功能丧 失等。 2、天线与ONT的阻尼力无明显变化，天线与产品配合的 阻尼力可以保持天线在任意角度保持稳定； 温度循环 1）高温极限值：1）75°C； 2）低温极限值：-30°C； 3）温变及保持时间：在高低温极值至少保持4h，从高 温降至低温或是从低温升至高温的时间不要超过4小 时； 4）循环数量：共进行9个循环 5）恢复时间：24h 6）最少样品数量：3pcs 检查点应达到的要求指标和预期结果： 1、天线不应发生变色、开裂、脱胶、翘曲变形、功能丧 失等。 2、天线与ONT的阻尼力无明显变化，天线与产品配合 的阻尼力可以保持天线在任意角度保持稳定； 高温存储 以1°C/min的速率升温至75°C，在75°C下保持24 小时；以1°C/min的速率降温至+25°C保持2小时。 最少样品数量：3pcs 检查点应达到的要求指标和预期结果： 1、天线不应发生变色、开裂、脱胶、翘曲变形、功能丧 失等。 2、天线与ONT的阻尼力无明显变化，天线与产品配合 的阻尼力可以保持天线在任意角度保持稳定； 低温存储 以1°C/min的速率降温至-30°C，在-30°C下保持24 小时；以…

Text truncated - open the document above for the full version.

No.：BCTC/RF-EMC-005 Page: 1 of 76 Edition：B.2 TEST REPORT Shenzhen BCTC Testing Co., Ltd. Report No.: BCTC2407256987E Applicant: Shenzhen Anycubic Technology Co.,Ltd Product Name: 3D Printer Test Model: Photon Mono 4 Ultra Tested Date: 2024-07-26 to 2024-09-02 Issued Date: 2024-09-02 Report No.: BCTC2407256987E No.：BCTC/RF-EMC-005 Page: 2 of 76 Edition：B.2 FCC ID: 2AXYK-MONO4ULTRA The test report is effective only with both signature and specialized stamp. This result(s) shown in this report refer only to the sample(s) tested. Without written approval of Shenzhen BCTC Testing Co., Ltd, this report can’t be reproduced except in full. The tested sample(s) and the sample information are provided by the client. Product Name: 3D Printer Trademark: ANYCUBIC Model/Type reference: Photon Mono 4 Ultra Anycubic Photon Mono 4 Ultra, Mono 4 Ultra Prepared For: Shenzhen Anycubic Technology Co.,Ltd Address: 12-13th floor, Building #3B, Vanke Times Square, No.85 Longcheng Avenue, Longcheng Street, Longgang District, Shenzhen, Guangdong Province, China Manufacturer: Shenzhen Anycubic Technology Co.,Ltd Address: 12-13th floor, Building #3B, Vanke Times Square, No.85 Longcheng Avenue, Longcheng Street, Longgang District, Shenzhen, Guangdong Province, China Prepared By: Shenzhen BCTC Testing Co., Ltd. Address: 1-2/F., Building B, Pengzhou Industrial Park, No.158, Fuyuan 1st Road, Zhancheng, Fuhai Subdistrict, Bao'an District, Shenzhen, Guangdong, China Sample Received Date: 2024-07-26 Sample tested Date: 2024-07-26 to 2024-09-02 Issue Date: 2024-09-02 Report No.: BCTC2407256987E Test Standards: FCC Part15.247 ANSI C63.10-2013 Test Results: PASS Remark: This is WIFI-2.4GHz band radio test report. Tested by: Approved by: Lei Chen/Project Handler Zero Zhou/Reviewer Report No.: BCTC2407256987E No.：BCTC/RF-EMC-005 Page: 3 of 76 Edition：B.2 Table Of Content Test Report Declaration Page 1. Version .................................................................................................................. 5 2. Test Summary ....................................................................................................... 6 3. Measurement Uncertainty ..................................................................................... 7 4. Product Information And Test Setup ..................................................................... 8 4.1 Product Information ............................................................................................... 8 4.2 Test Setup Configuration ...................................................................................... 8 4.3 Support Equipment ............................................................................................... 9 4.4 Channel List .......................................................................................................... 9 4.5 Test Mode ........................................................................................................... 10 4.6 Table Of Parameters Of Text Software Setting ................................................... 10 5. Test Facility And Test Instrument Used ............................................................... 11 5.1 Test Facility ......................................................................................................... 11 5.2 Test Instrument Used .......................................................................................... 11 6. Conducted Emissions .......................................................................................... 13 6.1 Block Diagram Of Test Setup .............................................................................. 13 6.2 Limit .................................................................................................................... 13 6.3 Test Procedure ................................................................................................... 13 6.4 EUT Operating Conditions .................................................................................. 13 6.5 Test Result .......................................................................................................... 14 7. Radiated Emissions ............................................................................................. 16 7.1 Block Diagram Of Test Setup .............................................................................. 16 7.2 Limit .................................................................................................................... 17 7.3 Test Procedure ................................................................................................... 18 7.4 EUT Operating Conditions .................................................................................. 19 7.5 Test Result .......................................................................................................... 19 8. Radiated Band Emission Measurement And Restricted Bands Of Operation ..... 26 8.1 Block Diagram Of Test Setup .............................................................................. 26 8.2 Limit .................................................................................................................... 26 8.3 Test Procedure ................................................................................................... 27 8.4 EUT operating Conditions ................................................................................... 27 8.5 Test Result .......................................................................................................... 28 9. Power Spectral Density Test ............................................................................... 30 9.1 Block Diagram Of Test Setup .............................................................................. 30 9.2 Limit .................................................................................................................... 30 9.3 Test Procedure .............................................…

Text truncated - open the document above for the full version.

Report No.: BCTC2407256987E No.：BCTC/RF-EMC-005 Page: 74 of 76 Edition：B.2 16. EUT Test Setup Photographs Conducted Emissions Photo Radiated Measurement Photos Report No.: BCTC2407256987E No.：BCTC/RF-EMC-005 Page: 75 of 76 Edition：B.2
