2AXZN-CARMEL15W Fast Wireless Charging Roller Car Phone Holder

15W Fast Wireless Charging Roller Car Phone Holder User Manual Arm clamp Reset button Charging Indicator Silicone roller 1.Rotate the chuck ball shaft to the charger to ensure that the charger can rotate flexibly 2.Input power supply: Connect the charging adapter and charging wire to the charger,adn the indicator light is to indicate that the charger start to work arger to e charg tate flexi bly 4.Push the reset button , the clamp will be released. Place phone in jaws and push the clamps until phone is held securely. 5.Place phone slantly. Push the other side of phone to the jaws along the roller 6.To remove phone, slightly push the right roller and easily take out phone along the roller (1) Fits for Qi standard mobile phones;(2) Support 15W fast charging , as well as 10W / 7.5W /5W wireless charging;(3) Push the reset button , and place phone in jaws slantly then push the clamps to hold the phone securely;(4) The arm clamp can be flexibly extended, so it is easy to hold different mobile phones;(5) Fixed the clip clamp at the air vent outlet of the car, it can be adjusted 360° in 360 degrees to the direction of your phone;(6) This wireless charger comes with over-current protection, overheat protection, short circuit protection;(7) Product certification: FCC, CE, ROHS Material:ABS + PCInput power:5V2A, 9V/2AOutput power:15W (Max) Effective Distance of Wireless Charging:3-6mm&RQYHUVLRQHIILFLHQF\VWDQGDUGFKDUJLQJ•IDVWFKDUJLQJ•Working frequency:110-205KHz Warranty instructions 12 months warranty from the day of purchase; Do not open or disassemble the product by yourself, it may cause damage to the product and invalidate your warranty service. FCC CautionThis device complies with part 15 of the FCC Rules. Operation is subj ect to the following two conditions: (1) This device may not cause harmful inte rference, and (2) this device must accept any interference received, including interf erence that may cause undesired operation.Any Changes or modifications not expressly approved by the party r esponsible for compliance could void the user's authority to operate the equipment. Note: This equipment has been tested and found to comply with the limi ts for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits ar e designed to provide reasonable protection against harmful interference in a reside ntial installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmfu l interference to radio communications. However, there is no guarantee that interfere nce will not occur in a particular installation. If this equipment does cause ha rmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:-Reorient or relocate the receiving antenna.-Increase the separation between the equipment and receiver.-Connect the equipment into an outlet on a circuit different from tha t to which the receiver is connected.-Consult the dealer or an experienced radio/TV technician for he lp. 5DGLDWLRQ([SRVXUH6WDWHPHQW7KLVHTXLSPHQWFRPSOLHVZLWK)&&UDGLDWLRQH[SRVXUH OLPLWVVHWIRUWKIRUDQ XQFRQWUROOHGHQYLURQPHQW7KLVHTXLSPHQWVKRXOGEH LQVWDOOHGDQGRSHUDWHGZLWK PLQLPXPGLVWDQFHFPEHWZHHQWKHUDGLDWRUDQG\RXU ERG\ 7KLVWUDQVPLWWHUPXVWQRWEHFRORFDWHGRURSHUDWLQ JLQFRQMXQFWLRQZLWKDQ\RWKHU DQWHQQDRUWUDQVPLWWHU

C5266091_X8_Ed.1 1/1 Letter of Authorization VICXXO GROUP LIMITED Company: VICXXO GROUP LIMITED Address: B-1803, 606, Seobusaet-gil, Geumcheon-gu, Seoul, Korea Product Name: 15W Fast Wireless Charging Roller Car Phone Holder Model Number: CARMEL_CW1 FCC Identifier: 2AXZN-CARMEL We authorize LGAI Technological Center S.A., Ronda de la Font del Carme, s/n, 08193 Bellaterra, Spain, to act on our behalf on all matters concerning the above named equipment. Any individual within LGAI Technological Center S.A. is authorized to act on our behalf and take action on the application. We declare that authorize LGAI Technological Center S.A., Ronda de la Font del Carme, s/n, 08193 Bellaterra, Spain, is allowed to forward all information related to the approval project to the Federal Communication Commission and to discuss any issues concerning the approval application. Any and all acts carried out by LGAI Technological Center S.A. on our behalf shall have the same effect as acts of our own. Name: Cui Guoxian Date: Oct.29.2020 Title: Manager Signature of applicant:

C5266091_X10_Ed.2 1/1 VICXXO GROUP LIMITED Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 Date: Oct.29.2020 Subject: 15W Fast Wireless Charging Roller Car Phone Holder FCC ID: 2AXZN-CARMEL To Whom It May Concern, Pursuant to the provisions of Sections 0.457 and 0.459 of Commission's rules (47CFR0.457, 0.459), we are requesting the Commission to withhold the following attachment(s) as confidential document from public disclosure. Exhibits Long-Term Confidentiality Short-Term Confidentiality NOTE 2 ID Label/Location No No Attestation Statement No No External Photos No ☐ Block Diagram ☒ ☐ Schematics ☒ ☐ Test Report No No Test Setup Photos No ☐ User’s Manual ☐ NOTE 1 ☐ Internal Photos ☐ NOTE 1 ☐ Parts List / Tune Up ☐ ☐ RF Exposure Info No No Operational Description ☒ ☐ Cover Letter(s) No No SDR Software / Security Info ☐ No NOTE 1: Long-Term Confidentiality may be permitted under special conditions (See II. LONG-TERM CONFIDENTIALITY, Section 3 of KDB 726920, use last in force) NOTE 2: Short-Term Confidentiality can be requested for a maximum of 180 days from the date of the grant. Above mentioned document contains detailed system and equipment description are considered as proprietary information in operation of the equipment. The public disclosure of above documents might be harmful to our company and would give competitor an unfair advantage in the market. In case of short-term Confidentiality, the applicant requests the exhibits selected above are withheld from public view for a period of ____45 __ days from the date of the Grant of Equipment Authorization and prior to marketing. It is our understanding that all measurement test reports, FCC ID label format and correspondent during certification review process cannot be granted as confidential documents and those information will be available for public review once the grant of equipment authorization is issued. C5266091_X10_Ed.2 1/1 Sincerely, Signature: Name: Cui Guoxian Title: Manage

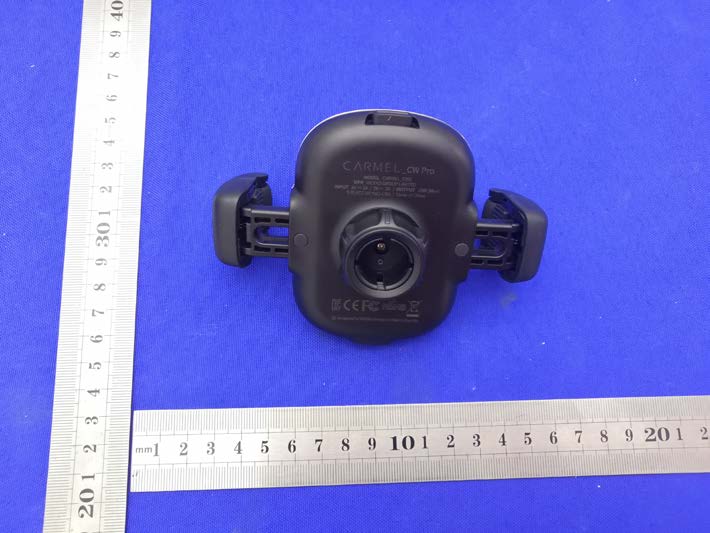

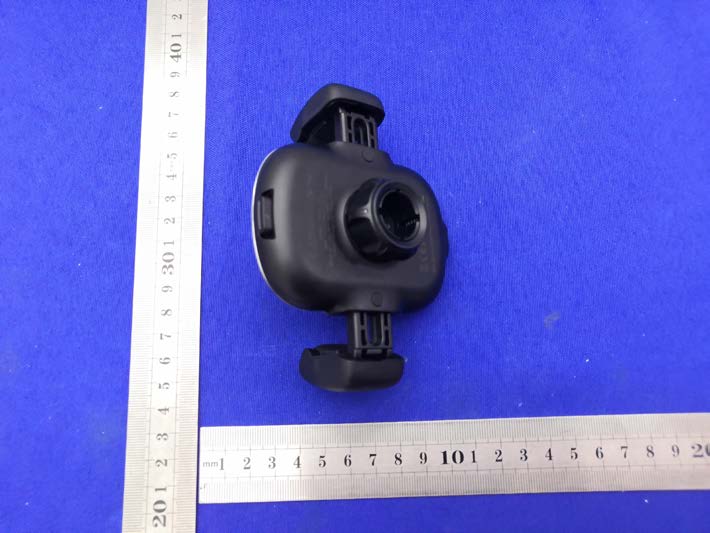

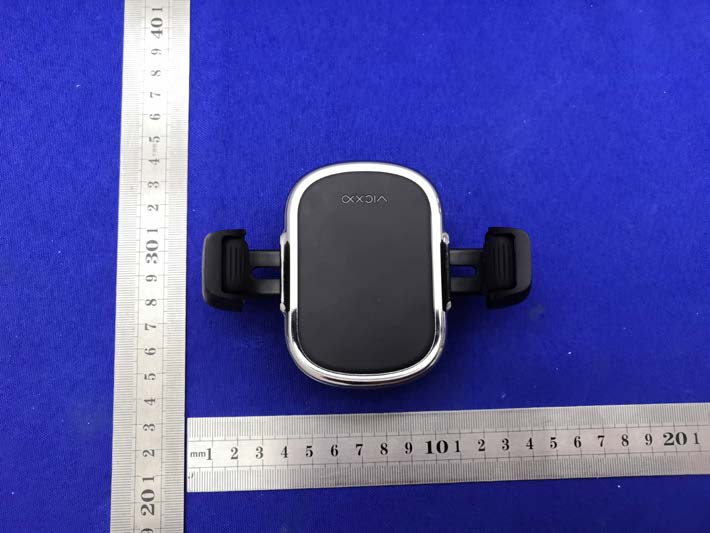

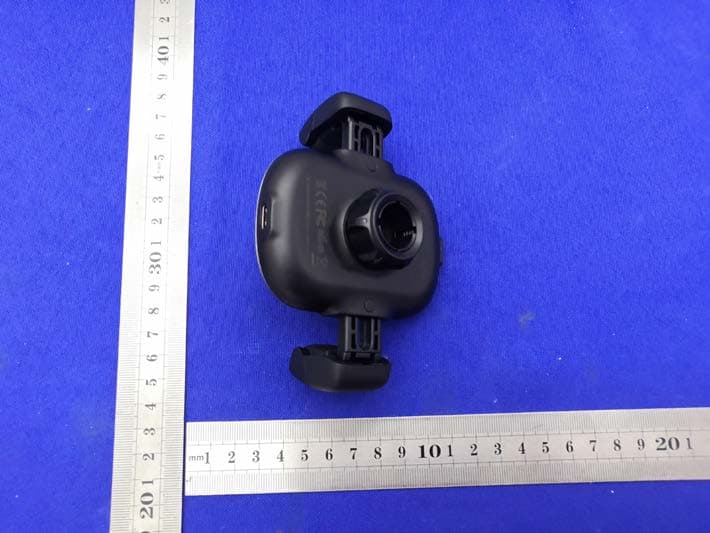

External Photos FCC ID: 2AXZN-CA RMEL

Model: CARMEL_CW1 FCC ID: 2AXZN-CARMEL Label Location

Internal Photos FCC ID: 2AXZN-CARMEL ANT GPM8F3331A

Shenzhen CTB Testing Technology Co., Ltd. Report No.: CTB201028042RFX RF EXPOSURE REPORT Compiled by: Reviewed by: Approved by: Arron Liu Bin Mei Rita Xiao / Director The test report is effective only with both signature and specialized stamp. This result(s) shown in this report refer only to the sample(s) tested. Without written approval of Shenzhen CTB Testing Technology Co., Ltd. this report can’t be reproduced except in full. The tested sample(s) and the sample information are provided by the client. Product Name: 15W Fast Wireless Charging Roller Car Phone Holder FCC ID: 2AXZN-CARMEL Trademark: N/A Model Number: CARMEL_CW1 Prepared For: VICXXO GROUP LIMITED Address: B- 1803, 606, Seobusaet-gil, Geumcheon-gu, Seoul, Korea Manufacturer: Dongguan Lingyi Technology Co., Ltd Address: No.3 Chuangxin Road, Qinghutou, Tangxia, Dongguan, Guangdong, China Prepared By: Shenzhen CTB Testing Technology Co., Ltd. Address: Floor 1&2, Building A, No. 26 of Xinhe Road, Xinqiao Community, Xinqiao Street, Baoan District, Shenzhen, Guangdong China Sample Received Date: Oct. 26, 2020 Sample tested Date: Oct. 26, 2020 to Oct. 27, 2020 Issue Date: Oct. 27, 2020 Report No.: CTB201028042RFX Test Standards FCC CFR 47 part1, 1.1307(b), 1.1310 47 CFR§2.1091; 47 CFR§2.1093 Test Results PASS Remark: This is wireless charger EMF report. EMF Report Te l : 4008-707-283 Web: http://www.ctb-lab.net Page1 of 7 Shenzhen CTB Testing Technology Co., Ltd. Report No.: CTB201028042RFX Table of Contents Page 1 . GENERAL INFORMATION 3 1.1 . Independent Operation Mode 3 1.2 . Test Supporting System 3 2 .LIST OF T EST AND MEASUREMENT I NSTRUMENTS 4 2.1 . For conducted emission at the mains terminals test 4 3. METHOD OF MEASUREMENT 5 3. 1.Applicable Standard 5 4. TEST RESULT 5 4.1. Conducted Emission at the Mains Terminals Test 5 4.2. Equipment Approval Considerations: 6 4.3. E and H field Strength 6 EMF Report Te l : 4008-707-283 Web: http://www.ctb-lab.net Page2 of 7 Shenzhen CTB Testing Technology Co., Ltd. Report No.: CTB201028042RFX 1. GENERAL INFORMATION 1.1. Independent Operation Mode The basic operation mode is: 1.1.1. wireless charger power: 15 W 1.2. Test Supporting System Adapter Description : Adapter Model No. : HKA03612030-7B Power Input : AC100-240V~ 1.0A 50/60Hz Output: 5V 2.0A， 9V 2.0A DC Line : Unshielded, Detachable 0.2m EMF Report Te l : 4008-707-283 Web: http://www.ctb-lab.net Page3 of 7 Shenzhen CTB Testing Technology Co., Ltd. Report No.: CTB201028042RFX 2.LIST OF T EST AND MEASUREMENT I NSTRUMENTS 2.1. For conducted emission at the mains terminals test Item Equipment Brand Model No. Frequency Range Last calibration Calibrated until 1 Broadband Field Meter NARDA NBM-550 - Nov. 02, 2019 Nov. 01, 2020 2 Magnetic Field Meter NARDA ELT-400 1 – 400kHz Nov. 02, 2019 Nov. 01, 2020 3 Magnetic Probe NARDA HF-3061 300kHz – 30MHz Nov. 02, 2019 Nov. 01, 2020 4 Magnetic Probe NARDA HF-0191 27 – 1000MHz Nov. 02, 2019 Nov. 01, 2020 5 Broadband Field Meter NARDA NBM-550 - Nov. 02, 2019 Nov. 01, 2020 6 Electric Field Meter COMBINOV A EFM 200 5Hz – 400kHz Nov. 02, 2019 Nov. 01, 2020 7 E-Field Probe NARDA EF-0391 100kHz – 3GHz Nov. 02, 2019 Nov. 01, 2020 8 E-Field Probe NARDA EF-6091 100MHz – 60GHz Nov. 02, 2019 Nov. 01, 2020 EMF Report Te l : 4008-707-283 Web: http://www.ctb-lab.net Page4 of 7 Shenzhen CTB Testing Technology Co., Ltd. Report No.: CTB201028042RFX 3. METHOD OF MEASUREMENT 3. 1.Applicable Standard According to §1.1307(b)(1), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. According to §1.1310 and §2.1093 RF exposure is calculated. According KDB680106 D01v03: RF Exposure Wireless Charging Apps v02. 4. TEST RESULT 4.1. Conducted Emission at the Mains Terminals Test Note: Measurements should be made from all sides and the top of the primary/client pair, with the 15 cm measured from the center of the probe(s) to the edge of the device Test Procedure: a) The RF exposure test was performed on 360 degree turn table in anechoic chamber. b) The measurement probe was placed at test distance (15cm) which is between the edge of the charger and the geometric centre of probe. c) The turn table was rotated 360d degree to search of highest strength. d) The highest emission level was recorded and compared with limit as soon as measurement of each points were completed. e) The EUT were measured according to the dictates of KDB 680106D01v03. EMF Report Te l : 4008-707-283 Web: http://www.ctb-lab.net Page5 of 7 Shenzhen CTB Testing Technology Co., Ltd. Report No.: CTB201028042RFX 4.2. Equipment Approval Considerations: The EUT does comply with item 5(b) of KDB 680106 D01v03 1) Power transfer frequency is less than 1MHz Ye s , the device operate in the frequency range from 110 KHz to 205 KHz 2) Output power from each primary coil is less than or equal to 15 watts. Ye s , the maximum output power of the primary coil is 15W. 3) The transfer system includes only single primary and secondary coils. This includes charging systems that may have multiple primary coils and clients that able to detect and allow coupling onlybetween individual pair of coils. Ye s , the transfer system includes only single primary and secondary coils. 4) Client device is inserted in or placed directly in contact with the transmitter. Ye s , client device is placed directly in contact with the transmitter. 5) Mobile exposure conditions only (portable exposure conditions are not covered by this exclusion). Ye s , the EUT is a Mobile Wireless Charger 6) The aggregate H-field strengths at 15 cm surrounding the device and 20 cm above the top surface from all simultaneous transmitting coils are demonstrated to be less than 50% of the MPE limit. Ye s , the EUT field strength levels are 50% x MPE limit. 4.3. E and H field Strength EMF Report Te l : 4008-707-283 Web: http://www.ctb-lab.net Page6 of 7 Shenzhen CTB Te…

Text truncated - open the document above for the full version.

Shenzhen CTB Testing Technology Co., Ltd. Report No.: CTB201028041RFX Report Te l : 4008-707-283 Web: http://www.ctb-lab.net Page 1 of 22 TEST REPORT Compiled by: Reviewed by: Approved by: Arron Liu Bin Mei Rita Xiao / Director The test report is effective only with both signature and specialized stamp. This result(s) shown in this report refer only to the sample(s) tested. Without written approval of Shenzhen CTB Testing Technology Co., Ltd. this report can’t be reproduced except in full. The tested sample(s) and the sample information are provided by the client. Product Name: 15W Fast Wireless Charging Roller Car Phone Holder FCC ID: 2AXZN-CARMEL Trademark: N/A Model Number: CARMEL_CW1 Prepared For: VICXXO GROUP LIMITED Address: B- 1803, 606, Seobusaet-gil, Geumcheon-gu, Seoul, Korea Manufacturer: Dongguan Lingyi Technology Co., Ltd Address: No.3 Chuangxin Road, Qinghutou, Tangxia, Dongguan, Guangdong, China Prepared By: Shenzhen CTB Testing Technology Co., Ltd. Address: Floor 1&2, Building A, No. 26 of Xinhe Road, Xinqiao Community, Xinqiao Street, Baoan District, Shenzhen, Guangdong China Sample Received Date: Oct. 26, 2020 Sample tested Date: Oct. 26, 2020 to Oct. 27, 2020 Issue Date: Oct. 27, 2020 Report No.: CTB201028041RFX Test Standards FCC Part 15 C Test Results PASS Remark: This is wireless charger radio test report. Shenzhen CTB Testing Technology Co., Ltd. Report No.: CTB201028041RFX Report Te l : 4008-707-283 Web: http://www.ctb-lab.net Page 2 of 22 TABLE OF CONTENTS 1. GENERAL INFORMATION ........................................................................................................ 3 1.1. Report information .......................................................................................................................... 3 1.2. Measurement Uncertainty .............................................................................................................. 3 1.3. Test Facility ...................................................................................................................................... 3 1.4. Test Uncertainty .............................................................................................................................. 4 2. PRODUCT DESCRIPTION ......................................................................................................... 5 2.1. EUT Description .............................................................................................................................. 5 2.2. Block Diagram of EUT Configuration ........................................................................................... 5 2.3. Test Conditions ................................................................................................................................ 5 2.4. Description Of Support Units (Conducted Mode) ....................................................................... 6 3. TEST RESULTS SUMMARY ..................................................................................................... 6 4. TEST EQUIPMENT USED .......................................................................................................... 7 4.1. MEASUREMENT INSTRUMENTS LIST ..................................................................................... 7 5. CONDUCTED EMISSION TEST ................................................................................................ 9 5.1. Block Diagram of Test Setup......................................................................................................... 9 5.2. Test Standard .................................................................................................................................. 9 5.3. Conducted Emission Limit ............................................................................................................. 9 5.4. EUT Configuration on Test ............................................................................................................ 9 5.5. Operating Condition of EUT ........................................................................................................ 10 5.6. Test Procedure .............................................................................................................................. 10 5.7. Test Result ..................................................................................................................................... 10 6. RADIATED EMISSION MEASUREMENT ............................................................................. 13 6.1. Block Diagram of Test Setup....................................................................................................... 13 6.2. Test Standard ................................................................................................................................ 14 6.3. EMI Test Receiver Setup ............................................................................................................. 14 6.4. Test Procedure .............................................................................................................................. 14 6.5. Test Result ..................................................................................................................................... 14 7. OCCUPIED BANDWIDTH ........................................................................................................ 18 7.1. Block Diagram of Test Setup....................................................................................................... 18 7.2. Rules and specifications .............................................................................................................. 18 7.3. Test Procedure .............................................................................................................................. 18 7.4. Test Result ....................................................................................................................…

Text truncated - open the document above for the full version.

Radiated Emission Conducted Measurement Photos Radiated Measurement Photos 30MHz-1GHz FCC ID: 2AXZN-CA RMEL 9KHz-30MHz EMF
