Ampster BT II Mini stereo amplifier User’s manual Brugermanual Mode d’emploi Bedienungsanleitung Bruksanvisning Käyttöopas Manual del usuario Brukermanual FCC Warnings This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Any Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -Reorient or relocate the receiving antenna. -Increase the separation between the equipment and receiver. -Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -Consult the dealer or an experienced radio/TV technician for help. This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body. IC WARNING This radio transmitter has been approved by Industry Canada. This Class B digital apparatus complies with Canadian standard ICES-003. This device complies with Industry Canada License exempt RSS standard(s). Operation is subject to the following two conditions. This device may not cause interference and (2) this device must accept any interference, including interference that may cause undesired operation of the device. This equipment complies with ISED radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body. Industrie Canada (IC) Le présent appareil est conforme aux CNR d’Industrie Canada applicablesaux appareils radio exempts de licence. L’exploitation est autorisée aux deux conditions suivantes: (1) l’appareil ne doit pas produire de brouillage, et (2) l’utilisateur de l’appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d’en compromettre le fonctionnement.AVIS RELATIFS À L’EXPOSITION RF Cet équipement est conforme aux limites d'exposition au rayonnement ISED établies pour un environnement non contrôlé. Cet équipement doit être installé et utilisé à une distance minimale de 20 cm entre le radiateur et votre corps. Amplifier: 1. Power Indicator 2. Bluetooth Indicator 3. OPT Indicator 4. Line In Indicator 5. AUX Indicator 6. Remote Sensor 7. Volume Knob/Input Selector 8. Antenna 9. RCA L/R Input 10. SUB Out 11. AUX In 12. Optical Input 13. Speaker Output - L/R 14. Speaker Output + L/R 15. Power Input 16. On/Off Switch 17. External IR 18. USB Charge 5VDC/1A Including in the package: Remote Control Instruction Manual (UK) 12345 6 7 8 910 11 12 18 13 14 15 16 17 8 1. On/Off Button 2. Optical Source (CD) 3. Volume +/- 4.Previous/Next (BT/CD mode) 5. Line In Source (TUNER) 6. Play/Pause (BT/CD mode) 7. AUX Source 8. Preset 1-6 9. Bluetooth Source 1. Connect the power cord to the back of the amplifier then connect it to a wall outlet. 2. Connect your devices to the desired input. 3. Turn the power button to the On position, after two seconds the unit will enter working status and the input indicator will lit up. 4. Press the Bluetooth, OPT, LINE or AUX button on the remote or the volume knob to choose the desired audio source. Control the playback via the remote control by pressing the buttons. Note: The amplifier will shut off automatically if the temperature exceeds 85°C, to indicate this the Power indicator will turn orange. The amplifier will re-start automatically when the temperature has dropped below 60±10°C. Bluetooth Pairing: 1. Press the Bluetooth on the remote (or push the selector button) to activate the Bluetooth source. 2. Activate Bluetooth on your phone/tablet and start searching for new Bluetooth devices. 3. When y our phone/tablet finds the Tangent Ampster B T II, choose this unit and begin pairing up. (You can force the Ampster into pairing mode, with long press on BT) Remote control: Connect: (UK) 4 5 1 3 2 9 7 8 6 Connect Your Device: Connect your loudspeakers to the Speaker Output. Make sure you connect the -/+ and the L/R cables to the correct input. Connect your subwoofer to SUB out. Connect a CD player or other device via its RCA cable to the RCA L/R input. Make sure you connect the “L” plug to the left input channel and the “R“ plug to the right input channel. Connect your phone/tablet/MP3 via an AUX cable to AUX Input. Use the optical input by connecting a device using a optical fiber cable to the Optical Input. Note: Remember to change into the desired source on the amplifier. (UK) 8 EQ Setting: Increase treble: Long press (2-3sec) on Play/Pause increase with 2dB each time. (max.8dB) Decrease treble: Long press (2-3sec) on Skip backwards decrease with 2dB each time. (max.8dB) Increase bass: Long press (2-3sec) on Stop increase with 2dB each time. (max.8dB) Decrease bass: Long press (2-3sec) on Skip forward decrease with 2dB each time. (max.8dB) Reset EQ: Long press (2-3sec) on Enter will reset the EQ settings. We recommend that EQ adjustments is d…

Text truncated - open the document above for the full version.

FCC ID:2AY2I-TANAMPIIBT IC:27035-TANAMPIIBT FCC ID:2AY2I-TANAMPIIBT IC:27035-TANAMPIIBT FCC ID:2AY2I-TANAMPIIBT IC:27035-TANAMPIIBT BTAnt FCC ID:2AY2I-TANAMPIIBT IC:27035-TANAMPIIBT

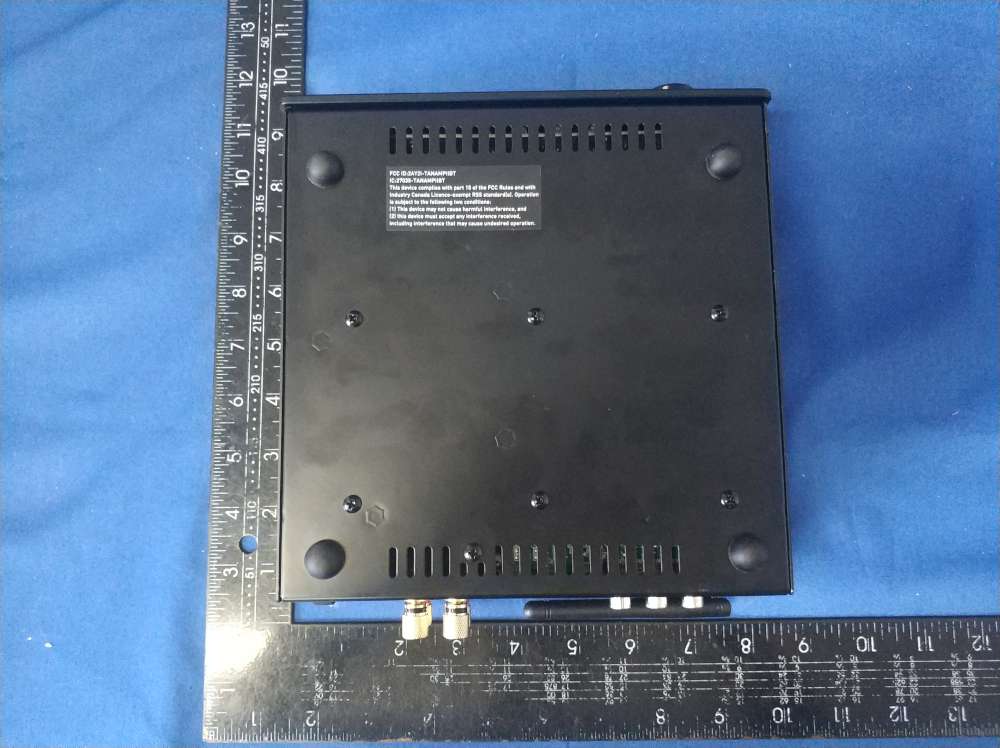

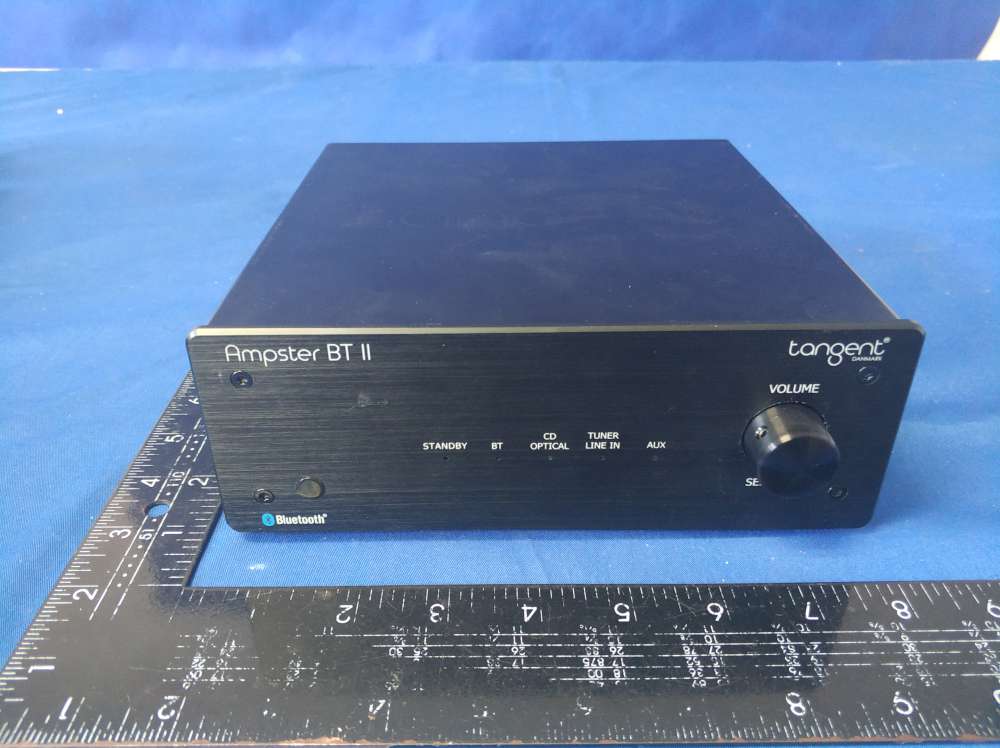

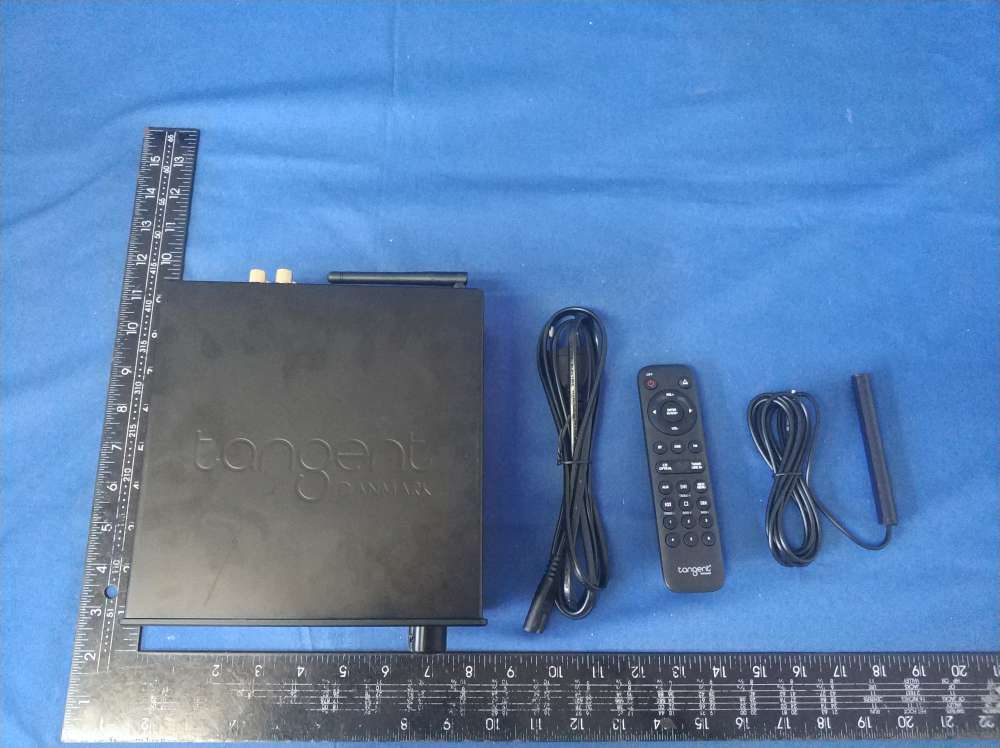

FCC ID:2AY2I-TANAMPIIBT IC:27035-TANAMPIIBT FCC ID:2AY2I-TANAMPIIBT IC:27035-TANAMPIIBT FCC ID:2AY2I-TANAMPIIBT IC:27035-TANAMPIIBT FCC ID:2AY2I-TANAMPIIBT IC:27035-TANAMPIIBT FCC ID:2AY2I-TANAMPIIBT IC:27035-TANAMPIIBT

RF Exposure evaluation Exposure category: General population/uncontrolled environment EUT Type: Production Unit Device Type: Mobile Device Refer Standard: KDB 447498 D01 General RF Exposure Guidance v06 FCC Part 2 §2.1091 FCC ID: 2AY2I-TANAMPIIBT 1. Reference According to §1.1307(b)(1), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. According to §1.1310 and §2.1091 RF exposure is calculated. KDB447498 D01: Mobile and Portable Devices RF Exposure Procedures and Equipment Authorization Policies 2. Limit Limits for Maximum Permissible Exposure (MPE)/Controlled Exposure Frequency Range(MHz) Electric Field Strength(V/m) Magnetic Field Strength(A/m) Power Density (mW/cm²) Averaging Time (minute) Limits for Occupational/Controlled Exposure 0.3 – 3.0 614 1.63 (100) * 6 3.0 – 30 1842/f 4.89/f (900/f 2 )* 6 30 – 300 61.4 0.163 1.0 6 300 – 1500 / / f/300 6 1500 – 100,000 / / 5 6 Limits for Maximum Permissible Exposure (MPE)/Uncontrolled Exposure Frequency Range(MHz) Electric Field Strength(V/m) Magnetic Field Strength(A/m) Power Density (mW/cm²) Averaging Time (minute) Limits for Occupational/Controlled Exposure 0.3 – 3.0 614 1.63 (100) * 30 3.0 – 30 824/f 2.19/f (180/f 2 )* 30 30 – 300 27.5 0.073 0.2 30 300 – 1500 / / f/1500 30 1500 – 100,000 / / 1.0 30 F=frequency in MHz *=Plane-wave equivalent power density 3. MPE Calculation Method Predication of MPE limit at a given distance Equation from page 18 of OET Bulletin 65, Edition 97-01 S=PG/4πR² Where: S=power density P=power input to antenna G=power gain of the antenna in the direction of interest relative to an isotropic radiator R=distance to the center of radiation of the antenna 4. Result As declared by the Applicant, the EUT is a wireless device used in a fix application, at least 20 cm from any body part of the user or nearby persons; from the maximum EUT RF output power, the minimum separation distance, r =20cm, as well as the gain of the used BT antenna is 2 Bi, the RF power density can be obtained. EDR Freq. (MHz) Output Power (dBm) Target power W/ tolerance (dBm) Max tune up power tolerance (dBm) Output power to antenna (mW) Ant Gain (dBi) Power Density at R=20cm (mW/cm2) Limit (mW/c m2) Result GFSK 2402 -0.512 0±1.0 1 1.259 2 0.00040 1 Pass 2440 -1.724 -1±1.0 0 1.000 2 0.00032 1 Pass 2480 -0.609 0±1.0 1 1.259 2 0.00040 1 Pass π/4DQPSK 2402 -1.496 -1±1.0 0 1.000 2 0.00032 1 Pass 2440 -1.989 -1±1.0 0 1.000 2 0.00032 1 Pass 2480 -2.504 -2±1.0 -1 0.794 2 0.00025 1 Pass 8DPSK 2402 -2.254 -2±1.0 -1 0.794 2 0.00025 1 Pass 2440 -1.885 -1±1.0 0 1.000 2 0.00032 1 Pass 2480 -2.868 -2±1.0 -1 0.794 2 0.00025 1 Pass Note: The estimation distance is 20cm 5. Conclusion The measurement results comply with the FCC Limit per 47 CFR 2.1091 for the uncontrolled RF Exposure of mobile device.

Project No.: ZKT-210420L1374E Page 1 of 69 FCC TEST REPORT FCC ID:2AY2I-TANAMPIIBT IC:27035-TANAMPIIBT Report Number. .................................... : ZKT-210420L1374E Date of Test ............................................ Mar. 20, 2021 to Apr. 20, 2021 Date of issue ......................................... : Apr. 22, 2021 Total number of pages.........................69 Test Result .......................................... : PASS Testing Laboratory. .............................. : Shenzhen ZKT Technology Co., Ltd. Address ............................................... : 1/F, No. 101, Building B, No. 6, Tangwei Community Industrial Avenue, Fuhai Street, Bao'an District, Shenzhen, China Applicant's name ................................ : AV Industry Address ............................................... : 314 RUE DU PROFESSEUR PAUL MILLIEZ, ZA DES NATIONS, 94500 CHAMPIGNY SUR MARNE CEDEX - FRANCE Manufacturer's name ......................... : Vistron (Dong Guan) Audio Equipment Co., Ltd Address ............................................... : NO.17 Ji Cai Street, Song Gang District, Qing Xi Town, Dong Guan City, Guang Dong Province, China. Test specification: Standard ................................................ : FCC CFR Title 47 Part 15 Subpart C Section 15.247 RSS-247 Issue 2: February 2017 RSS-GEN, Issue 5: March 2019 ANSI C63.10:2013 Test procedure ..................................... : / Non-standard test method ................ :N/A Test Report Form No. ....................... : TRF-EL-112_V0 Test Report Form(s) Originator ..... : ZKT Testing Master TRF ........................................ : Dated: 2021-04-22 This device described above has been tested by ZKT, and the test results show that the equipment under test (EUT) is in compliance with the FCC requirements. And it is applicable only to the tested sample identified in the report. This report shall not be reproduced except in full, without the written approval of ZKT, this document may be altered or revised by ZKT, personal only, and shall be noted in the revision of the document. Product name ....................................... : Power amplifier Trademark ........................................... : Tangent Model/Type reference ......................... : Tangent Ampster BT II Ratings .................................................. : AC 100-240V, 50/60Hz Project No.: ZKT-210420L1374E Page 2 of 69 Testing procedure and testing location: Testing Laboratory .......................................... : Shenzhen ZKT Technology Co., Ltd. Address ............................................................ : 1/F, No. 101, Building B, No. 6, Tangwei Community Industrial Avenue, Fuhai Street, Bao'an District, Shenzhen, China Alen He Tested by (name + signature) ....................... : Joe Liu Reviewer (name + signature).......................: Lake Xie Approved (name + signature) ....................... : Project No.: ZKT-210420L1374E Page 3 of 69 Table of Contents Page 1. VERSION ............................................................................................................................ 5 2. TEST SUMMARY .............................................................................................................. 6 2.1 TEST FACILITY ............................................................................................................... 7 2.2 MEASUREMENT UNCERTAINTY ............................................................................... 7 3. GENERAL INFORMATION ............................................................................................. 8 3.1 GENERAL DESCRIPTION OF EUT ............................................................................ 8 3.2 Test Setup Configuration ............................................................................................... 9 3.3 Support Equipment ......................................................................................................... 9 3.4 Test Mode ....................................................................................................................... 10 3.5 EQUIPMENTS LIST FOR ALL TEST ITEMS ........................................................... 11 4.EMCEMISSIONTEST ................................................................................................... 12 4.1 Conducted emissions ................................................................................................... 12 4.1.1 POWER LINE CONDUCTED EMISSION Limits .................................................. 12 4.1.2 TEST PROCEDURE ................................................................................................. 12 4.1.3 DEVIATION FROM TEST STANDARD ................................................................. 12 4.1.4 TEST SETUP .............................................................................................................. 13 4.1.5 EUT OPERATING CONDITIONS ........................................................................... 13 4.1.6 Test Result .................................................................................................................. 14 4.2 Radiated emissions ....................................................................................................... 16 4.2.1 Radiated Emission Limits ......................................................................................... 16 4.2.2 TEST PROCEDURE ................................................................................................. 16 4.2.3 DEVIATION FROM TEST STANDARD ................................................................. 17 4.2.4 TEST SETUP .............................................................................................................. 17 4.2.5 EUT OPERATING CONDITIONS ........................................................................... 18 4.2.6 TEST RESULTS ..................................................................…

Text truncated - open the document above for the full version.

FCCID:2AY2I-TANAMPIIBT IC:27035-TANAMPIIBT RadiatedEmission (Below1G) RadiatedEmission (Above1G) ConductedEmission
