2AY3ETZ-815Remote dog training collar

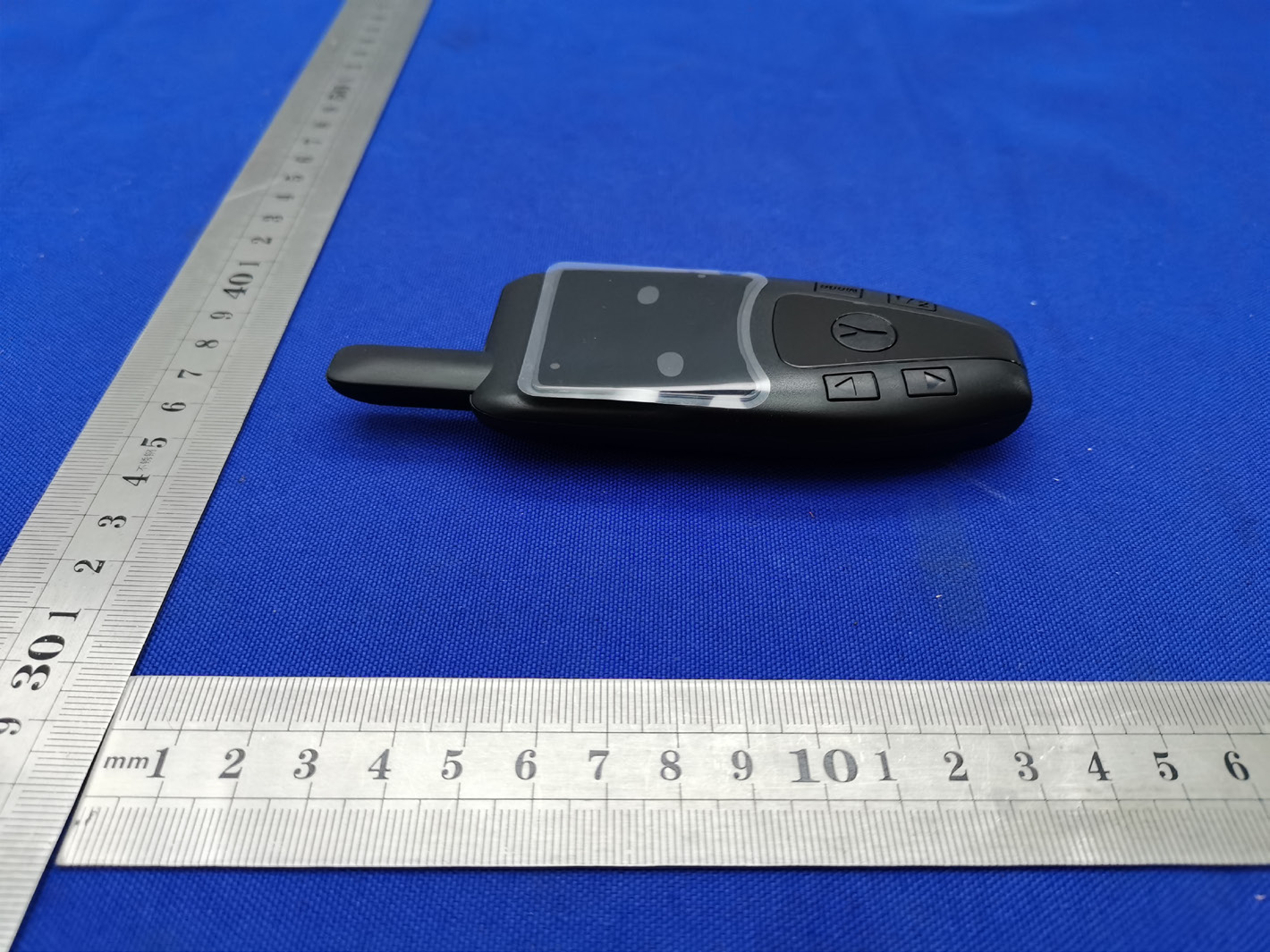

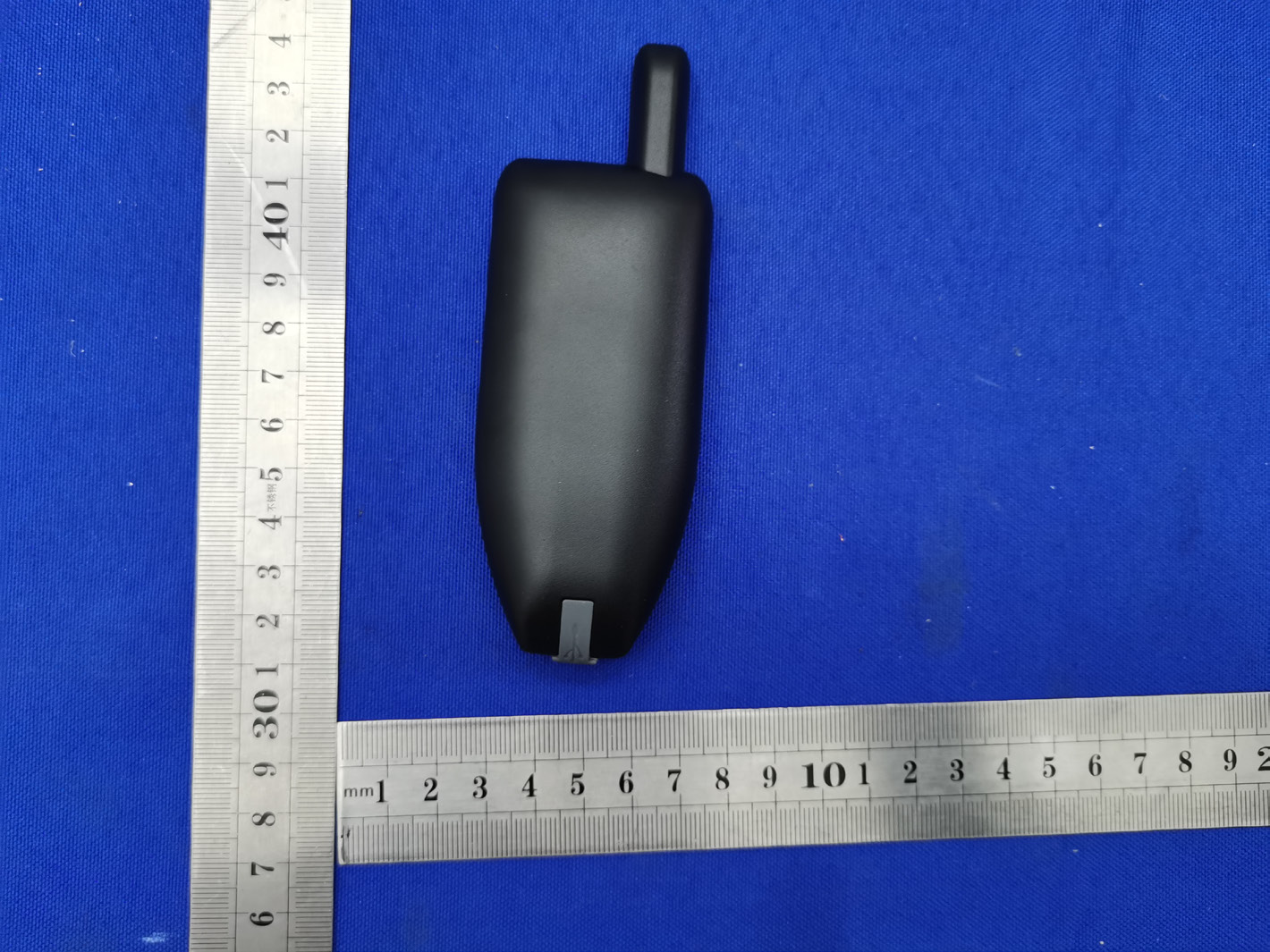

TZ-815 1 Key Definition 1.LED screen 2.Launch button 3.Up button ① ② ③ ④ ⑤ 1.LED Screen: Beep mode: When this symbol is displayed, press the Y button to activate a Beep tone on the Receiving Collar. Vibration Mode: when this symbol is displayed, press the Y button to activate Vibration. Use the Up/ Down buttons to adjust the intensity of the vibration from 1 to 9. Static Shock Mode: when this symbol is displayed, press the Y button to activate Static Shock. Use the Up/ Down buttons to adjust the intensity of the shock from 1 to 9. 6 2.Up/ Down buttons: they are used to adjust the Intensity of the Vibration or Shock from the lowest level 1 to the highest level 9. 3. Collar button: press this button to change between the 1st and 2nd Receiving Collar (if applicable). 4.Launch button: when you have finished choosing the correct mode, press the launch button to start. 5.Mode button: use this button to select mode among Beep, Vibration or Static Shock. 6.Charging port: plug the USB charging cable into the port to charge the Remote Transmitter. *Operating Frequency: RF433 MHZ 3.7V 250mAh for the Receiving Collar * Contact points: 2 pairs of metal contacts to be chosen to suit the length of your dog's hair. * Mini Spanner: a tool to screw/unscrew contact points on the electrodes. On/O Button (Press 1 Sec.) Encode Button (Press 3 Sec. Green indicator led flash, meanwhile press Y button on Transmitter,then Green led is steady on) Contact Points: Deliver vibration / safe static correction Charging port: Charge the Receiving Collar Indicator light 78 Features 1. Rechargeable Remote Transmitter 2. Rechargeable and Waterproof Receiving Collar 3. 1000 feet remote control range between Remote Transmitter and Receiving Collar. 4. Beep Mode activates a correcting tone on the Receiving Collar 5. Adjustable vibration intensity level from 1-9 level 6. Adjustable static shock intensity level from 1-9 level (optional) The Receiving Collar will go into Standby Mode if it’s idle for more than 5 mins. Any movements will activate the Receiving Collar. The Transmitter will go into Standby Mode ( will be light o with 30s, will be light o with 1min). Press any button to re-activate it from Standby mode. 8. The Remote Transmitter can be used to control up to 2 Receiving Collars. 9. 2 pairs of metal contacts (1 short and 1 long) are included to suit the length of your dog’s hair. How does the Rechargeable and Waterproof Dog Training Collar Work The Rechargeable and Waterproof Training Collar has been proven to be a safe, comfortable, and eective training system for all dogs weighing over 15lbs. This system allows you to control your dog within a range up to 1000 feet. At the press of a button, the Remote Transmitter sends signal to the Receiving Collar and activates a Beep, a Vibration or a Static Shock correction output. By using the Training Collar properly, you can correct much of your dog’s undesired behavior and teach basic and advanced obedience commands. Important: the Training Collar has an eective range up to . 1000 feet Hold the Remote Transmitter horizontally away from your body to achieve the optimum range. Terrain features, weather, vegetation, transmission from other radio devices and other factors may aect the range of the Remote Transmitter. 3 Rechargeable and Waterproof Remote Dog Training Collar Operation Guide Please read the entire guide before using Precautions CAUTION DO NOT use this product for aggressive dogs or vicious animals. Risk of skin damage. It’ s important to fit the collar properly. A collar that is fitted too tightly or worn for too long may harm your dog’s skin. This condition, which ranges from redness to pressure ulcers, is commonly known as bed sores. Do not let your dog wear the collar for more than 12 hours per 24-hour period. If possible, gently reposition the collar on your dog’s neck every 1 or 2 hours. Never attach a lead to the Receiver Collar, as this would cause excessive pressure on the contact points. When using a separate collar to connect a leash, please ensure that it does not put excessive pressure on the electronic collar. Examine your dog’s neck daily for signs of chafing or soreness. If a rash or sore is found, stop using the collar till the injured skin has been healed. If the condition persists for more than 48 hours, consult your veterinarian. If possible, please use the Beep Mode or Vibration Mode at first, then can try Static shock function. 4 Thanks for choosing the Rechargeable and Waterproof Remote Dog Training Collar. Our mission is to provide you with the safe tools and techniques to train your dog. 2 Features 3How Does the Rechargeable and Waterproof Training Collar Work 4 Precautions 5 Components 6 Key Definition 8 Operation Guide Step 1 Preparing the Remote Transmitter Step 2 Preparing the Receiving Collar Step 3 Encoding the Remote Transmitter and Receiving Collar Step 4 Testing the Rechargeable and Waterproof Training Collar Step 5Fitting the Receiving Collar to your dog 12 Frequently Asked Questions 14 General Tips for Training Your Dog 15 Common Weights of Dierent Dog Breeds Contents Components 5 Remote TransmitterAdapter USB Charging Cable Test Light Receiving Collar Mini Spanner Contact Points TZ-815 ⑥ Please ensure that you charge both the Receiving collar and the Remote Transmitter before using! Dog 1 Dog 2 *Lithium battery: 3.7V 250mAh for the Remote Transmitter 2 Step Preparing the Receiving Collar: Charging the Receiving Collar 1. Remove the rubber cover and plug the USB Charging Cable into the charging port. 2. Plug the Adapter into a standard outlet. 3. The red LED will keep lighting when the Receiving Collar is charging. 4. The green LED will be lighting once it's fully charged with 1.5 hours. 5. Remove the Charging Cable, and put back the rubber cover. 7. Power saving modes: 1 Step Operation Guide Preparing the Remote Transmitter: Charging the Remote Transmitter 1. Plug the USB Charging Cable into the Charging port. 3. Plug the Adapter…
