2AY49-KES-T202ESSMART RELAY CONTROLLER 2 CHANNEL

SMART RELAY CONTROLLER 2CHANNEL MANUAL 1. Product feature - Remote control at anytime, anywhere through TUYA APP. - Individual control and batch control of all Channels connected to the RELAY switch (App control). - The schedule function turns on and off at a user-specified time. - Control 2 CHANNEL AC with one product. 2. Product specification 2.1 Product dimensions ITEM DESCRIPTIONS Model KES-T202ES Protocol Zigbee 3.0 Size 167mm * 74mm * 15.5mm Power specification AC 100~ 240V/ 60Hz Communication distance Within 10m from Zigbee Gateway Operating temperature 0°C ~ 60°C Power consumption 0.4W 2.2 Shape and name of product Picture 1 [Front part of product] ① AC INPUT : AC , WIRE ② AC OUTPUT (CHANNEL 1, CHANNEL 2) ③ OUTPUT STATUS DISPLAY LED ④ Pairing STATUS DISPLAY LED ⑤ CH1,CH2 : Output on/off Button, Pairing Button double purpose( Press for 5 seconds) ⑥ External Pairing Button or External Pairing Status Display Led Connector ① ② ③ ⑤ ④ ⑥  Connection wiring diagram  Installation precautions  Use it for home use is recommended.  Turn off the light breaker and install it.  When installing a shopping mall or office, you need to check the capacity of the light. (Unable to install when capacity is exceeded.)  The location of the product installation is recommended to put as near as possible in the field of view. If the product cannot be registered, please open the door or put the Zigbee Gateway closer.  Beware not to be contacted the product with conductive material.  There is a risk of fire or short circuit if installed near the heating product.  Beware the product not to be contacted with water or moisture.  This product is an AC electric product, so please install it by an electrician when installing it.  Please install it in order not to be the wire sheath exposed.  Do not expose the sheath of the wire. 3.1 Product functions - Using a physical switch, able to 2 Channel On/Off - Using an App, able to On/Off 3.2 Product Interlink / Reset A Log in to the TUYA app, register the Zigbee sensor hub and click “Add Product” at the bottom of the sensor hub UI. B After put Relay board close to Zigbee sensor hub and press ch1 button for 5 seconds. C Once the status light blinks, take your hands off from the button. D If the status light blinks quickly, the product successfully entered the interlocking mode. E When the product link is successfully completed, the status light turns off and the product is added to the app. F If you reset the product physically, go back to ‘A’ and proceed in the same order. G Per CHANNEL in APP, when ON/OFF the RELAY operates. FCC Warning Statement FCC Part 15.19 This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC Part 15.21 Any changes or modifications (including the antennas) to this device that are not expressly approved by the manufacturer may void the user’s authority to operate the equipment. FCC Radiation Exposure Statement This equipment complies with FCC Radiation exposure limits set forth for an uncontrolled environment. This device and its antenna must not be co-located or operating in conjunction with any other antenna or transmitter. This equipment should be installed and operated with a minimum distance of 20cm between the radiator and your body.

KYUNG IN ELECTRONICS CO., LTD 1411, Byucksan Digital Valley 2, 184, Gasan digital 2‐ro, Geumcheon‐gu, Seoul, South Korea May 7, 2021 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road, Columbia, MD 21046 To Whom It May Concern: I, the undersigned, hereby authorize SGS Korea Co., Ltd. and hereafter referred to as SGS Korea, to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by SGS Korea Co., Ltd. on our behalf shall have the same effect as acts of our own. I, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti‐Drug Abuse Act of 1988, 21 U.S.C. 853(a). In authorizing SGS Korea as our agent, we still recognize that we are responsible to: a) comply with the relevant provisions of the certification program; b) make all necessary arrangements for the conduct of the evaluation, including provision for examining documentation and access to all areas, records (including internal audit reports) and personnel for the purposes of evaluation (e.g. testing, inspection, assessment, surveillance, reassessment) and resolution of complaints; c) make claims regarding certification only in respect of the scope for which certification has been granted; d) do not use our product certification in such a manner as to bring the Certification Division into disrepute and not make any statement regarding our product certification which the Certification Division may consider misleading or unauthorized; KYUNG IN ELECTRONICS CO., LTD 1411, Byucksan Digital Valley 2, 184, Gasan digital 2‐ro, Geumcheon‐gu, Seoul, South Korea e) upon suspension or cancellation of certification, discontinue use of all advertising matter that contains any reference thereto and return any certification documents as required by the Certification Division; f) use certification only to indicate the products are certified as being in conformity with specified standards; g) endeavor to ensure that no certificate or report nor any part thereof is used in a misleading manner; h) ensure that any reference to our product certification in communication media such as documents, brochures or advertising, complies with the requirements of the Certification Division; i) keep a record of all complaints made known to the us relating to the product’s compliance with requirements of the relevant standard and to make these records available to the Certification Division when requested; j) take appropriate action with respect to such complaints and any deficiencies found in products or services that affect compliance with the requirements for certification; k) document the actions taken. This authorization is valid until further written notice from the applicant. Sincerely yours, Name/Title : SukWoon Jang / General Manager Company Name : KYUNG IN ELECTRONICS CO., LTD

KYUNG IN ELECTRONICS CO., LTD 1411, Byucksan Digital Valley 2, 184, Gasan digital 2-ro, Geumcheon-gu, Seoul, South Korea May 7, 2021 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road, Columbia, MD 21046 Request of Confidentiality for FCC ID: 2AY49-KES-T202ES To Whom It May Concern: Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules (CFR 47), and Section 552 (b) (4) of the Freedom of Information Act, KYUNG IN ELECTRONICS CO., LTD hereby requests confidentiality and treatment of certain information accompanying this application. The materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. We are also hereby request Short-Term Confidentiality for 180 days after the grant as outlined in Public Notice DA 04-1705. This provision will give KYUNG IN ELECTRONICS CO., LTD temporary confidentiality of commercially sensitive information prior to product release. The requested Permanent and Temporary Confidential exhibits are listed as follows: The Applicant understands that pursuant to Rule 0.457, disclosure of this application and all accompanying documentations, where applicable, will not be made public before the date of the Grant for this application. Sincerely yours, Name/Title: SukWoon Jang / General Manager Company Name: KYUNG IN ELECTRONICS CO., LTD CONFIDENTIAL LIST Permanent 1 Block Diagram 2 Operational Descriptions 3 Schematics Short-Term 4 External Photos 5 Internal Photos 6 Test-Setup Photos 7 User’s Manual

Applicant Declaration Applicant Declaration Rev:0.0 SGS North America Inc. 620 Old Peachtree Road SUITE 100 Suwanee, Georgia 30024 United States Applicant Legal Business Name KYUNG IN ELECTRONICS CO., LTD Address 1411, Byucksan Digital Valley 2, 184, Gasan digital 2-ro, Geumcheon-gu, Seoul, South Korea Grantee Code 2AY49 FCC ID 2AY49-KES-T202ES Authorized Contact Name SukWoon Jang Contact Email [email protected] Contact Phone +82-10-6802-0913 I, the undersigned, certify that I am an authorized signatory for the Applicant and therefore declare; a) in accordance with 47CFR2.911(d), all of the statements herein and the exhibits attached hereto are true and correct to the best of my knowledge and belief. b) in accepting a Grant of Equipment Authorization issued by a TCB, under the authority of the FCC, as a result of the representations made in this application, the Applicant is responsible for: (1) labeling the equipment with the exact FCC ID as specified in this application, (2) compliance statement labeling pursuant to the applicable rules, (3) compliance of the equipment with the applicable technical rules, c) if the Applicant is not the actual manufacturer of the equipment, appropriate arrangements have been made with the manufacturer to ensure that production units of this equipment will continue to comply with the FCC’s technical requirements. d) in accordance with 47 CFR 2.909 and KDB394321, the Applicant has read, understood and agrees to accept that they are the responsible party and agree to abide by their responsibilities as specified under 47 CFR 2.909 and KDB394321. e) in accordance with ISO17065, FCC KDB641163, FCC KDB610077, KDB394321 and RSP-100, the Applicant has read, understood, accepts and agrees to abide by the post market surveillance requirements. (1) the Applicant understands, accepts and agrees that a sample may be requested for surveillance testing. (2) the Applicant shall make provisions to always have a production sample available upon request by SGS, FCC and/or ISED. (3) the Applicant shall, upon request by SGS, at the Applicant’s expense, provide a production sample of the requested product to SGS, FCC and/or ISED as instructed. The sample shall include all support devices, cables, software, accessories or other hardware or software required for evaluation, review, certification and audit surveillance of products certified by SGS. f) neither the Applicant nor any party to the application is subject to a denial of Federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. §862 because of a conviction for possession or distribution of a controlled substance. See 47CFR 1.2002(b) for the definition of a “party” for these purposes. g) the Applicant has read, understood, accepts and agrees to abide by the SGS North America, Inc.(TCB) terms and conditions. Link to CFRs: https://www.fcc.gov/wireless/bureau-divisions/technologies-systems-and-innovation-division/rules-regulations-title-47 Link to KDBs: https://apps.fcc.gov/oetcf/kdb/index.cfm Link to RSP-100: https://www.ic.gc.ca/eic/site/smt-gst.nsf/eng/sf01130.html Applicant Signature: Date: May 7, 2021 Print Name: SukWoon Jang Title: General Manager *NOTE: This declaration cannot be signed by an Agent, it shall be signed by an authorized person listed in the FCC database

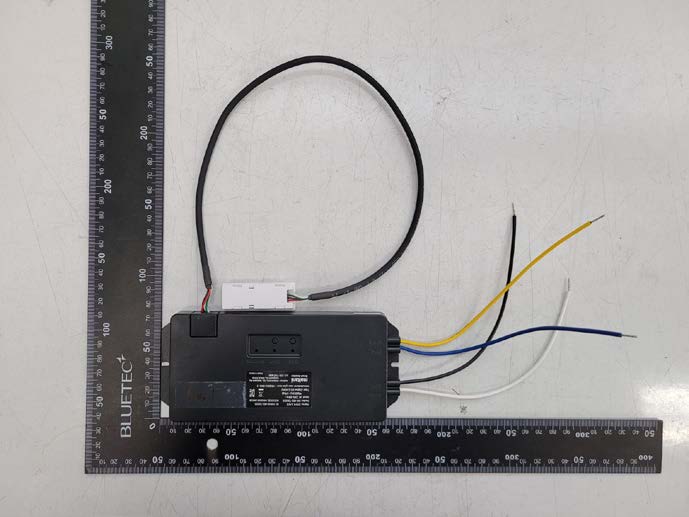

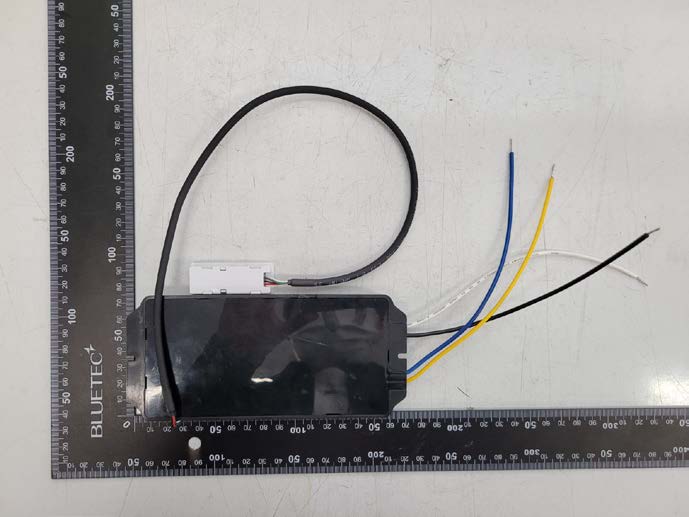

External photos of EUT Top view of EUT Bottom view of EUT Side view of EUT

Label Information Bottom view of EUT

Internal photos of EUT Internal view of EUT Top view of Main PCB Bottom view of Main PCB View of Antenna & Module Antenna Module

SGS Korea Co., Ltd. 4, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 15807 Tel. +82 31 428 5700 / Fax. +82 31 427 2370 http://www.sgsgroup.kr Report Number: F690501-RF-RTL002001 Page: 2 of 6 RTT7081-02(2020.10.05)(0) A4(210 mm * 297 mm) INDEX Table of Contents Page 1. General Information -------------------------------------------------------------------------------- 3 2. RF Exposure Evaluation -------------------------------------------------------------------------- 5 SGS Korea Co., Ltd. 4, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 15807 Tel. +82 31 428 5700 / Fax. +82 31 427 2370 http://www.sgsgroup.kr Report Number: F690501-RF-RTL002001 Page: 3 of 6 RTT7081-02(2020.10.05)(0) A4(210 mm * 297 mm) 1. General Information 1.1. Testing Laboratory SGS Korea Co., Ltd. (Gunpo Laboratory) - 10-2, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 15807 - 4, LS-ro 182beon-gil , Gunpo-si, Gyeonggi-do, Korea, 15807 - Designation number: KR0150 All SGS services are rendered in accordance with the applicable SGS conditions of service available on request and accessible at http://www.sgs.com/en/Terms-and-Conditions.aspx. Telephone : +82 31 688 0901 FAX : +82 31 688 0921 1.2. Details of Applicant Applicant : KYUNG IN ELECTRONICS CO., LTD Address : 1411, Byucksan Digital Valley 2, 184, Gasan digital 2-ro, Geumcheon-gu, Seoul, South Korea, 08501 Contact Person : Jang, Suk-woon Phone No. : +82 2 2113 2003 1.3. Details of Manufacturer Company : ACE CYBER TECH Address : 267, Namdongseo-ro, Namdong-gu, Incheon, Republic of Korea 1.4. Description of EUT Kind of Product SMART RELAY CONTROLLER Model Name KES-T202ES Variant Model Names KES-T201ES Power Supply AC 11 0 ~ 220 V Frequency Range 2 405 ㎒ ~ 2 480 ㎒ (Zigbee) Modulation Technique DSSS Number of Channels 16 channels (Zigbee) Antenna Type Pattern Antenna Antenna Gain 2 ㏈i H/W Version Ver 1.3 S/W Version Ver 1.0.2 SGS Korea Co., Ltd. 4, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 15807 Tel. +82 31 428 5700 / Fax. +82 31 427 2370 http://www.sgsgroup.kr Report Number: F690501-RF-RTL002001 Page: 4 of 6 RTT7081-02(2020.10.05)(0) A4(210 mm * 297 mm) 1.5. Test Report Revision Revision Report Number Date of Issue Description 0 F690501-RF-RTL002001 2021.04.28 Initial 1.6. Information of Variant Models Model names Description Basic model KES-T202ES - Basic model Variant model KES-T201ES - Same to basic model except below - Difference in Color SGS Korea Co., Ltd. 4, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 15807 Tel. +82 31 428 5700 / Fax. +82 31 427 2370 http://www.sgsgroup.kr Report Number: F690501-RF-RTL002001 Page: 5 of 6 RTT7081-02(2020.10.05)(0) A4(210 mm * 297 mm) 2. RF Exposure Evaluation 2.1. Environmental evaluation and exposure limit according to FCC CFR 47 part 1, 1.1307(b), 1.1310 LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) 2.1.1. Friis transmission formula: Pd = (Pout*G)/(4*pi*R 2 ) Where Pd = power density in ㎽/㎠ Pout = output power to antenna in ㎽ G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in ㎝ Pd the limit of MPE, 1 ㎽/㎠. If we know the maximum gain of the antenna and the total power input to the antenna, through the calculation, we will know the distance where the MPE limit is reached. Frequency Range (㎒) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (㎽/㎠) Average Time (A) Limits for Occupational/Controlled Exposure 0.3-3.0 614 1.63 *100 6 3.0-30 1842/f 4.89/f *900/f 2 6 30-300 61.4 0.163 1.0 6 300-1 500 - - f/300 6 1 500-100 000 - - 5 6 (B) Limits for General Population/Uncontrolled Exposure 0.3-1.34 614 1.63 *100 30 1.34-30 824/f 2.19/f *180/f 2 30 30-300 27.5 0.073 0.2 30 300-1 500 - - f/1500 30 1 500-100 000 - - 1.0 30 SGS Korea Co., Ltd. 4, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 15807 Tel. +82 31 428 5700 / Fax. +82 31 427 2370 http://www.sgsgroup.kr Report Number: F690501-RF-RTL002001 Page: 6 of 6 RTT7081-02(2020.10.05)(0) A4(210 mm * 297 mm) 2.1.2. Test Result of RF Exposure Evaluation Test Item ： RF Exposure Evaluation Data Test Mode ： Normal Operation 2.1.3. Output Power into Antenna & RF Exposure Evaluation Distance Zigbee - Maximum tune up tolerance Frequency Range (㎒) Output Average Power to Antenna (㏈m) Antenna Gain (㏈i) Power Density at 20㎝ (㎽/㎠) Limits (㎽/㎠) 2 400 ~ 2 483.5 9.5 2.0 0.002 810 1 Note; - The power density Pd (5th column) at a distance of 20 ㎝ calculated from the friis transmission formula is far below the limit of 1 ㎽/㎠. - This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. - This equipment should be installed and operated with minimum 20 ㎝ between the radiator and your body. - The antenna gain of this transmitter is less than 6㏈ i and must not be collocated or operating in conjunction with any other antenna or transmitter unless authorized to do so by the FCC. - According to KDB 447498 D01 RF Exposure Guidance 4.1. - End of the Test Report -

SGS Korea Co., Ltd. 4, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 15807 Tel. +82 31 428 5700 / Fax. +82 31 427 2370 http://www.sgsgroup.kr Report Number: F690501-RF-RTL002000 Page: 2 of 45 RTT7081-02(2020.10.05)(0) A4(210 mm * 297 mm) INDEX Table of contents 1. General Information -------------------------------------------------------------------------------------- 3 2. Transmitter Radiated Spurious Emissions and Conducted Spurious Emission ----------- 8 3. 6 ㏈ Bandwidth ------------------------------------------------------------------------------------------- 28 4. Maximum Peak Conducted Output Power --------------------------------------------------------- 32 5. Power Spectral Density --------------------------------------------------------------------------------- 35 6. AC Power Line Conducted Emission----------------------------------------------------------------- 39 7. Antenna Requirement ----------------------------------------------------------------------------------- 45 SGS Korea Co., Ltd. 4, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 15807 Tel. +82 31 428 5700 / Fax. +82 31 427 2370 http://www.sgsgroup.kr Report Number: F690501-RF-RTL002000 Page: 3 of 45 RTT7081-02(2020.10.05)(0) A4(210 mm * 297 mm) 1. General Information 1.1. Testing Laboratory SGS Korea Co., Ltd. (Gunpo Laboratory) - 10-2, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 15807 - 4, LS-ro 182beon-gil , Gunpo-si, Gyeonggi-do, Korea, 15807 - Designation number: KR0150 All SGS services are rendered in accordance with the applicable SGS conditions of service available on request and accessible at http://www.sgs.com/en/Terms-and-Conditions.aspx. Phone No. : +82 31 688 0901 Fax No. : +82 31 688 0921 1.2. Details of Applicant Applicant : KYUNG IN ELECTRONICS CO., LTD Address : 1411, Byucksan Digital Valley 2, 184, Gasan digital 2-ro, Geumcheon-gu, Seoul, South Korea, 08501 Contact Person : Jang, Suk-woon Phone No. : +82 2 2113 2003 1.3. Details of Manufacturer Company : ACE CYBER TECH Address : 267, Namdongseo-ro, Namdong-gu, Incheon, Republic of Korea 1.4. Description of EUT Kind of Product SMART RELAY CONTROLLER 2 CHANNEL Model Name KES-T202ES Variant Model Name KES-T201ES Power Supply AC 11 0 ~ 220 V Frequency Range 2 405 ㎒ ~ 2 480 ㎒ (Zigbee) Modulation Technique DSSS Number of Channels 16 channels (Zigbee) Antenna Type Pattern Antenna Antenna Gain 2 ㏈i H/W Version Ver 1.3 S/W Version Ver 1.0.2 SGS Korea Co., Ltd. 4, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 15807 Tel. +82 31 428 5700 / Fax. +82 31 427 2370 http://www.sgsgroup.kr Report Number: F690501-RF-RTL002000 Page: 4 of 45 RTT7081-02(2020.10.05)(0) A4(210 mm * 297 mm) 1.5. Test Equipment List Equipment Manufacturer Model S/N Cal. Date Cal. Interval Cal. Due Signal Generator R&S SMR40 100272 Jun. 18, 2020 Annual Jun. 18, 2021 Signal Generator R&S SMBV100A 255834 Jun. 03, 2020 Annual Jun. 03, 2021 Spectrum Analyzer R&S FSV30 103210 Dec. 07, 2020 Annual Dec. 07, 2021 Spectrum Analyzer Agilent N9020A MY53421758 Sep. 04, 2020 Annual Sep. 04, 2021 Attenuator AEROFLEX / INMET 40AH2W-10 40G-3 Jun. 16, 2020 Annual Jun. 16, 2021 High Pass Filter Wainwright Instrument GmbH WHK3.0/18G-10SS 344 May 18, 2020 Annual May 18, 2021 High Pass Filter Wainwright Instrument GmbH WHNX7.5/26.5G-6SS 15 Jun. 05, 2020 Annual Jun. 05, 2021 Low Pass Filter Mini-Circuits NLP-1200+ V9500401023-2 Jun. 01, 2020 Annual Jun. 01, 2021 Power Sensor R&S NRP-Z81 100669 May 08, 2020 Annual May 08, 2021 AC Power Supply KIKUSUI PCR 500M QC002962 Nov. 26, 2020 Annual Nov. 26, 2021 Preamplifier H . P. 8447F 2944A03909 Aug. 06, 2020 Annual Aug. 06, 2021 Signal Conditioning Unit R&S SCU-18 10117 Jun. 10, 2020 Annual Jun. 10, 2021 Pre Amplifier TESTEK TK-PA1840H 130016 Jan. 07, 2021 Annual Jan. 07, 2022 Loop Antenna Schwarzbeck Mess-Elektronik FMZB 1519 1519-039 Aug. 22, 2019 Biennial Aug. 22, 2021 Bilog Antenna Schwarzbeck Mess-Elektronik VULB 9163 01126 Dec. 22, 2020 Biennial Dec. 22, 2022 Horn Antenna R&S HF906 100326 Feb. 04, 2021 Annual Feb. 04, 2022 Horn Antenna Schwarzbeck Mess-Elektronik BBHA 9170 9170-540 Nov. 26, 2020 Annual Nov. 26, 2021 Test Receiver R&S ESU26 100368 Nov. 05, 2020 Annual Nov. 05, 2021 Turn Table Innco systems GmbH DS 1200 S N/A N.C.R. N/A N.C.R. Controller Innco systems GmbH CONTROLLER CO3000-4P CO3000/963/38 330516/L N.C.R. N/A N.C.R. Antenna Mast Innco systems GmbH MA4640-XP-ET MA4640/536/38 330516/L N.C.R. N/A N.C.R. Anechoic Chamber SY Corporation L × W × H (9.6 m × 6.4 m × 6.6 m) N/A N.C.R. N/A N.C.R. Coaxial Cable RFONE MW X221-NMSNMS (4 m) J1023142 Dec. 01, 2020 Semi- annual Jun. 01, 2021 Coaxial Cable RFONE PL520-NMNM-10M (10 m) 20200324001 Dec. 01, 2020 Semi- annual Jun. 01, 2021 Coaxial Cable RFONE PL360P-292M292M- 1.5M-A 20200324002 Feb. 19, 2021 Semi- annual Aug. 19, 2021 Test Receiver R&S ESCI 7 100911 Feb. 19, 2021 Annual Feb. 19, 2022 Two-Line V-Network R&S ENV216 100190 May 08, 2020 Annual May 08, 2021 Shield Room SY Corporation L × W × H (6.5 m × 3.5 m × 3.5 m) N/A N.C.R. N/A N.C.R. SGS Korea Co., Ltd. 4, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 15807 Tel. +82 31 428 5700 / Fax. +82 31 427 2370 http://www.sgsgroup.kr Report Number: F690501-RF-RTL002000 Page: 5 of 45 RTT7081-02(2020.10.05)(0) A4(210 mm * 297 mm) 1.6. Summary of Test Results The EUT has been tested according to the following specifications: APPLIED STANDARD: FCC Part15 Subpart C Section Test Item(s) Result 15.205(a) 15.209 15.247(d) Transmitter Radiated Spurious Emissions and Conducted Spurious Emission Complied 15.247(a)(2) 6 ㏈ Bandwidth Complied 15.247(b)(3) Maximum Peak Conducted Output Power Complied 15.247(e) Power Spectral Density Complied 15.207 AC Power Line Conducted Emission Complied 1.7. Test Procedure(s) The measurement procedures described in the American National Standard of Procedure for Compliance Testing of unlicensed Wireless Devices (ANSI C63.10-2013) and the guidance provided in KDB 558074 D01 15.247 Meas Guidance v05r02 were used in the measure…

Text truncated - open the document above for the full version.

Test setup photos of EUT 1. Orthogonal plane of EUT - The testing was set in the three orthogonal planes and measured for each position (X, Y, Z). X-axis Y-axis Z-axis 2. Photo of Radiated Spurious Emission Test (Below 1㎓) 3. Photo of Radiated Spurious Emission Test (Above 1㎓) 4. Photos of Conducted test 5. Photos of AC Power line emission test
