2AY4O-DP01Digtial Counter

EXERCISE COMPUTER MANUAL MAIN FUNCTIONS: 1.Time(TIME)---------- (0:00~99:59 hours/min) 2.Stride(STRD) --------(0~9999 times) 3.Calories(CAL) ---------(0.0~9999 kcal) 4.Distance(DIST)-------(0.00~9999 km or Mile) 5.Revolutions Per minute(RPM)--- (0~9999times/min) After the data overflow of a single item, the data of the item will return to zero and the calculation will start again. Keyboard functions: Mode: this key allows you to select and lock the specific objects you want. Reset[Mode]: Long press the key to clear the data, but please do not exceed 6 seconds. Kilometer mile unit switching: long press the mode key for more than 6 seconds, the screen will display twice, clear 0 in full screen, and convert the distance unit K or M characters. you can switch between km / Mile units Function: 1. Scan: Cycle the display in sequence every 6 seconds. Time-Cal-Dist-Rpm-Scan 2. Time: Measure the time from the beginning of movement to the end of movement. When movement stops, and return to zero after single item overflow. When there’s no signal input within 4 seconds, the time is suspended. 3. Stride: Measure the number of times you exercise. 4. Distance: Count the distance from exercise start to end. The measurement range is 0.00 ~ 9999. When it exceeds the maximum value, it will return to zero and start recalculation. 5. Calories:Count the total calories from exercise start to end . The measurement range is 0.0~ 9999. When it exceeds the maximum value, it will return to zero and start recalculation. 6. Revolutions per Minute: Measure the number of movements per minute from the current exercise frequency. NOTE: 1. When there is no signal, the LCD will turn off automatically within 4 ~ 5 minutes. 2. When the monitor is in sleep mode, you need to press the mode key to wake up the monitor. 3. If the display is not clear or there is no signal, please replace the battery. Make sure that the voltage of two new batteries is above 2.9v. 4. Both the electronic watch (receiver) and transmitter use two AAA batteries. Alkaline batteries are recommended, 5. This product adopts the design of power on automatic code matching. The transmitter and receiver can be powered on in sequence. If two or more transmitters transmit signals at the same time, you need to select one of them. When another group of electronic meters and transmitters are powered on again, they can become the second group. and so on..f there are multiple units to be assembled, it is recommended to connect them one by one before assembling the second unit. 7. If the function of this product is interfered by other wireless devices, please re code it. Warning: Caution: The user is cautioned that changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -- Reorient or relocate the receiving antenna. -- Increase the separation between the equipment and receiver. -- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -- Consult the dealer or an experienced radio/TV technician for help. FCC Radiation Exposure Statement This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. FCC ID:2AY4O-DP01 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

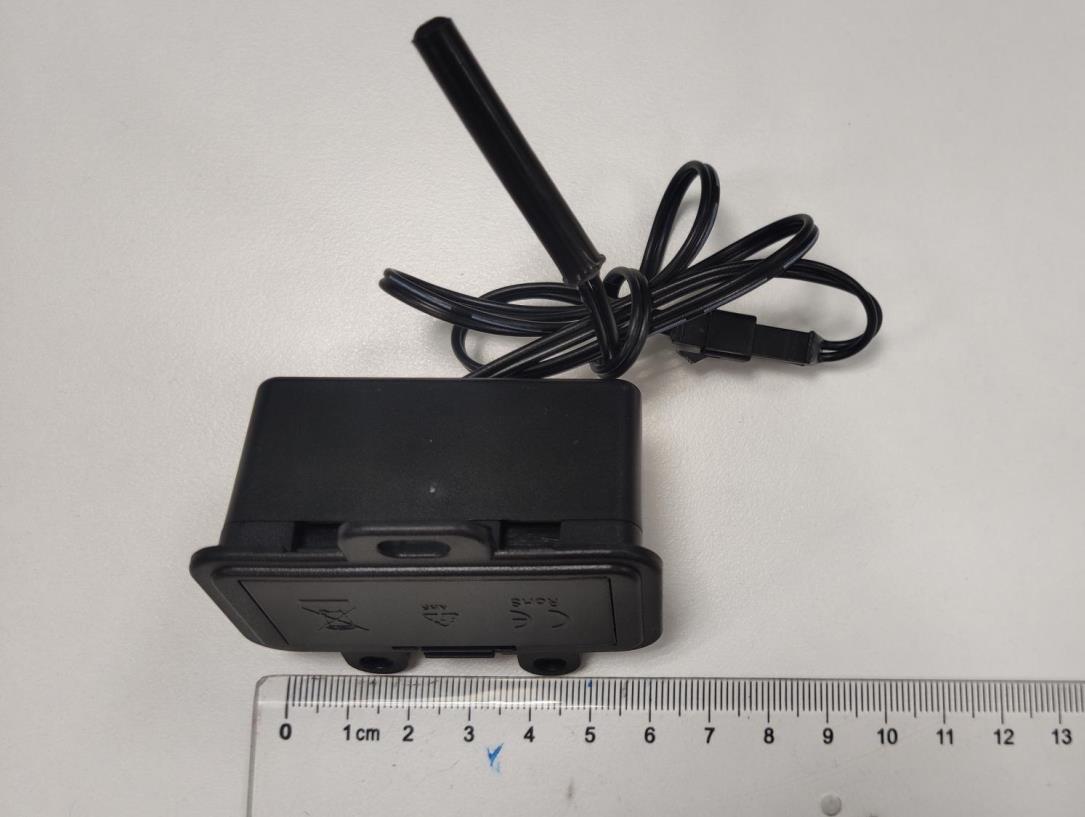

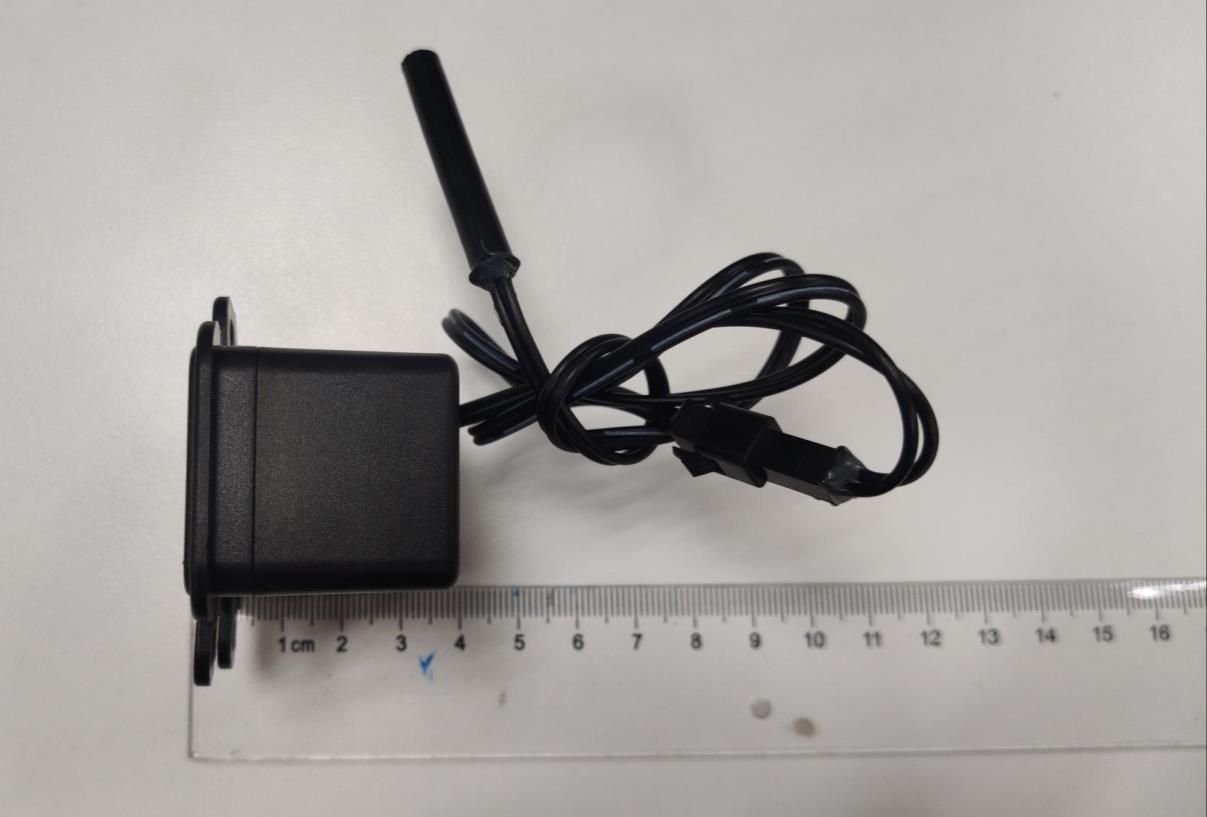

External Photo

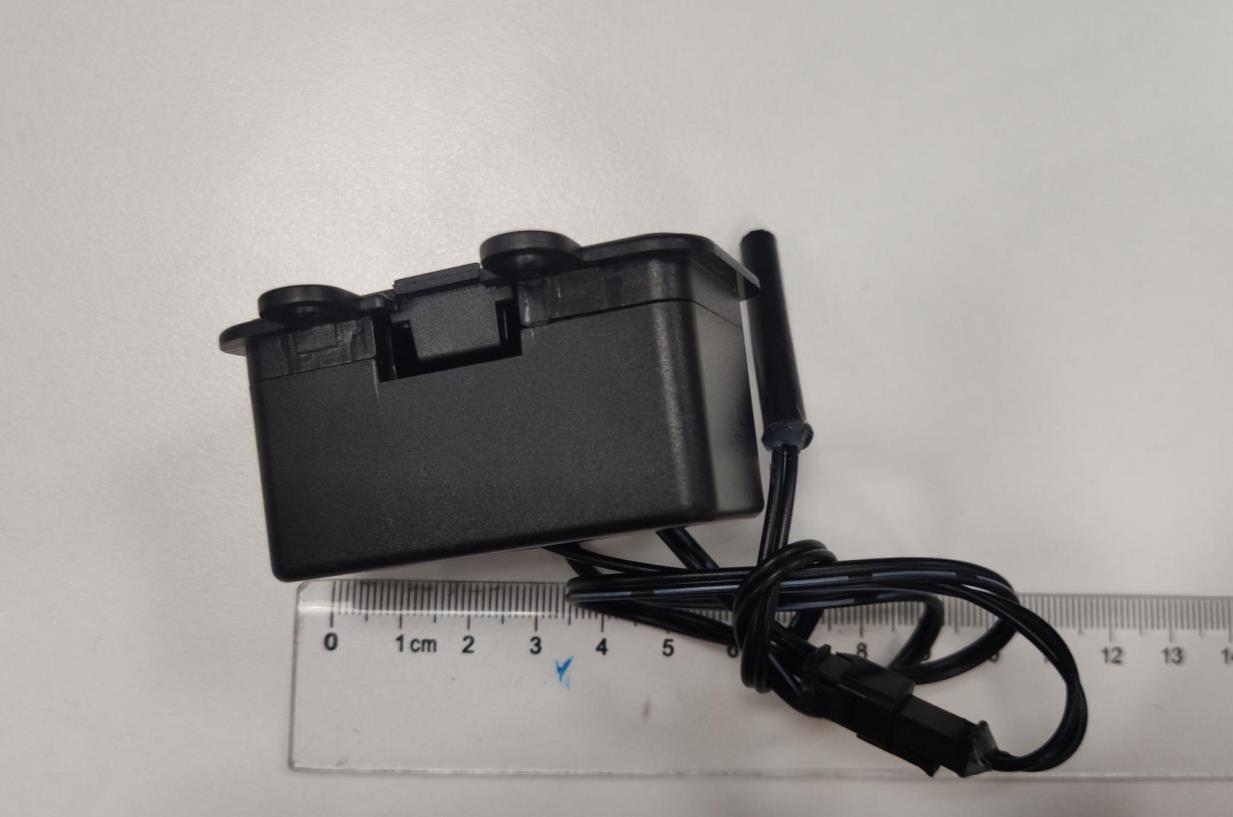

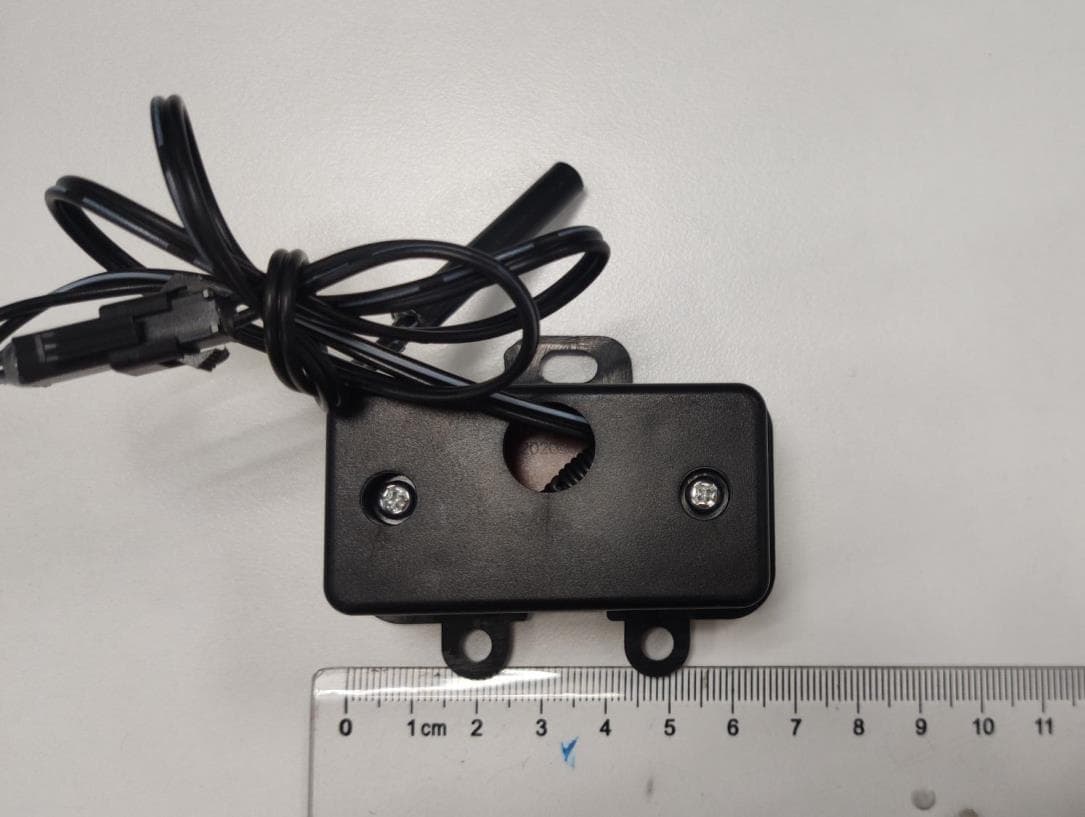

Internal Photo

SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch Report No.: GZEM210300109102 Page: 1 of 22 FCC ID: 2AY4O-DP01 The CE mark as shown below can be used, under the responsibility of the manufacturer, after completion of an EU Declaration of Conformity and compliance with all relevant EU Directives. Kobe Jian EMC Laboratory Manager TEST REPORT Application No.: GZEM2103001091CR Applicant: XIAMEN DEEP (D.P.) FITNESS TECH. CO., LTD. Address of Applicant: 401, No.26 Huli Avenue, Xiamen Area of China (Fujian) Pilot Free Trade Zone Manufacturer: ZHANGPU XIANGXUN ELECTRONICS CO., LTD Address of Manufacturer: LI ZI YUAN INDUSTRIAL AREA OF THE OLD TOWN ZHANGPU COUNTY OF FUJIAN PROVINCE, ZHANGZHOU CITY Equipment Under Test (EUT): EUT Name: Digital counter Model No.: DP-PFG-06, SP-01, SP-YB01, SP-02, SP-YB02, DP-PFG-07, DP-PFG-08, DP- DB690B, DP-DB690W ¤ ¤ Please refer to section 2 of this report which indicates which model was actually tested and which were electrically identical. Standard(s) : 47 CFR Part 15, Subpart C 15.231 Date of Receipt: 2021-03-02 Date of Test: 2021-03-08 to 2021-03-15 Date of Issue: 2021-03-22 Test Result: Pass* * In the configuration tested, the EUT complied with the standards specified above. SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch Report No.: GZEM210300109102 Page: 2 of 22 Revision Record Version Chapter Date Modifier Remark 01 2021-03-22 Original Authorized for issue by: Tested By Kevin Zhang/Project Engineer Reviewed By Ricky Liu/Reviewer SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch Report No.: GZEM210300109102 Page: 3 of 22 2 Test Summary Radio Spectrum Technical Requirement Item Standard Method Requirement Result Antenna Requirement 47 CFR Part 15, Subpart C 15.231 N/A 47 CFR Part 15, Subpart C 15.203 Pass Radio Spectrum Matter Part Item Standard Method Requirement Result 20dB Bandwidth 47 CFR Part 15, Subpart C 15.231 ANSI C63.10 (2013) Section 6.9 47 CFR Part 15, Subpart C 15.231(c) Pass Radiated Emissions 47 CFR Part 15, Subpart C 15.231 ANSI C63.10 (2013) Section 6.4&6.5&6.6 47 CFR Part 15C Section 15.231(b) and 15.209 Pass** Dwell Time (15.231(a)) 47 CFR Part 15, Subpart C 15.231 ANSI C63.10 (2013) Section 7.8.4 47 CFR Part 15, Subpart C 15.231(a) Pass Field Strength of the Fundamental Signal (15.231(b)) 47 CFR Part 15, Subpart C 15.231 ANSI C63.10 (2013) Section 6.5 47 CFR Part 15, Subpart C 15.231(b) Pass Note: E.U.T./EUT means Equipment Under Test. ¤ Declaration of EUT Family Grouping: Model No.: DP-PFG-06, SP-01, SP-YB01, SP-02, SP-YB02, DP-PFG-07, DP-PFG-08, DP-DB690B, DP-DB690W According to the declaration from the applicant, the electrical circuit design, layout, components used and internal wiring were identical for all models, with only difference on model name, appearance molding and color. Therefore only one model DP-PFG-06 was tested in this report. SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch Report No.: GZEM210300109102 Page: 4 of 22 3 Contents Page 1 Cover Page ......................................................................................................................................... 1 2 Test Summary ..................................................................................................................................... 3 3 Contents ............................................................................................................................................. 4 4 General Information............................................................................................................................ 5 4.1 Details of E.U.T. ........................................................................................................................... 5 4.2 Description of Support Units ......................................................................................................... 5 4.3 Measurement Uncertainty ............................................................................................................ 5 4.4 Test Location ............................................................................................................................... 5 4.5 Test Facility .................................................................................................................................. 6 4.6 Deviation from Standards ............................................................................................................. 7 4.7 Abnormalities from Standard Conditions ....................................................................................... 7 5 Equipment List ................................................................................................................................... 8 6 Radio Spectrum Technical Requirement ........................................................................................... 9 6.1 Antenna Requirement .................................................................................................................. 9 6.1.1 Test Requirement: ................................................................................................................... 9 6.1.1 Conclusion ............................................................................................................................... 9 7 Radio Spectrum Matter Test Results ................................................................................................10 7.1 20dB Bandwidth ..........................................................................................................................10 7.1.1 E.U.T. Operation .....................................................................................................................10 7.1.2 Test Mode Description ............................................................................................................10 7.1.3 Test Setup Diagram .......................................................................…
