2AY7J-TA500Large Turntable

Revopoint Large Turntable User Manual V1.0 Table of Content What’s in the Box? ..................................................................... 1 Large Turntable Introduction ................................................... 1 Remote Controller Introduction .............................................. 2 Specifications ............................................................................. 3 Setting Up the Large Turntable ............................................... 3 Large Turntable User Manual 1 ©2023 REVOPOINT 3D ALL RIGHTS RESERVED What’s in the Box? Large Turntable Remote Controller Power Cable Adapter* *Four adapters (US/EU/AU/GB) are provided, get the one as required. Large Turntable Introduction The Revopoint Large Turntable is specially designed for large objects and people scanning. It can support up to 200kg, and its speed and rotation direction can be adjusted via the remote controller, making body and large object scanning faster and more convenient. Load Bearing Surface Power Port On/Off Switch IR Sensor Large Turntable User Manual ©2023 REVOPOINT 3D ALL RIGHTS RESERVED 2 Remote Controller Introduction Save the Large Turntable’s current settings (rotation direction and speed). Increase the Large Turntable’s rotation speed. Change the Large Turntable’s rotation to clockwise. Decrease the Large Turntable’s rotation speed. Change the Large Turntable’s rotation to anti-clockwise. Start/Stop the rotation of the Large Turntable. Note: A CR2032 button battery is used to provide power for the Remote Controller. Large Turntable User Manual 3 ©2023 REVOPOINT 3D ALL RIGHTS RESERVED Specifications Product Name Large Turntable Compatible Scanners POP, POP 2, MINI and RANGE Power Output 24V/3A Dimensions (H) 100mm X (D) 502mm Speed 35 - 90 Seconds per Rotation Max Load 200kg Product Gross Weight 7kg Control Method Via Remote Controller / APP Rotation Control Direction, Speed and Start/Pause Noise 55 (db) Main Materials ABS+PC Setting Up the Large Turntable Step 1: Connect the Power Cable to the Adapter. Large Turntable User Manual ©2023 REVOPOINT 3D ALL RIGHTS RESERVED 4 Step 2: Plug the Power Cable into a socket and Large Turntable. Step 3: Turn on the Large Turntable. Step 4: Target the IR sensor with the Remote Controller to control the Large Turntable. Large Turntable User Manual 5 ©2023 REVOPOINT 3D ALL RIGHTS RESERVED Contact Us Tel (US): Toll-free +1 (888) 807-3339 Tel (China): +86 18124196779 Live Chat: https://www.revopoint3d.com Email: [email protected] Skype: +1 323 892 0859 This content is subject to change. If you have any questions about this document, please feel free to contact us! ©2023 REVOPOINT 3D ALL RIGHTS RESERVED FCC STATEMENT : This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1)This device may not cause harmful interference, and (2)This device must accept any interference received, including interference that may cause undesired operation. Warning: Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: Reorient or relocate the receiving antenna. Increase the separation between the equipment and receiver. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. Consult the dealer or an experienced radio/TV technician for help. FCC Radiation Exposure Statement: This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment.

-Revopoint3DTechnologiesInc.- TheinformationprovidedinthisletterisbasedonthereferencedrulepartsofTitle47oftheCFRaswellasKDB986446D01. Anexpirationdateforthisletterdoesnotexist.IncasetheU.S.agentchanges,thegranteeisobligatedtonotifytheFCCwithin30daysvia thegrantingTCB. FederalCommunicationsCommission AuthorizationandEvaluationDivision EquipmentAuthorizationBranch 7435OaklandMillsRoad Columbia,MD21046 4/23/23 U.S.AgentDesignation [Revopoint3DTechnologiesInc.]acknowledgestheirconsentforthefollowingcontactlocatedinthe UnitedStatestoactastheiragentforserviceofprocessfortheequipmentforwhichauthorizationis sought(FCCID:[2AY7J-TA500]): NameandcompanyofU.S.agent:REVOPOINTGLOBALINC. PhysicalU.S.addressofagent:850NewBurtonRoad,Suite201,Dover,De19904,Kent County,USA FRNofU.S.agent:0033693359 EmailaddressofU.S.agent:[email protected] [REVOPOINTGLOBALINC.]acknowledgestheirobligationtoacceptserviceofprocessonbehalfof [Revopoint3DTechnologiesInc.]. [Revopoint3DTechnologiesInc.]withtheFRN[0030680961]acceptsitsobligationtomaintainan agentforserviceofprocessintheUnitedStatesfornolessthanoneyearaftereitherthegranteehas permanentlyterminatedallmarketingandimportationoftheapplicableequipmentwithintheU.S.,or theconclusionofanyCommission-relatedadministrativeorjudicialproceedinginvolvingthe equipment,whicheverislater. Bysigningthisform,weconfirmtheaboveandthatweareawareoftheapplicationrequirements listedunder§2.911(d)(7). Sincerely, Signature YaliLiu Manager REVOPOINTGLOBALINC. 4 8 _ [ m o d e l ] U S _ A g e n t _ 2 . 9 1 1 ( d ) ( 7 ) - U , V 0 4 -Revopoint3DTechnologiesInc.- TheinformationprovidedinthisletterisbasedonthereferencedrulepartsofTitle47oftheCFRaswellasKDB986446D01. Anexpirationdateforthisletterdoesnotexist.IncasetheU.S.agentchanges,thegranteeisobligatedtonotifytheFCCwithin30daysvia thegrantingTCB. Signature jun zi zheng Manager REVOPOINT GLOBAL INC.

-Revopoint3DTechnologiesInc.- TheinformationprovidedinthisletterisbasedonthereferencedrulepartsofTitle47oftheCFRaswellasKDB986446D01. FederalCommunicationsCommission AuthorizationandEvaluationDivision EquipmentAuthorizationBranch 7435OaklandMillsRoad Columbia,MD21046 4/23/23 Towhomitmayconcern: We,[Revopoint3DTechnologiesInc.],herebycertifythattheequipmentforwhichauthorizationis sought(FCCID:[2AY7J-TA500])isnot“covered”equipmentprohibitedfromreceivinganequipment authorizationpursuantto§2.903oftheFCCrules. Wealsocertifythat,asofthedateofthefilingoftheapplication,wearenotidentifiedontheCovered List(https://www.fcc.gov/supplychain/coveredlist)asanentityproducing“covered”equipment. Bysigningthisform,weconfirmtheaboveandthatweareawareoftheapplicationrequirements listedunder§2.911(b)and(d)(5)and(6). Sincerely, Signature [YaliLiu] [Manager] [Revopoint3DTechnologiesInc.] 6 2 _ [ m o d e l ] C o v e r e d E q u _ 2 . 9 1 1 ( d ) ( 5 ) ( i ) a n d ( i i ) - U , V 0 2

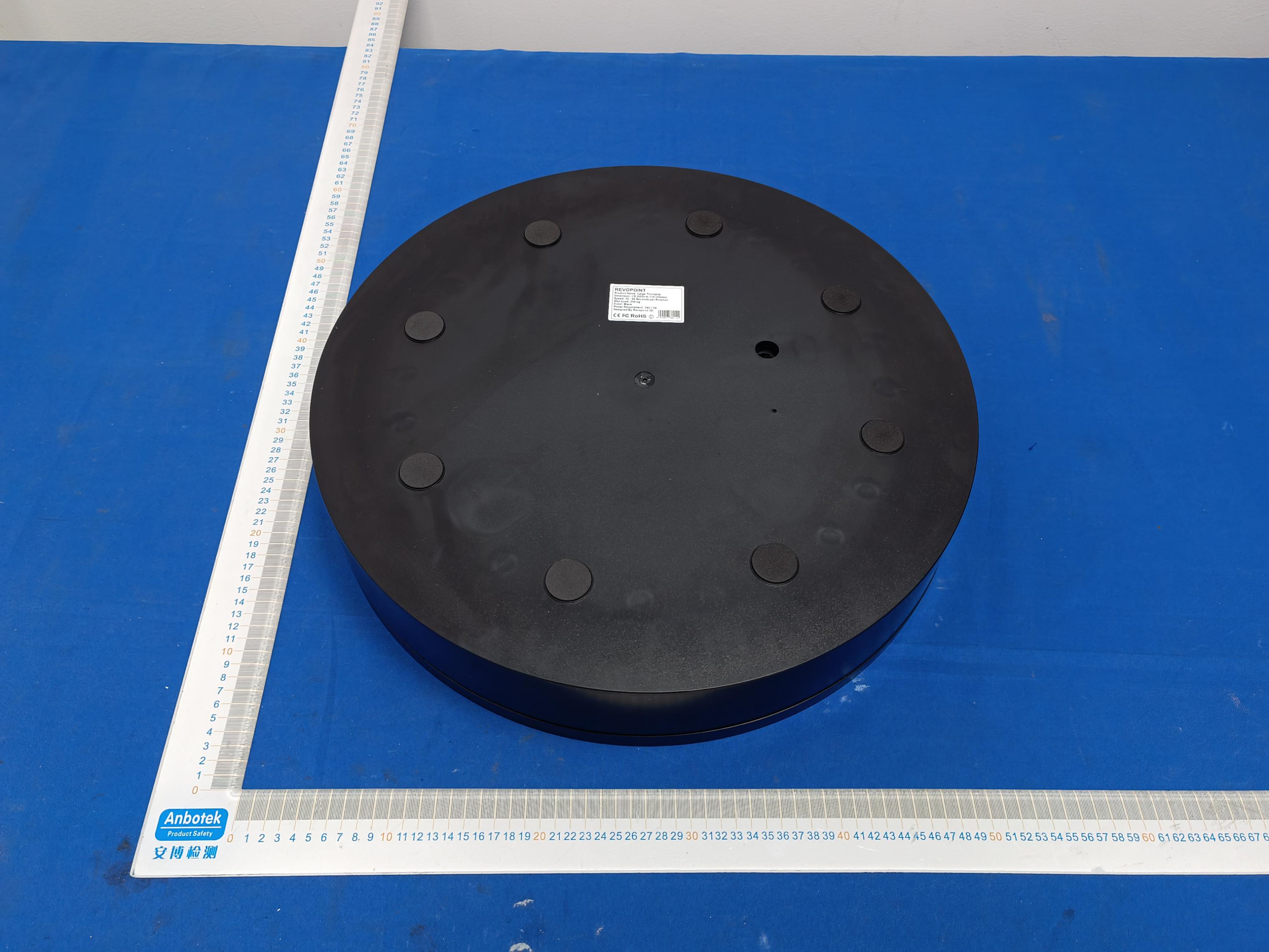

Code:AB-RF-05-b ExternalPhotograph Code:AB-RF-05-b Code:AB-RF-05-b Code:AB-RF-05-b

LabelLocationOnEUT Label ProductName:LargeTurntable ModelNo.:TA500 FCCID:2AY7J-TA500 ThisdevicecomplieswithPart15oftheFCCRules.Operationis subjecttothefollowingtwoconditions: (1)Thisdevicemaynotcauseharmfulinterference,and (2) Thisdevicemustacceptanyinterferencereceived,including interferencethatmaycauseundesiredoperation.

Code:AB-RF-05-b InternalPhotograph ANT Code:AB-RF-05-b Code:AB-RF-05-b Code:AB-RF-05-b

version01 Revopoint3DTechnologiesInc. DeclarationconcerningAntennaSpecification Itisherebydeclaredthattheproduct ModelNo.:TA500 FCCID:2AY7J-TA500 fulfillstherequirementinFCCtestrelatingtotheantennatype. ThedevicespecifiedaboveconfirmstotheFCCrecommendationsfor internal antennatype(s) describedbelow: ModelNo.ofantenna:HC-08 Typeofantenna:PCBantenna Gainoftheantenna:3.63dBi Frequencyrange:2402-2480MHz Themountingoftheantennaisfixedtotheradiomoduleandnootherantennashouldbeused. Companyname:Revopoint3DTechnologiesInc. Address:Office902,9/F,TinnoBuilding,TongfaSouthRd,XiliStreet,Nanshan District,Shenzhen,518000,China City:Shenzhen ZIP/Postalcode:518000 Country:China Place:Date:4/23/2023 Signature:

Report No.: BL-SZ2340453-AA-1 1 / 1 EUT PHOTO --BLANK BELOW-- Antenna

Report No.: BL-SZ2340453-AO-1 1 / 2 TEST SETUP PHOTOS Report No.: BL-SZ2340453-AO-1 2 / 2 --BLANK BELOW--

Report No.: BL-SZ2340453-901 Tel: +86-755-66850100 E-mail: [email protected] Page No. 1 / 12 Web: www.titcgroup.com Template No.: TRP-Passive-EN (2022-09-07) Add: Block B, 1/F, Baisha Science and Technology Park, Shahe Xi Road, Nanshan District, Shenzhen, Guangdong Province, P. R. China TEST REPORT Applicant: Shenzhen ComXim Technologies Co., Ltd. Address: Area A209-A, 2F, Block A and B, Donghaiwang Industrial Zone, No.369 Bulong Road, Ma'antang Community, Bantian Street, Longgang District, ShenZhen City GuangDong Province China Equipment Type: Bluetooth 4.0BLE serial port module Model Name: HC-08 Brand Name: N/A Test Standard: IEEE Std 149-2021 Sample Arrival Date: Apr. 12, 2023 Test Date: Apr. 13, 2023 Date of Issue: Apr. 20, 2023 ISSUED BY: Shenzhen BALUN Technology Co., Ltd. Tested by: Mai Jintian Checked by: Zou Liu Approved by: Tolan Tu (Testing Director) _______________ _______________ _______________ Report No.: BL-SZ2340453-901 Tel: +86-755-66850100 E-mail: [email protected] Page No. 2 / 12 Web: www.titcgroup.com Template No.: TRP-Passive-EN (2022-09-07) Add: Block B, 1/F, Baisha Science and Technology Park, Shahe Xi Road, Nanshan District, Shenzhen, Guangdong Province, P. R. China Revision History Version Issue Date Revisions Rev. 01 Apr. 20, 2023 Initial Issue TABLE OF CONTENTS 1 GENERAL INFORMATION ........................................................................................................ 3 1.1 Test Laboratory ................................................................................................................... 3 1.2 Test Location ....................................................................................................................... 3 2 PRODUCT INFORMATION ....................................................................................................... 4 2.1 Applicant Information ........................................................................................................... 4 2.2 Manufacturer Information .................................................................................................... 4 2.3 General Description for Equipment under Test (EUT) ......................................................... 4 2.4 Ancillary Equipment ............................................................................................................. 4 2.5 Technical Information .......................................................................................................... 4 3 SUMMARY OF TEST RESULTS ............................................................................................... 5 3.1 Test Standards .................................................................................................................... 5 3.2 Test Verdict ......................................................................................................................... 5 3.3 Test Uncertainty .................................................................................................................. 5 4 GENERAL TEST CONFIGURATIONS ...................................................................................... 6 4.1 Test Condition ..................................................................................................................... 6 4.2 Test Equipment List ............................................................................................................. 6 4.3 Test Setup ........................................................................................................................... 7 ANNEX A TEST RESULTS ........................................................................................................... 8 A.1 Gain and Efficiency ............................................................................................................. 8 A.2 VSWR ................................................................................................................................. 8 ANNEX B RADIATION PATTERN ................................................................................................ 9 ANNEX C TEST SETUP PHOTOS ............................................................................................. 11 ANNEX D EUT PHOTO .............................................................................................................. 11 Report No.: BL-SZ2340453-901 Tel: +86-755-66850100 E-mail: [email protected] Page No. 3 / 12 Web: www.titcgroup.com Template No.: TRP-Passive-EN (2022-09-07) Add: Block B, 1/F, Baisha Science and Technology Park, Shahe Xi Road, Nanshan District, Shenzhen, Guangdong Province, P. R. China 1 GENERAL INFORMATION 1.1 Test Laboratory Name Shenzhen BALUN Technology Co., Ltd. Address Block B, 1/F, Baisha Science and Technology Park, Shahe Xi Road, Nanshan District, Shenzhen, Guangdong Province, P. R. China Phone Number +86 755 6685 0100 1.2 Test Location Name Shenzhen BALUN Technology Co., Ltd. Location Block B, 1/F, Baisha Science and Technology Park, Shahe Xi Road, Nanshan District, Shenzhen, Guangdong Province, P. R. China 1/F, Building B, Ganghongji High-tech Intelligent Industrial Park, No. 1008, Songbai Road, Yangguang Community, Xili Sub-district, Nanshan District, Shenzhen, Guangdong Province, P. R. China Report No.: BL-SZ2340453-901 Tel: +86-755-66850100 E-mail: [email protected] Page No. 4 / 12 Web: www.titcgroup.com Template No.: TRP-Passive-EN (2022-09-07) Add: Block B, 1/F, Baisha Science and Technology Park, Shahe Xi Road, Nanshan District, Shenzhen, Guangdong Province, P. R. China 2 PRODUCT INFORMATION 2.1 Applicant Information Applicant Shenzhen ComXim Technologies Co., Ltd. Address Area A209-A, 2F, Block A and B, Donghaiwang Industrial Zone, No.369 Bulong Road, Ma'antang Community, Bantian Street, Longgang District, ShenZhen City GuangDong Province China 2.2 Manufacturer Information Manufacturer GUANGZHOU HC INFORMATION TECHNOLOGY CO.LTD Address Room 608, 6th Floor, No. 19 Jiangong Road, Tianhe District, Guan…

Text truncated - open the document above for the full version.

RFEXPOSUREEVALUATION FCCID:2AY7J-TA500 AccordingtoFCC1.1310:Thecriterialistedinthefollowingtableshallbeused toevaluatetheenvironmentimpactofhumanexposuretoradiofrequency(RF) Radiationasspecifiedin§1.1307(b): RoutineSARevaluationreferstothatspecificallyrequiredby§2.1093,using measurementsorcomputersimulation.WhenroutineSARevaluationisnot required,portabletransmitterswithoutputpowergreaterthantheapplicable lowthresholdrequireSARevaluationtoqualifyforTCBapproval. Channel (MHz) Maximum output power (dBm) Tuneup tolerance (dBm) MaxTuneUp Power(dBm) Distance (mm) Calculation results Limit Operating Mode 24022.542.54 ±1 3.5450.7003 BLE24402.362.36±13.3650.6773 24801.671.67±12.6750.5823 Result:NoStandaloneSARtestisrequired.

Page1of22 AppendixTestData ReportNo.:18220WC30052701TestSampleNo.:1-2-2 StartTestDate:2023.03.30FinishTestDate:2023.04.04 TestEngineer:Auditor: Temperature:25.0 °C RelativeHumidity:51% Pressure:1012hPa AppendixA:DTSBandwidth TestResult TestModeAntennaFrequency[MHz] DTSBW [MHz] FL[MHz]FH[MHz]Limit[MHz]Verdict BLE_1MAnt1 24020.6922401.6522402.3440.5PASS 24400.6922439.6482440.3400.5PASS 24800.6922479.6442480.3360.5PASS Page2of22 TestGraphs BLE_1M_Ant1_2402 BLE_1M_Ant1_2440 BLE_1M_Ant1_2480 Page3of22 Page4of22 AppendixB:OccupiedChannelBandwidth TestResult TestModeAntennaFrequency[MHz]OCB[MHz]FL[MHz]FH[MHz] BLE_1MAnt1 24021.02512401.49732402.5224 24401.02632439.49532440.5216 24801.03402479.49322480.5272 Page5of22 TestGraphs BLE_1M_Ant1_2402 BLE_1M_Ant1_2440 BLE_1M_Ant1_2480 Page6of22 Page7of22 AppendixC:Maximumconductedoutputpower TestResultPeak TestModeAntennaFrequency[MHz] ConductedPeak Power[dBm] Conducted Limit[dBm] Verdict BLE_1MAnt1 24022.54≤30PASS 24402.36≤30PASS 24801.67≤30PASS Page8of22 TestGraphsPeak BLE_1M_Ant1_2402 BLE_1M_Ant1_2440 BLE_1M_Ant1_2480 Page9of22 Page10of22 AppendixD:Maximumpowerspectraldensity TestResult TestModeAntennaFrequency[MHz]Result[dBm/3kHz]Limit[dBm/3kHz]Verdict BLE_1MAnt1 2402-12.69≤8.00PASS 2440-12.79≤8.00PASS 2480-13.46≤8.00PASS Page11of22 TestGraphs BLE_1M_Ant1_2402 BLE_1M_Ant1_2440 BLE_1M_Ant1_2480 Page12of22 Page13of22 AppendixE:Bandedgemeasurements TestResult TestModeAntennaChName Frequency [MHz] RefLevel[dBm]Result[dBm]Limit[dBm]Verdict BLE_1MAnt1 Low24021.58-56.87≤-18.42PASS High24800.88-57.69≤-19.12PASS Page14of22 TestGraphs BLE_1M_Ant1_Low_2402 BLE_1M_Ant1_High_2480 Page15of22 AppendixF:ConductedSpuriousEmission TestResult TestModeAntenna Frequency [MHz] FreqRange [MHz] RefLevel [dBm] Result[dBm]Limit[dBm]Verdict BLE_1MAnt1 2402 Reference0.940.94---PASS 30~10000.94-68.43≤-19.06PASS 1000~265000.94-52.53≤-19.06PASS 2440 Reference1.141.14---PASS 30~10001.14-68.35≤-18.86PASS 1000~265001.14-51.39≤-18.86PASS 2480 Reference0.410.41---PASS 30~10000.41-68.41≤-19.59PASS 1000~265000.41-49.93≤-19.59PASS Page16of22 TestGraphs BLE_1M_Ant1_2402_0~Reference BLE_1M_Ant1_2402_30~1000 BLE_1M_Ant1_2402_1000~26500 Page17of22 BLE_1M_Ant1_2440_0~Reference BLE_1M_Ant1_2440_30~1000 Page18of22 BLE_1M_Ant1_2440_1000~26500 BLE_1M_Ant1_2480_0~Reference BLE_1M_Ant1_2480_30~1000 Page19of22 BLE_1M_Ant1_2480_1000~26500 Page20of22 AppendixG:DutyCycle TestResult TestModeAntennaFrequency[MHz] ONTime [ms] Period [ms] DutyCycle [%] DutyCycle Factor[dB] BLE_1MAnt1 24020.380.6360.322.20 24400.380.6360.322.20 24800.380.6360.322.20 Page21of22 TestGraphs BLE_1M_Ant1_2402 BLE_1M_Ant1_2440 BLE_1M_Ant1_2480 Page22of22 ---End---

ReportNo.:18220WC30052701FCCID:2AY7J-TA500Page1of30 Code:AB-RF-05-b FCCTestReport Applicant:Revopoint3DTechnologiesInc. Address: Office902,9/F,TinnoBuilding,TongfaSouth Rd,XiliStreet,NanshanDistrict,Shenzhen, 518000,China ProductName:LargeTurntable ReportDate:Apr.23,2023 ShenzhenAnbotekComplianceLaboratoryLimited ReportNo.:18220WC30052701FCCID:2AY7J-TA500Page2of30 Code:AB-RF-05-b Contents 1.GeneralInformation............................................................................................................................................6 1.1.ClientInformation....................................................................................................................................6 1.2.DescriptionofDevice(EUT)..................................................................................................................6 1.3.AuxiliaryEquipmentUsedDuringTest.................................................................................................7 1.4.DescriptionofTestConfiguration..........................................................................................................7 1.5.DescriptionOfTestSetup......................................................................................................................8 1.6.TestEquipmentList.................................................................................................................................9 1.7.MeasurementUncertainty....................................................................................................................10 1.8.DescriptionofTestFacility...................................................................................................................10 2.SummaryofTestResults.................................................................................................................................11 3.ConductedEmissionTest................................................................................................................................12 3.1.TestStandardandLimit........................................................................................................................12 3.2.TestSetup...............................................................................................................................................12 3.3.TestProcedure.......................................................................................................................................12 3.4.TestData.................................................................................................................................................12 4.RadiationSpuriousEmissionandBandEdge.............................................................................................15 4.1.TestStandardandLimit........................................................................................................................15 4.2.TestSetup...............................................................................................................................................15 4.3.TestProcedure.......................................................................................................................................16 4.4.TestData.................................................................................................................................................17 5.MaximumPeakOutputPowerTest...............................................................................................................25 5.1.TestStandardandLimit........................................................................................................................25 5.2.TestSetup...............................................................................................................................................25 5.3.TestProcedure.......................................................................................................................................25 5.4.TestData.................................................................................................................................................25 6.6dBOccupyBandwidthTest...........................................................................................................................26 6.1.TestStandardandLimit........................................................................................................................26 6.2.TestSetup...............................................................................................................................................26 6.3.TestProcedure.......................................................................................................................................26 6.4.TestData.................................................................................................................................................26 7.PowerSpectralDensityTest...........................................................................................................................27 7.1.TestStandardandLimit........................................................................................................................27 7.2.TestSetup...............................................................................................................................................27 7.3.TestProcedure.......................................................................................................................................27 7.4.TestData.................................................................................................................................................27 8.100kHzBandwidthofFrequencyBandEdgeRequirement......................................................................28 8.1.TestStandardandLimit........................................................................................................................28 ReportNo.:18220WC30052…

Text truncated - open the document above for the full version.

Code:AB-RF-05-b TestSetupPhotograph PhotoofConductedEmissionMeasurement PhotoofRadiationEmissionTest Code:AB-RF-05-b
