2AY7W9525Remote Control Car

FCC STATEMENT This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -- Reorient or relocate the receiving antenna. -- Increase the separation between the equipment and receiver. -- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -- Consult the dealer or an experienced radio/TV technician for help. This device and its antenna(s) must not be co-located or operation in conjunction with any other antenna or transmitter. Radiation Exposure Statement The device has been evaluated to meet general RF exposure requirement in portable exposure condition without restriction.



       !  "#$% & '   ( )'*+,#-
     . /011  1  . 23
     /4 5   3 4 5 6*$)'  ) 0  55    /)  7 8)5    )   .)  5523)  9$:'+#9: )!&) ;)""#*$)
  .<23</   .)  55 23)%+%9,,  .<23</!&);)""#*$ =9->"%#>9:9"9*+9=+?"+$@-+#>9+99   5*,**A+-$6 3 68 5A.5 &6  ,,$,-9,9%# ,,$#$$-9:+  ( *1"4:%*%  B B  4)C/011 1D C23
 D   &85      5  5 E(5    3B
   B      ( )  .
66  > B  5  5   (36 4)C/011 1D C23
 D &85    E  B (5      5 B3B
  B  .  B   5     .    & 5  B   ( 8
66) B .>    3 F 5335  )83 6
    23
      /4 5    3 4 5  '  5  5 5

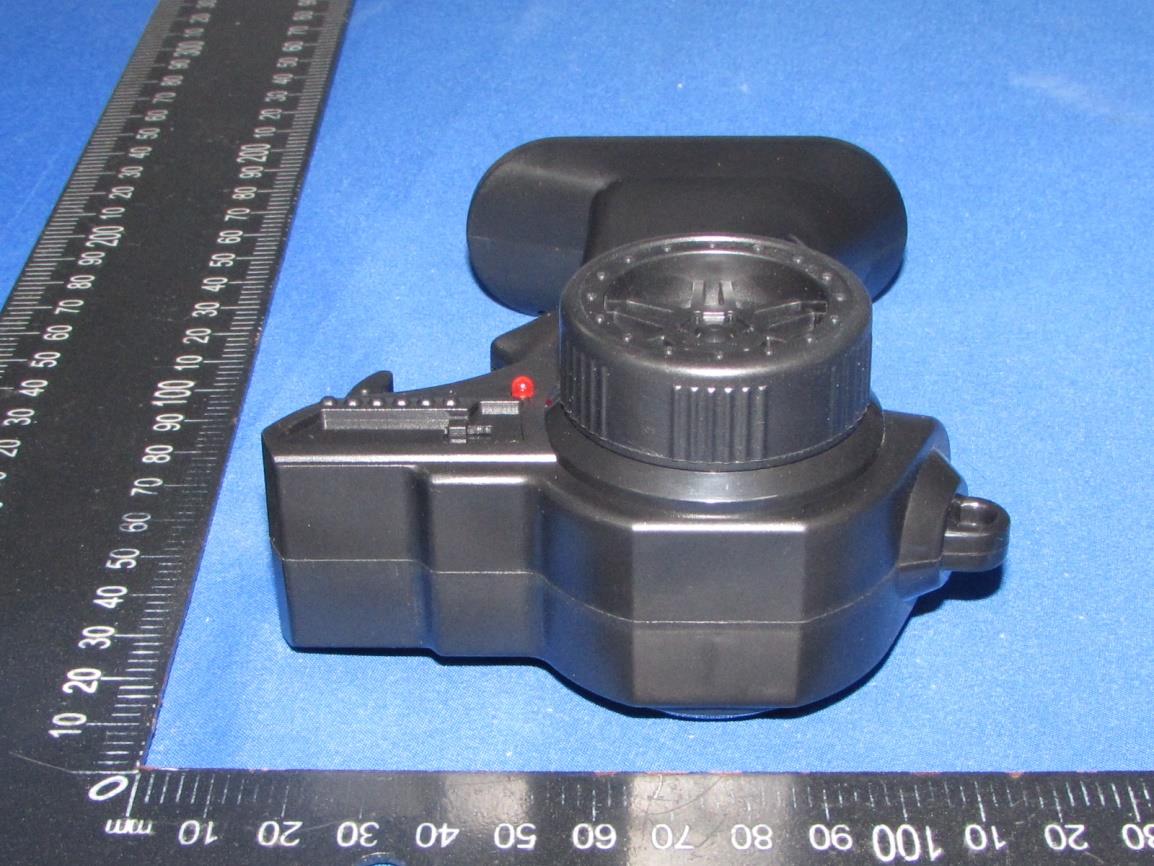

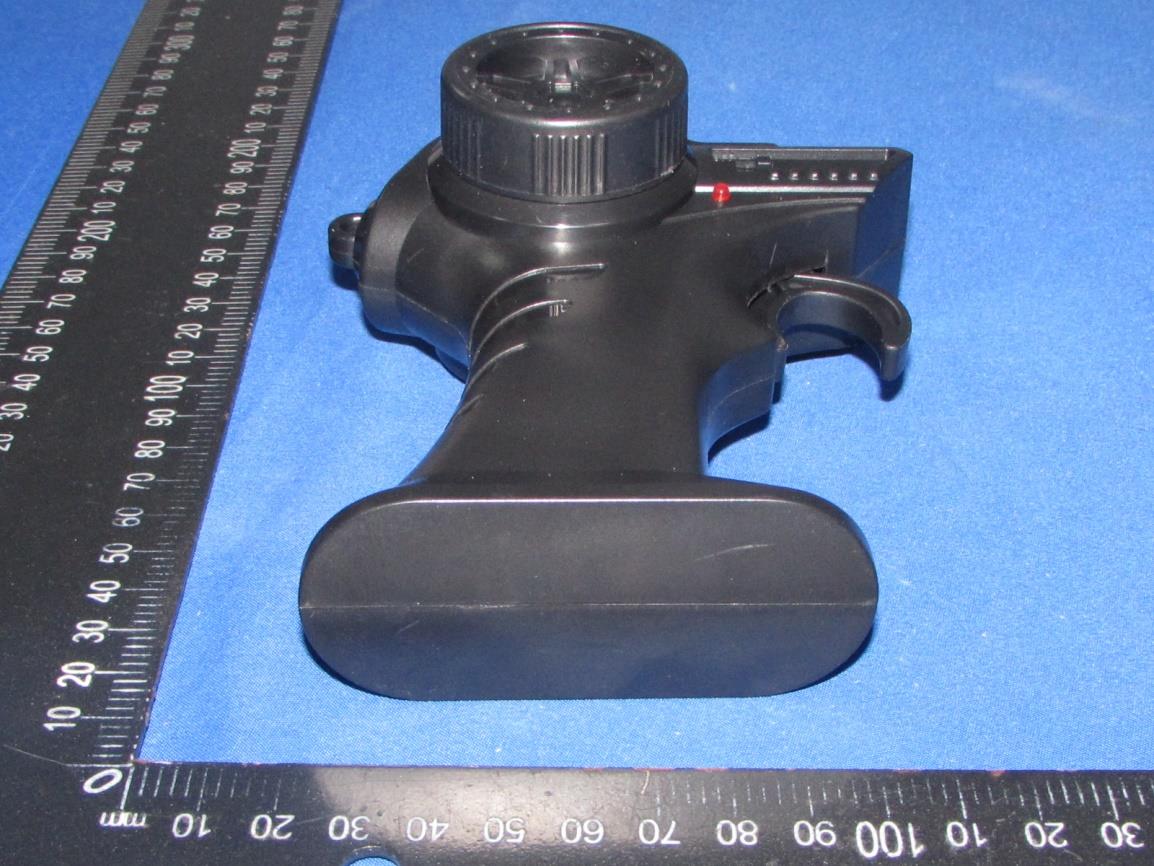

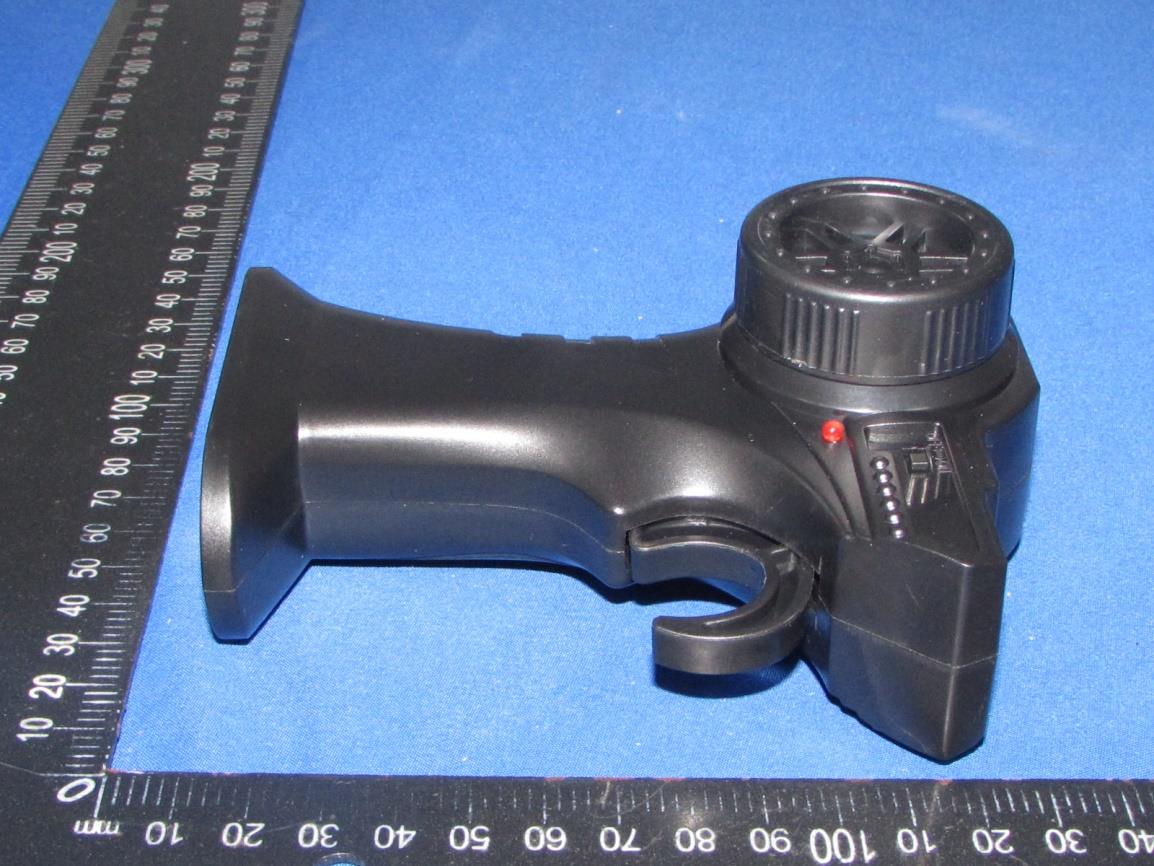

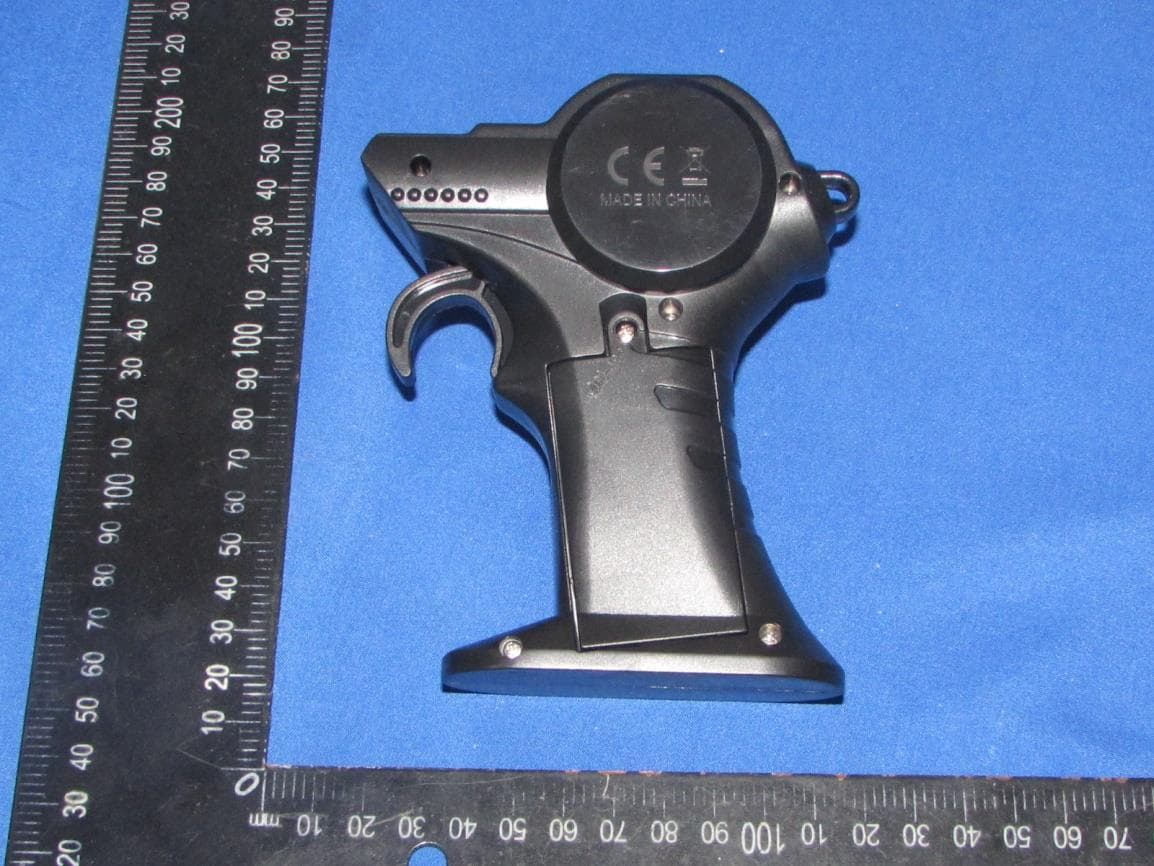

FCC ID:2AY7W9525 Page 1 of 4 Exterior Photographs of EUT Fig.1 Fig.2 FCC ID:2AY7W9525 Page 2 of 4 Fig.3 Fig.4 FCC ID:2AY7W9525 Page 3 of 4 Fig.5 Fig.6 FCC ID:2AY7W9525 Page 4 of 4 Fig.7

Label Location FCC ID: 2AY7W9525

FCC ID:2AY7W9525 Page 1 of 3 Exterior Photographs of EUT Fig.1 Fig.2 FCC ID:2AY7W9525 Page 2 of 3 Fig.3 Fig.4 SRD Antenna FCC ID:2AY7W9525 Page 3 of 3 Fig.5

Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AY7W9525 This report shall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd Page 1 of 3 RADIO FREQUENCY EXPOSURE Limit According to section B.4 of 447498 D04 Interim General RF Exposure Guidance v01 SAR-based thresholds are derived based on frequency, power, and separation distance of the RF source. The formula defines the thresholds in general for either available maximum time-averaged power or maximum time-averaged ERP, whichever is greater. If the ERP of a device is not easily determined, such as for a portable device with a small form factor, the applicant may use the available maximum time-averaged power exclusively if the device antenna or radiating structure does not exceed an electrical length of λ/4. As for devices with antennas of length greater than λ/4 where the gain is not well defined, but always less than that of a half-wave dipole (length λ/2), the available maximum time-averaged power generated by the device may be used in place of the maximum time-averaged ERP, where that value is not known. The separation distance is the smallest distance from any part of the antenna or radiating structure for all persons, during operation at the applicable ERP. In the case of mobile or portable devices, the separation distance is from the outer housing of the device where it is closest to the antenna. The SAR-based exemption formula of § 1.1307(b)(3)(i)(B), repeated here as Formula (B.2), applies for single fixed, mobile, and portable RF sources with available maximum time-averaged power or effective radiated power (ERP), whichever is greater, of less than or equal to the threshold Pth (mW). This method shall only be used at separation distances from 0.5 cm to 40 cm and at frequencies from 0.3 GHz to 6 GHz (inclusive). Pth is given by Formula (B.2). Where and f is in GHz, d is the separation distance (cm), and ERP 20cm is per Formula (B.1). Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AY7W9525 This report shall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd Page 2 of 3 The example values shown in Table B.2 are for illustration only. Frequency (MHz) Distance (mm) 5 10 15 20 25 30 35 40 45 50 300 39 65 88 110 129 148 166 184 201 217 450 22 44 67 89 112 135 158 180 203 226 835 9 25 44 66 90 116 145 175 207 240 1900 3 12 26 44 66 92 122 157 195 236 2450 3 10 22 38 59 83 111 143 179 219 3600 2 8 18 32 49 71 96 125 158 195 5800 1 6 14 25 40 58 80 106 136 169 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AY7W9525 This report shall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd Page 3 of 3 Conducted Power Results TestMode Antenna Frequency[MHz] Result[dBm] SRD Ant1 2405 -3.55 SRD Ant1 2440 -2.69 SRD Ant1 2475 -2.96 Manufacturing tolerance GFSK (Peak) Channel Channel 0 Channel 19 Channel 39 Target (dBm) -4 -3 -3.5 Tolerance ±(dB) 1 1 1 Results Test Mode Max Conducted Tune Up Power(dBm) Max of ERP and Conducted Power including Tune Up (dBm) Max of ERP and Conducted Power including Tune Up (mW) Exemption Limit(mW) GFSK -2.0 -2.0 0.63 3 Max of ERP and Conducted Power including Tune Up (dBm) = Max Conducted Tune Up Power(dBm) and Max Conducted Tune Up Power(dBm) + Antenna Gain(dBi)-2.15), whichever is greater. The antenna gain of the EUT for BT is 2dBi (Max). the Maximum Eirp is used for Routine Evaluation Exemption according to B.4 of 447498 D04 Interim General RF Exposure Guidance v01. So, the SAR evaluation is not required.

Antenna sample admission letter The Main Antenna Samp le Confirmation Customer Name Project Name The ANT wire antenna Date 2023-2-23 Material Number 2.4G antenna (white) Notes Electronic wire Frequency Range Bluetooth 2.4G (2400 MHz-2500 MHz) Designed By RF EngineerStructural Enginer Checked By Engineering Manager Customer Confirmation Client 's Approva l design unit: Address: Chenghai, Guangdong, China main materialrange of application remarks Clear PVC-adhesive material Outside of the wire is used environmental protection copper wire Lead conductor copper diameter of 0. 14 environmental protection Environmental tin The wire is covered with tin environmental protection Specifications and dimensions name of a part scope of application wire length Wire colorsurface 2.4G antenna (white) The ire on the board 35MM white No surface damage, scratch Traces, oil stains and other defects order number projectstandard 1 withstand voltage 60V 2 Current resistance 1500MA 3 contact resistance 30m Q MAX 4 insulation resistance 1000m Q MIX 5 pulling 0.9 Kg 6 temperature resistance 80 Degrees order number projectstandardtest method 1 Excluding 16P and ROHSThe 16 components were less than 0. 1% Third-party authoritative testing agency (such as: SGS ) 6 months after the delivery Note:Thetemperatureshouldnotexceed80°C,andthecurrentshouldnotbeabove 1.5A. Note: 2.4G antenna specification is 7 core 0. 14 copper diameter bare copper wire outer wire diameter 1.3MM wire, white, length of 35MM, wire head peeling 3MM tin. Meet the environmental protection standards: EU EN 71 (19E), ROHS, PAHS, 6P ~ 16P, Europe and America CPSIA、HR 4040。 Product Specification A .Electrical Characteristics Frequency 2400MHz ~2500MHz VSWR <3.0 Efficiency >30% Impedance 50 Ohm Polarization Line Gain 2DBi B .Material & Mechanical Characteristics Material of Radiator Cu Cable Type 1.0 19P in white Connector Type : NO D imension C .Environmental Operation Temperature - 30 °C ~ + 80 °C Storage Temperature - 30 °C ~ + 85 °C Test Equipment & Conditions 1 ． Network Analyzers : Agilent 8753D 5071B 2 ． Communications Test Set : Agilent E 5515C 3．3D Chamber Test Syst e m Effiency &Gain Effiency &Gain 2.40 2.00 .4402 1.11 2.48 1.30 Radiation Pattern :

Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AY7W9525 Report No.: TZ0035240909FRF12 Page 1 of 22 Appendix Test Data for BLE (Conducted Measurement) Product Name: Remote Control Car Trade Mark: N/A Test Model: 9525-1 FCC ID: 2AY7W9525 Environmental Conditions Temperature: 23.8°C Relative Humidity: 58% ATM Pressure: 100.0 kPa Test Engineer: Allen Lai Supervised by: Hugo Chen NOTE N/A Appendix A: DTS Bandwidth Test Result Test Mode Antenna Frequency [MHz] DTS BW [MHz] FL [MHz] FH [MHz] Limit [MHz] Verdict SRD Ant1 2405 0.68 2404.64 2405.33 0.5 PASS SRD Ant1 2440 0.69 2439.64 2440.33 0.5 PASS SRD Ant1 2475 0.69 2474.64 2475.33 0.5 PASS Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AY7W9525 Report No.: TZ0035240909FRF12 Page 2 of 22 Test Graphs SRD-Ant1-2405-PASS SRD-Ant1-2440-PASS Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AY7W9525 Report No.: TZ0035240909FRF12 Page 3 of 22 SRD-Ant1-2475-PASS Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AY7W9525 Report No.: TZ0035240909FRF12 Page 4 of 22 Appendix B: Occupied Channel Bandwidth Test Result Test Mode Antenna Frequency [MHz] OCB [MHz] FL [MHz] FH [MHz] Limit [MHz] Verdict SRD Ant1 2405 1.059 2404.4486 2405.5075 --- --- SRD Ant1 2440 1.059 2439.4486 2440.5075 --- --- SRD Ant1 2475 1.055 2474.4525 2475.5075 --- --- Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AY7W9525 Report No.: TZ0035240909FRF12 Page 5 of 22 Test Graphs SRD-Ant1-2405 SRD-Ant1-2440 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AY7W9525 Report No.: TZ0035240909FRF12 Page 6 of 22 SRD-Ant1-2475 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AY7W9525 Report No.: TZ0035240909FRF12 Page 7 of 22 Appendix C: Maximum peak conducted output power Test Result Peak Test Mode Antenna Frequency [MHz] Conducted Peak Power [dBm] Conducted Limit [dBm] Verdict SRD Ant1 2405 -3.55 ≤30 PASS SRD Ant1 2440 -2.69 ≤30 PASS SRD Ant1 2475 -2.96 ≤30 PASS Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AY7W9525 Report No.: TZ0035240909FRF12 Page 8 of 22 Test Graphs Peak SRD-Ant1-2405-PASS SRD-Ant1-2440-PASS Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AY7W9525 Report No.: TZ0035240909FRF12 Page 9 of 22 SRD-Ant1-2475-PASS Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AY7W9525 Report No.: TZ0035240909FRF12 Page 10 of 22 Appendix D: Maximum peak power spectral density Test Result Test Mode Antenna Frequency [MHz] Result [dBm/3kHz] Limit [dBm/3kHz] Verdict SRD Ant1 2405 -20.98 ≤8.00 PASS SRD Ant1 2440 -20.16 ≤8.00 PASS SRD Ant1 2475 -20.39 ≤8.00 PASS Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AY7W9525 Report No.: TZ0035240909FRF12 Page 11 of 22 Test Graphs SRD-Ant1-2405-PASS SRD-Ant1-2440-PASS Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AY7W9525 Report No.: TZ0035240909FRF12 Page 12 of 22 SRD-Ant1-2475-PASS Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AY7W9525 Report No.: TZ0035240909FRF12 Page 13 of 22 Appendix E: Band edge measurements Test Result Test Mode Antenna Ch.Name Frequency [MHz] RefLevel [dBm] Result [dBm] Limit [dBm] Verdict SRD Ant1 Low 2405 -5.74 -47.65 ≤-25.74 PASS SRD Ant1 High 2475 -4.41 -46.41 ≤-24.41 PASS Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AY7W9525 Report No.: TZ0035240909FRF12 Page 14 of 22 Test Graphs SRD-Ant1-2405-PASS SRD-Ant1-2475-PASS Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AY7W9525 Report No.: TZ0035240909FRF12 Page 15 of 22 Appendix F: Conducted Spurious Emission Test Result Test Mode Antenna Frequency [MHz] FreqRange [MHz] RefLevel [dBm] Result [dBm] Limit [dBm] Verdict SRD Ant1 2405 0~Reference -4.93 -4.93 --- PASS SRD Ant1 2405 30~1000 -4.93 -52.73 ≤-24.93 PASS SRD Ant1 2405 1000~26500 -4.93 -37.86 ≤-24.93 PASS SRD Ant1 2440 0~Reference -4.05 -4.05 --- PASS SRD Ant1 2440 30~1000 -4.05 -51.89 ≤-24.05 PASS SRD Ant1 2440 1000~26500 -4.05 -38.46 ≤-24.05 PASS SRD Ant1 2475 0~Reference -4.42 -4.42 --- PASS SRD Ant1 2475 30~1000 -4.42 -52.07 ≤-24.42 PASS SRD Ant1 2475 1000~26500 -4.42 -36.26 ≤-24.42 PASS Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AY7W9525 Report No.: TZ0035240909FRF12 Page 16 of 22 Test Graphs SRD-Ant1-2405-0~Reference-PASS SRD-Ant1-2405-30~1000-PASS Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AY7W9525 Report No.: TZ0035240909FRF12 Page 17 of 22 SRD-Ant1-2405-1000~26500-PASS SRD-Ant1-2440-0~Reference-PASS SRD-Ant1-2440-30~1000-PASS Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AY7W9525 Report No.: TZ0035240909FRF12 Page 18 of 22 SRD-Ant1-2440-1000~26500-PASS SRD-Ant1-2475-0~Reference-PASS SRD-Ant1-2475-30~1000-PASS Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AY7W9525 Report No.: TZ0035240909FRF12 Page 19 of 22 SRD-Ant1-2475-1000~26500-PASS Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AY7W9525 Report No.: TZ0035240909FRF12 Page 20 of 22 Appendix G: Duty Cycle Test Result Test Mode Antenna Frequency [MHz] ON Time [ms] Period [ms] Duty Cycle [%] Duty Cycle Factor [dB] SRD Ant1 2405 0.39 0.75 52.00 2.84 SRD Ant1 2440 0.39 0.75 52.00 2.84 SRD Ant1 2475 0.39 0.75 52.00 2.84 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AY7W9525 Report No.: TZ0035240909FRF12 Page 21 of 22 Test Graphs NTNV-SRD-Ant1-2405 NTNV-SRD-Ant1-2440 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AY7W9525 Report No.: TZ0035240909FRF12 Page 22 of 22 NTNV-SRD-Ant1-2475

This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen Tongzhou Testing Co.,Ltd. is acknowledged as copyright owner and source of the material. Shenzhen Tongzhou Testing Co.,Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. The test report apply only to the specific sample(s) tested under stated test conditions. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Page 1 of 31 TEST REPORT Report Number : TZ0035240909FRF12 Product Name : Remote Control Car Model/Type reference : Refer to section 1.2 of this report FCC ID : 2AY7W9525 Prepared for : ZHENYE TOYS FACTORY No.23, Middle Road, Huaize Dongguahu Industrial Zone, Lianxia Town, Chenghai District, Shantou City, Guangdong Province, China Prepared By : Shenzhen Tongzhou Testing Co.,Ltd. 1st Floor, Building 1, Haomai High-tech Park, Huating Road 387, Dalang Street, Longhua, Shenzhen, China Standards : FCC CFR Title 47 Part 15C, ANSI C63.10: 2013 Date of Test : 2024/9/12 ~ 2024/9/20 Date of Issue : 2024/9/21 Prepared by : Nancy Li (File administrators) Reviewed by : Hugo Chen (Technical Manager) Approved by : Andy Zhang (General Manager) Report No.: TZ0035240909FRF12 Page 2 of 31 ** Report Revise Record ** Report Version Revise Time Issued Date Valid Version Notes V1.0 / 2024/9/21 Valid Initial release Report No.: TZ0035240909FRF12 Page 3 of 31 TABLE OF CONTENTS 1. G E N E R A L I N F O R M A T I O N ....................................................... 4 1.1. Client Information ................................................................................................................... 4 1.2. Description of Device (EUT) ................................................................................................... 4 1.3. Wireless Function Tested in this Report .............................................................................. 4 1.4. EUT configuration ................................................................................................................... 6 1.5. Description of Test Facility .................................................................................................... 6 1.6. Statement of the Measurement Uncertainty ......................................................................... 7 1.7. Measurement Uncertainty ...................................................................................................... 7 1.8. Description of Test Modes ..................................................................................................... 7 1.9. Frequency of Channels .......................................................................................................... 7 2. T E S T M E T H O D O L O G Y ............................................................ 9 2.1. EUT Configuration .................................................................................................................. 9 2.2. EUT Exercise ........................................................................................................................... 9 2.3. Test Sample ............................................................................................................................. 9 3. S Y S T E M T E S T C O N F I G U R A T I O N ............................................ 10 3.1. Justification ........................................................................................................................... 10 3.2. EUT Exercise Software ......................................................................................................... 10 3.3. Special Accessories ............................................................................................................. 10 3.4. Block Diagram/Schematics .................................................................................................. 10 3.5. Equipment Modifications ..................................................................................................... 10 3.6. Test Setup .............................................................................................................................. 10 4. S U M M A R Y O F T E S T R E S U L T S ............................................... 11 5. T E S T R E S U L T .................................................................... 12 5.1. On Time and Duty Cycle ....................................................................................................... 12 5.2. Maximum Peak Conducted Output Power Measurement ................................................. 13 5.3. Power Spectral Density Measurement ................................................................................ 14 5.4. 6 dB Spectrum Bandwidth Measurement ........................................................................... 15 5.5. Radiated Emissions Measurement ...................................................................................... 16 5.6. Conducted Spurious Emissions and Band Edges Test .................................................... 24 5.7. AC Power line conducted emissions .................................................................................. 25 5.8. Band-edge measurements for radiated emissions ........................................................... 26 5.9. Antenna Requirements ......................................................................................................... 29 6. L I S T O F M E A S U R I N G E Q U I P M E N T S ....................................... 30 7. T E S T S E T U P P H O T O G R A P H S O F E U T ..................................... 31 8. E X T E R I O R P H O T O G R A P H S O F E U T ........................................ 31 9. I N T E R I O R P H O T O G R A P H S O F E U T ........................................ 31 Re…

Text truncated - open the document above for the full version.

FCC ID:2AY7W9525 Page 1 of 1 Test Setup Photos of the EUT Radiated Emission Below 1GHz Radiated Emission Above 1GHz
