2AY9NIPC-B200Industrial PC

Industrial PC IPC-B200-J923E1C00 User manual version：Ver. A01 Disclaimer This manual is only for Delta Electronics, Inc, no copyright without permission .the contents of this manual are not representative of the manufacture’s commitment ,due to the continuous improvement of products, we reserve the right to change the manual, please forgive that if no information in advance. In no event will the manufacture be liable for direct. indirect. Special .incidental or consequential damages. arising out of improper installation or use. Or inability to use the product or documentation. Guarantee Clause: The warranty on the product lasts for 18 months, if the user has additional requirements ,the contract sighed between the two sides shall prevail. Trademarks All the trademarks mentioned in this manual are registered trademarks of their respective companies. AMI® is the registered trademark of AMI Company. Intel®, Celeron®, Pentium®,Atom are the registered trademarks of Intel. NetWare® is the registered trademark of Novell Inc. PS/2 and OS/2 are the registered trademarks of International Business Machines Windows 7, windows XP, Windows 8 are the registered trademarks of Microsoft Safety Instructions • Please read the user manual carefully before using the product, and carefully keep it for future reference. • Before connecting power supply to the product, please confirm the voltage is compliant with the requirement of the device. • To avoid electric shock or damage to the product, please unplug the power cord from the socket before cleaning the device by wet rag. • Please do not use liquid or aerosol cleaner to clean up the device. • To avoid short circuit or fire, please do not let any liquid get into or splash into the product. • For a device which needs to use power cord, there must be an easy-to-reach power socket around the device. • Please do not use the product in a damp environment. • Before installation, please make sure the device is placed on a solid surface; accidental drop or tipping may cause malfunction or damage to the device. • Before you connect or unplug any signal cable, make sure all power cords are unplugged in advance; • To avoid unnecessary damage caused by frequent power-on/off, wait at least 30 seconds after turning off the computer before re-turning on the computer. • If the product will not be used for a long time, please disconnect the power cord, to avoid damage to the product by transient voltage. • If the product needs to be upgraded, installed or dismantled, please implement all the operation on an ESD workstation, for some precision devices are sensitive to ESD; • Ensure excellent heat dissipation and ventilation of the system. Please do not open or dismantle the device by yourself. For the sake of safety, this device can only be opened by a professional maintenance person. Packing List • A fanless industrial Computer • 1*AC 100V～240V to DC+12V/5A power adapter • 1*AC220V power cable • 2*Mounting Bracket & 4*Screw • 1*Driver CD & manual • 1*Certification,1*packing list Content 1．Product Introduction ......................................................................... 1 1.1 Brief introduction ........................................................................................ 1 1.2 Product specifications ................................................................................ 1 1.3 I/O ................................................................................................................. 3 2．Application planning ......................................................................... 4 2.1 Transportation ............................................................................................. 4 2.2 Storage Requirements ............................................................................... 4 2.3 Unpack and check the delivered equipment .......................................... 4 3．Installation instructions .................................................................... 6 3.1 Product outline ............................................................................................ 6 3.2 Product assembly ....................................................................................... 6 4．Interface Definition ........................................................................... 7 4.1 USB port ...................................................................................................... 7 4.2 Ethernet ....................................................................................................... 8 4.3 Standard DB9 .............................................................................................. 8 4.4 Standard VGA ............................................................................................. 8 4.5 Standard HDMI A Type .............................................................................. 9 4.6 Power ........................................................................................................... 9 5. Appendix ............................................................................................ 10 5.1 Host BIOS settings ................................................................................... 10 5.1.1 Main ............................................................................................... 10 5.1.2 CSTIPC ......................................................................................... 10 5.1.3 Advanced ...................................................................................... 12 5.1.4 Chipset .......................................................................................... 13 5.1.5 Boot ............................................................................................... 13 5.1.6 Security ......................................................................................... 14 5.1.7 Save & Exit ................................................................................... 15 …

Text truncated - open the document above for the full version.

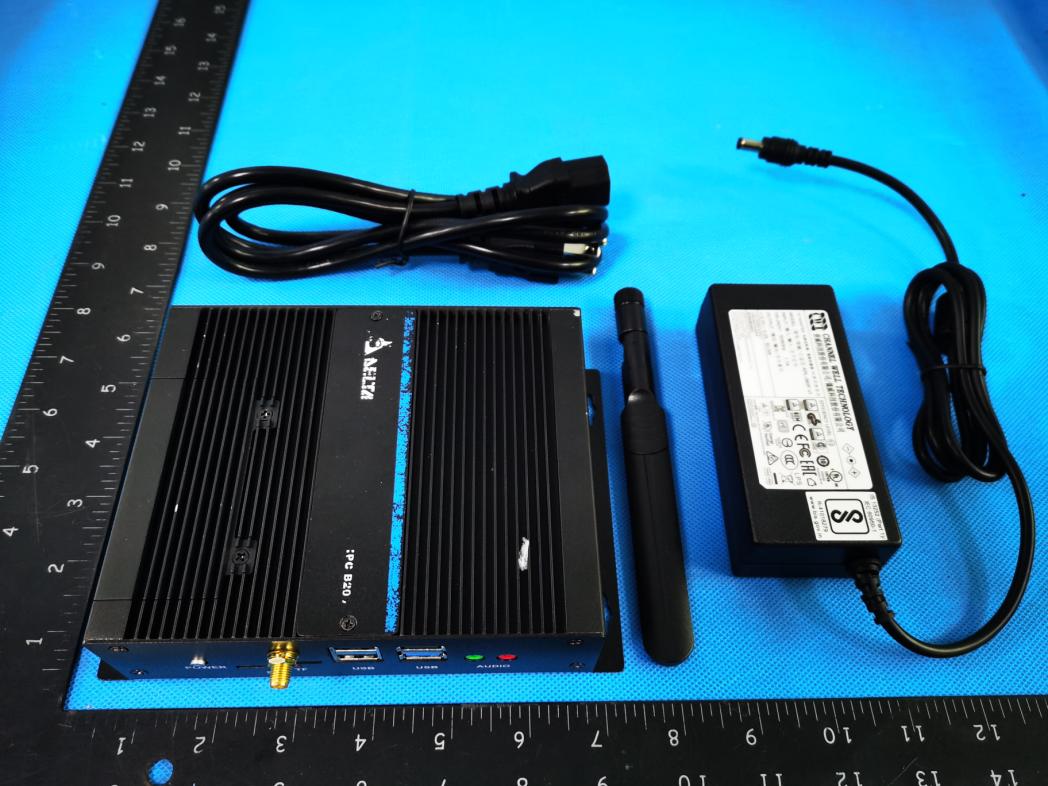

ATTACHMENT PHOTOGRAPHS OF EUT Photo 1 Photo 2 BT/WIFI2.4G/ WIFI5G ANT Photo 3 Photo 4 Photo 5 Photo 6 Photo 7 Photo 8 Photo 9

50*25MM

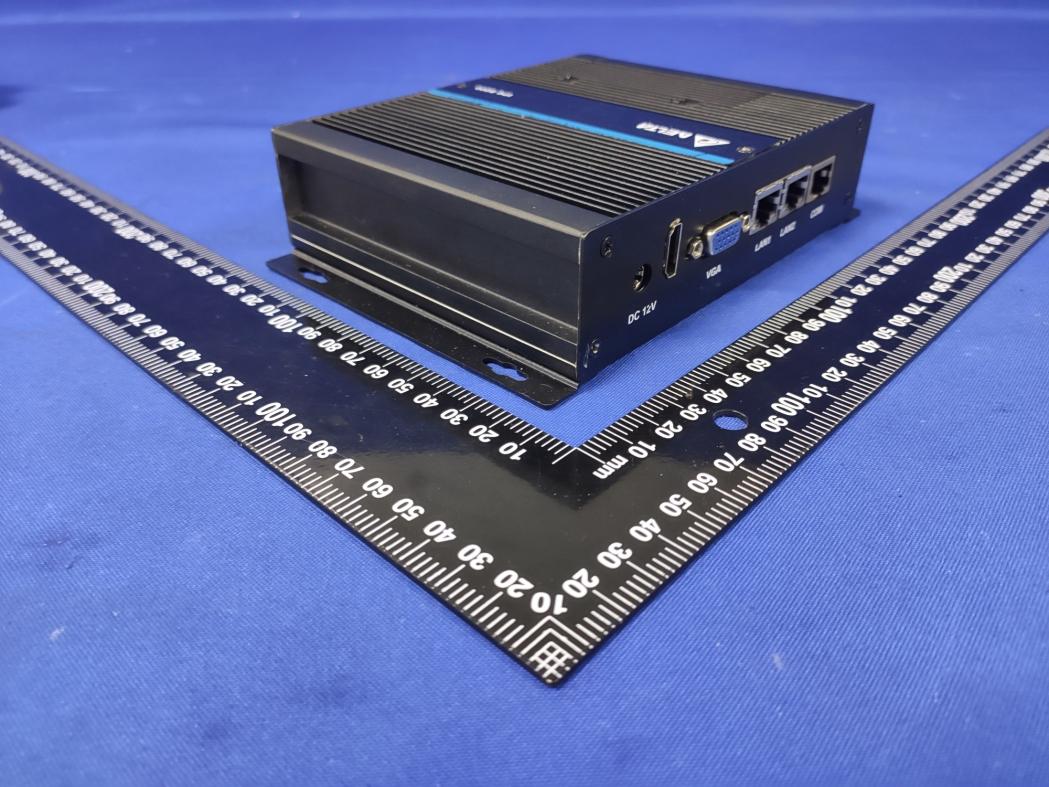

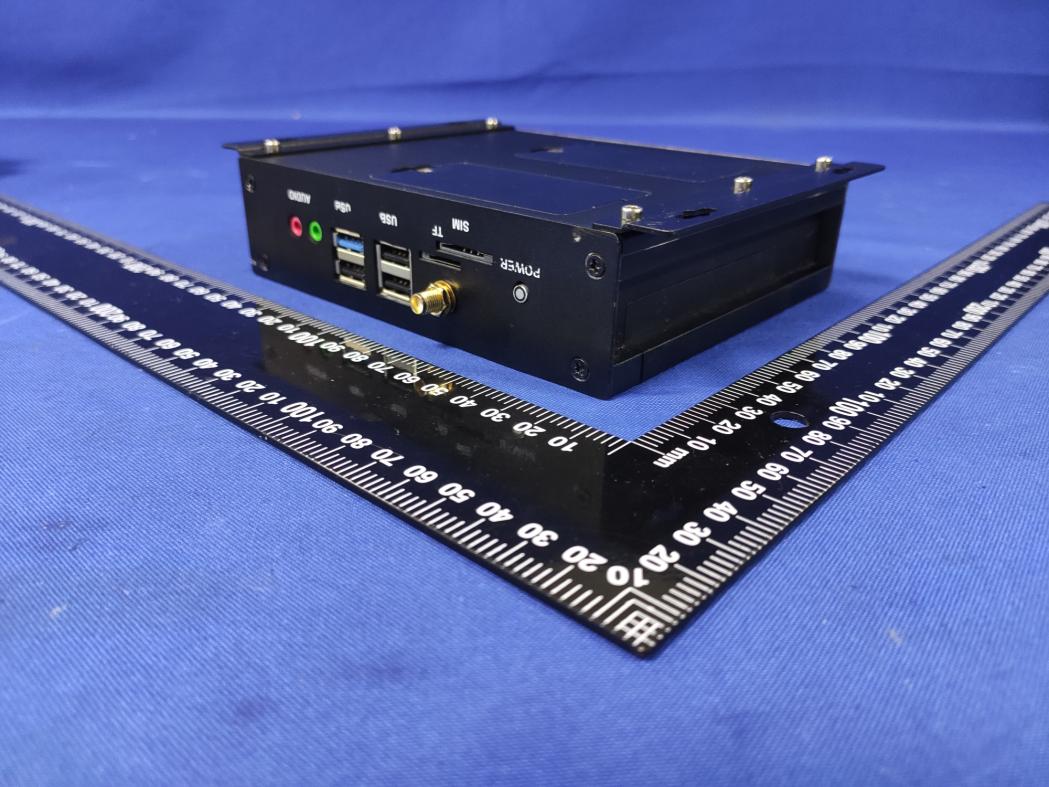

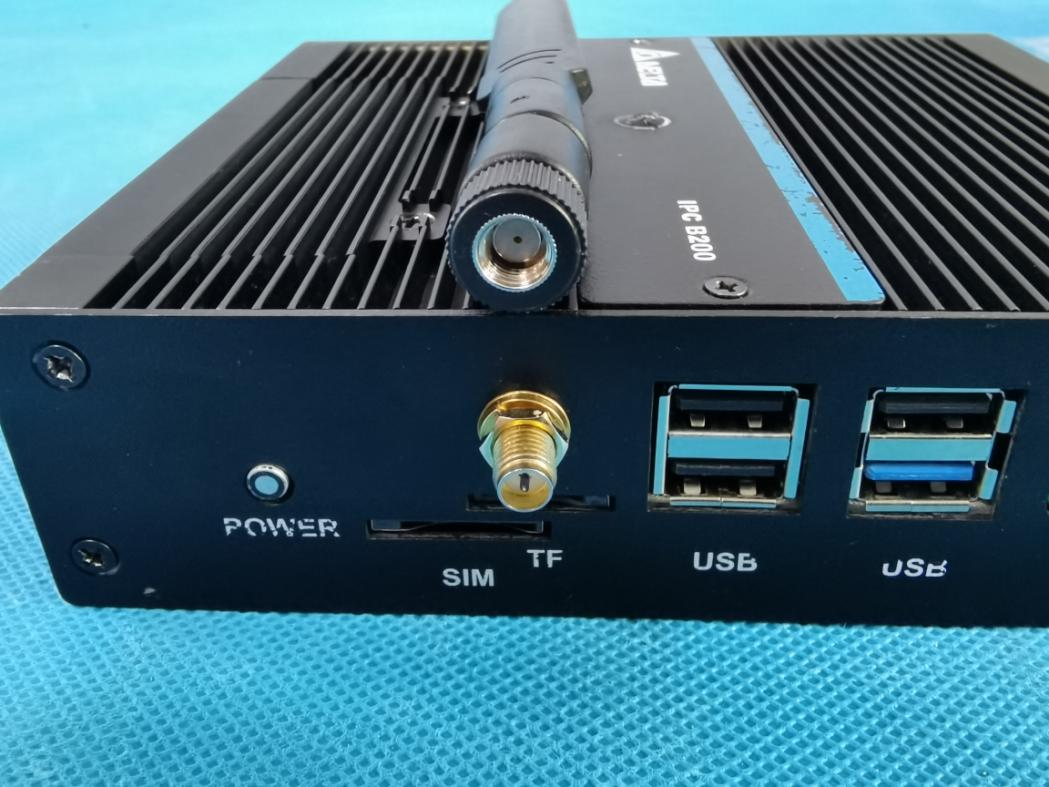

ATTACHMENT PHOTOGRAPHS OF EUT Photo 1 Photo 2 Photo 3 Photo 4 RF Module Photo 5 Photo 6 Photo 7 Photo 8 Photo 9 Photo 10 Photo 11 Photo 12 Photo 13

FCC ID: 2AY9NIPC-B200 Maximum Permissible Exposure (MPE) According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environment impact of human exposure to radio frequency(RF) Radiation as specified in §1.1307(b) Limits for Maximum Permissible Exposure (MPE) MPE Calculation Method E (V/m) ＝ d GP**30 Power Density: Pd (W/m²) ＝ 377 2 E E ＝ Electric field (V/m) P ＝ Average RF output power (W) G ＝ EUT Antenna numeric gain (numeric) d ＝ Separation distance between radiator and human body (m) The formula can be changed to Pd ＝ 2 *377 **30 D GP From the EUT RF output power, the minimum mobile separation distance, d=0.2m, as well as the gain of the used antenna, the RF power density can be obtained. Measurement Result BT: Operation Frequency: 2402MHz~2480MHz Power density limited: 1mW/ cm 2 Antenna Type: external antenna WIFI antenna gain: 5dBi; R=20cm mW=10^(dBm/10) antenna gain Numeric=10^(dBi/10)= 10^(5/10)=3.16 2.4G WIFI: Operation Frequency: WIFI 802.11b/g/n HT20: 2412-2462MHz, WIFI 802.11n HT40:2422-2452MHz Power density limited: 1mW/ cm 2 Antenna Type: external antenna WIFI antenna gain: 5dBi; R=20cm mW=10^(dBm/10) antenna gain Numeric=10^(dBi/10)= 10^(5/10)=3.16 conducted power Tune-up power Antenna Evaluation result at 20cm Power density Limits Gain (dBm)(mW)Numeric 2402 4.658 4±153.1622783.160.001991 2441 5.025 5±163.9810723.160.002501 2480 3.196 4±153.1622783.160.001991 2402 2.46 2±131.9952623.160.001251 2441 2.452 2±131.9952623.160.001251 2480 0.972 0±111.2589253.160.000791 2402 2.619 2±131.9952623.160.001251 2441 2.623 2±131.9952623.160.001251 2480 1.106 2±131.9952623.160.001251 2402 2.527 2±131.9952623.160.001251 2440 2.656 2±131.9952623.160.001251 2480 1.063 2±131.9952623.160.001251 Channel Freq. (MHz) modulation (dBm) GFSK BLE(GFSK) Power density(mW/cm2 ) (mW/cm2) (dBm) π/4- DQPSK, 8DPSK Max tune-up power conducted power Tune-up power Antenna Evaluation result at 20cm Power density Limits Gain (dBm)(mW)Numeric 2412 12.99 13±11425.118863.160.015791 2437 13 13±11425.118863.160.015791 2462 13.84 13±11425.118863.160.015791 2412 12.76 13±11425.118863.160.015791 2437 12.59 13±11425.118863.160.015791 2462 13.15 13±11425.118863.160.015791 2412 12.48 12±11319.952623.160.012541 2437 12.84 12±11319.952623.160.012541 2462 12.97 12±11319.952623.160.012541 2422 12.42 12±11319.952623.160.012541 2437 12.67 12±11319.952623.160.012541 2452 12.41 12±11319.952623.160.012541 Channel Freq. (MHz) modulation (dBm) 802.11b 802.11n H40 Power density(mW/cm2 ) (mW/cm2) (dBm) 802.11g 802.11n H20 Max tune-up power 5G WIFI: Operation Frequency: WIFI 802.11a/ac/n(HT20): 5180-5240MHz;5260-5320MHz,5500- 5700MHz,5745-5825MHz;WIFI 802.11ac/n(HT40): 5190-5230MHz;5270-5310MHz,5510- 5670MHz5755-5795MHz; WIFI 802.11ac80:5210-5210MHz;5290-5290MHz;5530-5610MHz; 5775-5775MHz Power density limited:1mW/ cm Antenna Type: external antenna WIFI antenna gain: 5dBi; R=20cm mW=10^(dBm/10) antenna gain Numeric=10^(dBi/10)= 10^(5/10)=3.16 5.2G conducted power Tune-up power Antenna Evaluation result at 20cm Power density Limits Gain (dBm)(mW)Numeric 5180 8.266 9±110103.160.006291 5200 8.598 9±110103.160.006291 5240 9.321 9±110103.160.006291 5180 8.178 9±110103.160.006291 5200 8.51 9±110103.160.006291 5240 9.276 9±110103.160.006291 5190 8.779 8±197.9432823.160.004991 5230 8.572 8±197.9432823.160.004991 5180 8.159 9±110103.160.006291 5200 8.729 9±110103.160.006291 5240 9.604 9±110103.160.006291 5190 8.635 9±11010.003.160.006291 5230 9.47 9±11010.003.160.006291 5210 802.11ac 80 8.9479±110102.510.004991 Max tune-up power Channel Freq. (MHz) modulation (dBm) Power density(mW/cm2 ) 802.11a 802.11n H20 802.11n H40 802.11ac 20 802.11ac 40 (mW/cm2) (dBm) 5.8G: Conclusion: For the max result : 0.01579≤ 1.0 for Max Power Density, Compliance the RF Exposure requirement. Signature: Date: 2021-03-19 NAME AND TITLE (Please print or type): alex li/Manager COMPANY (Please print or type): Shenzhen NTEK Testing Technology Co., Ltd./ 1/F, Building E, Fenda Science Park, Sanwei Community, Xixiang Street Bao’an District, Shenzhen P.R. China. conducted power Tune-up power Antenna Evaluation result at 20cm Power density Limits Gain (dBm)(mW)Numeric 5745 8.67 8±197.9432823.160.004991 5785 8.471 8±197.9432823.160.004991 5825 8.311 8±197.9432823.160.004991 5745 8.561 8±197.9432823.160.004991 5785 8.296 8±197.9432823.160.004991 5825 8.342 8±197.9432823.160.004991 5755 8.356 8±197.9432823.160.004991 5795 8.181 8±197.9432823.160.004991 5745 8.68 8±197.9432823.160.004991 5785 8.275 8±197.9432823.160.004991 5825 8.323 8±197.9432823.160.004991 5755 8.354 8±197.9432823.160.004991 5795 8.136 8±197.9432823.160.004991 5775 802.11ac 80 8.5788±197.943.160.004991 Max tune-up power Channel Freq. (MHz) modulation (dBm) Power density(mW/cm2 ) 802.11a 802.11n20 802.11n40 802.11ac 20 802.11ac 40 (mW/cm2) (dBm)

Report No.: S20041504203004 Version.1.2 Page 1 of 58 FCC RADIO TEST REPORT FCC ID:2AY9NIPC-B200 Product： Industrial PC Trade Mark： Delta Model Name： IPC-B200-J923E1C00 Family Model： IPC-B200-J900E1000, IPC-B200-J923E1000, IPC-B200-J923E1T00, IPC-B200-J923E1E00, IPC-B200-J933E1000, IPC-B200-J933E1C00, IPC-B200-J933E1T00, IPC-B200-J933E1E00 Report No.： S20041504203004 Prepared for Delta Electronics (Jiangsu) Limited. No.1688, Jiangxing East Rd., Wujiang Economic and Technological Development Zone, Suzhou, Jiangsu,China Prepared by Shenzhen NTEK Testing Technology Co., Ltd. 1/F, Building E, Fenda Science Park, Sanwei Community, Xixiang Street Bao’an District, Shenzhen 518126 P.R. China Tel. 400-800-6106, 0755-3699 5508 Website: http://www.ntek.org.cn Report No.: S20041504203004 Version.1.2 Page 2 of 58 TEST RESULT CERTIFICATION Applicant’s name ................. : Delta Electronics (Jiangsu) Limited. Address .................................. : No.1688, Jiangxing East Rd., Wujiang Economic and Technological Development Zone, Suzhou, Jiangsu,China Manufacturer's Name .......... : Delta Electronics (Jiangsu) Limited. Address .................................. : No.1688, Jiangxing East Rd., Wujiang Economic and Technological Development Zone, Suzhou, Jiangsu,China Product description Product name ............................ : Industrial PC Model and/or type reference : IPC-B200-J923E1C00 Family Model ............................. : IPC-B200-J900E1000, IPC-B200-J923E1000, IPC-B200-J923E1T00, IPC-B200-J923E1E00, IPC-B200-J933E1000, IPC-B200-J933E1C00, IPC-B200-J933E1T00, IPC-B200-J933E1E00 Standards ............................. : FCC Part15.407 Test procedure ............................... : ANSI C63.10-2013 and KDB 789033 D02 General UNII Test Procedures New Rules v02r01 This device described above has been tested by NTEK, and the test results show that the equipment under test (EUT) is in compliance with the FCC requirements/ the Industry Canada requirements.. And it is applicable only to the tested sample identified in the report. This report shall not be reproduced except in full, without the written approval of NTEK, this document may be altered or revised by NTEK, personnel only, and shall be noted in the revision of the document. Date of Test ............................................ : Date (s) of performance of tests .............. : Dec 25 2020 ~ Mar 04, 2021 Date of Issue ........................................... : Mar 05, 2021 Test Result ............................................... : Pass Testing Engineer : (Allen Liu) Technical Manager : (Jason Chen) Authorized Signatory : (Alex Li) Report No.: S20041504203004 Version.1.2 Page 3 of 58 Table of Contents Page 1 . SUMMARY OF TEST RESULTS 6 1.1 FACILITIES AND ACCREDITATIONS 7 1.2 MEASUREMENT UNCERTAINTY 7 2 . GENERAL INFORMATION 8 2.1 GENERAL DESCRIPTION OF EUT 8 2.2 DESCRIPTION OF TEST MODES 10 2.3 BLOCK DIGRAM SHOWING THE CONFIGURATION OF SYSTEM TESTED 11 2.4 DESCRIPTION OF SUPPORT UNITS(CONDUCTED MODE) 12 2.5 EQUIPMENTS LIST FOR ALL TEST ITEMS 13 3 . TEST REQUIREMENTS 15 3.1 CONDUCTED EMISSION MEASUREMENT 15 3.1.1 APPLICABLE STANDARD 15 3.1.2 CONFORMANCE LIMIT 15 3.1.3 TEST CONFIGURATION 15 3.1.4 TEST PROCEDURE 15 3.1.5 TEST RESULTS 16 3.2 RADIATED EMISSION MEASUREMENT 20 3.2.1 APPLICABLE STANDARD 20 3.2.2 CONFORMANCE LIMIT 20 3.2.3 MEASURING INSTRUMENTS 20 3.2.4 TEST CONFIGURATION 21 3.2.5 TEST PROCEDURE 22 3.2.6 TEST RESULTS (9KHZ – 30 MHZ) 23 3.2.7 TEST RESULTS (30MHZ – 1GHZ) 24 3.2.8 TEST RESULTS (1GHZ-18GHZ) 28 3.2.9 TEST RESULTS (18GHZ-40GHZ) 32 3.2.10 SPURIOUS EMISSION IN RESTRICTED BAND 4.5GHZ~5.150 GHZ& 5.350GHZ~5460GHZ 36 3.3 POWER SPECTRAL DENSITY TEST 37 3.3.1 APPLIED PROCEDURES / LIMIT 37 3.3.2 TEST PROCEDURE 38 3.3.3 DEVIATION FROM STANDARD 38 3.3.4 TEST SETUP 38 3.3.5 EUT OPERATION CONDITIONS 38 3.3.6 TEST RESULTS 39 3.4 26DB & 99% EMISSION BANDWIDTH 40 3.4.1 APPLIED PROCEDURES / LIMIT 40 3.4.2 TEST PROCEDURE 40 Report No.: S20041504203004 Version.1.2 Page 4 of 58 Table of Contents Page 3.4.3 EUT OPERATION CONDITIONS 41 3.4.4 TEST RESULTS 41 3.5 MINIMUM 6 DB BANDWIDTH 42 3.5.1 APPLIED PROCEDURES / LIMIT 42 3.5.2 TEST PROCEDURE 42 3.5.3 DEVIATION FROM STANDARD 42 3.5.4 TEST SETUP 42 3.5.5 EUT OPERATION CONDITIONS 42 3.5.6 TEST RESULTS 43 3.6 MAXIMUM CONDUCTED OUTPUT POWER 44 3.6.1 PPLIED PROCEDURES / LIMIT 44 3.6.2 TEST PROCEDURE 44 3.6.3 DEVIATION FROM STANDARD 46 3.6.4 TEST SETUP 46 3.6.5 EUT OPERATION CONDITIONS 46 3.6.6 TEST RESULTS 47 3.7 OUT OF BAND EMISSIONS 48 3.7.1 APPLICABLE STANDARD 48 3.7.2 TEST PROCEDURE 48 3.7.3 DEVIATION FROM STANDARD 48 3.7.4 TEST SETUP 48 3.7.5 EUT OPERATION CONDITIONS 48 3.7.6 TEST RESULTS 49 3.8 SPURIOUS RF CONDUCTED EMISSIONS 50 3.8.1 CONFORMANCE LIMIT 50 3.8.2 MEASURING INSTRUMENTS 50 3.8.3 TEST SETUP 50 3.8.4 TEST PROCEDURE 50 3.8.5 TEST RESULTS 50 3.9 FREQUENCY STABILITY MEASUREMENT 51 3.9.1 LIMIT 51 3.9.2 TEST PROCEDURES 51 3.9.3 TEST SETUP LAYOUT 51 3.9.4 EUT OPERATION DURING TEST 51 3.9.5 TEST RESULTS 52 4. ANTENNA REQUIREMENT 58 4.1 STANDARD REQUIREMENT 58 4.2 EUT ANTENNA 58 Report No.: S20041504203004 Version.1.2 Page 5 of 58 Revision History Report No. Version Description Issued Date S20041504203004 Rev.01 Initial issue of report Mar 05, 2021 Report No.: S20041504203004 Version.1.2 Page 6 of 58 1. SUMMARY OF TEST RESULTS Test procedures according to the technical standards: FCC Part15 (15.407) , Subpart E Standard Section Test Item Judgment Remark 15.207 AC Power Line Conducted Emissions PASS 15.209(a), 15.407 (b)(1) 15.407 (b)(4) 15.407 (b)(6) Spurious Radiated Emissions PASS 15.407 (a)(1) 15.407 (a)(3) 26 dB and 99% Emission Bandwidth PASS 15.407(e) Minimum 6 dB bandwidth PASS 15.407 (a)(1) 15.407 (a)(3) Maximum Conducted Output Power PASS 15.407(b)(1) 15.407(b)(4) Band Edge PASS 15.407 (a)(1) 15.407 (a)(3) Power Spectral Density PASS 15.407(b) Spurious Emissions at Antenna Terminals PASS 15.203 Antenna Requirement PASS NOTE: (1)” N/A” denotes test is not applic…

Text truncated - open the document above for the full version.

Report: S20041504203004 Page 1 of 141 5.2G: DUTY CYCLE Condition Mode Frequency (MHz) Antenna Duty Cycle (%) Correction Factor (dB) NVNT a 5180 Ant1 100 0 NVNT a 5200 Ant1 100 0 NVNT a 5240 Ant1 100 0 NVNT ac20 5180 Ant1 99.17 0.04 NVNT ac20 5200 Ant1 99.17 0.04 NVNT ac20 5240 Ant1 99.16 0.04 NVNT ac40 5190 Ant1 98.35 0.07 NVNT ac40 5230 Ant1 98.32 0.07 NVNT ac80 5210 Ant1 96.53 0.15 NVNT n20 5180 Ant1 100 0 NVNT n20 5200 Ant1 99.19 0.04 NVNT n20 5240 Ant1 99.21 0.03 NVNT n40 5190 Ant1 98.35 0.07 NVNT n40 5230 Ant1 98.33 0.07 Report: S20041504203004 Page 2 of 141 Duty Cycle NVNT a 5180MHz Ant1 Duty Cycle NVNT a 5200MHz Ant1 Report: S20041504203004 Page 3 of 141 Duty Cycle NVNT a 5240MHz Ant1 Duty Cycle NVNT a 5180MHz Ant1 Report: S20041504203004 Page 4 of 141 Duty Cycle NVNT a 5200MHz Ant1 Duty Cycle NVNT a 5240MHz Ant1 Report: S20041504203004 Page 5 of 141 Duty Cycle NVNT ac20 5180MHz Ant1 Duty Cycle NVNT ac20 5200MHz Ant1 Report: S20041504203004 Page 6 of 141 Duty Cycle NVNT ac20 5240MHz Ant1 Duty Cycle NVNT ac20 5180MHz Ant1 Report: S20041504203004 Page 7 of 141 Duty Cycle NVNT ac20 5200MHz Ant1 Duty Cycle NVNT ac20 5240MHz Ant1 Report: S20041504203004 Page 8 of 141 Duty Cycle NVNT ac40 5190MHz Ant1 Duty Cycle NVNT ac40 5230MHz Ant1 Report: S20041504203004 Page 9 of 141 Duty Cycle NVNT ac40 5190MHz Ant1 Duty Cycle NVNT ac40 5230MHz Ant1 Report: S20041504203004 Page 10 of 141 Duty Cycle NVNT ac80 5210MHz Ant1 Duty Cycle NVNT ac80 5210MHz Ant1 Report: S20041504203004 Page 11 of 141 Duty Cycle NVNT n20 5180MHz Ant1 Duty Cycle NVNT n20 5200MHz Ant1 Report: S20041504203004 Page 12 of 141 Duty Cycle NVNT n20 5240MHz Ant1 Duty Cycle NVNT n20 5180MHz Ant1 Report: S20041504203004 Page 13 of 141 Duty Cycle NVNT n20 5200MHz Ant1 Duty Cycle NVNT n20 5240MHz Ant1 Report: S20041504203004 Page 14 of 141 Duty Cycle NVNT n40 5190MHz Ant1 Duty Cycle NVNT n40 5230MHz Ant1 Report: S20041504203004 Page 15 of 141 Duty Cycle NVNT n40 5190MHz Ant1 Duty Cycle NVNT n40 5230MHz Ant1 Report: S20041504203004 Page 16 of 141 MAXIMUM CONDUCTED OUTPUT POWER Condition Mode Frequency (MHz) Antenna Conducted Power (dBm) Duty Factor (dB) Total Power (dBm) Limit (dBm) Verdict NVNT a 5180 Ant1 8.266 0 8.266 24 Pass NVNT a 5200 Ant1 8.598 0 8.598 24 Pass NVNT a 5240 Ant1 9.321 0 9.321 24 Pass NVNT ac20 5180 Ant1 8.119 0.04 8.159 24 Pass NVNT ac20 5200 Ant1 8.689 0.04 8.729 24 Pass NVNT ac20 5240 Ant1 9.564 0.04 9.604 24 Pass NVNT ac40 5190 Ant1 8.565 0.07 8.635 24 Pass NVNT ac40 5230 Ant1 9.4 0.07 9.47 24 Pass NVNT ac80 5210 Ant1 8.797 0.15 8.947 24 Pass NVNT n20 5180 Ant1 8.178 0 8.178 24 Pass NVNT n20 5200 Ant1 8.47 0.04 8.51 24 Pass NVNT n20 5240 Ant1 9.246 0.03 9.276 24 Pass NVNT n40 5190 Ant1 8.709 0.07 8.779 24 Pass NVNT n40 5230 Ant1 8.502 0.07 8.572 24 Pass Report: S20041504203004 Page 17 of 141 -26dB Bandwidth Condition Mode Frequency (MHz) Antenna -26 dB Bandwidth (MHz) Limit -26 dB Bandwidth (MHz) Verdict NVNT a 5180 Ant1 22.012 0.5 Pass NVNT a 5200 Ant1 21.851 0.5 Pass NVNT a 5240 Ant1 22.088 0.5 Pass NVNT ac20 5180 Ant1 22.809 0.5 Pass NVNT ac20 5200 Ant1 22.014 0.5 Pass NVNT ac20 5240 Ant1 22.282 0.5 Pass NVNT ac40 5190 Ant1 41.656 0.5 Pass NVNT ac40 5230 Ant1 41.743 0.5 Pass NVNT ac80 5210 Ant1 80.693 0.5 Pass NVNT n20 5180 Ant1 22.249 0.5 Pass NVNT n20 5200 Ant1 21.492 0.5 Pass NVNT n20 5240 Ant1 23.14 0.5 Pass NVNT n40 5190 Ant1 41.887 0.5 Pass NVNT n40 5230 Ant1 42.42 0.5 Pass Report: S20041504203004 Page 18 of 141 -26dB Bandwidth NVNT a 5180MHz Ant1 -26dB Bandwidth NVNT a 5200MHz Ant1 Report: S20041504203004 Page 19 of 141 -26dB Bandwidth NVNT a 5240MHz Ant1 -26dB Bandwidth NVNT a 5180MHz Ant1 Report: S20041504203004 Page 20 of 141 -26dB Bandwidth NVNT a 5200MHz Ant1 -26dB Bandwidth NVNT a 5240MHz Ant1 Report: S20041504203004 Page 21 of 141 -26dB Bandwidth NVNT ac20 5180MHz Ant1 -26dB Bandwidth NVNT ac20 5200MHz Ant1 Report: S20041504203004 Page 22 of 141 -26dB Bandwidth NVNT ac20 5240MHz Ant1 -26dB Bandwidth NVNT ac20 5180MHz Ant1 Report: S20041504203004 Page 23 of 141 -26dB Bandwidth NVNT ac20 5200MHz Ant1 -26dB Bandwidth NVNT ac20 5240MHz Ant1 Report: S20041504203004 Page 24 of 141 -26dB Bandwidth NVNT ac40 5190MHz Ant1 -26dB Bandwidth NVNT ac40 5230MHz Ant1 Report: S20041504203004 Page 25 of 141 -26dB Bandwidth NVNT ac40 5190MHz Ant1 -26dB Bandwidth NVNT ac40 5230MHz Ant1 Report: S20041504203004 Page 26 of 141 -26dB Bandwidth NVNT ac80 5210MHz Ant1 -26dB Bandwidth NVNT ac80 5210MHz Ant1 Report: S20041504203004 Page 27 of 141 -26dB Bandwidth NVNT n20 5180MHz Ant1 -26dB Bandwidth NVNT n20 5200MHz Ant1 Report: S20041504203004 Page 28 of 141 -26dB Bandwidth NVNT n20 5240MHz Ant1 -26dB Bandwidth NVNT n20 5180MHz Ant1 Report: S20041504203004 Page 29 of 141 -26dB Bandwidth NVNT n20 5200MHz Ant1 -26dB Bandwidth NVNT n20 5240MHz Ant1 Report: S20041504203004 Page 30 of 141 -26dB Bandwidth NVNT n40 5190MHz Ant1 -26dB Bandwidth NVNT n40 5230MHz Ant1 Report: S20041504203004 Page 31 of 141 -26dB Bandwidth NVNT n40 5190MHz Ant1 -26dB Bandwidth NVNT n40 5230MHz Ant1 Report: S20041504203004 Page 32 of 141 OCCUPIED CHANNEL BANDWIDTH Condition Mode Frequency (MHz) Antenna 99% OBW (MHz) NVNT a 5180 Ant1 16.461 NVNT a 5200 Ant1 16.431 NVNT a 5240 Ant1 16.444 NVNT ac20 5180 Ant1 17.604 NVNT ac20 5200 Ant1 17.605 NVNT ac20 5240 Ant1 17.622 NVNT ac40 5190 Ant1 36.027 NVNT ac40 5230 Ant1 36.039 NVNT ac80 5210 Ant1 75.199 NVNT n20 5180 Ant1 17.623 NVNT n20 5200 Ant1 17.625 NVNT n20 5240 Ant1 17.625 NVNT n40 5190 Ant1 36.069 NVNT n40 5230 Ant1 36.051 Report: S20041504203004 Page 33 of 141 OBW NVNT a 5180MHz Ant1 OBW NVNT a 5200MHz Ant1 Report: S20041504203004 Page 34 of 141 OBW NVNT a 5240MHz Ant1 OBW NVNT a 5180MHz Ant1 Report: S20041504203004 Page 35 of 141 OBW NVNT a 5200MHz Ant1 OBW NVNT a 5240MHz Ant1 Report: S20041504203004 Page 36 of 141 OBW NVNT ac20 5180MHz Ant1 OBW NVNT ac20 5200MHz Ant1 Report: S20041504203004 Page 37 of 141 OBW NVNT ac20 5240MHz Ant1 OBW NVNT ac20 5180MHz Ant1 Report: S20041504203004 Page 38 of 141 …

Text truncated - open the document above for the full version.

Report: S20041504203004 Page 81 of 141 Tx. Spurious NVNT ac40 5190MHz Ant1 Emission Tx. Spurious NVNT ac40 5230MHz Ant1 Emission Report: S20041504203004 Page 82 of 141 Tx. Spurious NVNT ac40 5190MHz Ant1 Emission Tx. Spurious NVNT ac40 5230MHz Ant1 Emission Report: S20041504203004 Page 83 of 141 Tx. Spurious NVNT ac80 5210MHz Ant1 Emission Tx. Spurious NVNT ac80 5210MHz Ant1 Emission Report: S20041504203004 Page 84 of 141 Tx. Spurious NVNT n20 5180MHz Ant1 Emission Tx. Spurious NVNT n20 5200MHz Ant1 Emission Report: S20041504203004 Page 85 of 141 Tx. Spurious NVNT n20 5240MHz Ant1 Emission Tx. Spurious NVNT n20 5180MHz Ant1 Emission Report: S20041504203004 Page 86 of 141 Tx. Spurious NVNT n20 5200MHz Ant1 Emission Tx. Spurious NVNT n20 5240MHz Ant1 Emission Report: S20041504203004 Page 87 of 141 Tx. Spurious NVNT n40 5190MHz Ant1 Emission Tx. Spurious NVNT n40 5230MHz Ant1 Emission Report: S20041504203004 Page 88 of 141 Tx. Spurious NVNT n40 5190MHz Ant1 Emission Tx. Spurious NVNT n40 5230MHz Ant1 Emission Report: S20041504203004 Page 89 of 141 5.8G: DUTY CYCLE Condition Mode Frequency (MHz) Antenna Duty Cycle (%) Correction Factor (dB) NVNT a 5745 Ant1 100 0 NVNT a 5785 Ant1 100 0 NVNT a 5825 Ant1 100 0 NVNT ac20 5745 Ant1 100 0 NVNT ac20 5785 Ant1 100 0 NVNT ac20 5825 Ant1 100 0 NVNT ac40 5755 Ant1 100 0 NVNT ac40 5795 Ant1 100 0 NVNT ac80 5775 Ant1 96.56 0.15 NVNT n20 5745 Ant1 100 0 NVNT n20 5785 Ant1 100 0 NVNT n20 5825 Ant1 100 0 NVNT n40 5755 Ant1 100 0 NVNT n40 5795 Ant1 100 0 Report: S20041504203004 Page 90 of 141 Duty Cycle NVNT a 5745MHz Ant1 Duty Cycle NVNT a 5785MHz Ant1 Report: S20041504203004 Page 91 of 141 Duty Cycle NVNT a 5825MHz Ant1 Report: S20041504203004 Page 92 of 141 Duty Cycle NVNT ac20 5745MHz Ant1 Duty Cycle NVNT ac20 5785MHz Ant1 Report: S20041504203004 Page 93 of 141 Duty Cycle NVNT ac20 5825MHz Ant1 Report: S20041504203004 Page 94 of 141 Duty Cycle NVNT ac40 5755MHz Ant1 Duty Cycle NVNT ac40 5795MHz Ant1 Report: S20041504203004 Page 95 of 141 Duty Cycle NVNT ac80 5775MHz Ant1 Duty Cycle NVNT n20 5745MHz Ant1 Duty Cycle NVNT n20 5785MHz Ant1 Report: S20041504203004 Page 96 of 141 Report: S20041504203004 Page 97 of 141 Duty Cycle NVNT n20 5825MHz Ant1 Duty Cycle NVNT n40 5755MHz Ant1 Duty Cycle NVNT n40 5795MHz Ant1 Report: S20041504203004 Page 98 of 141 Report: S20041504203004 Page 99 of 141 MAXIMUM CONDUCTED OUTPUT POWER Condition Mode Frequency (MHz) Antenna Conducted Power (dBm) Duty Factor (dB) Total Power (dBm) Limit (dBm) Verdict NVNT a 5745 Ant1 8.67 0 8.67 30 Pass NVNT a 5785 Ant1 8.471 0 8.471 30 Pass NVNT a 5825 Ant1 8.311 0 8.311 30 Pass NVNT ac20 5745 Ant1 8.68 0 8.68 30 Pass NVNT ac20 5785 Ant1 8.275 0 8.275 30 Pass NVNT ac20 5825 Ant1 8.323 0 8.323 30 Pass NVNT ac40 5755 Ant1 8.354 0 8.354 30 Pass NVNT ac40 5795 Ant1 8.136 0 8.136 30 Pass NVNT ac80 5775 Ant1 8.428 0.15 8.578 30 Pass NVNT n20 5745 Ant1 8.561 0 8.561 30 Pass NVNT n20 5785 Ant1 8.296 0 8.296 30 Pass NVNT n20 5825 Ant1 8.342 0 8.342 30 Pass NVNT n40 5755 Ant1 8.356 0 8.356 30 Pass NVNT n40 5795 Ant1 8.181 0 8.181 30 Pass Report: S20041504203004 Page 100 of 141 -6dB Bandwidth Condition Mode Frequency (MHz) Antenna -6 dB Bandwidth (MHz) Limit -6 dB Bandwidth (MHz) Verdict NVNT a 5745 Ant1 15.052 0.5 Pass NVNT a 5785 Ant1 14.114 0.5 Pass NVNT a 5825 Ant1 13.486 0.5 Pass NVNT ac20 5745 Ant1 12.884 0.5 Pass NVNT ac20 5785 Ant1 11.957 0.5 Pass NVNT ac20 5825 Ant1 15.096 0.5 Pass NVNT ac40 5755 Ant1 35.04 0.5 Pass NVNT ac40 5795 Ant1 31.322 0.5 Pass NVNT ac80 5775 Ant1 75.137 0.5 Pass NVNT n20 5745 Ant1 13.231 0.5 Pass NVNT n20 5785 Ant1 11.883 0.5 Pass NVNT n20 5825 Ant1 13.841 0.5 Pass NVNT n40 5755 Ant1 35.089 0.5 Pass NVNT n40 5795 Ant1 32.616 0.5 Pass Report: S20041504203004 Page 101 of 141 -6dB Bandwidth NVNT a 5745MHz Ant1 -6dB Bandwidth NVNT a 5785MHz Ant1 Report: S20041504203004 Page 102 of 141 -6dB Bandwidth NVNT a 5825MHz Ant1 -6dB Bandwidth NVNT ac20 5745MHz Ant1 -6dB Bandwidth NVNT ac20 5785MHz Ant1 Report: S20041504203004 Page 103 of 141 Report: S20041504203004 Page 104 of 141 -6dB Bandwidth NVNT ac20 5825MHz Ant1 -6dB Bandwidth NVNT ac40 5755MHz Ant1 -6dB Bandwidth NVNT ac40 5795MHz Ant1 Report: S20041504203004 Page 105 of 141 Report: S20041504203004 Page 106 of 141 -6dB Bandwidth NVNT ac80 5775MHz Ant1 -6dB Bandwidth NVNT n20 5745MHz Ant1 -6dB Bandwidth NVNT n20 5785MHz Ant1 Report: S20041504203004 Page 107 of 141 Report: S20041504203004 Page 108 of 141 -6dB Bandwidth NVNT n20 5825MHz Ant1 Report: S20041504203004 Page 109 of 141 -6dB Bandwidth NVNT n40 5755MHz Ant1 -6dB Bandwidth NVNT n40 5795MHz Ant1 Report: S20041504203004 Page 110 of 141 OCCUPIED CHANNEL BANDWIDTH Condition Mode Frequency (MHz) Antenna 99% OBW (MHz) NVNT a 5745 Ant1 16.434 NVNT a 5785 Ant1 16.41 NVNT a 5825 Ant1 16.406 NVNT ac20 5745 Ant1 17.603 NVNT ac20 5785 Ant1 17.609 NVNT ac20 5825 Ant1 17.632 NVNT ac40 5755 Ant1 36.018 NVNT ac40 5795 Ant1 36.036 NVNT ac80 5775 Ant1 75.31 NVNT n20 5745 Ant1 17.619 NVNT n20 5785 Ant1 17.617 NVNT n20 5825 Ant1 17.602 NVNT n40 5755 Ant1 36.066 NVNT n40 5795 Ant1 36.037 Report: S20041504203004 Page 111 of 141 OBW NVNT a 5745MHz Ant1 OBW NVNT a 5785MHz Ant1 Report: S20041504203004 Page 112 of 141 OBW NVNT a 5825MHz Ant1 OBW NVNT ac20 5745MHz Ant1 OBW NVNT ac20 5785MHz Ant1 Report: S20041504203004 Page 113 of 141 OBW NVNT ac20 5825MHz Ant1 Report: S20041504203004 Page 114 of 141 OBW NVNT ac40 5755MHz Ant1 OBW NVNT ac40 5795MHz Ant1 Report: S20041504203004 Page 115 of 141 OBW NVNT ac80 5775MHz Ant1 OBW NVNT n20 5745MHz Ant1 OBW NVNT n20 5785MHz Ant1 Report: S20041504203004 Page 116 of 141 Report: S20041504203004 Page 117 of 141 OBW NVNT n20 5825MHz Ant1 OBW NVNT n40 5755MHz Ant1 OBW NVNT n40 5795MHz Ant1 Report: S20041504203004 Page 118 of 141 Report: S20041504203004 Page 119 of 141 MAXIMUM POWER SPECTRAL DENSITY LEVEL Condition Mode Frequency (MHz) Antenna Max PSD (dBm) Limit (dBm) Verdict NVNT a 5745 Ant1 3.674 30 Pass NVNT a 5785 Ant1 2.172 30 Pass NVNT a 5825 Ant1 2.67…

Text truncated - open the document above for the full version.

Radiated Measurement Photos(30MHz~1GHz ) (1GHz~18GHz) (18GHz ~40GHz) AC Conducted Measurement Photos
