2AYA5-T15T15 2 in 1 Foldable Magnetic Wireless Charger Stand

T�� Model:T�� Dimension: about ��*��*��mm This product is a wireless charging solution equipped with advanced control chips and certified under the CE certification protocol. This innovative device supports various fast charging protocols from third-party manufacturers to ensure compatibility with mainstream charging technologies. The main material of this product is composed of aluminum alloy providing better charging efficiency and heat dissipation capabilities. The device simplifies the Apple watches at the same time. Only using one cable affecting safety. chips,which can intelligently match mobile phones and It can realize wireless fast charging well without damaging the device. implemented an upgraded magnetic suction coil. This product provides efficient and safe and fast charging,and does not cause any harm to your equipment It supports the maximum output of ��W on a single channel to achieve fast charging. At the same time, the product integrates a number of advanced features to ensure safe and efficient charging. It includes intelligent foreign object detection. If any foreign object detection is detected on the charging surface. it will prevent charging. It also has input voltage mutation detection, over-current detection, coil peak limit, and overheating limit environment for your mobile phone. The product has a sleek appearance and can be folded for Keep it out of the reach of children; It is prohibited to disassemble the product without permission; Avoid strong falls and collisions; Non-specialized person does not disassemble and repair this product; Pay special attention to that this product needs to be matched with QC�.�/QC�.� and other formal and certified chargers; Do not attach ring buckles, articles that increase the thickness of the phone or metal objects on the back of the phone to avoid affecting the use of wireless charging and charging power of the phone; Do not put mobile phones, watches and earphones on the charger for a long time after they are fully charged. Cut off the power supply of the charger after charging. charging process. It has two independent built -in can charge two devices without any interference or Material: Aluminum Alloy+PC+ABS Output �: Watch �.�W(MAX) Output �: Phone ��W(MAX) Input:�V/��V �A(MAX) � in � Foldable Magnetic Wireless Charger Stand The mobile phone terminal features N�� strong magnets precisely aligned with the magnetic suction module found in original Apple devices.For the Watch terminal, we have Weight: N.W. about ���g(without power adapter+USB cable) Specifications Product details Brochure Precautions Charging pad for Phone Charging pad for Watch Type-C port User Manual Model No. Note : For best performance and safety,please read this manual carefully before using the product FCC Requirement Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. (�)this device may not cause harmful interference, and (�)this device must accept any interference received, including interference that may cause undesired operation. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part �� of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy, and if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: ‒Reorient or relocate the receiving antenna. ‒Increase the separation between the equipment and receiver. ‒Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. ‒Consult the dealer or an experienced radio/TV technician for help. This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with a minimum distance of ��cm between the radiator & your body. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. This device complies with Part �� of the FCC Rules. Operation is subject to the following two conditions: compact storage, making it suitable for various scenarios such as home, office, and travel. It is not just a wireless charger, but also can be used as a stand.You can rely on it to you need it. provide fast and reliable charging wherever and whenever

Covered Equipment Identification Letter For Certification Service in the USA Federal Communication Commission Equipment Authorization Division, Application Processing Branch 7435 Oakland Mills Road Columbia, MD 21048 To whom it may concern Pursuant to Section 2.911(d)(5)(ii) of the Commission’s Rules (47 C.F.R.) we attest as follows: We, applicant Company Name: Shenzhen ICHECKEY Technology Co., Ltd Address: B302, Building 4, TianYanXuan, No.1 Lane14, Bantian East Village, Bantian Street, LongGang District, Shenzhen, China Phone: +86-755-28227437 certify that, as of the date of the filing of the application, the applicant is not identified on the Covered List as an entity producing “covered” equipment. FCC ID: 2AYA5-T15 If you have any questions, please feel free to contact us at the address shown below. Sincerely, 2024-08-22 Signature Date: Name / Title: Huolin Xie / Manager Company: Shenzhen ICHECKEY Technology Co., Ltd Address: B302, Building 4, TianYanXuan, No.1 Lane14, Bantian East Village, Bantian Street, LongGang District, Shenzhen, China Phone: +86-755-28227437 Fax: +86-755-28227437 E-Mail: [email protected]

Covered Equipment Attestation Letter For Certification Service in the USA Federal Communication Commission Equipment Authorization Division, Application Processing Branch 7435 Oakland Mills Road Columbia, MD 21048 To whom it may concern Pursuant to Section 2.911(d)(5)(i)-(ii) of the Commission’s Rules (47 C.F.R.) we attest as follows for the product listed below: FCC ID Model name 2AYA5-T15 T15 We, applicant Company Name: Shenzhen ICHECKEY Technology Co., Ltd Address: B302, Building 4, TianYanXuan, No.1 Lane14, Bantian East Village, Bantian Street, LongGang District, Shenzhen China Phone: +86-755-28227437 certify that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. If you have any questions, please feel free to contact us at the address shown below. Sincerely, 2024-08-22 Signature Date: Name / Title: Huolin Xie / Manager Company: Shenzhen ICHECKEY Technology Co., Ltd Address: B302, Building 4, TianYanXuan, No.1 Lane14, Bantian East Village, Bantian Street, LongGang District, Shenzhen, China Phone: +86-755-28227437 Fax: +86-755-28227437 E-Mail: [email protected]

Confidentiality Request Letter For Certification Service in the USA Federal Communication Commission Equipment Authorization Division, Application Processing Branch 7435 Oakland Mills Road Columbia, MD 21048 To whom it may concern Pursuant to Paragraphs §0.457 and 0.459 of the Commission’s Rules (47 C.F.R.) and Section §552(b)(4) of the Freedom of Information Act, we request confidentiality for the documentation of the following products: FCC ID Model name 2AYA5-T15 T15 For the products listed above, we request permanent confidentiality for all applicable exhibits as there are: • the Operational Description • the Block Diagram • the Schematics • the Part List • the Tune up Information The above listed exhibits contain trade secrets and proprietary information that could be of benefit to our competitors. If you have any questions, please feel free to contact us at the address shown below. Sincerely, 2024-08-22 Signature Date: Name / Title: Huolin Xie / Manager Company: Shenzhen ICHECKEY Technology Co., Ltd Address: B302, Building 4, TianYanXuan, No.1 Lane14, Bantian East Village, Bantian Street, LongGang District, Shenzhen, China Phone: +86-755-28227437 Fax: +86-755-28227437 E-Mail: [email protected]

Shenzhen ICHECKEY Technology Co., Ltd B302, Building 4, TianYanXuan, No.1 Lane14, Bantian East Village, Bantian Street, LongGang District, Shenzhen, China Date: August 22, 2024 FCC ID: 2AYA5-T15 Model Number: T15 To: Federal Communication Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21048 To Whom It May Concern, We, Shenzhen ICHECKEY Technology Co., Ltd hereby declare that our product (T15 2 in 1 Foldable Magnetic Wireless Charger Stand) Model Number: T15 meet item 5.2 of KDB 680106v03r01 as follow; Requirements of KDB 680106 D01 Yes / No Description Power transfer frequency is less than 1 MHz Yes The device operate in the frequency range 115.0 KHz -205 KHz Output power from each primary coil is less than or equal to 15 watts. Yes The maximum output power of the each primary coil is 15W. The system may consist of more than one source primary coils, charging one or more clients. If more than one primary coil is present, the coil pairs may be powered on at the same time. Yes The transfer system includes two primary coils and clients that are able to detect and allow coupling two of coils simultaneously work. Client device is placed directly in contact with the transmitter. Yes Client device is placed directly in contact with the transmitter. Mobile exposure conditions only (portable exposure conditions are not covered by this exclusion). Yes Mobile exposure conditions only The aggregate H-field strengths anywhere at or beyond 15 cm surrounding the device, and 20 cm away from the surface from all coils that by design can simultaneously transmit, and while those coils are simultaneously energized, are demonstrated to be less than 50% of the applicable MPE limit. Yes The EUT H-field strengths at 15 cm surrounding the device and 20 cm above the top surface from all simultaneous transmitting coils are demonstrated to be less than 50% of the MPE limit. Shenzhen ICHECKEY Technology Co., Ltd B302, Building 4, TianYanXuan, No.1 Lane14, Bantian East Village, Bantian Street, LongGang District, Shenzhen, China For systems with more than one radiating structure, the conditions specified in (5) must be met when the system is fully loaded (i.e., clients absorbing maximum power available), and with all the radiating structures operating at maximum power at the same time, as per design conditions. If the design allows one or more radiating structures to be powered at a higher level while other radiating structures are not powered, then those cases must be tested as well. For instance, a device may use three RF coils powered at 5 W, or one coil powered at 15 W: in this case, both scenarios shall be tested Yes Only one radiating structure and tested at maximum Output Power Please contact me if you have any question. Sincerely, (Signed) Name / Title: Huolin. Xie / manager Company: Shenzhen ICHECKEY Technology Co., Ltd Address: B302, Building 4, TianYanXuan, No.1 Lane14, Bantian East Village, Bantian Street, LongGang District, Shenzhen, China Phone: +86-755-28227437 Fax: +86-755-28227437 E-Mail: [email protected]

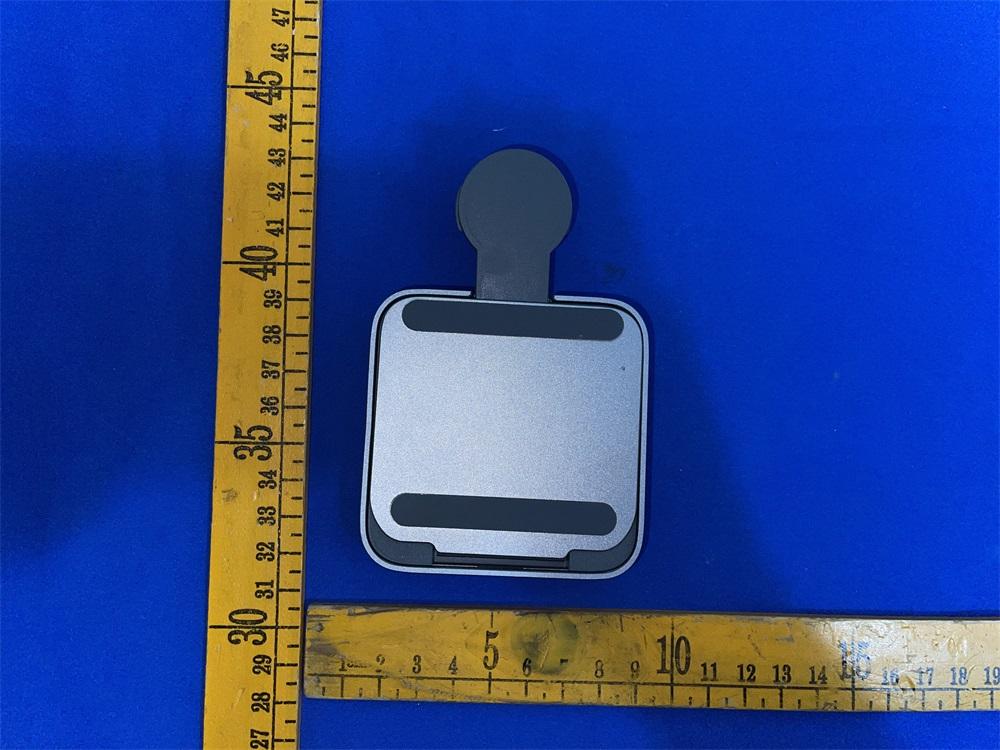

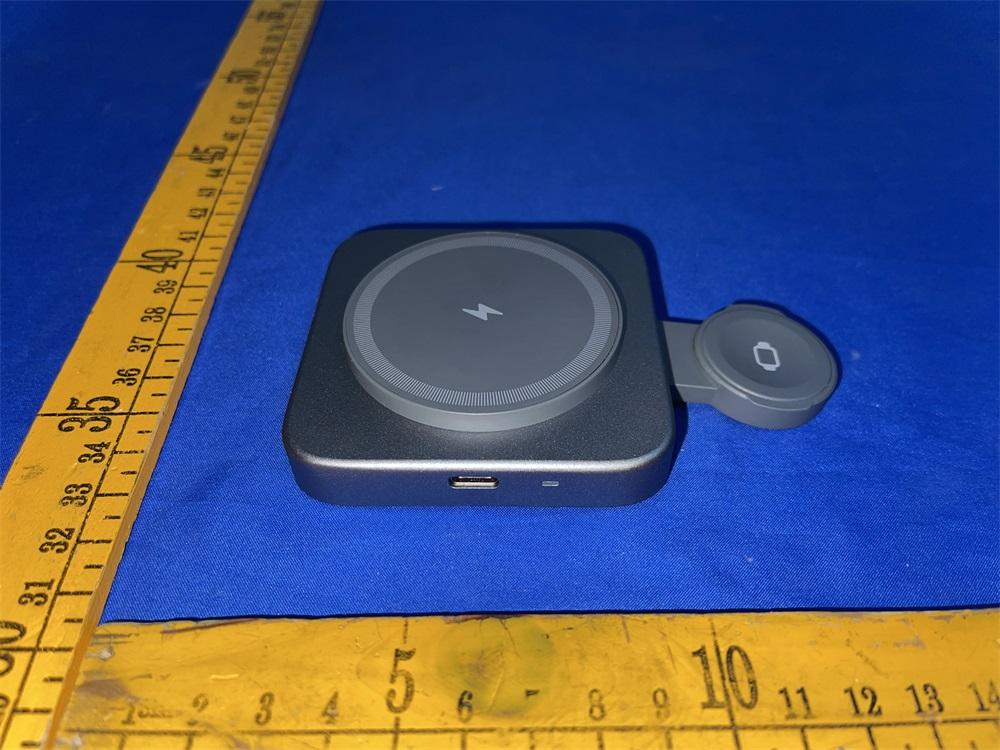

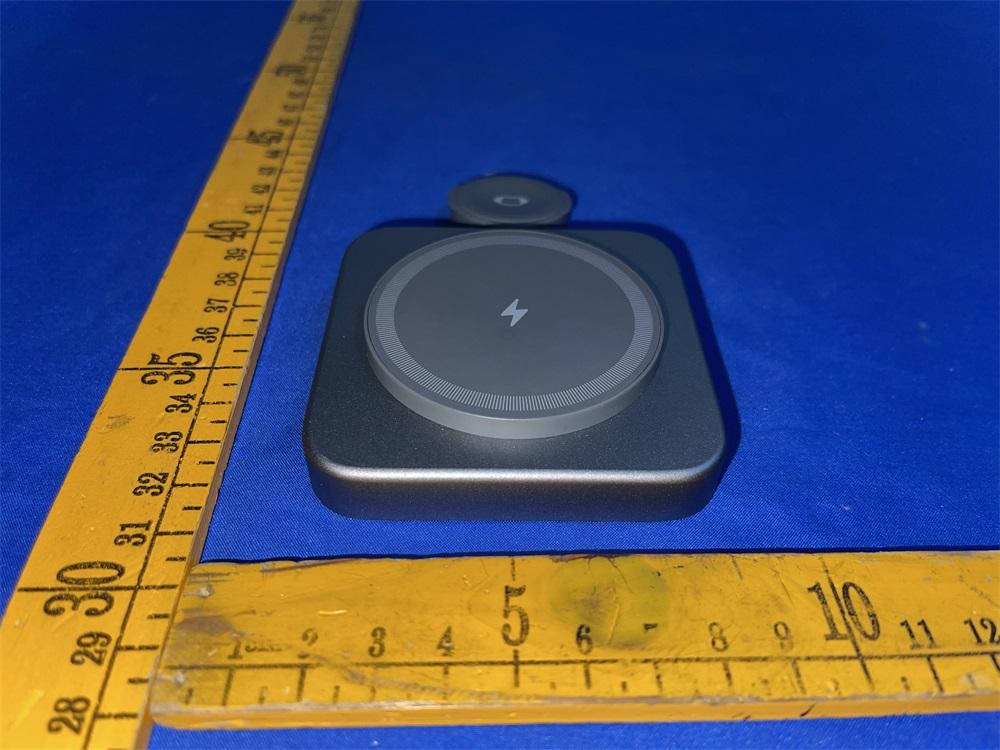

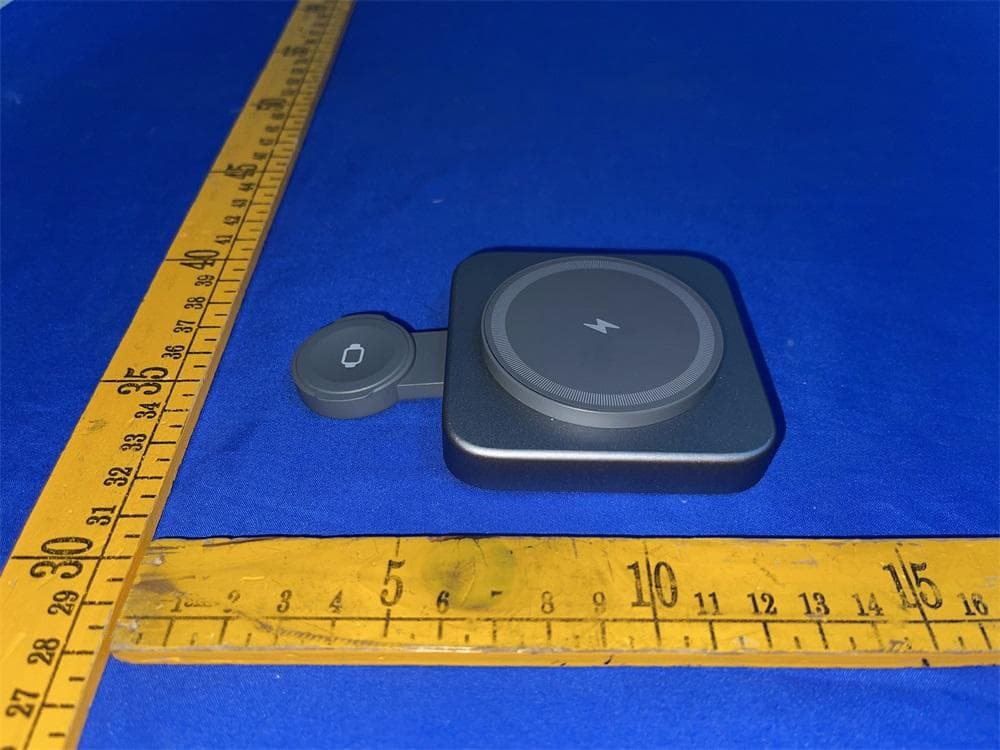

FCC ID: 2AYA5-T15 Fig. 1 Fig. 2 FCC ID: 2AYA5-T15 Fig. 3 Fig. 4 FCC ID: 2AYA5-T15 Fig. 5 Fig. 6

_____________________________________________________________________________________________________ LABEL AND LOCATION (Size: L2.713cm x 1.40cm) Label Location

FCC ID: 2AYA5-T15 Fig. 1 Fig. 2 Antenna 1 FCC ID: 2AYA5-T15 Fig. 3 Fig. 4 Antenna 2 FCC ID: 2AYA5-T15 Fig. 5 Fig. 6 FCC ID: 2AYA5-T15 Fig. 7 Fig. 8

Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China TEST REPOR Report Reference No. .....................: FCC ID ............................................... CTA24072400902 2AYA5-T15 Compiled by ( position+printed name+signature) .. : File administrators Jinghua Xiao Supervised by ( position+printed name+signature) .. : Test Engineer Lushan Kong Approved by ( position+printed name+signature) .. : Manager Eric Wang Date of issue ..................................... : Aug 16, 2024 Representative Laboratory Name . : Shenzhen CTA Testing Technology Co., Ltd. Address ............................................ : Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao‘an District, Shenzhen, China Applicant’s name ............................ : Shenzhen ICHECKEY Technology Co.,Ltd. Address ............................................ : B302, Building 4, TianYanXuan, No.1 Lane14, Bantian East Village, Bantian Street, LongGang District, Shenzhen China. 518000 Test specification ...........................: Standard ........................................... : FCC KDB 680106 D01 Shenzhen Global Test Service Co.,Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen Global Test Service Co.,Ltd. is acknowledged as copyright owner and source of the material. Shenzhen Global Test Service Co.,Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Test item description .....................: T15 2 in 1 Foldable Magnetic Wireless Charger Stand Trade Mark ....................................... : ICHECKEY Manufacturer .................................... : Shenzhen ICHECKEY Technology Co.,Ltd. Model/Type reference....................... : T15 List Model ......................................... : N/A Modulation Type ............................... : ASK Operation Frequency ........................ : 115-205KHz Ratings ............................................. : Input: DC5.0V/3.0A, 9.0V/2.22A, 12.0V/1.67A 20W(MAX) Output 1: Phones 15W(MAX) Output 2:Watch 2.5W(MAX) Result................................................ : PASS Report No.: CTA24072400902 Page 2 of 17 T E S T R E P O R T Test Report No. : CTA24072400902 Aug 16, 2024 ______________________________________________________________________________________________ Date of issue Equipment under Test : T15 2 in 1 Foldable Magnetic Wireless Charger Stand Model /Type : T15 Listed Models : N/A Applicant : Shenzhen ICHECKEY Technology Co.,Ltd. Address : B302, Building 4, TianYanXuan, No.1 Lane14, Bantian East Village, Bantian Street, LongGang District, Shenzhen China. 518000 Manufacturer Shenzhen ICHECKEY Technology Co.,Ltd. Address : B302, Building 4, TianYanXuan, No.1 Lane14, Bantian East Village, Bantian Street, LongGang District, Shenzhen China. 518000 Test Result: PASS The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Report No.: CTA24072400902 Page 3 of 17 Contents 1. S U M M A R Y .................................................................................. 4 1.1. General Remarks ......................................................................................................................................... 4 1.2. Product Description .................................................................................................................................... 4 1.3. Equipment Under Test ................................................................................................................................ 5 1.4. Modifications ............................................................................................................................................... 6 1.5. Address of the test laboratory ................................................................................................................... 6 1.6. Test Facility .................................................................................................................................................. 6 1.7. Statement of the measurement uncertainty ............................................................................................. 6 1.8. TEST STANDARDS ...................................................................................................................................... 6 1.9. Equipments Used during the Test ............................................................................................................. 6 2. T E S T C O N D I T I O N S A N D R E S U L T S .................................................. 7 2.1. Evaluation Method ....................................................................................................................................... 7 2.2. Limit .............................................................................................................................................................. 8 2.3. Test Setup Diagram ..................................................................................................................................... 8 2.4. Measurement Procedure............................................................................................................................. 9 2.5. Equipment Approval Considerations ........................................................................................................ 9 2.6. Symbols ...................................................................................................................................................... 10 2.7. Test Results ...................................................................................…

Text truncated - open the document above for the full version.

Page 1 of 3 FY-GZ001 Dongguan Pan Asia electronics Co., LTD Shijie Town, Dongguan City, lumbar junction tetracarboxylic tetracarboxylic sand behind the post office 客 戶： CUSTOMER: 客 戶 料 号： CUST P/N: SPECIFICATION FOR APPROVAL 产品 料 号： FINE P/N: 産 品 型 号： DESC: 日 期： DATE: 版 本： Version: 0.08*48P 6.8UH10%\43.5*.20.5*0.6 Slotted back glue Outlet length 50mm(±2mm) 2023/07/26 制作 PREPARED BY 审核 CHECKED BY 批准 APPROVED BY 客戶承认 CUSTOMER APPROVE FY-GZ001 Page 2 of 3 版本變更履歷 Version Change History 版本 Rev. 變 更 前 Before Change 變 更 後 After Change 更 改 日 期 Change Date 批 准 Approved By A.0 新发行 ---- 2023/7/26 1 6.8UH 2 3 4 5 6 7 8 9 10 FY-GZ001 Fine Page 3 of 3 産 品 型 號： SPECIFICATION 客戶CUST: 331 DESC Φ43.5x20.5-10Ts-0.08x48P-30mm 版本 Rev：A.0 一、尺寸 DIMENSION:(mm) 二、原理图 SCHEMATIC DIAGRAM: 三、绕线参数 Winding Specification: 料号 Fine P/N: FYD331003 客户料号 CUST P/N: A11 A 40±0.5 B 20 ±0.5 C 1厚 D1 22mm ±2 D2 20mm ±2 F 43.6±0.2 G 8.0 ref H 1.6±1 I 5.3 ref E 3±0.2 序号 NO. 端子 TERMINAL 线径 WIRE 圈数 Turns 绕线方向 Winding Direction 1 S F 0.08*48P 11Ts CCW We statement that All measurements were performed radiated and therefore additional antenna gain documentation is not required. Page 1 of 3 FY-GZ001 Dongguan Pan Asia electronics Co., LTD Shijie Town, Dongguan City, lumbar junction tetracarboxylic tetracarboxylic sand behind the post office 客 戶： CUSTOMER: 客 戶 料 号： CUST P/N: SPECIFICATION FOR APPROVAL 产品 料 号： FINE P/N: 産 品 型 号： DESC: 日 期： DATE: 版 本： Version: DZ-RC25-K7.7-L7MM 2023/07/26 制作 PREPARED BY 审核 CHECKED BY 批准 APPROVED BY 客戶承认 CUSTOMER APPROVE FY-GZ001 Fine Page 3 of 3 SPECIFICATION We statement that All measurements were performed radiated and therefore additional antenna gain documentation is not required.

Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China TEST REPORT FCC Rules and Regulations Part 15 Subpart C (Section 15.209) Report Reference No. .....................: FCC ID ..............................................: CTA24072400901 2AYA5-T15 Compiled by ( position+printed name+signature) .. : File administrators Jinghua Xiao Supervised by ( position+printed name+signature) .. : Test Engineer Lushan Kong Approved by ( position+printed name+signature) .. : Manager Eric Wang Date of issue ..................................... : Aug 16, 2024 Representative Laboratory Name . : Shenzhen CTA Testing Technology Co., Ltd. Address ............................................ : Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao‘an District, Shenzhen, China Applicant’s name ............................ : Shenzhen ICHECKEY Technology Co.,Ltd. Address ............................................ : B302, Building 4, TianYanXuan, No.1 Lane14, Bantian East Village, Bantian Street, LongGang District, Shenzhen China. 518000 Test specification ...........................: Standard ........................................... : FCC Rules and Regulations Part 15 Subpart C (Section 15.209) Shenzhen CTA Testing Technology Co., Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen CTA Testing Technology Co., Ltd. is acknowledged as copyright owner and source of the material. Shenzhen CTA Testing Technology Co., Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Test item description .....................: T15 2 in 1 Foldable Magnetic Wireless Charger Stand Trade Mark ....................................... : ICHECKEY Manufacturer .................................... : Shenzhen ICHECKEY Technology Co.,Ltd. Model/Type reference....................... : T15 List Model ......................................... : N/A Modulation Type ............................... : ASK Operation Frequency ........................ : 115-205KHz Ratings ............................................. : Input: DC5.0V/3.0A, 9.0V/2.22A, 12.0V/1.67A 20W(MAX) Output 1: Phones 15W(MAX) Output 2:Watch 2.5W(MAX) Result................................................ : PASS Report No.: CTA24072400901 Page 2 of 26 T E S T R E P O R T Test Report No. : CTA24072400901 Aug 16, 2024 ______________________________________________________________________________________________ Date of issue Equipment under Test : T15 2 in 1 Foldable Magnetic Wireless Charger Stand Model /Type : T15 Listed Models : N/A Applicant : Shenzhen ICHECKEY Technology Co.,Ltd. Address : B302, Building 4, TianYanXuan, No.1 Lane14, Bantian East Village, Bantian Street, LongGang District, Shenzhen China. 518000 Manufacturer Shenzhen ICHECKEY Technology Co.,Ltd. Address : B302, Building 4, TianYanXuan, No.1 Lane14, Bantian East Village, Bantian Street, LongGang District, Shenzhen China. 518000 Test Result: PASS The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Report No.: CTA24072400901 Page 3 of 26 Contents 1. T E S T S T A N D A R D S ....................................................................... 4 2. S U M M A R Y .................................................................................. 5 2.1. General Remarks ......................................................................................................................................... 5 2.2. Product Description .................................................................................................................................... 5 2.3. Equipment Under Test ................................................................................................................................ 5 2.4. EUT Exercise Software ............................................................................................................................... 6 2.5. Special Accessories .................................................................................................................................... 6 2.6. External I/O Cable ........................................................................................................................................ 6 2.7. Modifications ............................................................................................................................................... 6 3. T E S T E N V I R O N M E N T ................................................................... 7 3.1. Address of the test laboratory ................................................................................................................... 7 3.2. Test Facility .................................................................................................................................................. 7 3.3. Test Description .......................................................................................................................................... 7 3.4. Statement of the measurement uncertainty ............................................................................................. 7 3.5. Equipments Used during the Test ............................................................................................................. 8 4. T E S T C O N D I T I O N S A N D R E S U L T S .................................................. 9 4.1. AC Power Conducted Emission ................................................................................................................. 9 4.2. Radiated Emission .................................................................................…

Text truncated - open the document above for the full version.

FCC ID: 2AYA5-T15 _______________________________________________________________________________________________ 1. TEST SETUP PHOTOGRAPHS Photo of Radiated Emissions Measurement Fig. 1 Fig. 2 FCC ID: 2AYA5-T15 _______________________________________________________________________________________________ Photo of Conducted Emissions Measurement Fig. 3
