2AYA9L-FC-008Magnetic wireless charger

Magnetic wireless charger User Manual (L-FC-009) read over carefully and keep this manual for your records Thank you for choosing our Magnetic wireless charger. Please Product IntroductionConnecting to power adapter Connecting the Type-C interface of the Magnetic wireless charger to the power adapter For a better charging experience, please use a power adapter above 18W Charging the phone After connecting to the power adapter, put the device on the middle of the phone back, it can be adsorbed automatically and charging the phone at the same time Product Specifications: Model No.:L-FC-009 50 60×60×9mm Devices built-in wireless charging receiver and support fast wireless charging (Galaxy S9 Plus/S10/S10 Plus/Note 10/Note 10 Plus, Huawei P30 Pro/Mate30/Mate30 Pro/P40 Pro stand charger for Iphone XS Max/Xr/11/11 Pro/11 Pro Max and all Qi-enabled devices) Wireless applicable device Magnetic charging equipment (Iphone 12mini/12/12Pro/12Pro Max) Specifications Important notes Do not disassemble, attempt to open,or break the product Do not use in a hot or humid environment to prevent damage and potential harm to the user Keep away from items with a magnetic strip or chip card (credit cards, bank cards,etc) This charger is not a toy, please keep away from children Keep a distance of 20cm between the charger and implantable medical devices to avoid potential interference Keep away from fire and Water Standard accessories User Manual Magnetic wireless charger Magnetic wireless charger User Manual (L-FC-008) Product Introduction Product Specifications: Model No.:L-FC-008 55 60×60×12mm SpecificationsStandard accessories User Manual Magnetic wireless charger Portable standRing protection Pull the ring hold the phone as a standPull the ring and put into your finger to avoid dropping off Devices built-in wireless charging receiver and support fast wireless charging (Galaxy S9 Plus/S10/S10 Plus/Note 10/Note 10 Plus, Huawei P30 Pro/Mate30/Mate30 Pro/P40 Pro stand charger for Iphone XS Max/Xr/11/11 Pro/11 Pro Max and all Qi-enabled devices) Wireless applicable device Magnetic charging equipment (Iphone 12mini/12/12Pro/12Pro Max) Important notes Do not disassemble, attempt to open,or break the product Do not use in a hot or humid environment to prevent damage and potential harm to the user Keep away from items with a magnetic strip or chip card (credit cards, bank cards,etc) This charger is not a toy, please keep away from children Keep a distance of 20cm between the charger and implantable medical devices to avoid potential interference Keep away from fire and Water Charging the phone After connecting to the power adapter, put the device on the middle of the phone back, it can be adsorbed automatically and charging the phone at the same time Connecting to power adapter Connecting the Type-C interface of the Magnetic wireless charger to the power adapter For a better charging experience, please use a power adapter above 18W read over carefully and keep this manual for your records Thank you for choosing our Magnetic wireless charger. Please NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: Changes or modifications not expressly approved by the party responsible for compliancecould void the user's authority to operate the equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. RF Exposure Warning Statements: This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment shall be installed and operated with minimum distance 20cm between the radiator & body. - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. -Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -Consult the dealer or an experienced radio/TV technician for help NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. -Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -Consult the dealer or an experienced radio/TV technician for help Changes or modifications not expressly approved by the party responsible for compliancecould void the user's authorit…

Text truncated - open the document above for the full version.

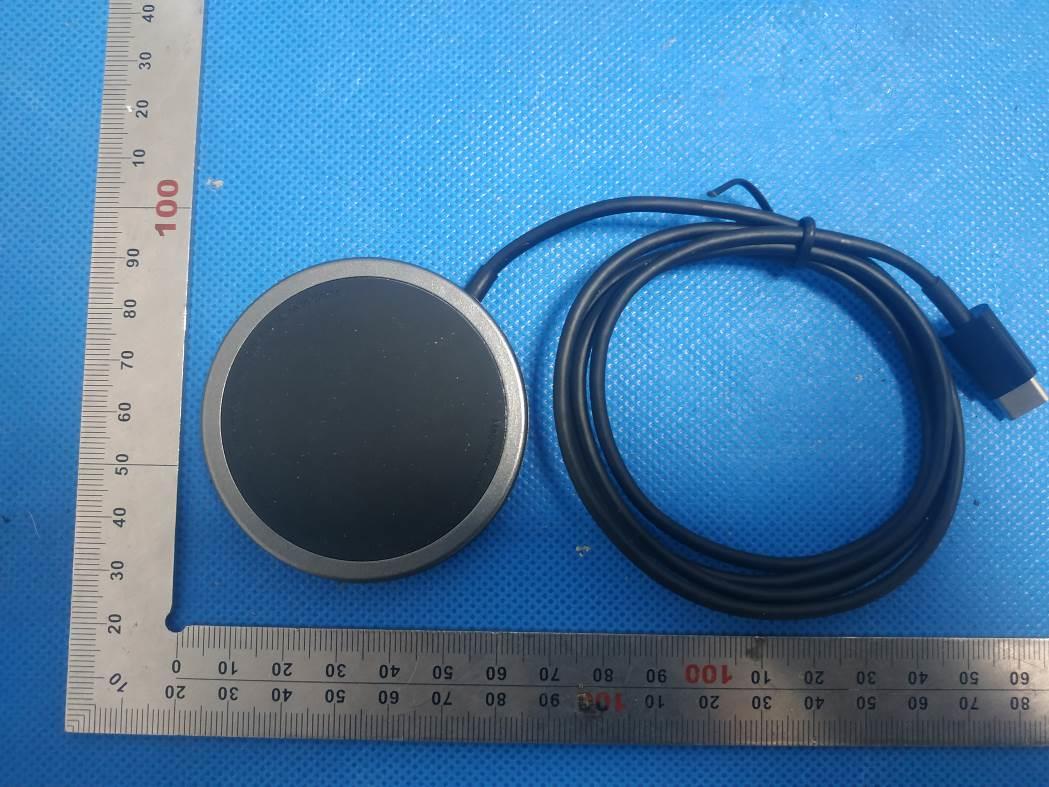

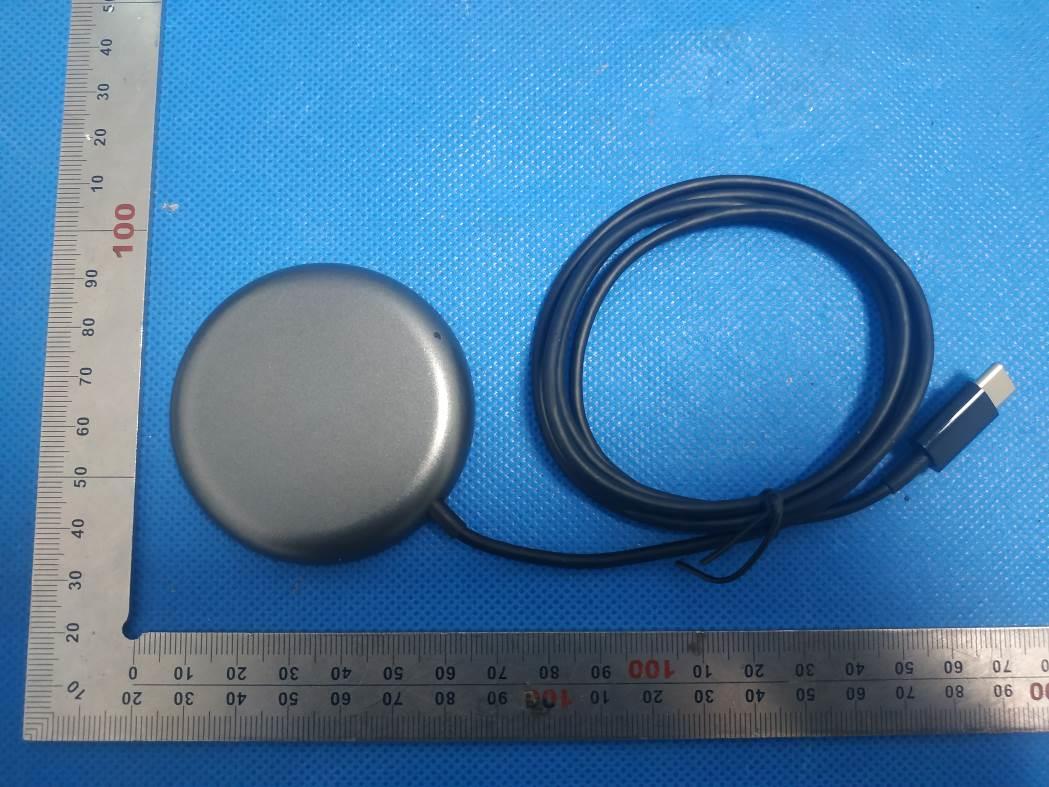

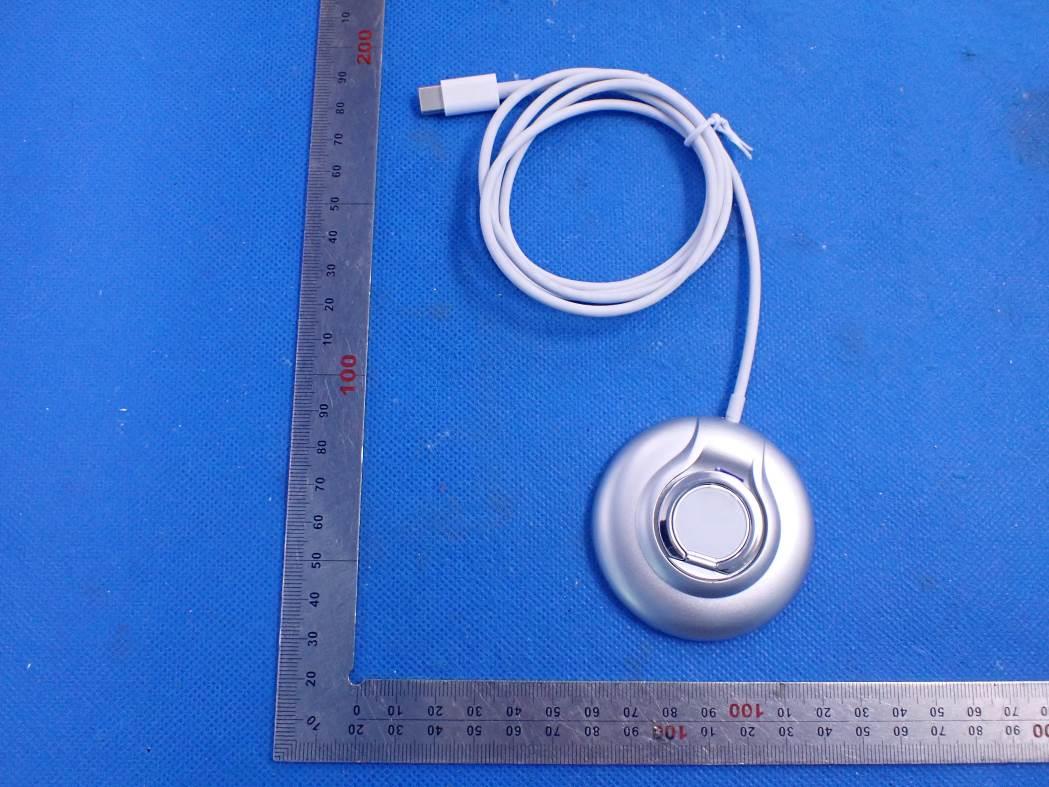

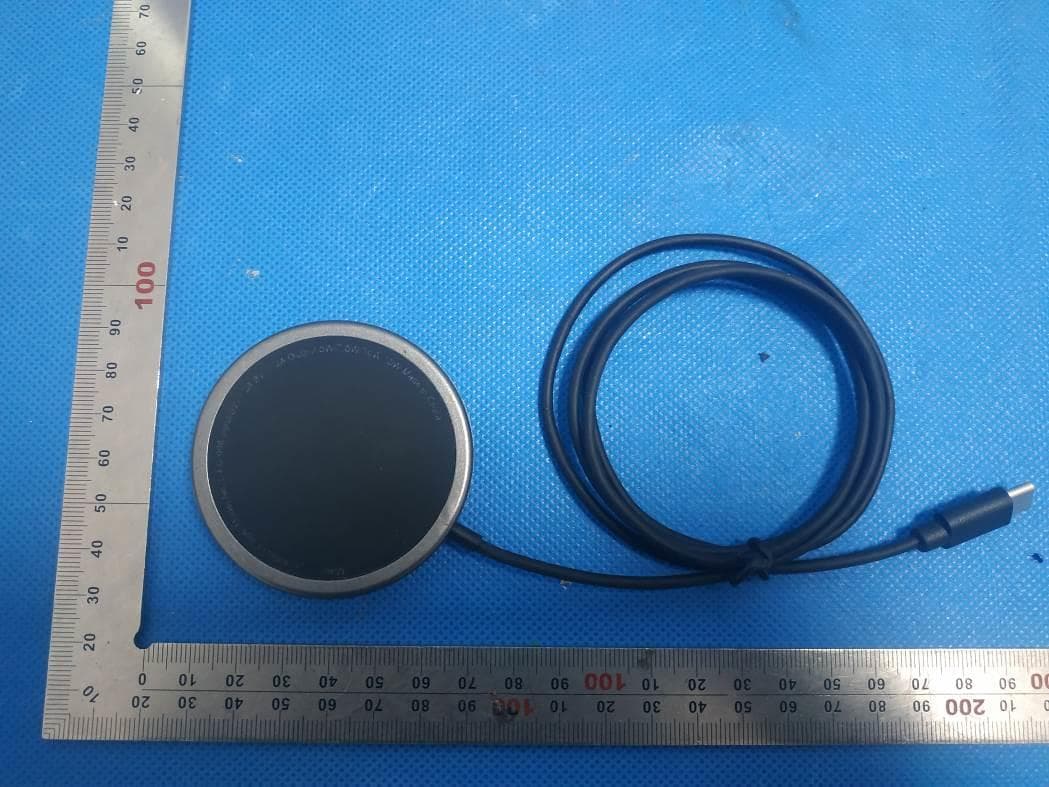

External Photos TEST MODE: L-FC-008 EXTERNAL VIEW-1 OF EUT EXTERNAL VIEW-2 OF EUT EXTERNAL VIEW-3 OF EUT EXTERNAL VIEW-4 OF EUT EXTERNAL VIEW-5 OF EUT EXTERNAL VIEW-6 OF EUT SERIES MODEL: L-FC-009 EXTERNAL VIEW-1 OF EUT EXTERNAL VIEW-2 OF EUT EXTERNAL VIEW-3 OF EUT EXTERNAL VIEW-4 OF EUT

FCC ID Label Location FCC ID: 2AYA9L-FC-008

Internal Photos INTERNAL VIEW OF EUT-1 INTERNAL VIEW OF EUT-2 INTERNAL VIEW OF EUT-3 INTERNAL VIEW OF EUT-4 INTERNAL VIEW OF EUT-5 Antenna

Shenzhen LOOWOKO Technology Limited Declaration concerning Antenna Specification It is hereby declared that the product Model No.: L-FC-008, L-FC-009 FCC ID: 2AYA9L-FC-008 fulfills the requirement in FCC test relating to the antenna type. The device specified above confirms to the FCC recommendations for internal antenna type(s) described below: 1. Type of antenna: Coil Antenna Frequency range: 110-205 kHz The mounting of the antenna is fixed to the radio module and no other antenna should be used. Company name: Shenzhen LOOWOKO Technology Limited Address: 601, Building E , No.2, North Zone, Shangxue Technology City, Xinxue Community, Ban tian Sub-district, Longgang District, Shenzhen, China Place: Shenzhen Date: 2021-03-09 Signature:

Page 1 of 15 RF Exposure Report Report No.: AGC03946201101FH03 APPLICATION PURPOSE : Original Equipment PRODUCT DESIGNATION : Magnetic wireless charger BRAND NAME : LOOWOKO MODEL NAME : L-FC-008, L-FC-009 APPLICANT : Shenzhen LOOWOKO Technology Limited DATE OF ISSUE : Feb. 01, 2021 STANDARD(S) : KDB680106 D01 RF Exposure Wireless Charging Base App v03 REPORT VERSION : V1.0 Attestation of Global Compliance (Shenzhen) Co., Ltd Report No.: AGC03946201101FH03 Page 2 of 15 REPORT REVISE RECORD Report Version Revise Time Issued Date Valid Version Notes V1.0 / Feb. 01, 2021 Valid Initial Release Report No.: AGC03946201101FH03 Page 3 of 15 TABLE OF CONTENTS 1. VERIFICATION OF CONFORMITY ............................................................................................................... 4 2. GENERAL INFORMATION ............................................................................................................................ 6 2.1. PRODUCT DESCRIPTION ..................................................................................................................... 6 3. DESCRIPTION OF TEST MODES................................................................................................................. 7 4. SYSTEM TEST CONFIGURATION ............................................................................................................... 7 5. TEST FACILITY ............................................................................................................................................. 8 6. RADIO FREQUENCY (RF) EXPOSURE TEST ............................................................................................. 9 6.1. LIMITS ..................................................................................................................................................... 9 6.2. TEST SETUP ........................................................................................................................................... 9 APPENDIX A: PHOTOGRAPHS OF TEST SETUP ........................................................................................ 12 Report No.: AGC03946201101FH03 Page 4 of 15 1. VERIFICATION OF CONFORMITY Applicant Shenzhen LOOWOKO Technology Limited Address 601, Building E , No.2, North Zone, Shangxue Technology City, Xinxue Community, Ban tian Sub-district, Longgang District, Shenzhen, China Manufacturer Shenzhen LOOWOKO Technology Limited Address 601, Building E , No.2, North Zone, Shangxue Technology City, Xinxue Community, Ban tian Sub-district, Longgang District, Shenzhen, China Factory Shenzhen LOOWOKO Technology Limited Address 601, Building E , No.2, North Zone, Shangxue Technology City, Xinxue Community, Ban tian Sub-district, Longgang District, Shenzhen, China Product Designation Magnetic wireless charger Sample No 201126043 Brand Name LOOWOKO Test Model: L-FC-008 Series Model L-FC-009 Difference Description All series models are the same as the test model, except for some differences in the model name and rear cover. Date of test Nov. 27, 2020 to Feb. 01, 2021 Deviation No any deviation from the test method Condition of Test Sample Normal Report Template AGCRT-US-BR/RF We hereby certify that: The above equipment was tested by Attestation of Global Compliance (Shenzhen) Co., Ltd. The test data, data evaluation, test procedures, and equipment configurations shown in this report were made in accordance with the procedures given in KDB680106 D01. The results of testing in this report apply to the product/system which was tested only. Prepared By Kelly Cheng (Project Engineer) Feb. 01, 2021 Reviewed By Max Zhang (Reviewer) Feb. 01, 2021 Approved By Forrest Lei Feb. 01, 2021 Report No.: AGC03946201101FH03 Page 5 of 15 (Authorized Officer) Report No.: AGC03946201101FH03 Page 6 of 15 2. GENERAL INFORMATION 2.1. PRODUCT DESCRIPTION A major technical description of EUT is described as following Operation Frequency 110KHz-205KHz Test Frequency 131.2kHz/115.1kHz/143.5kHz Maximum field strength 52.78dBuV/m(PK)@3m Number of channels 1 Antenna Designation Coil Antenna (Met 15.203 Antenna requirement) Hardware Version V1.0 Software Version V1.0 Power Supply(Input) DC 5V 2A, DC 9V 2A Wireless Charging Output power 5W / 7.5W / 10W / 15W Report No.: AGC03946201101FH03 Page 7 of 15 3. DESCRIPTION OF TEST MODES NO. TEST MODE DESCRIPTION 1 Wireless charging Mode(Full load)(9V/2A) 2 Wireless charging Mode(Half load)(9V/2A) 3 Wireless charging Mode(Null load)(9V/2A) 4 Wireless charging Mode(Full load)(5V/2A) 5 Wireless charging Mode(Half load)(5V/2A) 6 Wireless charging Mode(Null load)(5V/2A) Note: 1. The mode 1 was the worst case and only the data of the worst case record in this report. 4. SYSTEM TEST CONFIGURATION Item Equipment Model No. ID or Specification Remark 1 Magnetic wireless charger L-FC-008 2AYA9L-FC-008 EUT 2 Adapter TPA-46050100VU N/A AE 3 Wireless Load N/A -- AE Report No.: AGC03946201101FH03 Page 8 of 15 5. TEST FACILITY TEST EQUIPMENT LIST Description Manufacturer Model S/N Cal. Date Cal. Due Broadband Field Meter Narda Safety Test Solutions GmbH ELT-400 J-0004 May 25,2020 May 24,2021 Probe FHP Narda Safety Test Solutions GmbH 2300/90.10 J-0015 May 25,2020 May 24,2021 TestSite Attestation of Global Compliance(Shenzhen) Co., Ltd Location 1-2/F,Building19,JunfengIndustrialPark,ChongqingRoad,HepingCommunity,FuhaiSt reet,Bao'anDistrict,Shenzhen,Guangdong,China Designation Number CN1259 FCC Test Firm Registration Number 975832 A2LA Cert. No. 5054.02 Description Attestation of Global Compliance(Shenzhen) Co., Ltd is accredited by A2LA Report No.: AGC03946201101FH03 Page 9 of 15 6. RADIO FREQUENCY(RF) EXPOSURETEST 6.1. LIMITS For devices designed for typical desktop applications, such a wireless charging pads, RF exposure evaluation should be conducted assuming a user separation distance of 15 cm. E and H field strength measurements or numerical modeling may be used to demonstrate compliance. Measurements should be made from a…

Text truncated - open the document above for the full version.

Page 1 of 31 FCC Test Report Report No.: AGC03946201101FE04 FCC ID : 2AYA9L-FC-008 APPLICATION PURPOSE : Original Equipment PRODUCT DESIGNATION : Magnetic wireless charger BRAND NAME : LOOWOKO MODEL NAME : L-FC-008, L-FC-009 APPLICANT : Shenzhen LOOWOKO Technology Limited DATE OF ISSUE : Feb. 01, 2021 STANDARD(S) TEST PROCEDURE(S) : FCC Part 15 Rules REPORT VERSION : V1.0 Attestation of Global Compliance (Shenzhen) Co., Ltd Report No.: AGC03946201101FE04 Page 2 of 31 REPORT REVISE RECORD Report Version Revise Time Issued Date Valid Version Notes V1.0 / Feb. 01, 2021 Valid Initial Release Report No.: AGC03946201101FE04 Page 3 of 31 TABLE OF CONTENTS 1. VERIFICATION OF CONFORMITY ............................................................................................................... 4 2. GENERAL INFORMATION ............................................................................................................................ 5 2.1. PRODUCT DESCRIPTION ..................................................................................................................... 5 3. MEASUREMENT UNCERTAINTY ................................................................................................................. 6 4. DESCRIPTION OF TEST MODES ................................................................................................................. 7 5. SYSTEM TEST CONFIGURATION ............................................................................................................... 8 5.1. CONFIGURATION OF EUT SYSTEM ..................................................................................................... 8 5.2. EQUIPMENT USED IN EUT SYSTEM ..................................................................................................... 8 5.3. SUMMARY OF TEST RESULTS .............................................................................................................. 8 6. TEST FACILITY ............................................................................................................................................. 9 7. RADIATED EMISSION ................................................................................................................................. 10 7.1TEST LIMIT ............................................................................................................................................. 10 7.2. MEASUREMENT PROCEDURE ............................................................................................................ 11 7.3. TEST SETUP ......................................................................................................................................... 12 7.4. TEST RESULT ....................................................................................................................................... 13 8. 20DB BANDWIDTH ..................................................................................................................................... 15 8.1. MEASUREMENT PROCEDURE ........................................................................................................... 16 8.2. TEST SET-UP (BLOCK DIAGRAM OF CONFIGURATION) ................................................................... 16 8.3. MEASUREMENT RESULTS .................................................................................................................. 17 9. FCC LINE CONDUCTED EMISSION TEST ................................................................................................ 18 9.1. LIMITS OF LINE CONDUCTED EMISSION TEST ................................................................................ 18 9.2. BLOCK DIAGRAM OF LINE CONDUCTED EMISSION TEST .............................................................. 18 9.3. PRELIMINARY PROCEDURE OF LINE CONDUCTED EMISSION TEST ............................................ 19 9.4. FINAL PROCEDURE OF LINE CONDUCTED EMISSION TEST .......................................................... 19 9.5. TEST RESULT OF LINE CONDUCTED EMISSION TEST .................................................................... 20 APPENDIX A: PHOTOGRAPHS OF TEST SETUP ........................................................................................ 22 APPENDIX B: PHOTOGRAPHS OF EUT ....................................................................................................... 24 Report No.: AGC03946201101FE04 Page 4 of 31 1. VERIFICATION OF CONFORMITY Applicant Shenzhen LOOWOKO Technology Limited Address 601, Building E , No.2, North Zone, Shangxue Technology City, Xinxue Community, Ban tian Sub-district, Longgang District, Shenzhen, China Manufacturer Shenzhen LOOWOKO Technology Limited Address 601, Building E , No.2, North Zone, Shangxue Technology City, Xinxue Community, Ban tian Sub-district, Longgang District, Shenzhen, China Factory Shenzhen LOOWOKO Technology Limited Address 601, Building E , No.2, North Zone, Shangxue Technology City, Xinxue Community, Ban tian Sub-district, Longgang District, Shenzhen, China Product Designation Magnetic wireless charger Sample No 201126043 Brand Name LOOWOKO Test Model L-FC-008 Series Model L-FC-009 Difference Description All series models are the same as the test model, except for some differences in the model name and rear cover. Date of test Nov. 27, 2020 to Feb. 01, 2021 Deviation No any deviation from the test method Condition of Test Sample Normal Test Result Pass Report Template AGCRT-US-BR/RF We hereby certify that: The above equipment was tested by Attestation of Global Compliance (Shenzhen) Co., Ltd. The test data, data evaluation, test procedures, and equipment configurations shown in this report were made in accordance with the procedures given in ANSI C63.10 (2013) and the energy emitted by the sample EUT tested as described in this report is in compliance with Section 15.207, 15.209, 15.203 of the FCC Part 15, Subpart C Rules. The results of testing in this report apply to …

Text truncated - open the document above for the full version.

Test Setup Photos FCC RADIATED EMISSION TEST SETUP BELOW 1GHZ FCC LINE CONDUCTED EMISSION TEST SETUP
