2AYAGJXJ-FA01Wireless Smart Battery Camera

Wireless Smart Battery Camera Operation Instruction 1.Packing list -------------------------------------------- 01 2.Product appearance -------------------------------- 02 3.Quick start --------------------------------------------- 04 4.Install the camera ----------------------------------- 06 ----- 09 7.Set up the camera ----------------------------------- 10 8.Share the camera ---------------------------------- 16 9.Charge the camera --------------------------------- 18 10.Indicator light status ------------------------------ 19 ----------------------------- 20 12.Firmware upgrade --------------------------------- 21 13.FCC warning ---------------------------------------- 21 14.FAQ ---------------------------------------------------- 23 1. Camera*1 2. Bracket*1 3. 3M Adhesive tape*1 4. Mounting kit*1 5. USB charging cable *1 6. Operation instruction*1 01 02 Microphone Magnetic base Ambient light sensor Camera lens Indicator light Human body inf rared sensor 03 Micro-USB port Speaker Reboot button Micro SD card slot Power button 04 The wireless smart battery camera supports battery- powered supply and AC-powered supply. 1. Download and install the App The wireless smart battery camera supports Android and iOS App. For your best experience, please scan the QR code below,or search Vicoo in the App store to download and install the App, and follow the instruction to complete the user registration. 05 2. Add the device Sign in to Vicoo App connect to Wi-Fi and add the device according to the prompts (please bring the device close to 06 You can place the camera on a shelf or other surfaces to use, or you can install it on a wall to use. Please install the camera in a position where its view is not blocked and ensure that it is within the coverage of the Wi-Fi network. 07 Remove the protective film on one side of the 3M adhesive and stick it to the mounting surface of the installation surface must be clean, smooth and dry. It is not suitable for uneven wood, leather and stucco walls. Please press and hold the bracket on the installation position for 3 Use the drilling tool to punch holes on the wall according to the hole distance of the base. It is recommended to mark the holes on the wall with a pencil before drilling. Screw the expansion nut into the holes on the wall, and then connect the bracket to the expansion nut with screws 08 Insert the ball-type connection shaft into the rear of the camera. 09 Long press the power button for 2s to power on/off the device. krowten eht retne ot nottub rewop eht kcilc elbuoD When connecting the camera for the first time, use the network. the angle. 10 network name and password that you want the camera to connect. 11 To ensure a longer distance connection, the camera only supports the 2.4Ghz Wi-Fi with stronger wall penetration capability and does not support Wi-Fi for enterprise- level authentication currently. Please ensure that the entered Wi-Fi meets the requirements. After completion, camera. Continue 12 camera will turn on. At this moment, target the camera at the QR code of the mobile App, with a distance of about which represents the scanning is succeeded and the pairing is started. Power button 13 14 of successful connection. At this moment, please set the name for the device on the App and select the location you pairing. 15 whether the Wi-Fi password you entered in the App is correct; that your Wi-Fi network is not an enterprise-level network connection mode, and the device supports only the network with the security level below WPA-2; whether you select or enter the correct Wi-Fi name, place the device near the Wi-Fi router and ensure that the router is powered on; please note that 5Ghz Wi-Fi cannot be searched by the device; that the number of devices connected to the router in your home is too excessive to connect more devices. Please remove some of the connected devices that are not commonly used or restart the router to clear the unconnected devices whose lease has expired. You may need to contact the router administrator; check whether your router is connected properly to the external network, and it is common that the network disconnection or the selected router in your home is a local area network server. Please ensure that the network connection is normal, and try to temporarily turn off the 16 When you need to view the camera with other family members or friends, you can use this functi on. Only the administrator users who are bound with the camera for the first time can share and set the device. Other members can only view the liv e or playback function of the device. homepage or camera setting page. Find the button and enter the sharing page. 17 sharing. page. 18 Vicoo App will remind you to charge your camera when the battery is low. Please use the Micro-USB cable to plug int o the 5V/1.5A charging adapter to charge the camera. During charging, the camera's indicator light is solid yellow, and when the camera is fully charged, the indicator light will turn into solid green. It will take 8 hours to fully charge the camera. receive the confirmation notification after success. The sharing will be completed after you agree. 19 When the battery is too low, the indicator light will blink red quickly,with the voice prompting "low battery, shutting down". If the charger is not connected, the camera will power off automatically. ModeStatus Working modeBlue Sleep modeOff Charging modeYellow Fully charged modeGreen 20 Item Camera lens Image resolutionMax. 1920 X 1080 Video bit rateAdaptive Storage media Battery capacity5200mAh/6700mAh* Adapter requirement5V/1.5A Size 21 This device complies with part 15 of the FCC Rules. including interference that may cause undesired operation. the party responsible for compliance could void the user' s authority to operate the equipment. comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to When you connect your camera through the Vicoo App…

Text truncated - open the document above for the full version.

Jiangxi jiaxinjie Intelligent Equipment Co., Ltd Model Difference Product Name: Wireless Smart Battery Camera Model Number(s): JXJ-FA01, JXJ-FA02, JXJ-FA03, JXJ-FA04, JXJ-FA05, JXJFA06, JXJ-FA07, JXJ-FA08, JXJ-FA09, JXJ-FA10 Trademark: N/A FCC ID: 2AYAGJXJ-FA01 All the model are the same circuit and RF module, except model names. Regards Sincerely Client’s signature: Client’s name / title : caoyan / Manager Contact information / address: Phase III standard workshop of QUANNAN Industrial Park, Ganzhou City, Jiangxi Province, China

Jiangxi jiaxinjie Intelligent Equipment Co., Ltd Agent Authorization Company: Jiangxi jiaxinjie Intelligent Equipment Co., Ltd Address: Phase III standard workshop of QUANNAN Industrial Park, Ganzhou City, Jiangxi Province, China Product Name: Wireless Smart Battery Camera Model Number(s): JXJ-FA01, JXJ-FA02, JXJ-FA03, JXJ-FA04, JXJ-FA05, JXJ- FA06, JXJ-FA07, JXJ-FA08, JXJ-FA09, JXJ-FA10 Trademark: N/A FCC ID: 2AYAGJXJ-FA01 We authorize MiCOM Labs Inc., 575 Boulder Court, Pleasanton, California 94566, USA, to act on our behalf on all matters concerning the certification of above named equipment. We declare that MiCOM Labs Inc. is allowed to forward all information related to the approval and certification of equipment to the regulatory agencies as required and to discuss any issues concerning the approval application. Any and all acts carried out by MiCOM Labs on our behalf shall have the same effect as acts of our own. Signature: Date: 2020/11/25 Name: caoyan Title: Manager Company: Jiangxi jiaxinjie Intelligent Equipment Co., Ltd

Jiangxi jiaxinjie Intelligent Equipment Co., Ltd Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 USA Date: 2020/11/25 Subject; Request for Confidentiality FCC ID: 2AYAGJXJ-FA01 To Whom It May Concern, Pursuant to the provisions of the Commission’s rules Title 47 Sections §0.457 and §0.459, we are requesting the Commission to withhold the following attachment(s) as confidential documents from public disclosure indefinitely. These documents contain detailed system and equipment descriptions and are considered as proprietary information in operation of the equipment. The public disclosure of these documents might be harmful to our company and would give competitors an unfair advantage in the market. Schematic Diagram Block Diagram Operational Description In additional to above mentioned documents, in order to comply with the marketing regulations in Title 47 CFR §2.803 and the importation rules in Title 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices, we request Short Term Confidentiality of the following attachment(s); User Manual For 45 days, pursuant to Public Notice DA 04-1705. OR For 180 days pursuantto KDB 726920 D01. It is our understanding that all measurement test reports, FCC ID label format and correspondence during the certification review process cannot be granted as confidential documents and this information will be available for public review once the grant of equipment authorization is issued. Sincerely, Signature: Name: caoyan Title: Manager

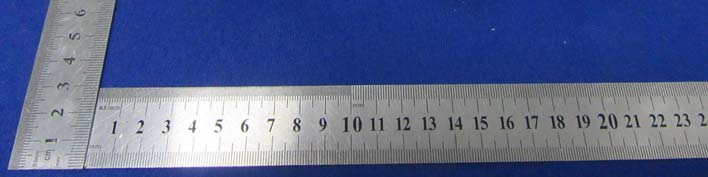

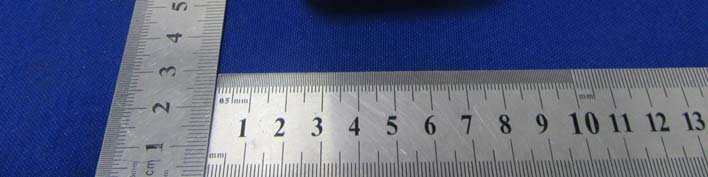

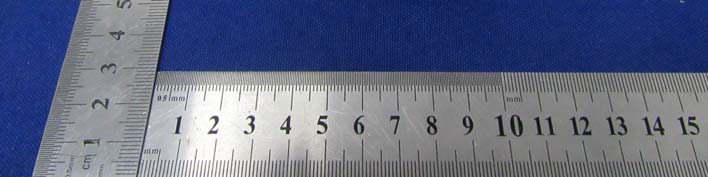

External Photos

Size:30*15mm FCC ID: 2AYAGJXJ-FA01 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:(1)This device may not cause harmful interfer ence, and (2) this device must accept any interference received, including interference that may cause undesired operation. Label Location

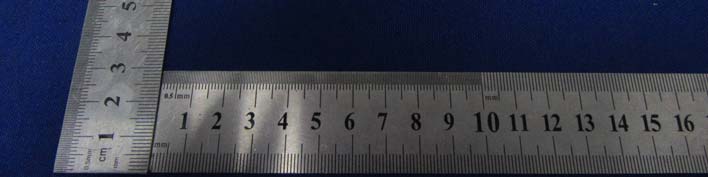

Internal Photos Antenna

FCC §15.247 (i), §2.1091 – RF Exposure FCC ID: 2AYAGJXJ-FA01 Applied procedures / limit According to FCC §1.1307(b)(1), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. Limits for Occupational / Controlled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm 2 ) Averaging Time |E| 2 ,|H| 2 or S (minutes) 0.3-3.0 614 1.63 (100)* 6 3.0-30 1842 / f 4.89 / f (900 / f)* 6 30-300 61.4 0.163 1.0 6 300-1500 F/300 6 1500-100,000 5 6 Note: ƒ is frequency in MHz * = Power density limit is applicable at frequencies greater than 100 MHz Limits for General Population / Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm 2 ) Averaging Time |E| 2 ,|H| 2 or S (minutes) 0.3-1.34 614 1.63 (100)* 30 1.34-30 824/f 2.19/f (180/f)* 30 30-300 27.5 0.073 0.2 30 300-1500 F/1500 30 1500-100,000 1.0 30 Note: f = frequency in MHz * = Plane-wave equivalent power density MPE PREDICTION Predication of MPE limit at a given distance, Equation from OET Bulletin 65, Edition 97-01 Where: S = power density P = power input to antenna G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the center of radiation of the antenna,R=20cm π=3.142 Test Result of RF Exposure Evaluation Target power W/ tolerance (dBm) Max tune up power tolerance (dBm) Total Output power to antenna (mW) Antenna Gain(dBi) Antenna Gain Numeric Total Pow er Density at R=20cm (mW/cm 2 ) Limit (mW/cm 2 ) Result 802.119 17±1.0 18 63.10 1 1.26 0.01582 1.000 Pass

No.：BCTC/RF-EMC-005Page:1of67Edition：A.2 TEST REPORT    Shenzhen BCTC Testing Co., Ltd. ReportNo.: BCTC2011000104E Applicant:JiangxijiaxinjieIntelligentEquipmentCo.,Ltd ProductName:WirelessSmartBatteryCamera Model/TypeRef.: JXJ-FA01 TestedDate:Nov.03,2020toNov.20,2020 IssuedDate:Nov.23,2020 ReportNo.:BCTC2011000104E No.：BCTC/RF-EMC-005Page:2of67Edition：A.2 FCC ID: 2AYAGJXJ-FA01 The test report is effective only with both signature and specialized stamp.This result(s) shown in this report refer only to the sample(s) tested. Without written approval of Shenzhen BCTC Testing Co., Ltd, this report can’t be reproduced except in full.The tested sample(s) and the sample information are provided by the client. Product Name: Wireless Smart Battery Camera Trademark: N/A Model/Type Ref.: JXJ-FA01 JXJ-FA02, JXJ-FA03, JXJ-FA04, JXJ-FA05, JXJ-FA06, JXJ-FA07, JXJ-FA08, JXJ-FA09, JXJ-FA10 Prepared For: Jiangxi jiaxinjie Intelligent Equipment Co., Ltd Address: Phase III standard workshop of QUANNAN Industrial Park, Ganzhou City, Jiangxi Province, China Manufacturer: Jiangxi jiaxinjie Intelligent Equipment Co., Ltd Address: Phase III standard workshop of QUANNAN Industrial Park, Ganzhou City, Jiangxi Province, China Prepared By: Shenzhen BCTC Testing Co., Ltd. Address: 1-2F, East of B Building, Pengzhou Industrial, Fuyuan 1st Road, Qiaotou Community, Fuyong Street, Bao’an District, Shenzhen, China Sample Received Date: Nov. 03, 2020 Sample tested Date: Nov. 03, 2020 to Nov. 20, 2020 Issue Date: Nov. 23, 2020 Report No.: BCTC2011000104E Test Standards FCC Part15.247 ANSI C63.10-2013 Test Results PASS Remark: This is WIFI-2.4GHz band radio test report. Tested by: Approved by: Eric Yang/Project Handler Zero Zhou/Reviewer ReportNo.:BCTC2011000104E No.：BCTC/RF-EMC-005Page:3of67Edition：A.2 TABLE OF CONTENT Test Report Declaration Page 1. VERSION ............................................................. 5 2. TEST SUMMARY ...................................................... 6 3. MEASUREMENT UNCERTAINTY........................................ 7 4. PRODUCT INFORMATION AND TEST SETUP ............................ 8 4.1 Product Information ..................................................... 8 4.2 Test Setup Configuration ................................................ 8 4.3 Support Equipment ..................................................... 9 4.4 Channel List ........................................................... 9 4.5 Test Mode ............................................................ 10 5. TEST FACILITY AND TEST INSTRUMENT USED ........................ 11 5.1 Test Facility ........................................................... 11 5.2 Test Instrument Used .................................................. 11 6. CONDUCTED EMISSIONS ............................................. 13 6.1 Block Diagram Of Test Setup ........................................... 13 6.2 Limit ................................................................. 13 6.3 Test procedure ........................................................ 13 6.4 EUT operating Conditions .............................................. 13 6.5 Test Result ........................................................... 14 7. RADIATED EMISSIONS ............................................... 16 7.1 Block Diagram Of Test Setup ........................................... 16 7.2 Limit ................................................................. 17 7.3 Test procedure ........................................................ 18 7.4 EUT operating Conditions .............................................. 19 7.5 Test Result ........................................................... 20 8. RADIATED BAND EMISSION MEASUREMENT AND RESTRICTED BANDS OF OPERATION .......................................................... 27 8.1 Block Diagram Of Test Setup ........................................... 27 8.2 Limit ................................................................. 27 8.3 Test procedure ........................................................ 28 8.4 EUT operating Conditions .............................................. 28 8.5 Test Result ........................................................... 29 9. POWER SPECTRAL DENSITY TEST ................................... 31 9.1 Block Diagram Of Test Setup ........................................... 31 9.2 Limit ................................................................. 31 9.3 Test procedure ........................................................ 31 9.4 EUT operating Conditions .............................................. 31 9.5 Test Result ........................................................... 32 10. BANDWIDTH TEST ................................................... 40 10.1 Block Diagram Of Test Setup .......................................... 40 10.2 Limit ................................................................ 40 10.3 Test procedure ....................................................... 40 ReportNo.:BCTC2011000104E No.：BCTC/RF-EMC-005Page:4of67Edition：A.2 10.4 EUT operating Conditions ............................................. 40 10.5 Test Result .......................................................... 41 11. PEAK OUTPUT POWER TEST ......................................... 49 11.1 Block Diagram Of Test Setup .......................................... 49 11.2 Limit ................................................................ 49 11.3 Test procedure ....................................................... 49 11.4 EUT operating Conditions ............................................. 49 11.5 Test Result .......................................................... 50 12. 100 KHZ BANDWIDTH OF FREQUENCY BAND EDGE ................... 51 12.1 Block Diagr…

Text truncated - open the document above for the full version.

ReportNo.:BCTC2011000104E No.：BCTC/RF-EMC-005Page:45of67Edition：A.2 Temperature： 26°C Relative Humidity： 54% Pressure： 101kPa Test Voltage ： AC120V/60Hz Test Mode ： TX n Mode(20M) Frequency (MHz) 6dB bandwidth (MHz) Limit (kHz) Result 2412 17.63 500 Pass 2437 17.63 500 Pass 2462 17.62 500 Pass TX CH 01 ReportNo.:BCTC2011000104E No.：BCTC/RF-EMC-005Page:46of67Edition：A.2 TX CH 06 TX CH 11 ReportNo.:BCTC2011000104E No.：BCTC/RF-EMC-005Page:47of67Edition：A.2 Temperature： 26°C Relative Humidity： 54% Pressure： 101kPa Test Voltage ： AC120V/60Hz Test Mode ： TX n Mode(40M) Frequency (MHz) 6dB bandwidth (MHz) Limit (kHz) Result 2422 35.87 500 Pass 2437 35.43 500 Pass 2452 35.80 500 Pass TX CH 03 ReportNo.:BCTC2011000104E No.：BCTC/RF-EMC-005Page:48of67Edition：A.2 TX CH 06 TX CH 09 ReportNo.:BCTC2011000104E No.：BCTC/RF-EMC-005Page:49of67Edition：A.2 11. PEAK OUTPUT POWER TEST 11.1 Block Diagram Of Test Setup 11.2 Limit FCC Part15 (15.247) , Subpart C Section Test Item Limit Frequency Range (MHz) Result 15.247(b)(3) Peak Output Power 1 watt or 30dBm 2400-2483.5 PASS 11.3 Test procedure a. The EUT was directly connected to the Power meter 11.4 EUT operating Conditions The EUT tested system was configured as the statements of 4.6 Unless otherwise a special operating condition is specified in the follows during the testing. Note: Power Spectral Density(dBm)=Reading+Cable Loss ReportNo.:BCTC2011000104E No.：BCTC/RF-EMC-005Page:50of67Edition：A.2 11.5 Test Result Temperature： 26°C Relative Humidity： 54% Pressure： 101kPa Test Voltage ： AC120V/60Hz Frequency
Maximum Conducted Output Power(PK) LIMIT (MHz) (dBm) dBm 802.11b 2412 15.46 30 2437 15.97 30 2462 16.06 30 802.11g 2412 16.60 30 2437 16.33 30 2462 17.35 30 802.11n20 2412 15.77 30 2437 15.73 30 2462 16.06 30 802.11n40 2422 12.31 30 2437 13.35 30 2452 13.12 30 ReportNo.:BCTC2011000104E No.：BCTC/RF-EMC-005Page:51of67Edition：A.2 12. 100 KHZ BANDWIDTH OF FREQUENCY BAND EDGE 12.1 Block Diagram Of Test Setup 12.2 Limit In any 100 kHz bandwidth outside the frequency band in which the spread spectrum intentional radiator is operating, the radio frequency power that is produced by the intentional radiator shall be at least 20 dB below that in the 100 kHz bandwidth within the band that contains the highest level of the desired power, based on either an RF conducted or a radiated measurement. 12.3 Test procedure Using the following spectrum analyzer setting: a) Set the RBW = 100KHz. b) Set the VBW = 300KHz. c) Sweep time = auto couple. d) Detector function = peak. e) Trace mode = max hold. f) Allow trace to fully stabilize.. 12.4 EUT operating Conditions The EUT tested system was configured as the statements of 4.6 Unless otherwise a special operating condition is specified in the follows during the testing. Note: Power Spectral Density(dBm)=Reading+Cable Loss ReportNo.:BCTC2011000104E No.：BCTC/RF-EMC-005Page:52of67Edition：A.2 12.5 Test Result Temperature： 26°C Relative Humidity： 54% Pressure： 101kPa Test Voltage ： AC120V/60Hz 802.11b: Band Edge, Left Side 802.11b: Band Edge, Right Side ReportNo.:BCTC2011000104E No.：BCTC/RF-EMC-005Page:53of67Edition：A.2 802.11g: Band Edge, Left Side 802.11g: Band Edge, Right Side ReportNo.:BCTC2011000104E No.：BCTC/RF-EMC-005Page:54of67Edition：A.2 802.11n-HT20: Band Edge, Left Side 802.11n-HT20: Band Edge, Right Side ReportNo.:BCTC2011000104E No.：BCTC/RF-EMC-005Page:55of67Edition：A.2 802.11n-HT40: Band Edge, Left Side 802.11n-HT40: Band Edge, Right Side ReportNo.:BCTC2011000104E No.：BCTC/RF-EMC-005Page:56of67Edition：A.2 CONDUCTED EMISSION MEASUREMENT 802.11b Low Channel 2412MHz Middle Channel 2437MHz High Channel 2462MHz ReportNo.:BCTC2011000104E No.：BCTC/RF-EMC-005Page:57of67Edition：A.2 802.11g Low Channel 2412MHz Middle Channel 2437MHz High Channel 2462MHz ReportNo.:BCTC2011000104E No.：BCTC/RF-EMC-005Page:58of67Edition：A.2 802.11n20 Low Channel 2412MHz Middle Channel 2437MHz High Channel 2462MHz ReportNo.:BCTC2011000104E No.：BCTC/RF-EMC-005Page:59of67Edition：A.2 802.11n40 Low Channel 2422MHz Middle Channel 2437MHz High Channel 2452MHz ReportNo.:BCTC2011000104E No.：BCTC/RF-EMC-005Page:60of67Edition：A.2 13. DUTY CYCLE OF TEST SIGNAL 13.1 Standard requirement Pre-analysis Check: While conducting average power measurement, duty cycle of each mode shall be checked to ensure its duty cycle in order to compensate for the loss due to insufficient ratio of duty cycle. All duty cycle is pre-scanned, and result as obtained below shows only the most representative ones where duty cycle is conducted as the given transmission with given virtual operation that expresses the percentage. 13.2 Formula Duty Cycle = Ton / (Ton+Toff) 13.3 Test procedure 1.Set span = Zero 2. RBW = 8MHz 3. VBW = 8MHz, 4. Detector = Peak 13.4 Test Result Duty Cycle Duty Fator (dB) 802.11b 1 0 802.11g 1 0 802.11n(HT20) 1 0 802.11n(HT40) 1 0 ReportNo.:BCTC2011000104E No.：BCTC/RF-EMC-005Page:61of67Edition：A.2 802.11b 802.11g ReportNo.:BCTC2011000104E No.：BCTC/RF-EMC-005Page:62of67Edition：A.2 802.11n(HT20) 802.11n(HT40) ReportNo.:BCTC2011000104E No.：BCTC/RF-EMC-005Page:63of67…

Text truncated - open the document above for the full version.

Conducted emissions Radiated Measurement Photos
