2AYATG150Hot beverage dispensing machine with built in WiFi/BT module

Ed. 11 17 EVOCA S.p.A. ad unico socio Sede amministrativa e operativa: Via Roma 24 24030 Valbrembo (BG) Italia Tel +39 035 606111 Fax +39 035 606463 www.evocagroup.com Sede legale: Via Tommaso Grossi 2 20121 Milano (MI) Italia Cap. Soc. € 41.138.297,00 i.v. Reg. Impr. MI, Cod. Fisc. e P.IVA: 05035600963 Reg. Produttori A.E.E.: IT08020000001054 Cod. identificativo: IT 05035600963 Warnings This document intended for the technical personnel is made available in the electron- ic format at the manufacturer’s (reserved area web site). for installation The installation and any subsequent maintenance operation shall be carried out by the personnel skilled and trained on the utilisation of the machine ac- cording to the rules in force The use of kits and/or accessories not type-approved by the manufacturer can not guarantee the observance of safety stand- ards, in particular for live parts. The installer will be the sole person respon- sible for any damage improper installation may cause to the machine or to things and people. The manufacturer declines all responsibility for the use of non type-approved compo- nents. Assembly and any testing operation must be carried out by qualified per- sonnel who have a specific knowledge of the machine operation from the point of view of electric safety and health rules. The intactness of the machine and its compliance with the standards of rel- evant installations must be checked by skilled personnel at least once a year. Package materials must be disposed of in observance of the environment. For the vending machines of hot drinkts only The machine is equipped with an automatic washing system for the mixers with the rela- tive water circuit and the brewing unit. If the machine is not used for some time (weekends, etc.) even for pauses longer than two days, it is recommended to enable the automatic washing functions (e.g. be- fore starting to use the VM. for use The machine can be used by children over 8 years and by people having reduced physical, sensorial or mental skills under the supervision of people responsible for their safety or specifically trained on the use of the machine. Children shall not be allowed to play with the machine by the people in charge of their supervision Children shall not be allowed to clean or service the machine. for the environment Some tricks will help you to protect the environment: -use biodegradable products to clean the machine; -properly dispose of all the packages of the products used to fill and clean the ma- chine; -power off the machine during inactivity for energy saving. for dismantling and disposal When dismantling the machine, it is rec- ommended to destroy the machine rating plate. The symbol shows that the ma- chine can not be disposed of as common waste, but it must be disposed of as it is established by the 2012/19/EU (Waste Electrical and Electronic Equipment - WEEE) European Directive and by the national laws arising out of it in order to prevent any negative consequence for environment and human health. The differentiated collection of the machine at the end of its life is organised and man- aged by the manufacturer. For the correct disposal of the machine contact the sales point where you have purchased the machine or our after-sales service. The unlawful disposal of the machine im- plies the application of the administrative sanctions provided for by the rules in force. Attention! If the machine is equipped with a cooling system, the cooling unit contains HFC- R134a fluoridised greenhouse effect gas ruled by the Kyoto protocol, the total heat- ing potential of which is equal to 1300. 03-2019 0193 00 1 English INTRODUCTION 2 transport and storagE 2 what to do should a malfunction occur 3 appliancE idEntification and fEaturEs 3 appliancE positioning 4 tEcHNical spEcificatioNs 4 powEr consumption 6 CLEANING AND LOADING 7 main switch and safEty mEasurEs 7 hygiEnE and clEaning 8 dispEnsing hot bEvEragEs into opEn containErs 9 coNtrols aND iNformatioN 9 loaDiNg proDucts 10 coffEE bEans 10 instant products 10 milk 11 intErnally suppliEd tank watEr 11 pErioDical opEratioNs 11 clEaning thE rEsiduE containErs 12 clEaning thE mixEr and diffusEr 13 clEaning thE nozzlEs and spouts 14 clEaning milk componEnts 14 clEaning thE brEwing unit 15 clEaning thE watEr supply tank 15 clEaning thE product containErs 15 switching thE machinE on 16 wasH cyclEs 16 mixEr wash cyclE 17 full appliancE wash cyclE 17 washing thE cappuccino makEr 17 brEwing unit wash cyclE 18 rinsing thE componEnts 19 clEaning thE touchscrEEn 20 sErvicE suspEnsion 20 INSTALLATION 21 unpacking thE appliancE 21 main switch and safEty mEasurEs 22 discarding thE solid and liquid rEsiduEs 23 rEmoving thE panEls 23 watEr supply 24 if thE appliancE usEs a watEr tank, appropriatE filtEr cartridgEs can bE usEd. 24 ElEctrical connEction 25 wi-fi connEctions 26 iNitial start up 27 first sanitisation 27 opEratioN 28 variablE-dosE coffEE dosEr 30 dispEnsing milk 31 dElivEry of hot watEr from spout 31 stEam dElivEry from spout 31 calibration chEcks and sEttings 32 connEctivity 33 touchscrEEn 34 usE of usb mEmory stick 34 opEratioN iN Normal usEr status 34 dispEnsing a bEvEragE 35 appliancE status 35 systEm architEcturE 36 PROGRAMMING 37 accEssing thE programming mEnus 37 EntEring valuEs 38 daily actions 39 sElEction sEttings 39 machinE sEttings 45 machinE information 51 EnErgy saving modE 55 paymEnt systEms 57 import/ Export 60 systEm 61 connEctivity 65 MAINTENANCE 66 gEnEral introduction 66 main switch and fusE 66 maintaining thE brEwing unit 67 pErioDical opEratioNs 69 sanitisation 69 clEaning thE nozzlEs and spouts 71 rEmoving thE product containErs 72 rEmoving thE sidE and rEar panEls 72 circuit boarD fuNctioNs 73 powEr supply 73 paymEnt form board 73 activation board 74 boilEr thErmal protEction 75 softwarE installation and/or updating 76 APPENDIX 77 2 03-2019 0193 00 Introduction The technical documentation forms an integral part of the appliance and must theref…

Text truncated - open the document above for the full version.

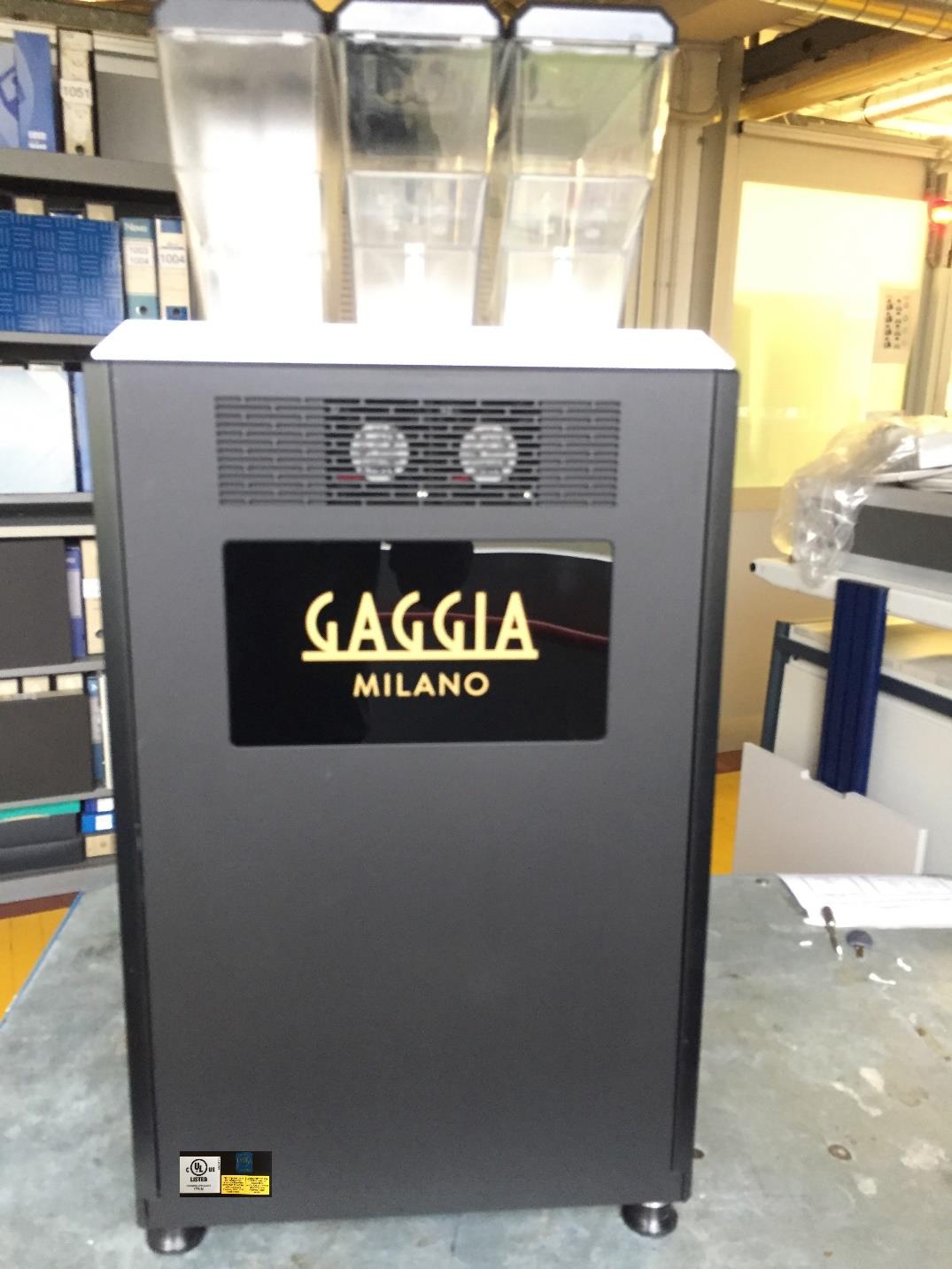

EXTERNAL PHOTO OF THE COFFEE MACHINE

COFFEE MACHINE – LABELS Overall view – front of the coffee machine Overall view – front door open – label position LABEL ITEM REFERENCE “1” Contains: FCC ID: Z64-WL18DBMOD / IC ID 451I-WL18DBMOD LABELLING SUPPLIER and MATERIAL: Supplier SITI TARGHE SRL – UL authorized as “CCN”: PGAA, file n°LP1830 – see annex 1 1 2 FCC ID: 2AYATG150 Material manufacturer SITI TARGHE SRL - Marking and Labeling Systems Certified for USA/Canada as “CCN”:PGDQ2/8, file n°MH18333 – see annex 2 Alternative Material manufacturer STEV & CO SRL - Marking and Labeling Systems Certified for USA as “CCN”:PGDQ2, file n° MH29177 – see annex 3 LABEL ITEM REFERENCE “2” LABELLING SUPPLIER and MATERIAL: Supplier LOGO SRL – UL authorized as “CCN”: PGAA, file n° LP3020 – see annex 4 Material manufacturer LOGO SRL - Marking and Labeling Systems Certified for USA as “CCN”:PGDQ2, file n° MH61385 – see annex 5

INTERNAL PHOTO PHOTO OF INTERNAL COFFEE MACHINE FRONT VIEW – DOOR OPEN WITHOUT REMOVABLE PARTS INTERNAL DOOR WITHOUT METALLIC COVER LEFT SIDE VIEW WITHOUT POLIMERIC ENCLOSURE REAR VIEW WITHOUT POLIMERIC ENCLOSURE TOUCH SCREEN and its PCB BOARD– SEE EXPLODED VIEW AT FOLLOW RIGHT VIEW WITHOUT POLIMERIC ENCLOSURE EXPLODED VIEW AND COMPONENTS OF THE ACTUATING PCB BOARD OF THE MACHINE COFFEE MACHINE’S ACTUATING PCB BOARD POSITION. SEE AT FOLLOW EXPLODED VIEW EXPLODED VIEW AND COMPONENTS , PHOTO OF THE TOUCH SCREEN WITH BUILT IN THE CPU BOARD AND WIFI/BT MODULE AND ANTENNA EXPLODED DRAW Overall view of the touch screen FRONT (USER INTERFACE) REAR (INSIDE DOOR) DISASSEMBLED VIEW of the TOUCH SCREEN PARTICOLAR VIEW OF THE TOUCH Explosion of the touch screen Th 8.8mm Touch disassembled Metal cover Non-metallic frame Glass Non-metallic frame Non-metallic shield – touchable by user ANTENNA trademark PULSE mod. W3006 TOUCH SCREEN – CPU BOARD OVERALL VIEW

The results of tests and checks reported in this Test Report refer exclusively to the samples tested and described in the Report itself. This Report shall not be reproduced partially the written approval of IMQ S.p.A.. The authenticity of this Test Report and its contents can be verified by contacting IMQ S.p.A., responsible for this Test Report. TEST REPORT No. GE20-0056862-01 performed in accordance with FCC Rules: Code of Federal Regulations (CFR) no. 47 Part 15 Subpart B Section 15.107 and 15.109 PRODUCT HOT BEVERAGE VENDING MACHINE WITH BUILT-IN RF MODULE MODEL(s) TESTED Type; G150, Model; 2ES3RSM TRADE MARK(s) GAGGIA APPLICANT EVOCA SPA, VIA TOMMASO GROSSI 2, 20121 Milano (MI) – Italy FCC ID 2AYATG150 Tested by Massimo Padovan [Laboratory Technician] Approved by Giovanni Di Turi [Laboratory manager] Revision Sheet Release No. Date Revision Description Rev. 0 2021-02-12 First edition: GE20-0056862-01_TR EMC_ EVOCA_GAGGIA_2ES3RSM Mod. TRF 3723/ 2 B.U. P RODUCTS C ONFORMITY A SSESSMENT – EMC & R ADIO E QUIPMENT L ABORATORY Test Report No. GE20-0056862-01 Date: 2021-02-12 Page 2 of 25 Mod. TRF 3723 / 2 B.U. P RODUCTS C ONFORMITY A SSESSMENT – EMC & R ADIO E QUIPMENT L ABORATORY 1. GENERAL DATA SAMPLE Samples received on 2020-10-13 (Item(s) sampled and sent by applicant) IMQ reference samples BEM 101212 Samples tested No. 1 Object under analysis recognition Not carried out Except where stated, characteristics of products were taken from client description and were not verified by the laboratory Date of acceptance of test item 2020-10-15 TEST LOCATION Testing dates 2020-10-15 ÷ 2020-10-16 Testing laboratory. IMQ S.p.A. - Via Quintiliano, 43 – I-20138 Milano Testing site Via Quintiliano, 43 – I-20138 Milano Date of acceptance of test item 2020-10-15 ENVIRONMENTAL CONDITIONING Parameter Measured Ambient Temperature 25  35 C Relative Humidity 50  60 % Atmospheric Pressure 900  1000 mbar The laboratory is monitored by a continuous environmental conditions measurements system. Temperature, humidity and pressure data are recorded on a weekly basis and stored in local archive. REMARKS Throughout this report a point is used as the decimal separator. The ability or reliability of this product to perform its intended function in a particular application has not been investigated. Unless otherwise specified, warnings, installation instruction and/or user manual provided with the sample have been checked in Italian or English version only. IMQ declines any responsibility derived from missing or wrong information provided aside by the applicant. Test Report No. GE20-0056862-01 Date: 2021-02-12 Page 3 of 25 Mod. TRF 3723 / 2 B.U. P RODUCTS C ONFORMITY A SSESSMENT – EMC & R ADIO E QUIPMENT L ABORATORY 2. REFERENCE DOCUMENT DOCUMENT DATE TITLE 47 CFR Part 15 2015 Radio Frequency Device ANSI C63.4 2014 Methods of Measurement of Radio-Noise Emissions from Low-Voltage Electrical and Electronic Equipment in the Range of 9 kHz to 40 GHz ANSI C63.10 2013 American National Standard for Testing Unlicensed Wireless Devices Test Report No. GE20-0056862-01 Date: 2021-02-12 Page 4 of 25 Mod. TRF 3723 / 2 B.U. P RODUCTS C ONFORMITY A SSESSMENT – EMC & R ADIO E QUIPMENT L ABORATORY 3. UNIT UNDER TEST (EUT) DETAILS GENERAL DATA MODEL (basic) Description 2ES3RSM HOT BEVERAGE VENDING MACHINE WITH BUILT-IN RF MODULE VARIANTS (derived) Description / / Contain module with FCC ID Module: WL18MODGI FCC ID: Z64-WL18DBMOD Manufacturer EVOCA SPA Via del Chioso, 13/15 - 24030 Mozzo (BG) – Italy Type of equipment The following data are available in the FV4O0971_R01_Part15B_Texas_WG7837-T0B document as provided by the manufacturer Operating frequency: TX Frequency 802.11b/g/n: 2412 MHz ᷉ 2462MHz 802.11a/n: 5180 MHz ᷉ 5240MHz; 5260 MHz ᷉ 5320MHz; 5500 MHz ᷉ 5580MHz and 5660 MHz ᷉ 5700MHz; 5745 MHz ᷉ 5825MHz; Bluetooth: 2402 MHz ᷉ 2480MHz RX Frequency 802.11b/g/n: 2412 MHz ᷉ 2462MHz 802.11a/n: 5180 MHz ᷉ 5240MHz; 5260 MHz ᷉ 5320MHz; 5500 MHz ᷉ 5580MHz and 5660 MHz ᷉ 5700MHz; 5745 MHz ᷉ 5825MHz; Bluetooth: 2402 MHz ᷉ 2480MHz Type of Modulation 802.11b : DSSS (DBPSK / DQPSK / CCK) 802.11a/g/n : OFDM (BPSK / QPSK / 16QAM / 64QAM) Bluetooth LE : GFSK Bluetooth (1Mbps) : GFSK Bluetooth (2Mbps) : μ /4-DQPSK Bluetooth (3Mbps) : 8-DPSK The following data are available in the FV4O0971_R01_RF Exposure_Texas_WG7837-T0B_for WWAN+WLAN document as provided by the manufacturer Operating frequency: Maximum RF radiated power: Modulation: Channel Spacing: Antenna: RX sensitivity: Main SW identification Main HW Board identification Peripherals included (for system application) Interfaces : Integrated interfaces : AC adapter: Data cable Telecom cable Power supply type : AC power input cable : DC power input cable : Test Report No. GE20-0056862-01 Date: 2021-02-12 Page 5 of 25 Mod. TRF 3723 / 2 B.U. P RODUCTS C ONFORMITY A SSESSMENT – EMC & R ADIO E QUIPMENT L ABORATORY Band Frequency (MHz) Antenna Gain (dbi) Bluetooth 2402.0 3.2 2.4 GHz WLAN 2412.0 3.2 5 GHz WLAN 5180.0 4.5 Test Report No. GE20-0056862-01 Date: 2021-02-12 Page 6 of 25 Mod. TRF 3723 / 2 B.U. P RODUCTS C ONFORMITY A SSESSMENT – EMC & R ADIO E QUIPMENT L ABORATORY 4. TEST CONFIGURATION OF UNIT UNDER TEST EUT PORTS Port Description Max length Enclosure Metallic surfaces / AC power Input 120Vac / 60Hz (phase-neutral with protective earth) 3m DC power Not present / Earth Not present / Telecommunication Not present / Signal Not present / Control Not present / Antenna WIFI and BLUETOOTH module / STATE OF THE EUT DURING TESTS Ref. Mode Description #1 Stand-by EUT connected to power supply keep warm mode – stand-by (including pre-heating) – RF module in idle mode #2 Other operation Dispense of cup of coffee, spotted milk, cappuccino, barley coffee, dispense of hot water – RF module in idle mode EUT Antenna Port AC Power Port Earth Port Telecommunication Port Signal/Control Port DC Power Port Enclosure Port Test Report No. GE20-0056862-01 Date: 2021-02-12 Page 7 of 25 Mod. TRF 3723 / 2 B.U. P…

Text truncated - open the document above for the full version.

FCC ID: 2AYATG150 EVOCA – Type: G150; Model: 2ES3RSM Conduced Measurements Test Set-up Radiated Measurements Test Set-up
