2AYBP-WGT-N01Intelligent Star Light Bluetooth Speaker

1 IntelligentStarLightBluetoothSpeaker UserManual UnboxingCheck Thankyouforpurchasingourproducts,pleasereadtheinstructionmanual carefullybeforeuse.Instructionmanualcontainsnecessarysafetyadviceanduser instructions,followtheinstructionmanualtooperateinordertoavoiddamagingthe productformisuse.Checkwhethertheproductisdamagedornotwhenyou receivetheproduct. Packagelist IntelligentStarLightx1 RemoteControllerx1 USBCablex1 UserManualx1 Warnings ThepowerrequirementofthisproductisType-c5V/2A.Thisproducthasbeenfully andstrictlytestedatthefactory,andusersshouldstrictlyfollowingthewarnings andinstructions.Improperuseresultinginproductdamageisnotcoveredbythe company’swarranty. Notice 1.Strictlyinaccordancewiththeinstructionsofthisoperation,donotdisassemble thehostandaccessories. 2.Thisproductissuitableforindooruse,pleasedonotusestarshonedirectlyin eyesandkeepawayfromchildren. 3.TheproductisprojectedbyLEDandstarcombinations. Howtouse 1.Indooruse,projectiontothesky. 2.Theusageofstarryskylampisshowninthepicturebelow. 3.Connectsmartphonebluetooth"WGT-N01"toplaymusic. 4.Usetheremotecontrolcorrectlyandensurethatitpointstotheinfraredsensor, thatis,the"remotereceivingarea"onthehost. ProductFeatures 1.Controlmode: Manualmode:Clickthe""buttontoswitchonoroffthroughthehostbuttonor remotecontrol.Inmanualmode,theproductautomaticallyshutsdownafter4hours bydefault. 2.Voicecontrolmode:Inmanualmode,clicktheremote"MUSIC"keytostartthe voicecontrol,andthelightwillblinkaccordingtothechangeofexternalsoundor musicrhythm. ManualMode Hostbuttonfunctiondescriptions Remotecontrolfunctiondescription Instruction: Whenthesmartstarlightisconnectedtothepowersupply,theLEDbluelightis alwaysonandinamovingstate;Starlightinbreathingmodecanbeautomatically turnedoffwithin4hoursbydefault(nodailycycleisrequiredfortiming). ①ControlLEDoceanwavelightON/OFF ②ControlstarlightON/OFF ③Press"R”,redlightON;Pressagain,redlightOFF ④Press“G”,greenlightON;Pressagain,greenlightOFF ⑤Press"B”,bluelightON;Pressagain,bluelightOFF ⑥Press"W”,whitelightON;Pressagain,whitelightOFF(Note:four-colorbutton canbecombinedatthesametimeintotwo-colorprojection) ⑦Controldevicevolumeup ⑧Controldevicevolumedown ⑨Selectplayingprevioussong ⑩Selectplayingnextsong ⑪Voicecontrol:Lightswillfastflashfollowingtheexternalsoundormusic rhythm(LEDoceanwaveandstarlightsdefaultkeeponinvoice-activatedmode; Note:Pressanyotherremotebuttonsexceptthemusiccontrolbuttonstoautoexit thevoicecontrolmode) ⑫Controloceanwavemovingspeedup(Pause-Slow—Medium-Fast) ⑬Controloceanwavemovingspeeddown(Fast—Medium—Slow—Pause) ⑭TimerOff:LEDlightandstarlightflash3timesaspromptingforsettimeroff successfully. ⑮PressHFADE1",oceanwavemovecircularlyinR-G-B-Wsinglecolormodeand starlightchangedtogradationmode. ⑯Press"FADE2"andthewavecirculatesinRB-RG-RW-BG-bW-BW-GW.The two-colormodeandstarlightmodechangetogradientmode. ⑰1HTimer:Shutoffautomaticallyafterdeviceworkfor1hour.LEDlightandstar lightflashoncetimeaspromptingforset1Htimersuccessfully. ⑱ControlLEDoceanwavelightbrightness(Inorderof100%—70%—40%—10%— 40%-70%-100%) ⑲Press"STARlight"achieveeitherstarlightstayonorenterintogradationmode. ⑳2HTimer:Shutoffautomaticallyafterdeviceworkfor2hours.LEDlightandstar lightflash2timesaspromptingforset2Htimersuccessfully. ⑳ControlMusicSwitchOn/Off. Specifications HostMaterial ABS InputRatedVoltage 5VDC MaximumPower 10W MaximumWorkingCurrent 2.0A ProjectionLightSource LEDlightbead ProjectorLightSourceWavelength Redlightbeads(620-625nm),greenlightbeads (520-525nm),bluelightbeads(460-465nm),whitelight beads(colortemperature1500-15000k),greenlight wavelength(532nm)) ProjectionDistance2-10M ProjectionArea Theprojectionareais120m 1 atadistanceof3M,and200rtf atadistanceof5M InputPower 100-240V50/60Hz2.0A ProductModel WGT-N01 FCC WARNING This device complies with part 15 of the FCC Rules. Operation is subject to the follow ing two conditions : (1) this device may not cause harmful interference, and (2) this device must accept any interference received, inc luding interference that may cause undesired operation. Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residentia l installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or televis ion reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -- Reorient or relocate the receiving antenna. -- Increase the separation between the equipment and receiver. -- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. --Consult the dealer or an experienced radio/TV technic ian for help. The device has been evaluated to meet general RF exposure requirement. The device can be used in portable exposure condition without restriction

WingoTimesShenzhenGroupCO.LTD 2.911(d)(5)(i)EquipmentTypeAttestationv1.2 Section2.911(d)(5)(i)Certification–EquipmentType Companyname:WingoTimesShenzhenGroupCO.LTD Address:1101,BuildingH,ChuangxinyunguWorkshop,No.48PaotaiRoad,GongmingStreet, GuangmingDistrict,ShenzhenChina ProductName:IntelligentStarLightBluetoothSpeaker FCCID:2AYBP-WGT-N01 Model(s):WGT-N01,Wingo-N01 2.911(d)(5)(i)EquipmentType We,WingoTimesShenzhenGroupCO.LTD(“theapplicant”)certifythattheequipmentforwhich authorizationissoughtthroughcertificationisnot:  Prohibitedfromreceivinganequipmentauthorizationpursuantto§2.903;oftheFCCrules.  Identifiedasanequipmenttypeinthe“CoveredList” NOTE1 Yourssincerely, Name:HelenZhaoDate:2023.11.02 TitleandCompanyname:N/A/WingoTimesShenzhenGroupCO.LTD NOTE1 “CoveredList”;istheListofEquipmentandServicesCoveredBySection2ofTheSecureNetworksAct,availableat https://www.fcc.gov/supplychain/coveredlist References; 1)986446D01CoveredEquipmentv01 https://apps.fcc.gov/oetcf/kdb/forms/FTSSearchResultPage.cfm?switch=P&id=325672 2)FederalRegisterdocument2022-28263publishedon02/06/23 https://www.federalregister.gov/documents/2023/02/06/2022-28263/protecting-against-national-security-threats-to-the-com munications-supply-chain-through-the

WingoTimesShenzhenGroupCO.LTD 2.911(d)(5)(ii)ApplicantAttestationv1.3 Section2.911(d)(5)(ii)Certification–Applicant(CoveredList) Companyname:WingoTimesShenzhenGroupCO.LTD Address:1101,BuildingH,ChuangxinyunguWorkshop,No.48PaotaiRoad,GongmingStreet, GuangmingDistrict,ShenzhenChina ProductName:IntelligentStarLightBluetoothSpeaker FCCID:2AYBP-WGT-N01 Model(s):WGT-N01,Wingo-N01 2.911(d)(5)(ii)Applicantfiling We,WingoTimesShenzhenGroupCO.LTD(“theapplicant”)certifythat,asofthedateofthefilingof theapplication,theapplicantisnotidentified NOTE1 onthe“CoveredList” NOTE2 ,established pursuantto§1.50002ofthischapter,asanentityproducingcoveredcommunicationsequipment. Yourssincerely, Name:HelenZhaoDate:2023.11.02 TitleandCompanyname:N/A/WingoTimesShenzhenGroupCO.LTD NOTE1 Deleteoptionnotapplicabletothisapplication. NOTE2 “CoveredList”;istheListofEquipmentandServicesCoveredBySection2ofTheSecureNetworksAct,availableat https://www.fcc.gov/supplychain/coveredlist References; 1)986446D01CoveredEquipmentv01 https://apps.fcc.gov/oetcf/kdb/forms/FTSSearchResultPage.cfm?switch=P&id=325672 2)FederalRegisterdocument2022-28263publishedon02/06/23 https://www.federalregister.gov/documents/2023/02/06/2022-28263/protecting-against-national-security-threats-to-the-com munications-supply-chain-through-the

WingoTimesShenzhenGroupCO.LTD 2.911(d)(7)USAAgentv1.4 Section2.911(d)(7)USAAgentforServiceofProcess Companyname:WingoTimesShenzhenGroupCO.LTD Address:1101,BuildingH,ChuangxinyunguWorkshop,No.48PaotaiRoad, GongmingStreet,GuangmingDistrict,ShenzhenChina ProductName:IntelligentStarLightBluetoothSpeaker FCCID:2AYBP-WGT-N01 Model(s):WGT-N01,Wingo-N01 2.911(d)(7)USADesignatedAgentforServiceofProcess We,WingoTimesShenzhenGroupCO.LTD(“theapplicant”)designate[StoneTrading Limited] NOTE1 forthepurposeofacceptingserviceofprocessonbehalfofthe applicant. Applicantconsent:Weacknowledgeourconsenttoacceptserviceofprocessinthe UnitedStatesformattersrelatedtotheapplicableequipment,andatthephysicalU.S. addressandemailaddressofthedesignatedagentandacknowledgeour acceptanceofourobligationtomaintainanagentforserviceofprocessintheUnited Statesfornolessthanoneyearaftereitherwethegranteehavepermanently terminatedallmarketingandimportationoftheapplicableequipmentwithintheU.S., orattheconclusionofanyCommission-relatedadministrativeorjudicialproceeding involvingtheequipment,whicheverislater. Agentobligation:Weacknowledgeourobligationtoacceptserviceofprocessinthe UnitedStatesformattersrelatedtotheapplicableequipmentatourphysicalU.S. addressandemailaddressfornolessthanoneyearaftereitherthegranteehas permanentlyterminatedallmarketingandimportationoftheapplicableequipment withintheU.S.,orattheconclusionofanyCommission-relatedadministrativeor judicialproceedinginvolvingtheequipment,whicheverislater. USAAgent Companyname:StoneTradingLimited USAAddress:6547NAcademyBlvd #2266,ColoradoSprings,CO80918,United States FRNNumber ： 0033401936 ContactName:DongmeiFang TelephoneNo:+12134573118 Email:[email protected] Applicant Companyname:WingoTimesShenzhen GroupCO.LTD Address:1101,BuildingH, ChuangxinyunguWorkshop,No.48Paotai Road,GongmingStreet,Guangming District,ShenzhenChina FCCGranteeCode:2AYBP ContactName:HelenZhao TelephoneNo:86-755-27155852 Email:[email protected] Signature: Title:Manager Signature: Title:N/A Date:2023.11.02Date:2023.11.02 WingoTimesShenzhenGroupCO.LTD 2.911(d)(7)USAAgentv1.4 NOTE1:AnapplicantlocatedintheUnitedStatesmaydesignateitselfastheagentforservice ofprocess. Reference;FederalRegisterdocument2022-28263publishedon02/06/23 https://www.federalregister.gov/documents/2023/02/06/2022-28263/protecting-against-nation al-security-threats-to-the-communications-supply-chain-through-the

WingoTimesShenzhenGroupCO.LTD AgentAuthorization Company:WingoTimesShenzhenGroupCO.LTD Address:1101,BuildingH,ChuangxinyunguWorkshop,No.48PaotaiRoad,Gongming Street,GuangmingDistrict,ShenzhenChina ProductName:IntelligentStarLightBluetoothSpeaker ModelNumber(s):WGT-N01,Wingo-N01 ProductDescription:IntelligentStarLightBluetoothSpeaker WeauthorizeMiCOMLabsInc.,575BoulderCourt,Pleasanton,California94566,USA, toactonourbehalfonallmattersconcerningthecertificationofabovenamed equipment. WedeclarethatMiCOMLabsInc.isallowedtoforwardallinformationrelatedtothe approvalandcertificationofequipmenttotheregulatoryagenciesasrequiredandto discussanyissuesconcerningtheapprovalapplication.Anyandallactscarriedoutby MiCOMLabsonourbehalfshallhavethesameeffectasactsofourown. Signature:Date:2023.11.02 Name:HelenZhao Title:N/A Company:WingoTimesShenzhenGroupCO.LTD

WingoTimesShenzhenGroupCO.LTD OfficeofEngineeringTechnology FederalCommunicationsCommission 7435OaklandMillsRoad Columbia,MD21046 USA Date:2023.11.02 Subject;RequestforConfidentiality FCCID:2AYBP-WGT-N01 ToWhomItMayConcern, PursuanttotheprovisionsoftheCommission’srulesTitle47Sections§0.457and§0.459,we arerequestingtheCommissiontowithholdthefollowingattachment(s)asconfidential documentsfrompublicdisclosureindefinitely. Thesedocumentscontaindetailedsystemandequipmentdescriptionsandareconsideredas proprietaryinformationinoperationoftheequipment.Thepublicdisclosureofthesedocuments mightbeharmfultoourcompanyandwouldgivecompetitorsanunfairadvantageinthemarket. SchematicDiagram BlockDiagram PartsList OperationalDescription Tune-upProcedure Inadditionaltoabovementioneddocuments,inordertocomplywiththemarketingregulations inTitle47CFR§2.803andtheimportationrulesinTitle47CFR§2.1204,whileensuringthat businesssensitiveinformationremainsconfidentialuntiltheactualmarketingofnewly authorizeddevices,werequestShortTermConfidentialityofthefollowingattachment(s); ExternalPhotos TestSetupPhotos InternalPhotos UserManual For45days,pursuanttoPublicNoticeDA04-1705. OR For180dayspursuanttoKDB726920D01. Itisourunderstandingthatallmeasurementtestreports,FCCIDlabelformatand correspondenceduringthecertificationreviewprocesscannotbegrantedasconfidential documentsandthisinformationwillbeavailableforpublicreviewoncethegrantofequipment authorizationisissued. Sincerely, Signature: Name:HelenZhao Title:N/A

WingoTimesShenzhenGroupCO.LTD ModelDifference Productdescription:ActionCamera Modelname:WGT-N01 Wingo-N01 TradeName:N/A AllmodelsareofthesamecircuitandRFmodule,exceptwithdifferentmodelnames. Theappearancecolorisdifferent . Regards Sincerely Client’ssignature: Client’sname/title:HelenZhao/N/A Contactinformation/address:86-755-27155852/BuildingB(Room8)201,Building 54-6,GuanlanAvenue,XinheCommunity,FuchengStreet,LonghuaDistrict, ShenzhenCity,GuangdongProvince

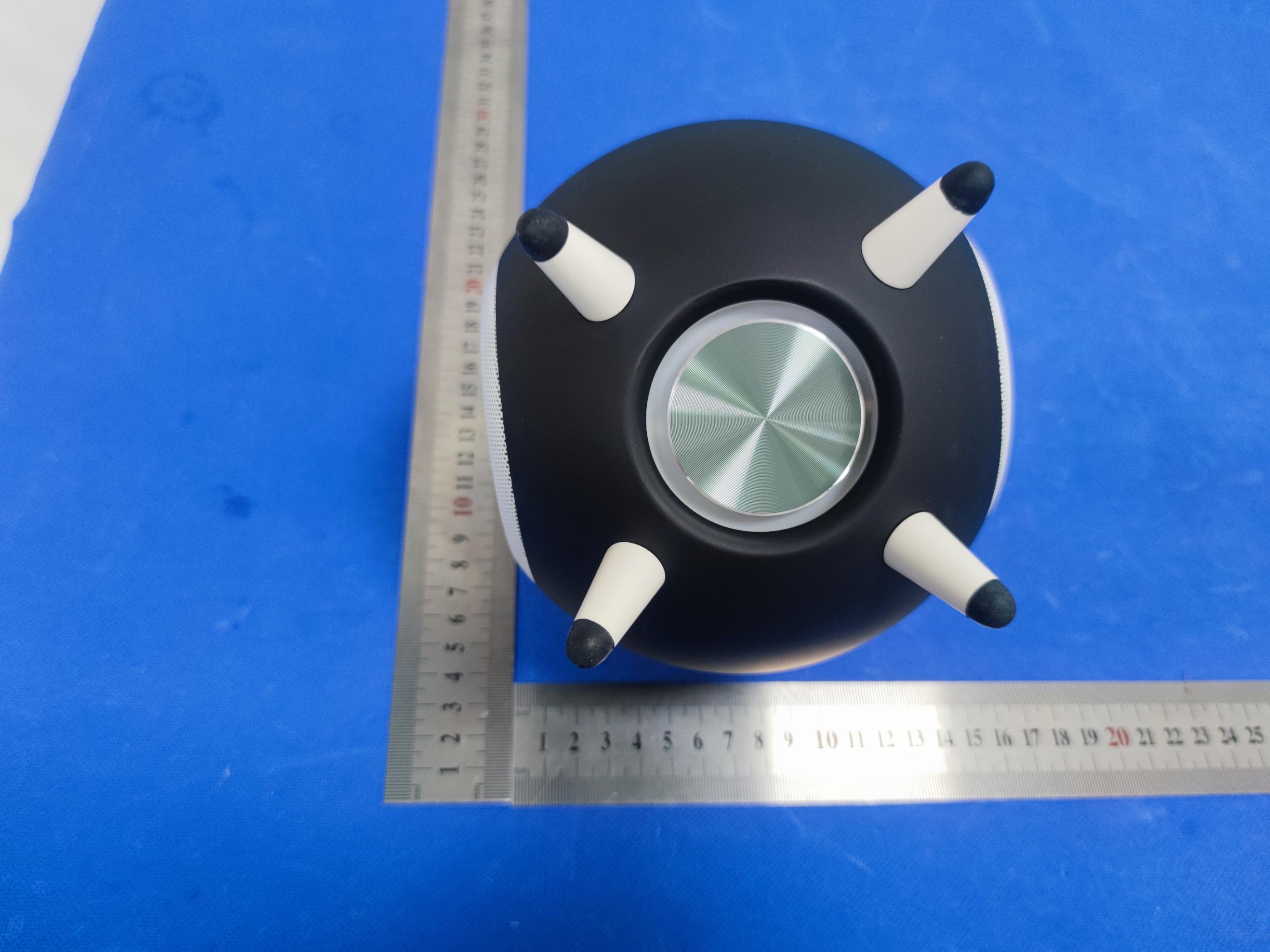

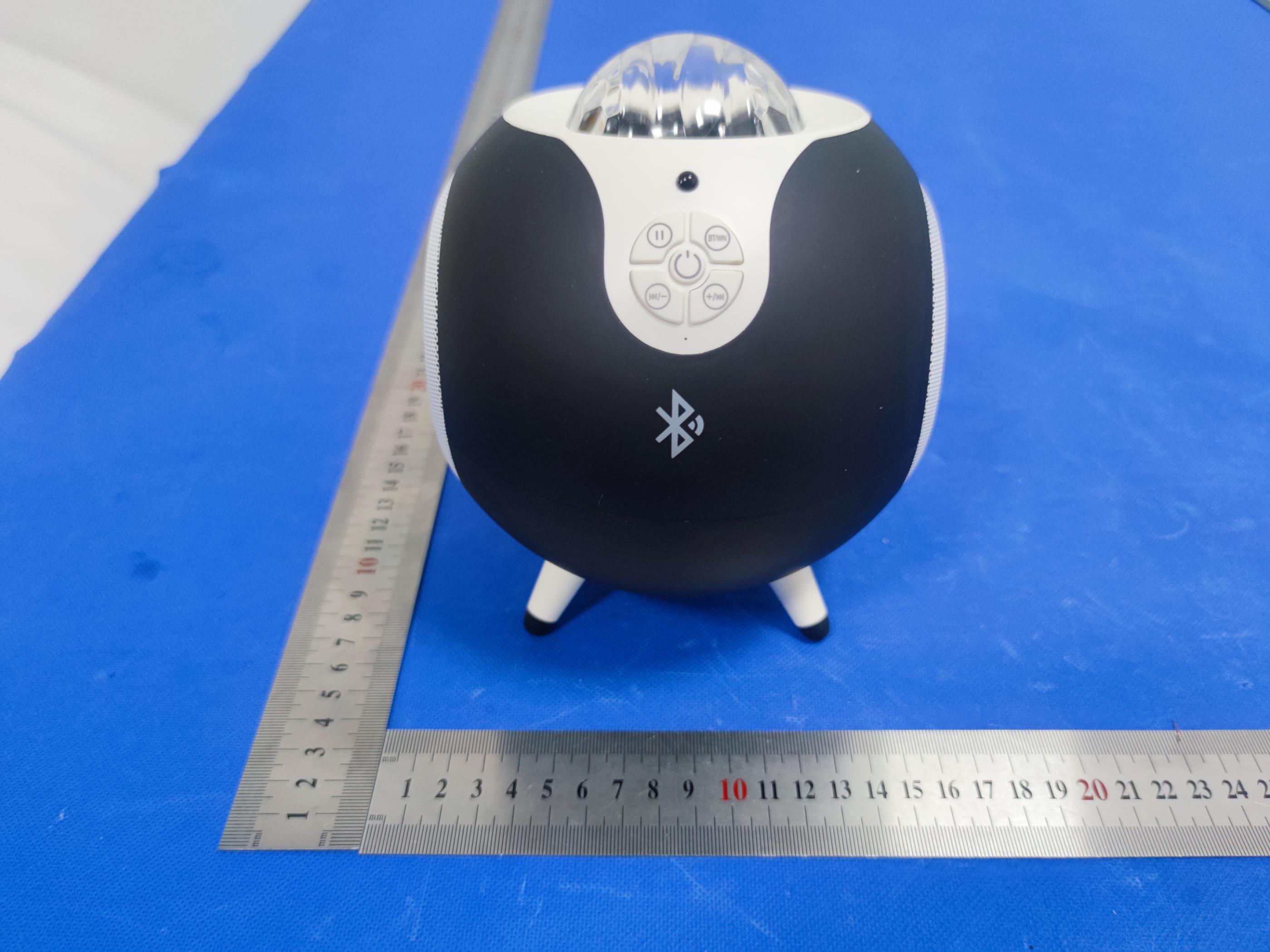

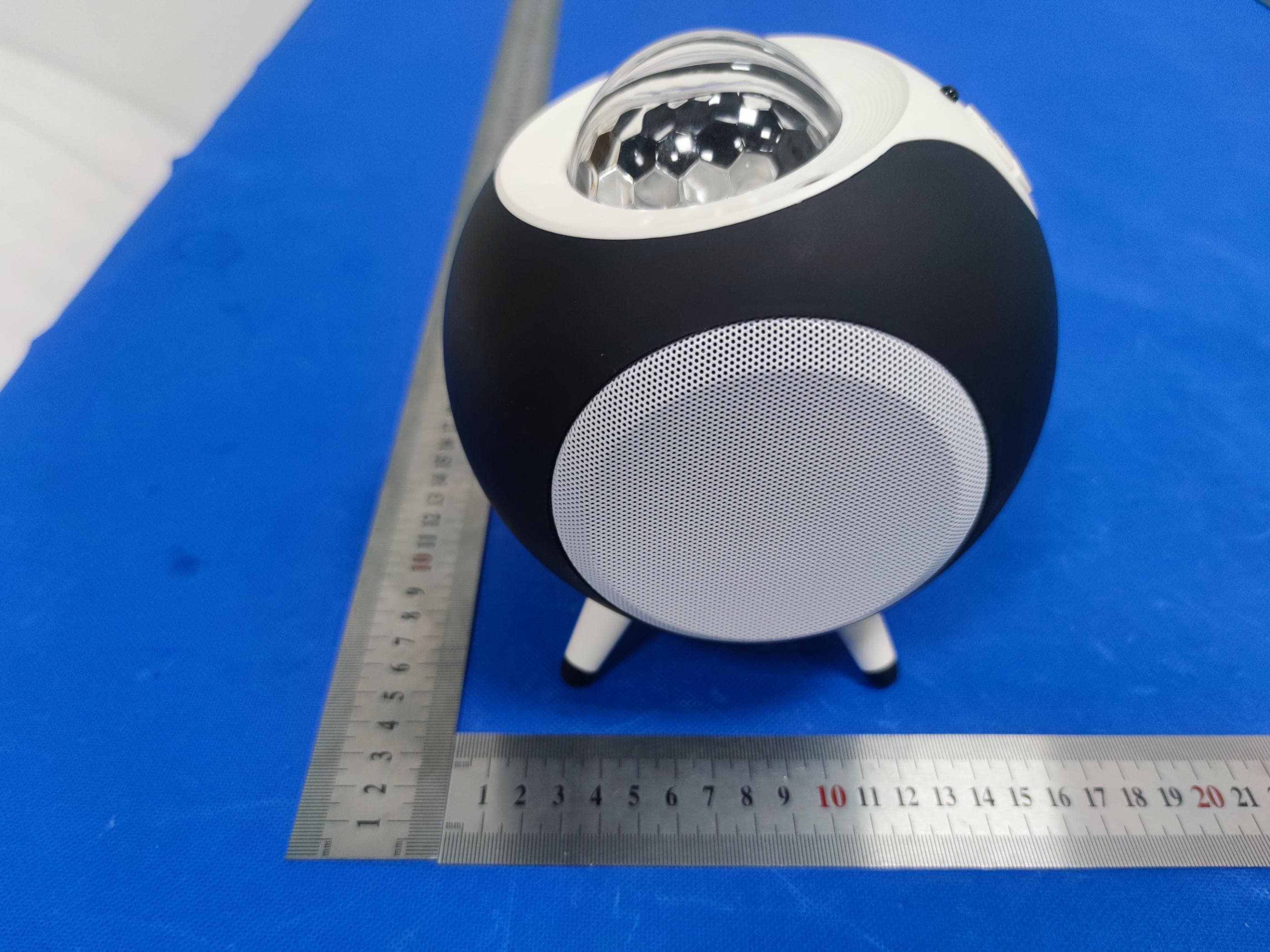

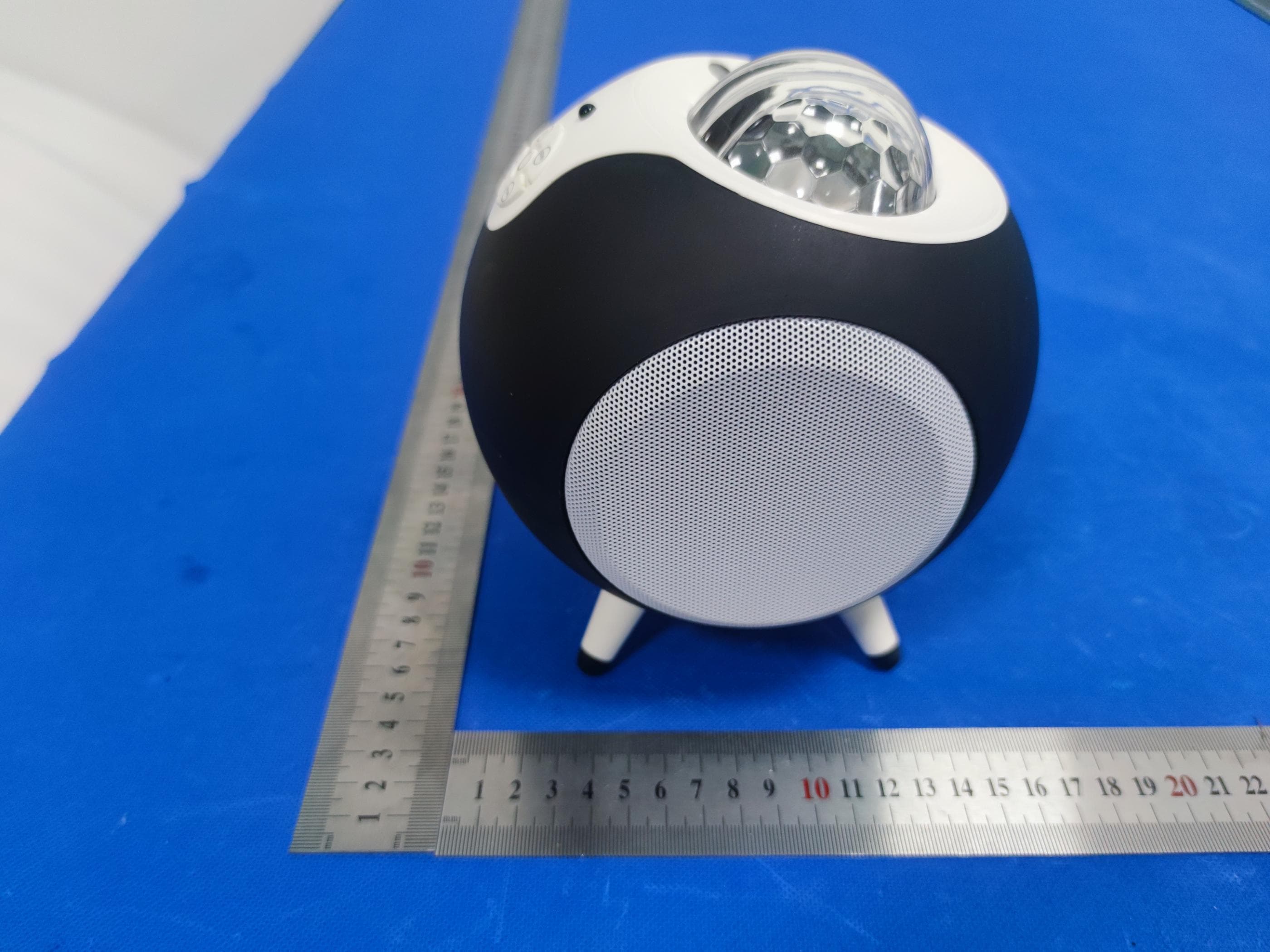

EUTPHOTO(ExternalPhotos)

Labelandlabellocation High:2cm Wide:3cm IntelligentStarLightBluetoothSpeaker FCCID:2AYBP-WGT-N01

EUTPHOTO(InternalPhotos) ANT ※※※※※ENDOFREPORT※※※※※

FCCID:2AYBP-WGT-N01 RFExposureEvaluation AccordingtoWS-1GeneralRFExposureGuidancev06andpart2.1093 ， Unless specificallyrequiredbythepublishedRFexposureKDBprocedures,standalone1-ghead orbodyand10-gextremitySARevaluationforgeneralpopulationexposureconditions,by measurementornumericalsimulation,isnotrequiredwhenthecorrespondingSARTest ExclusionThresholdcondition(s),listedbelow,is(are)satisfied. For100MHzto6GHzandtestseparationdistances≤50mm,the1-gand10-gSARtest exclusionthresholdsaredeterminedbythefollowing: [(max.powerofchannel,includingtune-uptolerance,mW)/(min.testseparationdistance, mm)]·[√f (GHz) ]≤3.0for1-gSAR,and≤7.5for10-gextremitySAR,where f (GHz) istheRFchanneltransmitfrequencyinGHz PoweranddistanceareroundedtothenearestmWandmmbeforecalculation Theresultisroundedtoonedecimalplaceforcomparison Here, ForBT TestMode Max Power(dBm) Max Power(mW) Frequency(MHz) Min. distance(mm) Calc. thresholds limit GFSK 0.5951.15248050.361213.0 π/4-DQPSK 1.3821.37248050.432973.0 8-DPSK 1.8541.53248050.482683.0 SoaSARtestisnotrequired
